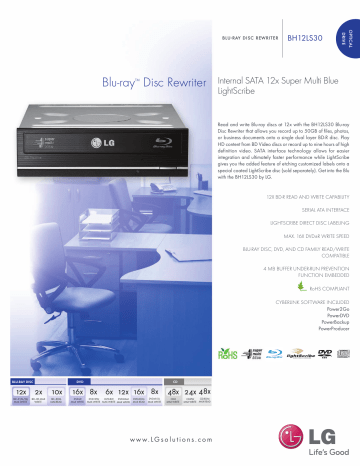

Blu-ray™ Disc Rewriter
Blu-ray™ Disc Rewriter
BH12LS30
optical
drive
blu-ray disc rewriter
Internal SATA 12x Super Multi Blue
LightScribe
BURN DVD, READ BLU
Read and write Blu-ray discs at 12x with the BH12LS30 Blu-ray
Disc Rewriter that allows you record up to 50GB of files, photos,
or business documents onto a single dual layer BD-R disc. Play
HD content from BD Video discs or record up to nine hours of high
definition video. SATA interface technology allows for easier
integration and ultimately faster performance while LightScribe
gives you the added feature of etching customized labels onto a
special coated LightScribe disc (sold separately). Get into the Blu
with the BH12LS30 by LG.
12X BD-R READ AND WRITE CAPABILITY
SERIAL ATA INTERFACE
LIGHTSCRIBE DIRECT DISC LABELING
MAX. 16X DVD±R WRITE SPEED
BLU-RAY DISC, DVD, AND CD FAMILY READ/WRITE
COMPATIBLE
4 MB BUFFER UNDER-RUN PREVENTION
FUNCTION EMBEDDED
RoHS COMPLIANT
CYBERLINK SOFTWARE INCLUDED
Power2Go
PowerDVD
PowerBackup
PowerProducer
BLU-RAY DISC
CD
DVD
12x
2x
BD–R (SL/DL)
MAX WRITE
BD–RE MAX
WRITE
10x
BD–ROM
MAX READ
16x 8x
DVD±R
MAX WRITE
6x 12x 16x 8x
DVD+RW
DVD-RW DVD-RAM
MAX WRITE MAX WRITE MAX WRITE
DVD-ROM
MAX READ
DVD±R DL
MAX WRITE
48x 24x 48x
CD-R
MAX WRITE
CD-ROM
CD-RW
MAX WRITE MAX READ
w w w. LG s o l u t i o n s . c o m
blu-ray disc rewriter
THE SUPER MULTI BLUE ADVANTAGE
Multi Blue Compatibility
LG Super Multi Blue optical drives can read and write four
types of disc formats in one convenient package:
1. DVD+R
2. RW DVD-R
3. RW DVD-RAM
4. Blu-Ray Disc
This gives you the option to choose the media best suited for
each task.
Blu-Ray
Blu-ray Disc is the next generation in optical storage, offering
25GB and 50GB of storage capacity on a disc.
Serial ATA Techonology
Serial ATA is a 1.5Gbps evolutionary replacement for the
Parallel ATA physical storage interface used to connect
storage devices, such as hard disks, DVD and CD rewriters to
the PC motherboard. Serial ATA is scalable, enables design
of smaller PCs, and will allow future enhancements to the
computing platform.
LightScribe Technology
LightScribe gives you the ability to create customized labels
that are etched directly onto a special coated LightScribe disc
(sold separately).
www.LGsolutions.com
specifications
technology
optical
drive
BH12LS30
TECHNICAL SPECIFICATIONS
TYPE
Super Multi Blue Internal SATA 8x Blu-ray Disc Rewriter
TRANSFER RATES–WRITE BD-R (SL)
2x, 4x CLV, 6x, 8x, 10x PCAV, 12x CAV
(DL)
2x, 4x CLV, 6x, 8x PCAV, 12x CAV
BD-R (SL L to H)
2x, 4x CLV, 6x PCAV
BD-RE (SL/DL)
2x CLV/ 2x CLV
2x, 4x CLV, 8x ZCLV, 8x, 12x
DVD-R
PCAV, 16x CAV
DVD-R DL
2x, 4x CLV, 8x PCAV
DVD-RW (SL)
1x, 2x, 4x, 6x CLV
DVD-RAM
2x, 3x CLV, 5x, 12x PCAV
2.4x, 4x CLV, 8x ZCLV, 8x, 12x
DVD+R
PCAV, 16x CAV
2.4x, 4x CLV, 8x PCAV
DVD+R DL
DVD+RW
2.4x, 4x, 6x CLV, 8x ZCLV
CD-R
8x, 16x CLV, 24x, 32x, 40x PCAV,
48x CAV
CD-RW
4x, 10x, 16x CLV, 24x ZCLV
TRANSFER RATES - READ BD-ROM (SL/DL)
10x / 8x CAV
BD-R (SL L to H)
6x CAV
BD-R (SL/DL)
10x / 8x CAV
BD-RE (SL/DL)
8x /6x CAV
BDMV (AACS Compliant Disc) 4.8x CAV
DVD-ROM (SL/DL)
16x / 12x CAV
DVD-R (SL/DL)
16x / 12x CAV
DVD-RW (SL)
12x CAV
DVD+R (SL/DL)
16x / 12x CAV
DVD+RW (SL/DL)
12x CAV
DVD-RAM
2x, 3x CLV, 5x, 12x PCAV
DVD-Video (CSS Compliant Disc)12x / 8x CAV (SL/DL)
CD-R/RW/ROM
48x / 40x / 48x CAV
CD-DA (DAE)
40x CAV
80mm CD
16x CAV
SPECIAL FEATURES LightScribe Disc Labeling
ACCESS TIME
BD-ROM
180 ms typ.
DVD-ROM
160 ms typ.
DVD-RAM
180 ms typ.
CD-ROM
150 ms typ.
SUSTAINED RATE
BD-ROM
359.65 Mbits/s (10x) max.
DVD-ROM
22.16 Mbytes/s (16x) max.
CD-ROM
7,200 kB/s (48x) max.
BURST TRANSFER RATE 1.5Gbps bits/s (10b side)
1.2Gbps bits/s (8b side)
BUFFER SIZE
4 MB Buffer Under-run prevention function embedded
HOST INTERFACE
Serial ATA bus interface (Serial ATA 1.1a)
X3T13 ATA/ATAPI7 / 1532D
INF-8090i Ver.6.1
INCITS xxx T10/1675D Revision 4
COMPLIANCE
RoHS
OPERATING SYSTEMS Windows XP, Windows Vista™, Windows 7
DIMENSIONS (W x H x D) 5.7" x 1.6" x 6.8" (146 x 41.3 x 172mm)
WEIGHT
1.8 Ib (800g)
SOFTWARE
CyberLink Power2Go
CyberLink PowerDVD
CyberLink PowerBackup
CyberLink PowerProducer
LG Electronics U.S.A., Inc.
Business Solutions Division
2000 Millbrook Drive
Lincolnshire, IL 60069
Dimensions and weights are approximate. Design, specifications, and features subject to
change without notice.
Customer Service: 888.865.3026
www.LGsolutions.com/support
© Copyright 2010 LG Electronics USA, Inc. All Rights Reserved. “LG Life’s Good” is a
registered trademark of LG Corp.
Contact your LG Regional Sales Representative:
Hospitality: 800.228.1236
Vertical Markets: 800.897.8788
Channel: 800.897.8871
E-mail: [email protected]
Blu-Ray Disc is a registered trademark of Sony Corporation. Windows and Windows
Vista are either a registered trademark or a trademark of Microsoft Corporation in the
United States and other countries. All other product and brand names are trademarks
or registered trademarks to their respective companies.
SPEC_BH12LS30_091019_PR
Printed in the USA. October 2010
