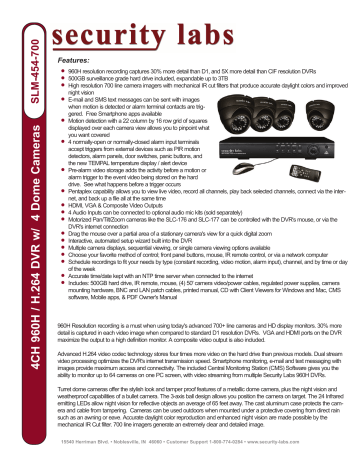

SLM-454-700
4CH 960H / H.264 DVR w/ 4 Dome Cameras
Features:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
960H resolution recording captures 30% more detail than D1, and 5X more detail than CIF resolution DVRs
500GB surveillance grade hard drive included, expandable up to 3TB
High resolution 700 line camera imagers with mechanical IR cut filters that produce accurate daylight colors and improved
night vision
E-mail and SMS text messages can be sent with images
when motion is detected or alarm terminal contacts are triggered. Free Smartphone apps available
Motion detection with a 22 column by 16 row grid of squares
displayed over each camera view allows you to pinpoint what
you want covered
4 normally-open or normally-closed alarm input terminals
accept triggers from external devices such as PIR motion
detectors, alarm panels, door switches, panic buttons, and
the new TEMPAL temperature display / alert device
Pre-alarm video storage adds the activity before a motion or
alarm trigger to the event video being stored on the hard
drive. See what happens before a trigger occurs
Pentaplex capability allows you to view live video, record all channels, play back selected channels, connect via the internet, and back up a file all at the same time
HDMI, VGA & Composite Video Outputs
4 Audio Inputs can be connected to optional audio mic kits (sold separately)
Motorized Pan/Tilt/Zoom cameras like the SLC-176 and SLC-177 can be controlled with the DVR's mouse, or via the
DVR's internet connection
Drag the mouse over a partial area of a stationary camera's view for a quick digital zoom
Interactive, automated setup wizard built into the DVR
Multiple camera displays, sequential viewing, or single camera viewing options available
Choose your favorite method of control; front panel buttons, mouse, IR remote control, or via a network computer
Schedule recordings to fit your needs by type (constant recording, video motion, alarm input), channel, and by time or day
of the week
Accurate time/date kept with an NTP time server when connected to the internet
Includes: 500GB hard drive, IR remote, mouse, (4) 50' camera video/power cables, regulated power supplies, camera
mounting hardware, BNC and LAN patch cables, printed manual, CD with Client Viewers for Windows and Mac, CMS
software, Mobile apps, & PDF Owner's Manual
960H Resolution recording is a must when using today's advanced 700+ line cameras and HD display monitors. 30% more
detail is captured in each video image when compared to standard D1 resolution DVRs. VGA and HDMI ports on the DVR
maximize the output to a high definition monitor. A composite video output is also included.
Advanced H.264 video codec technology stores four times more video on the hard drive than previous models. Dual stream
video processing optimizes the DVR's internet transmission speed. Smartphone monitoring, e-mail and text messaging with
images provide maximum access and connectivity. The included Central Monitoring Station (CMS) Software gives you the
ability to monitor up to 64 cameras on one PC screen, with video streaming from multiple Security Labs 960H DVRs.
Turret dome cameras offer the stylish look and tamper proof features of a metallic dome camera, plus the night vision and
weatherproof capabilities of a bullet camera. The 3-axis ball design allows you position the camera on target. The 24 Infrared
emitting LEDs allow night vision for reflective objects an average of 65 feet away. The cast aluminum case protects the camera and cable from tampering. Cameras can be used outdoors when mounted under a protective covering from direct rain
such as an awning or eave. Accurate daylight color reproduction and enhanced night vision are made possible by the
mechanical IR Cut filter. 700 line imagers generate an extremely clear and detailed image.
15540 Herriman Blvd. • Noblesville, IN 46060 • Customer Support 1-800-774-0284 • www.security-labs.com
4CH 960H / H.264 DVR w/ 4 Dome Cameras
SLM-454-700
SLD257 (4CH), SLD258 (8CH), SLD259 (16CH) Technical Specifications:
Back panel view of
the 4CH 960H DVR
15540 Herriman Blvd. • Noblesville, IN 46060 • Customer Support 1-800-774-0284 • www.security-labs.com
