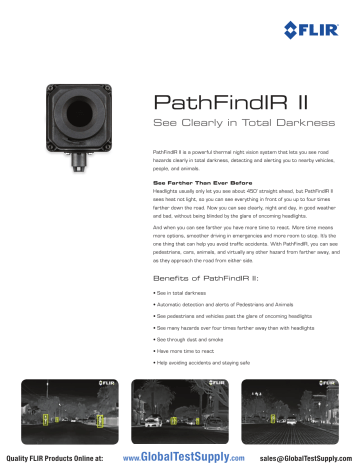

PathFindIR II
See Clearly in Total Darkness
PathFindIR II is a powerful thermal night vision system that lets you see road
hazards clearly in total darkness, detecting and alerting you to nearby vehicles,
people, and animals.
See Farther Than Ever Before
Headlights usually only let you see about 450’ straight ahead, but PathFindIR II
sees heat not light, so you can see everything in front of you up to four times
farther down the road. Now you can see clearly, night and day, in good weather
and bad, without being blinded by the glare of oncoming headlights.
And when you can see farther you have more time to react. More time means
more options, smoother driving in emergencies and more room to stop. It’s the
one thing that can help you avoid traffic accidents. With PathFindIR, you can see
pedestrians, cars, animals, and virtually any other hazard from farther away, and
as they approach the road from either side.
Benefits of PathFindIR II:
• See in total darkness
• Automatic detection and alerts of Pedestrians and Animals
• See pedestrians and vehicles past the glare of oncoming headlights
• See many hazards over four times farther away than with headlights
• See through dust and smoke
• Have more time to react
• Help avoiding accidents and staying safe
Quality FLIR Products Online at:
www.
GlobalTestSupply.com
[email protected]
Specifications
PathFindIR II
KEY PERFORMANCE
CHARACTERISTICS
Thermal Imager
Sensor Type
320 x 240 Uncooled Microbolometer
Field-of-View
24° (h) x 18° (v)
Spectral Band
8-14 microns (LWIR)
Outputs
NTSC
Power
Power Requirements
12 VDC
Power Consumption
2 W (6 W w/heater on) 1.8 A max. system current
Environmental
Operating Temperature
-40°C to 80°C
Weather Resistance (Camera)
Hermetically Sealed, Automotive Qualified
Weather Resistance (ECU)
Non-Hermetic; Passenger Compartment mount required
Window
High-Impact Resistant Optic w/ Built-in
Automatic Heating Element
Replaceable Window
Physical
Camera Dimensions
2.6” × 3.4” × 3.2” (60 × 86 × 82 mm )
Camera Weight
0.6 lb (300 g)
ECU Dimensions
5.8” × 4.3” × 0.9” (148 × 110 × 24 mm )
ECU Weight
0.7 lb (350 g)
COMPACT, EASY
TO INSTALL
ADDITIONAL
OPTIONS
PathFindIR II is compact and installs easily
into almost any vehicle. All you need is a
display with an auxiliary NTSC video input.
An optional Installation Kit is also available, which
includes mounting brackets and a compatible monitor.
SANTA BARBARA
FLIR Systems Inc
70 Castilian Drive
Goleta, CA 93117
PH:+1 805.964.9797
FAX: +1 805.685.2711
PORTLAND
Equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Specifications are subject
to change without notice. For the most up-to-date specs, visit our website: www.flir.com. ©2014 FLIR Systems, Inc. All other brand and product names are
trademarks of FLIR Systems, Incorporated. 022814
Quality FLIR Products Online at:
www.
GlobalTestSupply.com
Corporate Headquarters
FLIR Systems, Inc.
27700 SW Parkway Ave.
Wilsonville, OR 97070
PH: +1 866.477.3687
FAX: +1.503.498.3153
www.flir.com/cvs
[email protected]
