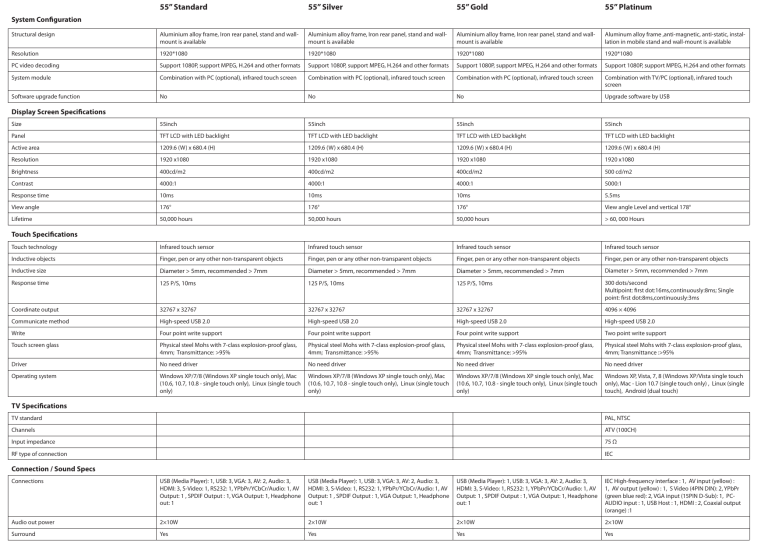

55” Standard 55” Silver 55” Gold 55” Platinum

55” Standard 55” Silver 55” Gold 55” Platinum
55” Standard
55” Silver
55” Gold
55” Platinum
Structural design
Aluminium alloy frame, Iron rear panel, stand and wallmount is available
Aluminium alloy frame, Iron rear panel, stand and wallmount is available
Aluminium alloy frame, Iron rear panel, stand and wallmount is available
Aluminum alloy frame ,anti-magnetic, anti-static, installation in mobile stand and wall-mount is available
Resolution
1920*1080
1920*1080
1920*1080
1920*1080
PC video decoding
Support 1080P, support MPEG, H.264 and other formats
Support 1080P, support MPEG, H.264 and other formats
Support 1080P, support MPEG, H.264 and other formats
Support 1080P, support MPEG, H.264 and other formats
System module
Combination with PC (optional), infrared touch screen
Combination with PC (optional), infrared touch screen
Combination with PC (optional), infrared touch screen
Combination with TV/PC (optional), infrared touch
screen
Software upgrade function
No
No
No
Upgrade software by USB
Size
55inch
55inch
55inch
55inch
Panel
TFT LCD with LED backlight
TFT LCD with LED backlight
TFT LCD with LED backlight
TFT LCD with LED backlight
Active area
1209.6 (W) x 680.4 (H)
1209.6 (W) x 680.4 (H)
1209.6 (W) x 680.4 (H)
1209.6 (W) x 680.4 (H)
Resolution
1920 x1080
1920 x1080
1920 x1080
1920 x1080
Brightness
400cd/m2
400cd/m2
400cd/m2
500 cd/m2
Contrast
4000:1
4000:1
4000:1
5000:1
Response time
10ms
10ms
10ms
5.5ms
View angle
176°
176°
176°
View angle Level and vertical 178°
Lifetime
50,000 hours
50,000 hours
50,000 hours
> 60, 000 Hours
Touch technology
Infrared touch sensor
Infrared touch sensor
Infrared touch sensor
Infrared touch sensor
Inductive objects
Finger, pen or any other non-transparent objects
Finger, pen or any other non-transparent objects
Finger, pen or any other non-transparent objects
Finger, pen or any other non-transparent objects
Inductive size
Diameter > 5mm, recommended > 7mm
Diameter > 5mm, recommended > 7mm
Diameter > 5mm, recommended > 7mm
Diameter > 5mm, recommended > 7mm
Response time
125 P/S, 10ms
125 P/S, 10ms
125 P/S, 10ms
300 dots/second
Multipoint: first dot:16ms,continuously:8ms; Single
point: first dot:8ms,continuously:3ms
Coordinate output
32767 x 32767
32767 x 32767
32767 x 32767
4096 × 4096
Communicate method
High-speed USB 2.0
High-speed USB 2.0
High-speed USB 2.0
High-speed USB 2.0
Write
Four point write support
Four point write support
Four point write support
Two point write support
Touch screen glass
Physical steel Mohs with 7-class explosion-proof glass,
4mm; Transmittance: >95%
Physical steel Mohs with 7-class explosion-proof glass,
4mm; Transmittance: >95%
Physical steel Mohs with 7-class explosion-proof glass,
4mm; Transmittance: >95%
Physical steel Mohs with 7-class explosion-proof glass,
4mm; Transmittance :>95%
Driver
No need driver
No need driver
No need driver
No need driver
Operating system
Windows XP/7/8 (Windows XP single touch only), Mac
(10.6, 10.7, 10.8 - single touch only), Linux (single touch
only)
Windows XP/7/8 (Windows XP single touch only), Mac
(10.6, 10.7, 10.8 - single touch only), Linux (single touch
only)
Windows XP/7/8 (Windows XP single touch only), Mac
(10.6, 10.7, 10.8 - single touch only), Linux (single touch
only)
Windows XP, Vista, 7, 8 (Windows XP/Vista single touch
only), Mac - Lion 10.7 (single touch only) , Linux (single
touch), Android (dual touch)
System Configuration
Display Screen Specifications
Touch Specifications
TV Specifications
TV standard
PAL, NTSC
Channels
ATV (100CH)
Input impedance
75 Ω
RF type of connection
IEC
Connection / Sound Specs
Connections
USB (Media Player): 1, USB: 3, VGA: 3, AV: 2, Audio: 3,
HDMI: 3, S-Video: 1, RS232: 1, YPbPr/YCbCr/Audio: 1, AV
Output: 1 , SPDIF Output : 1, VGA Output: 1, Headphone
out: 1
USB (Media Player): 1, USB: 3, VGA: 3, AV: 2, Audio: 3,
HDMI: 3, S-Video: 1, RS232: 1, YPbPr/YCbCr/Audio: 1, AV
Output: 1 , SPDIF Output : 1, VGA Output: 1, Headphone
out: 1
USB (Media Player): 1, USB: 3, VGA: 3, AV: 2, Audio: 3,
HDMI: 3, S-Video: 1, RS232: 1, YPbPr/YCbCr/Audio: 1, AV
Output: 1 , SPDIF Output : 1, VGA Output: 1, Headphone
out: 1
IEC High-frequency interface : 1, AV input (yellow) :
1, AV output (yellow) : 1, S Video (4PIN DIN): 2, YPbPr
(green blue red): 2, VGA input (15PIN D-Sub): 1, PCAUDIO input : 1, USB Host : 1, HDMI : 2, Coaxial output
(orange) :1
Audio out power
2×10W
2×10W
2×10W
2×10W
Surround
Yes
Yes
Yes
Yes
55” Standard
55” Silver
55” Gold
55” Platinum
Input power
110 V ~ 240V AC 50/60HZ
110 V ~ 240V AC 50/60HZ
110 V ~ 240V AC 50/60HZ
110 V ~ 240V AC 50/60HZ
Output power
<150W
<150W
<150W
Rated 346W, Maximum 415W
Rated 346W,Maximum 415W
< 0.5W
< 0.5W
< 0.5W
<1W
AC Power cable
1.8 m
1.8 m
1.8 m
5m
Manual
1
1
1
1
Smart pen
Stylus: 3
Stylus: 3
Stylus: 3
2
Remote control
1
1
1
1
Battery
2
2
2
2
VGA cable
3m
3m
3m
1.5 m
USB cable(Female-male)
1
1
1
1
CD
1
1
1
1
Warranty Card
1
1
1
1
Product size (mm)
1301.98 x 771.92 x 97.4
1301.98 x 771.92 x 97.4
1301.98 x 771.92 x 97.4
1334.6 × 805.4 × 139.8
Packing size (mm)
1460 x 920 x 280
1460 x 920 x 280
1460 x 920 x 280
1425 x 950 x 250
60
61.22
61.22
52
CPU
Intel Sandy Bridge 2nd generation
Core i3 2310m 2.1GHz
Intel Sandy Bridge 2nd generation
Core i5 2520m 2.1GHz
Intel Sandy Bridge 2nd generation Core i7 3770 Ivy
bridge 3.4Ghz Quad-Core eight threads
Chipset
Intel HM65 chipset
Intel HM65 chipset
Intel H61 chipset
Memory
SO - DIMM DRR III 2G x 1, 1333 MHz Support Dial
Channel
SO - DIMM DRR III 2G x 1, 1333 MHz Support Dial
Channel
DRR III 1333 4G
Hard Disk Drive
2.5” 320G x 1
2.5” 320G x 1
2.5” 500G x 1
Graphics
Integrated in Intel Core i Processors
Integrated in Intel Core i Processors
Integrated in Intel Core i Processors
HDD
Realtek ALC662 HD CODEC on-Board Audio 5.1
Channel
Realtek ALC662 HD CODEC on-Board Audio 5.1
Channel
Realtek ALC662 HD CODEC on-Board Audio 5.1 Channel
Expansion Slot
mini Card Slot*2 (Full size*1, Half size*1)
mini Card Slot*2 (Full size*1, Half size*1)
mini Card Slot*1 (half size*1)
LAN
IC LAN WG82579LM SLHA6 QFN48
IC LAN WG82579LM SLHA6 QFN48
10/100/1000 Mbps Ethernet
WatchDog Timer
1~255 SEC ./min
1~255 SEC ./min
1~255 SEC ./min
IO
REAR - DVI*1(HDMI+VGA), Display Port *1, USB 3.0*2,
RJ45 LAN*1, RS232*1, DC 20v Input*1, 5.1 channel
Audio (line- out*1, MIC-in*1)
FRONT - Power Button *1, HDD/Power
indicator(blue)*1, USB 2.0 Port*2
REAR - DVI*1(HDMI+VGA), Display Port *1, USB 3.0*2,
RJ45 LAN*1, RS232*1, DC 20v Input*1, 5.1 channel
Audio (line- out*1, MIC-in*1)
FRONT - Power Button *1, HDD/Power
indicator(blue)*1, USB 2.0 Port*2
DVI*1, HDMI*1, VGA*1, USB 3.0*6, RJ45 LAN*1, RS232*1
(Need to be extended), 5.1 channel Audio (line- out*1,
MIC-in*1)
Adapter
90W(20V, 4.5A) AC Adapter
90W(20V, 4.5A) AC Adapter
1U ATX Power Supply 150W rated
Input Voltage
AC 100 ~ 240V
AC 100 ~ 240V
AC 100 ~ 240V
Anti- theft Lock
Kensington *1
Kensington *1
No
Certification
CE/FCC/UL/CB/ROSH/CCC
CE/FCC/UL/CB/ROSH/CCC
CE/FCC/ROSH/CCC
Dimension
166(W) *48(H)*157(D)mm
166(W) *48(H)*157(D)mm
249.3*179.4*47.6mm
Weight
1.22kg
1.22kg
3kgs
Operating Temperature
0~50oC
0~50oC
0~40oC
Power Specifications
Accessories
Size / Weight
NW(Kg)
GW(kg)
44
Built-in PC
