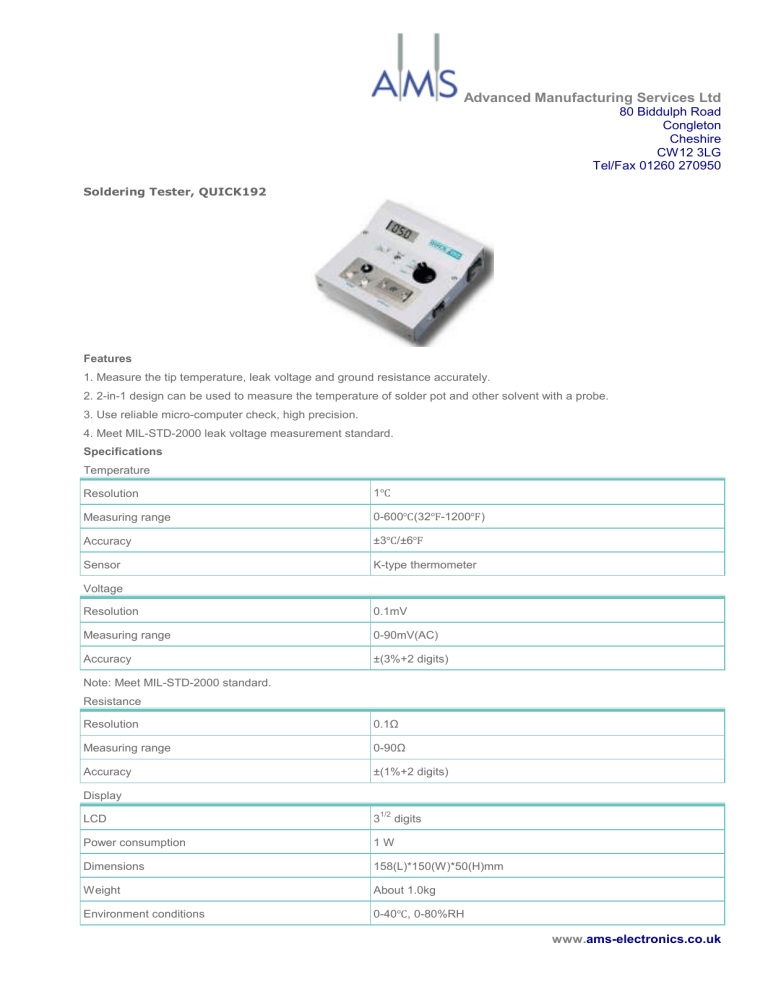

Quick 192 Temperature Calibration Unit

Quick 192 Temperature Calibration Unit
Advanced Manufacturing Services Ltd
80 Biddulph Road
Congleton
Cheshire
CW12 3LG
Tel/Fax 01260 270950
Soldering Tester, QUICK192
Features
1. Measure the tip temperature, leak voltage and ground resistance accurately.
2. 2-in-1 design can be used to measure the temperature of solder pot and other solvent with a probe.
3. Use reliable micro-computer check, high precision.
4. Meet MIL-STD-2000 leak voltage measurement standard.
Specifications
Temperature
Resolution
1℃
Measuring range
0-600℃(32℉-1200℉)
Accuracy
±3℃/±6℉
Sensor
K-type thermometer
Voltage
Resolution
0.1mV
Measuring range
0-90mV(AC)
Accuracy
±(3%+2 digits)
Note: Meet MIL-STD-2000 standard.
Resistance
Resolution
0.1Ω
Measuring range
0-90Ω
Accuracy
±(1%+2 digits)
Display
1/2
LCD
3
digits
Power consumption
1W
Dimensions
158(L)*150(W)*50(H)mm
Weight
About 1.0kg
Environment conditions
0-40℃, 0-80%RH
www.ams-electronics.co.uk
