User manual | Technical Datasheet nova TS2, TS4, and TS8

nova TS2, TS4, TS8
Push button sensor
Order-no.: 211 608

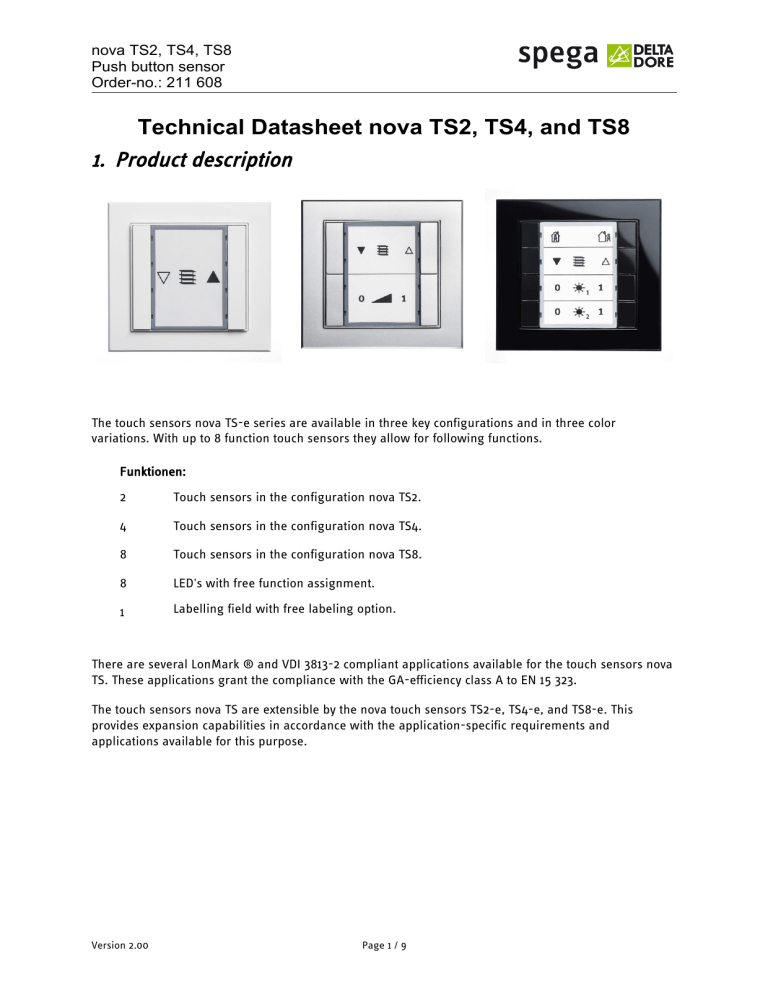

Technical Datasheet nova TS2, TS4, and TS8
1. Product description
The touch sensors nova TS-e series are available in three key configurations and in three color
variations. With up to 8 function touch sensors they allow for following functions.
Funktionen:
2
Touch sensors in the configuration nova TS2.
4
Touch sensors in the configuration nova TS4.
8
Touch sensors in the configuration nova TS8.
8
LED's with free function assignment.
1
Labelling field with free labeling option.
There are several LonMark ® and VDI 3813-2 compliant applications available for the touch sensors nova
TS. These applications grant the compliance with the GA-efficiency class A to EN 15 323.
The touch sensors nova TS are extensible by the nova touch sensors TS2-e, TS4-e, and TS8-e. This
provides expansion capabilities in accordance with the application-specific requirements and
applications available for this purpose.
Version 2.00
Page 1 / 9
nova TS2, TS4, TS8
Push button sensor
Order-no.: 211 608
2. Mounting and installation
2.1. Mounting
1.
2.
3.
4.
The device is designed for flush- / cavity- wall box mount.
The bus cable is connected via spring-loaded terminals.
The actuator part interface will be connected via screw terminals.
The screw terminals can be removed from actuator part.
The device is designed for safety extra low voltage (SELV).
Installation and assembly of electrical equipment must be carried out only by
qualified electricians!
Please observe local standards, guidelines and regulations when planning and
installing electrical devices.
Operate the device only within its specifications.
The device is build up of a network connector and an actuator part. The network connector is inserted
into the flush- / cavity- wall box, whereas the actuator part is mounted on the flush- / cavitywall box by a support ring. For mounting the actuator part has to be disconnected from the
support ring.
Disconnection actuator part/ support ring
To disconnect the actuator part from the support ring the label holder has to be removed
first.
Disengage the label holder with a
screwdriver with a blade width of 2.5mm
at these points.
Version 2.00
Page 2 / 9
nova TS2, TS4, TS8
Push button sensor
Order-no.: 211 608
Now the screws to secure the support ring is visible. When the supporting ring is screwed,
the support ring is to be released from actuator part.
Unscrew here the support ring with a
Phillips screwdriver.
Mount support ring to flush- / cavity- wall box
The support ring has to be mounted to the flush- / cavity- wall box with the marking „top
↑“ visible.
Pay attention to the „top ↑„ marking.
Fasten the support ring with the flush- /
cavity- wall boxes screws.
Mount actuator part and nova frame
Attach „nova“ frame and the actuator part (the rear connector of the actuator part has to
bee at the top) to the support ring. Fasten both parts with the two Phillips screws on the
support ring.
Version 2.00
Page 3 / 9
nova TS2, TS4, TS8
Push button sensor
Order-no.: 211 608
To fasten the actuator part with these
screws to the support ring, please use a
Phillips screwdriver.
Mount label holder on actuator part
Attach the label holder onto the actuator part. Then press the lower and upper edge of
the label holder with your thumbs until the holder locks with a click.
Press the lower and upper edge of the
label holder with your thumbs until the
holder locks with a click.
Label sheet change
First, remove the label holder from the actuator part.
Version 2.00
Page 4 / 9
nova TS2, TS4, TS8
Push button sensor
Order-no.: 211 608
Disengage the label holder with a
screwdriver with a blade width of 2.5mm
at these points.
The white diffusing screen of the label holder must now be removed, so the label sheet
can be changed.
At this point, put a screwdriver with a
blade width of 2.0 mm behind the white
diffusing screen and unlock it.
The label sheet can be changed now.
The assembly of the label holder is now in the reverse order.
First, the label holder is assembled by inserting the label sheet into the transparent lid of
the label holder. Then the white diffusing screen is latched to the lid.
Version 2.00
Page 5 / 9
nova TS2, TS4, TS8
Push button sensor
Order-no.: 211 608
nsert the label sheet into the transparent
lid of the label holder.
Snap the diffusing screen with light
pressure from behind.
transparent lid
label sheet
diffusing screen
Put the label holder with the new label on the actuator part, then press top and bottom
edge of the holder with your thumbs until the label holder snaps in with an audible click.
Press the lower and upper edge of the
label holder with your thumbs until the
holder locks with a click.
Version 2.00
Page 6 / 9
nova TS2, TS4, TS8
Push button sensor
Order-no.: 211 608
2.2. Installation
B
A
The connection of the bus line and the power
supply is on the terminal block A. Via the
terminal block B, the individual nova TS and
nova TS-E modules are connected.
It is possible the connection of 2 modules on
the terminal block B.
About the terminals the modules are
connected to the terminal block B. Overall, can
be bound to a LON node 8 nova TS-modules.
The assignment of the modules is done by
means of the DIP switch on each device and
the corresponding assignment in the plug-in.
Version 2.00
Page 7 / 9
nova TS2, TS4, TS8
Push button sensor
Order-no.: 211 608
3. Technical data
Power supply
Operating voltage
Current consumption (full load)
Power dissipation (max.)
Connections
Network / Power supply
Actuator interface
24V DC, (21V DC- 28V DC)
typ. 30mA (0,7W)
0,7W
4-pin plug-in terminal connection for Ø 0,6 - 1,0mm (sol.), four bus
lines can be connected to each pin
4-pin fixed/pluggable terminal block for wire sizes:
Solid
0,25mm² – 1,5mm²
Stranded
0,25mm² – 1,5mm²
Stranded with ferrule
0,25mm² – 1,0mm²
Display elements
LED display
8 status LED's (configurable)
Control elements
Switches
nova TS2: 2 pushbuttons
nova TS4: 4 pushbuttons
nova TS8: 8 pushbuttons
Labeling elements
Labeling area
23 x 54mm (0,9” x 2,1”) (project specific labeling)
Housing
Protection
Dimensions
Type/location of installation
IP 20 (DIN 40050 / IEC 144)
83 x 83 x 15 (H x W x D)
Mounting on a hollow-wall/flush-type socket
Ambient conditions
Operating temperature
Storage temperature
Transport temperature
Relative Humidity
Altitude
+10°C ... +50°C
-10°C ... +50°C
-10°C ... +50°C
5% ... 93% (without dewing)
up to 2000m (6500ft) over see level
Safety
Electrical isolation
SELV (EN 60 950)
safety class
III (IEC 536 / VDE 106 Teil1)
Standards
Device safety
Immunity
Certification
EN 50 090-2-2
EN 50 090-2-2
CE
Version 2.00
Page 8 / 9
nova TS2, TS4, TS8
Push button sensor
Order-no.: 211 608
4. Products
4.1. Order information
Order number
211 602 W
211 602 A
211 602 B
211 604 W
211 604 A
211 604 B
211 608 W
211 608 A
211 608 B
Description
nova TS2, pure white
nova TS2, aluminium
nova TS2, anthracite
nova TS4, pure white
nova TS4, aluminium
nova TS4, anthracite
nova TS8, pure white
nova TS8, aluminium
nova TS8, anthracite
5. Support
The information given in this manual has been carefully collated. Should you have any further questions
relating to this product, please contact:
spega - Spelsberg Gebäudeautomation GmbH
Zechenstr. 70
47443 Moers
Germany
Fon:
+49 (2841) 88049-70
Fax:
+49 (2841) 88049-49
Email: [email protected]
