# SPATIAL FILTERING OF NEAR-FIELD RADIO FREQUENCY

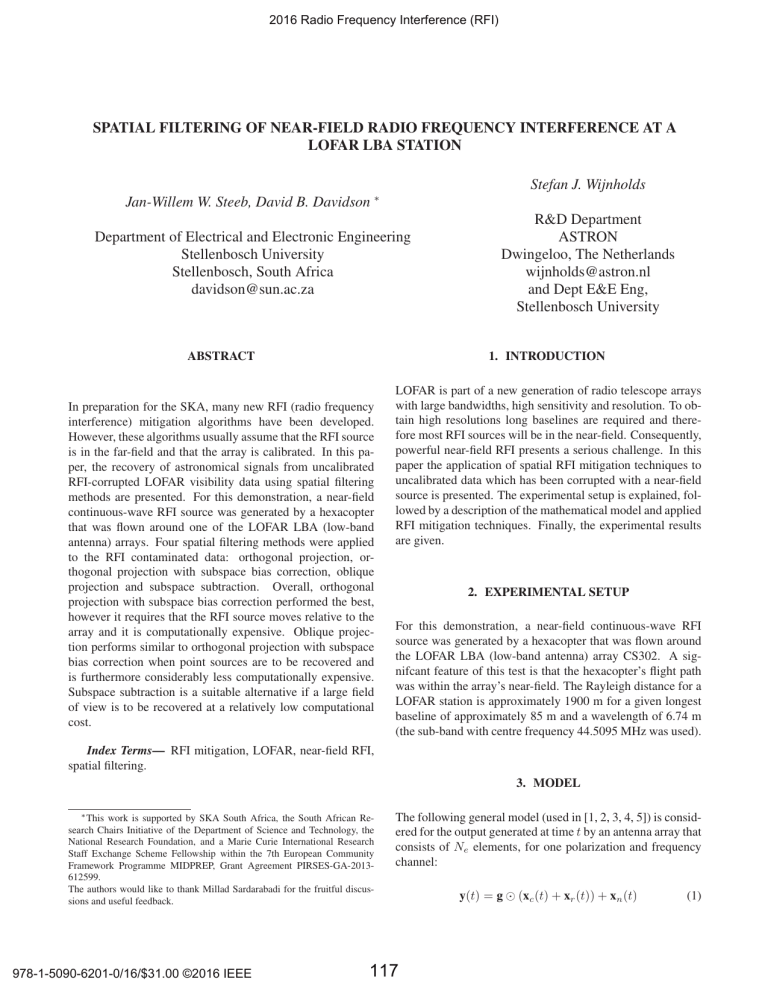

2016 Radio Frequency Interference (RFI) SPATIAL FILTERING OF NEAR-FIELD RADIO FREQUENCY INTERFERENCE AT A LOFAR LBA STATION Jan-Willem W. Steeb, David B. Davidson Stefan J. Wijnholds ∗ Department of Electrical and Electronic Engineering Stellenbosch University Stellenbosch, South Africa [email protected] ABSTRACT R&D Department ASTRON Dwingeloo, The Netherlands [email protected] and Dept E&E Eng, Stellenbosch University 1. INTRODUCTION In preparation for the SKA, many new RFI (radio frequency interference) mitigation algorithms have been developed. However, these algorithms usually assume that the RFI source is in the far-ﬁeld and that the array is calibrated. In this paper, the recovery of astronomical signals from uncalibrated RFI-corrupted LOFAR visibility data using spatial ﬁltering methods are presented. For this demonstration, a near-ﬁeld continuous-wave RFI source was generated by a hexacopter that was ﬂown around one of the LOFAR LBA (low-band antenna) arrays. Four spatial ﬁltering methods were applied to the RFI contaminated data: orthogonal projection, orthogonal projection with subspace bias correction, oblique projection and subspace subtraction. Overall, orthogonal projection with subspace bias correction performed the best, however it requires that the RFI source moves relative to the array and it is computationally expensive. Oblique projection performs similar to orthogonal projection with subspace bias correction when point sources are to be recovered and is furthermore considerably less computationally expensive. Subspace subtraction is a suitable alternative if a large ﬁeld of view is to be recovered at a relatively low computational cost. LOFAR is part of a new generation of radio telescope arrays with large bandwidths, high sensitivity and resolution. To obtain high resolutions long baselines are required and therefore most RFI sources will be in the near-ﬁeld. Consequently, powerful near-ﬁeld RFI presents a serious challenge. In this paper the application of spatial RFI mitigation techniques to uncalibrated data which has been corrupted with a near-ﬁeld source is presented. The experimental setup is explained, followed by a description of the mathematical model and applied RFI mitigation techniques. Finally, the experimental results are given. 2. EXPERIMENTAL SETUP For this demonstration, a near-ﬁeld continuous-wave RFI source was generated by a hexacopter that was ﬂown around the LOFAR LBA (low-band antenna) array CS302. A signifcant feature of this test is that the hexacopter’s ﬂight path was within the array’s near-ﬁeld. The Rayleigh distance for a LOFAR station is approximately 1900 m for a given longest baseline of approximately 85 m and a wavelength of 6.74 m (the sub-band with centre frequency 44.5095 MHz was used). Index Terms— RFI mitigation, LOFAR, near-ﬁeld RFI, spatial ﬁltering. 3. MODEL ∗ This work is supported by SKA South Africa, the South African Research Chairs Initiative of the Department of Science and Technology, the National Research Foundation, and a Marie Curie International Research Staff Exchange Scheme Fellowship within the 7th European Community Framework Programme MIDPREP, Grant Agreement PIRSES-GA-2013612599. The authors would like to thank Millad Sardarabadi for the fruitful discussions and useful feedback. 978-1-5090-6201-0/16/$31.00 ©2016 IEEE The following general model (used in [1, 2, 3, 4, 5]) is considered for the output generated at time t by an antenna array that consists of Ne elements, for one polarization and frequency channel: 117 y(t) = g (xc (t) + xr (t)) + xn (t) (1) 2016 Radio Frequency Interference (RFI) where y(t) g xc (t) is an Ne × 1 vector of measured array output signals, is the vector of complex gains for each antenna, Hadamard product, is the vector where each element is the sum of Nc delayed cosmic signals for a given antenna, xr (t) is the vector where each element is the sum of Nr delayed RFI signals for a given antenna, xn (t) is the vector of instrumental noise for each antenna. The gains g are unknown, since the array is assumed to be uncalibrated. The frequency channel is assumed to be sufﬁciently narrowband, so that the time delays τ can be represented as phase delays. Therefore, a delayed signal can be approximated by s(t − τ ) ≈ s(t)e−i2πν0 τ , where ν0 is the centre frequency of the channel. This condition is satisﬁed for the array, if 2πΔντmax 1, where Δν is the signal’s bandwidth and τmax is the delay given by the longest baseline (greatest distance between any two antennas) [6]. The phase delays for the k th RFI source can be stacked into a vector that is called the geometric delay vector ⎡ −i2πν0 τ1r ⎤ k e ⎥ ⎢ . .. ark = ⎣ (2) ⎦. e −i2πν0 τN and the same applies to Br and Rn if the RFI and noise signals are, respectively, uncorrelated. Since the signals are spatially and temporally stationary, the covariance matrix is estimated by Nt = 1 y(iTs )yH (iTs ), R Nt i=1 where R is the estimated covariance matrix, Nt is the number of samples for which the signals are stationary, Ts is the sample time. The covariance matrix has the following useful properties: R is Hermitian and is positive semi-deﬁnite [8, p. 558]. 4. SPATIAL RFI MITIGATION 4.1. Orthogonal Projection If the columns of Ar are linearly independent, they form a basis for a vector space Vr . Therefore, an orthogonal projector can be constructed [8, p. 430] which projects along Vr onto a vector space orthogonal to Vr , namely e rk An Ne × Nr matrix can now be constructed from the geometric delay vectors, Ar = [ar1 . . . arNr ]T (the same applies for the cosmic signals, Ac = [ac1 . . . acNc ]T ), and therefore the model in equation 1 can be written as y(t) = g (Ac sc (t) + Ar sr (t)) + xn (t), R = E{y(t)yH (t)}, (4) where E is the expectation, H is the Hermitian transpose or complex conjugate transpose and it is assumed that for a given time period none of the signals change position. Therefore, the covariance is constant over this time period as long as the signals are themselves stationary. Independence between the cosmic, RFI and noise sources is assumed, therefore, when substituting equation 3 into equation 4 the expectation of any non-self multiplication terms is zero and consequently the substitution yields R = G(Rc + Rr )GH + Rn H H = G(Ac Bc AH c + Ar Br Ar )G + Rn , (5) H where Bc = E{sc (t)sH c (t)}, Br = E{sr (t)sr (t)}, Rn = H E{xn (t)xn (t)} and G is the diagonal matrix of g. The matrices Bc will be diagonal if the cosmic signals are uncorrelated 978-1-5090-6201-0/16/$31.00 ©2016 IEEE −1 H Ar , P = I − Ar (AH r Ar ) (7) such that PAr = 0. The projector is Hermitian and therefore P = PH [8, p. 433]. Applying the projector to equation 5 yields (assuming G = I) PRP =PRc P + PAr Br AH r P + PRn P =PRc P + PRn P =PRcn P. (3) where sc (t) and sr (t) are respectively, the vectors of the cosmic and RFI signals without delays. The zero lag covariance matrix (the ij th element of the matrix is the covariance of the ith and j th antenna [7, p. 501]) of the vectorised data model in equation 1 is given by (6) (8) The RFI contribution to the covariance is completely nulled; however, the noise and cosmic signals are biased. 4.2. Orthogonal Projection with Subspace Bias Correction For any useful orthogonal projector P the kernel basis includes the zero vector and at least one non-zero vector, therefore, P has a column rank less than the number of columns in P which consequently makes the matrix singular. The orthogonal projection method bias (see equation 8) can therefore not be corrected by multiplying with the inverted orthogonal projector. For the orthogonal projection correction scheme ([2, 3, 4]) the number of samples Nt is divided into NG equally sized groups, where each group consists of Nst samples (st denotes short term), that is, Nt = NG Nst . For a sampling time Ts the overall integration time is Nt Ts , while Nst Ts is the short term integration time for any of the NG groups. The following assumptions must also hold: 118 2016 Radio Frequency Interference (RFI) • The cosmic signals are stationary for Nt Ts seconds. 4.3. Oblique Projection • The RFI signals are stationary for Nst Ts seconds. The oblique projection method projects along the RFI vector space Vr onto the cosmic vector space Vc . To construct this oblique projector it is required that the column vectors in [Ac Ar ] are independent (Vr ∩ Vc = {0}). The oblique projector is given by [1, p. 51] • The RFI signals are not stationary for Nt Ts seconds. The k th short term covariance matrix estimate is given by k = 1 R Nst kN st y(nTs )y(nTs )H (9) n=(k−1)Nst +1 where k ∈ {1, · · · , NG }. The covariance matrix estimate can then be written as NG = 1 k. R R NG (10) k=1 For each short term integration covariance matrix estimate k , an orthogonal RFI projector Pk , can be constructed, since R the RFI is assumed stationary over the short term integration time (Nst Ts ). The averaged orthogonal projected covariance matrix estimate is then NG orth = 1 k Pk R Pk R NG k=1 = NG 1 c + R k,r + R n )Pk Pk (R NG k=1 k=1 where P⊥ Vr is an orthogonal projector which projects along Vr onto a vector space that is orthogonal to Vr . When an oblique projector is applied, the RFI is nulled and the cosmic signal is recovered, however the noise is biased Robl = EVr →Vc REVHr →Vc = Rc + EVr →Vc Rn EVHr →Vc . (11) If the power and the geometric delay vectors of the RFI sources are known, then the effect of the RFI sources can be subtracted [5, p. 115] Rcn = R − Applying the matrix identity N G cn ) orth ) = 1 (PTk ⊗ Pk )vec(R vec(R NG k=1 NG 1 T cn ) = (Pk ⊗ Pk ) vec(R NG (13) The RFI is however assumed to be non-stationary over the total integration time Nt Ts , therefore, Pk will vary between the short term integration groups. The matrix C becomes nonsingular if NG is large enough and the orthogonal projectors vary sufﬁciently. The corrected covariance matrix is then (14) where the unvec(·) operator is the inverse of the vec(·) operator in equation 12. 978-1-5090-6201-0/16/$31.00 ©2016 IEEE σi2 ai aH i . (17) The power of the RFI source and a basis for the geometric delay vectors can be estimated by using factor analysis, see section 4.5. 4.5. RFI Subspace Estimation k=1 cn = unvec(C−1 vec(R orth )), R Nr i=1 (12) where vec(·) indicates the stacking of column vectors of a matrix and ⊗ the Kronecker product, to equation 11 yields cn ). = Cvec(R (16) For the case when Vr and Vc are orthogonal, the oblique and orthogonal projectors are equivalent. The basis for Vc can be constructed from either a skymap or choosing an area of interest that does not contain the RFI. k=1 vec(ABC) ≡ (CT ⊗ A)vec(B), (15) 4.4. Subspace Subtraction NG 1 c + R n )Pk = Pk (R NG NG 1 cn )Pk . = Pk (R NG ⊥ −1 H ⊥ Ac PVr , EVr →Vc = Ac (AH c P V r Ac ) Any basis of the RFI subspace Vr can be used to construct the aforementioned projectors, not just Ar . The ability of the projection and subtraction methods to null the contribution of RFI is dependent on the accuracy of the estimate of a basis set that spans the vector space Vr . When the direction of arrival of the RFI is not known, Ar cannot be calculated. However, an orthogonal set of eigenvectors can be found by applying eigenvalue decomposition (EVD) to the covariance matrix, because the covariance matrix is positive semi-deﬁnite [8, p. 517]. If it can be assumed that the cosmic signal contribution can be ignored, that the noise is independently and identically distributed and that the RFI signals are uncorrelated, then the EVD of the covariance matrix yields [1, p. 64-65] 119 2016 Radio Frequency Interference (RFI) 5. EXPERIMENTAL RESULTS R ≈Rr + Dn Dr = Mr Kr 0 = Mr = Mr 0 MH r + σn2 I 0 KH r H Mr Kr Drn KH r H Dr + σn2 INr 0 Mr Kr , (18) 0 σn2 INe −Nr KH r where is the eigenvectors that form the range of Vr , Mr is the eigenvectors that form the kernel of Vr , Kr is the matrix of eigenvalues (λr,j ) for Rr , Dr Drn is the matrix of eigenvalues (λj ) for R. The column vectors of Mr are orthogonal as well as those of Kr . For the case where there are two or more RFI signals it is unlikely that Mr will be equal to Ar . Therefore, the vector space Vr is spanned differently and the eigenvalues λr,j will 2 (however the total power not be equal to the RFI powers σr,j will be the same). The noise only affects the eigenvalues of Rr but not its eigenvectors, because the noise is identically distributed [1, p. 65]. The orthogonal projector in equation 7 can now be constructed using Mr , which is identiﬁed by the larger eigenvalues in Drn . One simple method [9] to identify the RFI is to count the eigenvalues which exceed three median absolute deviations from the median To show the effect of the spatial RFI mitigation methods, full sky dirty images were created by classical delay beamforming [1, p. 36] on each pixel. In ﬁgure 1 the RFI source is clearly seen at the top and its intensity is chosen as the 0 dB point. Data was also saved when the hexacopter was switched off and a ground truth image was created, see ﬁgure 2. In the ground truth image Cassiopeia A (the brightest source) and Cygnus A are clearly seen. When the orthogonal projector is applied it is seen in ﬁgure 3 that the strong cosmic sources are recovered, however, there is a null in the position where the RFI source was. Orthogonal projection with subspace bias correction recovers the information that was lost due to the orthogonal projection, as seen in ﬁgure 4. For the oblique projector a skymap was chosen that consists of Cassiopeia A and Cygnus A, see ﬁgure 5. The oblique projector recovers what was speciﬁed in the skymap and nulls everything else. Subspace subtraction seems to perform similarly to orthogonal projection with bias correction, however the reliability of the information recovered in the position of the RFI can be questioned, since this method effectively replaces the null with noise, see ﬁgure 6. λj > 3 · median(|Drn − median(Drn )|) + median(Drn ), (19) where λj is the j th eigenvalue contained in Drn . Using the median lessens the inﬂuence of outliers, that is, the values affected by the RFI. Alternative methods are given in [10, 11, 12]. If the noise is not identically distributed, then adding the 2 2 , . . . , σn,n ) to the noise covariance matrix Rn = diag(σn,1 e 1 RFI covariance matrix Rr causes the eigenvectors of the sum to change [1, p. 64-65]. When the instrumental noise is not calibrated for an interferometer, factor analysis [13] can be used. Factor analysis is a statistical method that decomposes a p × p covariance matrix, that is, R = ZZH + D, where Z is a p × q matrix and D is a p × p diagonal matrix. Applying this decomposition to an interferometer’s covariance (the inﬂuence of the cosmic source is considered negligible) yields R =ZZH + D =Rr + Rn . As a ﬁgure of merit the Mean Absolute Percentage Error was chosen MAPE = 100 (20) This method places a restriction on the number of factors (that √ is interferers), namely q < (p − p) [4, 13]. 1 However, if the power of the RFI is much larger than the noise power 2 σ 2 ), the effect of noise on the RFI covariance matrix’s eigenval(σr,i n,i ues will diminish. 978-1-5090-6201-0/16/$31.00 ©2016 IEEE Fig. 1: Full skymap with RFI source visible at the top right in dB. All other sources are drowned in the sidelobe response of the RFI source. The power of the cosmic sources are at least 39 dB below that of the RFI source. The scale is set to saturate at -15 dB so that the RFI source is clearly visible. Ne Ne clean,i,j | |Rproj,i,j − R clean,i,j | |R i (21) j proj,i,j is the ij th element of the covariance matriwhere R clean is the ces recovered with a spatial ﬁltering method and R th ij element of the covariance matrix estimated from the data where the hexacopter is switched off. The results are given in 120 2016 Radio Frequency Interference (RFI) Fig. 2: Full skymap without RFI source in dB. Fig. 5: Full skymap with RFI source removed using Oblique Projection in dB. The scale is set to saturate at -43 dB so that the recovered sources are clearly visible. Fig. 3: Full skymap with RFI source removed using orthogonal projection in dB. Fig. 6: Full skymap with RFI source removed using subspace subtraction. Fig. 4: Full skymap with RFI source removed using orthogonal projection with bias correction in dB. a bar graph in ﬁgure 7. To make the comparison more meaningful the MAPE is also calculated between two different time step covariance matrices for when the hexacopter is switched 978-1-5090-6201-0/16/$31.00 ©2016 IEEE off (this is labelled as clean). Any mitigation method that has a MAPE close to the clean MAPE is considered to have recovered the ground truth successfully. The orthogonal projector with subspace bias correction performs the best, however it is computationally the most expensive. The subspace subtraction method also performs well in recovering the ground truth. The oblique projector performs the poorest, since it was implemented only to recover the two bright cosmic sources. To measure the ability of the mitigation methods to recover a source’s power, the power of Cassiopia A in the RFI mitigated images is compared to that of the RFI free sky image, see ﬁgure 8. The percentage error in power is also calculated between two different time step images for when the hexacopter is switched off (this is labelled as clean). The oblique projector and orthogonal projection with subspace bias correction methods performs the best. However, all of the methods produced results with recovered power within 3.5% of the estimate of the source’s power. 121 2016 Radio Frequency Interference (RFI) 7. REFERENCES [1] G. Hellbourg, Radio Frequency Interference Spatial Processing for Modern Radio Telescopes, Ph.D. thesis, University of Orleans, 2014. [2] J. Raza, A. Boonstra, and A. van der Veen, “Spatial ﬁltering of RF interference in radio astronomy,” IEEE SIGNAL PROCESSING LETTERS, vol. 9, no. 2, pp. 64– 67, February 2002. [3] S. van der Tol and A. van der Veen, “Performance analysis of spatial ﬁltering of RF interference in radio astronomy,” IEEE TRANSACTIONS ON SIGNAL PROCESSING, vol. 53, no. 3, pp. 896–910, February 2005. Fig. 7: MAPE of Spatial RFI Mitigation Techniques Covariance Matrices relative to RFI Free Covariance Matrix. [4] A. van der Veen, A. Leshem, and A. Boonstra, “Signal processing for radio astronomical arrays,” IEEE Sensor Array and Multichannel Signal Processing Workshop, pp. 1–10, July 2004. [5] A. J. Boonstra, Radio Frequency Interference Mitigation in Radio Astronomy, Ph.D. thesis, Delft University of Technology, 2005. [6] M. Zatman, “How narrow is narrowband?,” IEEE Proceedings-Radar, Sonar and Navigation, vol. 2, no. 145, pp. 85–91, 1998. [7] S. Kay, Fundamentals of Statistical Signal Processing, Volume I: Estimation Theory, Prentice-Hall, 1993. Fig. 8: Percentage error of power for Cassiopeia A. [8] C. D. Meyer, Matrix Analysis and Applied Linear Algebra, SIAM: Society for Industrial and Applied Mathematics, 2001. 6. CONCLUSION [9] J. Wagner, “C++ beamformer library with rﬁ mitigation,” Tech. Rep., Max Planck Institute for Radio Astronomy, 2011. The hexacopter signal was 40 dB above the cosmic signals and saturated the entire skymap. All the projection methods that were implemented are able to remove the hexacopter signal and approximately recover the ground truth. If it is assumed that factor analysis is used to determine the RFI subspace, then subspace subtraction has the lowest computational cost (since no projector needs to be constructed) followed by orthogonal projection. The oblique projector which includes ﬁrst calculating the orthogonal projector and then the oblique projector has an increased computational cost. The orthogonal projector with subspace bias correction has the highest computational cost, because the correction matrix C must be calculated and inverted. Orthogonal projection with bias correction performs the best in recovering the entire image (this is especially useful when the RFI source is in the desired ﬁeld of view). The oblique projector performs well when a region is to be recovered where the RFI source is not located. 978-1-5090-6201-0/16/$31.00 ©2016 IEEE [10] H. Akaike, “Information theory and an extension of the maximum likelihood principle,” Proc. 2nd Int. Symp. Inf. Theory, pp. 267–281, 1973. [11] M. Wax and I. Ziskind, “Detection of the number of coherent signals by the mdl principle,” IEEE Trans. Acoust., Speech, Signal Process., vol. 37, no. 7, pp. 1190–1196, Aug. 1989. [12] M. S. Bartlett, “Tests of signiﬁcance in factor analysis,” British J. Psych., vol. 3, pp. 77–85, 1950. [13] A. M. Sardarabadi, Covariance Matching Techniques for Radio Astronomy Calibration and Imaging, Ph.D. thesis, Delft University of Technology, 2016. 122
