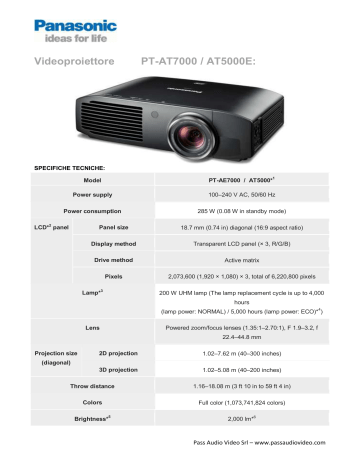

Videoproiettore PT-AT7000 / AT5000E

Videoproiettore PT-AT7000 / AT5000E
Videoproiettore
PT-AT7000 / AT5000E:
SPECIFICHE TECNICHE:
1
Model
PT-AE7000 / AT5000*
Power supply
100–240 V AC, 50/60 Hz
Power consumption
285 W (0.08 W in standby mode)
LCD*2 panel
Panel size
18.7 mm (0.74 in) diagonal (16:9 aspect ratio)
Display method
Transparent LCD panel (× 3, R/G/B)
Drive method
Active matrix
Pixels
2,073,600 (1,920 × 1,080) × 3, total of 6,220,800 pixels
3
Lamp*
200 W UHM lamp (The lamp replacement cycle is up to 4,000
hours
(lamp power: NORMAL) / 5,000 hours (lamp power: ECO)*4)
Lens
Powered zoom/focus lenses (1.35:1–2.70:1), F 1.9–3.2, f
22.4–44.8 mm
Projection size
2D projection
1.02–7.62 m (40–300 inches)
3D projection
1.02–5.08 m (40–200 inches)
(diagonal)
Throw distance
1.16–18.08 m (3 ft 10 in to 59 ft 4 in)
Colors
Full color (1,073,741,824 colors)
5
Brightness*
6
2,000 lm*
Pass Audio Video Srl – www.passaudiovideo.com
Center-to-corner uniformity ratio*5
85%
Contrast ratio*5
300,000:1* (full on/full off)
Resolution
1,920 × 1,080 pixels
Scanning
7
RGB
frequency
fH: 15 kHz–74 kHz, fV: 24 Hz–85 Hz,
dot clock: 154 MHz or lower
YPBPR (YCBCR)
525i (480i): fH 15.75 kHz; fV
625i (576i): fH 15.63 kHz; fV
60 Hz,
50 Hz,
525p (480p): fH 31.50 kHz; fV
625p (576p): fH 31.25 kHz;
60 Hz,
fV 50 Hz,
750 (720)/60p: fH 45.00 kHz;
750 (720)/50p: fH 37.50
fV 60 Hz,
kHz; fV 50 Hz,
1125 (1080)/60i: fH 33.75
1125 (1080)/50i: fH 28.13
kHz; fV 60 Hz,
kHz; fV 50 Hz,
1125 (1080)/24p: fH 27.00
1125 (1080)/60p: fH 67.50
kHz; fV 24 Hz,
kHz; fV 60 Hz,
1125 (1080)/50p: fH 56.25
kHz; fV 50 Hz
Video/S-Video
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
8
Optical axis shift*
Vertical: ±100%, horizontal: ±26%
Keystone correction range
Vertical: approx. ±30°*9
Installation
Ceiling/desk, front/rear (menu selection)
On-screen menu languages
English, French, German, Spanish, Italian, Chinese, Korean,
Russian, Swedish,
Danish, Norwegian, Polish, Czech, Hungarian, Portuguese,
Thai, Japanese
Terminals
HDMI IN
HDMI connector × 3, HDMI™ (Deep Color, x.v.Color™*10,
11
CEC* ),
HDCP compliant, supports HDAVI Control Version 5
COMPUTER (RGB) IN
RGB signal
D-sub HD 15-pin (female) × 1
R, G, B: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms,
HD/SYNC, VD: TTL (positive/negative polarity compatible)
Pass Audio Video Srl – www.passaudiovideo.com
NOTE: HD/SYNC, and VD terminals do not accept tri-level
sync signals.
YPBPR/YCBCR signal
COMPONENT IN
Y: 1.0 Vp-p (including sync signal), PB/PR: 0.7 Vp-p, 75 ohms
RCA pin × 3 (YPBPR/YCBCR)
Y
1.0 Vp-p, 75 ohms
PB/CB, PR/CR
0.7 Vp-p, 75 ohms
TRIGGER IN / TRIGGER
M3 × 2, 12 V, max. 100 mA
OUT /
(input/output/3D shutter output selectable using on-screen
3D SHUTTER OUT
menu)
VIDEO IN
RCA pin × 1
S-VIDEO IN
Mini DIN 4-pin × 1
SERIAL IN
D-sub 9-pin × 1 for external control (RS-232C compliant)
Power cord length
3.0 m (9 ft 10 in)
Cabinet materials
Molded plastic (PC+ABS)
Dimensions (W × H × D)
470 mm × 151 mm × 364 mm*12 (18-17/32˝ × 5-15/16˝ × 1412
11/32˝)*
Weight*13
Approx. 8.7 kg (19.2 lbs)
Operation noise*5
22 dB (lamp power: ECO)
Operating temperature
0°–40°C (32°–104°F)*14
Operating humidly
20%–80% (no condensation)
Remote
Power supply
3 V DC (AA/R6 type battery × 2)
Operation range*15
Approx. 7 m (23 ft) when operated from directly in front of the
control unit
signal receptor
Dimensions
48 × 138 × 28 mm
(W × H × D)
(1-7/8˝ × 5-7/16˝ × 1-3/32˝)
Weight
Approx. 125 g (4.4 oz) (including batteries)
Pass Audio Video Srl – www.passaudiovideo.com
Supplied accessories
Power cord (× 1) (× 2 for PT-AE7000EA)
Wireless remote control unit (× 1)
Batteries for remote control (AA/R6 type × 2)
Lens cover (× 1)
Optional
Replacement
accessories
lamp unit
Ceiling mount bracket
ET-LAA310
ET-PKA110H (for high ceilings)
ET-PKA110S (for low ceilings)
3D IR transmitter
3D Eyewear
ET-TRM110
16
TY-EW3D3L (large size)*
TY-EW3D3M (medium size)*
16
TY-EW3D3S (small size)*16
*1 Product numbers vary depending on the market. PT-AE7000 is the product number for areas outside of Europe, and PT-AT5000 is the product number
within Europe.
*2 The projector uses a type of liquid crystal panel that typically consists of millions of pixels. This panel is built with ver y high-precision technology to
provide the finest possible image. Occasionally, a few pixels may remain turned on (bright) or turned off (dark). Please note that this is an intrinsic
characteristic of the manufacturing technology that affects all products using LCD technology.
*3 The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to illuminate,
due to impact or extended use. The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending on individual lamp
characteristics and usage conditions.
*4 The values above are maximum values when they are used in cycles of being turned on for 2 hours and off for 0.25 hours. When the lamps are turned
on and off more frequently, the lamp replacement cycle is shortened. The usage environment affects the lamp replacement cycle.
*5 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*6 In dynamic mode, with dynamic iris on.
*7 In cinema 1 mode, with dynamic iris on.
*8 Shift range is limited during simultaneous horizontal and vertical shifting.
*9 When a 3D signal is being input or when a 2D signal is converted to 3D, the keystone correction does not function.
*10 Effective in Rec. 709 picture mode.
*11 CEC is an abbreviation for Consumer Electronics Control. Operation may not be possible with some connected equipment or settings.
*12 With legs at shortest position.
*13 Average value. May differ depending on models.
*14 When [HIGH ALTITUDE MODE] is set to [ON]: 0°C – 35°C (32°F–95°F)
*15 Operation range differs depending on environments.
*16 If you do not have a Panasonic 3D TV that supports 3D video, use a SANYO eneloop Mobile Booster KBC-L2 series to charge your Eyewear.
The code that follows KBC-L2 may differ depending on the country of purchase. The code at the end of the model number of 3D Eyewear may
differ depending on the country of purchase.
Pass Audio Video Srl – www.passaudiovideo.com
