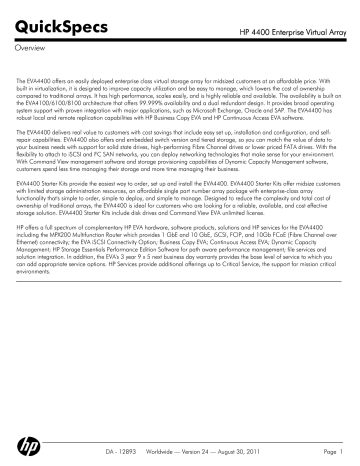

HP 4400 Enterprise Virtual Array

HP 4400 Enterprise Virtual Array
QuickSpecs
HP 4400 Enterprise Virtual Array
Overview
The EVA4400 offers an easily deployed enterprise class virtual storage array for midsized customers at an affordable price. With
built in virtualization, it is designed to improve capacity utilization and be easy to manage, which lowers the cost of ownership
compared to traditional arrays. It has high performance, scales easily, and is highly reliable and available. The availability is built on
the EVA4100/6100/8100 architecture that offers 99.999% availability and a dual redundant design. It provides broad operating
system support with proven integration with major applications, such as Microsoft Exchange, Oracle and SAP. The EVA4400 has
robust local and remote replication capabilities with HP Business Copy EVA and HP Continuous Access EVA software.
The EVA4400 delivers real value to customers with cost savings that include easy set up, installation and configuration, and selfrepair capabilities. EVA4400 also offers and embedded switch version and tiered storage, so you can match the value of data to
your business needs with support for solid state drives, high-performing Fibre Channel drives or lower priced FATA drives. With the
flexibility to attach to iSCSI and FC SAN networks, you can deploy networking technologies that make sense for your environment.
With Command View management software and storage provisioning capabilities of Dynamic Capacity Management software,
customers spend less time managing their storage and more time managing their business.
EVA4400 Starter Kits provide the easiest way to order, set up and install the EVA4400. EVA4400 Starter Kits offer midsize customers
with limited storage administration resources, an affordable single part number array package with enterprise-class array
functionality that's simple to order, simple to deploy, and simple to manage. Designed to reduce the complexity and total cost of
ownership of traditional arrays, the EVA4400 is ideal for customers who are looking for a reliable, available, and cost effective
storage solution. EVA4400 Starter Kits include disk drives and Command View EVA unlimited license.
HP offers a full spectrum of complementary HP EVA hardware, software products, solutions and HP services for the EVA4400
including the MPX200 Multifunction Router which provides 1 GbE and 10 GbE, iSCSI, FCIP, and 10Gb FCoE (Fibre Channel over
Ethernet) connectivity; the EVA iSCSI Connectivity Option; Business Copy EVA; Continuous Access EVA; Dynamic Capacity
Management; HP Storage Essentials Performance Edition Software for path aware performance management; file services and
solution integration. In addition, the EVA's 3 year 9 x 5 next business day warranty provides the base level of service to which you
can add appropriate service options. HP Services provide additional offerings up to Critical Service, the support for mission critical
environments.
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 1
QuickSpecs
HP 4400 Enterprise Virtual Array
Overview
EVA4400 2C4D
NOTE:
NOTE If a customer has a specific racking requirement they should use the Factory Express option to define the configuration.
What's New
Support for a new 2TB FATA drive with XCS controller firmware 10.0 or later
Support for XCS 10.0 Controller Firmware
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 2
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
EVA4400
Controller Model
HSV300
Virtual Controller Software (XCS)
XCS v10.0xx
Management Software
Command View EVA v9.4
Virtual Server Technology Support
VMware, Microsoft Hyper-V,
Citrix XenServer, RHEL
Virtualization and Oracle
Virtual Machine
Application Environment
Oracle, SAP, Microsoft
Exchange, SQL
Local Data Replication - HP Business
Yes
Copy EVA
Remote Data Replication - HP
Yes
Continuous Access EVA
Command View EVA Array
Up to 16 EVAs
management and configuration
support
Application block and file storage
Yes
O/S Support
HP-UX
HP OpenVMS
Windows 2003
Windows 2008
Windows Server 2008 HyperV
Sun Solaris
Linux
IBM AIX
VMware
Apple Mac OSX
Xen
RAID supported
Vraid0, Vraid1, Vraid 0+1,
Vraid5, Vraid 0+5, Vraid 6 &
Cross Vraid Snaps
(SSDs do not support Vraid 0
or Vraid 6)
LUN size
Up to 32TB
Number of controllers
2
Cache (per controller pair)
4GB
Battery Back-up Cache
Yes, up to 96 hours
Host Connectivity
Fibre Channel, FCoE, iSCSI
and Direct Connect
Number of Host Supported
256
(Single Path/Dual Path)
Host Ports (per controller pair)
4 or 2 embedded FC switches
with ten 8Gb/s FC SAN ports
per controller
Host Port Speed
4 Gb
DA - 12893
EVA6400
HSV400
XCS v10.0xx
Command View EVA v9.4
VMware, Microsoft Hyper-V,
Citrix XenServer, RHEL
Virtualization and Oracle
Virtual Machine
Oracle, SAP, Microsoft
Exchange, SQL
Yes
EVA8400
HSV450
XCS v10.0xx
Command View EVA v9.4
VMware, Microsoft Hyper-V,
Citrix XenServer, RHEL
Virtualization and Oracle
Virtual Machine
Oracle, SAP, Microsoft
Exchange, SQL
Yes
Yes
Yes
Up to 16 EVAs
Up to 16 EVAs
Yes
HP-UX
HP OpenVMS
Windows 2003
Windows 2008
Windows Server 2008 HyperV
Sun Solaris
Linux
IBM AIX
VMware
Apple Mac OSX
Xen
Vraid0, Vraid1, Vraid 0+1,
Vraid5, Vraid 0+5, Vraid 6 &
Cross Vraid Snaps
(SSDs do not support Vraid 0
or Vraid 6)
Up to 32TB
2
8GB
Yes, up to 96 hours
Fibre Channel, FCoE, iSCSI
and Direct Connect
256
Yes
HP-UX
HP OpenVMS
Windows 2003
Windows 2008
Windows Server 2008 HyperV
Sun Solaris
Linux
IBM AIX
VMware
Apple Mac OSX
Xen
Vraid0, Vraid1, Vraid 0+1,
Vraid5, Vraid 0+5, Vraid 6 &
Cross Vraid Snaps
(SSDs do not support Vraid 0
or Vraid 6)
Up to 32TB
2
14 or 22GB
Yes, up to 96 hours
Fibre Channel, FCoE, iSCSI
and Direct Connect
256
8
8
4 Gb
4 Gb
Worldwide — Version 24 — August 30, 2011
Page 3
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
Device Connectivity
Device Ports (per controller pair)
Device Port Speed
Device Path Aggregate Bandwidth
Switched device shelves (M6412)
Drives per enclosure
Drive types (mixed in any enclosure)
Supported disks, minimum
Supported disks, maximum
Capacity
Drive capacities and speeds
JBOD Support (behind XP)
Drive Interface (per controller)
Variable Speed Redundant Blowers
Environmental Monitoring Unit
Regulatory approvals
Redundant FC-AL pairs from
each controller to switched
JBOD for redundant paths to
dual drive ports
4
4 Gb
16 Gb
1 to 8
12
Solid State Drives (SSD), High
Performance Fibre Channel
and Fibre Attached
Technology Adapted (FATA)
6 SSD, 8 FC and FATA
8 SSD, 96 FC and FATA
.4 to 132TB
72GB SSD
200GB SSD
400GB SSD
300GB 10K rpm
450GB 10K rpm
600GB 10K rpm
300GB 15K rpm
450GB 15K rpm
600GB 15K rpm
1TB FATA
2TB FATA
Yes
Two 4Gb/s FC-AL ports per
controller in redundant pairs,
two paths to each dual ported
drive
Yes
Monitors Power and
Temperature
UL, CSA, TUV, FCC, CE
MARK, CTICK, BSMI, VCCI
Fibre Channel Switches & Directors
Warranty
Redundant FC-AL pairs from Redundant FC-AL pairs from
each controller to switched
each controller to switched
JBOD for redundant paths to JBOD for redundant paths to
dual drive ports
dual drive ports
8
12
4 Gb
4 Gb
32 Gb
48 Gb
2 to 18
3 to 27
12
12
Solid State Drives (SSD), High Solid State Drives (SSD), High
Performance Fibre Channel Performance Fibre Channel
and Fibre Attached
and Fibre Attached
Technology Adapted (FATA) Technology Adapted (FATA)
6 SSD, 8 FC and FATA
6 SSD, 8 FC and FATA
8 SSD, 216 FC and FATA
8 SSD, 324 FC and FATA
.4 to 330TB**
.4 to 550TB**
72GB SSD
72GB SSD
200GB SSD
200GB SSD
400GB SSD
400GB SSD
300GB 10K rpm
300GB 10K rpm
450GB 10K rpm
450GB 10K rpm
600GB 10K rpm
600GB 10K rpm
300GB 15K rpm
300GB 15K rpm
450GB 15K rpm
450GB 15K rpm
600GB 15K rpm
600GB 15K rpm
1TB FATA
1TB FATA
2TB FATA
2TB FATA
Yes
Yes
Four 4Gb/s FC-AL ports per
Six 4Gb/s FC-AL ports per
controller in redundant pairs, controller in redundant pairs,
two paths to each dual ported two paths to each dual ported
drive
drive
Yes
Yes
Monitors Power and
Monitors Power and
Temperature
Temperature
UL, CSA, TUV, FCC, CE
UL, CSA, TUV, FCC, CE
MARK, CTICK, BSMI, VCCI MARK, CTICK, BSMI, VCCI
Optical Switches and Directors:
http://h18006.www1.hp.com/storage/saninfrastructure/switches.html
3-3-3 9x5 NBD for the array; 3-0-0 parts only for the disk drives
* More EVA4400 performance information is available at: www.hp.com/go/eva4400, Resource Library.
** The maximum single disk group size is 400TB. So two disk groups are required beyond 400TB.
EVA 4400 Capabilities
Easy to install and configure in just a few hours (factory configured unit) with the SmartStart
configuration utility*
Virtualization abilities allow for easy management and excellent capacity utilization
Start small and increase capacity as the business grows
Business application and HP BladeSystem Matrix integration
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 4
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
Excellent reliability and availability. HP's data shows that most customers are achieving 99.999%
availability with the EVA 4x00/6x00/8x00
Support for integrated application (block) and file storage solution with EVA file services offerings
Support for dual-ported 4 Gb/s FC disk drives and 4 Gb/s dual-ported Fibre Attached
Technology Adapted (FATA) drives and dual ported Solid State Drives (SSD)
Array management flexibility with optional deployments of:
Array Based Management with Command View / ABM
Server Based Management with Command View / SBM**
Support for Direct Attach connection to Windows, HP-UX, and Linux servers, without the need for
SAN switches, with Command View / ABM
SAN support for integrated EVA iSCSI connectivity options with Windows and Linux, Apple Mac
OS X, Microsoft Windows, Sun Solaris, VMware.
Management of up to 1024 virtual disks (256 per HBA), for the EVA4400, ranging in size from
1GB to 32TB per Virtual disk, in 1GB increments.
Dynamic Capacity Management support to expand (in 1GB increments) and shrink LUNs up to
2TB.
NOTE: Requires Host Operating System Support.
Virtual disk data load leveling (non-disruptive background activity)
Distributed sparing of disk capacity
Redundant FC-AL loops from each controller to dual disk ports
Support for remote replications between current EVA generations
Migration support via remote replications between current and earlier EVA generations
Dual redundant controller operation for increased fault tolerance
Robust local and remote replication capabilities with Business Copy and Continuous Access EVA
High availability with hot plug drives, power supplies, fans, and industry failover software
Multiple Bus Failover Support using industry popular multiple path software.
NOTE: Requires native OS multi-pathing support.
Battery-Back-Up for controller cache memory
Asynchronous Disk Swap (hot swap)
Clustered Server Support
Mirrored Write-Back Cache Support
Read-Ahead and Adaptive Read Caching Support
Hardware based Virtual RAID (Vraid) provides improved RAID performance and the benefits of
virtualization to grow and shrink RAID volumes (Vraid0, Vraid1, Vraid 0+1, Vraid5, Vraid 0+5,
Vraid 6 & Cross Vraid Snaps)
NOTE: Vraid0 should be used with care in select application. It provides no data redundancy and
can result in data loss. Vraid0 is not supported on SSDs.
Support for local replication between Vraid types using Vsnap or Snapclone within a disk group or
using Snapclone across disk groups (and Cross Vraid Snapshot and Snapclone)
Online XCS software upgrade capability
Online drive firmware upgrade capability
Supports connection of up to 256 hosts
Multi-Vendor Platform Support
Controller Password Protection for Configuration Control
Selective Storage Presentation and SAN-based Data Zoning (through switches).
HP Command View EVA GUI Interface for management and monitoring (manages up to 16
EVAs).
Monitor and control health, HP EVA end-to-end SAN performance and monitoring, storage
utilization and reporting for all key HP EVA and SAN infrastructure including servers, storage, HP
MSA, HP EML E-series tape, HP ProLiant Storage Servers (NAS), HBAs, switches, applications and
monitor the entire backup from a single interface with HP Storage Essentials
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 5
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
*For more information on SmartStart, for EVA see:
http://h18000.www1.hp.com/products/storageworks/evasmartstart/relatedinfo.html?jumpid=
reg_R1002_USEN
** For more information on Command View, see:
http://h18006.www1.hp.com/products/storage/software/cmdvieweva/index.html
EVA4400 Product
Packaging
The EVA4400 packaging consists of a 2U FC dual HSV300 controller assembly and 2U 12-bay Model
M6412A FC drive enclosures. (The M6412A drive enclosure is also used by the EVA6400 and
EVA8400.) The EVA4400 is also available with an embedded SAN switch for each controller, for a total
of two redundant switches per enclosure. This SAN switch is an 8Gb/s, 10 port B-series FC switch for a
total of 20 SAN ports per EVA4400 enclosure.
EVA4400 configurations allow a wide range of configuration options, including flexible factory rackmounting options in either a standard 42U cabinet (based on the HP 10000 G2 Series Rack) or a
choice of 42U extended and 36U and 22U heights. EVA4400 is also available in pre-configured Starter
Kit configurations.
Embedded SAN Switch
Options
In addition to providing twenty 8Gb/s FC SAN port connectivity, the embedded SAN Switches have
optional software components for:
Adaptive Networking
ISL Trunking
Advanced Performance Monitoring
Fabric Watch
Extended Fabric
For more information on these software component options, see:
http://h18006.www1.hp.com/storage/networking/b_switches/index.html and look for HP B-Series 8/8
SAN Switch information.
Multi-Vendor Platform
The EVA4400 provides support for industry-leading Operating System platforms including:
HP-UX
HP OpenVMS
Windows Server 2003
Windows Server 2008
Windows Server 2008 HyperV
Sun Solaris
Linux
IBM AIX
Novell NetWare
VMware
Apple Mac OSX
Xen
NOTE: See Operating System, Cluster and High Availability Compatibility matrix for Operating System
version detail.
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 6
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
Designed for No-SinglePoint-of-Failure
The EVA family’s redundant architecture and value added software is designed to eliminate singlepoints-of-failure from server to storage in clustered or single server configurations with multi-pathing.
HP SmartStart for EVA
configuration utility
The EVA4400 is easily installable in a few to several hours, depending on the complexity of the
configuration, using HP SmartStart configuration utility for EVA Storage. For Windows 2003 and 2008
application servers, SmartStart software installs HBA drivers, Multi-pathing I/O (MPIO) drivers, the
Storage System Scripting Utility (SSSU) for Windows, Command View EVAperf, installs Command View
EVA on a Windows Server 2003 management server and helps provision the EVA4400 storage.
Installation and Startup
Smaller less complex EVA4400 configurations are customer installable with HP SmartStart. For more
complex environments, an Installation & Start-up service is recommended or may be required. HP
recommends the purchase of the following Installation & Startup services:
For an EVA4400 into heterogeneous server environments, including installation of controllers,
drive enclosures, disk drives, installation of Command View / SBM and HP's Remote Connectivity
Support Pack (RSP), purchase the EVA4400 Installation and Startup Service - HA114A1#58D.
For factory configured, factory racked EVA orders and when final installation of just the preconfigured EVA hardware at the customer site is required, purchase the Basic I&S service HA113A1#58D.
For factory configured, factory racked EVA orders, without an existing Command View
management server, purchase the Command View Installation and Startup - HA124A1#5AS. This
service includes LUN design and implementation, HP Insight Remote Support software, and
customer orientation training.
For Continuous Access configurations, purchase the HP Data Replication Solution ServiceContinuous Access.
For Replication Solutions Manager, purchase the HP Data Replication Solution Service Continuous Access EVA or Business Copy EVA.
NOTE: Customers who have completed the necessary training or who have gained the necessary
experience with these environments may decide to not purchase the recommended Installation and
Startup services. However some installation and startup services are required.
HP requires the purchase of Installation & Startup services when using:
Storage Essentials, purchase the Storage Essentials Solution Service.
Continuous Access, purchase the HP Data Replication Solution Service Continuous Access EVA.
NOTE: A comprehensive list of Installation & Start-up services can be found at:
www.hp.com/hps/storage
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 7
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
Remote Replication
Solutions
(Software options)
HP Continuous Access provides disaster tolerant replication across a Fibre Channel SAN. Continuous
Access EVA performs real-time replication between HP Enterprise Virtual Arrays of the current and earlier
generations. Continuous Access EVA provides the highest level of FC SAN data protection to customers
in order to meet disaster tolerant business continuity implementation goals. Through the use of
MAN/WAN Fibre Channel SAN extensions, Continuous Access EVA provides 24x7 protections against
disaster like scenarios, in campus, metro or continental networks. Thus, enabling business protection
against unforeseen events. For additional information about Continuous Access EVA visit:
http://h18006.www1.hp.com/storage/software.html
HP Disaster Tolerant Solution for mySAP Business Suite on EVA offers a business continuance solution for
SAP environments, where data integrity and value added functionality are high priorities. Best practices
for implementing remote mirroring of an SAP database as part of an overall data protection strategy with
SAP applications can be found at: http://h71028.www7.hp.com/erc/downloads/4aa1-5683Enw.pdf
The HP IP Distance Gateway provides SAN over WAN connectivity for protecting and replicating data
between EVA systems. By connecting islands of SANs over WANs, the IP Distance Gateway enables CA
replication (Asynchronous and Synchronous), SAN device sharing, data migration and other long
distance data services. At the core of providing long distance data services is the ability to copy, move
and replicate data locally and over long distances. However, SANs have limited distance capabilities
(10km) and IT managers need to share, protect and move data over greater distances than 10km,
routers and switches that link SANs over IP WANs is the weapon of choice for most IT managers.
The IP Distance Gateway uses the FCIP (Fibre Channel Internet Protocol) standard to extend SAN
connectivity over the WAN.
Low Cost SAN over WAN Connectivity
High Performance with data compression and load balancing
Support for FCIP for SAN extension
Bridges SANs for all FC Fabrics
Supports two Ethernet and two Fibre Channel ports
Concurrent FC and IP traffic in High Availability mode
Integrated management with HP mpx Manager
Supports High Availability Options
Fabric and Direct Attach support
http://h18006.www1.hp.com/storage/disk_storage/index.html
Local Replication
Solutions
(Software options)
The HP Business Copy is a local replication application for the EVA family. It incorporates Virtually
Capacity-free Snapshot (Vsnaps), standard snapshots and Snapclone capabilities. Business Copy EVA
creates point-in-time copies of storage volumes, called Business Continuance Volumes (BCVs) using the
snapshot and cloning capabilities of the array firmware and provides multi-array local mirror
management. This product is indispensable for critical data center operations such as non-disruptive
backups, frequent snapshots of high value databases, and data mining. The bottom line benefits include
improved disk capacity utilization and increased business continuity, data availability, and productivity
savings. Additional features include licensing based on replicated (not total raw) capacity and a new
improved management interface.
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 8
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
Replication Management HP Business Copy EVA and HP Continuous Access EVA comes complete with HP Replication Solutions
Manager, a graphical user interface and scripting environment, that greatly simplifies storage
management by creating, running, and managing storage replication jobs using controller based
snapshots, clones and remote mirroring.
With HP Replication Solutions Manager users easily can manage both remote and local replication
across the full EVA product family. By virtually removing the complexity associated with both small and
large replication environments, point-in-time copies and remote replication are managed and
configured with just a few mouse clicks. To assist the user, Information on the replication environment is
presented in a variety of views, including an interactive topology manager that allows each user to select
their viewing preference. In addition, HP Replication Solutions Manager provides a scripting interface for
additional flexibility.
Application Integration
with Oracle
As an option to HP Business Copy EVA, the user can simply replicate an Oracle database. HP
Replication Solutions Manager will provide a graphical interface to view the components of the database
to be replicated, and allow selection of a specified database. The replication manager will automatically
suspend the Oracle application, and take a point in time copy (local or remote) of all associated array
virtual disks. The replication manager will provide the option to restart the original Oracle database after
the replicas have been initiated on the array. The user will be able to utilize the replication manager to
present the replica to another host.
HP Insight Control
Storage Module for
vCenter
HP Insight Control Storage Module for vCenter is used to reference the stand-alone storage installation
and the storage components within the overall plug-in package
Storage Module for vCenter support for the EVA allows customers who are using the VMware vSphere
management console, vCenter, to monitor and manage the storage associated with VMware virtual
machines. The HP EVA can be added to vCenter, allowing vCenter administrators to list LUN/volume
connections, determine the storage attributes associated with virtual machines, and monitor the arrays.
Monitor the status and health of HP Storage arrays to provide health and status on their EVA
Manage LUN / volume connections from VMs and ESX servers to the arrays provides the location
and attributes of the EVA within the SAN
Identifies what storage features are available to allow administrators to match the features
available on the EVA to their requirements
Supports mixed array environments including EVA, P4300/4500, MSA and/or XP
Storage Module for vCenter is downloadable from Software Depot:
http://h20293.www2.hp.com/portal/swdepot/displayProductsList.do?category=NAS
For more information on HP Insight Control Storage Module for vCenter visit: www.hp.com/go/vmware
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 9
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
Capacity Management
HP EVA Dynamic Capacity Management Software is a comprehensive software solution that automates
storage provisioning and improves capacity utilization on the HP Enterprise Virtual Array (EVA) family.
Designed for the enterprise market, EVA Dynamic Capacity Management Software uses advanced
automation to automatically "right-size" the file system and storage volumes to ensure the highest levels
of capacity utilization are achieved while reducing ongoing storage administration needs. For more
information about DCM, please see the following:
http://h18000.www1.hp.com/products/storage/software/eva_dcm/index.html
Application Solutions
The EVA is the ideal solution for customers running Oracle, Microsoft, SAP environments and those
customers who are deploying virtual server technologies like VMware, Hyper-V, and Oracle Virtual
Machine. HP Enterprise Virtual Arrays (EVA) delivers virtual storage for the midsize customer with
enhanced performance, better capacity utilization, and easier management of on-demand storage
activities.
For customers, one of the greatest concerns is always database performance. With larger LUNS and
Solid State Disk (SSD) built into the HP EVA, customers get industry leading, super fast performance
along with the scalability, availability, and ease of management capabilities they have come to expect
from HP Storage Solutions. Everything a customer depends on when managing their most critical
business asset...business data.
HP has developed an in-depth understanding of Oracle, Microsoft, SAP, and VMware technology by
extensive lab-testing best practices with HP EVAs, HP servers, and management software; high
availability and disaster recovery solutions; and backup and recovery on the Oracle, Microsoft, and SAP
application platforms. As a result, our customers can expect a wide range of operational and business
benefits where they can:
Achieve optimal performance on an Oracle, Microsoft, SAP platforms
Minimize back windows and simplify recovery of their database and/or application
Significantly improve Exchange messaging recovery points and recovery time
Get predictable operational results
Reduce implementation costs and risks
Gain optimum return on Oracle, Microsoft, and SAP investments
To learn more about specific HP Storage Solutions that are built with Oracle, Microsoft and SAP
environments in mind, visit the solution sites supporting each of these applications.
HP Storage for Oracle hyperlink to: http://www.hp.com/storage/oracle
HP Storage for Microsoft hyperlink to: http://www.hp.com/storage/microsoft
HP Storage for SAP hyperlink to: http://www.hp.com/storage/sap
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 10
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
EVA with HP Storage
Essentials Storage
Resource Management
Software Suite
HP Storage Essentials Storage Resource Management Software Suite and HP Storage Essentials
Performance Edition Software integrate with HP Systems Insight Manager to provide end-to-end
advanced server and storage management capabilities. HP Storage Essentials SRM Suite software
features a base management console and a portfolio of plug-in software to assist in managing EVA in
heterogeneous SANs across the enterprise.
HP Storage Essentials Suite delivers integrated heterogeneous and multivendor functionality for network
(Arrays, DAS, SAN, NAS, HBAs, switches) management, storage resource management, reporting,
business application and backup monitoring, capacity metering, provisioning and application
infrastructure monitoring.
http://h18006.www1.hp.com/products/storage/software/e-suite/index.html
HP Storage Essentials
SRM Performance Pack
Software and EVA
(end-to end EVA SAN
Performance
Management)
HP Storage Essentials Performance Edition Software monitors performance along the complete path of
business applications through underlying storage area networks (SAN) components, including host
server, host bus adapter (HBA), fabric switch and Enterprise Virtual Array. A unified and simplified
interface helps EVA administrators increase efficiency, troubleshoot performance bottlenecks faster, and
quickly visualize the performance of their EVA storage, hosts and SAN infrastructure with real-time
monitoring, historical trend analysis and trend extrapolation.
For more information on HP Storage Essentials Performance Edition Software visit:
http://h18006.www1.hp.com/products/storage/software/e-suite/index.html
HP 12000 Virtual Library Expanding the power of the HP Enterprise Virtual Array (EVA), the HP 12000 Virtual Library System EVA
System EVA Gateway
Gateway accelerates backup performance in complex SAN environments while improving overall
reliability. Integrating seamlessly into existing backup applications and processes by emulating popular
tape libraries and tape drive formats, the HP VLS12000 EVA Gateway matches the existing data
protection environment, removing the need to change backup software or monitoring policies.
Additionally, because the VLS EVA Gateway uses HP EVAs as the storage pool, ease of use is maintained
throughout the system. By emulating multiple tape drives simultaneously, more backup jobs can be done
in parallel resulting in reduced backup times and, because the data resides on disk, single file restores
are exceptionally fast.
The HP Virtual Library System EVA Gateway simplifies your SAN environment by providing more virtual
devices and leveraging existing switches and HP EVA infrastructure. The result is the ability to vastly
increase scale yet reduce the complexity of shared storage while maintaining the manageability of the
system. As your environment changes, the HP Virtual Library System EVA Gateway adapts to it - host
masking and mapping ensure that only the appropriate hosts have access to the HP Virtual Library
System.
The HP Virtual Library System EVA Gateway offers advanced features such as Automigration which
allows users to move data under the control of the VLS from the VLS storage to tape or another VLS. The
VLS EVA Gateway will also be able to take advantage of data deduplication when that feature is
launched in early 2008. For more information on the VLS EVA Gateway, please visit the link below:
http://h18006.www1.hp.com/storage/disk_storage/disk_to_disk/vls/12000vls/index.html
EVA FCoE/iSCSI
Connectivity
EVA4400 FCoE/iSCSI support is available through the EVA4400 iSCSI Connectivity Option (iSCSI) and
the MPX200 Multifunction Router (FC/FCoE/iSCSI). These powerful solutions provides connectivity to an
EVA4400 utilizing the EVA's existing Fibre Channel infrastructure.
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 11
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
An EVA with multi-protocol support also provides network storage at reduced infrastructure costs. Small
and medium businesses now have a lower entry point to take advantage of SAN benefits. Large
enterprises may also deploy multi-protocol SANs in departments and remote offices.
The HP MPX200 Multifunction Router extends the FC SAN investment with integrated multi-protocol
support, allowing customers to incorporate iSCSI servers without requiring additional storage arrays or
management costs. The MPX200 offers simultaneous FCoE, iSCSI and Fibre Channel support with
10GbE and 8Gb/s FC technology, providing modular multi-protocol SAN designs with increased
scalability, stability, ROI and simpler to manage, secure storage solution for virtualized server
environments. MPX200's enterprise-class high-availability design provides dual hot-plug power supplies
and router blades for no single point of failure. MPX200, integrated in same rack, allows customers to
connect up to 4 EVA's to a single MPX200, reducing the complexity and cost of iSCSI connectivity to EVA
storage arrays.
Key Benefits:
Benefits
Delivering SAN-like benefits over the Ethernet IP network, the HP MPX200 Multifunction Router
enables access to block storage across up to 4 EVA storage systems from an Ethernet IP network.
Extend access to FC SANs across Ethernet networks with the virtues of an FC SAN including:
Consolidated storage
Improved disk utilization
Improved IT efficiency
Provides customers a flexible and cost effective way to connect stranded servers to existing Fibre
Channel storage, increasing return on investment. Allows hundreds of servers to be cost effectively
connected to the EVA using FCoE/iSCSI in addition to Fibre Channel.
Unmatched performance: 8 Gbps Fibre Channel, FCoE, 1 GbE and 10 GbE iSCSI connectivity
deliver best in class performance.
FCIP for SAN over WAN:
Data Migration: MPX200 can now enable customers to migrate their data between heterogeneous
storage arrays (offline) Fully integrated EVA and MPX management with Command View EVA
For more information and operating system support:
http://h18006.www1.hp.com/products/storageworks/evaiscsiconnect/index.html
The EVA also supports X Series Network Storage Systems connected as file/print/iSCSI gateways. The HP
X1800, X3400, X3800 Network Storage Systems each feature Microsoft's Windows Storage Server 2008
operating system that includes Microsoft iSCSI Software Target as a standard feature. Microsoft iSCSI
Software Target leverages existing management expertise and inexpensive Ethernet infrastructure to
deliver IP-based block access to an EVA or Fibre Channel SAN. So X Series Network Storage Systems
with iSCSI target functionality not only add file and print services to your EVA investment, but they help
you save even more by enabling tiered (Fibre Channel and iSCSI) block access for application servers.
In addition, any X Series Network Storage Systems are a perfect platform from which to run Command
View EVA. You stretch your investment even further when you host EVA management, file and print
services, and iSCSI connectivity all from the same X Series Network Storage Systems gateway solution.
For more information: http:// www.hp.com/go/X1000
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 12
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
EVA File Services
The HP 4400 Scalable NAS File Services offers scalable file serving performance for medium-sized
customers that cannot afford any downtime for their business-critical applications. The HP 4400 Scalable
NAS File Services is a fully factory configured storage solution that includes an HP Enterprise Virtual
Array 4400 (EVA4400) with dual array controllers and 5.4TB of storage, two high performance file
serving nodes, redundant Fibre Channel switches, management and replication software, and support
for Windows or Linux. The HP 4400 Scalable NAS File Services does not have a single point of failure. It
allows customers to transparently increase application throughput far in excess of traditional NAS
products and easily grow storage capacity online without service disruption. The HP 4400 Scalable NAS
File Services offers great total cost of ownership with a low initial purchase price and a shared data
architecture that yields lower management expenses from a single shared pool of file serving nodes and
storage
For more information:
http://h18006.www1.hp.com/products/storageworks/scnas_4400/index.html
ProLiant Storage Server Gateways
Select ProLiant Storage Servers can be connected to an EVA to add file, print, management, and/or
iSCSI services and boost the value of your array investment. ProLiant DL380 G5 SAN Gateway and
SB460c SAN Gateway Storage Servers are designed to provide highly-available additional data services
to an EVA array or SAN, and both feature Microsoft's Windows Unified Data Storage Server 2003
operating system that includes a cluster license and Microsoft iSCSI Software Target standard. ProLiant
Storage Servers can host Command View EVA / SBM as well, making them an affordable and flexible
way to add functionality and value to your EVA investment.
For more information: http://www.hp.com/go/storageservers
EVA with HP Systems
HP SIM is the foundation for HP’s unified server-storage strategy - it is packaged as value add software
Insight Manager Software with EVA, it is a management application and it is derived from the heritage of Compaq Insight
Manager, HP Toptools, and HP Servicecontrol. HP SIM runs on HP Windows, Linux, and HP-UX and
provides discovery and identification, fault management, security administration, asset reporting, and
centralized configuration management across heterogeneous servers, storage and infrastructure. HP SIM
is easily extensible, integrating other HP management products and value-add plug-ins such as the
ProLiant Essentials, Integrity Essentials, and Server Essentials.
HP SIM relies on industry standards like SMI-S, SNMP, SSH, WBEM, and WMI to detect and report
heterogeneous device attributes. HP SIM may also be configured to launch array specific applications for
configuration, reporting and replication. For more information on HP Systems Insight Manager see:
http://www.docs.hp.com/en/netsys.html
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 13
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
HP and Data Protector
Software
By combining the EVA with Data Protector software, administrators can avoid many of the challenges
associated with virtual server backup:
Server performance degradation as backups impact both the physical server and all of its virtual
machines
Time, effort and risk associated with restoring crash-consistent backups that result from many
current virtual backup methods
The complexity associated with using different tools to back up virtual and physical servers
By providing seamless integration, HP leverages the strengths of both its hardware and software to
provide the most complete and integrated solution for virtual server backup in the industry. Separately,
HP EVA and HP Data Protector solve critical needs that enable customers to achieve the true benefits that
virtualized environments offer, increasing efficiency and lowering costs. Together, HP provides an end to
end solution that is completely automated, managed and controlled from one user interface, for
complete, fast data protection with no impact to the virtual environment. HP is the only vendor providing
this level of automation for VMware or Hyper-V.
Data Protector provides robust support for virtual environments and allows customers to choose any
hypervisor. For VMware and Microsoft virtual environments, the EVA + Data Protector's ZDB/IR offer a
particularly powerful solution. In Hyper-V environments, the Data Protector Zero Downtime Backup
agent creates transportable VSS snapshots which are made available for Instant Recovery. All operations
are performed with zero impact to the Hyper-V host server and virtual machines. For VMware
environments, the ZDB/IR agent first takes a snapshot of data on the virtual machine (VM) and migrates
the snapshot to a proxy host. Backup operations are then performed on the snapshot. ZDB enables
customers to instantly copy data to disk and then, at their convenience, back up that disk copy to tape.
This "staged backup" process enables business applications to stay online 7x24, maintain businesscritical application performance, and protect critical data. These solutions allows administrators to avoid
many of the challenges associated with virtual server backup:
Impact-free backup at all layers
No load on the servers or VMs
Instantaneous recovery of all application data
Manage everything from one, easy-to-use interface, without scripts or 3rd party utilities
More Information:
http://h71028.www7.hp.com/enterprise/w1/en/software/information-management-data-protector.html
Single-pathing
(Single HBA per host)
Single-pathing (or single HBA per host) support is provided for all supported operating systems (but may
be version dependent). Use of single-pathing, which does not offer a redundant path option, should be
used with care. Failure of the single HBA will result in loss of access for that host until the HBA is
replaced.
Enclosure Capacity
The EVA4400 provides one of the highest density disk storage solutions in its class of product. The
EVA4400 can be configured in 18U of rack space with eight 2U 12-bay M6412A FC disk enclosures for
a maximum capacity of 96 disk drives and a maximum storage capacity of 96 TB of disk capacity. The
EVA4400 supports the HP 10000 G2 series racks.
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 14
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
Solid State Drive Support The EVA supports 72 GB, 200 GB, and 400 GB dual ported fibre channel enterprise solid state drives
(SSDs). The EVA arrays support mixed drive types (SSDs, high performance, and FATA) within an
enclosure. The solid state drives require their own disk group. The minimum number of SSDs supported
is 6 and the maximum is 8 per array.
NOTE: SSD are supported with Vraid 1 and Vraid 5 only. SSDs are supported with Business Copy EVA,
but are not currently supported with Continuous Access EVA.
10K rpm Drive Support
The EVA supports the 300GB, 450GB, and 600GB reduced power 10K rpm dual-ported 4 Gb/s FC
disk drives. The EVA4400 supports up to 96 disk drives. The EVA4400 array supports single or mixed
drive capacities and types (SSDs, high performance, and FATA) within an enclosure. HP recommends
using the same drive type (the same capacity) within a disk group because virtualization allocates space
proportionate to the highest capacity drive within the group. A minimum of eight high performance Fibre
Channel drives are required in a configuration using high performance drives.
15K rpm Drive Support
The EVA also supports 300GB, 450GB, and 600GB 15K rpm dual-ported 4 Gb/s FC disk drives. The
EVA arrays support single or mixed drive capacities and types (SSDs, high performance and FATA) within
an enclosure. HP recommends using the same drive type (the same capacity) within a disk group
because virtualization allocates space proportionate to the highest capacity drive within the group. A
minimum of eight high performance Fibre Channel drives are required in a configuration using high
performance drives.
FATA Drive Support
The EVA supports 1TB and 2TB dual ported 4 Gb/s Fibre Attached Technology Adapted (FATA) disks. An
EVA will support a full configuration of FATA disk drives. The EVA4400 Starter Kits and the EVA4400
can be configured with any combination of FATA and high performance disk drives; total raw capacity
will vary based upon the redundancy (Vraid) selected. A minimum of eight FATA drives are required in a
configuration using FATA drives.
FATA drives are designed for lower duty cycle applications such as near on-line data replication for
back-up. These drives should not be used as a replacement for EVA high performance, standard duty
cycle, Fibre Channel drives. Doing so could shorten the life of the drive.
FATA drives are not recommended in Continuous Access applications as the remote storage location for
local data residing on standard higher speed disk drives. Continuous Access tends to perform fairly high
duty cycle random writes to the remote disk array. Matching remote FATA drives with local FC drives will
impact the performance of your application, and will adversely impact the reliability of the FATA drives.
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 15
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
Fibre Channel
Technology
The EVA4400 models are 4Gb/s FC Switched Fabric enabled and are compatible with 8Gb/s, 4Gb/s or
2Gb/s FC Switched Fabric SANs with XCS v10.0. They can co-exist in the same FC SAN with
EVA3000/5000 or EVA4x00/6x00/8x00 FC storage solutions and many other SAN devices. The
EVA4400 with embedded switch model is 8Gb/s FC ready. The embedded switch is an 8Gb/s, 10 port
B-series SAN switch for a total of 20 ports per controller enclosure.
The EVA4400 takes advantage of the benefits of Fibre Channel (FC) in distance, performance and
connectivity. The use of optical Fibre cabling allows distances between connected segments of a SAN to
be up to 500 meters @ 1 Gb/s; 300 meters @ 2 Gb/s using short wave multi-mode, 150 meters @ 4
Gb/s and up to 10 kilometers (6.21 miles) @ 1 Gb/s when using long wave cable. Storage Area
Networks (SANs) can be constructed using FC switches/directors for fabric connectivity. HP SAN B-series
and C-series switches and directors provide exceptional connectivity while increasing the effective
bandwidth of the network. Supported SAN features include Zoning for communication isolation and
Inter-Switch Links (hops) up to 10 km.
For more information on specific support specifications see the following SAN Infrastructure URL:
http://h18006.www1.hp.com/storage/saninfrastructure/switches.html
Transfer Speeds
The EVA4400 Starter Kits and EVA4400 have two FC host ports per HSV300 or HSV300-S controller;
four for a controller pair. Each controller-to-host interface is 4 Gb/s. The HSV300 and HSV300-S
controllers are compatible with 2 Gb/s and 4 Gb/s FC switches (if required), HBAs, servers and other
storage solutions.
Each EVA controller pair interfaces with the M6412A drive enclosures. With 2 device ports per controller
and dual FC I/O modules per drive enclosure, each controller has two connections to each FC drive A
and B port. So each controller has a redundant path to each drive.
Easy Installation
The EVA4400 can ship from the factory fully configured. After unpacking, it can be plugged into power
sources, connected to the FC SAN, enabled and configured using HP SmartStart for EVA Storage and
Command View EVA and it is ready for use. Installation and start-up services are not required but are
available separately.
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 16
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
High Availability/ Fault
Tolerance/
Hot pluggable support
All EVA4400s are configured with dual HSV controllers that operate in a redundant mode. Each
EVA4400 controller has two FC device ports. For EVA4400, in the event of a path failure, the alternate
paths to the controller can be utilized with the use of multi-path software in the Operating System
software or in Secure Path software.
On the EVA4400, each port connects to one FC I/O module on a drive enclosure. Up to eight drive
enclosures can be connected in a FC loop arrangement with a controller pair and connect to one port of
up to 96 drives. With the two FC ports per controller, each controller can connect to both ports on up to
96 disk drives for redundant paths to all 96 drives.
The HSV300 controllers also have dual redundant hot plug power supplies and dual redundant hot plug
blowers. Each controller has hot plug cache batteries to maintain cache contents for up to 96 hours in
case of a total power failure.
The M6412 FC drive enclosure has dual redundant hot plug FC I/O modules that allow the controllers
to distribute I/Os between the two modules and provides redundant paths should either FC I/O module
become unavailable. The enclosure also has dual redundant hot plug power supplies and dual hot plug
blowers. Environmental Monitoring Unit (EMU) functionality is built into the I/O module in the enclosure
and monitors and reports the condition of the power supplies and fans.
The FC and FATA disk drives have dual FC ports which can be redundantly accessed by each controller.
The drives are hot plug. The drives can be configured, using redundant Vraid1 or Vraid5 protection, so
that a drive failure will not cause loss of data. Optional virtual sparing can be configured so that a drive
failure will trigger an automatic rebuild of the Vraid1 or Vraid5 protection using the virtual spare.
All EVAs have dual redundant power distribution. Two independent power cords distribute power through
two Power Distribution Units (PDUs) to each side of the EVA cabinets and to each power supply of the
controllers and to each power supply of the drive enclosures Each cabinet power cord can be connected
to independent power sources. For maximum availability, a customer should provide redundant power
from independent power circuit breakers, independent power lines from the power company and even
independent power companies.
The EVA4400 with embedded switch model also includes two 10 port 8Gb/s FC SAN B-series switches.
EVA Manageability
HP Command View EVA provides the capability to manage the EVA Array family in a SAN or direct
connect Fibre Channel host attach configuration. HP Command View EVA software runs on a variety of
server configurations using Windows Server 2003. HP X1800, X3400, X3800 Network Storage Systems
are the perfect platforms from which to run Command View EVA. HP Network Storage Systems allow you
to stretch your investment by combining EVA management, file and print services, and iSCSI connectivity
all on the same platform.
The powerful Command View EVA provides an easy mechanism to manage up to 16 EVA units in a SAN
configuration. Industry leading security enhancements in Command View now allows administrators to
take advantage of Windows domains and local groups. Command View integrates with Windows Active
Directory to authorize and authenticate users. In addition, all user actions and events that change system
state are logged. Administrators can now use the audit logging capabilities to provide an audit trail. The
Command View EVA media kits and license are required with all EVA models. HP Command View EVA
requires a License to use (LTUs) equal to, or greater than the total raw capacity of each array.
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 17
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
Performance
Fibre Channel host connections provide up to 400MB/s bandwidth for each path. Dual mirrored port
write caching capability, with battery backed cache, maintains optimal availability while assuring data
integrity in the event of a failure.
Each HSV300 controller has two Fibre Channel host ports (four ports in a redundant pair of controllers)
assuring the availability of bandwidth for the most demanding applications. For the Embedded Switch
controllers, the host ports are connected internally to the embedded switches and are not available
externally. Twenty 8Gb/s SAN ports are available externally for SAN connections.
In addition, up to 4GB of cache per controller pair ensures high performance.
Scalability
A storage management server can manage up to 16 EVA controller pairs (EVA4400, EVA3000s,
EVA5000s, EVA4x00s, EVA6x00s and/or EVA8x00s) in any one fabric. An EVA4400 controller pair will
support up to 256 multi-path host connections (up to 1024 HBAs).
The EVA4400 will scale up to 96 disks (96TB using 1TB FATA disk drives, and 57.6TB using 600 GB
high performance disk drives).
Configure to Order (CTO) options and the HP 10000 G2 Series Racks allow even greater server and
device integration, flexibility and scalability for the EVA4400. Data center managers can customize
server, storage and back-up configurations as well as using the residual cabinet U space to mount
management servers, switches and have the peace of mind that it is built with HP factory precision
manufacturing.
EVA as Virtualized
Storage behind the
P9500 and XP
HP EVA4400 disk arrays can be connected as external storage devices behind the HP P9500 and XP
family of disk arrays.
The P9500/XP24000/XP20000 simplifies the management of heterogeneous SAN environments through
its ability to support up to 255PB/ 247 PB/ 96 PB respectively of external storage-all configured 'behind'
a single P9500/XP. P9000/XP External Storage software uses advanced virtualization technology to
allow storage administrators to host P9500/XP Disk Array LUNs on externally attached disk arrays. Any
Fibre Channel port from any CHA pair installed in any slot can be used to connect to external storage.
Instead of seeing a confusing collection of dissimilar arrays, host systems perceive all the data to be
stored inside the P9500/XP disk array. In effect, the P9500/XP becomes the storage controller for a
flexible, multi-tiered collection of storage with a range of cost and performance capabilities. By
configuring current or legacy storage systems behind a single P9500/XP24000/XP20000, data can be
moved back and forth dynamically across tiers, all of which is invisible to the applications.
The P9500/XP virtualization feature also reduces the total cost of storage ownership by:
Exploiting common storage management across multiple vendors' systems
Easily deploying a dual-vendor policy
Facilitating simpler and lower cost data migrations
Increasing storage utilization
Extending the life of legacy storage
For more information please refer to the XP24000/20000 External Storage web page at:
http://h18006.www1.hp.com/products/storage/software/extstxp/index.html or the HP P9000 External
Storage Software web page at: http://h18006.www1.hp.com/storage/software/p9000/ess/index.html
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 18
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
Servers Supported –
Single and Clustered
HP servers (HP-UX, ProLiant, ProLiant Storage Servers, AlphaServers)
X86 servers
Dell servers
Sun servers
IBM servers
Apple XsApple Servers (PowerPC and Intel)
Fujitsu Siemens & Primergy Servers (Bx6x0, Rx and Tx)
EVA Required Software
HP EVA4400 ships with XCS v10.0xx factory installed on new EVAs. XCS v10.0xx also supports the
EVA6400/8400. The base XCS License to use for the EVA is contained in the hardware shipment.
XCS v10.0 controller media download is available from HP.com. These downloads are available for
upgrades of existing EVA4400 or as archival media for the EVA6400/8400. The EVA Release Notes and
Upgrading Product software Guide are also available from the same location.
NOTE: Review the Release Notes and Upgrading Product Software documentation and compatibility
requirements of all installed Array Integrated Software completely before upgrading. Downgrading the
EVA4400 from XCS 10.0xx to v9.5xx is not supported.
XCS is available for download at the "software & drivers" link:
http://h18006.www1.hp.com/products/storageworks/eva/index.html
HP Command View EVA is required software for the EVA4400. HP Command View EVA requires a
License to use (LTUs) equal to, or greater than the total raw capacity of each array.
Install and configure Command View / SBM and the EVA 4400 with HP SmartStart for EVA Storage.
Order this media kit when ordering an EVA4400.
EVA Software Selector
The following matrix will assist in identifying some of the complementary HP software products can be
used along with the EVA to support various business applications. Please see your Sales Representative,
or go to: http://www.hp.com for more information on these valuable HP software products.
Just click on the product name and you will be linked to the product specification URL.
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 19
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
HP Command
View EVA
HP SmartStart
HP Business
Copy EVA
HP Continuous
Access EVA
Dynamic
Capacity
Manager
HP Storage
Essentials Suite
(Heterogeneous,
multivendor)
Business
Disaster
Unified
EVA Device and
Continuity/ Recovery/ Storage Resource Server and
Configuration Backup Solutions
Local
Remote
Management
Storage
Management
Mirroring Mirroring
Management
X (Required)
Application
Integration
X
X
X
X
X
X
End to end
provisioning
(hosts,
infrastructure,
storage)
X
End to end
backup
monitoring/
reporting
HP Storage
Discovery,
Essentials
topology
Performance
Edition Software
HP Data
Protector
HP Systems
In-context launch
Insight Manager of CV EVA, SAN
discovery,
monitoring, asset,
config., security
HP Storage
Mirroring
X
DA - 12893
X
Discovery,
topology,
monitoring,
events,
applications,
NAS/SAN, File
monitoring,
reporting,
Performance,
monitor host
clusters
X
Discovery,
topology, EVA
performance
X
monitor applications
and associated
storage/infrastructure
(Oracle, Microsoft
Exchange Server,
Sybase, Microsoft
SQL, InterSystems
Cache' database and
SAP ACC)
X
X
X
(Oracle, Exchange,
DB2, Informix, MS
SQL)
X
X
(Included
with EVA)
X
Worldwide — Version 24 — August 30, 2011
Page 20
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
EVA and Value-added Software Compatibility
Model
XCS Software
HP Command View HP Continuous
EVA*
Access EVA**
EVA
EVA
HP Business Copy
EVA**
EVA
EVA4400
XCS v10.0xx
Command View EVA Continuous Access
v9.4****
EVA
v9.4
Business Copy EVA
HP Replication
Solution Manager
(RSM)***
(RSM)
Replication Solution
Manager v 5.0
*HP Command View EVA is required software. HP Command View EVA requires a License to use (LTUs) equal to or greater than the
total raw capacity of each array. If the EVA does not have the proper licensed capacity it will be in violation of the End User License
Agreement (EULA).
**HP Continuous Access EVA and HP Business Copy EVA requires a License to use (LTUs) equal to or greater than the total usable
amount of data being replicated on each array. If the EVA does not have the proper licensed capacity it will be in violation of the End
User License Agreement (EULA).
***HP Replication Solutions Manager Software provides a powerfully simple graphical user interface (GUI) to create, manage and
configure local and remote replication on the entire EVA family. The RSM Software provides a centralized management interface that
integrates with HP Business Copy EVA Software and HP Continuous Access EVA Software for local and remote replication, resulting in
a unique, cost effective disaster recovery solution.
****Command View v9.4 is required to support the MPX200.
Operating Systems, Cluster and High Availability Compatibility
Operating System
Versions Supported
Microsoft Windows
2003 32-bit
All Editions SP1, R2; SP2
See SPOCK for
details
Microsoft Windows
All Editions SP1, R2; SP2
2003 x64
See SPOCK for
details
Microsoft Windows
All Editions SP1; SP2 ; R2
2003 IA64
See SPOCK for
details
Microsoft Windows 2008 All Editions SP1, SP2, R2
32-bit, x64*
See SPOCK for
x64
Including Hyper-V
details
SP1, SP2, R2
Microsoft Windows 2008 All Editions IA64*
See SPOCK for
IA64
details
HP-UX
11i v1 (PA-RISC)
11i v2 (PA-RISC & Integrity)
11i v3 (PA-RISC & Integrity)
Linux
Cluster Server or
High Availability
Software
Microsoft Cluster
Server
(MSCS ) (2003)
Microsoft Failover
Clusters
(MFCS ) (2008)
Windows Server
2003
HP ServiceGuard
Veritas Storage
Foundation & HA
Solutions
Failover Software
Windows Server
2008
Full featured MPIO,
v3.02/V4.00
available from HP
(2003, 2008)
See SPOCK for
details
Microsoft DSM from
Microsoft (2008)
Veritas Storage
Foundation & HA
Solutions for
Windows
Red Hat EL Advanced Server 4.7, 4.8 HP ServiceGuard
(IA32, IA64 & x64)
for Linux
Red Hat EL Advanced Server 5.3, 5.4
DA - 12893
HA Versions
Supported
See SPOCK for
details
11.16
11.17
11.18
11.19
HP-UX 11.iv3 has
OS native multipath, pvlinks native
in HP-UX and
Veritas DMP
11.18
QLogic Failover
driver, available
from HP, Emulex
See SPOCK for
Worldwide — Version 24 — August 30, 2011
Page 21
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
(IA32, IA64 & x64)
SUSE/SLES9 (IA32, IA64 & x64)- SP4
(Includes Open Enterprise Server Linux)
SUSE/SLES10 (IA32, IA64 & x64)- SP1,
2 & 3 (Includes Open Enterprise Server
Linux)
SUSE/SLES11 (IA32, IA64 & x64)(Includes Open Enterprise Server Linux)
Oracle Enterprise Linux V4, 5
Apple Mac OS X
HP OpenVMS
Sun Solaris
10.5
10.6
Alpha: 7.3-2, 8.2, 8.3, 8.4
Integrity/Itanium: 8.3, 8.3-1H1, 8.4
9 (SPARC)
10 (Proliant, SPARC, x64 & x86)
IBM AIX
5.2
5.3
6.1
VMware
ESX Server 3.0.x, 3.5 and 4.0
Xen
Citrix XenServer V4.1, 5.0 and 5.5
RHEL Virtualization V5.2
Oracle Virtual Machine
SUSE Linux Enterprise Server 11 Xen
Veritas Storage
Foundation & HA
Solutions RedHat
Cluster Services
versions
MultiPulse available
from HP (RHEL 4.7
and 4.8 )and
Device Mapper
v4.4.0 Enablement
Kit from HP
N/A
N/A
HP OpenVMS
Clusters
7.3-2
8.2
8.2-1
8.3
8.3-1h1
8.4
3.2
See SPOCK for
versions
ATTO FC HBA
driver
Native in OS
Novell HA
Extensions
SunCluster
Veritas Storage
Foundation & HA
Solutions
HACMP
Veritas Storage
Foundation & HA
Solutions
MSCS Clustering
Citrix
HP ServiceGuard
for Linux (RHEL and
Oracle Virtual
Machine)
MPxIO for Solaris,
Native in OS
Veritas DMP 5.0
Native in OS
See SPOCK for
versions
MPIO for IBM AIX,
Native in OS
Veritas DMP 5.0
See SPOCK for
versions
V5.0
SGLX 11.18
See SPOCK for
versions
See SPOCK for
Guest OS support
Native Device
Mapper MPIO
(Citrix and RHEL)
*For more specific information on supported versions see the OS support matrix at: http://spock.corp.hp.com/
**For more detailed information on Cluster Server Support see the VMware Release Notes
***Follows initial release, check posted Operating Specific Release Notes or software documentation for support.
**** For more specific information on supported versions check posted Operating Specific Release Notes or software documentation
for support
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 22
QuickSpecs
HP 4400 Enterprise Virtual Array
Product Highlights
Racking Guidelines and
Power Distribution
Power Distribution Units (PDUs) are configured according to the voltage used in the country when the
solution is ordered. These PDUs provide redundant power. They are located in the bottom and back of
the cabinet, taking 1U of rack space.
For the EVA4400, a variety of HP 10000 G2 Series Rack offerings and integration options are available.
The EVA configurator tools utilize a 42U HP 10000 G2 Series Rack as the standard recommendation
and will provide a 200 - 240V PDU and country specific power cords. However, the EVA4400
configurations can be customized to meet a wide variety of customer needs. The height, width (including
the 800mm wide rack) and types of rack and PDUs can be modified based upon the specific customer
need. If other devices, such as servers, switches or back-up devices are to be installed with the EVA, this
can be specified and the cabinets and PDUs can be modified to support the configuration. The EVA4400
also supports 22U and 36U racks. The 47U rack is also supported, but not factory configured, because
of the cabinet height, which creates shipping difficulties. It must be assembled on site.
For more information on the HP rack offerings, please see the following URL:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/index.html
Other PDUs, besides the 200 - 240 V single-phase default PDU, are also supported. This includes 100 127 volt single-phase, 200 - 240 volt three-phase, and 380 - 415 volt three-phase PDUs. Monitored
PDUs are also supported.
For more information on PDU support, please see the following URL:
http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/pdu.html
When installing the EVA Enclosures in extended depth racks (AF091A, AF092A, AF094A, or AF097A), 1
each of the longer Power Jumper Cord listed is required for each EVA Controller or Drive Enclosure on
the order.
NOTE: When adding additional devices to existing racks ensure that the installed PDUs will support the
new power requirements.
NOTE: The EVA does not support communication with an Uninterruptable Power Supply (UPS) device.
However, an EVA can be used with a UPS to extend the cache hold-up time of the EVA past the 96 hours
provided by the cache batteries. The EVA Power Calculator will allow customers to approximate the
electrical load for a given EVA configuration for facilities planning purposes and UPS sizing.
NOTE: For detailed information on determining compatibility of a non-HP rack, please review the
information included in the EVA User Guide which can be found at" http://www.hp.com/go/eva.
Total Cost of Ownership The unique virtual architecture allows up to twice the normal effective capacity utilization of traditionally
architected storage offerings. And with Virtually Capacity-Free Snapshot (Vsnap), significant duplicate
capacity requirements can be eliminated resulting in fewer/smaller storage acquisitions.
The EVA has one of the highest density disk storage solutions in the industry. Additionally, the unique
virtual architecture allows up to twice the normal effective capacity utilization of traditionally architected
storage offerings. And with the virtually Capacity-Free Snapshot (Vsnap), FATA disk drives and the ability
to change Vraid types, significant amount of duplicate capacity requirements can be eliminated, resulting
in fewer/smaller storage acquisitions.
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 23
QuickSpecs
HP 4400 Enterprise Virtual Array
Family Information
Warranty and Services
The EVA4400 comes with a 3-year HP's Global Limited Warranty and Technical Support, which includes
Included with the Product 3 years 9x5 hardware support, with next business day (NBD) response.
HP's warranty and support features:
Online Business Support Center and IT Resource Center
Remote Support
Technical Phone Support
Customer Self Repair (see list below)
Software Limited Warranty
On-site Warranty Service
The EVA Fibre Channel Disk Drive warranty is 3 years, parts only.
Online Support
HP online support capabilities include a variety of self-help tools, troubleshooting assistance, and access
to the patch database, firmware/software update packages and documentation. Register with the HP
Business Support Center and the IT Resource Center to receive product specific and proactive
notifications for the EVA4400. For more information go to: www.hp.com/support or: www.itrc.hp.com.
Remote Support
HP designed the EVA4400 with support capability to facilitate remote monitoring and email notification
of array errors/events. To take full advantage of HP's remote support solutions and maximize the service
delivery experience, these features must be enabled at time of installation. Additional fault monitoring
software is included in the EVA software media kit.
Technical Phone Support
24x7 telephone technical support is available to assist with Hardware warranty related troubleshooting
and issue resolution. Call HP warranty support: 1-800-474-6836. Qualified technical resources will be
your first point of contact to assist with your service request.
Customer Self Repair (customer installed replacement parts)
HP designed the EVA4400 to enable the highest degree of Customer Self Repair and parts
replacements. This feature enables maximum support flexibility, while minimizing unit down time.
Customer Self Repair parts come with step by step instructions with additional assistance available online
or by phone.
Required Customer Self-Repair (Replacement) Parts List:
Hard disk drives with drive firmware code load.
Controller enclosure power supply.
Controller enclosure fan.
Controller management module
Controller cache battery
Disk enclosure power supply.
Disk enclosure fan.
Bezels.
Optional Customer Self-Repair Parts List:
Controller module.
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 24
QuickSpecs
HP 4400 Enterprise Virtual Array
Family Information
Controller cache memory (DIMM).
Internal enclosure boards and cables
Fiber channel Transceivers.
Fiber channel transceivers cables.
Part replacement videos can be viewed at: http://hp.com/go/sml. For the EVA4400, select Storage, then
EVA Disk Arrays, then HP 4400 Enterprise Virtual Array, then the particular resource needed.
Software Warranty
If the removable HP Software media on which HP distributes the software proves to be defective in
materials or workmanship within 90-days of purchase, return the media to HP for replacement.
On-site Warranty Service
The HP EVA4400 comes with 3 year on-site warranty support, for those service events not remedied
either remotely or through use of customer self-repair replaceable parts. On-site service is made
available at HP's discretion and scheduled during standard office hours.
For more information about HP's Global Limited Warranty and Technical Support, visit:
http://h18006.www1.hp.com/products/storageworks/warranty.html
For more information about HP's Global Limited Warranty and Technical Support, visit:
ftp://ftp.compaq.com/pub/products/storageworks/warranty/en_321708-008.pdf
HP warrants the HP 10000 G2 Series Rack according to the standard rack product warranty. Please
refer to product specification for further details:
http://h18004.www1.hp.com/products/servers/proliantstorage/racks/index.html
HP Care Pack Services. Packaged server and storage services for increased uptime, productivity and ROI.
When you buy HP server and storage products and solutions, it's also a good time to think about what levels of support you may
need. Our portfolio of service options reduce deployment and management worries while helping you get the most out of your
server and storage investments. We take a holistic approach to your environment, bridging servers, blades, storage, software and
network infrastructures with our packaged HP Care Pack Services for servers and storage.
Protect your business beyond the warranty
When it comes to robustness and reliability, standard computing equipment warranties have matured along with technology. Good
news that can also create problems stemming from depending on standard warranties designed to only protect against product
defects and some downtime causes. Using a standard approach to warranty uplifts, such as HP Care Pack Services, helps reduce
downtime risks and provides operational consistency for mission-critical and standard business computing.
HP Care Pack Services: Upgrading or extending standard server and storage warranties cost effectively
HP Care Pack Services offer a standard reactive hardware and software support services suite sold separately, or combined with our
Support Plus and Support Plus 24 services. The portfolio also provides a combination of integrated proactive and reactive services,
such as Proactive 24 Service and Critical Service. In addition with HP Proactive Select, you can acquire the specific proactive
constancy and technical services. HP Proactive Select menu offers a broad set of service options that you can mix and match
depending on your specific requirements. Proactive service options include offers for server, storage, network, SAN device, software,
environment and education services.
HP server and storage lifecycle support services offers a full spectrum of customer care-from technology support to complex
migrations to complete managed services. HP Factory Express provides customization, integration and deployment services for
turnkey solutions. HP Education Services offer flexible, comprehensive training on to help your IT staff get the most out of your server
and storage investments. HP Financial solutions extend innovative financing and cost-effective asset management programs-from
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 25
QuickSpecs
HP 4400 Enterprise Virtual Array
Family Information
purchase to equipment retirement.
Learn more: www.hp.com/services/servers and www.hp.com/services/storage
NOTE: Care Pack Services availability may vary by product and country.
HP Care Pack Services are sold by HP and HP Authorized Service Partners:
Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.
Customers purchasing from a commercial reseller can find HP Care Pack Services at
http://www.hp.com/go/lookuptool
Recommended HP Care Pack Services for optimal satisfaction with your HP product.
3-Year HP Support Plus For a higher return on your server and storage investment, HP Support Plus 24 provides integrated
24
hardware and software support services designed specifically for your technology. Available 24x7, this 3year combined reactive support option delivers onsite hardware support and over-the-phone software
support around-the-clock. Leverage the full strength of HP Technology Services - customers can trust the
services professionals at HP to work collaboratively with them, putting our strategic and technical knowhow to work across their entire infrastructure.
Improve uptime with responsive hardware and software services
Enjoy consistent service coverage across geographically dispersed sites
Update HP software at a predictable cost
Increase customer satisfaction-with no interoperability gaps
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EEE
HP EVA 4400 Disk Array For an efficient start, HP EVA 4400 Disk Array Installation and Startup Service - provides deployment of
Installation and Startup
your EVA 4400 Disk Array, Command View EVA and remote support tools into your storage environment
Service
to help get you up and running quickly. In today's new era of business technology, technology must
produce thousands of business outcomes. Today's HP Technology Services portfolio helps customers
manage their technology in action-because when technology works, business works.
Installation and startup by an HP technical specialist
Availability of an HP service specialist to answer basic questions during delivery
Delivery of the service at a mutually convenient scheduled time
Verification prior to installation that all service prerequisites are met
Customer orientation session
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA1-8183ENW.pdf
HP Proactive Select Service improves your IT performance and manageability through the use of cost
HP Proactive Select
Service
effective flexible services. HP provides technical expertise and best practices to accelerate ROI of your
technology investment. Selectable proactive services span a wide range of technology and process
services - a flexible way to purchase proactive services that fit your particular environment and situation.
HP Proactive Select Service is technology agnostic and purchased in addition to your choice of
underlying reactive support.
Access to a list of flexible and customizable proactive service activities
Enhance customers' in-house IT team with complementary assistance from HP
Improved time to solution
Reduce business risk and project costs by accessing HP specialists
Simplify IT operational procedures by leveraging HP best practices
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-3842ENN.pdf
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 26
QuickSpecs
HP 4400 Enterprise Virtual Array
Family Information
Optional HP Care Pack Services that will enhance your HP product experience.
For customers who need to safely migrate Windows data within their TCP/IP networks with minimal
HP Entry Storage Data
Migration Service for
impact to their operations:
Windows
You have a need to migrate data between Windows servers within your TCP/IP network. Or you have a
need to migrate storage for your Windows servers. Or both. And you need to accomplish these
migrations efficiently while minimizing risk at the same time.
HP Entry Storage Data Migration Service for Windows offers you a cost competitive and convenient way
to accommodate data migration triggered by a need to refresh or consolidate storage, or to create
different storage tiers. This service offers a migration cost in line with the costs of storage products in
small and medium-sized storage environments. The service is delivered via a skilled HP service specialist
with special consideration for data availability, integrity, and ongoing operational performance during
the transfer process.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-4734ENW.pdf
HP Performance Analysis For customers who need to increase performance, stability and availability of their XP/P9000/EVA
for the XP/P9000/EVA
arrays:
Disk Arrays
Enhancing the return on your HP Disk Array investment requires informed configuration and
management decision-making. That, in turn, calls for an in-depth understanding of the performance
level your array is delivering. HP's experienced storage specialists can help.
Capitalize on HP Services XP/P9000/EVA knowledge and know-how.
HP Performance Analysis for the XP/EVA Disk Arrays provides automated data collection, detailed I/O
analysis, and expert recommendations for throughput enhancement. It offers a quick, convenient way to:
Increase XP/P9000/EVA performance, stability, and availability by identifying potential bottlenecks
and effective solutions for avoiding them
Establish a baseline for future performance analysis and change management
Make sound proactive decisions on XP/P9000/EVA system capacity planning
Minimize the need for costly reactive upgrades
http://h20195.www2.hp.com/v2/GetPDF.aspx/5982-6668EN.pdf
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 27
QuickSpecs
HP 4400 Enterprise Virtual Array
Family Information
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
include
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit: http://www.hp.com/support
Customer Technical
Training
HP Education Services
In today's cost-conscious business environment, IT professionals, developers, consultants and users face
an interesting challenge: how to keep up with the latest technologies and expand important skills while
delivering profitable results on current projects. To help address this challenge, HP offers innovative
training solutions that help keep you up-to-date on virtualization, server, storage, Insight Control, Citrix,
Microsoft® and open source/Linux-related topics-while spending less time away from business-critical
activities.
HP Services Awards
HP Technology Services continues to be recognized for service and support excellence by customers,
partners, industry organizations and publications around the world. Recent honors and award reflect our
services team's dedications, technical expertise, professionalism and uncompromising commitment to
customer satisfaction.
Additional Services
Information
To learn more on HP ProLiant servers, HP BladeSystem servers and HP storage products, please contact
your HP sales representative or HP Authorized Channel Partner. Or visit: www.hp.com/services/proliant
or www.hp.com/services/bladesystem or http://www.hp.com/hps/storage
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 28
QuickSpecs
HP 4400 Enterprise Virtual Array
Configuration
Step 1 – Choose an EVA Model – Base and Factory-Integration Information
Models
Enterprise Virtual Array
4400 Independent
Components
The following components are available worldwide. The EVA4400 models are
modular and scalable storage solutions designed to have no-single-point-of-failure,
which provide disaster tolerance and business continuance support for storage
consolidation on heterogeneous SANs.
EVA4400 Dual Controller HP 4400 Dual Controller Enterprise Virtual Array
Array
One 2U controller enclosure with two HSV300 controller module, mounting
hardware, cables, controller mounting. Order one unit for each EVA4400 array
configuration.
EVA4400 Controller Pair HP EVA4400 Dual Controller Enterprise Virtual Array w/Embedded Switch
Enclosure with embedded
switch
One 2U Controller Enclosure with two HSV300-S controller modules, mounting
hardware, cables, and controller mounting. Each controller module also includes an
8Gb/s 10 port B-series SAN switch, for a total of two switches and 20 ports per
controller enclosure. Also included are four 8Gb/s SFPs. Per controller enclosure; 8
total. Additional 4Gb/s or 8Gb/s SFPs can be purchased separately. Order one unit
for each EVA4400 array configuration.
AG637B
AG805C
The embedded switches come with full fabric scalability enabled, licenses and docs.
The included software has Advanced Fabric OS, Advanced Web Tools and Advanced
Zoning 0514. Embedded switches support N_port_ID virtualization (NPIV), required
for HP BladeSystem c-Class Virtual Connect Fibre Channel module connectivity
HP EVA 4400 300GB
15K HDD Starter Kit,
Field install
HP EVA 4400 300GB
15K HDD Starter Kit,
Factory integrated
HP EVA 4400 600GB
10K HDD Starter Kit,
Field install
See below for optional switch software.
EVA4400 Starter Kit includes one EVA4400 Dual Controller array with redundant
power supplies, one M6412A 12-bay HDD enclosure with appropriate mounting
rails, XCS 9.5xx firmware, 8x300 GB 15K rpm HDDs, Command View EVA (1)
Unlimited license. Command View Media kit and HP SmartStart for HP EVA Storage
are required and must be purchased separately.
HP StorageWorks EVA4400 Starter Kit 300GB 15K Factory integrated
NOTE: requires rack purchase
EVA4400 Starter Kit includes one EVA4400 Dual Controller array with redundant
power supplies, one M6412A 12-bay HDD enclosure with appropriate mounting
rails, XCS 9.5xx firmware, 8x600 GB 10K rpm HDDs, Command View EVA (1)
Unlimited license. Command View Media kit and HP SmartStart for HP EVA Storage
are required and must be purchased separately.
HP StorageWorks EVA4400 Starter Kit 600GB 10K Factory integrated
NOTE: requires rack purchase
HP EVA 4400 600GB
10K HDD Starter Kit,
Factory integrated
HP M6412A Fibre Channel Drive Enclosure
M6412A FC Drive
Enclosures & Accessories Select up to eight M6412A drive enclosures to expand EVA4400 configurations. Drive
enclosures may be:
BS195A
BS194A
BS197A
BS196A
AG638B
1. Ordered for on-site capacity additions to existing EVA4400 configurations.
2. Ordered for field installation of complete EVA4400 configurations in
conjunction with the EVA4400 Starter Kits.
3.
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 29
QuickSpecs
Configuration
Expansion Options
1.
2.
HP 4400 Enterprise Virtual Array
3. Installed by HP manufacturing into EVA configurations by ordering the
enclosure with the factory integration part number (#0D1).
This drive enclosure is compatible with EVA4400 arrays only. Up to eight drive
enclosures are supported with each pair of HSV300 or HSV300-S controllers.
The M6412A is a 2U dual-redundant FC Loop 12-bay disk enclosure with
mounting hardware, and the necessary copper FC cables for connecting to an
HSV300 or HSV300-S Controller pair.
NOTE: The M6412A drive enclosure meets the very latest RoHS (Restriction of
Hazardous Substance) requirements. The M6412 met an earlier version of the RoHS
requirements. They are functionally equivalent otherwise.
NOTE: A minimum of 8 disk drives per Fibre Channel type or FATA drive type are
required per EVA4400 when using those drive types; a minimum of 6 Solid State
Drives are required per EVA4400 when using those drive types.
The EVA4400 Dual Controller array can be added on-site into existing EVA
configurations (or qualified rack systems), using the AG637A SKU. Additional
M6412A drive enclosures (AG638A) can be ordered to expand an EVA4400
configuration.
1. Ordered for on-site capacity additions to existing EVA4400 configurations.
2. Ordered for field installation of complete EVA4400 configurations in
conjunction with the EVA4400 Starter Kits into the supported HP cabinets and
racks described in Step 3 or into qualified 3rd party rack systems by HP Global
Services.
3. Installed by HP manufacturing into EVA configurations by ordering the
enclosure with the factory integration part number.
Up to eight drive enclosures are supported with each pair of HSV300 controllers. The
M6412A is a 2U dual-redundant FC Loop 12-bay disk enclosure with mounting
hardware, and the necessary copper FC cables for connecting to an HSV300
Controller pair.
Order additional hard disk drives using the SKU's listed in Step 5. The EVA4400
supports up to 96 hard disk drives.
NOTE: Minimum of 8 disk drives per Fibre Channel or FATA drive types per
EVA4400.
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 30
QuickSpecs
HP 4400 Enterprise Virtual Array
Configuration
Step 2 - Choose a Rack - Base and Factory Integration Information
Factory Integration
Primary Configuration
Rules
HP 10000 Series G2
Racks
HP PDU Pivot Kit
Choose a rack to house your EVA4400 based on the HP 10000 G2 Series Rack.
NOTE: The 10000 G2 Series Rack is the only series supported for factory
configuration.
Use of the EVA4400 Factory Integration part number is required for component
integration. The EVA4400 will be configured into a 42U HP 10000 G2 Series Rack
with the appropriate PDU. If other products such as servers or back-up products are
included in the cab a different PDU will be added (if required) or can be chosen from
a list of appropriate offerings shown in the configuration tool. HP 10000 G2 Series
Rack must be purchased. Additional EVA4400 controller enclosures and drive
enclosures may be ordered for multiple subsystem integration at the factory. When
calculating available U-space, assume that no space will be placed between the
mounted components. For redundancy, order PDUs in quantities of two. Refer to the
Configuration and User Guide in the Information Library at the Rack Solutions
webpage.
Please refer to the HP Infrastructure products page for more information on HP racks
and rack options:
http://h18004.www1.hp.com/products/servers/platforms/rackandpower.html
Used to reclaim 2U of space in a 10000 G2 Series Rack with EVA4400
configurations. This kit allows the PDUs to be placed in the back of the rack without
requiring any rack U space.
NOTE: 0D1 will appear after this part number to indicate factory integration where
appropriate
AG730A
Step 3 - Firmware and Management Software
Controller Firmware and
Installation and
Management Software
HP EVA4400 is factory installed with XCS v10.0xx. Media kits and licenses are required to support HP
Command View EVA, HP Continuous Access EVA and HP Business Copy EVA. EVA4400 Starter Kits
contain (1) Command View EVA unlimited license for EVA4400.
HP EVA4400 XCS v10.0xx controller media download is available from HP.com. These downloads are
available as archival media for the EVA4400 from the following link:
http://h18006.www1.hp.com/products/storageworks/eva/index.html
HP Command View EVA / SBM v10.0 or / ABM v9.4 supports the EVA4400 and XCS v10.0xx. An HP
Command View License-to-Use (LTU) must be purchased for each EVA controller pair. Each HP EVA
must be licensed with the appropriate HP Command View LTU(s) to be in compliance with the End User
License Agreement (EULA) and the Command View license monitoring function.
The Command View licensed capacity per EVA must be equal to, or greater than the total raw capacity
of each EVA. HP Command View EVA may be purchased in increments of a 1TB LTU (one or multiple
1TB LTUs based upon the EVA's raw capacity), or an HP Command View Unlimited Capacity LTU may
be purchased which will support up to the maximum raw storage capacity of the EVA. The license to use
requirements are the same whether using Command View EVA SBM and/or ABM. One license applies to
both.
HP SmartStart for EVA
OPTIONAL SOFTWARE:
SOFTWARE EVA4400 optional software can be found at the following URL:
http://h18006.www1.hp.com/storage/software.html
Install and configure the EVA4400 using HP SmartStart for EVA Storage configuration utility, which runs
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 31
QuickSpecs
HP 4400 Enterprise Virtual Array
Configuration
configuration utility
on Windows Server systems. This software installs necessary drivers on Windows Server 2003 and 2008
application servers and Command View EVA / SBM v9.4 on a Windows Server 2003 management
server, as well as provisions the storage. During installation, click to accept the terms of the HP
SmartStart for EVA* Storage configuration utility End User License Agreement (EULA). No separately
orderable LTU is required for HP SmartStart for EVA Storage.
*For more information on SmartStart, see:
http://h18000.www1.hp.com/products/storageworks/evasmartstart/relatedinfo.html?jumpid=
reg_R1002_USEN
Step 4 - Hard Disk Drives
Drives are orderable at the time the array is purchased, or can be added in the future when additional capacity is required. Use
these SKUs whenever ordering hard disk drives for the EVA 4400, either for factory integration or when adding additional capacity.
Note that these SKUs apply ONLY to the EVA4400 and can't be used with other EVA models.
HP FC
NOTE: A minimum of eight (8) high performance FC or FATA or 6 solid state drives
and FATA Drives
are required per EVA4400.
HP StorageWorks EVA M6412 72GB 4Gb Fibre Channel Dual-port Solid State Drive
AR055A
HP StorageWorks EVA M6412A 200GB 4Gb Fibre Channel 2-port Solid State Drive
AW571A
HP StorageWorks EVA M6412A 400GB 4Gb Fibre Channel 2-port Solid State Drive
AW572A
HP StorageWorks EVA M6412A 450GB 10K Fibre Channel Hard Disk Drive
AP731B
HP StorageWorks EVA M6412A 600GB 10K Fibre Channel Hard Disk Drive
AP732B
HP StorageWorks EVA M6412A 300GB 15K Fibre Channel Hard Disk Drive
AG690B
HP StorageWorks EVA M6412A 450GB 15K Fibre Channel Hard Disk Drive
AG803B
HP StorageWorks EVA M6412A 600GB 15K Fibre Channel Hard Disk Drive
AJ872B
HP StorageWorks EVA M6412A 1TB FATA Hard Disk Drive
AG691B
HP EVA M6412A 2TB FATA Fibre Channel Dual Port Hard Disk Drive* **
BV898A
NOTE: 0D1 will appear after this part number to indicate factory integration where
appropriate.
*Controller Firmware XCS 10.0xx or later is required to support the 2TB FATA drive.
** The EVA4400 has a maximum addressability limit of 132TB. 2TB drives, or 2TB
drives and other capacity drives, can exceed this addressability limit. With 2TB drives
alone, using Vraid 5, with 80% efficiency, 82 drives can be supported. With 2TB
drives, using Vraid 6, with 66% efficiency, a maximum array of 96 drives can be
supported. With 2TB drives, using Vraid 0, which is strongly recommended not be
used with FATA drives,, a maximum of 66 drives can be supported.
Bulk Pack Shipping Option
519137-B21
Disk drive Bulk
Pack shipping
(Americas & APJ
only)
Customers ordering disk drives that are not factory configured have the option of
getting the drives shipped in a bulk pack package in quantities of 10 drives per
package.
NOTE: All drives ordered with a disk drive bulk pack option must be the same type
per bulk pack. One bulk pack must be ordered for each 10 drives. The drive part
numbers must be entered directly after the bulk pack part number. 0D1 will appear
after the disk drive part number to indicate that the drives are linked to the bulk pack.
The bulk pack shipping option is for the Americas and APJ regions only.
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 32
QuickSpecs
HP 4400 Enterprise Virtual Array
Configuration
NOTE: Quantities of disk drives ordered that are not multiples of 10 will be shipped
in individual drive shipping packages.
Step 5 - Cables and SFPs
HP EVA Loopback
Connector
HP EVA Loopback Connector
Contains one Loopback connector. The loopback connector is used when an EVA host
port is not cabled to a switch or HBA (for direct connect).
NOTE: All EVA host ports must be filled with either a cable or loopback connector.
FC cable – Copper SFP
The following cables are used with the M6412 drive enclosure but are not necessary
for new installations. These cables are for use inside the cab between the controllers
and drive enclosures if replacement cables are required
Cable FC Copper SFP 0 .6m
Cable FC Copper SFP 2m
SFPs
AJ706A
321624-B21
324394-B21
The EVA4400 controllers without embedded switches come with 4Gb SFPs in each FC
port. The EVA4400 controllers with embedded switches come with 8Gb SFPs in each
FC port.
The following tables show the distances available with various cables and transceivers.
8 Gb/s SFP
(Small Form- Factor
Profile Transceiver)
HP 8Gb Shortwave B-series FC SFP+ 1 Pack for use with EVA4400 embedded switch
model
Distance OM2 Cable
OM3 Cable
PremierFlex Cable
Maximum
8Gb performance
50 meters
150 meters
150 meters
4Gb performance
150 meters
380 meters
380 meters
2Gb performance
300 meters
500 meters
500 meters
AJ716A
4 Gb/s SFP
(Small Form- Factor
Profile Transceiver)
HP 4Gb Shortwave B-series FC SFP 1 Pack for use with EVA4400 without embedded
switch model.
Distance OM2 Cable
OM3 Cable
PremierFlex Cable
Maximum
4Gb performance
150 meters
380 meters
380 meters
2Gb performance
300 meters
500 meters
500 meters
AJ715A
FC Cables
NOTE: Before selecting the FC cables to connect between the controllers and the
switches, check to see what kind of connectors are on the switches that will be
connected to the controllers. The SFP connector can support 8Gb I/Os, 4Gb I/Os,
2Gb I/Os and/or 1Gb I/Os.
NOTE: One of these cables (either LC to SC or LC to LC) or an EVA Loopback
connector is required per FC port of each HSV controller.
PremierFlex OM3+
0.5m PremierFlex LC/LC Multi-Mode Optical Cable
DA - 12893
Worldwide — Version 24 — August 30, 2011
BK837A
Page 33
QuickSpecs
HP 4400 Enterprise Virtual Array
Configuration
FC cables (optional)
(LC to LC)
1m PremierFlex LC/LC Multi-Mode Optical Cable
2m PremierFlex LC/LC Multi-Mode Optical Cable
5m PremierFlex LC/LC Multi-Mode Optical Cable
15m PremierFlex LC/LC Multi-Mode Optical Cable
30m PremierFlex LC/LC Multi-Mode Optical Cable
50m PremierFlex LC/LC Multi-Mode Optical Cable
BK838A
BK839A
BK840A
BK841A
BK842A
BK843A
FC cable - OM3
LC-LC type cables
.5 m LC-LC Multi-Mode OM3 Fibre Channel Cable
1 m LC-LC Multi-Mode OM3 Fibre Channel Cable
2 m LC-LC Multi-Mode OM3 Fibre Channel Cable
5 m LC-LC Multi-Mode OM3 Fibre Channel Cable
15 m LC-LC Multi-Mode OM3 Fibre Channel Cable
30 m LC-LC Multi-Mode OM3 Fibre Channel Cable
50 m LC-LC Multi-Mode OM3 Fibre Channel Cable
AJ833A
AJ834A
AJ835A
AJ836A
AJ837A
AJ838A
AJ839A
FC cable - OM2
LC-LC type cables
NOTE: SFP - Small Form-Factor Profile on the ports of the EVA4x00/6x00/8x00. One
of these cables (LC to LC) is required per FC port used of each HSV controller.
2-meter LC-LC Multi-Mode Fibre Cable
5-meter LC-LC Multi-Mode Fibre Cable
15-meter LC-LC Multi-Mode Fibre Cable
30-meter LC-LC Multi-Mode Fibre Cable
50-meter LC-LC Multi-Mode Fibre Cable
221692-B21
221692-B22
221692-B23
221692-B26
221692-B27
NOTE: Before selecting the FC cables to connect between the controllers and the
switches, check to see what kind of connectors are on the switches that will be
connected to the controllers. The SFP connector can support 8Gb I/Os, 4Gb I/Os,
2Gb I/Os and/or 1Gb I/Os.
NOTE: One of these cables (either LC to SC or LC to LC) is required per FC port of
each HSV controller.
FC Short Wave 2-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 5-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 15-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 30-Meter Cable, LC/SC (1Gb to 2Gb)
FC Short Wave 50-Meter Cable, LC/SC (1Gb to 2Gb)
221691-B21
221691-B22
221691-B23
221691-B26
221691-B27
FC cable - 1 Gb to 2
Gb/s
(optional)
(LC to SC)
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 34
QuickSpecs
HP 4400 Enterprise Virtual Array
Configuration
Step 6 - Optional Software
Remote Replication
Software
Local Replication
Software
Capacity Management
Software
HP Storage Essentials
Performance Edition
Software
VMware Site Recovery
Manager
HP Continuous Access EVA is a controller-based application that performs real-time replication between
HP enterprise virtual arrays. For more information, see Continuous Access description earlier in this
document. Please see the product URL for ordering information and part numbers:
http://h18006.www1.hp.com/storage/software.html
HP Business Copy EVA is a local replication software product for the EVA family providing Snapshot and
clone set-up and management. Business Copy EVA is sold by utilized capacity. For more information, see
the Business Copy description earlier in this document. See the product URL for ordering information and
part numbers: http://h18000.www1.hp.com/storage/software.html
HP EVA Dynamic Capacity Management Software is a comprehensive software solution that automates
storage provisioning and improves capacity utilization on the HP Enterprise Virtual Array (EVA) family. For
more information, see the DCM description earlier in this document. See the product URL for ordering
information and part numbers:
http://h18000.www1.hp.com/products/quickspecs/12815_div/12815_div.html
HP Storage Essentials Performance Edition Software provides path aware performance management for
your EVA Disk Array. Performance Editions includes 150 MAPs and one MAL for Oracle, DB2, Informix,
SQL Server, or Exchange. For more information, see the Storage Essentials product description earlier in
this document.
Storage Essentials Performance Edition Media and License to Use (LTU)
HP Storage Essentials SW Media
T4283DA
HP Storage Essentials Performance Edition 150 MAP LTU
T4661AA
Add on Storage Essentials Suite plug-in products for Storage Essentials Performance Edition
HP Storage Essentials SRM Enterprise Edition 50 MAP LTU
T4284AA
HP Report Optimizer
T9422AA
HP Storage Essentials Provisioning Manager 50 MAP LTU
T4285AA
HP Storage Essentials File System Viewer 1 TB LTU
T4292AA
HP Storage Essentials Database Viewer 1 MAL LTU
T4289AA
HP Storage Essentials Exchange Viewer 1 MAL LTU
T4288AA
HP Storage Essentials Backup Manager 1 TB LTU
T4295AA
VMware Site Recovery Manager (SRM) is designed to automate the recovery process and the remote
replication of HP Continuous Access EVA with Enterprise Virtual Arrays. The solution provides central
management through VMware Virtual Center and enables more frequent testing. This solution also
leverages your existing recovery site hardware to reduce operational cost of training. It is a solution that is
fully integrated with HP servers, HP Storage and HP Services, providing mid-market customers with a total
business continuity solution. For more information: www.hp.com/go/storage/vmware
NOTES:
1. Refer to the HP Storage Essentials Performance Edition Software QuickSpec for product and licensing details:
http://h18006.www1.hp.com/products/storage/software/e-suite/index.html
HP Data Protector Software provides an end to end solution that is completely automated, managed and
HP Data Protector
Software
controlled from one user interface, for complete, fast data protection with no impact to the virtual
environment. HP is the only vendor providing this level of automation for VMware or Hyper-V.
More Information:
http://h71028.www7.hp.com/enterprise/w1/en/software/information-management-data-protector.html
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 35
QuickSpecs
HP 4400 Enterprise Virtual Array
Configuration
Step 7 - Optional Hardware
The EVA File Services and EVA iSCSI Connectivity options provides superior storage consolidation, management and total cost of
ownership. The EVA File Services support both block and file data concurrently with high availability and scalable performance. The
EVA iSCSI Connectivity Option extends the FC SAN investment with integrated multi-protocol support, allowing customers to
incorporate iSCSI servers without requiring additional storage arrays or management costs
Ordering an EVA-File Server or iSCSI Connectivity Option is easy. The EVA File Services and iSCSI Connectivity Option will be
factory integrated into EVA4400 configurations.
HP 4400 Scalable NAS File Services Base Model
The HP 4400 Scalable NAS File Services offers scalable file serving performance for medium-sized customers that cannot afford any
downtime for their business-critical applications. The HP 4400 Scalable NAS File Services is a fully factory configured storage
solution that includes an HP Enterprise Virtual Array 4400 (EVA4400) with dual array controllers and up to 12 TB of storage
standard, two high performance file serving nodes, redundant Fibre Channel switches, management and replication software, and
support for Windows or Linux. The HP 4400 Scalable NAS File Services does not have a single point of failure. It allows customers
to transparently increase application throughput far in excess of traditional NAS products and easily grow storage capacity online
without service disruption. The HP 4400 Scalable NAS File Services offers great total cost of ownership with a low initial purchase
price and a shared data architecture that yields lower management expenses from a single shared pool of file serving nodes and
storage.
AN595B
HP 4400 Scalable NAS HP 4400 Scalable NAS for Windows includes
File Services for Windows
EVA4400 Dual Controller with Embedded SW
M6412A FC HDD Enclosure
Two HP DL360G6-Windows X5500 Network Storage Gateway Nodes w/24 GB RAM
each
HP ProCurve Switch 2910
Command View for EVA Unlimited License
Business Copy for EVA and 1 TB License
42U 10000 Series Rack
TFT7600 Rackmount Keyboard and Monitor
SmartStart for HP EVA Storage
Short Wave Transceivers, Ethernet interconnect cables and FC interconnect cables.
Factory Integration and pre-configuration.
NOTE: Installation and Startup is included.
or
HP 4400 Scalable NAS
File Services for Linux
HP 4400 Scalable NAS for Linux includes
AN596B
EVA4400 Dual Controller w/Embedded SW
M6412A FC HDD Enclosure
Two HP DL360G6 Linux X5500 Network Storage Gateway Nodes w/24 GB RAM
each
HP ProCurve Switch 2910
Command View for EVA Unlimited License
Business Copy for EVA and 1 TB License
42U 10000 Series Rack
TFT7600 Rackmount Keyboard and Monitor
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 36
QuickSpecs
HP 4400 Enterprise Virtual Array
Configuration
SmartStart for HP EVA Storage
Short Wave Transceivers, Ethernet interconnect cables and FC interconnect cables.
Factory Integration and pre-configuration.
NOTE: Installation and Startup is included.
For more information:
http://h18006.www1.hp.com/products/storageworks/scnas_4400/index.html
The EVA iSCSI Connectivity Options support Windows and Linux environments.
HP iSCSI Connectivity
HP EVA4400 iSCSI Connectivity Option
Option
Order this part for all new installations. Includes One unit, shelf, brackets, copper FC
cables and documentation. Includes one unit to mount in existing shelf and
documentation. Includes support for 16 initiators.
HP EVA4400 iSCSI Connectivity Upgrade Option
For multi-path (dual unit high availability) order both part numbers. (The second
hardware unit installs into the shelf that ships with AJ713A.)
HP iSCSI Initiator Upgrade license
HP
MPX200 Multifunction
Router
Initiator license for additional 32 ports for a total of 48
NOTE: For more information on the iSCSI Connectivity Options:
http://h18006.www1.hp.com/products/storageworks/evaiscsiconnect/index.html
HP MPX200 Multifunction Router 1 GbE Base Chassis
Includes:
AJ713A
AJ714A
T5471A
AP771A
(1) chassis,
(1) 1 GbE blade,
rail kit,
accessory kit and
documentation.
Includes redundant power supplies.
HP Storage Works MPX200 Multifunction Router 1 GbE Upgrade Blade.
Includes:
AP772A
(1) 1 GbE blade
accessory kit
documentation
For multi-path (redundant blade for high availability) order both part numbers. The
second hardware blade installs into the chassis that is included with AP771A or
AP773A.
NOTE: HP recommends use of the same blade option type (1 GbE or 10 - 1GbE) in
a common chassis to ensure balanced performance in a redundant configuration.
HP MPX200 Multifunction Router 10 - 1 GbE Base Chassis
Includes:
AP773A
(1) chassis
(1) 10 - 1 GbE blade
rail kit
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 37
QuickSpecs
HP 4400 Enterprise Virtual Array
Configuration
accessory kit
documentation.
Includes redundant power supplies.
HP Storage Works MPX200 Multifunction Router 10 - 1 GbE Upgrade Blade.
Includes:
(1) 10 - 1 GbE blade
accessory kit
documentation
For multi-path (redundant blade for high availability) order both part numbers. The
second hardware blade installs into the chassis that is included with AP773A or
AP771A.
NOTE: HP recommends use of the same blade option type (1 GbE or 10 - 1GbE) in
a common chassis to ensure balanced performance in a redundant configuration.
HP 12000 Virtual Library Expanding the power of the HP Enterprise Virtual Array (EVA), the HP 12000 Virtual
System EVA Gateway
Library System EVA Gateway accelerates backup performance in complex SAN
environments while improving overall reliability. For more information on the VLS EVA
Gateway, please visit the link below.
http://h18006.www1.hp.com/storage/disk_storage/disk_to_disk/vls/
12000vls/index.html
AH814B
SAN Components
The HP SAN integrates best-in-class storage networking components to deliver a complete connectivity platform for end-to-end
network storage solutions. HP's fabric portfolio includes: HBAs, directors, switches, SAN extenders, NAS heads, iSCSI routers, and
fabric software. HP SAN Infrastructure components deliver the network storage infrastructure for the Adaptive Enterprise.
For details on SAN infrastructure components and storage compatibility information, please visit: http://hp.com/go/san
Legacy EVA Hardware
Hard Disk Drives
HP FC Drives
NOTE: Four (4) disk drives, either size/type, are required per disk enclosure per system.
These drives support EVA3000/5000, EVA4000/6000/8000 and
EVA4100/6100/8100.
HP StorageWorks EVA 450GB 10K Fibre Channel Factory Installed Hard Disk Drive
HP StorageWorks EVA 600GB 10K Fibre Channel Factory Install Hard Disk Drive
HP StorageWorks EVA 300GB 15K Fibre Channel Hard Disk Drive
HP StorageWorks EVA 450GB 15K rpm Fibre Channel Hard Disk Drive
HP StorageWorks EVA 600GB 15K rpm 2/4Gb FC-AL 1 inch Dual-port Hard Disk
Drive
HP StorgeWorks EVA 1TB FATA Add on Hard Disk Drive
NOTE: There is a minimum order requirement, with the first installation of FATA add-on
drives on an EVA, a minimum of 8 FATA drives are required to create the new Near
Online disk group.
DA - 12893
Worldwide — Version 24 — August 30, 2011
AP729B
AP730B
AG425B
AG804B
AP751B
AG883A
Page 38
QuickSpecs
HP 4400 Enterprise Virtual Array
Configuration
FC Loop Switch Kits
This option is mandatory when upgrading the EVA4x00 2C1D to an EVA6x00 with 5
shelves or higher. Addition of loop switches to an EVA4000 or EVA4100 creates an
EVA6x00 and must be licensed as an EVA6x00.
HP EVA- Dual Loop Switch Option
Contains two FC loop switches, mounting hardware and cables.
NOTE: This kit is mandatory when upgrading the 4Gb EVA4000-A or EVA4100.
Addition of 5 shelves or more requires a Dual Loop Switch kit. Addition of the loop
switch to an EVA4000 or EVA4100 (1 or more shelves) creates an EVA6x00. Four FC
loop switches (2 AD557B) are required when upgrading the 4Gb EVA8000-A or EVA
8100 2C2D to 5 shelves or higher.3U spare space is required to install the FC Loop
Switch Kit.
3U spare space is required to install the FC Loop Switch Kit.
The EVA8000-A or EVA8100 2C2D customers have the option to convert to a 2C6D or 2C12 with the installation, by trained Service Engineers, of the FC Loop Switch
Option. This option is mandatory when upgrading the 2C2D to 5 shelves or higher.
Select M5314B drive enclosures to expand EVA configurations Drive enclosures may be
ordered for on-site capacity additions to existing EVA3000/5000/4000/6000/8000
configurations.
AD557B
AD542B*
NOTE: Addition of the loop switch pair to an HSV200B controller pair (with 1 to 8 drive
enclosures) creates an EVA6000.
Up to 18 drive enclosures are supported with each pair of HSV210B (EVA8100) with 4
loop switches.
M5314B FC Drive Enclosure
The M5314B is a 3U dual-redundant FC Loop 14-bay disk enclosure with mounting
hardware, and the necessary copper FC cables for connecting to an HSV200 or
HSV200-A Controller pair.
NOTE: Minimum of 8 disk drives, of any size, are required per Fibre Channel or FATA
drive types
Select M5314C drive enclosures to expand EVA4100/6100/8100 configurations: Drive
enclosures may be:
AD542C*
1. Ordered for on-site capacity additions to existing EVA4100/6100/8100
configurations.
Compatible with EVAs (EVA4100/6100/8100 arrays only). Without a loop switch pair,
up to four drive enclosures are supported with each pair of HSV200B controllers
(EVA4100, EVA4100 Starter Kits, EVA4100/6100 Controller Assembly). An HSV200B
controller with a loop switch pair supports 1to 8 M5314C Drive Enclosures.
NOTE: Addition of the loop switch pair to an HSV200B controller pair (with 1 to 8 drive
enclosures) creates an EVA6100.
Up to 18 drive enclosures are supported with each pair of HSV210B (EVA8000) with 4
loop switches.
M5314C FC Drive Enclosure
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 39
QuickSpecs
HP 4400 Enterprise Virtual Array
Configuration
The M5314C is a 3U dual-redundant FC Loop 14-bay disk enclosure with mounting
hardware, and the necessary copper FC cables for connecting to an HSV200B and
HSV210B Controller pair.
NOTE: Minimum of 8 disk drives, of any size, are required per Fibre Channel or FATA
drive types
Enterprise Virtual Array Expansion Cabinet Example Configurations for EVA8000
Expansion Cabinet
0C6D
0C12D
Components
AF002A
1
1
252663-xxx
2 (minimum)
2 (minimum)
336881-B21
1
2
Description
EVA 42U HP 10000 G2 Series Rack
Country/component requirement specific
Can bus to Can bus cable
AD542B
6
12
M5314B (for EVA8000) FC Drive Enclosure
345580-B21
6
12
Cable Kit, Expansion Cab Drive Shelf
NOTE: The EVA Expansion cabinets examples defined above may be used with any existing or 2 or 4Gb EVA8000.
NOTE: Installation of an expansion cabinet must be done offline.
Enterprise Virtual Array Expansion Cabinet Example Configurations for EVA8100
Expansion Cabinet
0C6D
0C12D
Description
Components
AF002A
1
1
EVA 42U HP 10000 G2 Series Rack
252663-xxx
2 (minimum)
2 (minimum)
Country/component requirement specific
336881-B21
1
2
Can bus to Can bus cable
AD542C
6
12
M5314C FC Drive Enclosure
345580-B21
6
12
Cable Kit, Expansion Cab Drive Shelf
NOTE: The EVA Expansion cabinets examples defined above may be used with any EVA8100.
NOTE: Installation of an expansion cabinet must be done offline.
EVA4000/4100 Upgrade
EVA6000/6100 SKUs Required
EVA4000 to 6000-A FC loop Switches (kit contains 2 switches, mounting hardware and cables)
Yes
AD557B
HP EVA XCS v6.2 or higher
Yes
Download5
Command View EVA
Yes
See URL3
Command View Licenses2
Yes
See URL3
Business Copy EVA
Yes
See URL3
Business Copy Upgrade license
Yes
See URL3
Continuous Access EVA
Yes
See URL3
Continuous Access EVA Upgrade license
Yes
See URL3
HP Services assessment and upgrade installation
Yes
See URL3
NOTES:
1 2 FC loop switches must be added creating an EVA6000/6100; which must then be licensed as an EVA6000/6100. Command
View EVA and array integrated software license (if previously installed) for Business Copy EVA, Dynamic Capacity Manager and
Continuous Access EVA upgrade licenses must be purchased.
2 Proper Command View licensing requires a License To Use (LTUs) equal to or greater than the total raw capacity of each array and
may be purchased in additive increments of 1TB or Unlimited LTUs).
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 40
QuickSpecs
HP 4400 Enterprise Virtual Array
Configuration
3
4
5
http://h18006.www1.hp.com/storage/software.html
http://www.hp.com/hps/storage/
http://h18006.www1.hp.com/products/storageworks/eva/
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 41
QuickSpecs
HP 4400 Enterprise Virtual Array
Technical Specifications
EVA4400
Operating Temperature 50° to 95° F (10° to 35° C) - Reduce rating by 1° F for each 1000 ft altitude (1.8° C/1,000 m)
Shipping Temperature
-40° to 150° F (-40° to 66° C)
Humidity
10% to 90% non-condensing
Shipping Humidity
5% to 90% non-condensing
Operating Vibration
Sine 5-10 Hz 0.020" (0.5mm) double amplitude displacement, 10-500 Hz 0.1g, Random 10-500Hz at
0.15 Grms
Non-operating Vibration Sine 10-150 Hz 0.3g, Random 10-500 Hz at 0.5 Grms
Shipping Vibration
Sine 5-150 Hz 0.5g, Random 0.86 Grms from 5-300 Hz, consisting of 5-100 Hz at 0.0059 g2/Hz and
(packaged, on shock
100-300 Hz at 0.000049 g2/Hz
pallet)
5g half-sine 10mSec
Operating Shock
8g half-sine 10mSec
Non-operating Shock
Horizontal: 10-deg incline at 1m/Sec, Vertical rotational edge 0.15m
Shipping Shock
(packaged, on shock
pallet)
Up to 8,000 ft (2,400 m)
Altitude
Not to exceed 500,000 particles per cubic foot of air at a size of 0.5 micron or larger
Air Quality
Power Data (North America/Europe/Japan) maximum configuration
NOTE: This power information is for a maximum configuration using the default 208 - 240 Volt single-phase PDUs. Other PDUs
may use different plugs, voltages, etc. For more information on PDU support, please see the following URL:
http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/pdu.html
EVA4400
North America – 3 wire NEMA No. L6-30P, 30 Amp (208 to 240V, 50-60Hz 30A)
AC plug type
(quantity 2)
Europe - 3 wire, 2 pole IEC 309, 30 amp, (220 to 240V 50Hz 32A)
NOTE: For other voltages, including 3-phase or 100-127V, see the PDU information for plug types at:
http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/pdu.html.
Single (3-phase PDUs are also available)
Number of phases
11A @ 200V-240V AC, 50/60Hz, 5.5A per power cord (2 PDUs)
Rated current
22A @ 100-127V AC, 60/50Hz, 11A per cord (2 PDUs)
North America - 208 or 230V or 120V
Nominal Line Voltage
Europe - 230V
Japan - 206V or 108V
Latin America - 208 or 240V
187 to 256V or 100 to 127V
Range Line Voltage
North America 60 Hz, Europe 50 Hz, Japan 50 or 60 Hz, Latin America 60K or 50Hz
Line Frequency
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 42
QuickSpecs
HP 4400 Enterprise Virtual Array
Technical Specifications
Enterprise Virtual Array 4400
NOTE: This data represents fully populated
drive shelves with 450GB 15K rpm disk
drives under typical heavy load
performance. Other drive types may vary
slightly.
NOTE: At idle, the system operates at
approx. 15% less power than at typical.
Typical Total System Wattage without
embedded switches
Total System BTU/hour
Input Current per plug, 230V
Input Current per plug, 208V
Input Current per plug, 115V
Input Current per plug, 100V
In Rush Current (A) per plug,
208V
Failover Input Current (A), 230V
Mode Input Current (A), 208V
Input Current (A), 115V
Input Current (A), 100V
2C1D
2C2D
2C3D
2C4D
2C5D
2C6D
2C7D
2C8D
359
615
871
1127
1383
1639
1895
2151
1225
0.8
0.9
1.6
1.9
70
2098
1.4
1.5
2.8
3.3
100
2971
2.0
2.2
4.0
4.7
130
3844
2.5
2.8
5.2
6.0
149
4716
3.1
3.5
6.4
7.4
168
5589
3.7
4.1
7.5
8.8
178
6462
4.3
4.7
8.7
10.1
188
7335
4.9
5.4
9.9
11.5
200
1.5
1.6
3.0
3.5
2.5
2.8
5.1
6.0
3.6
4.0
7.3
8.5
4.7
5.2
9.5
11.0
5.7
6.4
11.7
13.6
6.8
7.5
13.8
16.1
7.9
8.7
16.0
18.6
8.9
9.9
18.2
21.2
Typical Total System Wattage with
441
697
953
1209
1465
1721
1977
2233
embedded switches
Total System BTU/hour
1504
2377
3250
4123
4996
5869
6742
7615
Input Current per plug, 230V
1.0
1.6
2.2
2.7
3.3
3.9
4.5
5.0
Input Current per plug, 208V
1.1
1.7
2.4
3.0
3.7
4.3
5.0
5.6
Input Current per plug, 115V
2.0
3.2
4.4
5.6
6.7
7.9
9.1
10.3
Input Current per plug, 100V
2.4
3.7
5.1
6.5
7.8
9.2
10.6
12.0
Failover Input Current (A), 230V
1.8
2.9
4.0
5.0
6.1
7.2
8.2
9.3
Mode Input Current (A), 208V
2.0
3.2
4.4
5.6
6.8
7.9
9.1
10.3
Input Current (A), 115V
3.7
5.4
8.0
10.2
12.4
14.6
16.7
18.9
Input Current (A), 100V
4.3
6.8
9.4
11.9
14.4
17.0
19.5
22.0
NOTE: Typical is described as a system in normal steady state operation. (I.e., both PDUs operating normally, the array
reading/writing to disk drives in a production environment)
NOTE: For the lower voltages, PDUs may not be able to support the maximum power/current and the power/current may be divided
across two or more PDUs.
NOTE: For more detailed information on a specific configuration and drives please utilize the EVA Power Calculator at:
http://www.hp.com/servers/powercalculator
* Total system wattage would increase by 85 watts with the embedded switch option. Input current would increase as well.
Enterprise Virtual Array EVA4400 Product Dimensions, Weight and Clearance
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 43
QuickSpecs
HP 4400 Enterprise Virtual Array
Technical Specifications
Physical Dimensions
Height
in/cm
EVA4400 2C8D
78.75 (200.03)
Configuration
(42U Graphite cab)
EVA4400 Dual Controller
3.5/8.89
Array
M6412A Drive Enclosure
3.5/8.89
Width
in/cm
Depth
in/cm
Max Weight
lb/kg
860 (390.09)
Req. Front
Clearance
in/cm
30 (76.2)
Req. Rear
Clearance
in/cm
30 (76.2)
23.7 (60.3)
40.2 (102.2)
17.6/44.70
24.5/62.3
48/21.8
N/A
N/A
17.6/44.70
23.75/60.33
57/25.86
N/A
N/A
© Copyright 2011 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1 GB = 1 billion bytes (10003 or 109). Actual usable capacity can be less, based on Vraid types used.
DA - 12893
Worldwide — Version 24 — August 30, 2011
Page 44
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
