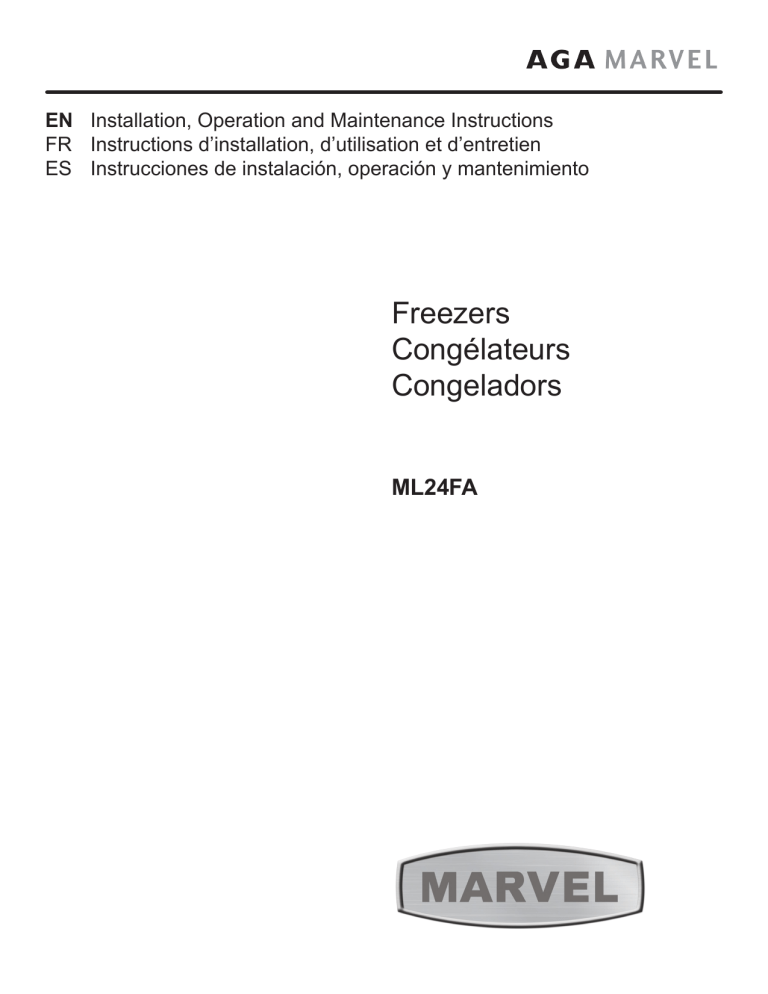

User manual | Freezers Congélateurs Congeladors

EN Installation, Operation and Maintenance Instructions
FR Instructions d’installation, d’utilisation et d’entretien
ES Instrucciones de instalación, operación y mantenimiento
Freezers
Congélateurs
Congeladors
ML24FA
CONTENTS
Contents:
Important Safety Instructions
Safety information ...............................................................2
Unpacking your appliance ..................................................3
Warranty registration .....................................................3
Installing your appliance ......................................................4
Cabinet clearances .........................................................4
Leveling the appliance ....................................................4
Electrical connection ......................................................5
Installing the anti-tip device .................................................6
Product Dimensions ...........................................................8
Using your Electronic control ............................................10
Starting your appliance ..................................................10
Sleep mode ...................................................................10
Turning your appliance "ON" or "OFF" ..........................10
Adjusting the temperature .............................................11
Temperature mode ........................................................11
Control lock ....................................................................11
Temperature sensor error codes ...................................12
Alarms ............................................................................12
Door ajar ...................................................................12
Power failure .............................................................13
Temperature alarm ....................................................13
Vacation mode .............................................................13
Overlay door panel installation .........................................14
Shelving configurations .....................................................18
Care and cleaning .............................................................20
Energy saving tips ............................................................20
Obtaining service .............................................................21
Troubleshooting ................................................................22
Warranty ...........................................................................23
Warnings and safety instructions appearing in this guide
are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care
must be exercised when installing, maintaining, or operating this appliance.
Recognize Safety Symbols,
Words, and Labels.
Death or serious injury could result if...
!
WARNING
WARNING-You can be killed or seriously injured if
you do not follow these instructions.
!
CAUTION
CAUTION-Hazards or unsafe practices which could result in personal injury or property / product damage.
NOTE
NOTE-Important information to help assure a problem
free installation and operation.
!
WARNING
!
WARNING
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause birth defects or
other reproductive harm..
State of California Proposition 65 Warning:
This product contains one or more chemicals known
to the State of California to cause cancer.
is committed to building a quality product
in an environmentally friendly manner. Our processes are
tightly controlled and closely monitored. We have achieved
certifications in ISO 9001 for quality assurance, ISO 14001
for environmental management, and OHSAS 18001 for occupational health and safety from Lloyd’s Register Quality
Assurance.
2
UNPACKING YOUR APPLIANCE
!
Warranty Registration
WARNING
It is important you send in your warranty registration card
immediately after taking delivery of your appliance or you
can register online at www.agamarvel.com.
EXCESSIVE WEIGHT HAZARD
Use two or more people to move product.
Failure to do so can result in personal injury.
The following information will
be required when registering
your appliance.
Service Number
Serial Number
Date of Purchase
Dealer’s name and address
Remove Interior Packaging
Your appliance has been packed for shipment with all parts
that could be damaged by movement securely fastened.
Remove internal packing materials and any tape holding internal components in place. The owners manual is shipped
inside the product in a plastic bag along with the warranty
registration card, and other accessory items.
The service number and serial number can be found on the
serial plate which is located inside the cabinet on the left
side near the top. (See figure 1).
Important
Keep your carton and packaging until your appliance has
been thoroughly inspected and found to be in good condition. If there is damage, the packaging will be needed as
proof of damage in transit. Afterwards please dispose of all
items responsibly.
!
Online registration
available at
www.agamarvel.com
WARNING
XXXXXXXXXXXX
XXXXXXXXXXXX
WARNING - Dispose of the plastic bags which can
be a suffocation hazard.
Figure 1
Note to Customer
This merchandise was carefully packed and thoroughly
inspected before leaving our plant. Responsibility for its
safe delivery was assumed by the retailer upon acceptance
of the shipment. Claims for loss or damage sustained in
transit must be made to the retailer.
!
NOTE
WARNING - Help Prevent Tragedies
DO NOT RETURN DAMAGED MERCHANDISE TO THE
MANUFACTURER - FILE THE CLAIM WITH THE
RETAILER.
!
WARNING
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous - even if they sit out for "just a few hours".
If you are getting rid of your old refrigerator, please
follow the instructions below to help prevent accidents.
CAUTION
If the appliance was shipped, handled, or stored in other
than an upright position for any period of time, allow the appliance to sit upright for a period of at least 24 hours before
plugging in. This will assure oil returns to the compressor.
Plugging the appliance in immediately may cause damage
to internal parts.
Before you throw away your old refrigerator or
freezer:
• Take off the doors or remove the drawers.
• Leave the shelves in place so children may not
easily climb inside.
3
INSTALLING YOUR APPLIANCE
Select Location
The proper location will ensure peak performance of your
appliance. We recommend a location where the unit will
be out of direct sunlight and away from heat sources. To
ensure your product performs to specifications, the recommended installation location temperature range is from 55
to 100°F (13 to 38°C).
Front Grille,
keep this area
open.
Cabinet Clearance
Ventilation is required from the bottom front of the appliance. Keep this area open and clear of any obstructions.
Adjacent cabinets and counter top can be installed around
the appliance as long as the front grille remains unobstructed. Overlay door models with articulated hinges are
intended for built-in applications only.
!
Figure 2
Leveling Legs
WARNING
Adjustable legs at the front and rear corners of the appliance should be set so the unit is firmly positioned on the
floor and level from side to side and front to back. The overall height of your Marvel appliance may be adjusted higher
(by turning the leveling leg out, CCW) and lower (by turning
the leveling leg in, CW) dimensions as shown in Table "B".
An optional stacking kit, shown in Table "A", is required
to stack products. Failure to use a stacking kit could
result in personal injury. Contact your dealer or Aga
Marvel customer service at 800-223-3900 to order.
Color
Door Swing
Kit Part Number
Stainless Steel
Left Hand
42249095
Stainless Steel
Right Hand
42249096
Black
Left Hand
42249097
Black
Right Hand
42249098
White
Left Hand
42249099
White
Right Hand
42249100
To adjust the leveling legs, place the appliance on a solid
surface and protect the floor beneath the legs to avoid
scratching the floor. With the assistance of another person,
lean the appliance back to access the front leveling legs.
Raise or lower the legs to the required dimension by turning
the legs. Repeat this process for the rear by tilting the appliance forward using caution. On a level surface check the
appliance for levelness and adjust accordingly.
The front grille screws may be loosened and the grille adjusted to the desired height. When adjustment is complete
tighten the two front grille screws. (See Figure 5).
Table A
!
Rear
Leveling
Legs
Front Leveling
Legs
CAUTION
Front Grille
Do not obstruct the front grille. The openings within the
front grille allow air to flow through the condenser heat exchanger. Restrictions to this air flow will result in increased
energy usage and loss of cooling capacity. For this reason
it is important this area not be obstructed and the grille
openings kept clean. AGA MARVEL does not recommend
the use of a custom made grille as air flow may be restricted. (See Figure 2).
Minimum
Height
Maximum
Height
(S)
33 3⁄4"
(85.7 cm)
34 3⁄4"
(88.3 cm)
(P)
34"
(86.4 cm)
35"
(88.9 cm)
Model
Door Style
ML24*
ML24*
Table B
4
INSTALLING YOUR APPLIANCE
!
WARNING
Electrical Shock Hazard
Do not remove
ground prong
• Do not use an extension cord with this appliance.
They can be hazardous and can degrade product
performance.
• This appliance should not, under any circumstances, be installed to an un-grounded electrical supply.
• Do not remove the grounding prong from the power
cord. (See Figure 3).
• Do not use an adapter. (See Figure 4).
• Do not splash or spray water from a hose on the
appliance. Doing so may cause an electrical shock,
which may result in severe injury or death.
Figure 3
Electrical Connection
A grounded 115 volt, 15 amp dedicated circuit is required.
This product is factory equipped with a power supply
cord that has a three-pronged, grounded plug. It must be
plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances (see Figure 6). If the circuit does
not have a grounding type receptacle, it is the responsibility
and obligation of the customer to provide the proper power
supply. The third ground prong should not, under any circumstances, be cut or removed.
Figure 4
Figure 6
NOTE
Ground Fault Circuit Interrupters (GFCI) are prone to nuisance tripping which will cause the appliance to shut down.
GFCI’s are generally not used on circuits with power equipment that must run unattended for long periods of time, unless required to meet local building codes and ordinances.
Front grille
Figure 5
Front grille screw
5
INSTALLING THE ANTI TIP DEVICE
FOR FREESTANDING INSTALLATIONS
!
Anti-Tip
Bracket
WARNING
•
ALL APPLIANCES CAN TIP
RESULTING IN INJURY.
•
INSTALL THE ANTI-TIP
BRACKET PACKED WITH
THE APPLIANCE.
•
FOLLOW THE INSTRUCTIONS BELOW
211⁄2"
(54.6 cm)
Leveling Leg
Bottom View of
Freezer
Front of cabinet
Figure 7
Anti-Tip Device
!
Step by step instructions for locating the
position of the bracket:
WARNING
1) Decide where you want to place the freezer. Slide it into
place, being careful not to damage the floor, leaving 1" (2.5
cm) of clearance from the rear wall to allow room for the
anti-tip bracket.
If your freezer is not located under a counter top (free
standing), you must use an anti-tip device installed as
per these instructions. If the freezer is removed from
its location for any reason, make sure that the device
is properly engaged with the anti-tip bracket when
you push the freezer back into the original location. If
the device is not properly engaged, there is a risk of
the freezer tipping over, with the potential for property
damage or personal injury.
2) Raise the rear leveling legs approximately 1⁄4" (6 mm) to
allow engagement with the anti-tip bracket. Level the unit
by adjusting all the leveling legs as required. Turning the
leveling leg counterclockwise will raise the unit and clockwise will lower the unit.
3) Make sure the freezer is in the desired location, then
mark on the floor the rear and side corner of the cabinet
where the anti-tip bracket will be installed. If the installation
does not allow marking the rear corner of the cabinet, then
make temporary lines on the floor marking the front corner
of the cabinet, excluding the door. Slide the freezer out of
the way. From the temporary line extend the sidewall line
back 211⁄2" (54.6 cm) as shown in Figure 8.
NOTE
If installing on a concrete floor, concrete fasteners are
required, (not included with the anti-tip kit).
!
4) Align the anti-tip bracket to the marks on the floor so
the side of the bracket lines up with the side of the cabinet
mark, and the "V" notches on the anti-tip bracket line up
with the end of the 211⁄2" (54.6 cm) line (Rear of cabinet
line).
CAUTION
5) Fasten the anti-tip bracket to the floor using the supplied
screw. (See Figure 8).
Any finished flooring should be protected with appropriate
material to avoid damage when moving the unit.
6) Slide the cabinet back into position, making sure the rear
cabinet leveling leg slides under the anti-tip bracket engaging the slot.
Floor Mount Installation
The anti-tip bracket is to be located on the floor in the left or
right rear corner of the freezer as shown in Figure 7.
6
INSTALLING THE ANTI TIP DEVICE
FOR FREESTANDING INSTALLATIONS
NOTE
When the floor mounted anti-tip bracket is used the minimum adjusted height of the cabinet is increased by
3
⁄8" (9 mm).
nt o
Fro
net
bi
f ca
line
Sid
eo
f c Rear Leveling leg
ab
ine
t li
ne
Screw
211⁄2"
(54.6 cm)
Figure 8
R
r
ea
o
e
t lin
ine
b
f ca
"V" notches
in bracket
7
Figure 8a
"V" notches
in bracket
PRODUCT DIMENSIONS
ROUGH-IN OPENING DIMENSIONS
CABINET DIMENSIONS
MODEL
"A"
"B"
"C"
"D"
"E"
"F"
"G"
"H"
"J"
ML24FA(S)
24"
(61 cm)
**34" to 35"
(86.4 to 88.9 cm)
*
237⁄8"
(60.7 cm)
333⁄4" to 343⁄4"
(85.7 to 88.3 cm)
2323⁄32"
(60.2 cm)
2521⁄32"
(65.2 cm)
4613⁄32"
(117.9 cm)
2511⁄16"
(65.2 cm)
ML24FA(P)
24"
(61 cm)
**341⁄4" to 351⁄4"
(87 to 89.5 cm)
*
237⁄8"
(60.7 cm)
34" to 35"
(86.4 to 88.9 cm)
227⁄8"
(58.1 cm)
-
461⁄2"
(118.1 cm)
231⁄8"
(58.7 cm)
DOOR STYLE
(S) Solid Door
(P) Solid Overlay Door (no handle)
"A"
"B"
Figure 9
"E"
"C"
"D"
Figure 9a
If necessary to gain clearance inside the rough-in
opening a hole can be cut through the adjacent cabinet and the power cord routed through this hole to a
power outlet. Another way to increase the available
opening depth is to recess the power outlet into the
rear wall to gain the thickness of the power cord plug.
Not all recessed outlet boxes will work for this application as they are too narrow, but a recessed outlet box
equivalent to Arlington #DVFR1W is recommended for
this application, (see Figure 10).
Figure 10
8
PRODUCT DIMENSIONS
PRODUCT DATA
MODEL
ELECTRICAL
REQUIREMENTS #
PRODUCT
WEIGHT
ML24FA(S)
115V/60Hz/15A
140 lbs
(63.6 kg)
ML24FA(P)
115V/60Hz/15A
140 lbs
(63.6 kg)
"J"
"H"
"D"
"G"
"E"
211⁄2"
(54.6 cm)
Figure 11
"F"
* Depth dimension of rough-in opening may vary depending on each individual installation. To recess entire door "F"
dimension plus 1" (2.5 cm) for thickness of power cord plug
is required.
** Minimum rough-in opening required is to be larger than
the adjusted height of the cabinet.
# A grounded 15 amp dedicated circuit is required. Follow
all local building codes when installing electrical and appliance.
!
WARNING
Floor mount Anti-tip Bracket must be installed for freestanding applications. Not required for built in applications.
9
USING YOUR ELECTRONIC CONTROL
Temp
Minus
keypad
On/Off
keypad
Temp
Plus
keypad
Lock
keypad
Display Area
System Status
indicators
Figure 12
Electronic single zone control
Power Failure
ALARM RESET
To wake the display press any keypad. A confirm tone will
sound, and the current storage compartment temperature
will be displayed.
Starting your appliance:
Plug the appliance power cord into a 115 volt wall outlet.
Your appliance is shipped from the factory in the "On" position and will begin start-up of cooling as soon as power is
supplied. If the appliance does not start, confirm that the
wall outlet has power, and that the control is in the "On"
position, (See "Turning your appliance On and Off" below).
The control display is covered with a clear plastic film. This
film may be removed by carefully lifting the film at a corner.
On initial power up, the control display will indicate a
"Power Failure" alarm. This is a normal condition as the appliance was powered-up at the factory for quality inspection
and then removed from power. A momentary press of the
"On/Off" keypad will reset this alarm condition. (See Alarms
section on page 12).
Sleep mode:
If no keypads are pressed for 60 seconds, the display will
enter sleep mode to conserve power. The control panel will
go dark with the exception of the system status "OK" indicator which will remain enabled. Alarm conditions will wake
the display, (see alarms on page 12).
To make the following changes to the control settings
(turning the appliance ON/OFF, adjusting the temperature, changing the interior lights, and activating vacation mode), the control must be awake.
The sleep mode can be disabled if you prefer to have the
display on continuously. Press and hold the "Lock" keypad until the display goes past "Loc" and reads "nSL". To
enable the sleep mode, repeat the instruction, again going
past "Loc" until the display reads "SLP".
Turning your appliance ON and OFF:
If the appliance is "On", (and out of sleep mode) the temperature will be shown in the display area of the control.
To turn the appliance "Off", press and hold the "On/Off"
keypad for 4-seconds. "OFF" will now be displayed on the
control.
To turn the appliance "On", press and hold the "On/Off"
keypad for 4-seconds.
10
USING YOUR ELECTRONIC CONTROL
Adjusting the temperature:
Temperature mode:
The available set-point temperature range for your appliance is -10°F (-23°C) to 10°F (-12°C). If you attempt to
adjust the temperature outside of this range you will receive
an audible notification.
Control lock:
To set or check the set-point temperature (with the control
out of sleep mode), press the "-" or "+" keypads. "SET" will
be indicated on the user interface panel and the current
set-point temperature will display and flash. Subsequent
presses of the "-" or "+" keypads will adjust the temperature
colder or warmer respectively. When you have reached
your desired set-point temperature, press the "On/Off" keypad to accept, or do nothing and the "Set" mode will timeout in 10-seconds accepting the displayed temperature as
the new set-point.
The temperature mode is preset from the factory in Fahrenheit (°F) but you have the option to change it to Centigrade
(°C). To change the mode, press and hold the "-" keypad,
while pressing the "+" keypad, then release the "-" keypad.
The temperature will now be displayed in Centigrade (°C).
Repeat the procedure to change the temperature mode
back to Fahrenheit (°F).
The control panel can be locked to avoid unintentional
changes. To lock the control, press and hold the "Lock" keypad until the display reads "Loc" then immediately release
your finger from the keypad. The lock icon will flash 3-times
and then continuously illuminate. When the control panel is
locked, only the Lock keypad, System Status OK indicator,
and the Alarm indicator are active. To un-lock the control
panel, repeat this instruction until the display reads "nLc"
then immediately release your finger from the keypad.
.
NOTE
Loading warm contents may trigger a temperature alarm,
see temperature alarm page 13. Depending on the quantity
and/or weight of warm contents, it may take 48 hours for
the compartment temperature to stabilize.
When making temperature set-point changes, it may take
up to 24-hours for the stored contents to stabilize at your
new set-point temperature.
NOTE
Factors that affect the storage compartment stabilized
temperature:
• Changes to temperature setting.
• Room temperature changes.
• Temperature of stored contents.
- Loading warm contents.
- Cold content load will delay the change to a warmer
set-point temperature.
- Warm content load will delay the change to a colder
set-point temperature.
• Usage, (number and duration of the door openings).
• Use of the storage compartment display lighting, (glass
door product only).
• Installation of the appliance in direct sunlight or next to
a heat source.
If the control lock is active (illuminated lock icon) the
control will have to be unlocked before using the
keypad to reset an alarm condition. See page 11
(Control Lock) for instructions for unlocking the control.
11
USING YOUR ELECTRONIC CONTROL
Temperature Sensor Error Codes
The temperature sensors are monitored continuously. Any OPEN or SHORTED circuit condition will initiate an ERROR
CODE as listed below:
Temperature Sensor Error Codes
Sensor
Displayed
Code
Error
Description
Action to Take
Single Zone
Temperature Sensor
Failed temperature sensor in the single
zone compartment. Can lead to
unwanted storage temperatures and/or
spoiled perishable goods.
Call service to have the
temperature sensor replaced
and remove all perishable
goods from compartment to
prevent spoilage.
Defrost Sensor
Failed defrost temperature sensor.
Causes unit to not defrost properly and
can create large frost build-up. Can lead
to water damage to the unit and
surrounding floor.
Unplug the power cord
immediately and call service
to have the defrost sensor
replaced.
Alarms:
The control will alert you to conditions that could adversely
affect the performance of the appliance.
Door Ajar
ALARM RESET
• Door ajar - If the door is open, or not closed prop-
erly, for more than 5-minutes the System Status OK
indicator will turn-off, the "Door Ajar" indicator will flash,
and a tone will sound every 60 seconds. Additionally,
an "ALARM RESET" indicator will be displayed below
the "On/Off" keypad.
NOTE
The audible alarm can be muted, for each occurrence,
by pressing the lock keypad.
This alarm condition can be reset by closing the door
or momentarily pressing the "On/Off" keypad, (i.e.-if
you are cleaning the storage compartment, etc.). The
alarm will recur in 5-minutes if the alarm condition
persists.
12
USING YOUR ELECTRONIC CONTROL
Power Failure
This alarm condition can be reset by momentarily
pressing the "On/Off" keypad. If this alarm occurs it
is recommended that you check the condition of your
stored contents, even though the appliance is operating normally and the temperature has recovered, as
prolonged temperature excursions could spoil perishables.
ALARM RESET
• Power failure - If power to the appliance is inter-
rupted the System Status indicator will turn-off and
the "Power Failure" indicator will flash. Additionally, an
"ALARM RESET" indicator will be displayed below the
"On/Off" keypad. No audible tone will sound. This alarm
condition can be reset by momentarily pressing the
"On/Off" keypad. If this alarm occurs, it is recommended that you check the condition of any perishables,
even if the appliance is operating normally and the temperature has recovered, as prolonged power outages
could result in excessive temperature excursions which
may spoil perishables.
Temp
ALARM RESET
• Temperature alarm - If the storage compart-
ment temperature deviates excessively from your
set-point temperature for an extended period of time,
the "TEMP" indicator will flash, and an audible tone
will sound every 60 seconds. Additionally, an "ALARM
RESET" indicator will be displayed below the "ON/
OFF" keypad.
NOTE
After a high temperature alarm condition, check all perishables to ensure they are safe for consumption.
NOTE
Door Ajar
Temp
Multiple alarms are possible, i.e.- "Door Ajar" for a prolonged period may trigger a "Temp" alarm, in which case
both "Door Ajar" and "Temp" indicators will activate.
Vacation mode:
This operating mode can be used to save energy during
high cost energy periods, or when you won't be using your
appliance for an extended period of time by disabling the
lights, alarm tones, and keypad entry tones. Vacation mode
also serves as a Sabbath mode, disabling functions and
its controls in accordance with the weekly Sabbath and
religious holidays observed within the Orthodox Jewish
community. When used as Sabbath mode, you may open
or close the door at any time to access contents without
concern of directly turning on or off any lights, digital readouts, solenoids, fans, valves, compressor, icons, tones, or
alarms.
When activated, the display, alarm indicators and tones,
keypad touch tones, interior lights, and all options are disabled. All keypad functions are disabled, with the exception
of the "On/Off" keypad which is required to exit Vacationmode. Storage compartment temperatures are monitored
and controlled at the settings prior to entering Vacation
mode.
NOTE
The temperature alarm may occur as a result of high usage
or introduction of warm contents to the storage compartment. If the temperature alarm continues to occur, your unit
may require service.
NOTE
The audible alarm can be muted, for each occurrence,
by pressing the lock keypad.
To enter Vacation Mode (with the control out of sleep
mode), press and hold the "On/Off" keypad until the display
goes past "OFF" and reads "VAC". The display will flash
"VAC" 3-times to acknowledge your request, then will
display "VAC" continuously until Vacation mode is exited.
A power outage will not exit Vacation mode, exiting can
only be accomplished manually. To exit Vacation mode and
return to normal operation, press and hold the "On/Off"
keypad until the control displays the temperature.
13
OVERLAY DOOR PANEL INSTALLATION
If you purchased an overlay panel model, your unit is
equipped with articulated hinges to allow fully integrated
built-in installations. Custom panel thicknesses of 5⁄8" (15
mm) and 3⁄4" (18 mm) are accommodated.
!
!
WARNING
Use extreme caution with the articulated hinges. The
hinge is self closing and many pinch points exist prior
to built-in installation. Do not remove the cabinet "Z"
bracket from the top of the cabinet.
CAUTION
It is important to use the factory provided grille that came
with the product to assure proper air flow is maintained
through the condenser. The use of a custom grille is not
recommended and will void the warranty.
!
WARNING
Loosen (do not remove ) these
2 phillips head screws on the
top and bottom hinges
Overlay panel models are designed for use with builtin installations only. Use in freestanding installations
could result in personal injury.
Figure 13a
Step 1: Removing the Door
With a phillips screwdriver remove the screw and "P" clamp
from the bottom of the door near the hinge. See Figure 13b.
Cabinet
"Z" Bracket
Disconnect the door wire harness by pressing and holding
down the locking tab on the wire connector and pulling the
connector apart. See Figure 14.
Open the door and loosen the screws holding the hinges to
the cabinet (2 at the top and 2 at the bottom hinge). Do not
remove the screws but loosen them enough so the hinges
can be slipped off of the screws when sliding the door to
the side.
!
WARNING
The articulated hinges have many pinch points. Carefully close / collapse the hinges as soon as the door is
removed from the cabinet.
Figure 13
"P" clamp
and screw
With a helper, and being careful not to scratch the cabinet
or the door, slide the door to the side about 1⁄2 inch and
remove the hinges and door from the unit.
Figure 13b
Bottom of
door
14
Wire connector
see Figure 14
OVERLAY DOOR PANEL INSTALLATION
Step 2: Remove the door gasket
With the door laying on a flat surface and starting at a
corner of the door remove the magnetic door gasket from
the interior side of the door, see Figure 15. Set the gasket
aside on a flat surface.
Overlay panel
flush with top
of door.
There are 10 holes in the gasket retainer extrusions, (3 on
each side and 2 at the top and bottom which are used to
fasten the panel to the front of the door. The screws are
provided in the literature pack.
Overlay panel to
be centered on
width of door.
Holes in
gasket
retainer.
Figure 15a
Press and hold down this
tab on the wire connector and pull the connector
apart.
Figure 14
Magnetic Gasket
remove starting at a
corner, grasp and pull
away from the door.
Figure 15
Step 3: Cut and drill the overlay panel
Depending on your model cut the overlay door panel to the
dimensions shown in Figures 16 to 19.
15
OVERLAY DOOR PANEL INSTALLATION
r
oo
d
of
CAUTION
Weight of overlay door panel must not
exceed 15 pounds (6.8 kg) for a solid
door model.
Hinge side of door
p
To
!
233⁄4"
(60.3 cm)
13⁄16"
(3 cm)
of
do
or
Clearance for hinge
at top and bottom
Clearance for hinge
at top and bottom
14"
(35.6 cm)
To
p
Clearance for
screw head,
4 places
Figure 18
Right Hand Hinged Door
24" (61 cm) wide appliance
Figure 16
Left Hand Hinged Door
24" (61 cm) wide appliance
47⁄8"
(12.4 cm)
Hinge side of door
Clearance for
screw head,
4 places
⁄4"
(6 mm)
Deep
1
233⁄4"
(60.3 cm)
1
⁄4"
(6 mm)
Deep
13⁄4"
(4.4 cm)
13⁄4"
(4.4 cm)
3 1 ⁄8 "
(7.9 cm)
31⁄8"
(7.9 cm)
⁄4" (6 mm)
radius is
permissible
14"
(35.6 cm)
47⁄8"
(12.4 cm)
13⁄16"
(3 cm)
1
⁄4" (6 mm)
radius is
permissible
1
3011⁄32"
(77.1 cm
1 ⁄32"
(2.9 cm)
3011⁄32"
(77.1 cm
15⁄32"
(2.9 cm)
5
This side
facing interior
This side
facing interior
111⁄16"
(4.3 cm)
111⁄16"
(4.3 cm)
2"
(5.1 cm)
2"
(5.1 cm)
11⁄2"
(3.8 cm)
typical
1" (2.5 cm) diameter
x 1⁄4" (6 mm) deep
4 places
311⁄16"
(9.4 cm)
311⁄16"
(9.4 cm)
Figure 17
Left Hand Hinged Door
24" (61 cm) wide appliance
1" (2.5 cm) diameter
x 1⁄4" (6 mm) deep
4 places
Figure 19
Right Hand Hinged Door
24" (61 cm) wide appliance
16
11⁄2"
(3.8 cm)
typical
OVERLAY DOOR PANEL INSTALLATION
Step 4: Assemble the panel to the door
Step 5: Install the door
The preferred method of attaching the panel to the door
is to clamp the panel to the door so it cannot move while
drilling the screw pilot holes. Use bar clamps or "C" clamps
with pads on the clamping surfaces that will not mar the
panel or the door. The custom overlay panel should be
flush with the top of the door and centered along the width
of the door. See Figure 15a. Drill holes through the gasket
extrusion using the 10 holes as pilot holes. Use the drill
size from the chart in Table "C", being careful not to drill
through the front surface of the panel. If the overlay panel is
thinner than 5⁄8" (16 mm) thick shorter screws will have to be
obtained. Fasten the panel to the door with the 10 screws
provided in the literature pack. (See Figure 20). Remove
the clamps and replace the gasket in the gasket extrusion
channels of the door. Some force may be required to seat
the gasket into the channels. Be sure the gasket corners
are seated properly.
Carefully open the top and bottom hinges on the door being
careful as there are many pinch points. Place the hinges
over the 4 screws in the cabinet, 2 at the top and 2 at the
bottom and slide the door into position. Tighten the 4 hinge
screws with a phillips screwdriver. (See Figures 13 and
13a). Place wire harness from the grille and mount to the
bottom of the door with the screw and "P" clamp removed
in step 1. (See Figure 13b). Reconnect the wire harness,
(See Figure 14).
Step 6: Secure the cabinet
Use the #8 x 3⁄4" black screws from the literature pack to
secure the counter top to the cabinet top through the holes
in the cabinet "Z" bracket.
Material Type
#10 Wood Screw
Hardwood
1
Softwood
7
⁄8" (3.2 mm) Diameter. Pilot Hole
⁄64 (2.8 mm) Diameter. Pilot Hole
Table C
Cabinet
"Z" bracket
#8 x 3⁄4" black
screws
(3 places)
#10 x 1/2"
screw
Figure 20
Figure 21
17
SHELVING CONFIGURATIONS
Loading Tips and Suggestions
Your appliance is equipped with a cantilever shelf and
basket system which provides maximum adjustability and
customizing of the storage arrangements listed below.
Figure 23
Perforated metal shelf
Figure 22
Freezer:
24" (61 cm) Wide Models:
Shown with a solid door. Figure 22.
(2) pull-out metal baskets
(1) full depth perforated
metal shelf.
To remove the basket:
Press this tab on each
side of the basket slide
and pull the basket out
of the slides.
Figure 24a
To install the basket:
Insert the basket slides into the ends of the cabinet
slides and push the basket completely closed. The
slide members will automatically lock together.
Figure 24
18
SHELVING CONFIGURATIONS
To install or remove a shelf:
Installed shelf
tang
Shelf support
slot
Remove stored product from the shelf. Do not try to remove
a loaded shelf from the appliance. Grasp the shelf front with
both hands, rotate the front upward and lift out. (See Figure
25b). To install a shelf insert the shelf in the appliance and
insert the top hooks into the shelf support slots and drop
the shelf down so the hooks drop over the bottom of the
slots.
!
Rear tang
(hook) on
shelf
CAUTION
Make sure your cantilever shelf is secure on the shelf supports by pressing down on the shelf before loading.
Figure 25a
Figure 25
Figure 25b
Grasp the shelf by the front with
both hands and rotate the front
of the shelf up, then lift the shelf
up and remove the shelf from the
shelf ladders.
!
CAUTION
Never try to move a loaded shelf, remove everything from
the shelf before moving. Use both hands when moving the
shelf.
19
CARE AND CLEANING AND ENERGY SAVING TIPS
Front Grille
Be sure that nothing obstructs the required air flow openings in front of the cabinet. At least once or twice a year,
brush or vacuum lint and dirt from the front grille area (see
page 4).
!
CAUTION
SHOCK HAZARD: Disconnect electrical power from the
appliance before cleaning with soap and water.
Cabinet
The painted cabinet can be washed with either a mild soap
and water and thoroughly rinsed with clear water. NEVER
use abrasive scouring cleaners.
Interior
Wash interior compartment with mild soap and water. Do
NOT use an abrasive cleaner, solvent, polish cleaner or
undiluted detergent.
Care of Appliance
1. Avoid leaning on the door, you may bend the door
hinges or tip the appliance.
2. Exercise caution when sweeping, vacuuming or mopping near the front of the appliance. Damage to the
grille can occur.
3. Periodically clean the interior of the appliance as
needed.
4. Periodically check and/or clean the front grille as
needed.
The following suggestions will minimize the
cost of operating your refrigeration appliance.
1. Do not install your appliance next to a hot appliance
(cooker, dishwasher, etc.), heating air duct, or other
heat sources.
2. Install product out of direct sunlight.
3. Ensure the front grille vents at front of appliance beneath door are not obstructed and kept clean to allow
ventilation for the refrigeration system to expel heat.
4. Plug your appliance into a dedicated power circuit. (Not
shared with other appliances).
5. When initially loading your new product, or whenever
large quantities of warm contents are placed within
refrigerated storage compartment, minimize door
openings for the next 12 hours to allow contents to pull
down to compartment set temperature.
6. Maintaining a relatively full storage compartment will
require less appliance run time than an empty compartment.
7. Ensure door closing is not obstructed by contents
stored in your appliance.
8. Allow hot items to reach room temperature before placing in product.
9. Minimize door openings and duration of door openings.
10. Use the warmest temperature control set temperature
that meets your personal preference and provides the
proper storage for your stored contents.
11. When on vacation or away from home for extended periods, set the appliance to warmest acceptable temperature for the stored contents.
12. Set the control to the “off” position if cleaning the
appliance requires the door to be open for an extended
period of time.
In the Event of a Power Failure
If a power failure occurs, try to correct it as soon as possible. Minimize the number of door openings while the
power is off so as not to adversely affect the appliance's
temperature.
Light assembly replacement
All models use LED lamps to illuminate the interior of the
appliance. This component is very reliable, but should one
fail, contact a qualified service technician for replacement
of the LED.
20
OBTAINING SERVICE
If Service is Required:
•
If the product is within the first year warranty period
please contact your dealer or call AGA MARVEL Customer Service at 800.223.3900 for directions on how to
obtain warranty coverage in your area.
•
If the product is outside the first year warranty period,
AGA MARVEL Customer Service can provide recommendations of service centers in your area. A listing
of authorized service centers is also available at www.
agamarvel.com under the service and support section.
•
In all correspondence regarding service, be sure to
give the service number, serial number, and proof of
purchase.
•
Try to have information or description of nature of the
problem, how long the appliance has been running, the
room temperature, and any additional information that
may be helpful in quickly solving the problem.
•
Table "D" is provided for recording pertinent information
regarding your product for future reference.
For Your Records
Date of Purchase
Dealer’s name
Dealer’s Address
Dealer’s City
Dealer’s State
Dealer’s Zip Code
Appliance Serial Number
Appliance Service Number
Date Warranty Card Sent (Must
be within 10 days of purchase).
Table D
21
TROUBLESHOOTING
Before You Call for Service
If the appliance appears to be malfunctioning, read through
this manual first. If the problem persists, check the troubleshooting guide below. Locate the problem in the guide and
refer to the cause and its remedy before calling for service.
The problem may be something very simple that can be
solved without a service call. However, it may be required
to contact your dealer or a qualified service technician.
WARNING
!
Electrocution Hazard
• Never attempt to repair or perform maintenance on
the appliance until the main electrical power has been
disconnected. Turning the appliance control "OFF"
does not remove electrical power from the unit's wiring.
• Replace all parts and panels before operating.
NOTE
Your freezer has been designed to be very energy efficient.
Because of this the storage compartment has an almost air
tight seal. Therefore when accessing contents and closing
the door, the warm air intrusion will collapse due to the cold
compartment temperature creating a slight vacuum inside
the unit. This may make the door harder to open for about
10 seconds until the internal pressure equalizes with the
exterior.
Problem
Appliance not cold enough
!
CAUTION
In the unlikely event you lose cooling in your unit, do not
unplug the product from the electric supply, but do call
a qualified service technician immediately. It is possible
that the loss of cooling capacity is a result of excessive
frost build-up on the evaporator cooling coil. In this case,
removing power to the unit will result in the melting of this
excessive quantity of ice, which could generate melt water
that exceeds the capacity of the defrost drain system and
could result in water damage to your home. The end-user
will be ultimately responsible for any water damage caused
by prematurely turning the unit off without appropriately
managing the excess water run-off.
Possible Cause
•
•
Control set too warm
Content temperature not stabilized.
Excessive usage or prolonged door
openings.
Airflow to front grille blocked.
•
Door gasket not sealing properly.
•
Appliance too cold
•
Control set too cold
•
(See “Adjusting the Temperature” on page
11)
•
Door gasket not sealing properly.
•
No interior light.
•
Failed LED light assembly or light
switch.
•
Contact a qualified service technician.
Light will not go out when door is closed
•
Door not activating light switch.
•
•
Failed light switch
•
Appliance not level, level appliance,
(See page 4, “leveling legs”
Contact a qualified service technician.
•
Appliance not level
•
•
Fan hitting tube obstruction.
•
•
Appliance turned off
•
•
•
Power cord not plugged in.
No power at outlet.
•
•
(See “Adjusting the temperature" on page
11)
Noise or Vibration
Appliance will not run.
•
•
•
Remedy
22
•
•
Adjust temperature colder. Allow 24
hours for temperature to stabilize.
Allow temperature to stabilize for at
least 24 hours.
Airflow must not be obstructed to front
grille. See “clearances” on
page 4.
Replace door gasket.
Adjust temperature warmer.
Allow 24 hours for temperature to
stabilize.
Replace door gasket.
Level appliance, see “Leveling Legs”
on page 4.
Contact a qualified service technician.
Turn appliance on. See “Starting your
appliance” on page 10.
Plug in power cord.
Check house circuit.
HOUSEHOLD PRODUCT WARRANTY
Entire Product
Limited One Year Parts and Labor Warranty
Parts or Service
Not Supplied or Designated by AGA MARVEL
AGA MARVEL warrants that it will supply all necessary
parts and labor to repair or replace in the end user’s home
or office, any component which proves to be defective
in material or workmanship, subject to the condition and
exclusions stated below, for a period of one year from the
date of purchase by the end user.
The above warranties also do not apply if:
•
•
•
Additional Second Through Fifth Year
Limited Parts Only Warranty
The original bill of sale, deliver date, or serial number
cannot be verified.
Defective parts are not returned for inspection if so
requested by AGA MARVEL.
The refrigeration equipment is not in the possession of
the original end use purchaser.
During the four years following expiration of the one year
limited warranty, AGA MARVEL will supply replacement
parts for the hermetically sealed refrigeration system which
consists of the compressor, condenser, drier, accumulator,
bypass valve, connecting tubing and the evaporator that
are proven to be defective due to workmanship or materials
subject to the conditions and exclusions below.
The warranties set forth herein are the only warranties
extended by AGA MARVEL. Any implied warranties, including the implied warranty of merchantability, are limited to
the duration of these express warranties. In no event shall
AGA MARVEL be liable for any consequential or incidental
damages or expenses resulting from breach of these or any
other warranties, whether express or implied.
The above warranties do not cover:
Some states do not allow the exclusion or limitation of consequential damages or a limitation on how long an implied
warranty lasts, so the above exclusion or limitation may not
apply to you. This warranty gives you specific legal rights
and you may have other rights that may vary from state to
state.
•
•
•
•
Shipping costs of replacement parts or returned defective parts.
Customer education or instructions on how to use the
appliance.
Any content loss due to product failure.
Removal or installation of product.
No person, firm, or corporation is authorized to make any
other warranty or assume any other obligation for AGA
MARVEL. These warranties apply only to products used in
any of the fifty states of the United States and the District of
Columbia.
Nor do the above warranties cover failure of this product or
its components due to:
•
•
•
Transportation or subsequent damages.
Commercial use or use other than normal household or
small office.
Improper installation, misuse, abuse, accident or alteration, use of wiring not conforming to electrical codes,
low or high voltages, failure to provide necessary maintenance, or other unreasonable use.
To obtain performance of this warranty, report any defects
to:
1260 E. VanDeinse St.
Greenville MI 48838
Phone: 800.223.3900
23
www.agamarvel.com
1260 E. VanDeinse St.
Greenville MI 48838
800.223.3900
41014058-EN Rev A
12/1/15
All specifications and product designs subject to change without notice. Such revisions do not entitle
the buyer to corresponding changes, improvements, additions, replacements or compensation for
previously purchased products.

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
