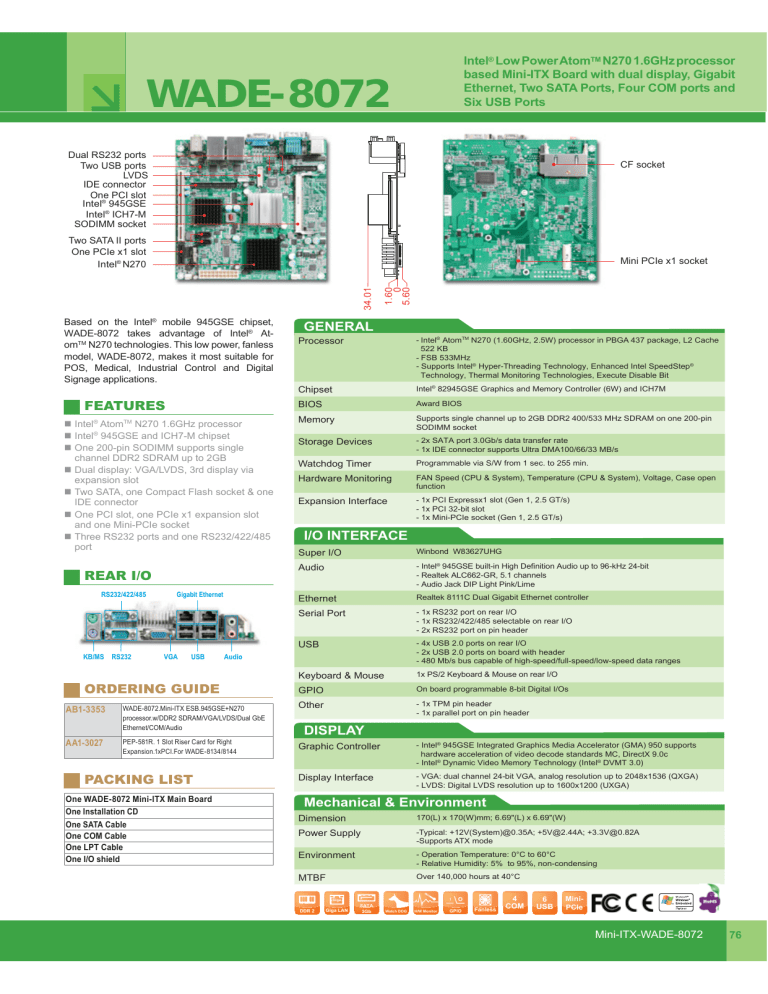

WADE-8072
Intel® Low Power AtomTM N270 1.6GHz processor
based Mini-ITX Board with dual display, Gigabit
Ethernet, Two SATA Ports, Four COM ports and
Six USB Ports
WADE-8072
Dual RS232 ports
Two USB ports
LVDS
IDE connector
One PCI slot
Intel® 945GSE
Intel® ICH7-M
SODIMM socket
CF socket
Two SATA II ports
One PCIe x1 slot
Intel® N270
Based on the Intel® mobile 945GSE chipset,
WADE-8072 takes advantage of Intel® AtomTM N270 technologies. This low power, fanless
model, WADE-8072, makes it most suitable for
POS, Medical, Industrial Control and Digital
Signage applications.
FEATURES
„ Intel Atom N270 1.6GHz processor
„ Intel® 945GSE and ICH7-M chipset
„ One 200-pin SODIMM supports single
channel DDR2 SDRAM up to 2GB
„ Dual display: VGA/LVDS, 3rd display via
expansion slot
„ Two SATA, one Compact Flash socket & one
IDE connector
„ One PCI slot, one PCIe x1 expansion slot
and one Mini-PCIe socket
„ Three RS232 ports and one RS232/422/485
port
®
TM
REAR I/O
RS232/422/485
KB/MS RS232
Gigabit Ethernet
VGA
USB
AB1-3353
WADE-8072.Mini-ITX ESB.945GSE+N270
processor.w/DDR2 SDRAM/VGA/LVDS/Dual GbE
Ethernet/COM/Audio
AA1-3027
PEP-581R. 1 Slot Riser Card for Right
Expansion.1xPCI.For WADE-8134/8144
One WADE-8072 Mini-ITX Main Board
One Installation CD
One SATA Cable
One COM Cable
One LPT Cable
One I/O shield
GENERAL
Processor
- Intel® AtomTM N270 (1.60GHz, 2.5W) processor in PBGA 437 package, L2 Cache
522 KB
- FSB 533MHz
- Supports Intel® Hyper-Threading Technology, Enhanced Intel SpeedStep®
Technology, Thermal Monitoring Technologies, Execute Disable Bit
Chipset
Intel® 82945GSE Graphics and Memory Controller (6W) and ICH7M
BIOS
Award BIOS
Memory
Supports single channel up to 2GB DDR2 400/533 MHz SDRAM on one 200-pin
SODIMM socket
Storage Devices
- 2x SATA port 3.0Gb/s data transfer rate
- 1x IDE connector supports Ultra DMA100/66/33 MB/s
Watchdog Timer
Programmable via S/W from 1 sec. to 255 min.
Hardware Monitoring
FAN Speed (CPU & System), Temperature (CPU & System), Voltage, Case open
function
Expansion Interface
- 1x PCI Expressx1 slot (Gen 1, 2.5 GT/s)
- 1x PCI 32-bit slot
- 1x Mini-PCIe socket (Gen 1, 2.5 GT/s)
I/O INTERFACE
Super I/O
Winbond W83627UHG
Audio
- Intel® 945GSE built-in High Definition Audio up to 96-kHz 24-bit
- Realtek ALC662-GR, 5.1 channels
- Audio Jack DIP Light Pink/Lime
Ethernet
Realtek 8111C Dual Gigabit Ethernet controller
Serial Port
- 1x RS232 port on rear I/O
- 1x RS232/422/485 selectable on rear I/O
- 2x RS232 port on pin header
USB
- 4x USB 2.0 ports on rear I/O
- 2x USB 2.0 ports on board with header
- 480 Mb/s bus capable of high-speed/full-speed/low-speed data ranges
Keyboard & Mouse
1x PS/2 Keyboard & Mouse on rear I/O
GPIO
On board programmable 8-bit Digital I/Os
Other
- 1x TPM pin header
- 1x parallel port on pin header
Audio
ORDERING GUIDE
PACKING LIST
1.60
0
5.60
34.01
Mini PCIe x1 socket
DISPLAY
Graphic Controller
- Intel® 945GSE Integrated Graphics Media Accelerator (GMA) 950 supports
hardware acceleration of video decode standards MC, DirectX 9.0c
- Intel® Dynamic Video Memory Technology (Intel® DVMT 3.0)
Display Interface
- VGA: dual channel 24-bit VGA, analog resolution up to 2048x1536 (QXGA)
- LVDS: Digital LVDS resolution up to 1600x1200 (UXGA)
Mechanical & Environment
Dimension
170(L) x 170(W)mm; 6.69"(L) x 6.69"(W)
Power Supply
-Typical: +12V(System)@0.35A; [email protected]; [email protected]
-Supports ATX mode
Environment
- Operation Temperature: 0°C to 60°C
- Relative Humidity: 5% to 95%, non-condensing
MTBF
Over 140,000 hours at 40°C
Giga
DDR 2
Giga LAN
SATA
3Gb
Watch DOG
H/W Monitor
GPIO
Fanless
4
COM
6
USB
MiniPCIe
Mini-ITX-WADE-8072
