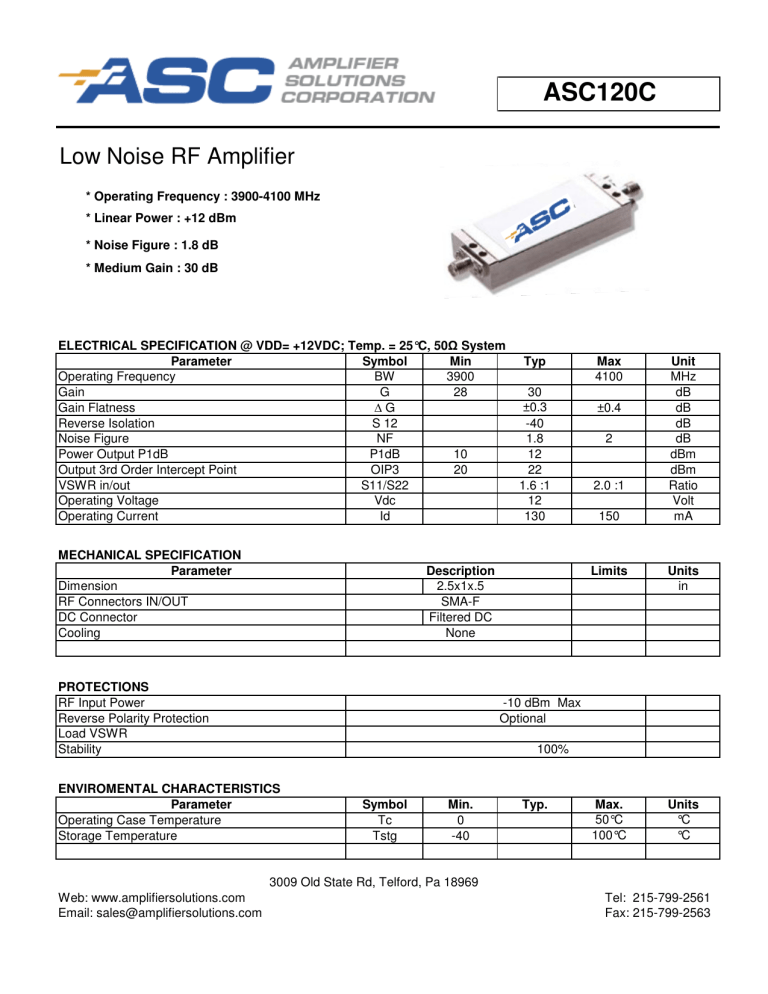

ASC120C - Amplifier Solutions
ASC120C
Low Noise RF Amplifier
* Operating Frequency : 3900-4100 MHz
* Linear Power : +12 dBm
* Noise Figure : 1.8 dB
* Medium Gain : 30 dB
ELECTRICAL SPECIFICATION @ VDD= +12VDC; Temp. = 25°C, 50 System
Parameter
Symbol
Min
Operating Frequency
BW
3900
Gain
G
28
Gain Flatness
G
Reverse Isolation
S 12
Noise Figure
NF
Power Output P1dB
P1dB
10
Output 3rd Order Intercept Point
OIP3
20
VSWR in/out
S11/S22
Operating Voltage
Vdc
Operating Current
Id
MECHANICAL SPECIFICATION
Parameter
Dimension
RF Connectors IN/OUT
DC Connector
Cooling
Typ
30
±0.3
-40
1.8
12
22
1.6 :1
12
130
Description
2.5x1x.5
SMA-F
Filtered DC
None
PROTECTIONS
RF Input Power
Reverse Polarity Protection
Load VSWR
Stability
Max
4100
±0.4
2
2.0 :1
150
Unit
MHz
dB
dB
dB
dB
dBm
dBm
Ratio
Volt
mA
Limits
Units
in
Max.
50°C
100°C
Units
°C
°C
-10 dBm Max
Optional
100%
ENVIROMENTAL CHARACTERISTICS
Parameter
Operating Case Temperature
Storage Temperature
Symbol
Tc
Tstg
Min.
0
-40
Typ.
3009 Old State Rd, Telford, Pa 18969
Web: www.amplifiersolutions.com
Email: [email protected]
Tel: 215-799-2561
Fax: 215-799-2563
ASC120C
Outline Drawing
3009
2950-K
Old State
Advance
Rd, Telford,
Lane Colmar,
Pa 18969
PA 18915
Web: www.amplifiersolutions.com
Email: [email protected]
Tel: 215-799-2561
Fax: 215-799-2563
