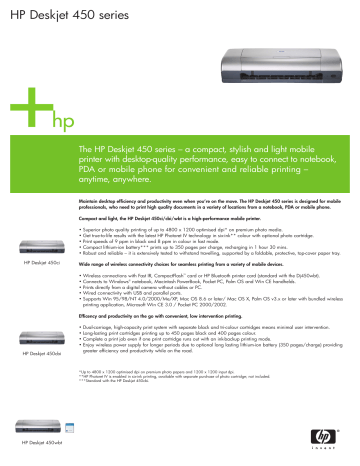

HP Deskjet 450 series
HP Deskjet 450 series
The HP Deskjet 450 series – a compact, stylish and light mobile
printer with desktop-quality performance, easy to connect to notebook,
PDA or mobile phone for convenient and reliable printing –
anytime, anywhere.
Maintain desktop efficiency and productivity even when you’re on the move. The HP Deskjet 450 series is designed for mobile
professionals, who need to print high quality documents in a variety of locations from a notebook, PDA or mobile phone.
Compact and light, the HP Deskjet 450ci/cbi/wbt is a high-performance mobile printer.
• Superior photo quality printing of up to 4800 x 1200 optimised dpi* on premium photo media.
• Get true-to-life results with the latest HP Photoret IV technology in six-ink** colour with optional photo cartridge.
• Print speeds of 9 ppm in black and 8 ppm in colour in fast mode.
• Compact lithium-ion battery*** prints up to 350 pages per charge, recharging in 1 hour 30 mins.
• Robust and reliable – it is extensively tested to withstand travelling, supported by a foldable, protective, top-cover paper tray.
HP Deskjet 450ci
Wide range of wireless connectivity choices for seamless printing from a variety of mobile devices.
• Wireless connections with Fast IR, CompactFlash™ card or HP Bluetooth printer card (standard with the Dj450wbt).
• Connects to Windows® notebook, Macintosh PowerBook, Pocket PC, Palm OS and Win CE handhelds.
• Prints directly from a digital camera without cables or PC.
• Wired connectivity with USB and parallel ports.
• Supports Win 95/98/NT 4.0/2000/Me/XP, Mac OS 8.6 or later/ Mac OS X, Palm OS v3.x or later with bundled wireless
printing application, Microsoft Win CE 3.0 / Pocket PC 2000/2002.
Efficency and productivity on the go with convenient, low intervention printing.
HP Deskjet 450cbi
• Dual-carriage, high-capacity print system with separate black and tri-colour cartridges means minimal user intervention.
• Long-lasting print cartridges printing up to 450 pages black and 400 pages colour.
• Complete a print job even if one print cartridge runs out with an ink-backup printing mode.
• Enjoy wireless power supply for longer periods due to optional long lasting lithium-ion battery (350 pages/charge) providing
greater efficiency and productivity while on the road.
*Up to 4800 x 1200 optimised dpi on premium photo papers and 1200 x 1200 input dpi.
**HP Photoret IV is enabled in six-ink printing, available with separate purchase of photo cartridge; not included.
***Standard with the HP Deskjet 450cbi.
HP Deskjet 450wbt
Technical specifications
Ordering information
Print technology
HP Thermal Inkjet
Printhead nozzles
416 black ink nozzles, 18 kHz maximum firing frequency.
300 colour ink nozzles, 21 kHz maximum firing frequency.
300 photo ink nozzles (optional), 21 kHz maximum firing frequency.
Print speed
(up to # pages per minute)
Document type
Black text A4
Mixed text/colour graphics A4
10 x 15 cm colour photo (plain paper)
Full page colour A4
Print quality
Black: Up to 1200 x 1200 dpi. Colour: HP Photoret III (HP Photoret IV with optional photo cartridge).
Up to 4800 x 1200 dpi on premium photo paper.
Operating systems compatibility
Supported: Microsoft® Windows® 95, 98, NT 4.0, Me, 2000, XP, CE 3.0 and later, Microsoft Windows for Pocket PC,
Macintosh OS 8.6 and above (including OS X), Palm OS 3.0 and later, Nokia phone 60 series.
Recommended system requirements
Microsoft® Windows® 95, 98, NT 4.0, Me, 2000: PII 450 MHz, 128 MB RAM, 200 MB hard disk space; Microsoft Windows XP:
PII, 450 MHz, 256 MB RAM, 200 MB hard disk space. Mac OS 8.6x: iMac 333 MHz or G3 350 MHz, 128 MB RAM; MAC
OS 9.x: iMac 333 MHz or G3 350 MHz, 128 MB RAM (IR is for 9.x or later); MAC OS X: G4 800 MHz, 256 MB RAM.
Memory
Standard: 16 MB RAM, 4 MB ROM.
Printer languages
Standard: HP PCL 3 enhanced.
Typefaces/fonts
13 built-in fonts in portrait orientation. International fonts: Arabic, Baltic, Cyrillic, Greek, Hebrew. US fonts: CG Times, CG Times
Italic, Universe, Universe Italic, Courier, Courier Italic, Letter Gothic, Letter Gothic Italic.
Draft
9 ppm
8 ppm
1 ppm
0.5 ppm
Normal
5 ppm
3 ppm
0.7 ppm
0.3 ppm
Best
1.6 ppm
1 ppm
0.4 ppm
0.1 ppm
Duty cycle
500 pages per month
Recommended media weight
75 g/m2 to 90 g/m2 (bond paper), 110 g/m2 to 200 g/m2 (cardstock).
Media sizes
A4, A5, A6.
Media types
Paper (plain, copier, bond, recycled, multipurpose, premium inkjet, premium inkjet heavy weight) premium transparency, premium
plus photo paper (matt and glossy), photo paper, professional brochure (matt and glossy), labels, cards.
Print margins (A4)
Top: 2 mm, left: 6.4 mm, right: 6.4 mm, bottom: 13.5 mm.
Paper handling
Sheets up to 45, transparencies up to 10.
Duplex printing
Two sided printing capability: Manual.
Power supplies
Universal Power Supply or HP Lithium-ion battery.
Power requirements
100 to 240 AC, 50/60 Hz, 19 VDC, 3.16A (A/C Adapter).
Power consumption
20 watts maximum (printing without battery charging), 44 watts maximum (printing while battery charging).
Interface and connectivity
HP Deskjet 450ci/cbi: Standard: Parallel port, USB, Fast Infrared, CompactFlash™ Type I card slot.
HP Deskjet 450ci/cbi: Optional: Bluetooth connectivity via CompactFlash™ card slot
HP Deskjet 450wbt: Standard: Parallel port, USB, Fast Infared, CompactFlash™ Type I card slot, Bluetooth connectivity.
Software included
Print application (web-download) for Pocket PC, BTPrint for Palm OS-based PDA.
Dimensions (w x d x h)
338 x 82.5 x 164 mm; 338 x 82.5 x 184 mm (with battery).
Product weight
HP Deskjet 450ci mobile printer: 1.88 kg. HP Deskjet 450cbi/wbt mobile printer: 2.08 kg (with battery).
Printer management
HP My Print Mileage.
Battery
Type: HP Lithium-ion battery. Life: Up to 350 pages per charge. Capability: Automatic recharge using printers built-in battery
recharger. Charge time: Only 1 hr 30 mins.
Operating environment
Environmental ranges: Operating temperature: 0 to 55 ºC. Operating humidity: 15% to 95% RH non-condensing.
Recommended operating humidity: 20% to 80% RH non-condensing. Recommended operating temperature: 15 to 35 ºC.
Storage temperature: -40 to 70 ºC. Noise level per ISO 9296: Sound power: 5.8 B(A), Sound pressure 45 dB(A).
Energy Star®
Yes
Certifications
Regulatory standards: TUV-GS (Germany), CE (European Union), B mark (Poland), CCIB S&E (China), CSA (Canada),
PSB (Singapore), UL (USA).
Warranty
1 year limited hardware warranty; Phone support: 8:30-18:00 Monday-Friday.
C8146A
HP Deskjet 450ci mobile
printer, A/C adapter, power cord,
parallel printer cable, reference
guide, setup roadmap, regulatory
guide, printer software CD-ROM,
HP No. 56 Black Print Cartridge
(19 ml), HP No. 57 Tri-color Print
Cartridge (17 ml),
C8147A
HP Deskjet 450cbi mobile
printer, includes same as above
plus: HP Lithium-ion battery
C8145A
HP Deskjet 450wbt mobile
printer, includes same as C8147A
plus: HP Bluetooth printer card.
C8257A
C8246A
C8222A
C8249A
C8231A
C8232A
C8242A
C8233A
Accessories
HP Auto/Car Adapter
HP AC Adapter with
Power Cord
HP Lithium-ion battery
HP Bluetooth printer card
HP parallel printer cable
HP business carry case for
notebook and printer
HP carry case for notebook
and printer (small)
HP travel holder for
black/photo cartridge
Supplies
HP No. 56 Black Inkjet Print
Cartridge (19 ml)(450 pages†)
C6657AE
HP No. 57 Tri-colour Inkjet
Print Cartridge (17 ml)(400 pages†)
C6658AE HP No. 58 Photo Inkjet Print
Cartridge (17 ml) 125 photos
(10 x 15 cm)
C6656AE
Media
C5977B/C1825A
HP Bright White
Paper, A4 (250/500 sheets)
51634Z
HP Premium Paper,
A4 (200 sheets)
C3831A/C3837A
HP Premium Highgloss Film, White, A4 (10/50 sheets)
C1853A
HP Premium Heavyweight
Paper, A4 (100 sheets)
C6818A
HP Brochure & Flyer Paper,
Glossy, A4 (50 sheets)
C3832A/C3835A
HP Premium
Transparency Film, A4 (20/50 sheet)
C7031A/C7029A
HP Premium Plus
Transparency Film, A4 (20/50 sheets)
C6984A
HP Photo-quality Paper,
Semi Glossy A4 (25 sheets)
C6040A
HP Premium Photo Paper,
Glossy, A4 (15 sheets)
C7891A/C7894A
HP Photo Paper,
Glossy, 10 x 15 cm (20/60 sheets)
C1847A
HP Photo Paper, Glossy,
A4 (20 sheets)
C6832A HP Premium Plus Photo Paper,
Glossy, A4 (20 sheets)
C6951A HP Premium Plus Photo Paper,
Matt, A4 (20 sheets)
C6945A/C7025A
HP Premium
Plus Photo Paper, glossy,
10 x 15 cm (20/60 sheets)
CHP111
HP Office Paper, A4
(500 sheets)
CHP120
HP Office Recycled Paper
(500 sheets)
H3683A/E
Service & support
HP Care Pack 3 year
next-day on-site replacement
†
Based on 5% coverage for black and white
and 15% for colour, in normal mode.
http://www.hp.com
For more information, please call your local HP sales office or representative: Austria: 0800 242 242, Algeria: (0)61 56 45 43, Bahrain: 800 728, Belgium: (078) 15 20 30 (0.0496 EUR/min), Bulgaria: (+359) 2960
1940, Croatia: (+385 1) 60 60 200, Czech Republic: (00 420 2) 261 108 108 (Prague), Denmark: 45991700 or 70101125, Egypt: 532 5222, Estonia: (+372) 6813 823, Finland: (+358) 0205350 or 0205 350,
France: (1) 69 82 6060, Germany: 0180 532 6222 (12 Cent/min), Greece: (01) 678 96 00, Hungary: (+36) 1 382-1111, Iceland: (354) 570 1000, Ireland: + 353 1 6158200, Israel: (972) 9 8304848,
Italy: (02) 92121, Kazakhstan: +7 (3272) 980 824, Latvia: (371) 800 80 12, Lithuania: 8 800 10000 or 8 5 2103333, Luxembourg: (+352) 263 160 34, Middle East: 00971 4 883 4427, Morocco (African Region):
+212 22 40 47 47, Netherlands: (020) 5476666, Norway: 22 735600, Poland: infolinia: 0-800 122 622, Portugal: (808) 206 001, Romania: (+401) 205 3300, Russia: +7 (095) 797 35 00, Saudi Arabia: 800 124
4646, Serbia/Montenegro: +381 11 334 21 02, Slovakia: +421-2-50222111, Slovenia: +3861 2307 420, South Africa: 0800 118 883, Spain: (91) 634 88 00, Sweden: (08) 444 2000, Switzerland: 0848 88 44 66,
Tunisia: 71 891 222, Turkey: +90 (216) 579 71 71, UAE: 8004910, UK: 08705 474747, Ukraine: +380 44 490 61 20.
©2003 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP Products and services
are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions contained herein.
Published in EMEA 08/03 5981-2307EEE
