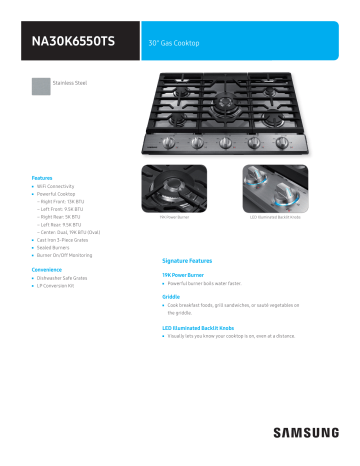

NA30K6550TS
30" Gas Cooktop
Stainless Steel
Features
n
WiFi Connectivity
n
Powerful Cooktop
– Right Front: 13K BTU
– Left Front: 9.5K BTU
– Right Rear: 5K BTU
19K Power Burner
LED Illuminated Backlit Knobs
– Left Rear: 9.5K BTU
– Center: Dual, 19K BTU (Oval)
n
Cast Iron 3-Piece Grates
n
Sealed Burners
n
Burner On/Off Monitoring
Convenience
n
Dishwasher Safe Grates
n
LP Conversion Kit
Signature Features
19K Power Burner
n
Powerful burner boils water faster.
Griddle
n
Cook breakfast foods, grill sandwiches, or sauté vegetables on
the griddle.
LED Illuminated Backlit Knobs
n Visually lets you know your cooktop is on, even at a distance.
NA30K6550TS
30" Gas Cooktop
Total Power (BTU)
Installing Your Cooktop
Can be installed over a single oven.
n
All horizontal clearances must be maintained
for a minimum of 18" above the cooking surface.
/16 "
7
Power Source
Allow 7/16" minimum vertical clearance
from the cooktop bottom (or 39/16")
minimum depth from the countertop)
to any combustible surfaces, including
the upper edge of a drawer installed
below the cooktop.
3 9/16 "
DRAWER
Electrical outlet 12"
minimum below
countertop
56K
n
120V/60Hz
Gas Cooktop (BTU)
n
n
n
n
n
See built-in oven installation for complete installation
instructions.
Maintain the following minimum clearance dimensions.
Right Front: 13K
Left Front: 9.5K
Right Rear: 5K Simmer
Left Rear: 9.5K
Center: 19K (Dual)
Warranty
One (1) Year All Parts and Labour
5" to Center of 2" Dia.
Hole from countertop
13" MAX 18" MIN
30" MIN
90° Elbow
2" Dia. Hole
207/8" from front
of countertop to
hole center
Cabinet Sides
12" MIN
2 7/8 " MIN
12" MIN
View from Front of Cooktop
Dimensions
Cooktop Dimensions
Cut-out Dimensions of Countertop
Refer to installation manual for more details.
Rear Wall
28"
Vertical
combustible
surface
12"
to
Countertop
grate surface
2 3/4 "
3 1/8 "
21"
Chassis height
28 1/2 " 2 7/8 " 19E5/8 "
19 3/8 "
28 3/16 "
COLOUR
MODEL #
UPC CODE
Stainless Steel
NA30K6550TS
887276183473
PLEASE VISIT SAMSUNG.COM FOR OUR LATEST UPDATES.
Actual colour may vary. Design, specifications, and colour availability are subject to change without notice. Non-metric weights and measurements are approximate.
© 2016 Samsung Electronics Canada Inc. All rights reserved. Samsung is a registered trademark of Samsung Electronics Co., Ltd., used with permission.
12"
Minimum distance to combustible
side wall above countertop (both sides)
