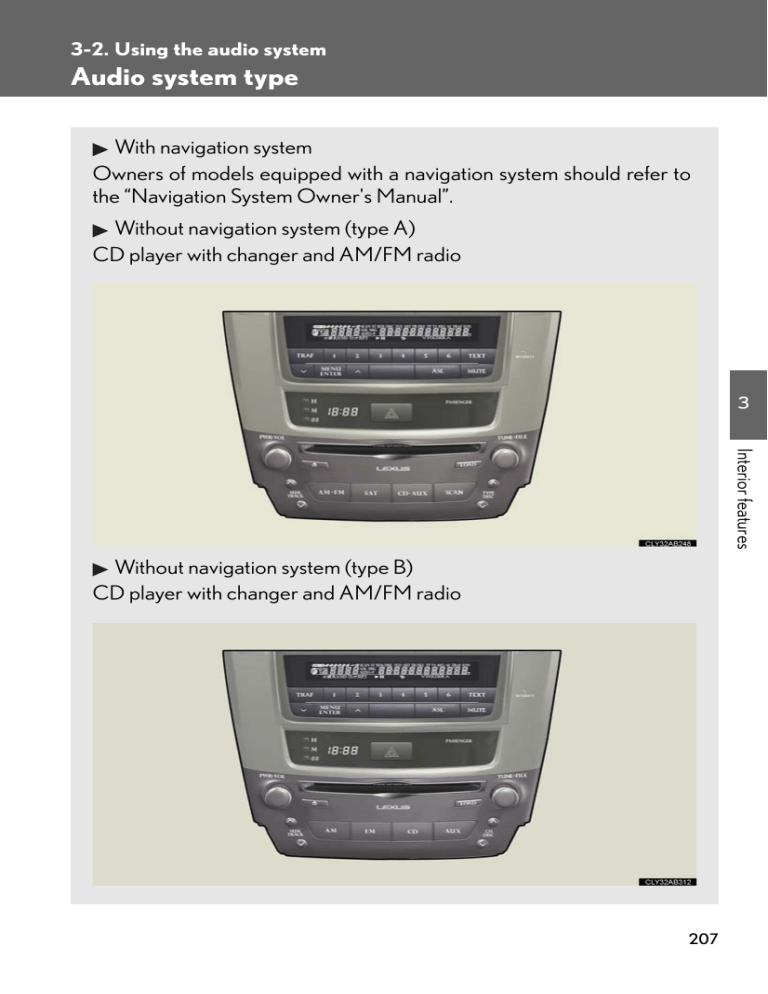

Audio system type
3-2. Using the audio system
Audio system type
With navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Without navigation system (type A)
CD player with changer and AM/FM radio
3
Interior features
Without navigation system (type B)
CD player with changer and AM/FM radio
207
3-2. Using the audio system
Title
208
Page
Using the radio
P. 210
Using the CD player
P. 218
Playing back MP3 and WMA discs
P. 225
Operating an iPod®
P. 233
Operating a USB memory
P. 241
Optimal use of the audio system
P. 250
Using the AUX adapter
P. 252
Using the steering wheel audio switches
P. 254
3-2. Using the audio system
n Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
CAUTION
n For vehicles sold in U.S.A. and Canada
l Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the user’s
authority to operate this device.
3
l Laser products
NOTICE
n To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine off.
n To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.
209
Interior features
• Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a laser pickup to retrieve information from the
surface of compact discs. The laser is carefully shielded so that its rays remain
inside the cabinet. Therefore, never try to disassemble the player or alter any
of its parts since you may be exposed to laser rays and dangerous voltages.
• This product utilizes a laser.
Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
3-2. Using the audio system
Using the radio
Type A
Seeking any traffic
program station
Station
selector
Displays radio text messages
Silencing a sound
Power Volume
Seeking the
frequency
AM⋅FM/SAT
mode buttons
Adjusting the frequency
(AM, FM mode) or
channel (SAT mode)
Changing the program types
Scans for receivable stations
Type B
Seeking any traffic
program station
Station
selector
Adjusting the frequency
Power Volume
Seeking the
frequency
AM/FM
mode buttons
210
Silencing a sound
Station selector
3-2. Using the audio system
Setting station presets (excluding XM® Satellite Radio)
STEP 1
“∨” on
STEP 2
or pressing “∧” or
Search for desired stations by turning
.
Press and hold the button (from
be set to until you hear a beep.
to
) the station is to
Scanning radio stations (excluding XM® Satellite Radio) (type A)
n Scanning the preset radio stations
STEP 1
Press and hold
3
until you hear a beep.
When the desired station is reached, press
n Scanning all radio stations within range
STEP 1 Press
.
STEP 2
Interior features
Preset stations will be played for 5 seconds each.
once again.
All stations with reception will be played for 5 seconds each.
STEP 2
When the desired station is reached, press
once again.
211
3-2. Using the audio system
RDS (Radio Data System) (type A)
This feature allows your radio to receive station identification information
and program information (classical, jazz, etc.) from radio stations which
broadcast this information.
n Receiving RDS broadcasts
STEP 1
Press “∧” or “∨” on
during FM reception.
The type of program changes each time
is pressed.
l “ROCK”
l “EASYLIS” (Easy listening)
l “CLS/JAZZ” (Classical music and Jazz)
l “R & B” (Rhythm and Blues)
l “INFORM” (Information)
l “RELIGION”
l “MISC” (Miscellaneous)
l “ALERT” (Emergency messages)
If the system receives no RDS stations, “NO PTY” appears on the display.
STEP 2
Press
, or “∧” or “∨” on
.
The radio seeks or scans the stations by the relevant program type.
212
3-2. Using the audio system
n Displaying radio station names
Press
.
n Displaying radio text messages
Press
twice.
If “MSG” shows in the display, a text message will be displayed.
If the text continues past the end of the display,
hold
until you hear a beep.
is displayed. Press and
XM® Satellite Radio (type A)
n Receiving XM® Satellite Radio
STEP 1
Turn
3
is pressed.
to select the desired channel in all categories or press
“∧” or “∨” on
to select the desired channel in the current
category.
n Setting XM® Satellite Radio channel presets
Select the desired channel. Press the button the channel is to be set to
(from
to
) until you hear a beep.
n Changing the channel category
Press “∧” or “∨” on
.
213
Interior features
STEP 2
Press
.
The display changes as follows each time
“SAT1” → “SAT2” → “SAT3”
3-2. Using the audio system
n Scanning XM® Satellite Radio channels
l Scanning channels in the current category
Press
.
STEP 2 When the desired channel is reached, press
l Scanning preset channels
STEP 1
Press and hold
until you hear a beep.
STEP 2 When the desired channel is reached, press
n Displaying text information
Press
.
again.
STEP 1
The display will show up to 10 characters.
The display changes as follows each time
l CH NAME
l TITLE (SONG/PROGRAM TITLE)
l NAME (ARTIST NAME/FEATURE)
l CH NUMBER
214
is pressed.
again.
3-2. Using the audio system
n When the battery is disconnected
Station presets are erased.
n Reception sensitivity
l Maintaining perfect radio reception at all times is difficult due to the continually
changing position of the antenna, differences in signal strength and surrounding
objects, such as trains, transmitters, etc.
l The radio antenna is mounted inside the rear window. To maintain clear radio
reception, do not attach metallic window tinting or other metallic objects to the
antenna wire mounted inside the rear window.
n XM® Satellite Radio
An XM® Satellite Radio is a tuner designed exclusively to receive broadcasts provided under a separate subscription. Availability is limited to the 48 contiguous
states and 10 Canadian provinces.
Interior features
l XM® subscriptions
For detailed information about XM® Satellite Radio or to subscribe:
U.S.A. ⎯
Visit on the web at www.xmradio.com or call 1-877-515-3987.
Canada ⎯
Visit on the web at www.xmradio.ca or call 1-877-515-3987.
l Radio ID
You will need the radio ID when activating XM® service or reporting a problem. Select “CH000” using
3
, and the receiver's 8-character ID number
will appear.
l Satellite tuner
The tuner supports only Audio Services (Music and Talk) and the accompanying Text Information of XM® Satellite Radio.
215
3-2. Using the audio system
n If the satellite radio does not operate normally
If a problem occurs with the XM® tuner, a message will appear on the display. Refer
to the table below to identify the problem, and take the suggested corrective action.
“ANTENNA”
The XM® antenna is not connected. Check whether
the XM® antenna cable is attached securely.
There is a short-circuit in the antenna or the surrounding antenna cable. See a Lexus certified dealer.
You have not subscribed to the XM® Satellite Radio.
The radio is being updated with the latest encryption
code. Contact the XM® Satellite Radio for subscription information. When a contract is canceled, you can
choose the “CH000” and all free-to-air channels.
“UNAUTH”
“NO SIGNAL”
“LOADING”
216
The premium channel you selected is not authorized.
Wait for about 2 seconds until the radio returns to the
previous channel or “CH001”. If it does not change
automatically, select another channel. If you want to listen to the premium channel, contact XM® Satellite
Radio.
The XM® signal is too weak at the current location.
Wait until your vehicle reaches a location with a stronger signal.
The unit is acquiring audio or program information.
Wait until the unit has received the information.
“OFF AIR”
The channel you selected is not broadcasting any programming. Select another channel.
“-----”
There is no song/program title or artist name/feature
associated with the channel at that time. No action
needed.
3-2. Using the audio system
“CH UNAVL”
The channel you selected is no longer available. Wait
for about 2 seconds until the radio returns to the previous channel or “CH001”. If it does not change automatically, select another channel.
Contact the XM® Listener Care Center at 1-877-515-3987.
n Certifications for the radio tuner
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation.
l Reorienting or relocate the receiving antenna.
l Increasing the separation between the equipment and receiver.
l Connecting the equipment into an outlet on a circuit different from that to which
the receiver is connected.
l Consulting the dealer or an experienced radio/TV technician for help.
217
Interior features
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by trying one or more of the following:
3
3-2. Using the audio system
Using the CD player
Type A
Repeat play
Playback/Pause
Random playback
Displays text
message
Silencing a sound
Power Volume
CD eject Playback
Track selection
Search playback
CD selection
CD load
Type B
Repeat play
Random playback
Playback/Pause
Displays text
message
Silencing a sound
Power Volume
CD eject Playback
Track selection
218
CD selection
CD load
3-2. Using the audio system
Loading CDs
n Loading a CD
STEP 1 Push
.
“WAIT” is shown on the display.
STEP 2
Insert a CD when the indicator on the slot turns from amber to
green.
The display changes from “WAIT” to “LOAD”.
n Loading multiple CDs
STEP 1 Press and hold
until you hear a beep.
STEP 2
Insert a CD when the indicator on the slot turns from amber to
green.
3
The display changes from “WAIT” to “LOAD”.
Interior features
“WAIT” is shown on the display.
The indicator on the slot turns to amber when the CD is inserted.
STEP 3
Insert the next CD when the indicator on the slot turns from
amber to green again.
Repeat the procedure for the remaining CDs.
To stop the operation, press
or
.
219
3-2. Using the audio system
Ejecting CDs
n Ejecting a CD
To select the CD to be ejected,
STEP 1
press “∧” or “∨” on
or
.
The number of the CD selected is
shown on the display.
Press
and remove the CD.
n Ejecting all the CDs
Press and hold
until you hear a beep, and then remove the CDs.
STEP 2
Selecting, fast-forwarding, reversing and scanning tracks
n Selecting a track
Press “∧” to move up and “∨” to move down using
until the
desired track number is displayed.
To fast forward or reverse, press and hold “∧” or “∨” on
a beep.
until you hear
n Scanning a CD (type A)
STEP 1 Press
.
The first ten seconds of each track will be played.
STEP 2
220
Press
again when the desired track is reached.
3-2. Using the audio system
Selecting a CD
n To select a CD to play
To select the desired CD, press “∧” or “∨” on
or
.
n To scan loaded CDs (type A)
STEP 1 Press and hold
until you hear a beep.
The first ten seconds of the first track on each CD will be played.
STEP 2
Press
again when the desired CD is reached.
Random playback
3
n All CDs
Press and hold
Interior features
n Current CD
Press
(RAND).
(RAND) until you hear a beep.
Repeat play
n To repeat a track
Press
(RPT).
n To repeat all of the tracks on a CD
Press and hold
(RPT) until you hear a beep.
Playing and pausing tracks
To play or pause a track, press
(
).
Switching the display
Press
.
Each time
is pressed, the display changes in the order of Track no./
Elapsed time → CD title → Track title.
221
3-2. Using the audio system
n Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding
until you hear a
beep will display the remaining characters.
A maximum of 24 characters can be displayed.
If
is pressed until you hear a beep again or has not been pressed for 6 seconds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed properly or may not be displayed at all.
n Canceling random, repeat and scan playback
Press
(RAND),
(RPT),
again.
n When “LOAD”, “ERROR” or “WAIT” is shown on the display
“LOAD”: This indicates that the CD player has completed loading the CD.
“ERROR”: This indicates a trouble either in the CD or inside the player. The CD
may be dirty, damaged, or inserted up-side down.
“WAIT”:
Operation is stopped due to a high temperature inside the player. Wait
for a while and then press
or
. Contact your Lexus dealer if
the CD still cannot be played back.
n Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.
CDs with copy-protection features may not play correctly.
222
3-2. Using the audio system
n CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected.
n If CDs are left inside the CD player or in the ejected position for extended peri-
ods
CDs may be damaged and may not play properly.
n Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
NOTICE
n CDs and adapters that cannot be used
3
l CDs that have a diameter that is not 4.7 in.
(12 cm).
l Low-quality and deformed CDs.
223
Interior features
Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual Disc.
Doing so may damage the CD player and/or the CD insert/eject function.
3-2. Using the audio system
NOTICE
l CDs with a transparent or translucent
recording area.
l CDs that have had tape, stickers or CD-R
labels attached to them, or that have had
the label peeled off.
n CD player precautions
Failure to follow the precautions below may result in serious damage to the CDs or
the player itself.
l Do not insert anything other than CDs into the CD slot.
l Do not apply oil to the CD player.
l Store CDs away from direct sunlight.
l Never try to disassemble any part of the CD player.
l Do not insert more than one CD at a time.
224
3-2. Using the audio system
Playing back MP3 and WMA discs
Type A
Playback/Pause
Repeat play
Random playback
Folder selection
Displays text message
Silencing a sound
3
File selection
Power Volume
Interior features
File
Playback
selection
Search
playback
CD eject
CD selection
CD load
Type B
Playback/Pause
Repeat play
Random playback
Folder selection
Displays text message
Silencing a
sound
File selection
Power Volume
File
selection
CD eject
Playback
CD selection
CD load
225
3-2. Using the audio system
Loading and ejecting MP3 and WMA discs
→P. 219, 220
Selecting MP3 and WMA discs
→P. 221
Selecting a folder
n Selecting folders one at a time
Press
(∧) or
(∨) to select the desired folder.
n Selecting the desired folder by cueing the first file of each folder
(type A)
Press and hold
reached, press
until you hear a beep. When the desired folder is
once again.
n Returning to the first folder
Press and hold
(∨) until you hear a beep.
Fast-forwarding and reversing files
To fast-forward or reverse, press and hold “∧” or “∨” on
hear a beep.
226
until you
3-2. Using the audio system
Selecting and scanning files
n Selecting one file at a time
Turn
or press “∧” or “∨” on
to select the desired file.
n Selecting the desired file by cueing the files in the folder (type A)
Press
.
When the desired file is reached, press
once again.
Repeat play
3
Interior features
n Repeating a file
Press
(RPT).
n Repeating all of the files in a folder
Press and hold
(RPT) until you hear a beep.
Random playback
n To play files from a particular folder in random order
Press
(RAND).
n To play all of the files on a disc in random order
Press and hold
(RAND) until you hear a beep.
Playing and pausing files
To play or pause a file, press
(
).
227
3-2. Using the audio system
Switching the display
Press
.
Each time
is pressed, the display changes in the order of Folder no./
File no./Elapsed time → Folder name → File name → Album title (MP3
only) → Track title → Artist name.
n Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding
until you hear a
beep will display the remaining characters.
A maximum of 24 characters can be displayed.
If
is pressed until you hear a beep again or has not been pressed for 6 seconds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed properly or may not be displayed at all.
n Canceling random, repeat and scan playback
Press
(RAND),
(RPT),
again.
n When “LOAD”, “ERROR”, “WAIT” or “NO MUSIC” is shown on the display
“LOAD”: This indicates that the CD player has completed loading the CD.
“ERROR”: This indicates a trouble either in the CD or inside the player. The CD
may be dirty, damaged, or inserted up-side down.
“WAIT”:
Operation is stopped due to a high temperature inside the player. Wait
for a while and then press
or
. Contact your Lexus dealer if
the CD still cannot be played back.
“NO MUSIC”: This indicates that the MP3/WMA file is not included in the CD.
228
3-2. Using the audio system
n Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.
n CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected while the CD player is being used.
n If CDs are left inside the CD player or in the ejected position for extended peri-
ods
3
CDs may be damaged and may not play properly.
n Lens cleaners
n MP3 and WMA files
MP3 (MPEG Audio LAYER 3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using MP3
compression.
WMA (Windows MediaTM Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 format.
There is a limit to the MP3 and WMA file standards and to the media/formats
recorded by them that can be used.
l MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR)
MPEG1 LAYER3: 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps)
MPEG2 LSF LAYER3: 64, 80, 96, 112, 128, 144, 160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and monaural
229
Interior features
Do not use lens cleaners. Doing so may damage the CD player.
3-2. Using the audio system
l WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9
• Compatible sampling frequencies
32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible with 2-channel playback)
Ver. 7, 8: CBR 48, 64, 80, 96, 128, 160, 192 (kbps)
Ver. 9: CBR 48, 64, 80, 96, 128, 160, 192, 256, 320 (kbps)
l Compatible media
Media that can be used for MP3 and WMA playback are CD-Rs and CD-RWs.
Playback in some instances may not be possible, depending on the status of the
CD-R or CD-RW. Playback may not be possible or the audio may jump if the disc
is scratched or marked with fingerprints.
l Compatible disc formats
The following disc formats can be used.
• Disc formats: CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet)
MP3 and WMA files written in any format other than those listed above may
not play correctly, and their file names and folder names may not be displayed correctly.
Items related to standards and limitations are as follows.
• Maximum directory hierarchy: 8 levels
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255
l File names
The only files that can be recognized as MP3/WMA and played are those with
the extension .mp3 or .wma.
l Multi-sessions
As the audio system is compatible with multi-sessions, it is possible to play discs
that contain MP3 and WMA files. However, only the first session can be played.
230
3-2. Using the audio system
l ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track title,
artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags. (The
number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the track
title and artist name in the same way as with ID3 tags.
l MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc are first
checked. Once the file check is finished, the first MP3 or WMA file is played. To
make the file check finish more quickly, we recommend you do not write in any
files other than MP3 or WMA files or create any unnecessary folders.
Discs that contain a mixture of music data and MP3 or WMA format data cannot
be played.
If the file extensions .mp3 and .wma are used for files other than MP3 and WMA
files, they will be mistakenly recognized and played as MP3 and WMA files. This
may result in large amounts of interference and damage to the speakers.
l Playback
• To play MP3 file with steady sound quality, we recommend a fixed bit rate of
128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances, depending on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for MP3 and
WMA files on the market, and depending on the status of the encoding and
the file format, poor sound quality or noise at the start of playback may result.
In some cases, playback may not be possible at all.
• When files other than MP3 or WMA files are recorded on a disc, it may take
more time to recognize the disc and in some cases, playback may not be possible at all.
• Microsoft, Windows, and Windows Media are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
231
Interior features
l Extensions
3
3-2. Using the audio system
NOTICE
n CDs and adapters that cannot be used
→P. 223
n CD player precautions
→P. 224
232
3-2. Using the audio system
Operating an iPod®
Connecting an iPod® enables you to enjoy music from the vehicle speakers.
n Connecting an iPod®
STEP 1
Open the cover and connect
the portable audio device.
3
Type A
Press
.
Press
.
Interior features
STEP 2
Type B
STEP 2
233
3-2. Using the audio system
n Control panel
Type A
Repeat play
Shuffle playback
Playback/Pause
Go back
Displays text message
Silencing a sound
iPod® menu/
Song selection
Song selection
Power Volume
Song selection
234
Playback
3-2. Using the audio system
Type B
Repeat play
Shuffle playback
Playback/Pause
Go back
Displays text message
Silencing a sound
iPod® menu/
Song selection
Song selection
3
Power Volume
Interior features
Song selection
Playback
Selecting a play mode
to select iPod® menu mode.
STEP 1
Press
STEP 2
Pressing
or
changes the play mode in the following
order:
“PLAYLISTS”→“ARTISTS”→“ALBUMS”→“SONGS”→
“PODCASTS”→“GENRES”→“COMPOSERS”→
“AUDIOBOOKS”
STEP 3
Press
to select the desired play mode.
235
3-2. Using the audio system
n Play mode list
Play mode
First
selection
Second
selection
Third
selection
Fourth
selection
-
-
“PLAYLISTS”
Playlists select Songs select
“ARTISTS”
Artists select
“ALBUMS”
Albums select Songs select
-
-
“SONGS”
Songs select
-
-
-
-
Albums select Songs select
-
“PODCASTS” Albums select Songs select
“GENRES”
Genre select
Artists select
“COMPOSERS”
Composers
select
Albums select Songs select
“AUDIOBOOKS” Songs select
-
-
Albums select Songs select
-
-
n Selecting a list
STEP 1
Press
STEP 2
Press
to select the desired item.
Pressing
changes to the second selection list.
Repeat the same procedure to select the desired item.
STEP 3
or
to display the first selection list.
To return to the previous selection list, select “GO BACK” or press
(
).
236
3-2. Using the audio system
Selecting songs
Turn
or press “∧” or “∨” on
to select the desired song.
Playing and pausing songs
To play or pause a song, press
(
).
Fast-forwarding and rewinding songs
To fast-forward or rewind, press and hold “∧” or “∨” on
until you
Interior features
hear a beep.
Shuffle playback
n Playing songs from one playlist or album in random order
Press
(RAND).
n Playing songs from all the playlists or albums in random order
Press and hold
(RAND) until you hear a beep.
Repeat play
Press
(RPT).
Switching the display
Press
3
.
Each time
is pressed, the display changes in the order of Elapsed time
→ Album title → Track title → Artist name.
237
3-2. Using the audio system
Adjusting sound quality and volume balance
STEP 1
Press
STEP 2
Pressing
to enter iPod® menu mode.
changes sound modes. (→P. 251)
n About iPod®
iPod is a registered trademark of Apple Inc.
n iPod® functions
l When an iPod® is connected and the audio source is changed to iPod® mode,
the iPod® will resume play from the same point in which it was last used.
l Depending on the iPod® that is connected to the system, certain functions may
not be available. If a function is unavailable due to a malfunction (as opposed to
a system specification), disconnecting the device and reconnecting it once
again may resolve the problem.
l While connected to the system, the iPod® cannot be operated with its own con-
trols. It is necessary to use the controls of the vehicle's audio system instead.
n iPod® problems
To resolve most problems encountered when using your iPod®, disconnect your
iPod® from the vehicle iPod® connection and reset it.
For instructions on how to reset your iPod®, refer to your iPod® Owner's Manual.
238
3-2. Using the audio system
n Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding
until you hear a
beep will display the remaining characters.
A maximum of 24 characters can be displayed.
If
is pressed until you hear a beep again or has not been pressed for 6 seconds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed properly or may not be displayed at all.
n Canceling shuffle and repeat playback
Press
(RAND) or
(RPT) again.
n Error messages
3
“ERROR”: This indicates a problem in the iPod® or its connection.
“EMPTY”: This indicates that some available songs are not found in a selected playlist.
“UPDATE”: This indicates that the version of the iPod® is not compatible. Upgrade
your iPod® software to the latest version.
n Compatible models
l iPod® 5th generation Ver. 1.2 or later
l iPod® nano 3rd generation Ver. 1.0 or later
l iPod® nano 2nd generation Ver. 1.1.2 or later
l iPod® nano Ver. 1.3 or later
l iPod® touch Ver. 1.1 or later
l iPod® classic Ver. 1.0 or later
iPhone®, iPod® mini, iPod® shuffle, iPod® photo and 4th generation and earlier
models of iPod® are not compatible with this system.
Items related to standards and limitations are as follows:
l Maximum number of lists in device: 9999
l Maximum number of songs in device: 65535
l Maximum number of songs per list: 65535
239
Interior features
“NO MUSIC”: This indicates that there is no music data in the iPod®.
3-2. Using the audio system
CAUTION
n Caution while driving
Do not connect iPod® or operate the controls.
NOTICE
n To prevent damage to iPod®
l Do not leave iPod® in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the player.
l Do not push down on or apply unnecessary pressure to the iPod® while it is con-
nected as this may damage the iPod® or its terminal.
l Do not insert foreign objects into the port as this may damage the iPod® or its
terminal.
240
3-2. Using the audio system
Operating a USB memory
Connecting a USB memory enables you to enjoy music from the vehicle
speakers.
n Connecting a USB memory
STEP 1
Open the cover and connect
the portable audio device.
3
Type A
Press
.
Press
.
Interior features
STEP 2
Type B
STEP 2
241
3-2. Using the audio system
n Control panel
Type A
Playback/Pause
Repeat play
Random playback
Folder selection
Displays text message
Silencing a sound
File selection
Power Volume
File selection
242
Search playback
Playback
3-2. Using the audio system
Type B
Playback/Pause
Repeat play
Random playback
Folder selection
Displays text message
Silencing a sound
File selection
3
Power Volume
Interior features
File selection
Playback
Selecting a folder
n Selecting folders one at a time
Press
(∧) or
(∨) to select the desired folder.
n Selecting the desired folder by cueing the first file of each folder
(type A)
Press and hold
reached, press
until you hear a beep. When the desired folder is
once again.
n Returning to the first folder
Press and hold
(∨) until you hear a beep.
243
3-2. Using the audio system
Selecting files
n Selecting one file at a time
Turn
or press “∧” or “∨” on
to select the desired file.
n Selecting the desired file by cueing the files in the folder (type A)
Press
.
When the desired file is reached, press
once again.
Playing and pausing files
To play or pause a file, press
(
).
Fast-forwarding and rewinding files
To fast-forward or rewind, press and hold “∧” or “∨” on
hear a beep.
Random playback
n Playing files from a folder in random order
Press
(RAND).
n Playing all the files from a USB memory in random order
Press and hold
(RAND) until you hear a beep.
244
until you
3-2. Using the audio system
Repeat play
n Repeating a file
Press
(RPT).
n Repeating all the files in a folder
Press and hold
(RPT) until you hear a beep.
Switching the display
Press
.
Each time
is pressed, the display changes in the order of Elapsed time
→ Folder name → File name → Album title (MP3 only)→ Track title →
Artist name.
l Depending on the USB memory that is connected to the system, the device
itself may not be operable and certain functions may not be available. If the
device is inoperable or a function is unavailable due to a malfunction (as
opposed to a system specification), disconnecting the device and reconnecting
it once again may resolve the problem.
l If the USB memory still does not begin operation after being disconnected and
reconnected, format the memory.
n Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding
until you hear a
beep will display the remaining characters.
A maximum of 24 characters can be displayed.
If
is pressed until you hear a beep again or has not been pressed for 6 seconds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed properly or may not be displayed at all.
n Canceling random, repeat and scan playback
Press
(RAND),
(RPT),
again.
245
Interior features
n USB memory functions
3
3-2. Using the audio system
n Error messages
“ERROR”:
This indicates a problem in the USB memory or its connection.
“NO MUSIC”: This indicates that no MP3/WMA files are included in the USB
memory.
n USB memory
l Compatible devices
USB memory that can be used for MP3 and WMA playback
l Compatible device formats
The following device formats can be used:
• USB communication formats: USB2.0 FS (12 mbps)
• File formats: FAT16/32 (Windows)
• Correspondence class: Mass storage class
MP3 and WMA files written in any format other than those listed above may not
play correctly, and their file names and folder names may not be displayed correctly.
Items related to standards and limitations are as follows:
• Maximum directory hierarchy: 8 levels
• Maximum number of folders in a device: 999 (including the root)
• Maximum number of files in a device: 65025
• Maximum number of files per folder: 255
l MP3 and WMA files
MP3 (MPEG Audio LAYER 3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size using MP3
compression.
WMA (Windows MediaTM Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 format.
There is a limit to the MP3 and WMA file standards that can be used and to the
media/formats on which the files are recorded.
246
3-2. Using the audio system
l MP3 file compatibility
• Compatible standards
MP3 (MPEG1 AUDIO LAYERII, III, MPEG2 AUDIO LAYERII, III,
MPEG2.5)
• Compatible sampling frequencies
MPEG1 AUDIO LAYERII, III: 32, 44.1, 48 (kHz)
MPEG2 AUDIO LAYERII, III: 16, 22.05, 24 (kHz)
MPEG2.5: 8, 11.025, 12 (kHz)
• Compatible bit rates (compatible with VBR)
MPEG1 AUDIO LAYERII, III: 32-320 (kbps)
MPEG2 AUDIO LAYERII, III: 32-160 (kbps)
MPEG2.5: 32-160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and monaural
l WMA file compatibility
Interior features
• Compatible standards
WMA Ver. 9
• Compatible sampling frequencies
HIGH PROFILE 32, 44.1, 48 (kHz)
• Compatible bit rates
HIGH PROFILE 32-320 (kbps, VBR)
l File names
3
The only files that can be recognized as MP3/WMA and played are those with
the extension .mp3 or .wma.
l ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track title,
artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3, 2.4 ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the track
title and artist name in the same way as with ID3 tags.
247
3-2. Using the audio system
l MP3 and WMA playback
• When a device containing MP3 or WMA files is connected, all files in the
USB memory are checked. Once the file check is finished, the first MP3 or
WMA file is played. To make the file check finish more quickly, we recommend that you do not include any files other than MP3 or WMA files or create any unnecessary folders.
• When the USB memory is connected and the audio source is changed to
USB memory mode, the USB memory will start playing the first file in the first
folder. If the same device is removed and reinserted (and the contents have
not been changed), the USB memory will resume play from the same point in
which it was last used.
l Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and WMA
files, they will be skipped (not played).
l Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit rate of
at least 128 kbps and a sampling frequency of 44.1 kHz.
• There is a wide variety of freeware and other encoding software for MP3 and
WMA files on the market, and depending on the status of the encoding and
the file format, poor sound quality or noise at the start of playback may result.
In some cases, playback may not be possible at all.
• Microsoft, Windows, and Windows Media are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
CAUTION
n Caution while driving
Do not connect USB memory or operate the controls.
248
3-2. Using the audio system
NOTICE
n To prevent damage to USB memory
l Do not leave USB memory in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the player.
l Do not push down on or apply unnecessary pressure to the USB memory while it
is connected as this may damage the USB memory or its terminal.
l Do not insert foreign objects into the port as this may damage the USB memory
or its terminal.
3
Interior features
249
3-2. Using the audio system
Optimal use of the audio system
Adjusting the sound quality
Adjusting the ASL
Changing the sound quality modes
250
3-2. Using the audio system
Adjusting the Automatic Sound Levelizer (ASL)
Press
.
The ASL switches between on and off modes each time
pressed.
is
ASL automatically adjusts the volume and tone quality according to the noise
level as you drive your vehicle.
Adjusting sound quality and volume balance
n Changing sound quality modes
Press
Pressing
.
3
changes the sound mode in the following order:
Interior features
“BAS”→“MID”→“TRE”→“FAD”→“BAL”
n Adjusting sound quality
Press
or
to adjust the level.
Mode
displayed
Sound quality mode
Level
“BAS”*
Bass
-5 to 5
“MID”*
Mid-range
-5 to 5
“TRE”*
Treble
-5 to 5
“FAD”
Front/rear
volume
balance
“BAL”
Left/right
volume
balance
Press ∨
Press ∧
Low
High
F7 to R7
Shifts to rear
Shifts to front
L7 to R7
Shifts to left
Shifts to right
*: The sound quality level is adjusted individually in each audio mode.
251
3-2. Using the audio system
Using the AUX adapter
This adapter can be used to connect a portable audio device and listen to it
through the vehicle’s speakers.
STEP 1
Open the cover and connect
the portable audio device.
Type A
STEP 2
Press
.
Press
.
Type B
STEP 2
252
3-2. Using the audio system
n Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle's audio controls. All other adjustments must be made on the portable audio device itself.
n When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable audio
device.
3
Interior features
253
3-2. Using the audio system
Using the steering wheel audio switches
Some audio features can be controlled using the switches on the steering
wheel.
Turns the power on, selects
an audio source
Increases/decreases volume
Radio mode: Selects a radio
station
CD mode: Selects a track,
file (MP3 and
WMA) and disc
Bluetooth®
(type A):
audio
mode
Selects a track and
album
iPod® mode:
Selects a song
USB memory mode:
Selects a file and folder
Turning on the power
Press
when the audio system is turned off.
The audio system can be turned off by holding
beep.
254
down until you hear a
3-2. Using the audio system
Changing the audio source
Press
when the audio system is turned on. The audio source
changes as follows each time
is pressed. If no discs are inserted in
the player, or if the external device is not connected, that mode will be
skipped.
Type A:
FM1→FM2→SAT1→SAT2→SAT3→CD player→
Bluetooth® audio→AUX→iPod® or USB memory→AM
Type B:
FM1→FM2→CD player→AUX→iPod® or USB memory→AM
3
Adjusting the volume
Hold down
to increase the volume and “-” to decrease the volto continue increasing or decreasing the volume.
Selecting a radio station
STEP 1
Press
to select radio mode.
STEP 2
Press “∧” or “∨” on
to select a radio station.
To scan for receivable stations, press and hold
beep.
until you hear a
Selecting a track/file or song
STEP 1
Press
to select CD, Bluetooth® audio, iPod® or USB
memory mode.
STEP 2
Press “∧” or “∨” on
to select the desired track/file or song.
255
Interior features
Press “+” on
ume.
3-2. Using the audio system
Selecting an album
STEP 1
STEP 2
Press
to select Bluetooth® audio mode.
Press and hold “∧” or “∨” on
until you hear a beep.
Selecting a folder
STEP 1
STEP 2
Press
to select USB memory mode.
Press and hold “∧” or “∨” on
until you hear a beep.
Selecting a disc in the CD player
STEP 1
Press
to select CD mode.
STEP 2
Press and hold “∧” or “∨” on
until you hear a beep.
CAUTION
n To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
256
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
