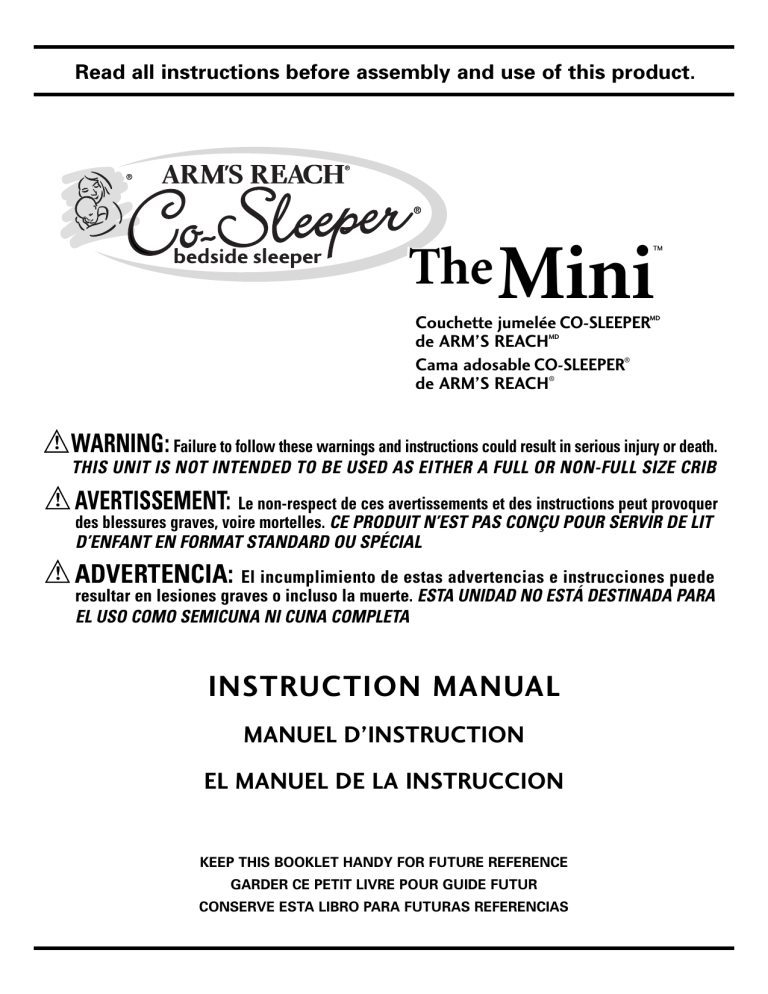

Read all instructions before assembly and use

Read all instructions before assembly and use
Read all instructions before assembly and use of this product.
T he Mini
TM
Couchette jumelée CO-SLEEPER
de ARM’S REACH
Cama adosable CO-SLEEPER®
de ARM’S REACH®
MD
MD
!
WARNING: Failure to follow these warnings and instructions could result in serious injury or death.
THIS UNIT IS NOT INTENDED TO BE USED AS EITHER A FULL OR NON-FULL SIZE CRIB
!
AVERTISSEMENT: Le non-respect de ces avertissements et des instructions peut provoquer
des blessures graves, voire mortelles. CE PRODUIT N’EST PAS CONÇU POUR SERVIR DE LIT
D’ENFANT EN FORMAT STANDARD OU SPÉCIAL
!
ADVERTENCIA: El incumplimiento de estas advertencias e instrucciones puede
resultar en lesiones graves o incluso la muerte. ESTA UNIDAD NO ESTÁ DESTINADA PARA
EL USO COMO SEMICUNA NI CUNA COMPLETA
INSTRUCTION MANUAL
MANUEL D’INSTRUCTION
EL MANUEL DE LA INSTRUCCION
KEEP THIS BOOKLET HANDY FOR FUTURE REFERENCE
GARDER CE PETIT LIVRE POUR GUIDE FUTUR
CONSERVE ESTA LIBRO PARA FUTURAS REFERENCIAS
Read all instructions before assembly and use of this product.
!
WARNING: Failure to follow these warnings and instructions could result in serious injury or death.
THIS UNIT IS NOT INTENDED TO BE USED AS EITHER A FULL OR NON-FULL SIZE CRIB
SUFFOCATION HAZARD. Discard all packing materials immediately after opening. Plastic bags
and ties may cause suffocation or choking. Caution: do not discard the anchor plate with the two
10 foot long straps, as this is necessary for using the product in the co-sleeping configuration.
padding or mattress. DO NOT use shipping or other bags
as mattress covers since they can cause suffocation.
• NEVER LEAVE your infant unattended in The Mini —
Arm’s Reach® CO-SLEEPER ® bedside sleeper.
• Before each usage or assembly, inspect The Mini —
Arm’s Reach® CO-SLEEPER ® bedside sleeper for
damaged hardware, loose joints, missing parts
or sharp edges. DO NOT substitute parts.
• Use ONLY fitted sheets manufactured for The Mini —
Arm’s Reach® CO-SLEEPER ® bedside sleeper
by Arm’s Reach Concepts, Inc.
• Make sure all Velcro® straps are secured and tight
when used in the changer/co-sleeping positions.
Tighten straps periodically.
• DO NOT place infant face down on mattress. Always
place the infant on his/ her back.
• FALLING HAZARD: Remove infant from The Mini —
Arm’s Reach® CO-SLEEPER ® bedside sleeper before
starting any conversions.
• STRANGULATION / SUFFOCATION HAZARD:
The top edge of the bumper bar/shelf must be level
with or below the top of the adult mattress when
used as an attachable baby bed . The level of The
Mini — Arm’s Reach® CO-SLEEPER ® bedside sleeper
mattress must be a minimum of 4 inches below
the top edge of the bumper bar/shelf. NEVER raise
the level of The Mini — Arm’s Reach® CO-SLEEPER ®
bedside sleeper mattress level with, or above
the top, of the bumper bar/shelf.
• NEVER LEAVE infant unattended on changing table.
Changing table is not intended for sleeping.
• Always make sure all top and bottom rails are securely
locked, in all configurations, before putting an infant /
child into the unit.
• WARNING: CHOKING HAZARD Make sure removable
bar is in the upper bassinet position before attempting to fold up The Mini — Arm’s Reach® CO-SLEEPER ®
bedside sleeper. Folding The Mini — Arm’s Reach®
CO-SLEEPER ® bedside sleeper with the removable bar
in lower position may result in loosening of snaps.
• NEVER USE The Mini — Arm’s Reach® CO-SLEEPER ®
bedside sleeper without the anchor plate attached
and locked as shown. Failure to use this anchoring
system could result in serious injury or death to the
infant. Make sure all straps are secured and tight.
Check straps before each use.
• WARNING: CHOKING HAZARD Open two front snaps
before lowering front removable bar. Check snaps
periodically to ensure they are securely attached to
the fabric. Do not use product if snaps are loosely
attached to the fabric.
• Failure to use this securing system will allow The
Mini — Arm’s Reach® CO-SLEEPER ® bedside sleeper
to move away from the adult bed and could result
in the infant falling out of the CO-SLEEPER ® bedside
sleeper. NEVER leave infant unattended in the
Arm’s Reach® CO-SLEEPER ® bedside sleeper.
• NEVER LEAVE infant in unit without the TOP HORIZONTAL
RAIL installed in the uppermost position, unless the
unit is in the CO-SLEEPER ® bedside sleeper configuration and the parent/caregiver is in the adult bed.
• STRANGULATION HAZARD: When anchor plate and
strap assembly are not in use, store in a safe place
not accessible to children.
• The Mini — Arm’s Reach® CO-SLEEPER ® bedside
sleeper is intended for use by a child who is unable
to climb out of the unit and is less than 34 inches
(66.4 cm) tall and weighs less than 23 lbs. (10.4 kg.)
• DO NOT place product near a window where cords
from blinds or drapes may strangle a child. Strings
can cause strangulation. DO NOT place items with
a string around a child’s neck, such as hood strings,
pacifier cords, etc. DO NOT suspend strings over the
unit in any configuration or attach string to toys.
• Discontinue use as an attachable baby bed when
child is able to roll over and pull him or herself up
to a kneeling, sitting or standing position.
• DO NOT allow children to climb or play on or under
unit in any configuration.
• Always check to be sure that the upper locking bars
and the lower locking bars are in their "locked position"
before placing the infant in The Mini — Arm’s Reach®
CO-SLEEPER ® bedside sleeper.
• Periodically check your product to make certain all
screws, nuts, rivets, or bolts are tightened securely.
• NEVER USE more than 4-2" (5 CM) extension segments
with The Mini — Arm’s Reach® CO-SLEEPER ® bedside
sleeper.
• Discontinue using your The Mini — Arm’s Reach®
CO-SLEEPER ® bedside sleeper should it become
damaged or broken.
• SUFFOCATION HAZARD – To help prevent suffocation
and entrapment, use ONLY the mattress pad provided
by Arm’s Reach Concepts, Inc. NEVER use additional
• WARNING – To prevent serious or fatal injury
from falls always keep child within arm's reach.
Never leave your child unattended.
3
How to set up The Mini — Arm’s Reach® CO-SLEEPER ® bedside sleeper
!
WARNING:
Failure to follow these warnings and
instructions could result in serious injury or death.
Step 1
Unzip the carry bag and remove The Mini — Arm’s Reach® CO-SLEEPER®
bedside sleeper.
Unhook the Velcro® strips.
Set mattress aside.
Step 2
Stand up the collapsed Arm’s Reach ® CO-SLEEPER® bedside sleeper
and separate the four top corner posts.
Lock the top bar by pulling up on the center of each bar, Note – there
are two locking mechanisms on each top bar. Sometimes you need
to pull it up quick and high to get both mechanisms to lock securely.
Do this for all 4 top bars. They should all be rigid when they are all
locked.
Step 3
Lock bottom bars by pushing down on the center of each bottom bar.
You can do this with your hand or foot. Make sure all bottom bars are
rigid.
Step 4
Put sheet on mattress and put mattress in the sleeping nest.
Push the straps on the bottom of mattress through the holes on the
nest floor and attach to the Velcro® on the top of the storage compartment underneath the sleeping nest. You will need to unzip the lower
storage compartment to do this. You will notice the sheet has Velcro®,
this will attach to the Velcro® in the sleeping nest.
You now have The Mini — Arm’s Reach ® CO-SLEEPER® bedside
sleeper ready for use.
WARNING:
!
SUFFOCATION HAZARD – To help prevent
suffocation and entrapment, use ONLY the mattress pad provided by
Arm's Reach Concepts, Inc. NEVER use additional padding or mattress.
DO NOT use shipping or other bags as mattress covers since they
can cause suffocation.
4
To convert to a bassinet mode bedside sleeper
!
FALLING HAZARD: Remove infant from the Arm's Reach
®
CO-SLEEPER® bedside sleeper before starting any conversions
Step 5
Unlock bottom bar of the lowering bar side by pulling up on the center
of the bottom bar or using your foot, lift up in the center of the bottom
bar until it becomes an inverted V.
Step 6
Unsnap both fabric snaps on the material under plastic connectors.
Unlock top lowering bar by placing your thumbs on the two buttons
indicated on the bar until the bar releases into a U position.
Note – Push buttons in while lifting up slightly on bar and pushing bar
down into a U position.
!
WARNING:
CHOKING HAZARD Open two front snaps
before lowering front removable bar. Check snaps periodically to
ensure they are securely attached to the fabric. Do not use product
if snaps are loosely attached to the fabric.
Step 7
Find the locking tab under the plastic connector pieces and push
towards the center of the bar and pull up on the connector piece at the
same time. Do this on both sides. Put the connector pieces in the second receiver lower down and slide into place. Pull up on the top bar to
lock. Make sure the bar is rigid. Push down on the bottom bar to locking position.
Step 8
Unzip the front pocket and take out the three straps. Pull the straps
over the lowered bar and lock to buckles in the Velcro® pockets inside
the sleeping nest. Tighten straps. Close Velcro ® in pockets. Make
sure the strap ends are outside the sleeping nest.
WARNING:
!
SUFFOCATION / ENTRAPMENT HAZARD
This step prevents liner from loosening inside sleeping area at front
side of mattress.
5
Step 9
To secure your Mini — Arm’s Reach ® CO-SLEEPER® bedside sleeper to
the adult bed, unroll nylon straps from the plastic plate and lay straps
across the adult bed to line up with the center of the desired position.
The straps must now be positioned between the box spring and mattress. This can be done by sliding the straps using a "sawing" motion
and at the same time pulling downward until the straps and resistance
plate are in their desired position.
One strap should come out on each side of the CO-SLEEPER® bedside
sleeper. Pass through the belt loop and connect to the strap connector.
Pull the strap taut so the CO-SLEEPER ® bedside sleeper is tight up
against the adult bed.
(Leg extensions are available separately for bed heights of 26" to 30")
!
WARNING: STRANGULATION / SUFFOCATION HAZARD:
The top edge of the bumper bar/shelf must be level with or below
the top of the adult mattress when used as a CO-SLEEPER ® bedside
sleeper. The level of the CO-SLEEPER ® bedside sleeper mattress must
be a minimum of 4 inches below the top edge of the bumper bar/shelf.
NEVER raise the level of the CO-SLEEPER ® bedside sleeper mattress
level with, or above the top of the bumperbar/shelf.
!
WARNING: NEVER USE as a CO-SLEEPER
!
WARNING:
®
bedside sleeper
without the anchor plate attached and locked as shown. Failure to
use this anchoring system could result in serious injury or death to
the infant. Make sure all straps are secured and tight. Check straps
before each use.
Failure to use this securing system will allow
the CO-SLEEPER ® to move away from the adult bed and could result
in infant falling out of the CO-SLEEPER ® bedside sleeper. NEVER
leave infant unattended in the CO-SLEEPER ® bedside sleeper.
WARNING:
!
STRANGULATION / CHOKING HAZARD
Do not allow excess strap (or any other loose object) to find it's way
into the CO-SLEEPER ® bedside sleeper. Do Not allow excess strap
to lay loose on floor because someone may trip over it.
!
WARNING: Make sure all Velcro
straps are secured
and tight when used in the changer/CO-SLEEPER ® bedside sleeper
positions. Tighten straps periodically.
6
®
How to fold your Arm's Reach CO-SLEEPER ® bedside sleeper
Step 1
Remove mattress and set aside
Unlock all bottom bars by reaching down and pulling up on the center
of each bottom bar.
Step 2
Unlock top bars by placing your thumbs on the two buttons indicated
on the bar until the bar releases into a U position.
Do this for all bars.
Step 3
Gather together. It should collapse down into a rectangular position.
If the legs are sticking up, lay the Arm’s Reach ® CO-SLEEPER® bedside
sleeper on its side and push the leg into place.
Step 4
Take sheet off of the mattress and wrap the mattress around the unit.
There are Velcro® straps that feed through plastic loops attached to the
other side of the mattress. Pull taut.
Store the sheet in the end of the unit.
Step 5
Put into carry bag with the handle from the mattress coming through
the opening in the bag.
STRANGULATION HAZARD:
!
When anchor plate
and strap assembly is not in use, store in a safe place not accessible
to children.
7
If you have any questions – call or write Arm’s Reach Concepts, Inc.
2081 N Oxnard Blvd., PMB#187, Oxnard, CA 93036-2964
( 800) 954-9353
fax: 805-604-7982
w w w. a r m s re a c h . c o m
Hours: 9:00 A.M. - 4:00 P.M. Pacific Time
©2004 ARM’S REACH CONCEPTS INC. ARM'S REACH. CO-SLEEPER, Mother & Child Logo and all other trademarks are stringently protected. All rights reserved. Patents pending Mini 4/21
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
