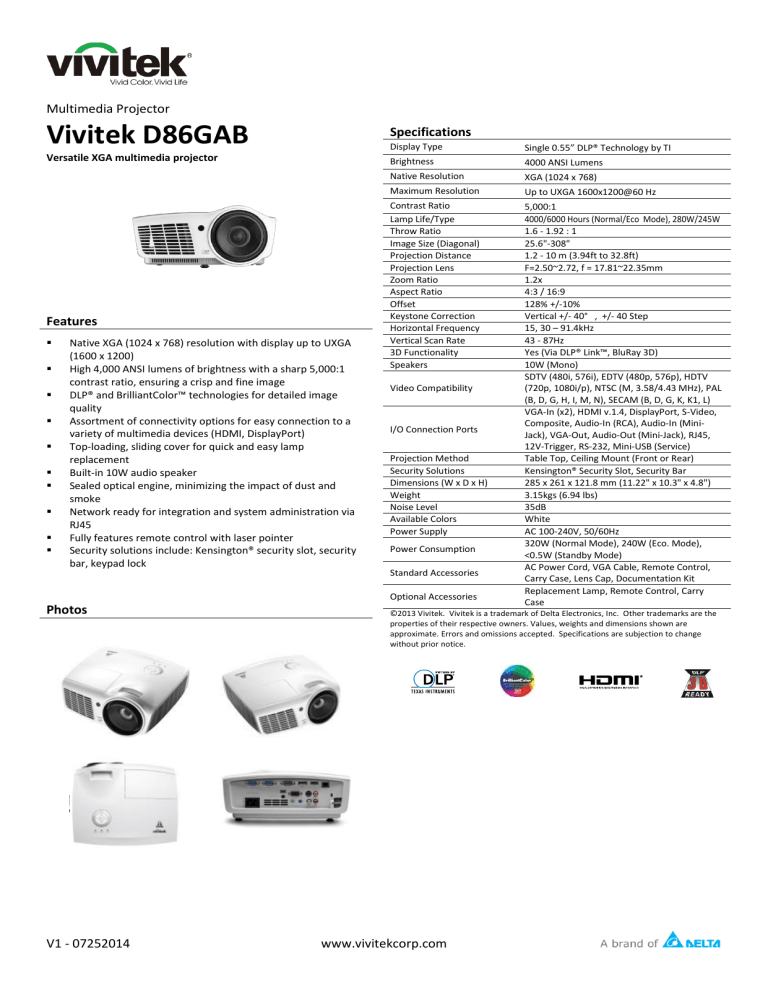

Vivitek D86GAB
Multimedia Projector
Vivitek D86GAB
Display Type
Single 0.55” DLP® Technology by TI
Versatile XGA multimedia projector
4000 ANSI Lumens
Native Resolution
XGA (1024 x 768)
Maximum Resolution
Up to UXGA [email protected] Hz
Contrast Ratio
Lamp Life/Type
Throw Ratio
Image Size (Diagonal)
Projection Distance
Projection Lens
Zoom Ratio
Aspect Ratio
Keystone Correction
Horizontal Frequency
Vertical Scan Rate
3D Functionality
4000/6000 Hours (Normal/Eco Mode), 280W/245W
1.6 - 1.92 : 1
1.2 - 10 m (3.94ft to 32.8ft)
F=2.50~2.72, f = 17.81~22.35mm
4:3 / 16:9
128% +/-10%
Vertical +/- 40° , +/- 40 Step
15, 30 – 91.4kHz
43 - 87Hz
Yes (Via DLP® Link™, BluRay 3D)
10W (Mono)
SDTV (480i, 576i), EDTV (480p, 576p), HDTV
(720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL
(B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
VGA-In (x2), HDMI v.1.4, DisplayPort, S-Video,
Composite, Audio-In (RCA), Audio-In (MiniJack), VGA-Out, Audio-Out (Mini-Jack), RJ45,
12V-Trigger, RS-232, Mini-USB (Service)
Table Top, Ceiling Mount (Front or Rear)
Kensington® Security Slot, Security Bar
285 x 261 x 121.8 mm (11.22" x 10.3" x 4.8")
3.15kgs (6.94 lbs)
AC 100-240V, 50/60Hz
320W (Normal Mode), 240W (Eco. Mode),
<0.5W (Standby Mode)
AC Power Cord, VGA Cable, Remote Control,
Carry Case, Lens Cap, Documentation Kit
Replacement Lamp, Remote Control, Carry
Native XGA (1024 x 768) resolution with display up to UXGA
(1600 x 1200)
High 4,000 ANSI lumens of brightness with a sharp 5,000:1
contrast ratio, ensuring a crisp and fine image
DLP® and BrilliantColor™ technologies for detailed image
Assortment of connectivity options for easy connection to a
variety of multimedia devices (HDMI, DisplayPort)
Top-loading, sliding cover for quick and easy lamp
Built-in 10W audio speaker
Sealed optical engine, minimizing the impact of dust and
Network ready for integration and system administration via
Fully features remote control with laser pointer
Security solutions include: Kensington® security slot, security
bar, keypad lock
Video Compatibility
I/O Connection Ports
Projection Method
Security Solutions
Dimensions (W x D x H)
Noise Level
Available Colors
Power Supply
Power Consumption
Standard Accessories
Optional Accessories
V1 - 07252014
©2013 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Other trademarks are the
properties of their respective owners. Values, weights and dimensions shown are
approximate. Errors and omissions accepted. Specifications are subjection to change
without prior notice.
