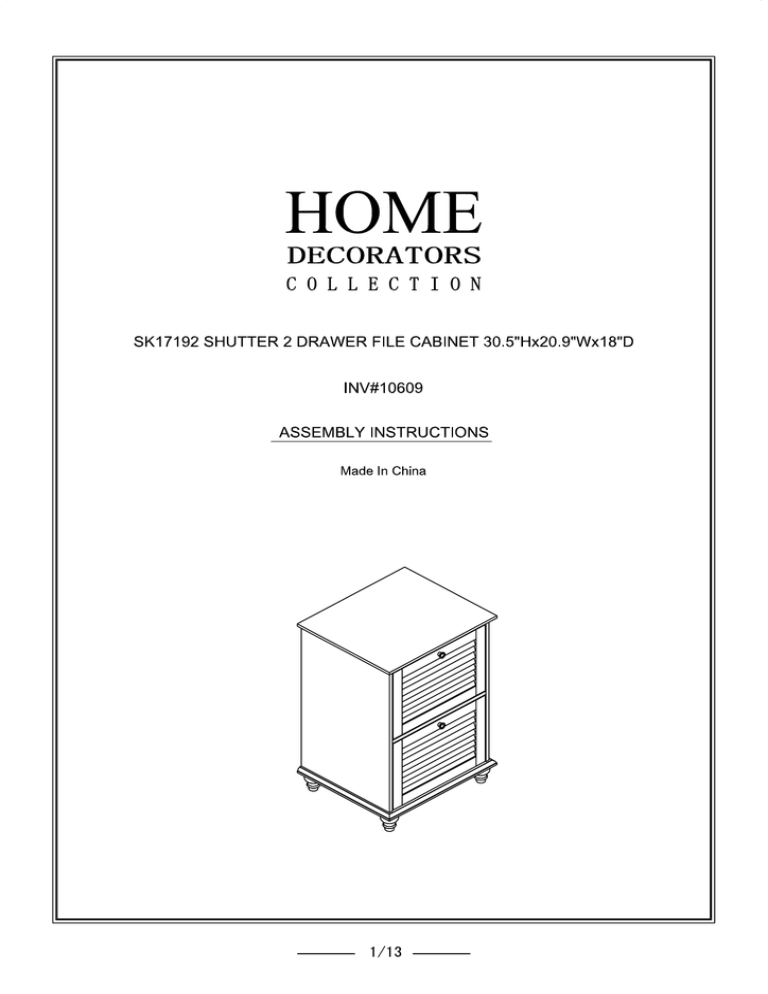

SK17192 SHUTTER 2 DRAWER FILE CABINET 30.5"Hx20.9"Wx18"D
INV#10609
ASSEMBLY INSTRUCTIONS
Made In China
1/13
Thank you for purchasing this quality product. Be sure to check all
packing material carefully for small parts, which may have came
loose inside the carton during shipment. Count all parts and material
hardware, then compare with parts list to be sure all parts are
present. If any parts are missing or damaged, phone, fax, or mail to
our Customer Service Department for efficient and speedy service.
Please indicate the model number and code letter of part(s) needed.
IMPORTANT NOTE: Follow instructions listed below in proper
sequence as numbered to assure fast,easy and correct assembly.
LEFT SIDE PANEL-1PCS RIGHT SIDE PANEL-1PCS TOP PANEL-1PC
BOTTOM PANEL-1PC BACK PANEL-2PCS BACK CROSS BAR-1PC
DRAWER LEFT
FRONT CROSS BAR-1PC DRAWER FRONT PANEL-2PCS | SIDE PANEL-2PCS
DRAWER DRAWER
RIGHT SIDE PANEL-2PCS BOTTOM PANEL-2PCS DRAWER BACK PANEL-2PCS
2/13
BALL FOOT- 4PCS
a
o,
WOOD DOWEL-12PCS
«= (6
CAM LOCK BOLT-12PCS
CAM LOCK-12PCS
d
mm)
ROUND HEAD SCREW-22PCS
e
cme)
FLAT HEAD SCREW-16PCS
f
O
KNOB-2PCS
9
am)
KNOB BOLT-2PCS
h
A
METAL BAR-4PCS
METAL PLATE-2PCS
RECTANGLE
METAL PLATE
PLASTIC
BAND
CCA
<e
х2
1/2"L FLAT
HEAD SCREW
RY,
PLASTIC ANCHOR
1-1/2"L FLAT
HEAD SCREW
ANTI-TIPPING HARDWARE PACKAGE
NOTE:THE SURFACE WITH THE STICKER IS THE BACK SIDE
313 ——
HOW TO SEPARATE GLIDES
SAFETY RELEASE TAB
PRIOR TO ASSEMBLY, WE SUGGEST SEPARATING THE INNER GLIDES FROM THE OUTER-GLIDES,
SIMPLY PULL THE LEFT/RIGHT INNER GLIDES FROM THE OUTER GLIDES EXPOSING A SMALL
BLACK SAFETY RELEASE TAB, BY PUSHING THE SAFETY RELEASE TAB. YOU WILL BE ABLE TO
SEPARATE THE GLIDES.
4/13 — —
NOTE: e¢ UPON OPENING, THOROUGHLY CLEAN ALL WOOD SURFACES TO REMOVE DUST
AND DIRT THAT MAY HAVE SETTLED ONTO THE FINISH DURING SHIPMENT. IN
ORDER TO PREVENT DAMAGE DURING ASSEMBLY. PLEASE ASSEMBLE THIS ITEM
WITH AT LEAST TWO PEOPLE.
NOTE: TURN THE CAM-BOLT SCREWS UNTIL THEY
ARE TIGHT, THE SHOULDER SHOULD BE
SHOULDER AGAINST THE SURFACE OF THE PART.
ARROW
—
NOTE: e THE ARROWS ON THE HIDDEN CAM-LOCKS SHOULD POINT TO THE CAM-BOLTS.
Serious or fatal crushing injuries can occur
from furniture tip-over. To help prevent tip-
OE
= Place heaviest items in the lowest drawers.
= Unless specifically designed to accommodate,
do not sex TVs or other heavy objects on top
of this product.
= Never allow children to climb or hang on
drovers, doors, or shelves,
= Never open more than one drawer at a time,
OR)
+ Do mot defeat or remove the drawer Interlock
system.
Use of tip-over restraints may only reduce,
but not eliminate, the rick of tip-over.
This is a permanent label. Do mot attempt fo remove!
5/13
FIG 1
e TIGHTEN THE BALL FOOT (M) TO THE BOTTOM PANEL (D).
6/13
FIG 2
e INSTALL THE WOOD DOWEL (a) AND THE CAM LOCK BOLT (b) INTO LEFT SIDE PANEL (A)
AND RIGHT SIDE PANEL (B).
e JOIN THE LEFT SIDE PANEL (A) AND RIGHT SIDE PANEL (B) TO THE FRONT CROSS BAR (G)
AND THE BACK CROSS BAR (F) BY USING THE WOOD DOWEL (a) FIRST.
e ONCE JOINED, TIGHTEN CAM LOCK (c) ONTO BOLT (b) USING PRE-DRILLED HOLES.
7/13
FIG 3
e INSTALL THE WOOD DOWEL (a) AND THE CAM LOCK BOLT (b) INTO THE TOP PANEL (C).
e JOIN THE TOP PANEL (C) TO THE ASSEMBLED PART BY USING WOOD DOWEL (a) FIRST.
e ONCE JOINED, TIGHTEN CAM LOCK (c) ONTO BOLT (b) USING PRE-DRILLED HOLES.
8/13 ——
FIG 4
e INSTALL THE WOOD DOWEL (a) AND THE CAM LOCK BOLT (b) INTO THE BOTTOM PANEL (D).
e JOIN THE BOTTOM PANEL (D) TO THE ASSEMBLED PART BY USING WOOD DOWEL (a) FIRST.
e ONCE JOINED, TIGHTEN CAM LOCK (c) ONTO BOLT (b) USING PRE-DRILLED HOLES.
9713 ——
FIG 5
e TIGHTEN THE BACK PANEL (E) AND METAL PLATE (i) TO THE ASSEMBLED PART BY
USING THE ROUND HEAD SCREW (d).
— 10/13
e TIGHTEN THE DRAWER LEFT SIDE PANEL (I) AND THE DRAWER RIGHT SIDE PANEL (J) TO
DRAWER FRONT PANEL (H) BY USING THE FLAT HEAD SCREW (e).
e SLIDE THE DRAWER BOTTOM PANEL (K) TO THE GROOVES ON DRAWER THE DRAWER LEFT
SIDE PANEL (1) AND THE DRAWER RIGHT SIDE PANEL (J).
e TIGHTEN THE DRAWER BACK PANEL (L) TO THE ASSEMBLED PART BY USING THE FLAT HEAD
SCREW (e).
e TIGHTEN THE KNOB (f) TO THE DRAWER FRONT PANEL (I) BY USING THE KNOB BOLT (g).
e PLACE THE METAL BAR INTO THE DRAWER FRONT PANEL (H) AND THE DRAWER BACK
PANEL (L).
e REPEAT STEPS ABOVE FOR THE 2"° DRAWER.
— 11/13
FIG 7
a
[IT No Ngo NG Ng Ng NN
e SLIDE THE ASSEMBLED DRAWER INTO THE ASSEMBLED UNIT.
e TIGHTEN THE RECTANGLE METAL PALTE (1) TO THE REAR END OF THE TOP PANEL (C) BY
USING THE 1/2” L FLAT HEAD SCREW (2).
e PLACE THE ASSEMBLED UNIT AT THE DISIRED POSITION. MARK THE INSERTION POINTS FOR
THE PLASTIC ANCHOR (3).
USING THE PROPER HARDWARE FOR YOUR WALL TYPE AND DRILL 1/4” HOLE. INSERT THE
PLASTIC ANCHOR (3) INTO THE WALL.
e TIGHTEN THE RECTANGLE METAL PLATE (1) TO THE PLASTIC ANCHOR (3) BY USING 1-1/2” L
FLAT HEAD SCREW (5).
— 12/13
FIG 8
e USING THE PLASTIC BAND (4) CONNECT TWO RECTANGLE METAL PLATES (1).
13/13
