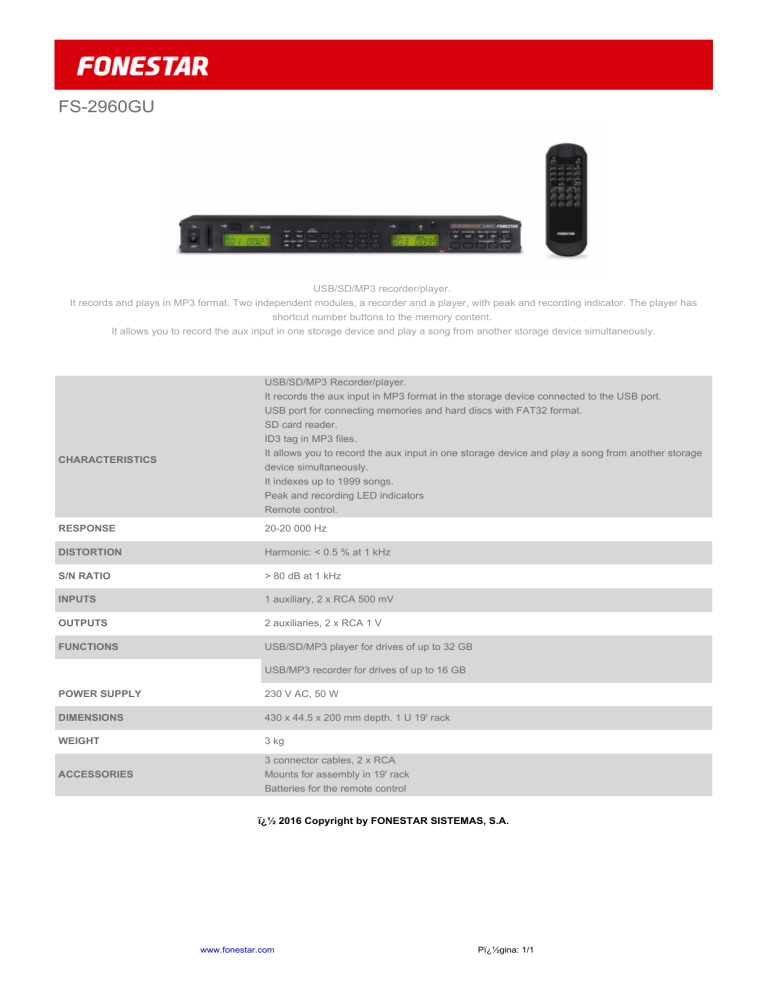

User manual | FS-2960GU

FS-2960GU
USB/SD/MP3 recorder/player.
It records and plays in MP3 format. Two independent modules, a recorder and a player, with peak and recording indicator. The player has
shortcut number buttons to the memory content.
It allows you to record the aux input in one storage device and play a song from another storage device simultaneously.
USB/SD/MP3 Recorder/player.
CHARACTERISTICS
It records the aux input in MP3 format in the storage device connected to the USB port.
USB port for connecting memories and hard discs with FAT32 format.
SD card reader.
ID3 tag in MP3 files.
It allows you to record the aux input in one storage device and play a song from another storage
device simultaneously.
It indexes up to 1999 songs.
Peak and recording LED indicators
Remote control.
RESPONSE
20-20 000 Hz
DISTORTION
Harmonic: < 0.5 % at 1 kHz
S/N RATIO
> 80 dB at 1 kHz
INPUTS
1 auxiliary, 2 x RCA 500 mV
OUTPUTS
2 auxiliaries, 2 x RCA 1 V
FUNCTIONS
USB/SD/MP3 player for drives of up to 32 GB
USB/MP3 recorder for drives of up to 16 GB
POWER SUPPLY
230 V AC, 50 W
DIMENSIONS
430 x 44.5 x 200 mm depth. 1 U 19' rack
WEIGHT
3 kg
ACCESSORIES
3 connector cables, 2 x RCA
Mounts for assembly in 19' rack
Batteries for the remote control
� 2016 Copyright by FONESTAR SISTEMAS, S.A.
www.fonestar.com
P�gina: 1/1
