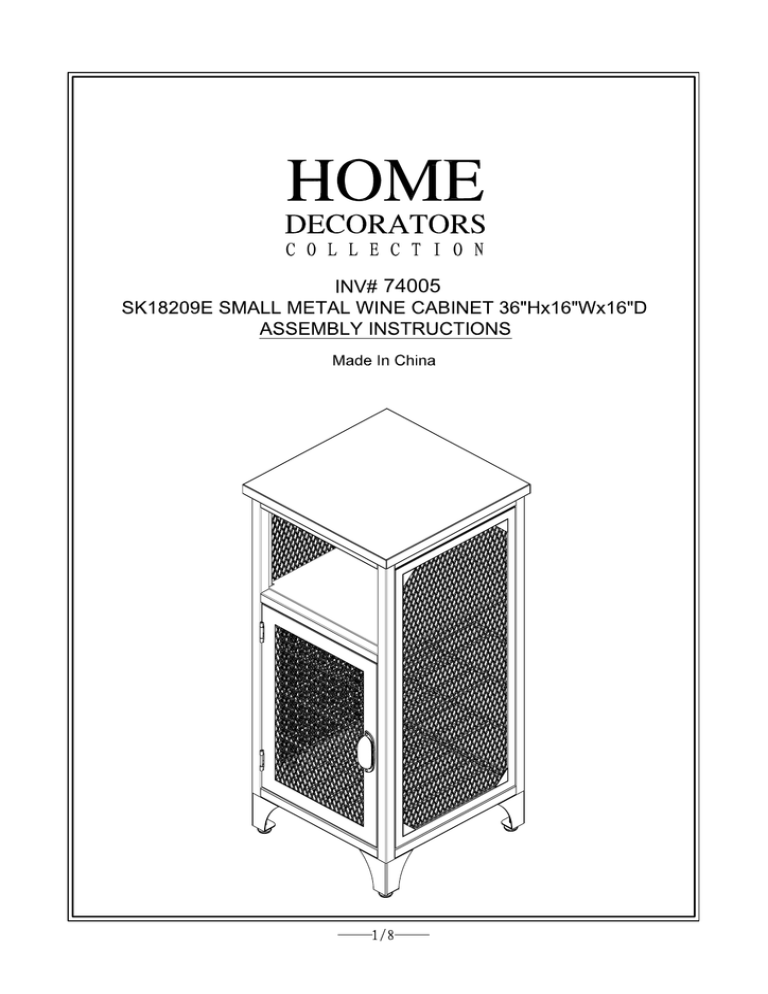

SK18209E SMALL METAL WINE CABINET 36"Hx16"Wx16"D
ASSEMBLY INSTRUCTIONS
Made In China
—1/8——
Thank you for purchasing this quality product. Be sure to check all
packing material carefully for small parts, which may have came
oose inside the carton during shipment. Count all parts and material
present. If any parts are missing or damaged, please contact our
Customer Service Department for efficient and speedy service.
Please indicate the model number and code letter of part(S) needed.
IMPORTANT NOTE:Follow instructions listed below in proper
sequence as numbered to assure fast,easy and correct assembly.
AA Foot knob - 4PCS Metal screw - 2PCS
Main cabinet - 1PC Top cap - PC wine bottle shelf - 4PCS
/
Rectangle metal plate
- 2PCS plastic anchor - 1PC 1-1/2" metal screw -1PC|Plastic band - 1PC
—2/8—
FIG 1
e Screw 4 foot knobs (2) onto the bottom of main cabinet (1) and adjust level.
—3/8——
Slide top cap (4) onto the top of main cabinet.
FIG 3
e Tighten one of rectangle metal plate (6) and top cap with metal screw (3)
on the back of the cabinet using a Philips screwdriver.
—5/8——
FIG 4
Place wine bottle shelf (5) from the bottom to the top. Tilt and place the wine
bottle shelf on shelf holder of inside cabinet.
ON
ss
00
FIG 5
e Place the cabinet at the desired position. Mark the insertion point for the plastic
anchor (7). Using the proper hardware for your wall type, drill 1/4" hole.
Tighten another rectangle metal plate (6) to the plastic anchor (7) by using
the 1-1/2" metal screw (8).
——1/8—
FIG 6
LR OO TA Y A
PIRES NA UN
ANA ARENA ADO К
ES
=
CX
ENEE
PES
EEES
PES
Y
ae EN ae
LPC SE
-_ ge
BoBC Be
=;
= >
< -
== ET
AEE
e Using the plastic band (9), connect the two rectangle metal plates (6).
——8 | 8——
