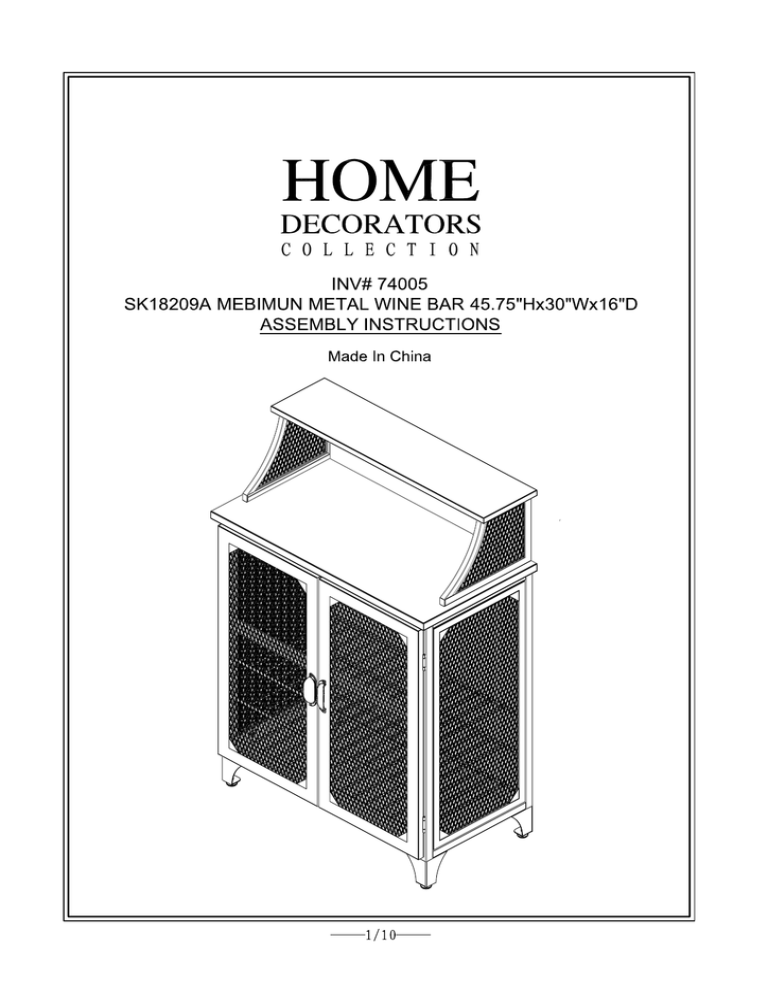

 HOME
DECORATORS
COLLECTION
INV# 74005
SK18209A MEBIMUN METAL WINE BAR 45.75"Hx30"Wx16"D
ASSEMBLY INSTRUCTIONS
Made In China
—1/10——
Thank you for purchasing this quality product. Be sure to check all
packing material carefully for small parts, which may have came
loose inside the carton during shipment. Count all parts and material
present. If any parts are missing or damaged, please contact our
Customer Service Department for efficient and speedy service.
Please indicate the model number and code letter of part(S) needed.
IMPORTANT NOTE:Follow instructions listed below in proper
sequence as numbered to assure fast,easy and correct assembly.
PARTS LIST
Main cabinet - 1PC Wine bottle shelf - 3PCS
Top shelf - 1PC Top cap - 1PC Side panel - 2PCS
—2/10——
Foot knob - 4PCS
Cr |
U A
Metal screw - 8PCS
2-1/2" Machine
screw - 4PCS
Rectangle metal
plate - 2PCS
plastic anchor - 1PC
1-1/2" metal screw -1PC
Plastic band - 1PC
(3
NS
e
Machine screw - 1PC
—3/10——
FIG 1
С
©
С
©
e Screw 4 foot knobs (6) onto the bottom of main cabinet (1) and adjust level.
—— 4/10 — —
FIG 2
® Расе top shelf (3) on the main cabinet (1)
— — 5/10 —
FIG 3
ron
== й
NN
AS
==
e Attach top cap (4) on the main cabinet ,
e Tighten top cap with 4PCS 2-1/2 machine screw (8)
—— 6/10 —
FIG 4
К
=x
INN NN
Ч
“um
HANA
UN
e Attach two side panels on the side of main cabinet.
e Tigthen side panel with 8 PCS metal screws (7)
~
— 7/10 ——
e Tilt and place the wine bottle shelf (2) on the shelf holders inside the cabinet body.
— 8/10 ——
e Tighten one rectangle metal plate (9) to top cap with metal screw (13) on the back
of the cabinet using a Philips screwdriver. Place the cabinet at the desired position
and mark the insertion point for the plastic anchor (10). Using the proper hardware
for your wall type, drill 74” hole. Then tighten another rectangle metal plate (9) to the
plastic anchor (10) by using the 1 72” metal screw (11).
— 9/10 ——
e Using the plastic band (12), connect two rectangle metal plates (9).
—— 10/10 — —
