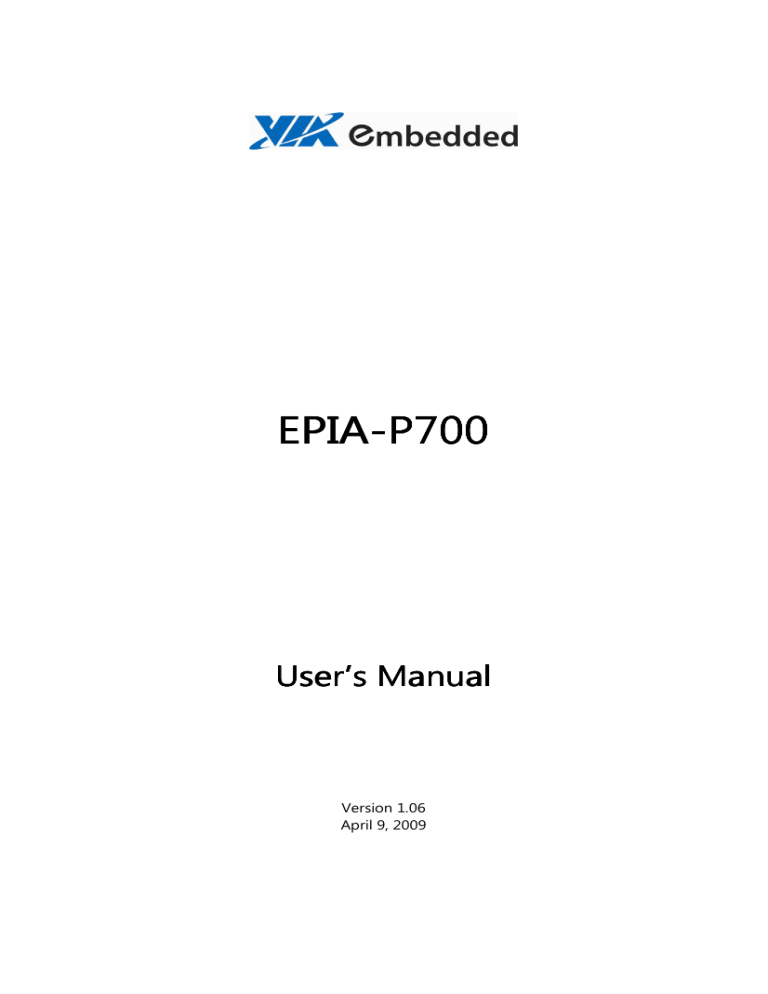

UM_EPIA P700_106
EPIAEPIA-P700
User’s Manual
Version 1.06
April 9, 2009
Copyright
Copyright © 2008-2009 VIA Technologies Incorporated. All rights reserved.
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language, in any form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual or otherwise without the prior written permission of VIA Technologies, Incorporated.
Trademarks
All trademarks are the property of their respective holders. PS/2 is a registered trademark of IBM
Corporation.
Disclaimer
No license is granted, implied or otherwise, under any patent or patent rights of VIA Technologies. VIA
Technologies makes no warranties, implied or otherwise, in regard to this document and to the products
described in this document. The information provided in this document is believed to be accurate and
reliable as of the publication date of this document. However, VIA Technologies assumes no responsibility
for the use or misuse of the information in this document and for any patent infringements that may arise
from the use of this document. The information and product specifications within this document are subject
to change at any time, without notice and without obligation to notify any person of such change.
FCCFCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case the user will be required to correct the
interference at his personal expense.
Notice 1
The changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission
limits.
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
ii
SAFETY INSTRUCTIONS
Always read the safety instructions carefully.
Keep this User's Manual for future reference.
Keep this equipment away from humidity.
Lay this equipment on a reliable flat surface before setting it up.
The openings on the enclosure are for air convection hence protects the
equipment from overheating. Do not cover the openings.
Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.
Place the power cord in such a way that people cannot step on it. Do not
place anything over the power cord.
Always unplug the power cord before inserting any add-on card or module.
All cautions and warnings on the equipment should be noted.
Never pour any liquid into the opening. Liquid can cause damage or
electrical shock.
If any of the following situations arises, get the equipment checked by a
service personnel:
The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment has not worked well or you cannot get it work
according to User's Manual.
The equipment has dropped and damaged.
If the equipment has obvious sign of breakage.
Do not leave this equipment in an environment unconditioned or in a
storage temperature above 60oC (140oF). The equipment may be damaged.
Caution:
Only use the appropriate battery specified for this product.
Do not reuse, recharge, or reheat an old battery.
Do not attempt to force open the battery.
Do not discard used batteries with regular trash.
Discard used batteries according to local regulations.
iii
BOX CONTENTS
One EPIA-P700 Pico-ITX Mainboard
One P700-A I/O Board
One P700-B I/O Board
One IDE Cable
One SATA Cable
One SATA Power Cable
One DC-In Power Cable
One Driver and Utilities CD
iv
TABLE OF CONTENTS
Safety Instructions ........................................................................................................... iii
Box Contents ...................................................................................................................... iv
Table of Contents.............................................................................................................. v
C
C
Chhhaaapppttteeerrr 111 Specifications................................................................................................. 1
Mainboard Specifications .........................................................................................2
P700 Mainboard Layout............................................................................................4
P700 I/O Boards Specification ................................................................................5
P700-A I/O Board ...................................................................................................5
COM (Serial) port...............................................................................................6
VGA port................................................................................................................6
RJ-45 LAN port ...................................................................................................6
DVI-D pin header...............................................................................................6
P700-A board-to-board connector............................................................6
P700-B I/O Board....................................................................................................7
USB 2.0 ports .......................................................................................................8
Audio jacks: (Line-out, Line-in, Mic-in).....................................................8
USB 2.0 pin header............................................................................................8
PS/2 pin header..................................................................................................8
Front Panel pin header....................................................................................8
LPC pin header....................................................................................................8
GPIO pin header.................................................................................................8
P700-B board-to-board connector ............................................................8
C
C
Chhhaaapppttteeerrr 222 Installation ...................................................................................................... 9
CPU ................................................................................................................................. 10
CPU Fan.................................................................................................................... 10
Memory Module Installation................................................................................ 11
Memory Slot: DDR2 SODIMM SDRAM....................................................... 11
DDR2 SDRAM Module Installation Procedures ...................................... 11
Available DDR2 SDRAM Configurations .................................................... 12
Power Connectors..................................................................................................... 13
DC-In Power........................................................................................................... 13
External Battery..................................................................................................... 13
+5V SATA Power.................................................................................................. 13
Mainboard Pin Headers and Connectors........................................................ 14
Ethernet LAN.......................................................................................................... 14
DVI+CRT .................................................................................................................. 14
Audio......................................................................................................................... 14
PS/2 ........................................................................................................................... 15
Front Panel: Case connector ........................................................................... 15
v
LPC/SMBus/GPIO ................................................................................................. 15
COM (Serial)........................................................................................................... 16
LVDS Panel.............................................................................................................. 16
USB............................................................................................................................. 16
IDE .............................................................................................................................. 17
SATA .......................................................................................................................... 17
Jumpers ......................................................................................................................... 18
Clear CMOS ............................................................................................................ 18
LCD Power Selector: LCD 3V/5V.................................................................... 18
Mainboard Pin Header and Connector Vendor Lists................................................ 19
Mainboard and I/O Boards Installation Procedure............................................... 20
P700-A Board Pin Header and Connector...................................................... 23
DVI-D pin header................................................................................................. 23
P700-A Board to Board connector ............................................................... 24
P700-A Pin Header and Connector Vendor Lists........................................... 25
P700-B Board Pin Header and Connector ...................................................... 26
USB 2.0 pin header.............................................................................................. 26
PS/2 pin header .................................................................................................... 27
Front Panel pin header ...................................................................................... 27
LPC pin header...................................................................................................... 27
I²C Bus (SMBus) pin header............................................................................. 28
GPIO pin header................................................................................................... 28
P700-B Board to Board connector................................................................ 29
P700-B Pin Header and Connector Vendor Lists................................................ 30
C
C
Chhhaaapppttteeerrr 333 BIOS Setup....................................................................................................31
Entering the BIOS Setup Menu ........................................................................... 32
Control Keys ................................................................................................................ 33
Navigating the BIOS Menus ................................................................................. 34
Getting Help................................................................................................................ 35
Main Menu................................................................................................................... 36
Standard CMOS Features ................................................................................. 36
Advanced BIOS Features................................................................................... 36
Advanced Chipset Features ............................................................................. 36
Integrated Peripherals ....................................................................................... 36
Power Management Setup .............................................................................. 36
PnP/PCI Configurations..................................................................................... 36
Frequency/Voltage Control ............................................................................. 37
Load Fail-Safe Defaults...................................................................................... 37
Load Optimized Defaults.................................................................................. 37
Set Supervisor Password................................................................................... 37
Set User Password ............................................................................................... 37
Save & Exit Setup................................................................................................. 37
Exit Without Saving............................................................................................. 37
vi
Standard CMOS Features ...................................................................................... 38
Date ........................................................................................................................... 38
Time........................................................................................................................... 38
Video......................................................................................................................... 38
Halt On ..................................................................................................................... 38
IDE Drives ..................................................................................................................... 39
IDE Channel 0 Master......................................................................................... 39
IDE Channel 0 Slave ............................................................................................ 39
IDE Channel 1 Master......................................................................................... 40
IDE Channel 1 Slave ............................................................................................ 40
Advanced BIOS Features........................................................................................ 42
Virus Warning........................................................................................................ 42
Quick Power On Self-Test ................................................................................ 42
First/Second/Third Boot Device..................................................................... 43
Boot Other Device ............................................................................................... 43
Boot Up NumLock Status ................................................................................. 43
Typematic Rate Setting ..................................................................................... 43
Typematic Rate (Chars/Sec)............................................................................. 43
Typematic Delay (Msec).................................................................................... 44
Security Option..................................................................................................... 44
MPS Version Control for OS............................................................................ 44
OS Select for DRAM > 64MB.......................................................................... 44
Full Screen Logo Show ...................................................................................... 44
CPU Features............................................................................................................... 45
C7 CMPXCHG8...................................................................................................... 45
C7 NoExecute (NX).............................................................................................. 45
Hard Disk Boot Priority ........................................................................................... 46
Advanced Chipset Features .................................................................................. 47
Memory Hole......................................................................................................... 47
System BIOS Cacheable .................................................................................... 47
Video RAM Cacheable ....................................................................................... 47
Init Display First .................................................................................................... 47
Select Display Device ......................................................................................... 47
Panel Type............................................................................................................... 48
AGP & P2P Bridge Control.................................................................................... 49
AGP Aperture Size ............................................................................................... 49
AGP3.0 Mode......................................................................................................... 49
AGP Driving Control ........................................................................................... 49
AGP Driving Value ............................................................................................... 49
AGP Fast Write ...................................................................................................... 50
AGP Master 1 WS Write .................................................................................... 50
AGP Master 1 WS Read..................................................................................... 50
AGP 3.0 Calibration Cycle................................................................................. 50
vii
VGA Share Memory Size................................................................................... 50
Direct Frame Buffer ............................................................................................. 50
CPU & PCI Bus Control ........................................................................................... 51
PCI Delay Transaction ........................................................................................ 51
DRDY Timing.......................................................................................................... 51
Integrated Peripherals............................................................................................. 52
UltraDMA66 Control........................................................................................... 52
WatchDog Support ............................................................................................. 52
WatchDog Timer Select .................................................................................... 52
WatchDog Count Value .................................................................................... 52
Onboard Serial Port ............................................................................................ 52
VIA OnChip PCI Device ........................................................................................... 53
Azalia HDA Controller ........................................................................................ 53
USB Device Setting................................................................................................... 54
USB 1.0 Controller ............................................................................................... 54
USB 2.0 Controller ............................................................................................... 54
USB Operation Mode ......................................................................................... 54
USB Keyboard Function .................................................................................... 54
USB Storage Function ........................................................................................ 54
Power Management Setup ................................................................................... 55
ACPI Suspend Type............................................................................................. 55
Power Management Option............................................................................ 55
HDD Power Down................................................................................................ 55
Suspend Mode...................................................................................................... 56
Video Off Option.................................................................................................. 56
Video Off Method................................................................................................ 56
MODEM Use IRQ.................................................................................................. 56
Soft-Off by PWRBTN .......................................................................................... 56
Run VGABIOS if S3 Resume............................................................................. 56
AC Loss Auto Restart.......................................................................................... 56
Wakeup Event Detect.............................................................................................. 57
PS2KB Wakeup Select ........................................................................................ 57
PS2KB Wakeup Key Select ............................................................................... 57
PS2MS Wakeup Key Select .............................................................................. 57
PS2 Keyboard Power On................................................................................... 57
PS2 Mouse Power On ........................................................................................ 58
PowerOn by PCI Card......................................................................................... 58
Modem Ring Resume ........................................................................................ 58
RTC Alarm Resume.............................................................................................. 58
Date (of Month).................................................................................................... 58
Resume Time (hh : mm : ss)............................................................................. 58
PnP/PCI Configurations .......................................................................................... 59
PNP OS Installed .................................................................................................. 59
viii
Reset Configuration Data ................................................................................. 59
Resources Controlled By................................................................................... 60
PCI/VGA Palette Snoop ..................................................................................... 60
Assign IRQ for VGA............................................................................................. 60
Assign IRQ for USB.............................................................................................. 60
Maximum ASPM supported ............................................................................ 60
Maximum Payload Size ..................................................................................... 60
Frequency/Voltage Control .................................................................................. 61
Auto Detect PCI Clk ............................................................................................ 61
Spread Spectrum ................................................................................................. 61
DRAM Clock/Drive Control ................................................................................... 62
DRAM Clock ........................................................................................................... 62
DRAM Timing ........................................................................................................ 62
Read to Precharge (Trtp) .................................................................................. 62
Write to Read CMD (Twtr)................................................................................ 62
Write Recovery Time (Twr)............................................................................... 62
DRAM Command Rate ...................................................................................... 63
RDSAIT mode ........................................................................................................ 63
Load Fail-Safe Defaults ........................................................................................... 64
Load Optimized Defaults ....................................................................................... 65
Set Supervisor/User Password............................................................................. 66
Set Supervisor Password................................................................................... 66
User Password....................................................................................................... 66
Save & Exit Setup...................................................................................................... 68
Exit Without Saving .................................................................................................. 69
C
C
Chhhaaapppttteeerrr 444 Driver Installation.......................................................................................71
Driver Utilities ............................................................................................................. 72
Getting Started ..................................................................................................... 72
Running the Driver Utilities CD...................................................................... 73
CD Content .................................................................................................................. 74
ix
This page is intentionally left blank.
x
EPIA-P700 User’s Manual
CHHAAPPTTEERR 1
SPECIFICATIONS
The ultra-compact and highly integrated VIA EPIA-P700 Pico-ITX
mainboard is the smallest form-factor available today. Through a high
level of integration, the Pico-ITX form factor is 75% smaller than MiniITX form factor. The mainboard enables the creation of an exciting new
generation of small, ergonomic, innovative and affordable embedded
®
systems. The mainboard comes with an integrated VIA C7 NanoBGA2
or fanless VIA Eden processor, boasting of ultra-low power consumption
and cool operation.
1
EPIA-P700 User’s Manual
Mainboard Specifications
CPU
•
•
VIA C7 1.0 GHz NanoBGA2 processor
VIA Eden ULV 500MHz NanoBGA2 processor
Chipset
•
VIA VX700 advanced all-in-one system processor
Graphics
•
Integrated VIA UniChrome™ Pro II 3D/2D AGP graphics with
MPEG-2/4 and WMV9 video decoding acceleration
Memory
•
One DDR2 667/533 SODIMM slot (up to 1 GB memory size)
IDE
•
SATA
•
•
One UltraDMA 133/100 pin connector
(2.0mm 44-pin right-angle type)
One SATA connector
One SATA power connector (5V)
LAN
•
•
Audio
•
One VIA VT6122 Gigabit Ethernet Controller (default)
One VIA VT6107 10/100 Mbps Fast Ethernet controller
(manufacturing option)
VIA VT1708B High Definition Audio Codec
Onboard I/O Connectors
•
One LAN pin header
•
One CRT/DVI pin header
•
One COM (Serial) port pin header
•
One CPU fan pin connector
•
One Audio pin connector for Line-out, Line-in and Mic-in)
•
One Front panel pin header
•
Four USB2.0 ports pin header
•
One PS2 mouse/keyboard pin header
•
One LVDS pin connector (powered with 5V)
•
One LPC/SMBus/GPIO pin header
•
One +12V DC-in 2-pin jack with lock
2
EPIA-P700 User’s Manual
System Monitor and Management
•
Keyboard Power-on, Timer-Power-on
•
System power management, AC power failure recovery
•
Wake-On-LAN
•
Watch Dog Timer
Operating Temperature
•
0°C up to 50°C
Operating Humidity
•
0% ~ 90% (relative humidity; non-condensing)
BIOS
•
Award BIOS with LPC 4/8Mbit flash memory capacity
Form Factor
•
Pico-ITX (10-layer)
•
10cm x 7.2cm
3
EPIA-P700 User’s Manual
P700 Mainboard Layout
4
EPIA-P700 User’s Manual
P700 I/O Boards
Boards Specification
The VIA EPIA-P700 Pico-ITX mainboard is bundled with two I/O boards
(P700-A and P700-B) to support connections to LAN, VGA, COM, DVI-D,
USB and Audio.
P700-A I/O Board
•
•
•
•
•
One COM (Serial) port
One VGA port
One RJ-45 port
One DVI-D pin header
P700-A board-to-board connector
(Back View)
(Top View)
(Bottom View)
5
EPIA-P700 User’s Manual
COM (Serial) port
The green 9-pin COM port is for pointing devices or other serial devices.
VGA port
The VGA port allows you to connect any analog VGA monitor.
RJRJ-45 LAN port
port
The board provides one Gigabit Ethernet port controlled by a VIA
VT6122 Gigabit Ethernet controller. This port allows connection to a
Local Area Network (LAN) through a network hub.
DVIDVI-D pin header
The 18-pin header allows you to connect display with digital connection.
P700P700-A boardboard-toto-board connector
A 52-pin board connector used for mounting the P700-A I/O board to
the EPIA-P700 mainboard.
6
EPIA-P700 User’s Manual
P700-B I/O Board
•
•
•
•
•
•
•
•
•
Four USB 2.0 ports
Three audio jacks (Line-in, Line-out and Mic-in)
USB 2.0 pin header
PS/2 pin header
Front Panel pin header
LPC pin header
I²C Bus (SMBus) pin header
GPIO pin header
P700-B board-to-board connector
(Back View)
(Top View)
(Bottom View)
7
EPIA-P700 User’s Manual
USB 2.0 ports
These four Universal Serial Bus (USB) ports are available for connecting
USB 2.0 devices.
Audio jacks:
jacks: (Line(Line-out, LineLine-in, MicMic-in)
The Line-out jack is for connecting to external speakers or headphones.
The Line-in jack is for connecting to an external audio device such as a
CD player, tape player, etc. The Mic-in jack is for connecting to a
microphone.
Jack
Line-out
Line-in
Mic-in
2-channel
Line-out
Line-in
Microphone
6-channel
Front (Left/Right)
Rear (Left/Right)
Center/Sub-woofer
USB 2.0 pin header
Use to connect the USB module (e.g. WLAN USB).
PS/2 pin header
header
Use to attach a PS/2 port for the keyboard and mouse.
Front Panel pin header
Use to connect the power switch, reset switch, power LED, suspend LED,
HDD LED and the case speaker.
LPC pin header
Use to connect the LPC devices.
GPIO pin header
General purpose input and output.
P700P700-B boardboard-toto-board connector
The 72-pin board connector used for mounting the P700-B I/O board to
the EPIA-P700 mainboard.
8
EPIA-P700 User’s Manual
CHHAAPPTTEERR 2
INSTALLATION
This chapter provides you with information about hardware installation
procedures. It is recommended to use a grounded wrist strap before
handling computer components. Electrostatic discharge (ESD) can
damage some components.
9
EPIA-P700 User’s Manual
CPU
The VIA EPIA-P700 Pico-ITX mainboard is packaged with a standard VIA
®
®
C7 1.0 GHz NanoBGA2. The VIA C7 1.0 GHz processor requires a
heatsink with fan to provide sufficient cooling.
CPU Fan
The CPU fan runs on +5V and maintain CPU cooling. When connecting
the wire to the connector, always be aware that the red wire (positive
wire) should be connected to the +5V. The black wire is Ground and
should always be connected to GND.
Pin
1
2
Signal
FAN_MCM
GND
10
EPIA-P700 User’s Manual
Memory Module Installation
Memory Slot: DDR2 SODIMM SDRAM
The VIA EPIA-P700 Pico-ITX mainboard provide one SODIMM slot for
DDR2 667/533 MHz SDRAM memory modules and supports memory
sizes up to 1GB.
Note:
DDR2 667 MHz memory modules can be used, but the effective
speed will be 533 MHz.
DDR2 SDRAM Module Installation Procedures
Step 1
Locate the SODIMM slot in the mainboard.
Step 2
Align the notch on the SODIMM with the memory slot.
Step 3
Inset the SODIMM module at a 45 degree angle. Then push the
SODIMM down until it snaps into the locking mechanism.
11
EPIA-P700 User’s Manual
Available DDR2 SDRAM Configurations
Refer to the table below for available DDR2 SDRAM configurations on
the mainboard.
Slot
Module Size
SODIMM 64MB, 128MB, 256MB, 512MB, 1GB
Maximum supported system memory
Total
64MB - 1GB
64MB - 1GB
Note:
Only supports 1GB SDRAM with 64M x 8bits x16 configuration.
12
EPIA-P700 User’s Manual
Power Connector
Connectors
ctors
When inserting the power supply connector, always make sure that all
components are installed correctly to ensure that no damage will be
caused.
DC-In Power
The mainboard supports a Pico-ITX 12V DC-In power supply for the
power system. The 2-pin power connector used to connect the DC-in
power jack for system power.
Pin
1
2
Signal
DC In
GND
External Battery
The mainboard comes with external CMOS battery connector. This 2-pin
connector used to connect the external cable battery for CMOS.
Pin
1
2
Signal
A3V (+3.3V)
GND
+5V SATA Power
The mainboard supports a 3-pin SATA power connector for SATA power
cable. Plug the SATA power cable into the SATA power connector. Make
sure the power plug is inserted in the proper orientation and pins are
aligned.
Pin
1
2
3
Signal
+5V
+5V
GND
13
EPIA-P700 User’s Manual
Mainboard Pin Headers and Connectors
Ethernet LAN
This pin header allows the connection to a Local Area Network.
Pin
1
3
5
7
Signal
A3V3GL (+3.3V)
TXNC
TXPC
TXNA
Pin
2
4
6
8
Signal
Signal
A3V (+3.3V)
TXND
TXPD
TXNB
9
11
13
TXPA
GND
LED2
10
12
14
TXPB
LED1
LINK ACT
DVI+CRT
This pin header connects the interface to multi display devices and
enables either digital or analog display.
Pin
Pin
1
3
5
7
Signal
RED
GREEN
BLUE
GND
Pin
2
4
6
8
Signal
+5V
GND
CRT I2C Data
CRT I2C Clock
9
11
13
15
17
19
21
23
GND
TXCTXC+
TX0TX0+
GND
TX2TX2+
10
12
14
16
18
20
22
24
VS
HS
GND
DVI I2C Data
DVI I2C Clock
GND
TX1TX1+
Audio
This is an interface for connections to external audio devices.
Pin
1
3
5
7
Signal
LINER
LINEL
LINEOUTR
LINEOUTL
Pin
2
4
6
8
Signal
GND_AUD
MIC IN L
MIC IN R
SENS A
14
EPIA-P700 User’s Manual
PS/2
The mainboard provides a PS/2 pin header to attach a PS2 port for the
keyboard and mouse.
Pin
1
3
5
Signal
A5V
KB_CLK
MS_CLK
Pin
2
4
6
Signal
GND
KB_DATA
MS_DATA
Front Panel: Case connector
The Front Panel pin header allows you to connect the power switch,
reset switch, power LED, suspend LED, HDD LED and the case speaker.
Pin
1
3
5
7
9
11
Signal
PW_LED
PW_LED
GND
SPEAK_BZ
GND
-
Pin
2
4
6
8
10
12
Signal
+5V
HD_LED
PW_BN
GND
RST_SW
GND
LPC/SMBus/GPIO
This single pin header allows the connection of LPC, SMBus devices and
the General Purpose input and output.
Pin
1
3
5
7
9
11
13
15
17
19
21
Signal
GND
SIO_OSC2
PCLKLPC
-LDRQ1
SERIRQ
-SIOSMI
+3V (+3.3V)
GPIO3
GPIO2
GND
GND
Pin
2
4
6
8
10
12
14
16
18
20
22
Signal
LAD3
LAD2
LAD1
-LFRAME
LAD0
-PCIRST1
+5V
GPI4
GPI5
SMBDT
SMBCK
15
EPIA-P700 User’s Manual
COM (Serial)
COM pin header can be used to attach an additional port for serial devices.
Pin
1
3
5
7
9
Signal
#DCDA
TXDA
GND
#RTSA
#RIA
Pin
2
4
6
8
10
Signal
RXDA
#DTRA
#DSRA
#CTSA
NC
CN1
6
1
5
LVDS Panel
The single-channel LVDS connector allows you to connect the panel’s
LVDS cable directly to support LVDS panel.
Pin
1
3
5
7
Signal
LCD2D0LCD2D0+
GND
PVDD2
Pin
2
4
6
8
Signal
LCD2D1LCD2D1+
GND
LCD2D2-
9
11
13
15
17
19
21
23
PVDD2
LCD2_DATA
LCD2_CLK
GND
VDD_BL
VDD_BL
VDD_BL
GND
10
12
14
16
18
20
22
24
LCD2D2+
GND
LCD2CLK+
LCD2CLKGND
DIMMING
BLEN2
GND
USB
The mainboard provide one 16-pin USB pin connector that allows up to
four USB2.0 ports. These ports can be used to connect high-speed USB
interface peripherals such as USB HDD, digital cameras, MP3 players,
printers, modem, etc..
Pin
1
3
5
7
Signal
Signal
GND
GND
USB_VD3+
USB_VD-
Pin
2
4
6
8
Signal
NC
GND
USB_VD2+
USB_VD2-
9
11
13
15
+5V
USB_VD0USB_VD0+
GND
10
12
14
16
+5V
USB_VD1USB_VD1+
GND
16
EPIA-P700 User’s Manual
IDE
The mainboard has an Ultra DMA 133/100 controller. You can connect
up to two IDE devices in any combination.
Pin
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
Signal
#IDERST
PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1
PDD0
GND
PDDREQ
#PDIOW
#PDIOR
PIORDY
#PDDACK
IRQ15
PDA1
PDA0
#PDCS1
#HD_LED1
+5V
GND
Pin
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
Signal
GND
PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15
KEY
GND
GND
GND
GND
GND
NC
GPI0
PDA2
#PDCS3
GND
+5V
NC
If two drives are connected to a single cable, the jumper on the second
drive must be set to slave mode. Refer to the drive documentation
supplied by the vendor for the jumper settings.
SATA
The next generation connector supports thin SATA
cables for primary internal storage devices. The current
SATA interface allows up to 300MB/s data transfer rate
- faster than the standard parallel ATA with 133 MB/s
(Ultra DMA).
17
EPIA-P700 User’s Manual
Jumpers
The mainboard provides jumpers for setting some mainboard functions.
This section will explain how to change the settings of the mainboard
functions using the jumpers.
Clear CMOS
The onboard CMOS RAM stores system configuration data and has an
onboard battery power supply. To reset the CMOS settings, set the
jumper on pins 1 and 2 while the system is off. Return the jumper to
pins 2 and 3 afterwards. Setting the jumper while the system is on will
damage the mainboard.
J3
Setting
Normal Operation
Clear CMOS setting
1
ON
OFF
2
ON
ON
Normal
3
OFF
ON
Clear
Caution:
Caution:
Except when clearing the RTC RAM, never remove the cap on
CLEAR_CMOS jumper default position. Removing the cap will cause
system boot failure. Avoid clearing the CMOS while the system is on;
it will damage the mainboard.
LCD Power Selector: LCD 3V/5V
This jumper determines the input voltage for the LCD connector.
J4
Setting
+5V
+3V
1
ON
OFF
2
ON
ON
3
OFF
ON
+5V
+3V
18
EPIA-P700 User’s Manual
Mainboard
Mainboard Pin Header and Connector Vendor Lists
Items
Function
Pin
Pitch
Vendor
P/N
FAN1
CN5
CN3
BAT1
SATA_
Power
J1
J2
J5
J6
J7
J8
CN1
CN2
CN4
IDE1
J3
J4
CPU Fan
DDRII SODIMM
DC-In Power
External Battery
2 Pin
200 Pin
2 Pin
2 Pin
1.25mm
0.6mm
2.5mm
1.25mm
HRS
Foxconn
Neltron Industrial Co.
Neltron Industrial Co.
DF13C-2P-1.25V
AS0A426-N6RN-4F
2317SJ-02
1251R-02-SM1-TR
SATA Power
3 Pin
1.25mm
Neltron Industrial Co.
1251R-03-SM1-TR
Ethernet LAN
DVI+CRT
Audio
PS/2
Front Panel
LPC/SMBus/GPIO
COM (Serial)
LVDS Panel
USB
IDE
Clear CMOS
LCD Power Select
14 Pin
24 Pin
8 Pin
6 Pin
12 Pin
22Pin
10 Pin
24 Pin
16 Pin
44 Pin
3 Pin
3 Pin
2.0mm
2.0mm
2.0mm
2.0mm
2.0mm
2.0mm
2.0mm
1.0mm
2.0mm
2.0mm
1.27mm
1.27mm
Neltron Industrial Co.
Neltron Industrial Co.
Neltron Industrial Co.
Neltron Industrial Co.
Neltron Industrial Co.
Neltron Industrial Co.
Neltron Industrial Co.
ACES Electronics
Neltron Industrial Co.
Neltron Industrial Co.
Neltron Industrial Co.
Neltron Industrial Co.
2208SM-14G-BK-CP
2208SM-24G-BK-CP
2208SM-08G-BK-CP
2208SM-06G-BK-CP
2208SM-12G-BK-CP
2208SM-22G-BK-CP
2208SM-10G-E9-BK-CP
87216-2416-06
2208SM-16G-E2-BK-CP
2204R-44G-E01
2199SA-03G-301523
2199SA-03G-301523
19
EPIA-P700 User’s Manual
Mainboard and I/O Boards Installation Procedure
Step 1
Disconnect all attached LAN, COM, DVI+CRT, Audio, USB, PS2, Front
Panel and LPC/SMBus/GPIO cables from EPIA-P700 mainboard pin
headers show in red.
Step 2
Align and mounting the P700-A and P700-B I/O boards as shown in the
diagram below.
20
EPIA-P700 User’s Manual
Step 3
First align the P700-A board-to-board connector of the P700-A I/O
board with the J1, CN1 and J2 pin headers to the top side of the EPIAP700 mainboard respectively. Then gently press down until the pins on
the EPIA-P700 mainboard have been fully inserted into the board-toboard connector on the P700-A I/O board. (See the Step 5)
Step 4
Then align the P700-B board-to-board connector of the P700-B I/O
board with the J5, CN4, J6, J7 and J8 pin headers to the top side of the
EPIA-P700 mainboard respectively. Gently press down until the pins on
the EPIA-P700 mainboard have been fully inserted into the board-toboard connector on the P700-B I/O board. (See the Step 5)
21
EPIA-P700 User’s Manual
Step 5
Gently press down until the pins on the EPIA-P700 mainboard have
been fully inserted into the board-to-board connectors of the I/O
boards.
22
EPIA-P700 User’s Manual
P700P700-A Board Pin Header and Connector
DVI-D pin header
This is an interface for connecting the DVI-D pin connector cable.
Pin
1
3
5
7
9
11
13
15
17
Signal
GND
TX2TX2+
GND
TX1TX1+
GND
SPD1
SPCLK1
Pin
2
4
6
8
10
12
14
16
18
Signal
+5V
TX0+
TX0GND
TXC+
TXCGND
GND
Key
23
EPIA-P700 User’s Manual
P700-A Board to Board connector
A 52-pin board connector used for mounting the P700-A I/O board to
the EPIA-P700 mainboard.
Pin
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
Signal
A3V3GL(+3.3V)
TXNC
TXPC
TXNA
TXPA
GND
LED2
GND
-DTRA
TXDA
RXDA
-DCDA
RED
GREEN
BLUE
GND
GND
TXCTCX+
TX0TX0+
GND
TX2TX2+
Pin
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
Signal
A3V(+3.3V)
TXND
TXPD
TXNB
TXPB
LED1
LNK ACT
-RIA
-CTSA
-RTSA
-DSRA
+5V
GND
SPD2
SPCLK2
VS
HS
GND
SPD1
SPCLK1
GND
TX1TX1+
24
EPIA-P700 User’s Manual
P700P700-A Pin Header and Connector Vendor Lists
Items
Function
Pin
Pitch
Vendor
P/N
J1
CN2
Board-to-Board
DVI-D
52 Pin
18 Pin
2.0mm
2.0mm
Neltron Industrial Co.
Neltron Industrial Co.
2207SM-52G-45-PCP
2316S-14G-F1
25
EPIA-P700 User’s Manual
P700P700-B Board Pin Header and Connector
USB 2.0 pin header
The USB pin header allows you to attach USB module (e.g. WLAN USB).
Pin
1
3
5
Signal
USBCVD3+
USB_VD3+
VCC_USB2
Setting
Enable (Default)
Disable
Pin
2
4
6
Signal
USBCVD3USB_VD3GND
USB Port 3
ON
OFF
Enable
Disable
USB Module
OFF
ON
Note:
Removing the caps will disable the USB Port 3.
26
EPIA-P700 User’s Manual
PS/2 pin header
The PS/2 pin header to attach a PS/2 port for the keyboard and mouse.
Pin
1
3
5
Signal
A5V (+5V)
KB_CLK
MS_CLK
Pin
2
4
6
Signal
GND
KB_DATA
MS_DATA
Front Panel pin header
The Front Panel pin header allows you to connect the power switch,
reset switch, power LED, suspend LED, HDD LED and the case speaker.
Pin
1
3
5
7
9
11
13
Signal
PW_LED
PW_LED
SUS_LED
+5V
GND
GPI5
SPEAK_BZ
Pin
2
4
6
8
10
12
14
Signal
HD_PW
HD_LED
PW_BN
GND
RST_SW
GND
-
LPC pin header
This pin connector is for LPC devices.
Pin
1
3
5
7
9
11
13
Signal
+3V (+3.3V)
PCLKLPC
-LFRAME
LAD3
GND
SIO_OSC2
-LDRQ1
Pin
2
4
6
8
10
12
14
Signal
-PCIRST1
LAD0
LAD1
LAD2
+5V
SERIRQ
-SIOSMI
27
EPIA-P700 User’s Manual
I²C Bus (SMBus) pin header
This pin header allows you to connect SMBus (System Management Bus)
devices. Devices communicate with a SMBus host and/or other SMBus
devices using the SMBus interface.
Pin
1
3
5
Signal
GND
SMBDT
Pin
2
4
6
Signal
+5V
+3V (+3.3V)
SMBCK
GPIO pin header
General purpose input and output.
Pin
1
3
5
7
Signal
+3V (+3.3V)
GPI4
GPI5
GND
Pin
2
4
6
8
Signal
+5V
GPIO3
GPIO2
GND
28
EPIA-P700 User’s Manual
P700-B Board to Board connector
The 72-pin board connector used for mounting the P700-B I/O board to
the EPIA-P700 mainboard.
Pin
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
61
63
65
67
69
71
Signal
LINER
LINEL
LINEOUTR
LINEOUTL
GND
GND
USB VD3+
USB VD3+5V
USB VD0USB VD0+
GND
A5V
KB CLK
MS CLK
PW_LED
PW_LED
GND
SPEAK_BZ
GND
SUS_LED
GND
SIO_OSC2
PCLKLPC
-LDRQ1
SERIRQ
-SIOSMI
+3V (+3.3V)
GPIO3
GPIO2
GND
GND
Pin
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
Signal
GND_AUD
MICIN
AD_5V
SENSEA
GND
USB VD2
USB VD2
+5V
USB VD1USB VD1+
GND
GND
KB DATA
MS DATA
HD_PW
HD_LED
PW_BN
GND
RST_SW
GND
LAD3
LAD2
LAD1
-LFRAME
LAD0
-PCIRST1
+5V
GPI14
GPI5
SMBDT
SMBCK
29
EPIA-P700 User’s Manual
P700P700-B Pin Header and Connector Vendor Lists
Items
Function
Pin
Pitch
Vendor
P/N
J1
J2
PS/2
Front Panel
6 Pin
14 Pin
2.0mm
2.54mm
Neltron Industrial Co.
Neltron Industrial Co.
2208SM-06G-CP
2208SM-14G-CP
30
EPIA-P700 User’s Manual
CHHAAPPTTEERR 3
BIOS SETUP
This chapter gives a detailed explanation of the BIOS setup functions.
31
EPIA-P700 User’s Manual
Entering the BIOS Setup Menu
Power on the computer and press <Delete
Delete>
Delete during the beginning of the
boot sequence to enter the BIOS setup menu. If you missed the BIOS
setup entry point, restart the system and try again.
32
EPIA-P700 User’s Manual
Control Keys
Keys
Description
Move to the previous item
Move to the next item
Move to the item in the left side
Move to the item in the right side
Select the item
Enter
Esc
Page
Up
Page
Down
Jumps to the Exit menu or returns to the
main menu from a submenu
Increase the numeric value or make changes
Decrease the numeric value or make changes
Increase the numeric value or make changes
Decrease the numeric value or make changes
F1
General help, only for Status Page Setup
Menu and Option Page Setup Menu
F5
Restore the previous CMOS value from
CMOS, only for Option Page Setup Menu
F6
F7
F10
Load the default CMOS value from Fail-Safe
default table, only for Option Page Setup
Menu
Load Optimized defaults
Save all the CMOS changes and exit
33
EPIA-P700 User’s Manual
Navigating the BIOS Menus
The main menu displays all the BIOS setup categories. Use the
<Left
Left>/<Right
Right>
Up>/<Down
Down>
Left
Right and <Up
Up
Down arrow keys to select any item or
sub-menu. Descriptions of the selected/highlighted category are
displayed at the bottom of the screen.
An arrow symbol next to a field indicates that a sub-menu is available
(see figure below). Press <Enter
Enter>
Enter to display the sub-menu. To exit the
sub-menu, press <Esc
Esc>.
Esc
Sub-menu indicator
Phoenix-
AwardBIOSCMOSSetupUtility
StandardCMOSFeatures
LoadFail-SafeDefaults
AdvancedBIOSFeatures
LoadOptimizedDefaults
AdvancedChipsetFeatures
SetSupervisorPassword
IntegratedPeripherals
SetUserPassword
PowerManagementSetup
Save&ExitSetup
PnP/PCIConfigurations
ExitWithoutSaving
Frequency/VoltageControl
Esc:Quit
:SelectItem
F10:Save&ExitSetup
Time,Date,HardDiskType...
34
EPIA-P700 User’s Manual
Getting Help
The BIOS setup program provides a “General
General Help”
Help screen. You can
display this screen from any menu/sub-menu by pressing <F1
F1>.
F1 The
help screen displays the keys for using and navigating the BIOS setup.
Press <Esc
Esc>
Esc to exit the help screen.
35
EPIA-P700 User’s Manual
Main Menu
The Main Menu contains eleven setup functions and two exit choices.
Use arrow keys to select the items and press <Enter
Enter>
Enter to accept or enter
Sub-menu.
Standard CMOS Features
Use this menu to set basic system configurations.
Advanced BIOS Features
Use this menu to set the advanced features available on your system.
Advanced Chipset Features
Use this menu to set chipset specific features and optimize system
performance.
Integrated Peripherals
Use this menu to set onboard peripherals features.
Power Management Setup
Use this menu to set onboard power management functions.
PnP/PCI Configurations
Use this menu to set the PnP and PCI configurations.
36
EPIA-P700 User’s Manual
Frequency/Voltage Control
Use this menu to set the system frequency and voltage control.
Load Fail-Safe Defaults
Use this menu option to load the BIOS default settings for minimal and
stable system operations.
Load Optimized Defaults
Use this menu option to load BIOS default settings for optimal and high
performance system operations.
Set Supervisor Password
Use this menu option to set the BIOS supervisor password.
Set User Password
Use this menu option to set the BIOS user password.
Save & Exit Setup
Save BIOS setting changes and exit setup.
Exit Without Saving
Discard all BIOS setting changes and exit setup.
37
EPIA-P700 User’s Manual
Standard CMOS Features
Date
The date format is [Day, Month Date, Year]
Time
The time format is [Hour : Minute : Second]
Video
Settings: [EGA/VGA, CGA 40, CGA 80, MONO]
Halt On
Set the system’s response to specific boot errors. Below is a table that
details the possible settings.
Settings
Description
All Errors
No Errors
All, But Keyboard
System halts when any error is detected
System does not halt for any error
System halts for all non-key errors
38
EPIA-P700 User’s Manual
IDE Drives
IDE Channel 0 Master
IDE Channel 0 Slave
Phoenix-
AwardBIOSCMOSSetupUtility
IDEChannel0Slave
IDEHDDAuto-Detection
[PressEnter]
IDEChannel0Slave
[Auto]
AccessMode
[Auto]
Capacity
0MB
Cylinder
0
Head
0
Precomp
0
LandingZone
0
Sector
0
:Move
Enter:Select
F5: PreviousValues
+/-/PU/PD:Value
ItemHelp
MenuLevel
Toauto-detecttheHDD's
’
HDD ssizehead...on
thischannel
F10:Save
F6: Fail-Safe Defaults
ESC:Exit
F1:General Help
F7: OptimizedDefaults
39
EPIA-P700 User’s Manual
IDE Channel 1 Master
IDE Channel 1 Slave
Phoenix-
AwardBIOSCMOSSetupUtility
IDEChannel1Slave
IDEHDDAuto-Detection
[PressEnter]
IDEChannel1Slave
[Auto]
AccessMode
[Auto]
Capacity
0MB
Cylinder
0
Head
0
Precomp
0
LandingZone
MenuLevel
Toauto-detecttheHDD's
’
HDD ssizehead...on
thischannel
0
Sector
0
SecondarySlavePIO
[Auto]
SecondarySlaveUDMA
[Auto]
:Move
ItemHelp
Enter:Select
F5: PreviousValues
+/-/PU/PD:Value
F10:Save
F6: Fail-Safe Defaults
ESC:Exit
F1:General Help
F7: OptimizedDefaults
40
EPIA-P700 User’s Manual
The specifications of your drive must match with the drive table. The
hard disk will not work properly if you enter incorrect information in this
category. Select “Auto
Auto”
Manual”,
Auto whenever possible. If you select “Manual
Manual
make sure the information is from your hard disk vendor or system
manufacturer.
Below is a table that details required hard drive information when using
the “Manual
Manual”
Manual mode.
Settings
Description
IDE Channel
The name of this match the name of the menu.
Settings: [None, Auto, Manual]
Settings: [CHS, LBA, Large, Auto]
Formatted size of the storage device
Number of cylinders
Number of heads
Write precompensation
Cylinder location of the landing zone
Number of sectors
Settings: [Auto, Mode 0, Mode 1, Mode 2, Mode 3,
Mode 4]
Settings: [Disabled, Auto]
Settings: [Auto, Mode 0, Mode 1, Mode 2, Mode 3,
Mode 4]
Settings: [Disabled, Auto]
Access Mode
Capacity
Cylinder
Head
Precomp
Landing Zone
Sector
Secondary Master PIO
Secondary Master UDMA
Secondary Slave PIO
Secondary Slave UDMA
41
EPIA-P700 User’s Manual
Advanced BIOS Features
Phoenix-
AwardBIOSCMOSSetupUtility
AdvancedBIOSFeatures
CPUFeature
[PressEnter]
HardDiskBootPriority
[PressEnter]
VirusWarning
[Disabled]
QuickPowerOnSelfTest
[Enabled]
FirstBootDevice
[USB-CDROM]
SecondBootDevice
[HardDisk]
ThirdBootDevice
[LS120]
BootOtherDevice
[Enabled]
BootUpNumLockStatus
[On]
TypematicRateSetting
6
xTypematicDelay(Msec)
250
SecurityOption
[Setup]
MPSVersionControlforOS
[1.4]
OSSelectforDRAM>64MB
[Non-OS2]
FullScreenLOGOShow
[Disabled]
:Move
Enter:Select
MenuLevel
[Disabled]
xTypematicRate(Chars/Sec)
F5: PreviousValues
ItemHelp
+/-/PU/PD:Value
F10:Save
F6: Fail-Safe Defaults
ESC:Exit
F1:General Help
F7: OptimizedDefaults
Virus Warning
Allows you to choose the VIRUS warning feature for IDE Hard Disk boot
sector protection.
Settings
Description
Enabled
Disabled
Turns on hard disk boot sector virus protection
Turns off hard disk boot sector virus protection
Note:
If this function is enabled and someone attempt to write data into
this area, BIOS will show a warning message on the screen.
Quick Power On Self-Test
Shortens Power On Self-Test (POST) cycle to enable shorter boot up
time.
Settings
Description
Disabled
Enabled
Standard Power On Self Test (POST)
Shorten Power On Self Test (POST) cycle and boot up time
42
EPIA-P700 User’s Manual
First/Second/Third Boot Device
Set the boot device sequence as BIOS attempts to load the disk operating
system.
Settings
Description
LS120
Hard Disk
CDROM
ZIP100
USB-FDD
USB-ZIP
USB-CDROM
Legacy LAN
VIA Networking
Disabled
Boot from LS-120 drive
Boot from the HDD
Boot from CDROM
Boot from ATAPI ZIP drive
Boot from USB floppy drive
Boot from USB ZIP drive
Boot from USB CDROM
Boot from network drive
Boot from network drive
Disable the boot device sequence
Boot Other Device
Enables the system to boot from alternate devices if the system fails to boot
from the “First/Second/Third Boot Device” lists.
Settings
Description
Disabled
Enabled
No alternate boot device allowed
Enable alternate boot device
Boot Up NumLock Status
Set the NumLock status when the system is powered on.
Settings
Description
Off
On
Forces keypad to behave as arrow keys
Forces keypad to behave as 10-key
Typematic Rate Setting
Enables “Typematic Rate” and “Typematic Delay” functions.
Settings: [Disabled, Enabled]
Typematic Rate (Chars/Sec)
This item sets the rate (characters/second) at which the system retrieves
a signal from a depressed key.
Settings: [6, 8, 10, 12, 15, 20, 24, 30]
43
EPIA-P700 User’s Manual
Typematic Delay (Msec)
This item sets the delay between, when the key was first pressed and
when the system begins to repeat the signal from the depressed key.
Settings: [250, 500, 750, 1000]
Security Option
Selects whether the password is required every time the System boots,
or only when you enter Setup.
Settings
Description
Setup
Password prompt appears only when end users try to run
BIOS Setup
Password prompt appears every time when the computer is
powered on and when end users try to run BIOS Setup
System
MPS Version Control for OS
Settings: [1.1, 1.4]
OS Select for DRAM > 64MB
Select OS2 only if you are running OS/2 operating system with greater
than 64MB of RAM on the system.
Settings: [Non-OS2, OS2]
Full Screen Logo Show
Show full screen logo during BIOS boot up process.
Settings: [Disabled, Enabled]
44
EPIA-P700 User’s Manual
CPU Features
C7 CMPXCHG8
Disable to install Windows NT 4.0.
Settings: [Disabled, Enabled]
C7 NoExecute (NX)
NoExecute is supported in WinXP SP2 and provides some protection
from virii.
Settings: [Disabled, Enabled]
45
EPIA-P700 User’s Manual
Hard Disk Boot Priority
This is for setting the priority of the hard disk boot order when the
“Hard Disk” option is selected in the “[First/Second/Third] Boot Device”
menu item.
46
EPIA-P700 User’s Manual
Advanced Chipset Features
Caution:
Caution:
The Advanced Chipset Features menu is used for optimizing the
chipset functions. Do not change these settings unless you are
familiar with the chipset.
Memory Hole
Settings: [Disabled, 15M – 16M]
System BIOS Cacheable
Settings: [Disabled, Enabled]
Video RAM Cacheable
Settings: [Disabled, Enabled]
Init Display First
Settings: [PCI Slot, AGP]
Select Display Device
This setting refers to the type of display being used with the system.
Settings: [CRT, LCD, CRT+LCD, DVI, LCD+DVI]
47
EPIA-P700 User’s Manual
Panel Type
This setting refers to the native resolution of the display being used with
the system.
Key in a HEX number.
Settings: [Min = 0000, Max = 000F]
48
EPIA-P700 User’s Manual
AGP & P2P Bridge Control
AGP Aperture Size
This setting controls how much memory space can be allocated to AGP
for video purposes. The aperture is a portion of the PCI memory
address range dedicated to graphics memory address space. Host
cycles that hit the aperture range are forwarded to the AGP without any
translation.
Settings: [32MB, 64MB, 128MB, 256MB, 512MB, 1GB]
AGP3.0 Mode
This mainboard supports the AGP 8x interface. When the AGP 8x video
card is used, it can transfer video data at 2133MB/s. AGP 8x is backward
compatible, leave the default 8x mode on. AGP 4x mode can be
detected automatically once you plug in the AGP 4x card.
Settings: [8x, 4x]
AGP Driving Control
This item is used to signal driving current on AGP cards to auto or
manual.
Settings: [Auto, Manual]
AGP Driving Value
Key in a HEX number.
Settings: [Min = 0000, Max = 00FF]
49
EPIA-P700 User’s Manual
AGP Fast Write
This item is used to enable or disable the caching of display data for the
video memory of the processor.
Settings: [Disabled, Enabled]
AGP Master 1 WS Write
Settings: [Disabled, Enabled]
AGP Master 1 WS Read
Settings: [Disabled, Enabled]
AGP 3.0 Calibration Cycle
Settings: [Disabled, Enabled]
VGA Share Memory Size
This setting allows you to select the amount of system memory that is
allocated to the integrated graphics processor.
Settings: [Disabled, 32M, 64M, 128M]
Direct Frame Buffer
Settings: [Disabled, Enabled]
50
EPIA-P700 User’s Manual
CPU & PCI Bus Control
PCI Master 0 WS Write
Settings: [Enabled, Disabled]
PCI Delay Transaction
Settings: [Disabled, Enabled]
DRDY Timing
Settings: [Slowest, Default, Optimize]
51
EPIA-P700 User’s Manual
Integrated Peripherals
Peripherals
UltraDMA66 Control
Settings: [UltraDMA66, AUTO]
WatchDog Support
Settings: [Enabled, Disabled]
WatchDog Timer Select
Settings: [Minute, Second]
WatchDog Count Value
Key in a DEC number.
Settings: [Min = 0, Max = 255]
Onboard Serial Port
Settings: [Disabled, 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, Auto]
52
EPIA-P700 User’s Manual
VIA OnChip PCI Device
Azalia HDA Controller
Settings: [Auto, Disabled]
53
EPIA-P700 User’s Manual
USB Device Setting
USB 1.0 Controller
Enable or disable Universal Host Controller Interface for Universal Serial Bus.
Settings: [Disabled, Enabled]
USB 2.0 Controller
Enable or disable Enhanced Host Controller Interface for Universal Serial Bus.
Settings: [Disabled, Enabled]
USB Operation Mode
Auto decide USB device operation mode.
Settings
Description
Full/Low Speed
High Speed
All of USB Device operated on full/low speed mode
If USB device was high speed device, then it operated on
high speed mode.
USB Keyboard Function
Enable or disable Legacy support of USB Keyboard.
Settings: [Disabled, Enabled]
USB Storage Function
Enable or disable Legacy support of USB Mass Storage.
Settings: [Disabled, Enabled]
54
EPIA-P700 User’s Manual
Power Management Setup
ACPI Suspend Type
Settings
Description
S1(POS)
S1/Power On Suspend (POS) is a low power state. In this
state, no system context (CPU or chipset) is lost and
hardware maintains all system contexts.
S3/Suspend To RAM (STR) is a power-down state. In this
state, power is supplied only to essential components such
as main memory and wakeup-capable devices. The system
context is saved to main memory, and context is restored
from the memory when a "wakeup" event occurs.
Depends on the OS to select S1 or S3.
S3(STR)
S1 & S3
Power Management Option
Settings: [User Define, Min Saving, Max Saving]
HDD Power Down
Set the length of time for a period of inactivity before powering down the
hard disk.
Settings: [Disable, 1 Min, 2 Min, 3 Min, 4 Min, 5 Min, 6 Min, 7 Min, 8 Min,
9 Min, 10 Min, 11 Min, 12 Min, 13 Min, 14 Min, 15 Min]
55
EPIA-P700 User’s Manual
Suspend Mode
Sets the length of time for a period of inactivity before entering suspend
mode.
Settings: [Disable, 1 Min, 2 Min, 4 Min, 6 Min, 8 Min, 10 Min, 20 Min, 30
Min, 40 Min, 1 Hour]
Video Off Option
Select whether or not to turn off the screen when system enters power
saving mode, ACPI OS such as Windows XP will override this option.
Settings
Description
Always On
Screen is always on even when system enters power
saving mode
Screen is turned off when system enters power saving mode
Suspend -> Off
Video Off Method
Settings: [Blank Screen, V/H SYNC+Blank, DPMS Support]
MODEM Use IRQ
Settings: [NA, 3, 4, 5, 7, 9, 10, 11]
Soft-Off by PWRBTN
This field configures the power button on the chassis.
Settings
Description
Delay 4 Sec
System is turned off if power button is pressed for more
than four seconds.
Power button functions as a normal power-on/-off button.
Instant-Off
Run VGABIOS if S3 Resume
Select whether to run VGA BIOS if resuming from S3 state. This is only
necessary for older VGA drivers.
Settings: [Auto, Yes, No]
AC Loss Auto Restart
The field defines how the system will respond after an AC power loss
during system operation.
Settings
Description
Off
On
Former-Sts
Keeps the system in an off state until the power button is pressed
Restarts the system when the power is back
Former-Sts
56
EPIA-P700 User’s Manual
Wakeup Event Detect
PS2KB Wakeup Select
When selecting Password, press Enter to change password. The
maximum number of characters is eight.
Settings: [Hot Key, Password]
PS2KB Wakeup Key Select
Sets a Hot Key to restore the system from the power saving mode to an
active state.
Settings: [Ctrl+F1, Ctrl+F2, Ctrl+F3, Ctrl+F4, Ctrl+F5, Ctrl+F6, Ctrl+F7,
Ctrl+F8, Ctrl+F9, Ctrl+F10, Ctrl+F11, Ctrl+F12, Power, Wake, Any Key]
PS2MS Wakeup Key Select
Enables any mouse activity to restore the system from the power saving
mode to an active state.
Settings: [Any Button, Left Button, Right Button]
PS2 Keyboard Power On
Settings: [Disabled, Enabled]
57
EPIA-P700 User’s Manual
PS2 Mouse Power On
Settings: [Disabled, Enabled]
PowerOn by PCI Card
Enables activity detected from any PCI card to power up the system or
resume from a suspended state. Such PCI cards include LAN, onboard
USB ports, etc.
Settings: [By OS, Enabled]
Modem Ring Resume
Settings: [By OS, Enabled]
RTC Alarm Resume
Set a scheduled time and/or date to automatically power on the system.
Settings: [Disabled, Enabled]
Date (of Month)
The field specifies the date for “RTC Alarm Resume”.
Resume Time (hh : mm : ss)
The field specifies the time for “RTC Alarm Resume”.
58
EPIA-P700 User’s Manual
PnP/PCI Configurations
Note:
This section covers some very technical items and it is strongly
recommended to leave the default settings as is unless you are an
experienced user.
PNP OS Installed
Settings
Description
No
Yes
BIOS will initialize all the PnP cards
BIOS will only initialize the PnP cards used for booting
(VGA, IDE, SCSI). The rest of the cards will be initialized
by the PnP operating system.
Reset Configuration Data
This field should usually be left “Disabled”
Settings
Description
Disabled
Enabled
Default setting
Resets the ESCD (Extended System Configuration Data)
after exiting BIOS Setup if a newly installed PCI card or the
system configuration prevents the operating system from
loading.
59
EPIA-P700 User’s Manual
Resources Controlled By
Enable the BIOS to automatically configure all the Plug-and-Play
compatible devices.
Settings
Description
Auto(ESCD)
BIOS will automatically assign IRQ, DMA and memory base
address fields.
Unlocks “IRQ Resources” for manual configuration.
Manual
PCI/VGA Palette Snoop
Settings: [Disabled, Enabled]
Assign IRQ for VGA
Assign IRQ for VGA devices.
Settings: [Disabled, Enabled]
Assign IRQ for USB
Assign IRQ for USB devices.
Settings: [Disabled, Enabled]
Maximum ASPM supported
Control maximum level of ASPM supported on the given PCI Express links
on the system.
Settings: [L0, L0s, L1, L0s&L1]
Maximum Payload Size
Set maximum TLP payload size for the PCI Express devices. The unit is
byte.
Settings: [128, 256, 512, 1024, 2048, 4096]
60
EPIA-P700 User’s Manual
Frequency/Voltage Control
Auto Detect PCI Clk
Settings: [Enabled, Disabled]
Spread Spectrum
When the mainboard's clock generator pulses, the extreme values (spikes)
of the pulses create EMI (Electromagnetic Interference). The Spread
Spectrum function reduces the EMI generated by modulating the pulses
so that the spikes of the pulses are reduced to flatter curves.
Settings: [Disabled, 0.35%]
61
EPIA-P700 User’s Manual
DRAM Clock/Drive Control
DRAM Clock
The chipset supports synchronous and asynchronous mode between host
clock and DRAM clock frequency.
Settings: [By SPD, 200MHz, 266MHz]
DRAM Timing
The value in this field depends on the memory modules installed in your
system. Changing the value from the factory setting is not recommended
unless you install new memory that has different performance rating than
the original modules.
Settings: [Manual, Auto By SPD]
Read to Precharge (Trtp)
Settings: [2T, 3T]
Write to Read CMD (Twtr)
Settings: [1T/2T, 2T/3T]
Write Recovery Time (Twr)
Settings: [2T, 3T, 4T, 5T]
62
EPIA-P700 User’s Manual
DRAM Command Rate
Settings: [2T Command, 1T Command]
RDSAIT mode
Settings: [Manual Auto]
63
EPIA-P700 User’s Manual
Load FailFail-Safe Defaults
This option is for restoring all the default fail-safe BIOS settings. These
values are set by the mainboard manufacturer to provide a stable
system with basic performance.
Entering “Y
Y” and press <Enter
Enter>
Enter to load the default fail-safe BIOS values.
Entering “N
N” and press <Enter
Enter>
Enter will cancel the load fail-safe defaults
request.
64
EPIA-P700 User’s Manual
Load Optimized Defaults
Phoenix-
AwardBIOSCMOSSetupUtility
LoadFail-SafeDefaults
StandardCMOSFeatures
AdvancedBIOSFeatures
LoadOptimizedDefaults
AdvancedChipsetFeatures
SetSupervisorPassword
IntegratedPeripherals
SetUserPassword
PowerManagementSetup
Save&ExitSetup
PnP/PCIConfigurations
ExitWithoutSaving
LoadOptimizedDefaults(Y/N)?N
Frequency/VoltageControl
Esc:Quit
:SelectItem
F10:Save&ExitSetup
LoadOptimizedDefaults
This option is for restoring all the default optimized BIOS settings. The
default optimized values are set by the mainboard manufacturer to
provide a stable system with optimized performance.
Entering “Y
Y” and press <Enter
Enter>
Enter to load the default optimized BIOS values.
Entering ”N
N” and press <Enter
Enter>
Enter will cancel the load optimized defaults
request.
65
EPIA-P700 User’s Manual
Set Supervisor/User Password
Set Supervisor Password
User Password
This option is for setting a password for entering BIOS Setup. When a
password has been set, a password prompt will be displayed whenever
BIOS Setup is run. This prevents an unauthorized person from changing
any part of your system configuration.
66
EPIA-P700 User’s Manual
There are two types of passwords you can set. A supervisor password
and a user password. When a supervisor password is used, the BIOS
Setup program can be accessed and the BIOS settings can be changed.
When a user password is used, the BIOS Setup program can be accessed
but the BIOS settings cannot be changed.
To set the password, type the password (up to eight characters in length)
and press <Enter>. The password typed now will clear any previously
set password from CMOS memory. The new password will need to be
reentered to be confirmed. To cancel the process press <Esc>.
To disable the password, press <Enter
Enter>
Enter when prompted to enter a new
password. A message will show up to confirm disabling the password.
To cancel the process press <Esc
Esc>.
Esc
Additionally, when a password is enabled, the BIOS can be set to
request the password each time the system is booted. This would
prevent unauthorized use of the system. See “Security Option” in the
“Advanced BIOS Features” section for more details.
67
EPIA-P700 User’s Manual
Save & Exit Setup
Phoenix-
AwardBIOSCMOSSetupUtility
StandardCMOSFeatures
LoadFail-SafeDefaults
AdvancedBIOSFeatures
LoadOptimizedDefaults
AdvancedChipsetFeatures
SetSupervisorPassword
IntegratedPeripherals
SetUserPassword
PowerManagementSetup
Save&ExitSetup
ExitWithoutSaving
PnP/PCIConfigurations SAVEtoCMOSandEXIT(Y/N)?Y
Frequency/VoltageControl
Esc:Quit
:SelectItem
F10:Save&ExitSetup
SaveDatatoCMOS
Entering “Y
Y” saves any changes made, and exits the program.
Entering “N
N” will cancel the exit request.
68
EPIA-P700 User’s Manual
Exit Without Saving
Phoenix-
AwardBIOSCMOSSetupUtility
StandardCMOSFeatures
LoadFail-SafeDefaults
AdvancedBIOSFeatures
LoadOptimizedDefaults
AdvancedChipsetFeatures
SetSupervisorPassword
IntegratedPeripherals
SetUserPassword
PowerManagementSetup
PnP/PCIConfigurations
Save&ExitSetup
ExitWithoutSaving
QuitWithoutSaving(Y/N)?N
Frequency/VoltageControl
Esc:Quit
:SelectItem
F10:Save&ExitSetup
AbandonallData
Entering “Y
Y’ discards any changes made and exits the program.
Entering “N
N” will cancel the exit request.
69
EPIA-P700 User’s Manual
This page is intentionally left blank.
70
EPIA-P700 User’s Manual
CHHAAPPTTEERR 4
DRIVER INSTALLATION
This chapter gives you brief descriptions of each mainboard driver and
application. You must install the VIA chipset drivers first before installing
other drivers such as VGA drivers. The applications will only function
correctly if the necessary drivers are already installed.
71
EPIA-P700 User’s Manual
Driver Utilities
Getting Started
VIA EPIA-P700 Developer kits include a Driver CD that contains the
drivers and software for enhancing the performance of the mainboard.
Regular kits do not include a Driver CD. However, the latest drivers can
be downloaded from http://www.viaembedded.com/
Note:
The driver utilities and software are updated from time to time. The
latest updated versions are available at
http://www.viaembedded.com/
72
EPIA-P700 User’s Manual
Running the Driver Utilities CD
To start using the CD, insert the CD into the CD-ROM or DVD-ROM
drive. The CD should run automatically after closing the CD-ROM or
DVD-ROM drive. The driver utilities and software menu screen should
then appear on the screen. If the CD does not run automatically, click on
the “Start” button and select “Run…” Then type: "D:\Setup.exe".
For Linux drivers, click the right button on mouse and click open. Linux
drivers are located in the "Driver" folder.
Note:
D: might not be the drive letter of the CD-ROM/DVD-ROM in your
system.
73
EPIA-P700 User’s Manual
CD Content
VIA 4in1 Drivers:
Contains VIA ATAPI Vendor Support Driver (enables the
performance enhancing bus mastering functions on ATAcapable Hard Disk Drives and ensures IDE device compatibility),
AGP VxD Driver (provides service routines to your VGA driver
and interface directly to hardware, providing fast graphical
access), IRQ Routing Miniport Driver (sets the system's PCI IRQ
routing sequence) and VIA INF Driver (enables the VIA Power
Management function).
Includes V-RAID and RAID tools.
VIA Graphics Driver:
Enhances the onboard VIA graphic chip.
VIA Audio Driver:
Enhances the onboard VIA audio chip.
VIA USB 2.0 Driver:
Enhances VIA USB 2.0 ports.
VIA LAN Driver:
Enhances the onboard VIA 10/100M LAN chip.
VIA RAID Driver
Support for SATA RAID devices.
74
Was this manual useful for you? yes no
