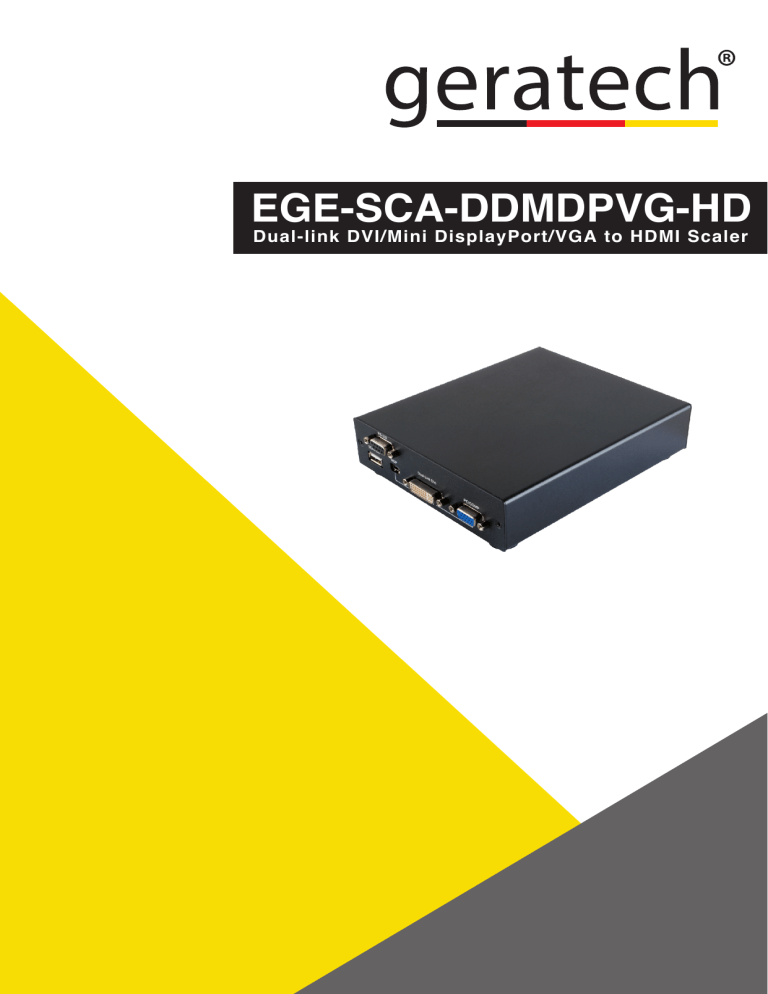

EGE-SCA-DDMDPVG-HD
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
DISCLAIMERS
The information in this manual has been carefully checked and is believed to be accurate.
Geratech Technology assumes no responsibility for any infringements of patents or other
rights of third parties which may result from its use.
Geratech Technology assumes no responsibility for any inaccuracies that may be
contained in this document. Geratech also makes no commitment to update or to keep
current the information contained in this document.
Geratech Technology reserves the right to make improvements to this document and/or
product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval
system, or any of its part translated into any language or computer file, in any form or by
any means—electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—
without express written permission and consent from Geratech Technology.
© Copyright 2017 by Geratech Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be trademarks of the
companies with which they are associated.
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
AFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate this equipment
and before connecting the power supply.
Please keep the following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of fire, electrical shock and
injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings or empty slots
in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be placed
upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings in the unit
housing that provide ventilation and allow for sufficient space for air to circulate around
the unit.
REVISION HISTORY
VERSION NO.
DATE (DD/MM/YY)
SUMMARY OF CHANGE
VR0
03/09/13
Preliminary release
VS1
09/12/14
Updated text/diagrams
VS2
30/03/17
Updated formatting
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
CONTENTS
1. Introduction�������������������������������������������������������������������������1
2. Applications������������������������������������������������������������������������1
3. Package Contents��������������������������������������������������������������1
4. System Requirements��������������������������������������������������������1
5. Features������������������������������������������������������������������������������1
6. Operation Controls and Functions�����������������������������������2
6.1 Front Panel����������������������������������������������������������������������2
6.2 Rear Panel����������������������������������������������������������������������3
6.3 Remote Control���������������������������������������������������������������4
6.4 OSD Menu�����������������������������������������������������������������������5
6.5 RS-232 Protocol��������������������������������������������������������������6
6.6 RS-232 and Telnet Commands���������������������������������������7
7. Connection Diagram����������������������������������������������������������9
8. Specifications�������������������������������������������������������������������10
8.1 Technical Specifications������������������������������������������������10
8.2 Video Specifications������������������������������������������������������ 11
8.3 Audio Specifications������������������������������������������������������12
9. Acronyms��������������������������������������������������������������������������13
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
1. INTRODUCTION
This HDMI Scaler can switch and convert Dual-link DVI, Mini DisplayPort and VGA/
Component Video inputs to an HDMI output, along with their associated audio signals.
With the ability to scale a wide range of resolutions, the operation of all features can be
easily handled through on-panel controls, IR remote control, or by RS-232 protocol.
2. APPLICATIONS
• Scale Dual-link DVI, Mini DisplayPort and VGA/Component Video input resolutions to
HDMI output resolutions
• Convert Dual-link DVI, Mini DisplayPort, VGA and Component Video signals to HDMI
signal
• Commercial presentation switching scaler
3. PACKAGE CONTENTS
• 1×mDP/DVI-D/VGA to HDMI Scaler
• 1×Remote Control (CR-123)
• 1×5V/2.6A DC Power Adaptor
• 1×Operation Manual
4. SYSTEM REQUIREMENTS
Dual-Link DVI/Mini DisplayPort/PC/YUV sources and output to an HDMI display.
5. FEATURES
• Supports Dual-link DVI and Mini DisplayPort input resolutions up to 2560×[email protected]
(RB), PC up to 1920×[email protected]/75Hz and Component Video up to [email protected]/60Hz
• Supports digital and analog audio bi-directional conversion, embedding and deembedding for the audio signals from individual inputs
• Supports Component Video input via D-sub 15-pin to 3 RCA phono adaptor
1
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
6
7
OUT
OPTICAL
AUDIO
XGA
HDMI OUT
POWER
DC 5V
MENU/
ENTER
OPTICAL
IN
720P
1
1
2
3
4
5
6
7
8
2
3
4
AUDIO
5
8
9
10
MENU/ENTER: Press this button to ENTER the On-screen Display (OSD) menu. Press
again to confirm the selection.
−/IN: When in the OSD menu, press this button repeatedly to move down through the
menu. When not in the OSD menu, press this button to quickly select the required input.
+/OUT: When in the OSD menu, press this button repeatedly to move up through the
menu. When not in the OSD menu, press this button to quickly select the required
output resolution.
Note:Pressing “−” (MINUS) and “ENTER” simultaneously will immediately switch the
output resolution of the device to [email protected] Pressing “+” (PLUS) and “ENTER”
simultaneously will immediately switch the output resolution of the device to XGA.
OPTICAL IN: Digital audio TOSLINK input. Use this input to connect to a source with an
OPTICAL cable.
AUDIO IN: Analog audio input. Use this input to connect to analog source with a 3.5mm
mini-jack cable.
OPTICAL OUT: Digital audio TOSLINK output. Use this output to connect to an Amplifier
or Active Speakers to an optical digital input with an OPTICAL cable.
AUDIO OUT: Analog audio output. Use this output to connect to Active Speakers or an
Amplifier with a 3.5mm mini-jack cable.
HDMI OUT: Connect to a HDMI equipped TV/monitor for display of the source signal.
2
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
IR WINDOW: Receives the IR signal from the supplied IR Remote only.
10 DC 5V & POWER LED: Connect the supplied 5V DC power supply to the unit and plug
the power supply to AC wall outlet. Once the system turns on the LED will turn RED.
9
6.2 Rear Panel
RS232
SERVICE
MDP
Dual-Link DVI
PC/COMP
IN
1
1
2
3
4
5
3
2
3
4
5
RS232: Connect to a PC or RS-232 control system with a D-sub 9-pin cable for RS-232
control.
SERVICE: Manufacturer use only.
MDP IN: Connect to a DisplayPort source device such as a PC/laptop with a miniDisplayPort cable.
Dual-Link DVI IN: Connect to a DVI source device such as a PC/laptop with a DVI
cable.
PC/COMP IN: Connect to a VGA source such as a PC/laptop source equipment with
a D-sub 15-pin cable or to a Component Video source with a D-sub 15-pin to 3 RCA
phono adaptor for component video signal input.
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
6.3 Remote Control
1
2
3
4
5
6
7
8
9
POWER: Press to turn the system ON/OFF.
VIDEO IN: Press the required key to directly
select the video source (DVI/MDP/PC/COMP).
AUDIO IN: Press the required key to directly
select the audio source (AUDIO/OPTICAL/
MDP) or to MUTE the system.
MENU: Press this button to ENTER the OSD
menu.
EXIT: Press this button to EXIT the OSD
menu.
ENTER & ▲/▼/◄/►: Press ENTER button
to confirm the selection and press the arrow
keys to navigate the OSD menu.
INFO: Press to show the input and output
resolution information.
OUTPUT: Press to show the output resolution table.
NATIVE: Press to switch to the native resolution.
1
DVI
MDP
PC
COMP
2
VIDEO IN
AUDIO
OPTICAL
MDP
MUTE
5
6
7
3
AUDIO IN
EXIT
MENU
4
OUTPUT
8
ENTER
INFO
NATIVE
9
CR-123
4
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
6.4 OSD Menu
LEVEL 1
Input Video
LEVEL 2
PC
LEVEL 3
COMP
DVI
MDP
Input Audio
Exit
Audio
Optical
MDP
Mute
Output
Resolution
Exit
720×480P
1280×720P
1920×1080P
640×480 (VGA)
800×600 (SVGA)
1024×768 (XGA)
1280×1024
(SXGA)
1600×1200
(UXGA)
1920×1200
(WUXGA)
1280×800
(WXGA)
By Native
Misc. Setup
Exit
EDID Mode
Info. OSD Mode
5
Internal
External
Exit
Off
On
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
LEVEL 1
Misc. Setup
(cont.)
LEVEL 2
LEVEL 3
About
FW Ver.
Factory Reset
System Reset
Info. OSD Mode
Exit
Exit
Exit
6.5 RS-232 Protocol
UNIT
REMOTE CONTROLLER
Pin
Assignment
Pin
Assignment
1
NC
1
NC
2
TxD
2
RxD
3
RxD
3
TxD
4
NC
4
NC
5
GND
5
GND
6
NC
6
NC
7
NC
7
NC
8
NC
8
NC
9
NC
9
NC
►
◄
Baud Rate: 19200bps
Data Bits: 8
Parity: None
Flow Control: None
Stop Bits: 1
6
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
6.6 RS-232 and Telnet Commands
COMMAND
POWER ?
DESCRIPTION
Power Status
POWER ON
Power On
POWER OFF
Power OFF
VIDEO ?
Video Input Source
DVI
Video Input in DVI
MDP
Video Input in MDP
PC
Video Input in PC
COMP
Video Input in Component
AUDIO ?
Audio Input Source
AUDIO
Audio Input in AUDIO
OPTICAL
Audio Input in OPTICAL
MDPA
Audio Input in MDP
MUTE ?
MUTE On/Off
MUTE ON
MUTE On
MUTE OFF
MUTE Off
INFO ?
Info. OSD Status
INFO ON
Info. OSD On
INFO OFF
Info. OSD Off
INFO DISPLAY
Info.OSD On/Off
OUTPUT ?
Output Status
480P
Output in 480p
720P
Output in 720p
1080P
Output in 1080p
VGA
Output in VGA (640×480)
SVGA
Output in SVGA (800×600)
XGA
Output in XGA (1024×768)
SXGA
Output in SXGA (1280×1024)
UXGA
Output in UXGA (1600×1200)
WUXGA
Output in WUXGA (1920×1200)
WXGA
Output in WUXGA (1280×800)
NATIVE
Output by Native
EDID ?
EDID Status
7
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
COMMAND
EDID INT
DESCRIPTION
EDID By Internal
EDID EXT
EDID By External
STATE ?
Video Input Signal Status
VERSION ?
Display Firmware Version
FEEDBACK ?
Key Feedback Status
FEEDBACK ON
Key Feedback Enable
FEEDBACK OFF
Key Feedback Disable
DEFAULT
Reset to Factory Default
ABOUT ?
About the Unit
Note: Commands will not be executed unless followed by a carriage return. Commands
are not case-sensitive.
8
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
7. CONNECTION DIAGRAM
PC
PC
Laptop
Dual-link DVI Input
VGA Input
Mini DisplayPort Input
Analog Audio Input
(3.5mm)
RS-232
RS232
SERVICE
Dual-Link DVI
MDP
PC/COMP
IN
Digital Audio Input
(Optical)
XGA
AV Receiver
9
HDMI OUT
POWER
DC 5V
720P
Digital Audio Output
(Optical)
OUT
OPTICAL
AUDIO
MENU/
ENTER
OPTICAL
IN
Analog Audio Output
(3.5mm)
AUDIO
HDMI Output
HDTV
Power
Supply
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
8. SPECIFICATIONS
8.1 Technical Specifications
DP Video Bandwidth
2.7Gbps & 2.7Gbps/Lane
Input Ports
1×Mini DisplayPort
1×Dual-link DVI
1×VGA (15-pin D-sub)
1×Digital Audio (Optical/TOSLINK)
1×Analog Audio (3.5mm)
Output Ports
1×HDMI
1×Optical Audio (TOSLINK)
1×Stereo Audio (3.5mm)
Control Interfaces
1×RS-232 (9-pin D-sub)
Power Supply
5V/2.6A DC (US/EU standards, CE/FCC/UL
certified)
ESD Protection
Human Body Model:
±12kV (Air Discharge)
±8kV (Contact Discharge)
Dimensions
141mm×50mm×179mm (W×H×D)
[Case Only]
141mm×50mm×181mm (W×H×D)
[All Inclusive]
Weight
700g
Chassis Material
Aluminum
Silkscreen Color
Black
Operating Temperature
0˚C - 40˚C/32˚F - 104˚F
Storage Temperature
−20˚C - 60˚C/−4˚F - 140˚F
Relative Humidity
20 - 90% RH (Non-condensing)
Power Consumption
8.9W
10
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
8.2 Video Specifications
640×[email protected]
640×[email protected]
720×[email protected]
640×[email protected]/72/75/85
848×[email protected]
1024×768 @60/75/85/120
(RB)
1280×[email protected]
1280×[email protected]
(RB)/60/75/85/120 (RB)
1280×[email protected]
(RB)/60/75/85/120 (RB)
1280×[email protected]/85
1280×[email protected]/75/85
1360×[email protected]/120 (RB)
1366×[email protected] (RB)/60
1400×[email protected]
(RB)/60/75
1440×[email protected]
(RB)/60/75/85
1600×[email protected] (RB)
1600×[email protected]
1680×[email protected] (RB)/60
1792×[email protected]/75
1856×[email protected]/75
1920×[email protected]
1920×[email protected] (RB)/60
1920×[email protected]
11
HDMI
Output
COMP
PC
DVI-DL
Supported Resolutions
(Hz)
mDP
Input
 

 

 

 


 


 

 

 

 

 

 

 

 

 

 

 

 

 

 





 

 

 
60
 
60
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
2048×[email protected]@50/60
 
2048×[email protected]@60 (RB)
Output
HDMI
COMP
PC
DVI-DL
Supported Resolutions
(Hz)
mDP
Input

 
2560×[email protected] (RB)
 
480i

480p

576i


576p

[email protected]/25/30/50 /60

[email protected]/60


[email protected]/30/50/60


Note: When output timing is set to “By Native” yet the timing does not match the built-in
support timing,output timing will set to default at 1280×720p automatically.
8.3 Audio Specifications
Input
Terminal
Digital
(S/PDIF)
Analog
(2CH)
Output
Terminal
Output
Level
THD+N
Frequency
Response
SNR
Crosstalk
HDMI
0 ~ −1dB
< 0.1%
N/A
> 70dB
< −60dB
Optical
0 ~ −1dB
< 0.1%
N/A
> 70dB
< −60dB
Analog
2Vrms±10%
< 0.1%
2Vrms±10%
> 70dB
< −60dB
HDMI
0 ~ −1dB
< 0.1%
2Vrms±10%
> 70dB
< −60dB
Optical
0 ~ −1dB
< 0.1%
2Vrms±10%
> 70dB
< −60dB
Analog
2Vrms±10%
< 0.1%
2Vrms±10%
> 70dB
< −60dB
12
EGE-SCA-DDMDPVG-HD
Dual-link DVI/Mini DisplayPort/VGA to HDMI Scaler
9. ACRONYMS
ACRONYM
COMPLETE TERM
DP
DisplayPort
EDID
Extended Display Identification Data
DVI
HD
HDCP
HDMI
LPCM
OSD
PC
PCM
S/PDIF
USB
VGA
WUXGA
13
Digital Visual Interface
High-Definition
High-bandwidth Digital Content Protection
High-Definition Multimedia Interface
Linear Pulse-Code Modulation
On-Screen Display
Personal Computer
Pulse-Code Modulation
Sony/Philips Digital Interface Format
Universal Serial Bus
Video Graphics Array (640×[email protected])
Wide Ultra Extended Graphics Array (1920×[email protected])
14
www.geratech.com.tr
www.egerate.com
www.egerate-store.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
