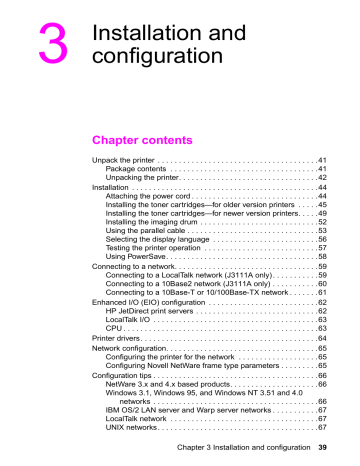

Chapter contents
Unpack the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Unpacking the printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Attaching the power cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Installing the toner cartridges—for older version printers . . . . .45
Installing the toner cartridges—for newer version printers. . . . .49
Installing the imaging drum . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Using the parallel cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Selecting the display language . . . . . . . . . . . . . . . . . . . . . . . . .56
Testing the printer operation . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Using PowerSave. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Connecting to a network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Connecting to a LocalTalk network (J3111A only) . . . . . . . . . . .59
Connecting to a 10Base2 network (J3111A only) . . . . . . . . . . .60
Connecting to a 10Base-T or 10/100Base-TX network . . . . . . .61
Enhanced I/O (EIO) configuration . . . . . . . . . . . . . . . . . . . . . . . . . .62
HP JetDirect print servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
LocalTalk I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Printer drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Network configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Configuring the printer for the network . . . . . . . . . . . . . . . . . . .65
Configuring Novell NetWare frame type parameters . . . . . . . . .65
Configuration tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
NetWare 3.x and 4.x based products. . . . . . . . . . . . . . . . . . . . .66
Windows 3.1, Windows 95, and Windows NT 3.51 and 4.0
networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
IBM OS/2 LAN server and Warp server networks . . . . . . . . . . .67
LocalTalk network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
UNIX networks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Chapter 3 Installation and configuration
39
Setting network security on the printer . . . . . . . . . . . . . . . . . . . . . . .68
Locking the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Using an ASCII PJL escape sequence to set network security .70
40
Chapter contents
Unpack the printer
1
2
3
4
9
5
6
7
8
Figure 3-1
Package contents
Package contents
The following items are included with the printer:
1
Printer guides: getting started guide and quick reference guide
2
Software CD-ROMs (including printer drivers and software,
network administrator utilities, online user guide, and the
HP JetDirect Print Server Installation Guide)
3
Power cord
4
Control panel overlay (for non-English language users)
5
Parallel cable (not included with the HP Color LaserJet 4500 N
and 4500 DN printer)
6
Imaging drum
7
Four toner cartridges: cyan (C), magenta (M), yellow (Y), and
black (K)
8
Tray 3 (500-sheet paper feeder, included only with the HP Color
LaserJet 4500 DN printer)
9
Duplex unit (included only with the HP Color LaserJet 4500 DN
printer)
Chapter 3 Installation and configuration
41
1
Unpacking the printer
Note
Save all of the packing materials in case
you need to repack and transport the
printer at a later date.
WARNING!
The base and N model printers weigh
approximately 57 kg (125 lb). The DN
model weighs 77 kg (169 lb) with Tray 3
and the duplex unit installed.
HP recommends having two or more
people lift or move any of the printers.
2
1
3
Using safe lifting techniques, remove
the printer and the printer
accessories from the box.
CAUTION
The prepared location must be level (not
more than a 2° angle), able to support up
to 77 kg (169 lb), and must support all
four corners of the 500-sheet paper
feeder (serves as printer base).
2
Place the 500-sheet feeder in the
prepared location.
CAUTION
Avoid bending the guide pins while
assembling the printer.
3
42
Unpack the printer
Using the guide pins for proper
alignment, carefully assemble the
printer and accessories.
4
4
Open the ITB drawer and remove
the packing tape, then close the
drawer.
Chapter 3 Installation and configuration
43
Installation
1
Attaching the power cord
1
Locate the standby button (power
switch) on the front of the printer.
2
The standby button has two
positions: in (power on) and out
(standby mode—the fans remain
on). Make sure that the standby
button is out (standby mode).
3
Locate the power cord on the back
side of the printer for the HP Color
LaserJet 4500 or 4500 N printers or
on the duplex unit for the HP Color
LaserJet 4500 DN printer. Connect
the power cord to the power
receptacle on the back of the printer.
2
3
44
Installation
1
2
Installing the toner
cartridges—for older
version printers
Note
The following instructions are for older
versions of the 4500 series printers (see
page 146 to determine which version of
the printer you have). See page 49 for
instructions on installing toner cartridges
in newer version printers.
1
Locate the toner cartridges
packaged in the printer box. The
printer uses four different toner
colors and has a different toner
cartridge for each color: C = cyan,
M = magenta, Y = yellow, and
K = black.
2
Close all the doors and drawers on
the printer. If the printer is not
already turned on, turn it on. Wait for
the printer to warm up. When it is
ready, the control panel displays:
3
TONER POSITION
CYAN = MISSING
Note
If the INSTALL DRUM message appears,
wait for the INSTALL TONER CARTRIDGE
message, then proceed with the
following instructions.
3
Push the dark gray release button on
the side of the printer ([1]) and open
the top cover ([2]).
Chapter 3 Installation and configuration
45
4
4
The cartridge slot for the cyan toner
cartridge is visible. Lift up the flap
that partially covers the cartridge
slot. The correct toner color is shown
on the flap.
CAUTION
Do not shake the toner cartridges after
removing them from the packaging.
5
5
Remove the cyan toner cartridge
from the bag. Gently rotate the toner
cartridge from side to side to
redistribute the toner.
6
Remove the inside sealing tape by
firmly pulling the orange tab located
on the end of the toner cartridge. (If
the tab breaks off, pull on the tape.)
6
CAUTION
Do not shake the toner cartridge after
you have removed the inside tape. Doing
so could cause toner to spill.
7
7
46
Installation
Position the toner cartridge over the
cartridge slot so that the blue arrow
on the toner cartridge points to the
blue arrow on the printer.
8
8
Make sure that the tab on the other
end of the toner cartridge aligns with
the notch on the cartridge slot.
Note
If the tab does not fit in the notch when
you insert the toner cartridge, the toner
is the wrong color for that cartridge slot.
9
9
Hold the toner cartridge so that the
arrow on the right side of the
cartridge (the control panel side of
the printer) points straight down.
10 Slide the toner cartridge down into
the slot until the cartridge stops.
10
11 Rotate the toner cartridge toward the
back of the printer (within the
cartridge slot) until the cartridge
stops. The cartridge shutter opens to
reveal the developer sleeve.
11
Chapter 3 Installation and configuration
47
12 Lower the flap to partially cover the
toner cartridge and close the top
cover.
12
Note
You must close the top cover before
installing the next toner cartridge.
13 On the printer control panel, press
[Value +] once to prepare the printer
for installation of the next toner
cartridge. When the printer is ready,
the control panel displays:
13
TONER POSITION
(color) = MISSING
14 Install the other three toner
cartridges by repeating steps 3-12.
Install them in the following order:
1. magenta (M)
2. yellow (Y)
3. black (K)
14
15 After installing the fourth toner
cartridge, close the top cover and
press [Go]. Wait while the printer
runs an internal color calibration.
The calibration takes a few minutes.
When the printer is ready, the control
panel displays: READY.
15
CAUTION
If you need to ship the printer, remove
the toner cartridges and imaging drum
before shipping.
48
Installation
1
2
C
Y
M
K
Installing the toner
cartridges—for newer
version printers
Note
The following instructions are for newer
versions of the 4500 series printers (see
page 146 to determine which version of
the printer you have). See page 45 for
instructions on installing toner cartridges
in older version printers.
1
Locate the toner cartridges
packaged in the printer box. The
printer uses four different toner
colors and has a different toner
cartridge for each color:
C = Cyan; M = Magenta; Y = Yellow;
and K = Black.
2
If the printer is not already turned on,
turn it on and close all doors and
drawers. After the printer warms up
for a few minutes, the control panel
displays: TONER POSITION
3
CYAN = MISSING
4
3
Push the dark gray release button on
the left side of the printer ( [1] ) and
open the printer’s top cover ( [2] ).
4
The cartridge slot for the cyan toner
cartridge is visible. Lift up the flap
that partially covers the cartridge
slot.
Chapter 3 Installation and configuration
49
5
5
Remove the cyan toner cartridge
from the bag and locate the orange
tab on the end of the toner cartridge.
Pull the tab firmly to remove the
inside sealing tape. (If the tab breaks
off, pull on the tape.) Discard the
tape.
6
Position the toner cartridge over the
cartridge slot so that the blue arrow
on the toner cartridge points to the
blue arrow on the printer. The arrow
on the right (control panel side of the
printer) should point straight down.
7
Slide the toner cartridge down into
the slot until the cartridge stops.
6
Note
If the cartridge does not slide easily into
the slot, ensure that you have the right
color cartridge for that slot.
7
8
8
50
Installation
Rotate the toner cartridge toward the
back of the printer (within the
cartridge slot) until the cartridge
clicks in place.
9
9
10
Lower the flap to partially cover the
toner cartridge. If the cartridge was
rotated correctly, the flap covers the
cartridge label. Close the top cover
before installing the next toner
cartridge.
10 When the top cover is shut, the
carousel advances to the next toner
cartridge slot. When the printer is
ready, the control panel displays:
TONER POSITION
(COLOR> = MISSING
Install the other three toner
cartridges by repeating steps 3
through 9.
11 After installing the fourth toner
cartridge, close the top cover and
press [Go]. Wait while the printer
runs an internal color calibration.
The calibration takes a few minutes.
When the printer is ready, the control
panel displays: READY
Chapter 3 Installation and configuration
51
Installing the imaging
drum
1
CAUTION
Avoid exposing the imaging drum to
direct light. Exposure to light for more
than 15 seconds can seriously damage
the imaging drum.
2
1
Pull open the drum drawer until it
stops.
2
Align the imaging drum over the
drawer so that the arrow on top
points to the rear of the printer, and
the blue end cap on the side slides
into the slot identified with the blue
arrow.
3
Slide the imaging drum down into
place.
4
Push the front upper drawer shut.
Wait while the printer runs an
internal color calibration. The
calibration takes a few minutes.
When the printer is ready, the control
panel displays READY.
3
4
CAUTION
If you need to ship the printer, remove
the toner cartridges and imaging drum
before shipping.
52
Installation
Using the parallel cable
The printer can connect to the computer with a bidirectional parallel
cable (IEEE-1284C compliant) (see Figure 3-2). Connect the male
“C” connector to the printer and the male “B” connector to the
computer. HP recommends that the parallel cable length be no longer
than 10 meters (30 ft) in length. The cable (HP part number C2946A)
is included with the HP Color LaserJet 4500 printer. It must be
purchased separately for the HP Color LaserJet 4500 N and DN
printers.
Figure 3-2
Parallel cable with a “C” connector
Parallel interface
When used to describe a parallel interface, the term bidirectional
indicates that the printer is able to both receive data from the
computer and to send data to the computer through the parallel port.
Note
To use the enhanced capabilities of the bidirectional parallel interface
such as bidirectional communication between the computer and
printer, faster transfer of data, and automatic configuration of printer
drivers, your software application must support these capabilities.
When you are using multiple ports, you can adjust automatic I/O
switching to maximize performance by using the timeout feature. If
data from other ports appears in the middle of your print job, increase
the I/O timeout value.
Chapter 3 Installation and configuration
53
Connecting a parallel cable
1
2
Press the printer standby button
(power switch) to place the printer in
standby mode. Turn off the
computer.
2
Plug the parallel cable into the
printer’s parallel port until it snaps
into place.
3
Plug the other end of the parallel
cable into the computer. Tighten the
screws on the parallel cable to
secure the cable to the computer.
4
Turn the computer on and then turn
the printer on.
Note
Your system will sense the printer (if your
system is Plug and Play compatible).
Follow the directions on your screen. To
install the complete software package,
cancel Plug and Play, and see the
getting started guide for more
information.
3
4
54
1
Installation
Parallel cable pin configuration
To take advantage of the enhanced bidirectional parallel interface,
use a 10-meter (30 ft.) parallel cable (IEEE-1284 compliant) with a
25-pin DB male to a (IEEE-1284C) male “C” connector. Use the
following table to verify correct pin configuration.
Signal Name
Printer Pin #
Computer
Port #
nSTROBE
15
1
DATA 0
6
2
DATA 1
7
3
DATA 2
8
4
DATA 3
9
5
DATA 4
10
6
DATA 5
11
7
DATA 6
12
8
DATA 7
13
9
nACKNLG
3
10
BUSY
1
11
CALL (PE)
5
12
SELECT
2
13
NAutoFd
17
14
O VDC (GND)
19 – 35
18 – 25
nFAULT
4
15
nSe/In
16
17
nINIT
14
16
PERIPHLH
36
N.C.
18
Chapter 3 Installation and configuration
55
Selecting the display
language
1
To change the display language on the
printer control panel do the following:
1
Press and hold [Select] on the
printer control panel while pressing
the standby button (power switch).
Continue holding [Select] until the
control panel displays
SELECT LANGUAGE (in English), and
then release the [Select] key.
2
When the control panel displays
LANGUAGE=ENGLISH *, press
[Value] repeatedly until your
language choice appears.
3
Press [Select] to save your language
choice. An asterisk appears next to
the selected language. Then press
[Go].
4
After the printer warms up, the
control panel displays READY in the
selected language. See Table 7-2 on
page 226 if an error message
appears.
2
3
4
Note
If the control panel does not display the
message in the language you selected,
press the printer standby button and
repeat the instructions for changing the
display language.
56
Installation
1
Testing the printer
operation
Print a configuration page to ensure that
the printer is working properly.
2
1
On the control panel, press [Menu]
until INFORMATION MENU appears
on the display.
2
Press [Item] until
3
Press [Select] to print a configuration
page.
4
After about 30 seconds, the
configuration page prints. If it does
not print, see the “Troubleshooting
flowchart” on page 221.
PRINT CONFIGURATION appears.
3
4
Chapter 3 Installation and configuration
57
Using PowerSave
1
PowerSave reduces power consumption
when the printer is not in use. The
factory default setting for PowerSave is
ON, and the time setting is one hour. The
instructions below explain how to change
the time setting and how to turn
PowerSave OFF.
2
To set PowerSave
1
On the control panel, press [Menu]
until CONFIGURATION MENU
appears on the control panel display.
2
Press [Item] until
3
Press [Value +] or [Value –] to display
other time-setting choices between 1
minute and 8 hours, or to turn time
setting off.
4
Press [Select] to save your choice.
An asterisk (*) appears beside your
saved choice.
5
Press [Go]. The control panel
displays READY.
3
4
5
58
Installation
POWERSAVE=1 HR * appears.
Connecting to a network
The following ports are available on the
HP JetDirect print servers:
1
1
LocalTalk DIN-8 port (not available
on the HP JetDirect J3113A print
server.)
2
BNC port for ThinLAN coaxial cable
(not available on the HP JetDirect
J3113A print server)
3
RJ-45 port
2
3
Network cable connection
Note
On the HP JetDirect J3113A print server,
you can attach either a ThinLAN cable or
a 10Base-T cable, but not both at the
same time.
See the instructions that follow to
connect one or more network cables to
the printer.
Connecting to a LocalTalk
network (J3111A only)
Plug the end of your DIN-8 cable into the
LocalTalk port on the HP JetDirect print
server. Attach the other end to the
network.
Note
Network cables are not included with the
printer. They must be purchased
separately.
LocalTalk DIN-8 connection
Chapter 3 Installation and configuration
59
Connecting to a 10Base2
network (J3111A only)
1
1
Attach one section of your ThinLAN
cable to the BNC “T” connector.
2
Attach another ThinLAN cable
section ( [1] ) or a 50-ohm terminator
( [2] ) to the other side of the BNC
“T” connector. If you are attaching
the printer to the end of your
network, you must connect a
50-ohm terminator.
2
Note
The BNC “T” connector and 50-ohm
terminator for the 10Base-2 connection
are not included with the printer. They
must be purchased separately.
3
3
Connect the BNC “T” connector to
the BNC port on the HP JetDirect
print server.
Note
The HP JetDirect J3111A print server
supports one Ethernet cable connection
at a time.
BNC port
60
Connecting to a network
Connecting to a 10Base-T
or 10/100Base-TX network
Plug the connector of your unshielded
twisted-pair cable into the RJ-45 port.
The other end of the cable should be
attached to the network.
Note
The HP JetDirect print server supports
one Ethernet cable connection at a time.
RJ-45 (10Base-T or 10/100Base-TX)
connection
Chapter 3 Installation and configuration
61
Enhanced I/O (EIO) configuration
This printer comes equipped with two enhanced input/output (EIO)
slots. These slots hold compatible external devices such as the
HP JetDirect 600N Print Server. Plugging EIO cards into the slots
increases the number of network interfaces available to the printer.
EIO cards can maximize printer performance when you are printing
from a network. In addition, they provide the ability to place the printer
anywhere on a network. This eliminates the need to attach the printer
directly to a server or a workstation and enables you to place the
printer closer to your network users.
The printer control panel will have an additional menu (EIO Menu) if
the printer is configured with EIO cards. (See the chapter on using the
printer control panel in the online user guide.)
Note
Installation of cards and network configuration should be performed by
a network administrator.
HP JetDirect print servers
HP JetDirect print servers (network cards) can be installed in one of
the printer EIO slots. These cards support multiple network protocols
and operating systems. HP JetDirect print servers facilitate network
management by allowing you to connect a printer directly to your
network at any location. HP JetDirect print servers also support the
Simple Network Management Protocol (SNMP), which provides
network managers with remote printer management and
troubleshooting through HP JetAdmin software.
62
Enhanced I/O (EIO) configuration
LocalTalk I/O
The LocalTalk interface enables you to print directly from a standalone Apple Macintosh computer or from a Macintosh computer on a
LocalTalk network. For specific information on configuring your
computer and printer to print through a LocalTalk interface, refer to
the printer’s getting started guide and the HP JetDirect Print Server
Software Installation Guide
CPU
The formatter PCB incorporates a 133MHz RISC processor.
Chapter 3 Installation and configuration
63
Printer drivers
The optimal way to control the printer is through settings in a software
application or through the printer driver. Changing print settings via a
software application affects only that particular print job. Most
software applications allow you to choose print settings from menus
within the application. Software application settings and printer driver
settings override the settings on the printer control panel.
For best print quality, always select the paper or media type in the
printer driver. Different media types use different printer settings. For
example, selecting transparencies in the driver causes the printer to
use a different color table, one designed for maximum print quality on
transparencies. Additionally, transparencies cause the printer to
adjust printer speed and fuser temperature.
Other media types affect the printer settings as well: Selecting heavy
or glossy media, for example, causes the printer to change the engine
speed.
The printer driver also gives you customized control of color text,
graphics, and photos. The following color control features are
available only through your HP printer driver:
Halftone Options
HP ColorSmart II
Halftone options affect the resolution and clarity of your color output.
You can select halftone settings for text, graphics, and photos
independently. The two halftone options are Smooth and Details.
HP ColorSmart II default settings will produce optimum results for
most color printing needs. However, you can also manually adjust
color settings through the printer driver’s Vivid Color and Screen
Match color control options.
See the printer driver’s online Help for details on color settings and
their effect on printed output.
64
Printer drivers
Network configuration
Configuring the printer for the network
You can configure certain network parameters on the printer from the
printer control panel or, for most networks, from the HP JetAdmin
Software (or the HP LaserJet Utility for Macintosh). The utilities are
provided on the printing software CD-ROM that comes with the
printer. You can also set these parameters from the HP Web
JetAdmin Software, which is available at http://www.hp.com/go/
webjetadmin.
For a complete list of supported networks and for instructions on
configuring network parameters from software such as HP JetAdmin
and HP Web JetAdmin, see the HP JetDirect Print Server Software
Installation Guide. The guide comes on the
CD-ROM with printers in which an HP JetDirect 600N print server is
installed.
Note
If you are configuring network parameters from the printer control
panel, the control panel menu for configuring parameters appears in
the languages listed below. If your language is not listed, the menu will
appear in English and you will need to configure the printer by using
HP JetAdmin software (or the HP LaserJet Utility for Macintosh).
Danish
Dutch
English
Finnish
French
German
Italian
Norwegian
Portuguese
Spanish
Swedish
Configuring Novell NetWare frame type
parameters
The HP JetDirect 600N print server automatically selects a NetWare
frame type. Select a frame type manually only when the print server
selects an incorrect frame type. To identify the frame type chosen by
the HP JetDirect 600N print server, print a configuration page.
Chapter 3 Installation and configuration
65
Configuration tips
HP JetDirect 600N print servers (network cards) provide software
solutions for:
Novell NetWare versions 3.x and 4.x
Microsoft Windows 3.1 and Windows 95
Microsoft Windows NT 3.51 and 4.0
IBM OS/2 LAN Server or Warp Server
LocalTalk
UNIX (HP-UX, Solaris, and SunOS)
For information on installing HP JetDirect 600N print servers and the
types of interfaces and network operating systems supported, see the
HP JetDirect Print Server Software Installation Guide.
NetWare 3.x and 4.x based products
When using Novell NetWare 3.x and 4.x products with the
HP JetDirect print server, queue server mode provides improved
printing performance over remote printer mode. For more information,
see the HP JetDirect Print Server Software Installation Guide.
Windows 3.1, Windows 95, and
Windows NT 3.51 and 4.0 networks
For Windows 3.1 and Windows 95 networks, HP JetAdmin software
works as a Windows application and supports native Novell Directory
Services (NDS).
For peer-to-peer Windows 95 networks, HP JetAdmin software works
as a Windows application, and connects HP printers to an IPX/SPXcompatible printer network using an HP JetDirect print server.
For Windows NT 3.51 and 4.0 networks, HP JetAdmin software
supports the TCP/IP or IPX/SPX environments.
66
Configuration tips
IBM OS/2 LAN server and Warp server
networks
For IBM OS/2 LAN Server and Warp Server Networks, HP JetAdmin
software supports the DLC environments. Depending on the number
of network printers and type of printer driver, when using virtual
memory, improved performance may be realized by increasing server
RAM, especially if the swapper.dat file is large.
LocalTalk network
The LocalTalk interface enables you to print directly from a standalone Apple Macintosh computer or from a Macintosh computer on a
LocalTalk network. For specific information on configuring your
computer and printer to print through a LocalTalk interface, refer to
the printer’s getting started guide and the HP JetDirect Print Server
Software Installation Guide.
Macintosh DIN-8 cable
To connect a Macintosh computer directly to this printer, use a
standard Macintosh DIN-8 printer cable. This cable cannot be used in
a network configuration.
Note
For LocalTalk configuration, the DIN-8 printer cable must be plugged
into the printer port of your Macintosh computer.
LocalTalk configuration
To connect the printer to a Macintosh computer on a LocalTalk
network, use the HP LocalTalk Cable Kit. You will need a kit for each
printer and an additional kit for each Macintosh computer on your
network.
UNIX networks
HP JetAdmin software provides a TCP/IP-based solution for
configuring and managing HP JetDirect print servers on HP-UX,
Solaris, and SunOS systems.
Chapter 3 Installation and configuration
67
Setting network security on the printer
This printer features control panel locking, which allows network
administrators to prevent users from changing certain printer control
panel settings. When a menu is locked, unauthorized users trying to
change settings in the printer control panel will receive the following
message:
ACCESS DENIED
MENUS LOCKED
You can use HP JetAdmin software, the HP LaserJet Utility for
Macintosh, or an ASCII escape sequence to perform this procedure.
For instructions on locking the printer control panel using either the
HP JetAdmin software or the HP LaserJet Utility for Macintosh, see
the online Help for these utilities.
68
Setting network security on the printer
Locking the control panel
You can prevent users from changing printer control panel settings by
establishing a password and locking the printer control panel. The
control panel offers multiple levels of security. You can lock certain
control panel menus, allowing users to change the rest of the menus,
or you can lock all of the menus—and you can even lock the
[Cancel Job] key. When the printer control panel is locked,
unauthorized users who try to change settings at the control panel
receive the following message:
ACCESS DENIED
MENUS LOCKED
Levels of security
Lock setting
Control panel items locked
0 = None
No items are locked
1 = Minimum
Configuration Menu
I/O Menu
Calibration Menu
Resets Menu
2 = Moderate
Configuration Menu
I/O Menu
Calibration Menu
Resets Menu
Paper Handling Menu
3 = Maximum
Configuration Menu
I/O Menu
Calibration Menu
Resets Menu
Paper Handling Menu
Information Menu
Printing Menu
[Cancel Job] key
Use HP JetAdmin software, HP LaserJet Utility for Macintosh, or an
ASCII escape sequence to perform this procedure. HP software,
which comes on the software CD-ROM, is easier to use than an
ASCII escape sequence. For instructions on locking the control panel
by using either HP JetAdmin software or the HP LaserJet Utility for
Macintosh, access the online Help for that software.
Chapter 3 Installation and configuration
69
Using an ASCII PJL escape sequence to
set network security
If you decide to use the ASCII escape sequence, you must use an
MS-DOS® or Windows ASCII editor to create the commands. The
commands must also be sent to the printer by using a DOS COPY
command or an ASCII file download utility. The PJL Technical
Reference Manual is located on CD, part number 5961-0976. Order a
copy of this manual from the HP web site: hp.com.
Note
In the following examples, EC represents the escape character. For
more information on using escape characters, see the PJL Technical
Reference Manual.
To lock or unlock the printer control panel if a password has not
been set, send the following ASCII sequence to the printer:
EC%[email protected] JOB
@PJL DEFAULT CPLOCK=NONE
(or MINIMUM, MODERATE, or MAXIMUM)
@PJL EOJ
EC%-12345X
To set the password, send the following ASCII sequence to the
printer:
EC%[email protected] JOB
@PJL DEFAULT PASSWORD=[numeric password (0 to
65535)]
@PJL EOJ
EC%-12345X
To lock or unlock the control panel if the password has been set,
send the following ASCII sequence to the printer:
EC%[email protected] JOB PASSWORD=(numeric password)
@PJL DEFAULT CPLOCK=NONE
(or MINIMUM, MODERATE, or MAXIMUM)
@PJL EOJ
EC%-12345X
70
Setting network security on the printer
4
Printer maintenance
Chapter contents
Cleaning the printer and accessories. . . . . . . . . . . . . . . . . . . . . . . .72
Cleaning spilled toner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Approximate replacement intervals for consumable items . . . . . . . .74
Imaging drum life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Replacement intervals for consumables . . . . . . . . . . . . . . . . . .77
Locating consumables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Replacing consumable items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Cleaning the toner density sensor . . . . . . . . . . . . . . . . . . . . . . .79
Replacing the toner cartridges. . . . . . . . . . . . . . . . . . . . . . . . . .80
Replacing the imaging drum . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Replacing the transfer kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Replacing the fuser kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Replacing the paper rollers . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
DIMM configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Adding memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Chapter 4 Printer maintenance
71
Cleaning the printer and accessories
To maintain high print quality and performance, use the following
opportunities to thoroughly clean the printer and the paper handling
accessories:
every time you change the toner cartridge (run a few pages
through)
after printing approximately 5,000 pages for C (cyan),
M (magenta), and Y (yellow); and 8,000 pages for K (black)
whenever print quality problems occur
Clean the outside surfaces with a lightly water-dampened cloth.
Observe the warning and caution below.
WARNING!
Before you begin these steps, turn the printer off and unplug all power
cords to avoid shock hazard.
Be careful when cleaning around the fusing assembly area. It may be
hot.
CAUTION
To avoid permanent damage to the toner cartridge, do not use
ammonia-based cleaners on or around the printer.
Do not touch the transfer roller. Skin oils on the roller can reduce print
quality. If toner gets on your clothes, wipe it off with a dry cloth and
wash your clothes in cold water. Hot water sets toner into fabric.
72
Cleaning the printer and accessories
Table 4-1
Cleaning the printer
Component
Cleaning Method
Outside covers
Use an HP Toner Cleaning Cloth (part number
5040-3379) or a water-dampened cloth. Do not use
solvents or ammonia-based cleaners.
Inside general
With a dry lint-free cloth, wipe any dust, spilled
toner, and paper particles from the paper path area,
the registration roller, and the toner cartridge cavity.
Paper pickup, feed,
and separation rollers
Use a water-dampened, lint-free cloth.
Separation pad
Use a dry, lint-free cloth.
Registration roller
Use a dry, lint-free cloth.
Transfer roller
Use a dry, lint-free cloth. DO NOT TOUCH the
transfer roller with your fingers.
Fuser
Use a water-dampened, lint-free cloth.
Cleaning spilled toner
Defective toner cartridges can develop leaks. Also, after a paper jam
has occurred, some toner may remain on the rollers and guides
inside the printer. The pages that print immediately after the jam may
pick up this toner.
CAUTION
When cleaning the printer, do not touch the transfer roller with the damp
cloth or with your fingers.
Vacuum specifications
Do not vacuum the printer or any spilled toner using a conventional
vacuum. Toner particles used in this product may be too fine for
effective vacuuming and could result in damage to conventional
vacuums.
A vacuum specifically designed for cleaning toner may be used if it is
capable of filtering fine particles (5 microns in diameter).
Chapter 4 Printer maintenance
73
Approximate replacement intervals for
consumable items
Imaging drum life
Images versus pages
The life of the imaging drum (25K) is stated in terms of Letter/A-4-size
images. The number of images printed for each sheet of paper varies,
depending on the mix of color, type of format, and whether duplexing
has occurred. The following guidelines will help determine drum life:
An “image” is a layer of toner. An A-4/Letter-size color page
printed on one side contains four A-4/Letter images, one for each
color (CMYK).
A duplexed sheet counts as two pages. In color duplex mode
(printing on both sides of a page), there are eight A-4/Letter-size
images per A-4/Letter sheet.
The page count numbers on the Configuration Page give a count
of the number of pages printed, regardless of size. For example,
an A-4-size color duplexed page takes eight images to print, but
only adds two pages to the page count.
Usage patterns
How the printer is actually used can also have a significant effect on
drum life:
Because of pre- and post-rotations, the drum wear is
approximately the same for a one-page job as for a two-page job.
Frequent short jobs will decrease the drum life.
There are extra rotations and cleaning cycles when printing
duplex pages. Duplex jobs use the imaging drum at a higher rate
than comparable simplex jobs.
“Drum life low” versus “drum life out”
The DRUM LIFE LOW warning message on the control panel indicates
approximately 20% of life remaining. This is intentional to allow the
user enough time to order a replacement kit (C4195A). It is perfectly
acceptable to continue to print while the DRUM LIFE LOW message is
displayed. However, when the DRUM LIFE OUT message occurs, the
end of life has been reached and the printer will not operate.
74
Approximate replacement intervals for consumable items
Key points to remember
The drum life specification assumes two-page jobs, one-sided
printing on A-4/Letter-size pages. When printing in color (4
images per page), the number of pages will be 1/4 of the images
printed.
Due to the carousel arrangement of the color cartridges, color
printing uses four images per page even if only one color is
actually used.
Drum life under different circumstances
Pages/Drum (K)
The following graph shows the approximate life of the imaging drum
for different types and sizes of print jobs.
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
0
1
2
5
10
15
20
2000
Pages/job
A-4 simplex monochrome
A-4 duplex monochrome
A-4 simplex color
A4 duplex color
Figure 4-1
Imaging drum life
Chapter 4 Printer maintenance
75
Note
When printing black pages, there is a wider range of variation in
pages/drum. The drum life will be well below 25K images if only short
monochrome jobs are printed.
The following graph shows the drum life for printing in Letter and
Legal formats:
45000
Engine, total page count
40000
35000
30000
25000
20000
15000
10000
5000
0
0
4
8
12
Pages/job
4-color simplex Letter
4-color duplex Letter
Monocolor simplex Letter
Monocolor duplex Letter
4-color simplex Legal
4-color duplex Legal
Monocolor simplex Legal
Monocolor duplex legal
Figure 4-2
76
OPC life
Approximate replacement intervals for consumable items
16
20
24
Replacement intervals for consumables
You can identify consumable items by their labeling and their blue
plastic handles. For instructions on installing consumables, see the
installation guides supplied with each consumable item.
The following table lists the replacement intervals and part numbers
for printer consumable items, and the control panel messages that
prompt you when it is time to replace each item.
Table 4-2
Approximate replacement interval for consumable items
Consumable Printer message
Page count Approximate
time period1
Part number
Black (K) toner
cartridge
TONER K LOW or
TONER K OUT
9,000 pages 2 4.5 months
R94-4005-410CN
(see Table 8-1)
Cyan (C) toner
cartridge
TONER C LOW or
TONER C OUT
6,000 pages 2 3 months
R94-4004-410CN
(see Table 8-1)
Magenta (M)
toner cartridge
TONER M LOW or
TONER M OUT
6,000 pages 2 3 months
R94-4003-410CN
(see Table 8-1)
Yellow (Y) toner
cartridge
TONER Y LOW or
TONER Y OUT
6,000 pages 2 3 months
R94-4002-410CN
(see Table 8-1)
Drum kit
DRUM KIT LOW or
25,000 black- 12.5 months for R94-4001-410CN
DRUM KIT OUT
and-whiteblack-and-white- (see Table 8-1)
REPLACE DRUM KIT only pages, or only pages, or 3
6,250 color
pages.
Transfer kit
TRANSFER KIT LOW or 100,000
TRANSFER KIT OUT black-andREPLACE KIT
white-only
pages, or
25,000 color
pages.
Fuser kit
1.
2.
FUSER KIT LOW or
FUSER KIT OUT
REPLACE KIT
100,000
black-andwhite-only
pages, or
50,000 color
pages.
months for color
pages.
50 months for
R96-5009-000CN
black-and-white- (see Table 8-1)
only pages, or
12.5 months for
color pages.
50 months for
black-and-whiteonly pages, or
25 months for
color pages.
R96-5007-000CN
(110V)
R96-5008-000CN
(220V)
(see Table 8-1)
Approximate lives are based on 2,000 pages per month.
The approximate average A4/Letter-size page count is based on 5% coverage of individual toner
colors. Page counts are only estimations; usage conditions and print patterns cause results to vary.
CAUTION
Hewlett-Packard recommends the use of HP products in this printer.
Use of non-HP products may cause problems requiring service that is
not covered by the Hewlett-Packard warranty or service agreements.
Chapter 4 Printer maintenance
77
Locating consumables
Figure 4-3 illustrates the location of each consumable item.
1
4
2
3
5
7
6
Figure 4-3
78
Location of consumables
1
Toner cartridges
2
Imaging drum cartridge
3
Intermediate transfer belt
4
Transfer roller
5
Air filters
6
Fuser
7
Paper feed and separation rollers
Locating consumables
Replacing consumable items
1
Cleaning the toner density
sensor
Clean the toner density sensor whenever
the imaging drum is replaced or when
the control panel message displays:
DENSITY SENSOR OUT OF RANGE.
2
CAUTION
To avoid scratching the sensor, do not
clean it with any paper products.
To clean the toner density
sensor
3
1
Open the ITB drawer and remove
the cleaning brush mounted inside.
2
Open the drum drawer and remove
the imaging drum using the blue
handle.
3
Using the cleaning brush, remove all
dust and toner particles from the
sensor as illustrated.
4
Replace the imaging drum.
4
Chapter 4 Printer maintenance
79
Replacing the toner
cartridges
1
Replace the toner cartridge when the
control panel displays:
TONER CMYK OUT.
The display can indicate that one or
more toner colors are out.
1
2
With the printer turned on and
warmed up, push the dark gray
release button on the side of the
printer ( [1] ) and open the printer’s
top cover ( [2] ).
Note
If you need to replace a toner cartridge
and the TONER CMYK LOW or TONER
CMYK OUT messages are not displayed
on the control panel, open and close the
top cover. Wait for the PRESS SELECT
TO CHANGE TONER message to display
on the control panel. Press [Select] and
the message TONER=(COLOR) displays
on the printer control panel. Press
[–Value+] to select the toner cartridge
you want to replace, and proceed to the
following steps.
3
2
Lift the toner access cover and
remove the used toner cartridge.
CAUTION
Do not shake the toner cartridges after
removing them.
3
80
Replacing consumable items
Position the toner cartridge over the
cartridge slot so that the blue arrow
on the toner cartridge points to the
blue arrow on the printer. The arrow
on the right (control panel side of the
printer) should point straight down).
4
4
Make sure that the tab on the other
end of the toner cartridge aligns with
the notch on the cartridge slot.
Note
If the tab does not fit in the notch when
you insert the toner cartridge, the toner
is the wrong color for that cartridge slot.
5
6
5
Slide the toner cartridge down into
the slot until the cartridge stops.
6
Rotate the toner cartridge toward the
back of the printer (within the
cartridge slot) until the cartridge
stops. The cartridge shutter opens to
reveal the developer sleeve.
7
Lower the toner access cover and
close the printer’s top cover.
Note
You must close the top cover before
installing another toner cartridge.
7
CAUTION
If you need to ship the printer, remove
the toner cartridges and imaging drum
before shipping.
Note
If you receive a 54.2 error, see page 250
for more information.
Chapter 4 Printer maintenance
81
Replacing the imaging
drum
1
Replace the imaging drum when the
printer control panel displays:
REPLACE DRUM KIT
1
Open the drum drawer and remove
the used imaging drum.
2
2
Locate the new imaging drum. Align
it over the drawer so that the arrow
on top points to the rear of the
printer, and the blue end cap on the
side fits into the slot identified with
the blue arrow.
3
CAUTION
Avoid exposing the imaging drum to
direct light. Exposure to light for more
than 15 seconds can seriously damage
the imaging drum.
3
Slide the imaging drum down into
place and close the drawer.
CAUTION
If you need to ship the printer, remove
the toner cartridges and imaging drum
before shipping.
82
Replacing consumable items
1
Replacing the transfer kit
Replace the transfer kit when the printer
control panel displays:
TRANSFER KIT OUT REPLACE KIT.
The transfer kit consists of an
intermediate transfer belt (ITB), a
transfer roller, two air filters, and a hand
wipe.
2
1
Open the ITB drawer. Remove the
used transfer belt by pulling up on
the green handles located on the
sides.
2
Locate the transfer roller inside the
printer.
3
To unlock the used transfer roller,
gently push back and up (in a
rotating motion) on the blue triangles
located on the lower corners of the
flap that is in front of the roller.
4
Remove the used transfer roller by
lifting it up and then out.
3
4
Chapter 4 Printer maintenance
83
CAUTION
Avoid touching the foam portion of the
roller. Oil from your fingers can affect the
print quality.
5
5
6
CAUTION
Be careful not to insert the transfer roller
backwards. Doing so can damage the
printer.
7
8
84
Locate the new transfer roller and
place it in the notches behind the
roller flap.
Replacing consumable items
6
Snap in the new transfer roller into
place by pushing both ends of the
roller toward the rear of the printer.
7
Remove the new transfer belt from
the bag. Align the blue pins that are
on both sides of the new transfer belt
with the blue slots in the drawer.
Then slide the transfer belt down into
place. Close the ITB drawer.
8
To reset the printer for the new
transfer kit, push [Menu] on the
control panel until RESETS MENU
appears in the control panel display.
9
10
9
Press [Item] until TRANSFER KIT
SELECT IF DONE appears in the
control panel display. Then press
[Select].
10 To replace the air filters, turn the
printer off and wait 10 minutes for
the fans to stop running. Unplug the
power cord and open the upper rear
door of the printer. If the printer has
a duplex unit, open the rear cover of
the duplex unit.
11 Remove the two used air filters from
the rear of the printer. Then use the
hand wipe to clean excess dust
away from the fan areas.
11
12 Insert the new air filters. Close all
doors, plug in the printer, and turn
the printer on.
12
Chapter 4 Printer maintenance
85
Replacing the fuser kit
1
Replace the fuser kit when the printer
control panel displays:
FUSER LIFE OUT REPLACE KIT.
The fuser kit contains one fuser, four
paper rollers, and a hand wipe.
WARNING!
To prevent possible burns, be sure the
power cord is unplugged and that the
printer has cooled for 30 minutes.
2
3
4
86
Replacing consumable items
1
Open the upper-rear door of the
duplex unit, if attached.
2
Open the upper-rear door of the
printer.
3
Release the straps from the rear
door by squeezing the latches on the
straps where the latches connect to
the rear door.
4
Inside the back of the printer, near
the bottom, locate the two blue
latches on the fuser.
5
5
Rotate the two blue latches upward
90 degrees.
6
Grasp the finger holds on the fuser
and pull the used fuser out of the
printer.
7
Remove the new fuser from the bag
using the finger holds. Holding the
new fuser by the finger holds, slide
the fuser into the printer.
6
CAUTION
The blue latches will lock only if the fuser
is installed.
8
7
Lock the fuser in place by rotating
the two blue latches down.
Reconnect the support straps to the
upper rear door.
8
Chapter 4 Printer maintenance
87
Replacing the paper rollers
1
2
1
Remove Tray 2 from the front of the
printer.
2
On Tray 2, locate the paper roller
and the cover next to the roller.
3
Squeeze the cover release lever and
open the cover.
4
Remove the old paper roller from
Tray 2 by squeezing together the
blue tabs and then sliding the roller
off its spindle.
Note
The feed roller has a D-shaped hub and
the separation roller has a round shaped
hub.
3
4
88
Replacing consumable items
5
6
5
Install a new paper roller on Tray 2.
Slide the new roller onto the spindle
until the roller clicks into place.
6
Close the cover.
7
Inside the tray cavity on the printer,
locate the paper roller in the top of
the tray cavity.
8
Squeeze the blue tabs on the roller
and remove the old paper roller from
the tray cavity.
7
8
Chapter 4 Printer maintenance
89
9
9
Install a new paper roller on the tray
cavity. Slide the new roller onto the
spindle until the roller clicks into
place.
10 Replace Tray 2.
11 If you have the optional 500-sheet
paper feeder (Tray 3), repeat steps
3-9 to replace the two paper rollers
for Tray 3.
10
12 Remove the paper roller in the tray
cavity for Tray 3 in the opposite
direction as the paper roller in the
other tray cavity.
11
12
90
Replacing consumable items
13
13 Turn the printer on. When the printer
control panel displays READY, reset
the printer for the new fuser kit and
push [Menu] on the control panel
until RESET MENU appears.
14 Press [Item] until NEW FUSER KIT,
SELECT IF DONE appears. Then
press [Select].
14
15 Press [Go] to return the printer to
READY.
15
Chapter 4 Printer maintenance
91
DIMM configuration
You can add additional Random Access Memory (RAM) to this printer
by installing Dual Inline Memory Modules (DIMMs). The printer uses
100-pin, non-parity, synchronous SDRAM memory modules. SDRAM
modules do not need to be configured in pairs (in corresponding left
and right slots).
Note
Extended Data Output (EDO) DIMMs are not supported.
Adding memory
You can install 4, 8, 16, 32, or 64 MB DIMMs into the printer’s three
DIMM slots. The DIMM slots may be used to add memory, fonts, or
firmware upgrades. Note that DIMMs and Single Inline Memory
Modules (SIMMS) are not compatible.
Note
The printer will only recognize up to 208 MB of RAM. Additional memory
will not be used by the printer.
Installing memory in the printer requires the removal of the formatter
board from the rear of the printer. To remove the formatter board, you
must unscrew 6 screws, as shown here. The DIMMs are then inserted
into the available slots in the formatter board. See Appendix A in the
online user guide for installation instructions.
Figure 4-4
92
Removing the formatter board
DIMM configuration
CAUTION
Do not attempt to remove the DIMM in slot #4 (see Figure 4-5). The
DIMM in slot #4 is part of the printer’s firmware. Removing it will affect
printer operation.
Figure 4-5
Do not remove the DIMM in slot #4.
CAUTION
The HP Color LaserJet 4500 printer uses 100-pin, non-parity,
synchronous SDRAM DIMMs. Extended Data Output (EDO) DIMMs
are not supported. To ensure you are using the correct DIMM, see the
differences below.
EDO
Figure 4-6
SDRAM
EDO and SDRAM memory modules
Chapter 4 Printer maintenance
93
Non-volatile memory (NVRAM)
The printer uses NVRAM to store I/O and information on the print
environment’s configuration. The contents of NVRAM are retained
when the printer is deactivated or disconnected. There is one NVRAM
on the formatter and one on the DC controller.
94
DIMM configuration
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
