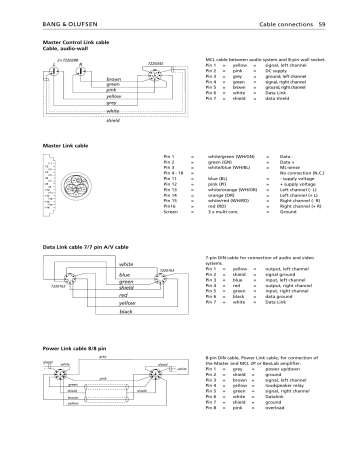

Cable connections 59
Master Control Link cable
Cable, audio-wall
MCL cable between audio system and 8-pin wall socket.
Pin 1 =
yellow =
signal, left channel
Pin 2 =
pink
=
DC supply
Pin 3 =
grey
=
ground, left channel
Pin 4 =
green
=
signal, right channel
Pin 5 =
brown
=
ground, right channel
Pin 6 =
white
=
Data Link
Pin 7 =
shield
=
data shield
Master Link cable
Pin 1
Pin 2
Pin 3
Pin 4 - 10
Pin 11
Pin 12
Pin 13
Pin 14
Pin 15
Pin16
Screen
=
=
=
=
=
=
=
=
=
=
=
white/green (WH/GN)
green (GN)
white/blue (WH/BL)
=
=
=
blue (BL)
pink (PI)
white/orange (WH/OR)
orange (OR)
white/red (WH/RD)
red (RD)
3 x multi core
=
=
=
=
=
=
=
Data Data +
ML-sense
No connection (N.C.)
- supply voltage
+ supply voltage
Left channel (- L)
Left channel (+ L)
Right channel (- R)
Right channel (+ R)
Ground
Data Link cable 7/7 pin A/V cable
7-pin DIN cable for connection of audio and video
systems.
Pin 1 =
yellow =
output, left channel
Pin 2 =
shield
=
signal ground
Pin 3 =
blue
=
input, left channel
Pin 4 =
red
=
output, right channel
Pin 5 =
green
=
input, right channel
Pin 6 =
black
=
data ground
Pin 7 =
white
=
Data Link
Power Link cable 8/8 pin
8-pin DIN cable, Power Link cable, for connection of
the Master and MCL 2P or BeoLab amplifier.
Pin 1 =
grey
=
power up/down
Pin 2 =
shield =
ground
Pin 3 =
brown =
signal, left channel
Pin 4 =
yellow =
loudspeaker relay
Pin 5 =
green =
signal, right channel
Pin 6 =
white =
Datalink
Pin 7 =
shield =
ground
Pin 8 =
pink
=
overload
60 Cable connections
Power Link cable
Pin 2
Pin 3
Pin 4
Pin 5
=
=
=
=
shield
brown
yellow
green
=
=
=
=
ground
signal, left channel
loudspeaker on
signal, right channel
Speaker Link cable
4 pin speaker link cable, for connection between
BeoMaster and BeoLab Penta.
A/V cable 21/21 pin EURO
21
19
17
15
13
20
18
16
14
12
11
10
9
8
7
6
5
4
3
2
1
1
2
3
6
4
15
13
11
9
7
5
16
14
19
17
20
18
8
10
12
21
Extension cable
3
7 86
1
2
5
4
2
1
6
3
4
15
13
11
9
7
5
16
14
20
18
19
17
8
10
12
21
21-pin
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
Pin 10
Pin 11
Pin 12
Pin 13
Pin 14
Pin 15
Pin 16
Pin 17
Pin 18
Pin 19
Pin 20
Pin 21
A/V cable with RGB connection.
=
audio out, right channel
=
audio in, right channel
=
audio out, left channel
=
audio ground
=
blue ground
=
audio in, left channel
=
blue signal
=
12V sense and Data Link
=
green ground
=
data 2
=
green signal
=
data 1
=
red ground
=
fast blanking, ground
=
red signal
=
fast blanking
=
video out, ground
=
video in, ground
=
video out, signal
=
video in, signal
=
shield, ground
Viewed from the soldering side.
Pin 1 =
pink
Pin 2 =
brown from grey lead
Pin 3 =
brown from black lead
Pin 4 =
green from grey lead
Pin 5 =
green from black lead
Pin 6* =
green
Pin 7* =
noninsulated ground lead
Pin 8* =
green/white
Intertwine the screens of the black and grey leads, and
solder them to the metal screen.
*Remove the foil screen
