DSR-HB8000 - cs.psn

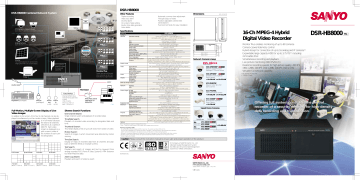

DSR-HB8000
Other Features
Dimensions
Specifications
System Controller
Networked control of
surveillance cameras
Analog Cameras
Up to 16 units connectable in total with IP cameras
DVR 3
Easy to manage data storage with
large capacity HDD for up to
3.75 TB of data
• One system disk (S-ATA)
• Two S-ATA HDD bays
• One removable S-ATA HDD tray
• Two HDD w/S-ATA cards
Monitor
Full motion playback of camera feeds
ranging from full to 16 screen display
DSR-HB8000
Network
DVR 4
TCP/IP Access
Emulation of up to
four networked
external DVR servers
PCI bus/S-ATA
expansion board
for functional
upgrading
DSR-HB8000
DVR 5
DSR-HB8000
Monitor Plus
Feeds from up to 80 surveillance cameras can be monitored from a single monitor.
Printer
DVR 1
DSR-HB8000
ATM*
Audio input
Text input
Easy Backup
Keyboard (packaged)
Mouse
(packaged)
Alarm
out
(x 16)
Alarm
in
(x 16)
Full-Motion, Multiple-Screen Display of Live
Video Images
In addition to full screen, from four to 16 channels can be displayed simultaneously on the monitor screen. Video playback
is in full-motion because
the total of all channels
selected is at a speed of
400 IPS. Each video
stream is displayed on a
split screen in order of
the number of each camera designated.
• Internal DVD/CD drive
• Internal Removable HDD
(S-ATA)
• USB 2.0 ports
(front x 2, rear x 2)
• NAS* (TCP/IP) x 2
AVE Video serial
interfaces for
POS/ATM*
POS
*TBD
Diverse Search Functions
One Channel Search:
Single channel search and playback of recorded video.
Time/Date Search:
Playback of recorded video according to designated date and
time.
Thumbnail Search:
Thumbnail display of list of up to 24 shots from search of video.
Motion Search:
Search of images in which movement was detected by motion
sensing.
Time Bar Search:
Display of maps of recorded data from all channels and playback of different feeds on multiple screens.
Full-Screen
Quad-Screen
9-Screen
16-Screen
DSR-HB8000
Model No.
Category
General
DVR 2
DSR-HB8000
Text Search:
Playback and search of images and text by keyword from
among recorded POS (Point of Sales System) / ATM (Automated Teller Machine) data.
Hybrid Digital Video Recorder
Hard disk capacity
System Disk (S-ATA) x1 + S-ATA HDD Bays x 2 +
Removable S-ATA HDD Tray x 1 + HDD w/S-ATA card (option) x 2
Max. HDD Capacity 3.75 TB
CPU
Intel Pentium® 4 3.00GHz
RAM
512 MB, DDR2 PC2-4200
Operating system
Microsoft Windows® XP Embedded
Picture resolution (pixels)
720 x 576, 720 x 288, 360 x 288
Video codec
MPEG-4+, MPEG-4
Audio codec
G.721, 8 kHz sampling rate
Picture quality
5 levels (Basic, Normal, Enhanced, Fine, Super Fine)
Recording speed
400 IPS/16 ch (CIF), 200 IPS/8 ch (Half D1), 100 IPS/4 ch (D1)
Still image capture (BMP/JPEG)
720 x 576, 720 x 288, 360 x 288
Number of cameras
16 (IP cameras: 4 units max.)
Menu languages
English, French, Spanish, German, Italian, others*1
Coaxial Telemetry Control
COAX: SANYO (H-SSP), PELCO-C, BBV*1
RS-485: SANYO (SSP), PELCO-D, VICON, ULTRAK
Protocol
(KALATEL, SENSOMATIC, ELMO, ERNA, VCL, MARK MERCER, BBV, BOSCH)*1
Search mode
One Channel Search, Time/Date Search, Thumbnail Search, Motion Search,
Time Bar Search, Alarm Log Search, Text Search
Video
Signal format
PAL standard (Color) / CCIR standard (B/W) auto select, 625 lines, 400 IPS
Video input
VBS/VS 1.0 V (p-p) 75 ohms, BNC x 16
Video output
BNC x 16 (Loop through), VGA x 1*2
Main monitor output
VS 1.0 V (p-p) 75 ohms BNC x 1*2
Monitor 2 output
VBS / VS 1.0 V (p-p) 75 ohms BNC x 1
Audio
Audio input
16 ch: MicroCross connector x 1 (rear)
Audio output
–8 dBs 600 ohms unbalanced mini jack x 1 (rear)
Display
Speed (Live)
Max. 400 IPS (16 screen split)
Emulation
Monitor Plus (Up to total 5 DVRs display)
Screen split
1, 4, 7, 8, 9, 10, 13, 16
Back-up storage support
Internal DVD/CD drive, Internal Removable HDD (serial ATA),
USB 2.0 x 4 (front x 2, rear x 2), [NAS*1 (TCP/IP)]
Network
Interface
ADSL, LAN / Dynamic IP supported
LAN
RJ-45 x 1: 10/100/1000BASE-TX
Compatible protocols: UDP, TCP/IP, HTTP, DHCP, SMTP, NTP, PPP server
Control signal RS-485
RJ-11 x 2, (With a termination switch)
RS-485 (2nd)
PTZ port x 1
RS-232C
D-sub 9-pin x 1
USB
USB 2.0 x 4 (front x 2, rear x 2)
Alarm input (Push lock)
No-volt contact, (100ms or more) x 16
Relay alarm output (Push lock)
Low level active (Max. 25 mA) x 16
Mouse control input
PS/2 x 1
Keyboard input
PS/2 x 1
Expansion slots
PCI x 5 (PCI express x 2, PCI x 3)
Electrical
Power source
100V to 240V AC, 50–60Hz, Free voltage
Power current
8A (100V AC), 4A (240V AC)
Operating conditions
Temperature: 5°C to 40°C (41°F to 104°F)
Humidity: 30 to 80%RH (non-condensing)
Storage temperature
–5°C to 60°C (23°F to 140°F)
Physical
Dimensions (W x H x D)
431 x 177 x 458 mm (17.0” x 7.0” x 18.0”) — mountable as 4U rack unit
Net weight (approx.)
21.8 kg (48.1 lbs.) (HDD x 4, DVD-R/RW x 1)
Standard accessories
Keyboard x 1, Mouse x 1, AC power cord (European x 1, North American x 1)
S-ATA cable x 2, Audio conversion cable x 1, Rack mounting kit (1 set),
Removable HDD key x 2, Front panel key x 2, DVD-ROM x 1 (Recovery disc:
Windows® XP), CD-ROM x 1 (Application disc: Operation/programming manual)
Options
S-ATA card (Support add S-ATA HDD x 4), POS / ATM*1
101.6
(4.0”)
PC
465.1 (18.3”)
480.6 (18.9”)
Network Camera Lineup
VDC-DPN9585P
Network Vandal-Resistant
Day/Night PTZ Dome Camera
VDC-DP7585P
Vandal-Resistant Day/Night
Dome Camera
+ VA-50LAN* or VA-51LAN*
VCC-PN9575P
Network Indoor Mini PTZ
Dome Camera
VCC-P7575PA
Indoor Mini Dome Camera
+ VA-50LAN* or VA-51LAN*
VCC-XZ200P
Weatherproof Day/Night
Zoom Camera
+ VA-20LAN*
Speed Dome Cameras
Outdoor type
Surface type
VCC-9800P
VCC-9700P
VCC-9600P
30x
Optical zoom VCC-9500P
Warnings regarding HDDs
• Do not attempt to install or replace a HDD on your own. You cannot use these HDDs on PCs.
• The unit may be damaged if it is exposed to impact or vibration, or the power plug is disconnected during operation.
• SANYO will not be held liable for any data loss due to an HDD error or a failure during recording.
* Windows is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
* All other company and product names are registered trademarks and/or trademarks of their respective owners.
* Screen images are simulated.
36x
+ VA-80LAN*
*Optional Network Board
Caution: Please consult the instruction manual to ensure safe and proper operation of the product.
051
DI Company of SANYO Electric Co., Ltd.
obtained Quality Management System
ISO 9001 and Environmental Management
System ISO 14001 certifications.
Distributed by:
Alarm Log Search:
Playback and search of video by event.
7-Screen
(Main 3 + Sub 4)
8-Screen
(Main 1 + Sub 7)
10-Screen
(Main 2 + Sub 8)
13-Screen
(Main 1 + Sub 12)
In-ceiling type
Optical zoom
NOTE: Specifications subject to change without notice
*1 TBD *2 Either the video output or VGA output can be enabled at any one time.
EC00J0303
16-Ch MPEG-4 Hybrid
Digital Video Recorder
37.7
(1.5”)
PTZ Cameras + Network Board
Up to four IP cameras connectable to network
Unit: mm (inch)
• Automatic summer time adjustment
• Through output of video
• Position adjustable camera titles
(10-character)
• Push-lock terminals for easy installation
117 (4.6”)
• Triplex recording
• Video loss alarm
• Disk full alarm
• On-screen mode setting
• Built-in time date generator
• Auto delete
491.4 (19.3”)
DSR-HB8000 Centered Network System
SANYO Electric Co., Ltd.
www.sanyosecurity.com
©2007 SANYO Printed in Japan ’07.3. MA.
SMS141
• Monitor Plus enables monitoring of up to 80 cameras
• Camera coaxial telemetry control
• Hybrid design for connection of up to 16 analog and IP cameras*1
• Expandable large capacity HDD for up to 3.75 TB*2 including
removable drive
• Simultaneous recording and playback
• Live picture monitoring (400 IPS/16 ch)
• Real-time recording speeds for high picture quality: 400 IPS
(360 x 288), 200 IPS (720 x 288), 100 IPS (720 x 576)
• Versatile full network capability
*1 IP cameras: 4 units max.
*2 750GB x 5 bays
DSR-HB8000
PAL
A Host of Recording Features to Meet Users’ Needs for Security
Networked Functional Expansion
Recording schedule settings
Recording condition settings
Monitor Plus
Input of Text Data to Surveillance Video
The DSR-HB8000 is programmable for automatic recording.
Users can select one or more of four recording modes: Normal,
Motion, Alarm In, and Text (with a POS/ATM* connection).
The recording schedule is programmable in 15 minute increments for each day of the week and features color coded
schedule maps and drag-and-drop operability for selection of
camera modes.
*TBD
Recording conditions can be programmed for each camera
connected to the DSR-HB8000.
Images from other networked DVRs can be accessed and
controls using a DVR at hand. Up to 80 cameras can be
monitored from a single DVR.
Recorded images can be searched by electronic journal data
and text data. The who, when, by which machine and to whom
of POS system and ATM* cash receipts and payments can be
verified via an AVE Interface as a means of protecting against
crimes such as shoplifting, robbery and cash register tampering.
Quality: Recorded picture resolution settable in five steps
Frame rate: Settable according to each recording mode
(Normal, Motion, Alarm In, Text)
Encode mode: MPEG-4+ or MPEG-4 (hardware encode)
This monitor can
view all 80 cameras
Pre/Duration alarm recording time settings
Example of daily schedule settings
Duration Rec: 1 sec. to 5 min
Pre Rec:
4 settings available in four steps: None, Short, Medium, Long
Normal
Normal/Motion/Alarm In
External alarm input and alarm output settings
Motion/Alarm In Normal
Realize high-quality recording and
delivery of streams from up to 16
analog and IP cameras* in real time!
Alarm signal output times can be set and triggering of system
cameras and alarms can also be set to occur when alarms signals from external alarms are input to the Alarm In terminals on
the DSR-HB8000’s rear panel.
DVR 1
DSR-HB8000
ATM*
POS
*IP cameras: 4 units max.
DVR 2
New digital security systems integrating analog
and IP cameras into a single system
The DSR-HB8000’s hybrid design allow concurrent connection
and control of both IP network and conventional analog cameras. Up to four IP cameras such as network pan-focus PTZ
cameras or the PTZ cameras with network board options can
be connected for use with analog cameras for a total of 16 surveillance cameras in all.
Up to four IP cameras
Up to 16 analog cameras
DSR-HB8000
Camera Coaxial Telemetry Control
AVE Interface
The DSR-HB8000 allows the user to control PTZ and zoom
cameras. The unit transmits H-SSP*1 signals by overlaying
them on to the video signal through a coaxial cable. This
makes it possible to control cameras that support coaxial HSSP*1 transmission without any additional device other than a
video cable, and also from a SANYO controller or over a network. In addition, Pelco and BBV*2 cameras can also be controlled if they support coaxial signal transmission.
Coaxial Control or RS-485
Communication protocol
1
2
Coaxial control: SANYO (H-SSP* ) / PELCO-C / BBV*
RS-485:
SANYO (SSP), PELCO-D, VICON, ULTRAK
(KALATEL, SENSOMATIC, ELMO, ERNA, VCL,
MARK MERCER, BBV, BOSCH)*2
POS
DVR 3
DSR-HB8000
DSR-HB8000
Screen for recording schedule setting
DVR 4
Alarm operation condition settings
DSR-HB8000
Screen for alarms setting
When the Alarm In recording mode is programmed on the recording schedule, the time frame in which external alarm inputs are detected can be limited by programming Alarm In recording by time frame alone.
1 2
4 units
3 units
2 units
1 unit
0
Via Ethernet
+
+
+
+
+
+
RS-232C
Network
DVR 5
DSR-HB8000
16 cameras on DVR 1
16 cameras on DVR 2
16 cameras on DVR 3
16 cameras on DVR 4
16 cameras on DVR 5
Locations of Controls
IP cameras
AVE Video serial interfaces
for POS/ATM*
3
4
14
15
30
GALAXY
000000
TOTAL
000000
CHANGE
00000
07-00-00
00000000
TILL 00000 0000000
POS system
11:16:26 11/01/05
BNK 000000
DATE 11/01/05 TIME
11:12
WITHDRAWAL
FROM ACCOUNT 00000
XXXX
AMOUNT 00,00,00
FEE AMOUNT 0.00
ATM*
Simulations of video images displayed with overlaid text data
31
Analog cameras
12 units
13 units
14 units
15 units
16 units
Via video cable
Diverse Backup and Copy Functions
*1 H-SSP (High speed
SANYO Security
Serial Protocol) is a
communication
protocol for security devices from
SANYO.
2
* TBD
Adoption of MPEG-4+ for high-quality moving
pictures
The DSR-HB8000 employs a unique image compression
format called MPEG-4+, which has been adapted for speedy,
high-quality data transmission over a network and special fastforward and reverse playback. The conventional MPEG-4
format can of course also be selected to meet a broad range of
needs, including long-term image recording, high-quality audio
playback and secure transmission of control signals.
9
10
12
11
13
Front panel
Rear panel
5
6 7
1
2
3
4
5
6
Power indicator
HD access indicator
Removable HDD lock
Removable HDD
Ventilating hole
Front panel cover
7
8
9
10
11
19
16
17 18
21
22
27
28
29
23
24
Easy secure backup of data
20
25 26
34 35
32
33
8
POWER button
Front panel lock
DVD-R/RW / CD drive
DVD / CD open/close button
USB 2.0 ports
12
13
14
15
16
17
18
19
20
Power switch
Power socket (AC IN)
Video input terminals
Video throughout terminals
RS-485 termination switch
RS-485 ports
RS-485 (2nd port)
Monitor outputs (MON 1)
Monitor outputs (MON 2)
21
22
23
24
25
26
27
28
29
Mouse port
Keyboard port
Parallel port
RS-232C port
VGA port
USB 2.0 ports
Audio line input*
Audio line output
Mic input*
30
31
32
33
34
35
Alarm inputs
Alarm outputs (D/O)
PCI express slots
PCI slots
LAN (Gigabit)
Audio 16 inputs
(for camera)
*TBD
The DSR-HB8000 allows the user to save and manage vast
amounts of data by simply clicking on the Data Backup button
from the live screen. Data can be saved to the HDD, a CD-R,
CD-RW or DVD (max. 4.6GB) using the onboard CD/DVD writing software, or even a USB memory stick plugged into a USB
port.
Large-Capacity HDD
The unit supports a total storage capacity of up to 3.75 TB*
with features including one system disk (S-ATA), two S-ATA
HDD bays, a removable S-ATA HDD tray and two HDD w/SATA cards.
*Using 750 GB HDDs
Data recorded in 64MB units and displayed chronologically
according date and time shot.
*TBD
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
