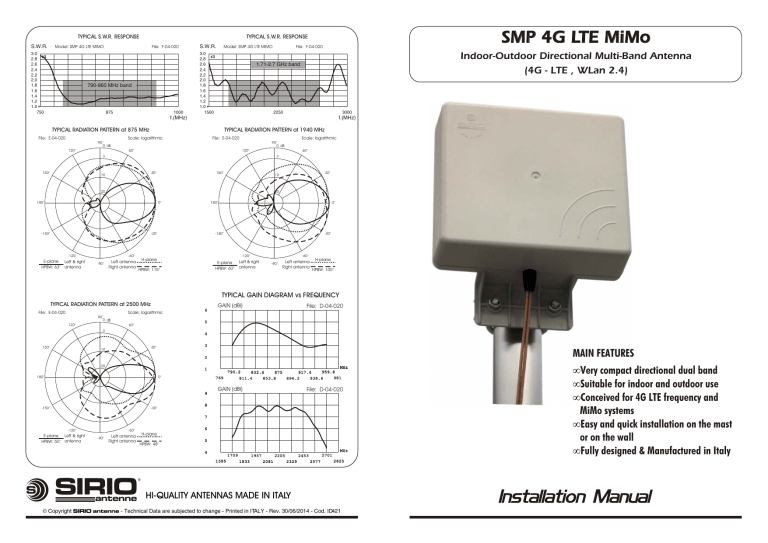

SMP 4G LTE MiMo SMP 4G LTE MiMo

SMP 4G LTE MiMo SMP 4G LTE MiMo
TYPICAL S.W.R. RESPONSE
S.W.R.
3.0
2.8
2.6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
750
File: F-04-020
790-960 MHz band
875
1000
f.(MHz)
S.W.R.
Model: SMP 4G LTE MIMO
3.0
2.8
2.6
2.4
2.2
2.0
1.8
1.6
1.4
1.2
1.0
1500
File: E-04-020
Scale: logarithmic
90°
0 dB
60°
120°
60°
3
3
30°
10
150°
20
180°
0°
-150°
180°
-30°
-120°
-60°
-90°
30°
10
20
E-plane Left & right
HPBW: 63° antenna
3000
f.(MHz)
TYPICAL RADIATION PATTERN at 1940 MHz
Scale: logarithmic
150°
Indoor-Outdoor Directional Multi-Band Antenna
(4G - LTE , WLan 2.4)
2250
90°
0 dB
120°
File: F-04-020
1.71-2.7 GHz band
TYPICAL RADIATION PATTERN at 875 MHz
File: E-04-020
SMP 4G LTE MiMo
TYPICAL S.W.R. RESPONSE
Model: SMP 4G LTE MIMO
Left antenna
Right antenna
0°
-150°
-30°
-120°
H-plane
E-plane
HPBW: 60°
HPBW: 115°
-60°
Left & right
antenna
-90°
Left antenna
Right antenna
H-plane
HPBW: 100°
TYPICAL GAIN DIAGRAM vs FREQUENCY
TYPICAL RADIATION PATTERN at 2500 MHz
File: E-04-020
Scale: logarithmic
90°
0 dB
120°
File: D-04-020
5
60°
3
150°
6
GAIN (dBi)
4
3
30°
10
MAIN FEATURES
2
20
MHz
1
180°
0°
9
-150°
-30°
790.2
959.8
832.6
875
917.4
981
811.4
853.8
896.2
938.6
769
GAIN (dBi)
File: D-04-020
8
7
-120°
E-plane Left & right
HPBW: 50° antenna
-60°
-90°
Left antenna
Right antenna
6
H-plane
HPBW: 48°
5
MHz
4
1709
1585
S
SIRIO
antenne
1957
1833
2205
2081
2701
2453
2329
2577
2825
HI-QUALITY ANTENNAS MADE IN ITALY
B Copyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 30/06/2014 - Cod. ID421
• Very compact directional dual band
• Suitable for indoor and outdoor use
• Conceived for 4G LTE frequency and
MiMo systems
• Easy and quick installation on the mast
or on the wall
• Fully designed & Manufactured in Italy
SPECIFICATIONS
Electrical Data
MOUNTING INSTRUCTIONS
Directional mini panel antenna
Type
790-960 MHz & 1710-2700 MHz @ SWR ≤ 2
Frequency Range
50 Ω
Impedance
see Typical Radiation Patterns
Half Power Beam Width
Linear Vertical
Polarization
5 dBi @ 790-960 MHz
Max gain
8 dBi @ 1710-2700 MHz
≥ 10 dB @ 790-960 MHz
Front to back ratio
≥ 15 dB @ 1710-2700 MHz
< 0.1 for all bands
Correlation coefficent
≥ 10 dB @ 790-960 MHz
Element Isolation
≥ 15 dB @ 1710-2700 MHz
Max Power
20 Watts (CW) @ 790-960 MHz
@ 30°C ambient
8 Watts (CW) @ 1710-2700 MHz
2 x RG316 / 30 cm
Cable Type / Length
Mast mounting
2 x SMA-male (other type on request, acc min q.ty)
Connector
Mechanical Data
RAL 7035 Light Grey thermoplastic UV stabilized, galvanized steel
Materials
Wind Load @150 km/h
40 N
180 Km/h
Wind Resistance
0.02 m2
Wind Surface
Operating temperature
Dimensions (approx.)
-40°C to + 80°C
154 x 134 x 46 mm without bracket
Weight (approx.)
420 gr
Installation Type
Mast: ∅25-42 mm with U-bolt (included)
Wall: mounting screw (not included)
S
ID421
SIRIO
antenne HI-QUALITY ANTENNAS MADE IN ITALY
Wall mounting
(screws not included)
Optional tilting bracket
Mast: ∅ 35-50 mm with clamp included
Wall: with mounting screws (not included)
