# Instek AFG-2225 Arbitrary Waveform Generator

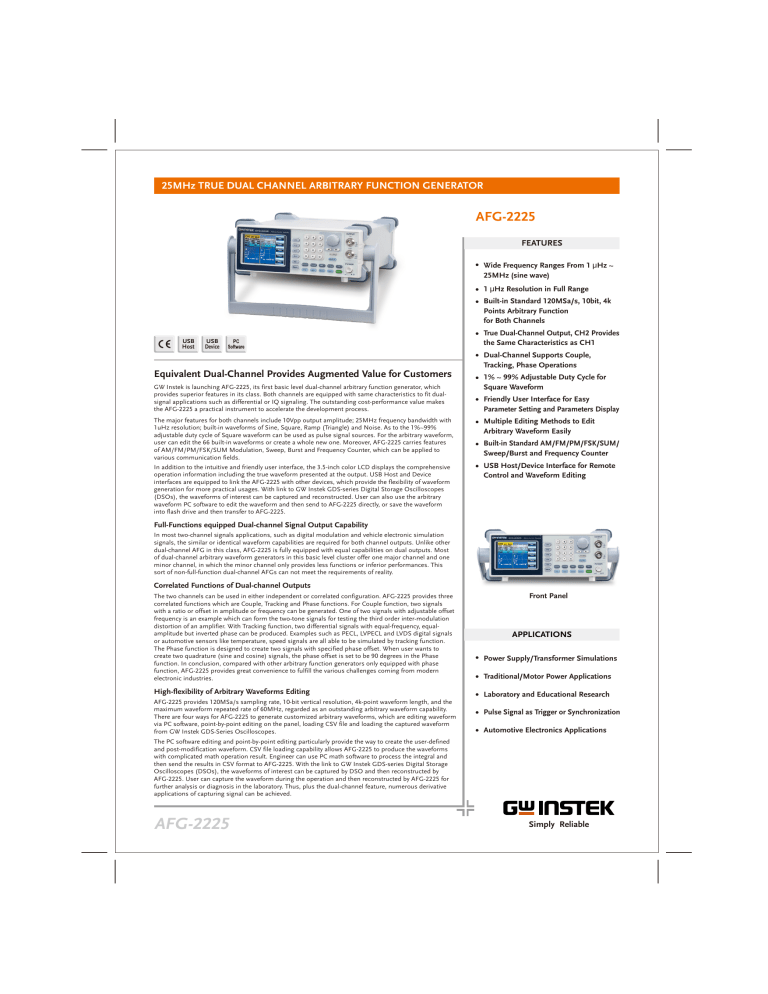

25MHz TRUE DUAL CHANNEL ARBITRARY FUNCTION GENERATOR AFG-2225 FEATURES Wide Frequency Ranges From 1 μHz ~ 25MHz (sine wave) 1 μHz Resolution in Full Range Built-in Standard 120MSa/s, 10bit, 4k Points Arbitrary Function for Both Channels USB Host USB Device True Dual-Channel Output, CH2 Provides the Same Characteristics as CH1 Dual-Channel Supports Couple, Tracking, Phase Operations Equivalent Dual-Channel Provides Augmented Value for Customers GW Instek is launching AFG-2225, its first basic level dual-channel arbitrary function generator, which provides superior features in its class. Both channels are equipped with same characteristics to fit dualsignal applications such as differential or IQ signaling. The outstanding cost-performance value makes the AFG-2225 a practical instrument to accelerate the development process. 1% ~ 99% Adjustable Duty Cycle for Square Waveform Friendly User Interface for Easy Parameter Setting and Parameters Display The major features for both channels include 10Vpp output amplitude; 25MHz frequency bandwidth with 1uHz resolution; built-in waveforms of Sine, Square, Ramp (Triangle) and Noise. As to the 1%~99% adjustable duty cycle of Square waveform can be used as pulse signal sources. For the arbitrary waveform, user can edit the 66 built-in waveforms or create a whole new one. Moreover, AFG-2225 carries features of AM/FM/PM/FSK/SUM Modulation, Sweep, Burst and Frequency Counter, which can be applied to various communication fields. Multiple Editing Methods to Edit Arbitrary Waveform Easily In addition to the intuitive and friendly user interface, the 3.5-inch color LCD displays the comprehensive operation information including the true waveform presented at the output. USB Host and Device interfaces are equipped to link the AFG-2225 with other devices, which provide the flexibility of waveform generation for more practical usages. With link to GW Instek GDS-series Digital Storage Oscilloscopes (DSOs), the waveforms of interest can be captured and reconstructed. User can also use the arbitrary waveform PC software to edit the waveform and then send to AFG-2225 directly, or save the waveform into flash drive and then transfer to AFG-2225. USB Host/Device Interface for Remote Control and Waveform Editing Built-in Standard AM/FM/PM/FSK/SUM/ Sweep/Burst and Frequency Counter Full-Functions equipped Dual-channel Signal Output Capability In most two-channel signals applications, such as digital modulation and vehicle electronic simulation signals, the similar or identical waveform capabilities are required for both channel outputs. Unlike other dual-channel AFG in this class, AFG-2225 is fully equipped with equal capabilities on dual outputs. Most of dual-channel arbitrary waveform generators in this basic level cluster offer one major channel and one minor channel, in which the minor channel only provides less functions or inferior performances. This sort of non-full-function dual-channel AFGs can not meet the requirements of reality. Correlated Functions of Dual-channel Outputs The two channels can be used in either independent or correlated configuration. AFG-2225 provides three correlated functions which are Couple, Tracking and Phase functions. For Couple function, two signals with a ratio or offset in amplitude or frequency can be generated. One of two signals with adjustable offset frequency is an example which can form the two-tone signals for testing the third order inter-modulation distortion of an amplifier. With Tracking function, two differential signals with equal-frequency, equalamplitude but inverted phase can be produced. Examples such as PECL, LVPECL and LVDS digital signals or automotive sensors like temperature, speed signals are all able to be simulated by tracking function. The Phase function is designed to create two signals with specified phase offset. When user wants to create two quadrature (sine and cosine) signals, the phase offset is set to be 90 degrees in the Phase function. In conclusion, compared with other arbitrary function generators only equipped with phase function, AFG-2225 provides great convenience to fulfill the various challenges coming from modern electronic industries. High-flexibility of Arbitrary Waveforms Editing AFG-2225 provides 120MSa/s sampling rate, 10-bit vertical resolution, 4k-point waveform length, and the maximum waveform repeated rate of 60MHz, regarded as an outstanding arbitrary waveform capability. There are four ways for AFG-2225 to generate customized arbitrary waveforms, which are editing waveform via PC software, point-by-point editing on the panel, loading CSV file and loading the captured waveform from GW Instek GDS-Series Oscilloscopes. Front Panel APPLICATIONS Power Supply/Transformer Simulations Traditional/Motor Power Applications Laboratory and Educational Research Pulse Signal as Trigger or Synchronization Automotive Electronics Applications The PC software editing and point-by-point editing particularly provide the way to create the user-defined and post-modification waveform. CSV file loading capability allows AFG-2225 to produce the waveforms with complicated math operation result. Engineer can use PC math software to process the integral and then send the results in CSV format to AFG-2225. With the link to GW Instek GDS-series Digital Storage Oscilloscopes (DSOs), the waveforms of interest can be captured by DSO and then reconstructed by AFG-2225. User can capture the waveform during the operation and then reconstructed by AFG-2225 for further analysis or diagnosis in the laboratory. Thus, plus the dual-channel feature, numerous derivative applications of capturing signal can be achieved. AFG-2225 Simply Reliable SPECIFICATIONS CH1 CH2 Sine, Square, Ramp, Pulse, Noise, ARB WAVEFORMS ARITRARY FUNCTION Sample Rate Repetition Rate Waveform Length Amplitude Resolution Non-Volatile Memory 120MSa/s 60MHz 4k point 10 bit 4k points FREQUENCY CHARACTERISTICS Range 1mHz ~ 25MHz 1MHz 1 m Hz ±20ppm ±1ppm, per 1 year ≤1mHz Resolution Accuracy OUTPUT CHARACTERISTICS Amplitude Sine/Square Ramp Stability Aging Tolerance Range 1mVpp~10Vpp(into 50Ω), 2mVpp~20Vpp(open-circuit) 1mVpp~5Vpp(into 50Ω)for 20MHz~25MHz; 2mVpp~10 pp(open-circuit)for 20MHz~25MHz ±2% of setting ±1mVpp(at 1kHz) 1mV or 3digits ±1% (0.1dB) ≤100kHz, ±3% (0.3 dB) ≤5MHz, ±5% (0.4 dB) ≤12MHz, ±10%(0.9dB)≤25MHz (sine wave relative to 1kHz) Vpp, Vrms, dBm ±5Vpk ac+dc(into 50Ω); ±10Vpk ac+dc(open circuit); ±2.5Vpk ac+dc(into 50Ω) for 20MHz~25MHz ±5Vpk ac+dc(open circuit) for 20MHz~25MHz 2% of setting + 5mV+ 0.5% of amplitude 50Ω typical (fixed); >10MΩ (output disabled) Short-circuit protected ; Overload relay auto matically disables main output Accuracy Resolution Flatness Offset Waveform Output Units Range Accuracy Impedance Protection SINE WAVE CHARACTERISTICS Harmonic Distortion ≤-55 dBc, DC ~ 200kHz, Ampl > 0.1Vpp; ≤-50 dBc, 200kHz ~ 1MHz, Ampl > 0.1Vpp ≤-35 dBc, 1MHz ~ 5MHz, Ampl > 0.1Vpp; ≤-30 dBc, 5MHz ~ 25MHz, Ampl > 0.1Vpp SQUARE WAVE CHARACTERISTICS Rise/Fall Time Overshoot Asymmetry Variable Duty Cycle RAMP CHARACTERISTICS Linearity Variable Symmetry 25ns at maximum output (into 50Ω load) 5% 1% of period + 5 ns 1.0%~99% 100kHz ; 10.0%~90.0% 1MHz ; 50.0% 25MHz < 0.1% of peak output 0%~100%(0.1% Resolution) PULSE CHARACTERISTICS Period Pulse Width Overshoot Jitter 40ns ~ 2000s 20ns ~ 1999.9s <5% 20ppm + 5ns AM MODULATION Carrier Waveforms Modulating Waveforms Modulating Frequency Depth Source Carrier Waveforms Modulating Waveforms Modulating Frequency Peak Deviation Source Sine, Square, Ramp, Pulse, Arb Sine, Square, Triangle, Upramp, Dnramp 2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT) 0% ~ 120.0% Internal / External Sine, Square, Ramp Sine, Square, Triangle, Upramp, Dnramp 2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT) DC ~ Max Frequency Internal / External Sine, Square, Ramp, Pulse, Arb Sine, Square, Triangle, Upramp, Dnramp 2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT) 0% ~ 120.0% Internal / External Sine, Square, Ramp Sine, Square, Triangle, Upramp, Dnramp 2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT) DC ~ Max Frequency Internal / External PM Carrier Waveforms Modulating Waveforms Modulation Frequency Phase Deviation Source Sine, Square, Ramp Sine, Square, Triangle, Upramp, Dnramp 2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT) 0˚ ~ 360˚ Internal / External Sine, Square, Ramp Sine, Square, Triangle, Upramp, Dnramp 2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT) 0˚ ~ 360˚ Internal / External FSK Carrier Waveforms Modulating Waveforms Modulation Frequency Phase Deviation Source Sine, Square, Ramp, Pulse 50% duty cycle square 2mHz ~ 100 kHz (INT); DC ~ 100 kHz(EXT) 1mHz ~ Max Frequency Internal / External Sine, Square, Ramp, Pulse 50% duty cycle square 2mHz ~ 100 kHz (INT); DC ~ 100 kHz(EXT) 1mHz ~ Max Frequency Internal / External SUM Carrier Waveforms Modulating Waveforms Modulation Frequency Phase Deviation Source Sine, Square, Ramp, Pulse, Noise Sine, Square, Triangle, Upramp, Dnramp 2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT) 0% ~ 100.0% Internal / External Sine, Square, Ramp, Pulse, Noise Sine, Square, Triangle, Upramp, Dnramp 2mHz ~ 20kHz (INT); DC ~ 20kHz (EXT) 0% ~ 100.0% Internal / External SWEEP Waveforms Type Start/Stop Freq Sweep Time Source Sine, Square, Ramp Linear or Logarithmic 1mHz to Max Frequency 1ms ~ 500s Internal / External/Manual Sine, Square, Ramp Linear or Logarithmic 1mHz to Max Frequency 1ms ~ 500s Internal / External/Manual BURST Waveforms Frequency Burst Count Start/Stop Phase Internal Period Gate Source Trigger Source N-Cycle, Infinite Sine, Square, Ramp 1mHz ~ 25MHz 1 ~ 65535 cycles or Infinite -360 ~ +360 1ms ~ 500s External Trigger Single, External or Internal Rate 0s ~ 655350ns Sine, Square, Ramp 1mHz ~ 25MHz 1 ~ 65535 cycles or Infinite -360 ~ +360 1ms ~ 500s External Trigger Single, External or Internal Rate 0s ~ 655350ns FREQUENCY COUNTER Range Accuracy Time Base Resolution Input Impedance Sensitivity 5Hz ~ 150MHz Time Base accuracy±1count ±20ppm (23˚C ± 5˚C) after 30 minutes warm up The maximum resolution is : 100nHz for 1Hz, 0.1Hz for 100MHz 1k W /1pf 35mVrms ~ 30Vms (5Hz ~ 150MHz) DUAL CHANNEL FUNCTION Phase Tracking Coupling DSOlink -180˚ ~ 180˚, Synchronize phase CH2=CH1 Frequency(Ratio or Difference)Amplitude & DC Offset EXTERNAL TRIGGER INPUT Type Input Level Slope Pulse Width Input Impedance For FSK, Burst, Sweep TTL Compatibility Rising or Falling(Selectable) >100ns 10kW , DC coupled EXTERNAL MODULATION INPUT Type Voltage Range Input Impedance Frequency For AM, FM, PM, SUM ±5V full scale 10k W DC ~ 20kHz FM MODULATION -180˚ ~ 180˚, Synchronize phase CH1=CH2 Frequency(Ratio or Difference)Amplitude & DC Offset TRIGGER OUTPUT Type For Burst, Sweep, Arb Level TTL Compatible into 50 W >450ns Pulse Width 1MHz Maximum Rate Fan-out ≥4 TTL Load Impedance 50W Typical Save/RECALL 10 Groups of Setting Memories USB(Host & Device) INTERFACE DISPLAY 3.5" TFT LCD POWER SOURCE AC100～240V , 50～60Hz POWER CONSUMPTION 25W (Max.) OPERATING ENVIRONMENT Temperature to satisfy the specification: 18~28°C; Operating temperature: 0~40°C; Relative Humidity: ≤80%, 0~40°C; ≤70%, 35~40°C; Installation category: CAT Ⅱ OPERATING ALTITUDE 2000 meters STORAGE TEMPERATURE -10~70°C, Humidity: ≤70% 266(W)×107(H)×293(D) mm ; Approx. 2.5 kg DIMENSIONS & WEIGHT Specifications subject to change without notice. * The specifications apply when the function generator is powered on for at least 30 minutes under +18°C~+28°C. FG-2225GD1DH ORDERING INFORMATION OPTIONAL ASSESSORIES AFG-2225 GTL-110 GTL-246 25MHz True Dual Channel Arbitrary Function Generator ACCESSORIES User Manual CD x 1, Quick Start Manual x 1, GTL-101 Test Lead x 2, Power Cord x 1 ww w. g wi nst ek.c om BNC(M)-BNC(M) RF Cable USB Cable, USB 2.0 Type A – Type B, 4P FREE DOWNLOAD PC Software Arbitrary Waveform Editing Software GOOD WILL INSTRUMENT CO., LTD. No.7-1, Jhongsing Road, Tucheng Dist., New Taipei City 236, Taiwan T +886-2-2268-0389 F +886-2-2268-0639 Simply Reliable
