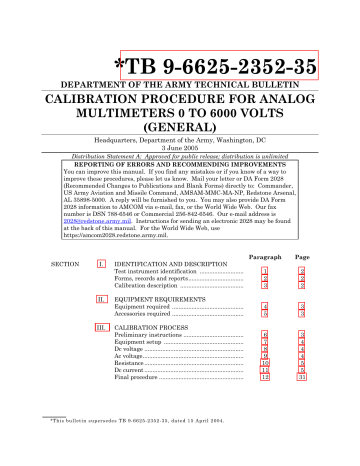

TB 9-6625-2147-35

*TB 9-6625-2352-35

DEPARTMENT OF THE ARMY TECHNICAL BULLETIN

CALIBRATION PROCEDURE FOR ANALOG

MULTIMETERS 0 TO 6000 VOLTS

(GENERAL)

Headquarters, Department of the Army, Washington, DC

3 June 2005

Distribution Statement A: Approved for public release; distribution is unlimited

REPORTING OF ERRORS AND RECOMMENDING IMPROVEMENTS

You can improve this manual. If you find any mistakes or if you know of a way to improve these procedures, please let us know. Mail your letter or DA Form 2028

(Recommended Changes to Publications and Blank Forms) directly to: Commander,

US Army Aviation and Missile Command, AMSAM-MMC-MA-NP, Redstone Arsenal,

AL 35898-5000. A reply will be furnished to you. You may also provide DA Form

2028 information to AMCOM via e-mail, fax, or the World Wide Web. Our fax number is DSN 788-6546 or Commercial 256-842-6546. Our e-mail address is

[email protected]

. Instructions for sending an electronic 2028 may be found at the back of this manual. For the World Wide Web, use https://amcom2028.redstone.army.mil.

SECTION

I.

IDENTIFICATION AND DESCRIPTION

Test identification ...........................

II.

III.

Ac

Resistance .............................................................

Dc procedure ....................................................

Paragraph Page

1

3

2

2 2

2

4 3

5 3

6

7

3

4

8 4

9 4

10 5

11 5

12 31

_________

*This bulletin supersedes TB 9-6625-2352-35, dated 15 April 2004.

TB 9-6625-2352-35

SECTION I

IDENTIFICATION AND DESCRIPTION

1. Test Instrument Identification. This bulletin provides instructions for the calibration of Analog Multimeters 0 to 6000 Volts (General) listed in table 1. The

manufacturers' manuals or TMs were used as the prime data sources in compiling these instructions. The equipment being calibrated will be referred to as the TI (test instrument) throughout this bulletin.

b. Time and Technique. The time required for each calibration is approximately 2 hours, using the dc and low frequency technique.

2. Forms, Records, and Reports

a. Forms, records, and reports required for calibration personnel at all levels are prescribed by TB 750-25.

b. Adjustments to be reported are designated (R) at the end of the sentence in which they appear. When adjustments are in tables, the (R) follows the designated adjustment.

Report only those adjustments made and designated with (R).

3. Calibration Description. TI parameters and performance specifications which pertain to this calibration are listed in table 1.

---

Table 1. Test Instrument

Models or

Tables for specifications, calibration performance limits, and figures for adjustments

ME-297//U

Tables

3

Figures

1

Simpson 260 5

2

---

Simpson 260-3 6

Simpson 260-4 7

Simpson 260-5 8

Simpson 269 9

Simpson 269 Series III 10

Simpson 270 11

Triplett 310 12

Triplett 630 13

Triplett 630NA 14

Triplett 630PL 15

Triplett 666R 16

3

4

5

---

6

7

---

---

8

---

---

2

TB 9-6625-2352-35

SECTION II

EQUIPMENT REQUIREMENTS

4. Equipment Required. Table 2 identifies the specific equipment to be used in this

calibration procedure. This equipment is issued with Secondary Transfer Calibration

Standards Set AN/GSM-286, and AN/GSM-287. Alternate items may be used by the calibrating activity. The items selected must be verified to perform satisfactorily prior to use and must bear evidence of current calibration. The equipment must meet or exceed the

minimum use specifications listed in table 2. The accuracies listed in table 2 provide a four-

to-one ratio between the standard and TI.

5. Accessories Required. The accessories required for this calibration are common usage accessories issued as indicated in paragraph 4 above, and are not listed in this

calibration procedure.

Common name

Table 2. Minimum Specifications of Equipment Required

Minimum use specifications

1

Manufacturer and model (part number)

CALIBRATOR

POWER SUPPLY

RESISTANCE

STANDARD NO. 1

RESISTANCE

STANDARD NO. 2

Dc voltage: Range: 0 to 1100 V

Accuracy:

Dc current: Range: 50 µA to 10 A

Accuracy:

Ac voltage Range: 0 to 1100 V

Frequency: 60 Hz to 100 Hz

Accuracy:

Range: 0 to 6300 V dc

Accuracy: ±0.25%

Range: 0 to 1.1 M Ω

Accuracy: ±0.047%

Range: 1 to 10 M

Accuracy: ±0.047%

Fluke, Model 5720A (5700A/EP)

(p/o MIS-35947), w/amplifier,

Fluke, 5725A/AR (5725A/AR)

Fluke, Model 410B/AT

(MIS-10230) (MIS 45839)

Biddle-Gray, Model 71-631

(7910328)

Beckman, Model CR10M

(8598965)

RESISTANCE Range: 10 to 200 M Ω Beckman, Model CR100M

STANDARD NO. 3

Accuracy: ±0.047%

(8598966)

1

The ranges and accuracies listed reflect the highest range required and the best accuracy required, respectively, in this technical bulletin.

SECTION III

CALIBRATION PROCESS

6. Preliminary Instructions

a. The instructions outlined in paragraphs 6 and 7 are preparatory to the calibration

process. Personnel should become familiar with the entire bulletin before beginning the calibration.

b. Items of equipment used in this procedure are referenced within the text by common

name as listed in table 2.

3

TB 9-6625-2352-35

c. Unless otherwise specified, verify the result of each test and, whenever the test requirement is not met, take corrective action before continuing with the calibration.

Adjustments required to calibrate the TI are included in this procedure. Additional maintenance information is contained in the manufacturers' manuals and/or technical manuals for the TI.

d. This is a general procedure which provides instructions for the calibration of a variety of multimeters.

e. Unless otherwise specified, all controls and control settings refer to the TI.

7. Equipment Setup

WARNING

HIGH VOLTAGE is used or exposed during the performance of this calibration. DEATH ON CONTACT may result if personnel fail to observe safety precautions. REDUCE

OUTPUT(S) to minimum after each step within the performance check where applicable.

a. If necessary, mechanically zero meter pointer, using adjustment screw on meter face.

b. Connect test leads to TI COM ( −) and VOA (+) jacks.

8. Dc Voltage

(1) Set function switch to dc volts and range switch to first dc voltage range listed in calibration performance specifications and adjustments table for TI being calibrated.

(2) Connect TI to calibrator OUTPUT HI and OUTPUT LO, observing polarity.

(3) Set calibrator to initial output as listed in table.

(4) Rotate calibrator knob, below EDIT FIELD pushbutton, for the required indication on TI. If calibrator displayed output does not indicate within limits specified, and an adjustment is listed, adjust calibrator for nominal value and then perform adjustment for required indication on TI.

(5) Repeat technique of (1), (3) and (4) above for the remaining dc voltage ranges.

9. Ac Voltage

(1) Set function switch to ac volts and range switch to first ac voltage range listed in calibration performance limits and adjustments table for TI being calibrated.

(2) Set calibrator to initial output and frequency as listed in table.

(3) Rotate calibrator knob, below EDIT FIELD pushbutton, for the required indication on TI. If calibrator err display does not indicate within limits specified, and an

4

TB 9-6625-2352-35

adjustment is listed, adjust calibrator for nominal value and then perform adjustment for required indication on TI.

(4) Repeat technique of (1), (2) and (3) above for the remaining ac voltage ranges.

10. Resistance

(1) Set function switch to ohms and range switch to first ohms range listed in calibration performance limits and adjustments table for TI being calibrated.

(2) Short test leads together and adjust ohms adjust for a 0 indication on TI ohms scale.

NOTE

Perform (2) above for each range prior to making resistance check on the range.

NOTE

Connect resistance standards NO. 1, NO. 2, and NO. 3 in series, as needed, to obtain required resistance values.

(3) Connect TI to resistance standard NO. 1.

(4) Adjust resistance standard for required indication on TI as listed in table. If resistance standard does not indicate within limits specified, and an adjustment is listed, adjust resistance standard for nominal value and perform adjustment for required indication on TI.

(5) Repeat technique of (1), (2) and (4) above for the remaining ohms ranges.

11. Dc Current

(1) Set function switch to dc amps and range switch to the first dc current range listed in the calibration performance specifications and adjustments table for the TI being calibrated.

(2) Set calibrator to initial output as listed in table.

(3) Rotate calibrator knob, below EDIT FIELD pushbutton, for the required indication on TI. If calibrator err display does not indicate within limits specified, and an adjustment is listed, adjust calibrator for nominal value and then perform adjustment for required indication on TI.

(4) Repeat technique of (1) through (3) above for the remaining dc current ranges.

NOTE

The sets of tables below for each instrument are setup as follows; a = specifications, b = Dc volts, c = Ac volts, d = resistance and e = Dc current.

5

TB 9-6625-2352-35

Dc voltage

Ac voltage

Table 3a. ME-297/U Specifications

Test instrument parameters Performance specifications

Resistance

Dc current

Range: 0 to 2.5, 10, 50, 250, 500, 1000 V at 1000 Ω per V

0 to 5000 V at 1000

Ω per V

Accuracy: ±3% FS from 0 to 500 V at 1000 and 20,000 Ω / V

±3% FS at 1000 V at 1000 Ω / V

±4% FS at 1000 V at 20,000 Ω / V

±6% FS at 5000 V at 20,000 Ω / V and 1 kΩ

Range: 0 to 0.5, 2.5, 10, 50 250, 500, and 1000 V at 1000

or

0 to 5000 V at 1000 Ω and 20,000 Ω per V

Accuracy: ±4% FS from 0 to 500 V

±5% FS at 1000 V

±7% FS at 5000 V

Range: 0 to 10 M

Ω in 5 ranges

Accuracy: ±3% FS of meter arc length

Range: 0 to 0.25, 1.0, 2.5, 50, 100, 500, and 2500 mA

0 to 10 A

Accuracy: ±3% of FS

Table 3b. ME-297/U Dc Volts

Calibration Performance Limits and Adjustments

Dc Voltage

Test instrument

Dc volts Indication Initial

Calibrator output

Limits

Test instrument output Adjustments

2.5

1

10 10 10 9.7

10 7 7 6.7 7.3

500 500 500 485 515

1000

2

1000 1000 970 1030

5000

3

5000

4

5000 (700)

5000 (700)

5000 (700)

5000 (700)

4700 (400)

4700 (400)

5300 (1000)

5300 (1000)

None

1000

500 5

1000 1000 960 1040

500 500 485 515

10.3

2.575

1

Function switch to DC VOLTS 1 KΩ.

2

Reduce output to minimum and move positive lead from TI V-Ω-A input to TI AC/DC 1000 Ω/V 1000 V input.

3

Reduce output to minimum. Replace calibrator with power supply and move positive lead to TI V-Ω-A input to TI AC/DC

1000 Ω/V 5000 V input. Calibrate at 700 V if power supply is not available.

4

Reduce output to minimum and set TI function switch to DC VOLTS 20 KΩ and move positive lead from TI V-Ω-A input to

TI AC/DC 20000 Ω/V 5000 V input. After 5000V check is complete, replace power supply with calibrator and move positive lead to TI AC/DC 20000 Ω/V 1000 V input.

5

Reduce output to minimum and move positive lead from TI AC/DC 20000 Ω/V 1000 V input to TI V-Ω-A input.

6

TB 9-6625-2352-35

Test instrument

Ac volts range

Indication

(V)

Table 3c. ME-297/U Ac Volts

Calibration Performance Limits and Adjustments

Ac Voltage

Calibrator

Initial output

(V)

Frequency

(Hz)

err indication

± (%)

Test instrument

Adjustments

(fig. 1)

250 250 ----

500 500 ----

1000 2

5000 3

1000 1000 400

700 700 400

5

50

1

Recheck 50 V range and, if necessary, readjust R42 (fig. 1) and R41 (fig. 1) for best in-tolerance condition.

2

Reduce output to minimum and move positive lead from TI V-Ω-A input to TI AC/DC 1000 Ω/V 1000 V input.

3

Reduce output to minimum and move positive lead to TI AC/DC 1000 Ω/V 5000 V input.

----

----

Table 3d. ME-297/U Resistance

Calibration Performance Limits and Adjustments

Resistance

Test instrument

Resistance standard indications

(

Ω) Test instrument

Indications

Resistance ohms range

1 ( scale

Ω) Min Max

X1 0

2

--- --- Short leads, adjust

X10

X100

X1000

25

25

25

220

2200

22,000

280

2800

28,000 for 0 indication.

Open leads, adjust

OHMS INF

1

A djust OHMS ZERO and OHMS INF controls for each range.

2

If 0 indication cannot be obtained, set OHMS ZERO control to mid-position, short leads, and adjust R36 (fig.1) for 0

indication.

Table 3e. ME-297/U Dc Current

Calibration Performance Limits and Adjustments

Dc Current

Test instrument Calibrator

Dc mA range

Indication

(mA)

Initial output

(mA)

err indication

± (%)

Test instrument

Adjustments

(fig. 1)

10 A 1 10 A 10 A

1

Reduce output to minimum and connect TI positive lead to +10A input.

3 ----

7

TB 9-6625-2352-35

Figure 1. ME-297/U.

Dc voltage

Test instrument parameters

Table 4a. TS-352/U Specifications

Performance specifications

Range: 0 to 1000 V at 1000

Ω per V

Accuracy: ±3% of FS

Range: 0 to 1000 V at 20,000

Ω per V

Accuracy: ±4% of FS

Range: 0 to 5000 V at 20,000

Ω per V

Accuracy: ±6% of FS

Ac voltage

Resistance

Dc current

Range: 0 to 500 V at 1000 Ω per V

Accuracy:

±4% at 400 Hz, ±7% at 10 kHz of FS

Range: 1000 V at 1000 Ω per V

Accuracy:

±5% at 400 Hz, ±8% at 10 kHz of FS

Range: 0 to 10,000,000 Ω

Accuracy: ±3% (percent values are in terms of meter arc length, not of

Ω indicated by meter

Range: 0 to 10 A

Accuracy:

±3% of FS

Table 4b. TS-352/U Dc Volts

Calibration Performance Limits and Adjustments

Dc Voltage

Test instrument

Dc volts Indication Initial

Calibrator output

Limits

Test instrument output Adjustments

2.5

1

10 6 6 5.60 6.40

8

See footnote at the end of the table.

TB 9-6625-2352-35

Table 4b. TS-352/U Dc Volts Continued

Calibration Performance Limits and Adjustments

Dc Voltage

Test instrument

Dc volts Indication Initial

Calibrator output

Limits

Test instrument output Adjustments

1000 1000 1000 960 1040

5000 2 5000 (700) 5000 (700) 4700 (400) 5300 (1000) None

1000 3 1000 1000 970 1030

500 500 500 485 515.0

257.5

51.5

1

Set function switch to 20000 Ω/VDC.

2

Replace calibrator with power supply. Connect lead between TI 20000 OHMS PER VOLT DC 2.5 V input and TI

CONNECT TO 2.5 V JACK. Calibrate at 700 V if power supply is not available.

3

Set function switch to 1000 Ω/VDC. Replace power supply with calibrator and remove lead connected in

2 above.

Test instrument

Ac volts range

2.5

Indication

(V)

2.5

Table 4c. TS-352/U Ac Volts

Calibration Performance Limits and Adjustments

Ac Voltage

Calibrator

Initial output

(V)

2.5

Frequency

(Hz)

400

err indication

± (%)

4

Test instrument

Adjustments

(fig. 2)

Ac voltage adj. (R)

250 250 ----

500 500 ----

1000

1

1000 1000 400 5 ----

1

Reduce output to minimum and move positive lead from TI + input to TI 1000 V AC input. After 1000 V check is complete, reduce output to minimum and move positive lead back to TI + input.

Test instrument

Table 4d. TS-352/U Resistance

Calibration Performance Limits and Adjustments

Resistance

Resistance standard indications

( Ω) Test instrument

Indications

Resistance ohms range

1

( scale

Ω) Min Max

RX1 25

RX10 250

22

220

28

280

RX100

RX1K

RX10K

2.5 k

25 k

250 k

2200

22,000

220,000

2800

28,000

280,000

1

Short leads and adjust OHMS ZERO ADJ for 0 indication on ohms scale. Repeat for each range.

None

9

TB 9-6625-2352-35

Table 4e. TS-352/U Dc Current

Calibration Performance Limits and Adjustments

Dc Current

Test instrument Calibrator

Dc current range

250 µA

2.5 mA

Indication

(A)

250 µA

2.5 mA

Initial output

(A)

250 µA

2.5 mA

err indication

± (%)

3

3

10 mA

50 mA

100 mA

500 mA

10 mA

50 mA

100 mA

500 mA

2.5 A 2.5 A

10 A 1 10 A

1

Connect positive lead to TI +10 AMPS ONLY input.

10 mA

50 mA

100 mA

500 mA

2.5 A

10 A

3

3

3

3

3

3

Test instrument

Adjustments

None

Dc voltage

Ac voltage

Figure 2. TS-352( )/U.

Table 5a. Simpson, Model 260 Specifications

Test instrument parameter Performance specification

Range: 0 to 5000 V

Accuracy: ±3% of FS

Range: 0 to 5000 V

Resistance

Dc current

Accuracy: ±5% of FS

Range: 0 to 20 MΩ

Accuracy:

±3

° of arc

Range: 0 to 10 A

Accuracy:

±3% of FS

10

TB 9-6625-2352-35

Table 5b. Simpson, Model 260 Dc Voltage

Calibration Performance Limits and Adjustments

Dc Voltage

Test instrument

1

Dc volts Indication Initial

Calibrator output

Limits

Test instrument output Adjustments

1000 1000 1000 970 1030

5000 2 5000 (900) 5000 (900) 4850 (750) 5150 (1050)

1

TI must be calibrated in horizontal position.

2

Replace calibrator with power supply. Move positive lead to TI D.C. 5000 V input. Calibrate at 900 V if power supply not available. After 5000 V test, replace power supply with calibrator and move positive lead to TI + input.

Table 5c. Simpson, Model 260 Ac Voltage

Calibration Performance Limits and Adjustments

Ac Voltage

Test instrument

1

Ac volts Indication Initial output

Calibrator

Frequency err indication

Test instrument range (V) (V)

2.5 2.5

(Hz)

2.5

± (%) Adjustments

60 5

10 10

1000 1000 5

5000

2

800 800 60 31.25

1

TI must be calibrated in horizontal position.

2

Reduce output to minimum and move positive lead from TI + input to TI A.C. 5000 V input. After 5000V check is complete, reduce output to minimum and move positive lead to TI + input.

Table 5d. Simpson, Model 260 Resistance

Calibration Performance Limits and Adjustments

Resistance

Test instrument

1

Resistance standard indications

(

Ω)

Test instrument

Indications

Resistance Ohms range

2 ( scale

Ω) Min Max

RX100

RX10,000

12

12

1050

105,000

1370

137,000

1

TI must be calibrated in horizontal position.

2

Short leads and adjust ZERO OHMS for a 0 indication on ohms scale. Repeat for each range.

None

11

TB 9-6625-2352-35

50 µA

2

100 µA

1 mA

1 mA

1 mA

10 mA

Table 5e. Simpson, Model 260 Dc Current

Calibration Performance Limits and Adjustments

Dc Current

Test instrument

1

Calibrator

Dc current range

Indication

(A)

50 µA

100 µA

1 mA

.6 mA

.2 mA

10 mA

Initial output

(A)

50 µA

100 µA

1 mA

.6 mA

.2 mA

10 mA

err indication

± (%)

3

3

3

5

15

3

Test instrument

Adjustments

None

100 mA

500 mA

10 A

3

100 mA

500 mA

10 A

100 mA

500 mA

10 A

3

3

3

1

TI must be calibrated in horizontal position.

2

Connect positive lead to TI +50 µA input. After 50 µA check is complete, reduce output to minimum and move positive lead to TI + input.

3

Reduce output to minimum and connect TI negative lead to −10A input and connect TI positive lead to +10A input.

Ac voltage

Resistance

Dc current

Table 6a. Simpson, Model 260-3 Specifications

Dc voltage

Test instrument parameter Performance specification

Range: 0 to 5000 V

Accuracy: ±3% of FS

Range: 0 to 5000 V

Accuracy: ±3% of FS

Range: 0 to 20 MΩ

Accuracy: ±3

° of arc

Range: 0 to 10 A

Accuracy: ±3% of FS

Test instrument 1

Dc volts

Table 6b. Simpson, Model 260-3 Dc Voltage

Calibration Performance Limits and Adjustments

Indication Initial

Dc Voltage

Calibrator output

Limits

Test instrument output Adjustments

1000 1000 1000 970 1030

5000

2

5000 (900) 5000 (900) 4850 (750) 5150 (1050)

1

TI must be calibrated in horizontal position.

2

Replace calibrator with power supply. Move positive lead to TI D.C. 5000 V input. Calibrate at 900 V if power supply not available. After 5000 V check is complete, reduce output to minimum and move positive lead to TI + input.

12

TB 9-6625-2352-35

Test instrument

1

Ac volts range

Indication

(V)

Table 6c. Simpson, Model 260-3 Ac Voltage

Calibration Performance Limits and Adjustments

Ac Voltage

Calibrator

Initial output

(V)

Frequency

(Hz)

err indication

± (%)

Test instrument

Adjustments

(fig. 3)

2.5

2

(R)

1000 1000

5000 3

3 ----

900 900 60 16.67 ----

1

TI must be calibrated in horizontal position.

2

Recheck 250 V range and, if necessary, readjust R31 (fig. 3) and R28 (fig. 3) for best in-tolerance condition.

3

Reduce output to minimum and move positive lead from TI + input to TI A.C. 5000 V input. After 5000 V check is complete, reduce output to minimum and move positive lead to TI + input.

Table 6d. Simpson, Model 260-3 Resistance

Calibration Performance Limits and Adjustments

Resistance

Test instrument 1 Resistance standard indications

( Ω)

Test instrument

Indications

Resistance ohms range

2

( scale

Ω) Min Max

RX100

RX10,000

12

12

1050

105,000

1370

137,000

1

TI must be calibrated in horizontal position.

2

Short leads and adjust ZERO OHMS for a 0 indication on ohms scale. Repeat for each range.

None

Table 6e. Simpson, Model 260-3 Dc Current

Calibration Performance Limits and Adjustments

Dc Current

Test instrument

1

Calibrator

Dc current range

50 µA

100 µA

2

1 mA

1 mA

1 mA

10 mA

100 mA

500 mA

Indication

(A)

50 µA

100 µA

1 mA

.6 mA

.2 mA

10 mA

100 mA

500 mA

Initial output

(A)

50 µA

100 µA

1 mA

.6 mA

.2 mA

10 mA

100 mA

500 mA

err indication

± (%)

3

3

3

5

15

3

3

3

Test instrument

Adjustments

(fig. 3)

----

----

R27 (R)

----

----

----

----

--

10 A 3 10 A

1

TI must be calibrated in horizontal position.

10 A 3 R22 (R)

2

Connect positive lead to TI +50 µA input. After 50 µA check is complete, reduce output to minimum and move positive lead to TI + input.

3

Reduce output to minimum and connect TI negative lead to −10A input and connect TI positive lead to +10A input.

13

TB 9-6625-2352-35

Figure 3. Simpson, Model 260-3.

Dc voltage

Ac voltage

Table 7a. Simpson, Model 260-4 Specifications

Test instrument parameter Performance specification

Range: 0 to 5000 V

Accuracy:

±2% of FS

Range: 0 to 5000 V

Accuracy:

±3% of FS

Resistance

Dc current

Range: 0 to 20 MΩ

Accuracy:

±3

° of arc

Range: 0 to 10 A

Accuracy:

±2% of FS

Table 7b. Simpson, Model 260-4 Dc Voltage

Calibration Performance Limits and Adjustments

Dc Voltage

Test instrument 1

Dc volts Initial

Calibrator output

Limits

Test instrument range Indication output Min Max Adjustments

250 2

2.5

250

2.5

250 mV

2.5 V

245 mV

2.45 V

255 mV

2.55 V

10

50

250

1000

10

50

250

1000

10 V

50 V

250 V

1000 V

9.8 V

49 V

245 V

980 V

10.2 V

51 V

255 V

1020 V

None

5000

3

5000 (900) 5000 (900) V 4900 (800) V 5100 (1000) V

1

TI must be calibrated in horizontal position.

2

Connect TI positive lead to TI +50 µA/250mV input. After 250 mV check, move TI positive lead to TI + input.

3

Replace calibrator with power supply. Move positive lead to TI D.C. 5000 V input. Calibrate at 900 V if power supply not available. After 5000 V check is complete, reduce output to minimum and move positive lead to TI + input.

14

TB 9-6625-2352-35

Test instrument

1

Ac volts range

Indication

(V)

Table 7c. Simpson, Model 260-4 Ac Voltage

Calibration Performance Limits and Adjustments

Ac Voltage

Initial output

(V)

Frequency

(Hz)

err indication

± (%)

Adjustments

(fig. 4)

1000 1000

5000 2

3 ----

900 900 60 16.67 ----

1

TI must be calibrated in horizontal position.

2

Reduce output to minimum and move positive lead from TI + input to TI A.C. 5000 V input. After 5000 V check is complete, reduce output to minimum and move positive lead to TI + input.

Table 7d. Simpson, Model 260-4 Resistance

Calibration Performance Limits and Adjustments

Resistance

Test instrument 1 Resistance standard indications

( Ω)

Test instrument

Indications

Resistance ohms range

2

( scale

Ω) Min Max

RX100 12 1050 1370

RX10,000 12 105,000 137,000

1

TI must be calibrated in horizontal position.

2

Short leads and adjust ZERO OHMS for 0 indication on ohms scale. Repeat for each range.

None

Table 7e. Simpson, Model 260-4 Dc Current

Calibration Performance Limits and Adjustments

Dc Current

Test instrument

1

Calibrator

Dc current range

50 µA

2

1 mA

10 mA

10 mA

10 mA

100 mA

500 mA

10 A

3

Indication

(A)

50 µA

1 mA

10 mA

6 mA

2 mA

100 mA

500 mA

10 A

Initial output

(A)

50 µA

1 mA

10 mA

6 mA

2 mA

100 mA

500 mA

10 A

err indication

± (%)

2

2

2

3.33

10

2

2

2

Test instrument

Adjustments

(fig. 4)

R32 (R)

R27 (R)

----

----

----

----

----

R22 (R)

1

TI must be calibrated in horizontal position.

2

Connect positive lead to TI +50 µA/250 mV input. After 50 µA check is complete, reduce output to minimum and move positive lead to TI + input.

3

Reduce output to minimum and connect TI negative lead to −10A input and connect TI positive lead to +10A input.

15

TB 9-6625-2352-35

Figure 4. Simpson, Model 260-4.

Dc voltage

Table 8a. Simpson, Model 260-5 Specifications

Test instrument parameter Performance specification

Range: 0 to 5000 V

Accuracy:

±2% of FS 0 to 1000 V range

±3% of FS 5000 V range

Ac voltage Range: 0 to 1000 V

Accuracy: ±3% of FS 0 to 1000 V range

±4% of FS 5000 V range

Resistance Range: 0 to 20 MΩ

Accuracy: ±2.5

°

of arc for RX1 range, ±2

°

of arc for

all

Dc current Range: 0 to 10A

Accuracy: ±1.5% of FS for 50 µA range,

±2% of FS for all other ranges

Table 8b. Simpson, Model 260-5 Dc Voltage

Calibration Performance Limits and Adjustments

Dc Voltage

Test instrument

1

Dc volts Initial

Calibrator output

Limits

Test instrument range Indication output Min Max Adjustments

250 2

2.5

10

50

250

250

2.5

10

50

250

250 mV

2.5 V

10 V

50 V

250 V

245 mV

2.45 V

9.8 V

49 V

245 V

255 mV

2.55 V

10.2 V

51 V

255 V

None

1000

5000

3

1000

5000 (900)

1000 V

5000 (900) V

980 V

4850 (750) V

1020 V

5150 (1050) V

1

TI must be calibrated in horizontal position.

2

Connect TI positive lead to TI +50 µA/250 mV input. After 250 mV check, move TI positive lead to TI + input.

3

Replace calibrator with power supply. Move positive lead to TI D.C. 5000 V input. Calibrate at 900 V if power supply not available. After 5000 V check is complete, reduce output to minimum, replace power supply with calibrator and move positive lead to TI + input.

16

TB 9-6625-2352-35

Test instrument

1

Ac volts range

Indication

(V)

Table 8c. Simpson, Model 260-5 Ac Voltage

Calibration Performance Limits and Adjustments

Ac Voltage

Initial output

(V)

Frequency

(Hz)

err indication

± (%)

Adjustments

(fig. 5)

1000 1000

5000

2

3 ----

900 900 60 22.2 ----

1

TI must be calibrated in horizontal position.

2

Reduce output to minimum and move positive lead from TI + input to TI A.C. 5000 V input. After 5000 V check is complete, reduce output to minimum and move positive lead to TI + input.

Test instrument 1

Resistance Indications range

2 ohms scale (

Ω)

RX1

Resistance standard indications

( Ω)

Test instrument

Adjustments

12 10.7 13.5 ----

RX100

RX10K

Table 8d. Simpson, Model 260-5 Resistance

Calibration Performance Limits and Adjustments

Resistance

12

12

1110

111,000

1300

130,000

1

TI must be calibrated in horizontal position.

2

Short leads and adjust OHMS ADJ control for a 0 indication on ohms scale. Repeat for each range.

----

----

Table 8e. Simpson, Model 260-5 Dc Current

Calibration Performance Limits and Adjustments

Dc Current

Test instrument 1 Calibrator

Dc current range

50 µA 2

1 mA

10 mA

10 mA

Indication

(A)

50 µA

1 mA

10 mA

6 mA

Initial output

(A)

50 µA

1 mA

10 mA

6 mA

err indication

± (%)

1.5

2

2

3.33

Test instrument

Adjustments

(fig. 5)

R32 (R)

R27 (R)

----

----

10 mA

100 mA

500 mA

10 A

3

2 mA

100 mA

500 mA

10 A

2 mA

100 mA

500 mA

10 A

10

2

2

2

----

----

----

R22 (R)

1

TI must be calibrated in horizontal position.

2

Connect positive lead to TI +50 µA/250 mV input. After 50 µA check is complete, reduce output to minimum and move positive lead to TI + input.

3

Reduce output to minimum and connect TI negative lead to −10A input and connect TI positive lead to +10A input.

17

TB 9-6625-2352-35

Figure 5. Simpson, Model 260-5.

Ac voltage

Resistance

Dc current

Table 9a. Simpson, Model 269 Specifications

Dc voltage

Test instrument parameter Performance specification

Range: 0 to 4000 V

Accuracy: ±3% of FS

Range: 0 to 800 V

Accuracy: ±5% of FS

Range: 0 to 200 MΩ

Accuracy: ±3° of arc

Range: 0 to 16A

Accuracy: ±3% of FS

Table 9b. Simpson, Model 269 Dc Voltage

Calibration Performance Limits and Adjustments

Dc Voltage

Test instrument

Dc volts Indication Initial

Calibrator output

Limits

Test instrument output Min Max

1.6 1.6 1.6 1.552

Adjustments

1.648

400 400 400 388 412

1600

1, 2

1600 (900) 1600 (900) 1552 (780) 1648 (1020)

4000

2, 3, 4

4000 (900) 4000 (900)

1

Replace calibrator with power supply.

2

Calibrate at 900 V if power supply is not available.

3

Perform only if 4000 V probe is available.

4

Replace power supply with calibrator.

3880 (780) 4120 (1020)

18

TB 9-6625-2352-35

Test instrument

Ac volts range

Indication

(V)

Table 9c. Simpson, Model 269 Ac Voltage

Calibration Performance Limits and Adjustments

Ac Voltage

Calibrator

Initial output

(V)

Frequency

(Hz)

err indication

± (%)

Test instrument

Adjustments

Table 9d. Simpson, Model 269 Resistance

Calibration Performance Limits and Adjustments

Resistance

Test instrument

Resistance Indications range

1 ohms scale ( Ω)

RX1

RX10 18

Resistance standard indications

(

Ω)

158

18 15.8

Test instrument

Min Max Adjustments

20.4

204

RX100

RX1K

RX10K

18

18

18

1.58 k

15.8 k

158 k

2.04 k

20.4 k

204 k

None

RX100K 6 495 k 715 k

1

Short leads and adjust ZERO OHMS for 0 indication on ohms scale. Repeat for each range.

Table 9e. Simpson, Model 269 Dc Current

Calibration Performance Limits and Adjustments

Dc Current

Test instrument Calibrator

Dc current range

16 µA

16 µA

Indication

16 µA

10 µA

Initial output

16 µA

10 µA

err indication

± (%)

3

4.8

16 µA

160 µA

1.6 mA

16 mA

160 mA

1.6 A

16 A

4 µA

160 µA

1.6 mA

16 mA

160 mA

4 µA

160 µA

1.6 mA

16 mA

160 mA

12

3

3

3

3

1.6 A

9 A

1.6 A

9 A

3

3

Table 10a. Simpson, Model 269 Series III Specifications

Test instrument

Adjustments

None

Dc voltage

Test instrument parameter

Ac voltage

Resistance

Dc current

Performance specification

Range: 0 to 4000 V

Accuracy:

±1.5% of FS, ±3.5% of FS on 4000 V range

Range: 0 to 800 V

Accuracy:

±2.5% of FS

Range: 0 to 200 MΩ

Accuracy:

±2° of arc

Range: 0 to 8A

Accuracy: ±1.5% of FS

19

TB 9-6625-2352-35

Table 10b. Simpson, Model 269 Series III Dc Voltage

Calibration Performance Limits and Adjustments

Dc Voltage

Test instrument

Dc volts Indication Initial

Calibrator output

Limits

Test instrument output Adjustments

400 400 400 394 406

800 800 800 788 812

1600

1, 2

1600 (900) 1600 (900) 1576 (876) 1624 (924)

4000

2, 3, 4

4000 (900) 4000 (900) 3860 (760) 4140 (1040)

1

Replace calibrator with power supply.

2

Calibrate at 900 V if power supply is not available.

3

Perform only if 4000 V probe is available.

4

Replace power supply with calibrator.

Table 10c. Simpson, Model 269 Series III Ac Voltage

Test instrument

Ac volts range

Indication

(V)

Calibration Performance Limits and Adjustments

Ac Voltage

Initial output

(V)

Calibrator

Frequency

(Hz)

err indication

± (%)

Test instrument

Adjustments

(fig. 6)

400 60 2.5 ----

800 60 2.5 ----

Test instrument

Table 10d. Simpson, Model 269 Series III Resistance

Calibration Performance Limits and Adjustments

Resistance

Resistance Indications range

1 ohms scale (

Ω)

Resistance standard indications

( Ω)

Test instrument

Adjustments

RX10

RX100

RX1K

12

12

12

106

1.06 k

10.6 k

134

1.34 k

13.4 k

RX10K

RX100K

12

4

106 k

340 k

134 k

460 k

1

Short leads and adjust ZERO OHMS for a 0 indication on ohms scale. Repeat for each range.

None

20

TB 9-6625-2352-35

Table 10e. Simpson, Model 269 Series III Dc Current

Calibration Performance Limits and Adjustments

Dc Current

Test instrument Calibrator

Dc current range

16 µA

16 µA

Indication

(A)

16 µA

10 µA

Initial output

(A)

16 µA

10 µA

err indication

± (%)

1.5

2.4

16 µA

160 µA

1.6 mA

16 mA

160 mA

1.6 A

8 A

4 µA

160 µA

1.6 mA

16 mA

160 mA

1.6 A

8 A

4 µA

160 µA

1.6 mA

16 mA

160 mA

1.6 A

8 A

6.0

1.5

1.5

1.5

1.5

1.5

1.5

Test instrument

Adjustments

(fig. 6)

R40 (R)

----

----

----

----

----

----

R1 (R)

R35 (R)

Figure 6. Simpson, Model 269 series III.

Dc voltage

Table 11a. Simpson, Model 270 Specifications

Test instrument parameter Performance specification

Ac voltage

Resistance

Dc current

Range: 0 to 1000 V

Accuracy:

Range: 0 to 5000 V

Accuracy:

±2% of FS

±3% of FS

Range: 0 to 1000 V

Accuracy:

Accuracy:

±3% of FS

Range: 0 to 5000 V

±4% of FS

Range: 0 to 20 MΩ

Accuracy:

±2

° of arc

Range: 0 to 10A

Accuracy: ±2% of FS

21

TB 9-6625-2352-35

Table 11b. Simpson, Model 270 Dc Voltage

Calibration Performance Limits and Adjustments

Dc Voltage

Test instrument

1

Dc volts Indication Initial

Calibrator output

Limits

Test instrument output Adjustments

50 50 50 49 51 None

250 250 250 245 255

1000 1000 1000 970 1030

5000

2

5000 (900) 5000 (900) 4850 (750) 5150 (1050)

1

TI must be calibrated in horizontal position.

2

Replace calibrator with power supply. Move positive lead to TI D.C. 5000 V input. Calibrate at 900 V if power supply not available. After 5000 V check is complete, reduce output to minimum replace power supply with calibrator and move positive lead to TI + input.

Table 11c. Simpson, Model 270 Ac voltage

Calibration Performance Limits and Adjustments

Ac voltage

Test instrument

1

Ac volts Indication Initial output range (V) (V)

250 250

Calibrator

Frequency err indication

Test instrument

Adjustments

(Hz) ± (%)

(Fig. 7)

(R)

1000 1000

5000

2

3 ----

900 900 60 22.2 ----

1

TI must be calibrated in horizontal position.

2

Reduce output to minimum and move positive lead from TI + input to TI 5000 V DC/AC input. After 5000 V check is complete, reduce output to minimum and move positive lead to TI + input.

Table 11d. Simpson, Model 270 Resistance

Calibration Performance Limits and Adjustments

Resistance

Test instrument

1

Resistance standard indications

(

Ω)

Test instrument

Indications

Resistance ohms range

2 ( scale

Ω) Min Max

RX100

RX10,000

12

12

1110

111,000

1300

130,000

1

TI must be calibrated in horizontal position.

2

Short leads and adjust OHMS ADJ for a 0 indication on ohms scale. Repeat for each range.

None

22

TB 9-6625-2352-35

Table 11e. Simpson, Model 270 Dc Current

Calibration Performance Limits and Adjustments

Dc Current

Test instrument

1

Calibrator

Dc current range

50 µA

2

1 mA

10 mA

10 mA

10 mA

100 mA

Indication

(A)

50 µA

1 mA

10 mA

6 mA

2 mA

100 mA

500 mA 500 mA

10 A 3 10 A

1

TI must be calibrated in horizontal position.

Initial output

(A)

50 µA

1 mA

10 mA

6 mA

2 mA

100 mA

500 mA

10 A

err indication

± (%)

2

2

2

3.33

10

2

2

2

Test instrument

Adjustments

(fig. 7)

----

R27 (R)

----

----

----

----

----

R22 (R)

2

Connect positive lead to TI +50 µA input. After 50 µA check is complete, reduce output to minimum and move positive lead to TI + input.

3

Reduce output to minimum and connect TI negative lead to −10A input and connect TI positive lead to +10A input.

Figure 7. Simpson, Model 270.

Dc voltage

Table 12a. Triplett, Model 310 Specifications

Test instrument parameter Performance specification

Ac voltage

Resistance

Dc current

Range: 0 to 1200 V

Accuracy: ±3% of FS

Range: 0 to 1200 V

Accuracy: ±4% of FS

Range: 0 to 20 MΩ of dc scale

Accuracy: ±3%

Range: 0 to 600 mA

Accuracy: ±3% of FS

23

TB 9-6625-2352-35

Table 12b. Triplett, Model 310 Dc Voltage

Calibration Performance Limits and Adjustments

Dc Voltage

Test instrument

Dc volts Indication Initial

Calibrator output

Limits

Test instrument output Adjustments

61.8

300 300 300 291 309

1200

1

1200 (1000) 1200 (1000) 1164 (964) 1236 (1036)

1

Replace calibrator with power supply. Move positive lead to TI 1200 V DC input. Calibrate at 1000 V if power supply not available. After 1200 V check is complete, reduce output to minimum, replace power supply with calibrator and move positive lead to TI V-Ω-M input.

Test instrument

Ac volts range

Indication

(V)

Table 12c. Triplett, Model 310 Ac Voltage

Calibration Performance Limits and Adjustments

Ac Voltage

Calibrator

Initial output

(V)

Frequency

(Hz)

err indication

± (%)

Test instrument

Adjustments

12 12

1200 1 1000 1000 60 4.8

1

Reduce output to minimum and move positive lead from TI V-Ω-M input to TI 1200 V AC input. After 1200 V check is complete, reduce output to minimum and move positive lead to TI V-Ω-M input.

Test instrument

Table 12d. Triplett, Model 310 Resistance

Calibration Performance Limits and Adjustments

Resistance

Meter indications

(0 to 300 dc scale)

Resistance standard setting Resistance

(Ω) ranges

1

200 X1 140

2000

20,000

X10

X100

140

140

160

160

160

200,000 X1K 140 160

1

Short

leads and adjust OHMS ADJ for 0 indication on ohms scale. Repeat for each range.

Test instrument

None

24

TB 9-6625-2352-35

Table 12e. Triplett, Model 310 Dc Current

Calibration Performance Limits and Adjustments

Test instrument

Dc current range

Indication

(mA)

Dc Current

(mA)

Calibrator

Initial output err indication

± (%)

.6

6 6

Test instrument

Adjustments

Table 13a. Triplett, Model 630 Specifications

Test instrument parameter Performance specification

1

Dc voltage

Ac voltage

Range: 0 to 6000 V

Accuracy: of

SN,

±3% of FS for SN 208038 and below, (±5%

FS on 6000 V range);

±2% of FS for SN 208039 and above or no

(±4% of FS on 6000 V range)

Range: 0 to 6000 V

Accuracy: of

SN,

±4% of FS for SN 208038 and below, (±5%

FS on 6000 V range);

±3% of FS for SN 208039 and above or no

(±4% of FS on 6000 V range)

Resistance

Dc current

Range: 0 to 100 MΩ

Accuracy: ±3% of scale length for SN 208038 and below above

±2% of scale length for SN 208039 and or no SN

Range: 0 to 12 A

Accuracy:

SN

±3% of FS for SN 208038 and below,

±2% of FS for SN 208039 and above or no

1

Indications in parentheses are for models 630, SN 20839 and above, and for models with no SN.

3 3

Table 13b. Triplett, Model 630 Dc Voltage

Calibration Performance Limits and Adjustments

Dc Voltage

Test instrument

Dc volts Indication Initial

Calibrator output

Limits

1

Test instrument output Adjustments

3 2.91 (2.94) 3.09 (3.06)

12

12

60

300

8

4

60

300

8

4

60

300

7.64 (7.76)

3.64 (3.76)

58.2 (58.8)

291 (294)

8.36 (8.24)

4.36 (4.24)

61.8 (61.2)

309 (306)

None

6000 2 6000 6000 5700 (5760) 6300 (6240)

1

Indications in parentheses are for models 630, SN 20839 and above, and for models with no SN.

2

Move positive lead to TI 6000 V DC input. Calibrate at 800 V with limits of 500 (560) and 1100 (1040) if power supply is not available. After 6000 V check is complete, reduce output to minimum, replace power supply with calibrator and move positive lead to TI V-Ω-A input.

25

TB 9-6625-2352-35

Test instrument

Ac volts range

Indication

(V)

Table 13c. Triplett, Model 630 Ac Voltage

Calibration Performance Limits and Adjustments

Ac Voltage

Calibrator

Initial output

(V)

Frequency

(Hz)

err indication

± (%)

1

3

12

60

300

3

12

60

300

3

12

60

300

60

60

60

60

4 (3)

4 (3)

4 (3)

4 (3)

Test instrument

Adjustments

None

1200

6000 2

1000

800

1000

800

60

60

4.8 (3.6)

37.5 (30)

1

Indications in parentheses are for models 630, SN 20839 and above, and for models with no SN.

2

Move positive lead to TI 6000 V AC input. After 6000 V check is complete, reduce output to minimum and move positive lead to TI V-Ω-A input.

Test instrument

Resistance standard indications 1

( Ω) Test instrument

Indications

Resistance ohms range

2

( scale

Ω) Min Max

X1

X10

4.4

44

3.88 (4.0)

38.8 (40)

4.90 (4.6)

49.0 (46) None

X1000

X100000

Table 13d. Triplett, Model 630 Resistance

Calibration Performance Limits and Adjustments

Resistance

4.4 k

440 k

3880 (4000)

388 k (400 k)

4900 (4600)

490 k (460 k)

1

Indications in parentheses are for models 630, SN 20839 and above, and for models with no SN.

2

Short leads and adjust OHMS ADJ for a 0 indication on ohms scale. Repeat for each range.

Table 13e. Triplett, Model 630 Dc Current

Calibration Performance Limits and Adjustments

Dc Current

Test instrument Calibrator

Dc current range

60 µA

1.2 mA

Indication

(A)

60 µA

1.2 mA

Initial output

(A)

60 µA

1.2 mA

err indication

± (%)

3 (2)

3 (2)

1

12 mA

120 mA

12 mA

120 mA

12 mA

120 mA

3 (2)

3 (2)

12 A 10 A 10 A 3.6 (2.4)

1

Indications in parentheses are for models 630, SN 20839 and above, and for models with no SN.

Test instrument

Adjustments

None

Dc voltage

Ac voltage

Table 14a. Triplett, Model 630NA Specifications

Test instrument parameter Performance specification

Range: 0 to 6000 V

Accuracy:

±1.5% of FS, ±3% of FS on 6000 V range

Range: 0 to 6000 V

Accuracy:

±3% of FS, ±4% of FS on 6000 V range

Resistance

Dc current

Range: 0 to 100 MΩ

Accuracy:

±1.5% of scale length

Range: 0 to 12 A

Accuracy:

±1.5% of FS

26

TB 9-6625-2352-35

Table 14b. Triplett, Model 630NA Dc Voltage

Calibration Performance Limits and Adjustments

Dc Voltage

Test instrument

Dc volts Indication Initial

Calibrator output

Limits

Test instrument output Adjustments

300 300 300 295.5

1200

6000

1

2

1200 (1000)

6000 (900)

1200 (1000)

6000 (900)

1182 (982)

5820 (720)

1218 (1018)

6180 (1080)

1

Replace calibrator with power supply. Calibrate at 1000 V if power supply is not available.

2

Reduce output to minimum and move positive lead to TI 6000 V DC input. Calibrate at 900 V if power supply is not available. After 6000 V check is complete, reduce output to minimum, replace power supply with calibrator and move positive lead to TI V-Ω-A input.

Table 14c. Triplett, Model 630NA Ac Voltage

Test instrument

Ac volts range

Indication

(V)

Calibration Performance Limits and Adjustments

Ac Voltage

Calibrator

Initial output

(V)

Frequency

(Hz)

err indication

± (%)

Test instrument

Adjustments

(Fig. 8)

3 3 3 20 k 8 C3 (R)

300 300 ----

1000 3.6 ----

6000

1

800 800 60 30 ----

1

Reduce output to minimum and move positive lead to TI 6000 V AC input. After 6000 V check is complete, reduce output to minimum and move positive lead to TI V-Ω-A input.

Table 14d. Triplett, Model 630NA Resistance

Calibration Performance Limits and Adjustments

Resistance

Test instrument

Resistance standard indications

( Ω)

Indications

Test instrument

Resistance ohms range 1 ( Ω) Min Max Adjustments

X1

X10

X100

4

40

400

3.7

37

370

4.4

44

440 None

X1K

X10K

4 k

40 k

3700

37 k

4400

44 k

X100K 400 k 370 k 440 k

1

Short leads and adjust OHMS ADJ for a 0 indication on ohms scale. Repeat for each range.

27

TB 9-6625-2352-35

Table 14e. Triplett, Model 630NA Dc Current

Calibration Performance Limits and Adjustments

Dc Current

Test instrument Calibrator

Dc current range

60 µA

.12 mA

Indication

(A)

60 µA

.12 mA

Initial output

(A)

60 µA

.12 mA

err indication

± (%)

1.5

1.5

1.2 mA

12 mA

120 mA

12 A

1.2 mA

12 mA

120 mA

10 A

1.2 mA

12 mA

120 mA

10 A

1.5

1.5

1.5

1.8

Test instrument

Adjustments

None

Figure 8. Triplett, Model 630NA.

Dc voltage

Table 15a. Triplett, Model 630PL Specifications

Test instrument parameter Performance specification

Ac voltage

Resistance

Dc current

Range: 0 to 5000 V

Accuracy: ±3% of FS, ±5% of FS on 5000 V range

Range: 0 to 6000 V

Accuracy:

±4% of FS, ±5% of FS on 5000 V range

Range: 0 to 100 MΩ

Accuracy:

±3% of scale length

Range: 0 to 12 A

Accuracy: ±3% of FS

28

TB 9-6625-2352-35

Table 15b. Triplett, Model 630PL Dc Voltage

Calibration Performance Limits and Adjustments

Dc Voltage

Test instrument

Dc volts Indication Initial

Calibrator output

Limits

Test instrument output Adjustments

51.5

257.5

1000 1000 1000 970 1030

5000

1

5000 (800) 5000 (800) 4750 (550) 5250 (1050)

1

Replace calibrator with power supply and move positive lead to TI 5000 V DC input. Calibrate at 800 V if power supply is not available. After 5000 V check is complete, reduce output to minimum, replace power supply with calibrator and move positive lead to TI V-Ω-A input.

Table 15c. Triplett, Model 630PL Ac Voltage

Calibration Performance Limits and Adjustments

Test instrument

Ac volts Indication Initial output

A Voltage

Calibrator

Frequency err indication

Test instrument range (V) (V)

3 3

(Hz)

3

± (%) Adjustments

60 4

10 10

1000 1000 4

5000

1

800 800 60 31.25

1

Reduce output to minimum and move positive lead to TI 5000 V AC input. After 5000 V check is complete, reduce output to minimum and move positive lead to TI V-Ω-A input.

Indications

Resistance ohms

Range

1

( scale

Ω) Min Max

X1

X10

Test instrument

4

40

Resistance standard indications

( Ω)

3.7

37

4.4

44

Test instrument

None

X1K

X100K

Table 15d. Triplett, Model 630PL Resistance

Calibration Performance Limits and Adjustments

Resistance

4 K

400 K

3.7 k

370 k

1

Short leads and adjust Ω ADJ for a 0 indication on ohms scale. Repeat for each range.

4.4 k

440 k

29

TB 9-6625-2352-35

Table 15e. Triplett, Model 630PL Dc Current

Calibration Performance Limits and Adjustments

Dc Current

Test instrument Calibrator

Dc current range

100 µA

10 mA

Indication

(A)

100 µA

10 mA

Initial output

(A)

100 µA

10 mA

err indication

± (%)

3

3

100 mA

1 A

10 A

100 mA

1 A

10 A

100 mA

1 A

10 A

3

3

3

Test instrument

Adjustments

None

Table 16a. Triplett, Model 666R Specifications

Dc voltage

Test instrument parameter Performance specification

Range: 0 to 1000 V; 1000 to 5000 V

Accuracy: ±3% of FS, ±4% of FS on 5000 V range

Ac voltage

Resistance

Dc current

Range: 0 to 1000 V; 1000 to 5000 V

Accuracy: ±4% of FS, ±5% of FS on 5000 V range

Range: 0 to 3 MΩ

Accuracy: ±3% of arc length (1.5 div on dc scale)

Range: 0 to 1 A

Accuracy: ±3% of FS

Test instrument

Dc volts

Table 16b. Triplett, Model 666R Dc Voltage

Calibration Performance Limits and Adjustments

Indication

Dc Voltage

Calibrator output

Limits

Test instrument

Initial output Adjustments

1000 1000 1000 970 1030

5000 1 5000 (900) 5000 (900) 4800 (700) 5200 (1100)

1

Replace calibrator with power supply and move positive lead to TI 5000 V input. Calibrate at 900 V if power supply is not available. After 5000 V check is complete, reduce output to minimum, replace power supply with calibrator and move positive lead to TI V-Ω-A input.

Test instrument

Ac volts range

Indication

(V)

Table 16c. Triplett, Model 666R Ac Voltage

Calibration Performance Limits and Adjustments

Ac Voltage

Calibrator

Initial output

(V)

Frequency

(Hz)

err indication

± (%)

Test instrument

Adjustments

10 10

50 50

1000 1000

5000

1

4

800 800 60 31.25

1

Reduce output to minimum and move positive lead to TI 5000 V AC input. After 5000 V check is complete, reduce output to minimum and move positive lead to TI V-Ω-A input.

30

TB 9-6625-2352-35

Resistance standard setting

(Ω) ranges

1

20

2000

Test instrument

Table 16d. Triplett, Model 666R Resistance

Calibration Performance Limits and Adjustments

Resistance

Resistance

X1

X100

Meter indications

(0 to 50 dc scale)

23.5

23.5

26.5

26.5

20,000 X1000 23.5 26.5

1

Short

leads and adjust OHMS ADJ for 0 indication on ohms scale. Repeat for each range.

Table 16e. Triplett, Model 666R Dc Current

Calibration Performance Limits and Adjustments

Dc Current

Test instrument Calibrator

Dc current range

10 mA

100 mA

Indication

(A)

10 mA

100 mA

Initial output

(A)

10 mA

100 mA

500 mA 500 mA 500 mA

1

1 A

1

1 A 1 A

Reduce output to minimum and move positive lead to TI 1 AMP input.

err indication

± (%)

3

3

3

3

12. Final Procedure

a. Deenergize and disconnect all equipment.

b. Annotate and affix DA label/form in accordance with TB 750-25.

Test instrument

None

Test instrument

Adjustments

None

31/(32 BLANK)

By Order of the Secretary of the Army:

Official

SANDRA R. RILEY

Administrative Assistant to the

Secretary of the Army

0

509701

PETER J. SCHOOMAKER

General, United States Army

Chief of Staff

Distribution:

To be distributed in accordance with the initial distribution number (IDN) 344796, requirements for calibration procedure TB 9-6625-2352-35.

Instructions for Submitting an Electronic 2028

The following format must be used if submitting an electronic 2028. The subject line must be exactly the same and all fields must be included; however, only the following fields are mandatory: 1, 3, 4,

5, 6, 7, 8, 9, 10, 13, 15, 16, 17, and 27. [email protected]

To: <[email protected]

Subject: DA Form 2028

1. From: Joe Smith

2. Unit: home

3. Address: 4300 Park

4. City: Hometown

5. St: MO

6. Zip: 77777

7. Date Sent: 19-OCT –93

8. Pub no: 55-2840-229-23

9. Pub Title: TM

10. Publication Date: 04-JUL-85

11. Change Number: 7

12. Submitter Rank: MSG

13. Submitter FName: Joe

14. Submitter MName: T

15. Submitter LName: Smith

16. Submitter Phone: 123-123-1234

17. Problem: 1

18. Page: 2

19. Paragraph: 3

20. Line: 4

21. NSN: 5

22. Reference: 6

23. Figure: 7

24. Table: 8

25. Item: 9

26. Total: 123

27. Text

This is the text for the problem below line 27.

PIN: 081247-000

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
