Trinitron Color Computer Display

Trinitron Color Computer Display

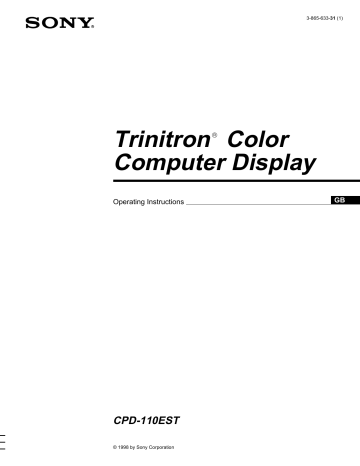

3-865-633-31 (1)
Trinitron Color
Computer Display

Operating Instructions
CPD-110EST
© 1998 by Sony Corporation
GB
Owner’s Record
The model and serial numbers are located at the rear of the unit.
Record these numbers in the spaces provided below. Refer to them
whenever you call upon your dealer regarding this product.
Model No.
Serial No.
WARNING
To prevent fire or shock hazard, do not expose the
unit to rain or moisture.
Dangerously high voltages are present inside the
unit. Do not open the cabinet. Refer servicing to
qualified personnel only.
FCC Notice
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
EN 55022 Compliance (Czech Republic Only)
This device belongs to category B devices as described in EN
55022, unless it is specifically stated that it is a category A
device on the specification label. The following applies to
devices in category A of EN 55022 (radius of protection up to
30 meters). The user of the device is obliged to take all steps
necessary to remove sources of interference to
telecommunication or other devices.
Hinweise
• Aus ergonomischen Gründen wird empfohlen, die
Grundfarbe Blau nicht auf dunklem Untergrund zu verwenden
(schlechte Erkennbarkeit, Augenbelastung bei zu geringem
Zeichenkontrast).
• Aus ergonomischen Gründen (flimmern) sollten nur
Darstellungen bei Vertikalfrequenzen ab 70 Hz (ohne
Zeilensprung) verwendet werden.
• Die Konvergenz des Bildes kann sich auf Grund des
Magnetfeldes am Ort der Aufstellung aus der korrekten
Grundeinstellung verändern. Zur Korrektur empfiehlt es sich
deshalb, die Regler an der Frontseite für Konvergenz so
einzustellen, daß die getrennt sichtbaren Farblinien für Rot,
Grün und Blau bei z.B. der Darstellung eines Buchstabens
zur Deckung (Konvergenz) gelangen.
Siehe hierzu auch die Erklärungen zu Konvergenz.
NOTICE
This notice is applicable for USA/Canada only.
If shipped to USA/Canada, install only a UL LISTED/CSA
LABELLED power supply cord meeting the following
specifications:
SPECIFICATIONS
Plug Type
Nema-Plug 5-15p
Cord
Type SVT or SJT, minimum 3 × 18 AWG
Length
Maximum 15 feet
Rating
Minimum 7 A, 125 V
NOTICE
Cette notice s’applique aux Etats-Unis et au Canada
uniquement.
Si cet appareil est export* aux Etats-Unis ou au Canada,
utiliser le cordon d’alimentation portant la mention UL LISTED/
CSA LABELLED et remplissant les conditions suivantes:
SPECIFICATIONS
Type de fiche Fiche Nema 5-15 broches
Cordon
Type SVT ou SJT, minimum 3 × 18 AWG
Longueur
Maximum 15 pieds
Tension
Minimum 7 A, 125 V
As an ENERGY STAR Partner,
Sony Corporation has determined
that this product meets the ENERGY
STAR guidelines for energy
efficiency.
INFORMATION
This product complies with Swedish National Council for Metrology
(MPR) standards issued in December 1990 (MPR II) for very low
frequency (VLF) and extremely low frequency (ELF).
INFORMATION
Ce produit est conforme aux normes du Swedish National Council
for Metrology de décembre 1990 (MPR II) en ce qui concerne les
fréquences très basses (VLF) et extrêmement basses (ELF).
Hinweis
Dieses Gerät erfüllt bezüglich tieffrequenter (very low frequency)
und tiefstfrequenter (extremely low frequency) Strahlung die
Vorschriften des „Swedish National Council for Metrology (MPR)“
vom Dezember 1990 (MPR II).
INFORMACIÓN
Este producto cumple las normas del Consejo Nacional Sueco
para Metrología (MPR) emitidas en diciembre de 1990 (MPR II)
para frecuencias muy bajas (VLF) y frecuencias extremadamente
bajas (ELF).
Dieses Garät entspricht den folgenden europäischen EMVVorschriften für Betrieb in Wohngebieten, gewerblicher Gebleten
und Leichtindustriegebieten.
EN55022/1994 Klasse B
EN50082-1/1992
EN61000-3-2/1995
2
This monitor complies with the
TCO’95 guidelines.
Declaration of Conformity
Trade Name:
Model No.:
Responsible Party:
Address:
Telephone No.:
Sony
CPD-110EST
Sony Electronics Inc.
1 Sony Drive, Park Ridge, NJ. 07656 USA
201-930-6970
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
Table of Contents
Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Identifying parts and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Step 1: Connect your monitor to your computer . . . . . . . . . . . . . . . 6
Step 2: Connect the power cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Step 3: Turn on the monitor and computer . . . . . . . . . . . . . . . . . . . 6
Selecting the on-screen menu language
(LANGUAGE/INFORMATION) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Customizing Your Monitor . . . . . . . . . . . . . . . . . . . . . . . .8
Navigating the menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting the contrast and brightness
(CONTRAST/BRIGHTNESS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Adjusting the horizontal size or centering of the picture
(H-SIZE/CENTER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Adjusting the vertical size or centering of the picture
(V-SIZE/CENTER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Adjusting the curvature of the picture’s sides
(PIN/PIN BALANCE). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Adjusting the angle of the picture’s sides
(KEY/KEY BALANCE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Adjusting the picture’s rotation (ROTATION) . . . . . . . . . . . . . . . . . 11
Enlarging or reducing the picture (ZOOM) . . . . . . . . . . . . . . . . . . . 11
Adjusting the color of the picture (COLOR) . . . . . . . . . . . . . . . . . . 11
Additional settings (DEGAUSS/CANCEL MOIRE) . . . . . . . . . . . . . 12
Resetting the adjustments (RESET) . . . . . . . . . . . . . . . . . . . . . . . . 12
Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
• Trinitron is a registered trademark of
Sony Corporation.
• Macintosh is a trademark licensed to
Apple Computer, Inc., registered in the
U.S.A. and other countries.
• Windows and MS-DOS are registered
trademarks of Microsoft Corporation in
the United States and other countries.
• IBM PC/AT and VGA are registered
trademarks of IBM Corporation of the
U.S.A.
• VESA and DDC are trademarks of the
Video Electronics Standard
Association.
• ENERGY STAR is a U.S. registered
mark.
• All other product names mentioned
herein may be the trademarks or
registered trademarks of their respective
companies.
• Furthermore, “” and “” are not
mentioned in each case in this manual.
Preset and user modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Power saving function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
If thin lines appear on your screen (damper wires). . . . . . . . . . . . . 13
On-screen messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Trouble symptoms and remedies . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Self-diagnosis function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
Preset mode timing table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i
TCO’95 Eco-document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .i
3
GB
Use of the tilt-swivel
Precautions
This monitor can be adjusted within the angles shown below. To
turn the monitor vertically or horizontally, hold it at the bottom
with both hands.
Warning on power connections
• Use the supplied power cord. If you use a different power cord,
be sure that it is compatible with your local power supply.
For the customers in the UK
If you use the monitor in the UK, be sure to use the supplied UK
power cable.
90°
15°
90°
Example of plug types
5°
for 100 to 120 V AC
for 200 to 240 V AC
for 240 V AC only
• Before disconnecting the power cord, wait at least 30 seconds
after turning off the power to allow the static electricity on the
screen’s surface to discharge.
• After the power is turned on, the screen is demagnetized
(degaussed) for about 5 seconds. This generates a strong
magnetic field around the screen which may affect data stored
on magnetic tapes and disks placed near the monitor. Be sure to
keep magnetic recording equipment, tapes, and disks away
from the monitor.
The equipment should be installed near an easily accessible
outlet.
Installation
Do not install the monitor in the following places:
• on surfaces (rugs, blankets, etc.) or near materials (curtains,
draperies, etc.) that may block the ventilation holes
• near heat sources such as radiators or air ducts, or in a place
subject to direct sunlight
• in a place subject to severe temperature changes
• in a place subject to mechanical vibration or shock
• on an unstable surface
• near equipment which generates magnetism, such as a
transformer or high voltage power lines
• near or on an electrically charged metal surface
Maintenance
• Clean the screen with a soft cloth. If you use a glass cleaning
liquid, do not use any type of cleaner containing an anti-static
solution or similar additive as this may scratch the screen’s
coating.
• Do not rub, touch, or tap the surface of the screen with sharp or
abrasive items such as a ballpoint pen or screwdriver. This type
of contact may result in a scratched picture tube.
• Clean the cabinet, panel and controls with a soft cloth lightly
moistened with a mild detergent solution. Do not use any type
of abrasive pad, scouring powder or solvent, such as alcohol or
benzene.
Transportation
When you transport this monitor for repair or shipment, use the
original carton and packing materials.
4
Identifying parts and controls
See the pages in parentheses for further details.
Front
Rear
MENU
ENTER
1 MENU button (page 9)
This button displays the MENU OSD.
5 AC IN connector (page 6)
This connector provides AC power to the monitor.
2 ENTER button (page 9)
This button selects the menu and adjustment items.
6 Video input connector (HD15) (page 6)
This connector inputs RGB video signals (0.700 Vp-p,
positive) and sync signals.
3 6 (contrast) +/− buttons (page 9)
These buttons display the CONTRAST/BRIGHTNESS menu
and function as the +/− buttons when adjusting other items.
4 1 (power) switch and indicator (pages 6, 13, 16)
This button turns the monitor on and off. The power indicator
lights up in green when the monitor is turned on, and either
flashes in green and orange, or lights up in orange when the
monitor is in power saving mode.
GB
1 2 3 4 5
6 7 8 9 10
11 12 13 14 15
Pin No.
Signal
1
Red
2
Green
3
Blue
4
ID (Ground)
5
DDC Ground*
6
Red Ground
7
Green Ground
8
Blue Ground
9
–
10
Ground
11
ID (Ground)
12
Bi-Directional Data (SDA)*
13
H. Sync
14
V. Sync
15
Data Clock (SCL)*
* DDC (Display Data Channel) is a standard of VESA.
5
Step 2: Connect the power cord
Setup
Before using your monitor, check that the following accessories
are included in your carton:
• Power cord (1)
• Windows Monitor Information Disk (1)
• Warranty card (1)
• Notes on cleaning the screen’s surface (1)
• This instruction manual (1)
Step 1: Connect your monitor to
your computer
Turn off the monitor and computer before connecting.
With the monitor and computer switched off, first connect the
power cord to the monitor, then connect it to a power outlet.
power cord (supplied)
to AC IN
to a power outlet
x Connecting to an IBM PC/AT or compatible
computer
Step 3: Turn on the monitor and
computer
First turn on the monitor, then turn on the computer.
to video output
IBM PC/AT or
compatible computer
x Connecting to a Macintosh or compatible
computer
You will need a Macintosh adapter (not supplied).
Macintosh adapter
(not supplied)
Macintosh or
to video
compatible computer output
6
The installation of your monitor is complete.
If necessary, use the monitor’s controls to adjust the picture.
If no picture appears on your screen
• Check that the monitor is correctly connected to the computer.
• If NO INPUT SIGNAL appears on the screen, confirm that
your computer’s graphic board is completely seated in the
correct bus slot.
• If you are replacing an old monitor with this model and OUT
OF SCAN RANGE appears on the screen, reconnect the old
monitor. Then adjust the computer’s graphic board so that the
horizontal frequency is between 30 – 70 kHz, and the vertical
frequency is between 48 – 120 Hz.
Selecting the on-screen menu
language (LANGUAGE/
INFORMATION)
English, French, German, Spanish, and Italian versions of the onscreen menus are available. The default setting is English.
1 Press the MENU button.
See page 9 for more information on using the MENU button.
MENU
For more information about the on-screen messages, see “Trouble
symptoms and remedies” on page 14.
MENU
For customers using Windows 95/98
To maximize the potential of your monitor, install the new model
information file from the supplied Windows Monitor Information Disk
onto your PC.
This monitor complies with the “VESA DDC” Plug & Play standard. If
your PC/graphics board complies with DDC, select “Plug & Play Monitor
(VESA DDC)” or this monitor’s model name as the monitor type in the
“Control Panel” of Windows 95/98. If your PC/graphics board has
difficulty communicating with this monitor, load the Windows Monitor
Information Disk and select this monitor’s model name as the monitor
type.
ENTER
2 Press the +/−
− buttons to highlight
LANGUAGE/
INFORMATION and press the ENTER button.
See page 9 for more information on using the +/− and ENTER
buttons.
MENU
For customers using Windows NT4.0
Monitor setup in Windows NT4.0 is different from Windows 95/98 and
does not involve the selection of monitor type. Refer to the Windows
NT4.0 instruction manual for further details on adjusting the resolution,
refresh rate, and number of colors.
b
EX I T
CONTRAS T / BR I GHTNE S S
H - S I Z E / CENT ER
V - S I Z E / CENT ER
P I N / P I N BA L ANCE
KEY / KEY BA L ANCE
ROT A T I ON
ZOOM
COLOR
RESE T
L ANGUAGE / I NFORMA T I ON
DEGAUSS / CANCE L MO I R E
ENTER
b
LANGUAGE / INFORMAT I ON
ENGL I SH
DEUT SCH
ESPAÑOL
SE L ECT
FRA NÇA I S
I T A L I ANO
GB
EX I T
3 Press the ENTER button to select
Adjusting the monitor’s resolution and color number
Adjust the monitor’s resolution and color number by referring to your
computer’s instruction manual. The color number may vary according to
your computer or video board. The color palette setting and the actual
number of colors are as follows:
• High Color (16 bit) t 65,536 colors
• True Color (24 bit) t about 16.77 million colors
In true color mode (24 bit), speed may be slower.
(LANGUAGE)
and press +/−
− buttons to select a language.
• ENGLISH
• FRANÇAIS: French
• DEUTSCH: German
• ESPAÑOL: Spanish
• ITALIANO: Italian
To close the menu
Press the MENU button once to return to the main menu, and twice to
return to normal viewing. If no buttons are pressed, the menu closes
automatically after about 30 seconds.
To reset to English
See “Resetting the adjustments (RESET)” on page 12.
7
Customizing Your Monitor
7 ZOOM (page 11)
Select the ZOOM menu to enlarge
or reduce the picture.
You can make numerous adjustments to your monitor using the
on-screen menu.
Navigating the menu
Press the MENU button to display the main MENU on your
screen. See page 9 for more information on using the MENU
button.
EX I T
CONTRAS T / BR I GHTNE S S
H - S I Z E / CENT ER
V - S I Z E / CENT ER
P I N / P I N BA L ANCE
KEY / KEY BA L ANCE
ROT A T I ON
ZOOM
COLOR
RESE T
L ANGUAGE / I NFORMA T I ON
DEGAUSS / CANCE L MO I R E
2 H-SIZE/CENTER (page 10)
Select the H-SIZE/CENTER
menu to adjust the picture’s
horizontal size and centering.
3 V-SIZE/CENTER (page 10)
Select the V-SIZE/CENTER
menu to adjust the picture’s
vertical size and centering.
26
8 COLOR (page 11)
Select the COLOR menu to adjust
the picture’s color temperature.
You can use this to match the
monitor’s colors to a printed
picture’s colors.
EX I T
COLOR
USER
5000 K 6500 K 9300 K
50
50
50
R
G
B
SE L ECT
EX I T
RESET
RESE T
MOD E
ALL
EX I T
Use the +/− and ENTER buttons to select one of the following
menus. See page 9 for more information on using the +/− and
ENTER buttons.
1 CONTRAST/BRIGHTNESS
(page 9)
Select the CONTRAST/
BRIGHTNESS menu to adjust
the picture’s contrast and
brightness.
Z OOM
SE L ECT
9 RESET (page 12)
Select the RESET menu to reset
the adjustments.
MENU
ZOOM
0 LANGUAGE/INFORMATION
(page 7, 15)
Select the LANGUAGE/
INFORMATION menu to choose
the on-screen menu’s language
and display this monitor’s
information box.
LANGUAGE / INFORMAT I ON
ENGL I SH
DEUT SCH
ESPAÑOL
SE L ECT
FRA NÇA I S
I T A L I ANO
EX I T
CONTRAST / BR I GHTNESS
CON T R A S T
26
6 0 . 0 kHz / 7 0 . 0Hz
1 0 2 4X7 6 8
SE L ECT
EX I T
H - S I ZE / CENTER
H - S I ZE
26
SE L ECT
EX I T
qa DEGAUSS/CANCEL MOIRE
(page 12)
Select the DEGAUSS/CANCEL
MOIRE menu to degauss the
screen and cancel the moire.
DEGAUSS / CANCEL MO I RE
D EGA U S S
ON
SE L ECT
EX I T
x Displaying the current input signal
The horizontal and vertical frequencies of the current input signal
are displayed in the CONTRAST/BRIGHTNESS menu. If the
signal matches one of this monitor’s factory preset modes, the
resolution is also displayed.
V - S I ZE / CENTER
V - S I ZE
26
SE L ECT
CONTRAST / BR I GHTNESS
EX I T
CON T R A S T
26
4 PIN/PIN BALANCE (page 10)
Select the PIN/PIN BALANCE
menu to adjust the curvature
picture’s sides.
5 KEY/KEY BALANCE
(page 10)
Select the KEY/KEY BALANCE
menu to adjust the angle of the
picture’s sides.
6 ROTATION (page 11)
Select the ROTATION menu to
adjust the picture’s rotation.
P I N / P I N BALANCE
26
SE L ECT
EX I T
KEY / KEY BALANCE
KEY
26
SE L ECT
EX I T
ROTAT I ON
RO T A T I ON
26
SE L ECT
8
the resolution
of the current
input signal
PIN
EX I T
6 0 . 0 kHz / 7 0 . 0Hz
1 0 2 4X7 6 8
SE L ECT
EX I T
the horizontal
and vertical
frequencies of
the current
input signal
− buttons
x Using the MENU, ENTER, and +/−
1 Select the menu you want to adjust.
Press the +/− buttons to highlight the desired menu. Press the
ENTER button to select the menu and adjustment items.
Adjusting the contrast and
brightness (CONTRAST/
BRIGHTNESS)
These settings are stored in memory for all input signals.
MENU
ENTER
b
MENU
1 Press either one of the 6 (CONTRAST) +/−
− buttons.
The CONTRAST/BRIGHTNESS menu appears on the
screen.
ENTER
CONTRAST / BR I GHTNESS
CON T R A S T
2 Adjust the menu.
26
Press the +/− buttons to make the adjustment.
6 0 . 0 kHz / 7 0 . 0Hz
1 0 2 4X7 6 8
EX I T
SE L ECT
MENU
ENTER
2 Press the ENTER button to select 6 (CONTRAST) or
(BRIGHTNESS).
3
3 Close the menu.
Press the MENU button once to return to the main menu, and
twice to return to normal viewing. If no buttons are pressed,
the menu closes automatically after about 30 seconds.
Press the +/−
− buttons to adjust either the contrast
(6) or brightness ( ).
The menu automatically disappears after about 30 seconds.
GB
MENU
ENTER
x Resetting the adjustments
You can reset the adjustments using the RESET menu. See
page 12 for more information on resetting the adjustments.
9
Adjusting the horizontal size or
centering of the picture (H-SIZE/
CENTER)
Adjusting the curvature of the
picture’s sides (PIN/PIN BALANCE)
These settings are stored in memory for the current input signal.
1 Press the MENU button.
1 Press the MENU button.
The main MENU appears on the screen.
2 Press the +/−
− buttons to highlight
H-SIZE/
CENTER, and press the ENTER button.
The H-SIZE/CENTER menu appears on the screen.
3 First press the ENTER button to select the desired
adjustment item. Then press the +/−
− buttons to make
the adjustment.
These settings are stored in memory for the current input signal.
The main MENU appears on the screen.
2 Press the +/−
− buttons to highlight
PIN/PIN
BALANCE, and press the ENTER button.
The PIN/PIN BALANCE menu appears on the screen.
3 First press the ENTER button to select the desired
adjustment item. Then press the +/−
− buttons to make
the adjustment.
Select
To
To
PIN
expand or contract the picture sides
H-SIZE
adjust the horizontal size
PIN BALANCE
shift the picture sides to the left or right
H-CENTER
adjust the horizontal centering
Select
Adjusting the vertical size or
centering of the picture (V-SIZE/
CENTER)
These settings are stored in memory for the current input signal.
1 Press the MENU button.
The main MENU appears on the screen.
2 Press the +/−
− buttons to highlight
V-SIZE/
CENTER, and press the ENTER button.
The V-SIZE/CENTER menu appears on the screen.
Adjusting the angle of the picture’s
sides (KEY/KEY BALANCE)
These settings are stored in memory for the current input signal.
1 Press the MENU button.
The main MENU appears on the screen.
2 Press the +/−
− buttons to highlight
KEY/KEY
BALANCE, and press the ENTER button.
The KEY/KEY BALANCE menu appears on the screen.
3 First press the ENTER button to select the desired
adjustment item. Then press the +/−
− buttons to make
the adjustment.
3 First press the ENTER button to select the desired
adjustment item. Then press the +/−
− buttons to make
the adjustment.
Select
10
To
V-SIZE
adjust the vertical size
V-CENTER
adjust the vertical centering
Select
To
KEY
adjust the picture width at the top of
the screen
KEY BALANCE
shift the picture to the left or right at
the top of the screen
Adjusting the picture’s rotation
(ROTATION)
Adjusting the color of the picture
(COLOR)
This setting is stored in memory for all input signals.
The COLOR settings allow you to adjust the picture’s color
temperature by changing the color level of the white color field.
Colors appear reddish if the temperature is low, and bluish if the
temperature is high. This adjustment is useful for matching the
monitor’s colors to a printed picture’s colors.
This setting is stored in memory for all input signals.
1 Press the MENU button.
The main MENU appears on the screen.
2 Press the +/−
− buttons to highlight
ROTATION,
and press the ENTER button.
The ROTATION menu appears on the screen.
3 Press the +/−
− buttons to rotate the picture.
Enlarging or reducing the picture
(ZOOM)
This setting is stored in memory for the current input signal.
1 Press the MENU button.
The main MENU appears on the screen.
2 Press the +/−
− buttons to highlight
ZOOM and
press the ENTER button.
The ZOOM menu appears on the screen.
1 Press the MENU button.
The main MENU appears on the screen.
2 Press the +/−
− buttons to highlight
COLOR and
press the ENTER button.
The COLOR menu appears on the screen.
3 Press the +/−
− buttons to select a color temperature.
The preset color temperatures are 5000K, 6500K, and 9300K.
Since the default setting is 9300K, the whites will change
from a bluish hue to a reddish hue as the temperature is
lowered to 6500K and 5000K.
4 If necessary, fine tune the color temperature.
First press the +/− buttons to select USER. Then press the
ENTER button to select R (red), G (green), or B (blue) and
press the +/− buttons to make the adjustment.
3 Press the +/−
− buttons to enlarge or reduce the
picture.
Note
Adjustment stops when either the horizontal or vertical size reaches its
maximum or minimum value.
COLOR
USER
R
G
B
USER - G
5000 K 6500 K 9300 K
50
50
50
EX I T
If you fine tune the color temperature, the new color settings
are stored in memory and recalled whenever you select
USER.
11
GB
Additional settings (DEGAUSS/
CANCEL MOIRE)
You can manually degauss (demagnetize) the screen, and cancel
the moire.
1 Press the MENU button.
Resetting the adjustments (RESET)
This monitor has the following two reset methods. Use the
RESET menu to reset the adjustments.
1 Press the MENU button.
The main MENU appears on the screen.
The main MENU appears on the screen.
2 Press the +/−
− buttons to highlight 0 RESET and
2 Press the +/−
− buttons to highlight
press the ENTER button.
The RESET menu appears on the screen.
Reset the settings according to the following instructions.
DEGAUSS/
CANCEL MOIRE and press the ENTER button.
The DEGAUSS/CANCEL MOIRE menu appears on the
screen.
3 Press the ENTER button to select the desired
adjustment item.
Adjust the selected item according to the following
instructions.
Degaussing the screen
The monitor is automatically demagnetized when the power is
turned on.
To manually degauss the monitor, first press the
ENTER button to select
(DEGAUSS). Then press the
+ button.
The screen is degaussed for about 5 seconds. If a second degauss
cycle is needed, allow a minimum interval of 20 minutes for the
best result.
Cancelling the moire
If elliptical or wavy patterns appear on the screen, adjust the
moire cancellation level.
To adjust the amount of moire cancellation, first press
the ENTER button to select
(CANCEL MOIRE). Then
press the +/−
− buttons until the moire effect is at a
minimum.
*
Moire is a type of natural interference which produces soft, wavy lines
on your screen. It may appear due to interference between the pattern
of the picture on the screen and the phosphor pitch pattern of the
monitor.
Example of moire
12
Resetting all of the adjustment data for the
current input signal (MODE)
Press the − button.
The MODE item is selected. All of the adjustment data for the
current input signal is reset.
Note that the following items are not reset by this method:
• on-screen menu language (page 7)
• picture’s rotation (page 11)
Resetting all of the adjustment data to factory
preset levels (ALL)
Press the + button.
The ALL item is selected. With the exception of the USER
settings in the COLOR menu, all of the adjustment data for all
input signals is reset to the factory preset levels.
Note
The monitor’s buttons will not operate for about 5 seconds when ALL is
selected.
Technical Features
Troubleshooting
Before contacting technical support, refer to this section.
Preset and user modes
When the monitor receives an input signal, it automatically
matches the signal to one of the factory preset modes stored in the
monitor’s memory to provide a high quality picture at the center
of the screen. (See Appendix for a list of the factory preset
modes.) For input signals that do not match one of the factory
preset modes, the digital Multiscan technology of this monitor
ensures that a clear picture appears on the screen for any timing in
the monitor’s frequency range (horizontal: 30 – 70 kHz, vertical:
48 – 120 Hz) . If the picture is adjusted, the adjustment data is
stored as a user mode and automatically recalled whenever the
same input signal is received.
If thin lines appear on your screen
(damper wires)
The lines you are experiencing on your screen are normal for the
Trinitron monitor and are not a malfunction. These are shadows
from the damper wires used to stabilize the aperture grille and are
most noticeable when the screen’s background is light (usually
white). The aperture grille is the essential element that makes a
Trinitron picture tube unique by allowing more light to reach the
screen, resulting in a brighter, more detailed picture.
Damper wires
Note for Windows users
For Windows users, check your video board manual or the utility
program which comes with your graphic board and select the
highest available refresh rate to maximize monitor performance.
Power saving function
This monitor meets the power-saving guidelines set by VESA,
ENERGY STAR, and NUTEK. If the monitor is connected to a
computer or video graphics board that is DPMS (Display Power
Management Signaling) compliant, the monitor will
automatically reduce power consumption in three stages as shown
below.
Power mode
Power
consumption
1 (power) indicator
normal
operation
≤ 105 W
green
1 standby
≤ 15 W
green and orange
alternate
2 suspend
≤ 15 W
green and orange
alternate
3 active off*
≤5W
orange
power off
0W
off
On-screen messages
GB
If there is something wrong with the input signal, one of the
following messages appears on the screen. To solve the problem,
see “Trouble symptoms and remedies” on page 14.
INFORMATION
OUT OF SCAN RANGE
Input signal condition
The input signal condition
OUT OF SCAN RANGE
indicates that the input signal is not supported by the
monitor’s specifications.
NO INPUT SIGNAL
indicates that no signal is being input to the monitor.
* When your computer enters the “active off” mode, the input signal is
cut and NO INPUT SIGNAL appears on the screen. After 20 seconds,
the monitor enters the power saving mode.
13
Trouble symptoms and remedies
If the problem is caused by the connected computer or other equipment, please refer to the connected equipment’s instruction manual.
Use the self-diagnosis function (page 16) if the following recommendations do not resolve the problem.
Symptom
Check these items
No picture
If the 1 (power) indicator is not lit
• Check that the power cord is properly connected.
• Check that the 1 (power) switch is in the “on” position.
If the NO INPUT SIGNAL message
appears on the screen, or if the 1
(power) indicator is either orange or
alternating between green and
orange
• Check that the video signal cable is properly connected and all plugs are firmly seated in
their sockets (page 6).
• Check that the HD15 video input connector’s pins are not bent or pushed in.
If the OUT OF SCAN RANGE
message appears on the screen
xProblems caused by the connected computer or other equipment
• Check that the video frequency range is within that specified for the monitor. If you
replaced an old monitor with this monitor, reconnect the old monitor and adjust the
frequency range to the following.
Horizontal: 30~70 kHz
Vertical: 48~120 Hz
If no message is displayed and the 1
(power) indicator is green or flashing
orange
• Use the Self-diagnosis function (page 16).
If using Windows 95/98
• If you replaced an old monitor with this monitor, reconnect the old monitor and do the
following. Install the Windows Monitor Information Disk (page 7) and select
“CPD-110EST” from among the Sony monitors in the Windows 95/98 monitor selection
screen.
If using a Macintosh system
• Check that the Macintosh adapter (not supplied) and the video signal cable are properly
connected (page 6).
Picture flickers, bounces,
oscillates, or is scrambled
xProblems caused by the connected computer or other equipment
• The computer is in power saving mode. Try pressing any key on the computer keyboard.
• Check that the computer’s power is “on.”
• Check that the graphic board is completely seated in the proper bus slot.
• Isolate and eliminate any potential sources of electric or magnetic fields such as other
monitors, laser printers, electric fans, fluorescent lighting, or televisions.
• Move the monitor away from power lines or place a magnetic shield near the monitor.
• Try plugging the monitor into a different AC outlet, preferably on a different circuit.
• Try turning the monitor 90° to the left or right.
xProblems caused by the connected computer or other equipment
• Check your graphics board manual for the proper monitor setting.
• Confirm that the graphics mode (VESA, Macintosh 16" Color, etc.) and the frequency of
the input signal are supported by this monitor (Appendix). Even if the frequency is within
the proper range, some video boards may have a sync pulse that is too narrow for the
monitor to sync correctly.
• Adjust the computer’s refresh rate (vertical frequency) to obtain the best possible picture.
Picture is fuzzy
14
• Adjust the contrast and brightness (page 9).
• Degauss the monitor* (page 12).
• Decrease the moire cancellation effect (page 12).
Symptom
Check these items
Picture is ghosting
• Eliminate the use of video cable extensions and/or video switch boxes.
• Check that all plugs are firmly seated in their sockets.
Picture is not centered or sized
properly
• Adjust the size or centering (page 10). Note that some video modes do not fill the screen
to the edges.
Edges of the image are curved
• Adjust the shape of the picture (page 10).
Wavy or elliptical pattern (moire)
is visible
• Cancel the moire (page 12).
Color is not uniform
• Degauss the monitor* (page 12). If you place equipment that generates a magnetic field,
such as a speaker, near the monitor, or if you change the direction the monitor faces, color
may lose uniformity.
White does not look white
• Adjust the color temperature (page 11).
A hum is heard right after the
power is turned on
• This is the sound of the auto-degauss cycle. When the power is turned on, the monitor is
automatically degaussed for 5 seconds.
xProblems caused by the connected computer or other equipment
• Change your desktop pattern.
* If a second degauss cycle is needed, allow a minimum interval of 20 minutes for the best result. A humming noise may be heard, but this is not a
malfunction.
Displaying this monitor’s name, serial number,
and date of manufacture (INFORMATION)
1 Press the MENU button.
The main MENU appears on the screen.
If the problem persists, call your authorized Sony dealer and give
the following information.
• Model name: CPD-110EST
• Serial number
• Name and specifications of your computer and graphics board.
GB
2 Press the +/−
− buttons to highlight
LANGUAGE/
INFORMATION and press the ENTER button.
The LANGUAGE/INFORMATION menu appears on the
screen.
3 Press the ENTER button to select
(INFORMATION).
This monitor’s information box appears on the screen.
Example
LANGUAGE / INFORMAT I ON
MODE L : CPD - 1 1 0 ES T
SER I A L : 1 2 3 4 5 6 7 8
MANUF ACTURED : 1 9 9 8 - 5 2
SE L ECT
EX I T
15
Self-diagnosis function
This monitor is equipped with a self-diagnosis function. If there is
a problem with your monitor or computer, the screen will go
blank and the 1 (power) indicator will either light up green or
flash orange. If the 1 (power) indicator is lit in orange, the
computer is in power saving mode. Try pressing any key on the
keyboard.
Specifications
CPD-110EST
CRT
Viewable image size
Resolution
Standard image area
1 (power) indicator
If the 1 (power) indicator is green
1 Disconnect the video input cable, or turn off the
connected computer.
2 Press the 1 (power) button to turn the monitor off
and on.
3 Press and hold the + button for 2 seconds before the
monitor enters power saving mode.
MENU
ENTER
If all three color bars appear (red, green, blue), the monitor is
working properly. Reconnect the video input cables and check the
condition of your computer.
If the color bars do not appear, there is a potential monitor failure.
Inform your authorized Sony dealer of the monitor’s condition.
If the 1 (power) indicator is flashing orange
Press the 1 (power) button to turn the monitor off and
on.
If the 1 (power) indicator lights up green, the monitor is working
properly.
If the 1 (power) indicator is still flashing, there is a potential
monitor failure. Count the number of seconds between orange
flashes of the 1 (power) indicator and inform your authorized
Sony dealer of the monitor’s condition. Be sure to note the model
name and serial number of your monitor. Also note the make and
model of your computer and video board.
16
Deflection frequency*
AC input voltage/current
Power consumption
Dimensions
Mass
Plug and Play
Supplied accessories
0.25 mm aperture grille pitch
15 inches measured diagonally
90-degree deflection
Approx. 285 × 214 mm (w/h)
(11 1/4 × 8 1/2 inches)
14.0" viewing image
Horizontal: Max. 1280 dots
Vertical: Max. 1024 lines
Approx. 270 × 202 mm (w/h)
(10 3/4 × 8 inches)
Horizontal: 30 to 70 kHz
Vertical: 48 to 120 Hz
100 to 240 V, 50 – 60 Hz, 1.6 – 0.8 A
Max. 105 W
Approx. 368 × 393 × 389 mm (w/h/d)
(14 1/2 × 15 1/2 × 15 3/8 inches)
Approx. 14 kg (30 lb 14 oz)
DDC1/DDC2B
See page 6
* Recommended horizontal and vertical timing condition
• Horizontal sync width should be more than 1.0 µsec.
• Horizontal blanking width should be more than 3.6 µsec.
• Vertical blanking width should be more than 500 µsec.
Design and specifications are subject to change without notice.
TCO’95 Eco-document
Appendix
Preset mode timing table
No. Resolution Horizontal Vertical
Graphics
(dots × lines) Frequency Frequency Mode
1
640 × 480
31.5 kHz
60 Hz
VGA-G
2
640 × 480
43.3 kHz
85 Hz
VESA
3
720 × 400
31.5 kHz
70 Hz
VGA-Text
4
800 × 600
46.9 kHz
75 Hz
VESA
5
800 × 600
53.7 kHz
85 Hz
VESA
6
832 × 624
49.7 kHz
75 Hz
Macintosh 16"
Color
7
1024 × 768
60.0 kHz
75 Hz
VESA
8
1024 × 768
68.7 kHz
85 Hz
VESA
x Congratulations!
9
1280 × 1024
64.0 kHz
60 Hz
VESA
You have just purchased a TCO’95 approved and labelled
product! Your choice has provided you with a product developed
for professional use. Your purchase has also contributed to
reducing the burden on the environment and also, to the further
development of environmentally adapted electronics products.
x Why do we have environmentally labelled
computers?
In many countries, environmental labelling has become an
established method for encouraging the adaptation of goods and
services to the environment. The main problem, as far as
computers and other electronics equipment are concerned, is that
environmentally harmful substances are used both in the products
and during the manufacturing. Since it has not been possible for
the majority of electronics equipment to be recycled in a
satisfactory way, most of these potentially damaging substances
sooner or later enter Nature.
There are also other characteristics of a computer, such as energy
consumption levels, that are important from the viewpoints of
both the work (internal) and natural (external) environments.
Since all methods of conventional electricity generation have a
negative effect on the environment (acidic and climateinfluencing emissions, radioactive waste, etc.), it is vital to
conserve energy. Electronics equipment in offices consume an
enormous amount of energy since they are often left running
continuously.
x What does labelling involve?
This product meets the requirements for the TCO’95 scheme
which provides for international and environmental labelling of
personal computers. The labelling scheme was developed as a
joint effort by the TCO (The Swedish Confederation of
Professional Employees), Naturskyddsforeningen (The Swedish
Society for Nature Conservation) and NUTEK (The National
Board for Industrial and Technical Development in Sweden).
The requirements cover a wide range of issues: environment,
ergonomics, usability, emission of electrical and magnetic fields,
energy consumption and electrical and fire safety.
(continued)
i
The environmental demands concern restrictions on the presence
and use of heavy metals, brominated and chlorinated flame
retardants, CFCs (freons) and chlorinated solvents, among other
things. The product must be prepared for recycling and the
manufacturer is obliged to have an environmental plan which
must be adhered to in each country where the company
implements its operational policy.
The energy requirements include a demand that the computer and/
or display, after a certain period of inactivity, shall reduce its
power consumption to a lower level in one or more stages. The
length of time to reactivate the computer shall be reasonable for
the user.
Labelled products must meet strict environmental demands, for
example, in respect of the reduction of electric and magnetic
fields, physical and visual ergonomics and good usability.
On this page, you will find a brief summary of the environmental
requirements met by this product. The complete environmental
criteria document may be ordered from:
TCO Development Unit
S-114 94 Stockholm
Sweden
Fax: +46 8 782 92 07
Email (Internet): [email protected]
Current information regarding TCO’95 approved and labelled
products may also be obtained via the Internet, using the
address:
http://www.tco-info.com/
TCO’95 is a co-operative project between TCO (The Swedish
Confederation of Professional Employees),
Naturskyddsforeningen (The Swedish Society for Nature
Conservation) and NUTEK (The National Board for Industrial
and Technical Development in Sweden).
x Environmental Requirements
Brominated flame retardants
Brominated flame retardants are present in printed circuit boards,
cables, wires, casings and housings. In turn, they delay the spread
of fire. Up to thirty percent of the plastic in a computer casing can
consist of flame retardant substances. These are related to another
group of environmental toxins, PCBs, which are suspected to give
rise to similar harm, including reproductive damage in fisheating
birds and mammals, due to the bio-accumulative* processes.
Flame retardants have been found in human blood and researchers
fear that disturbances in foetus development may occur.
TCO’95 demand requires that plastic components weighing more
than 25 grams must not contain organically bound chlorine and
bromine.
Lead**
Lead can be found in picture tubes, display screens, solders and
capacitors. Lead damages the nervous system and in higher doses,
causes lead poisoning.
TCO’95 requirement permits the inclusion of lead since no
replacement has yet been developed.
ii
Cadmium**
Cadmium is present in rechargeable batteries and in the
colourgenerating layers of certain computer displays. Cadmium
damages the nervous system and is toxic in high doses.
TCO’95 requirement states that batteries may not contain more
than 25 ppm (parts per million) of cadmium. The colourgenerating layers of display screens must not contain any
cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and switches.
Mercury damages the nervous system and is toxic in high doses.
TCO’95 requirement states that batteries may not contain more
than 25 ppm (parts per million) of mercury. It also demands that
no mercury is present in any of the electrical or electronics
components concerned with the display unit.
CFCs (freons)
CFCs (freons) are sometimes used for washing printed circuit
boards and in the manufacturing of expanded foam for packaging.
CFCs break down ozone and thereby damage the ozone layer in
the stratosphere, causing increased reception on Earth of
ultraviolet light with consequent increased risks of skin cancer
(malignant melanoma).
The relevant TCO’95 requirement: Neither CFCs nor HCFCs
may be used during the manufacturing of the product or its
packaging.
* Bio-accumulative is defined as substances which accumulate within
living organisms
**Lead, Cadmium and Mercury are heavy metals which are Bioaccumulative.
Sony Corporation
Printed in U.K.
