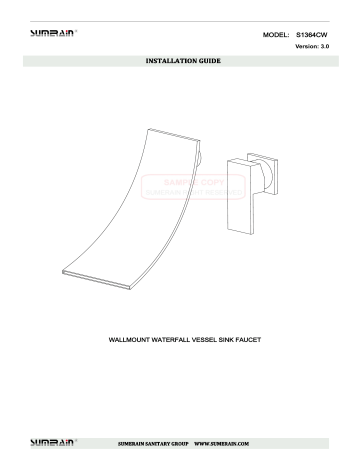

MODEL: S1364CW

MODEL: S1364CW
MODEL:
S1364CW
Version: 3.0
WALLMOUNT WATERFALL VESSEL SINK FAUCET
Dear Valued Customer,
SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere
hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered,
and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using
basic tools and our easy to follow illustrated instructions. We welcome any questions or comments you may have
and look forward to assisting you in the future. If you have any questions regarding this product, call
+86-750-2731579 or email to [email protected] .
Sincerely,
SUMERAIN customer service department
1. Unpack your new product and ensure that all the parts are contained in the packaging. Keep the product in its
original box until you ready to install it.
2. Locate water supply inlets and shut off the water supply valves. These are usually found near the water meter.
if you are replacing an existing unit, remove the old unit and clean the mounting surface thoroughly.
3. Observe all plumbing and building codes in your area.
4. It is recommends calling professional if you are uncertain about installing this product.
Philips screwdriver
Allen wrench
Adjustable wrench
Channel locks
Thread Sealant
VERSION: 140320.15.3
This product has been manufactured and tested to the highest quality standards by SUMERAIN sanitary Inc("SUMERAIN").This
warranty is limited to SUMERAIN products which are purchased by a consumer in the China after Jan 1,2010 and installed in China
or the state which has SUMERAIN technical support department locally.(visit http://www.sumerain.com/en/supportcenter.asp for
review the state list of SUMERAIN technical support department).If the faucet should leak or drip during normal use,SUMERAIN will,
free of charge, mail to the purchaser the cartridge necessary to put the faucet in good working condition. If a defect is found in
normal residential use, SUMERAIN will, at its election, repair, provide a replacement part or product, or make appropriate
adjustment.
WHO IS COVERED BY THE WARRANTY
This warranty extends to the original consumer purchaser only (exclusive online retail original customer, online retail original
customer cover by the "Online CONSUMER Limited Lifetime WARRANTY & Return policy"), This warranty is not-transferable.
WHAT IS COVERED BY THE WARRANTY
This warranty covers only your SUMERAIN manufactured product. SUMERAIN warrants this product against defects in material or
workmanship as follows: SUMERAIN will repair at no charge for parts only or, at its option, replace any product or part of the product
that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. If
SUMERAIN unable to provide replacement, SUMERAIN may elect to provide similar model upon close value.
FINISH WARRANTY
It is the responsibility of the customer to check for any material finish defects before installation. SUMERAIN doesn't warranty these
finishes after the fixture has been installed.
ELECTRONIC FAUCETS WARRANTY
SUMERAIN warrants that its electronic faucets, valves and controls to be free from manufacturing defects in material and
workmanship under normal use for three(3) years from the date of purchase and waterflow impeller-dynamo (generate power for
LED faucet) for six(6) months from the date of purchase.
LENGTH OF WARRANTY
Replacement or repaired parts of products will be covered for the term of this warranty as stated in the following two sentences, if
you are a consumer who purchased the product for use primarily for personal,family,or household purposes, this warranty extends
for 5 years since the product originally installed (Extend max 1 month From the date of purchase).if you purchased the product for
use primarily for any other purpose,including,without limitation, a commercial purpose or is installed outside of China, or if the finish
is gold, non-Vibrant or a painted or powder coated color finish this warranty extends only for one year, with respect to SUMERAIN
and commercial products.
THIS WARRANTY DOES NOT COVER, AND SUMERAIN WILL NOT PAY FOR:
A. Conditions, malfunctions or damage not resulting from defects in material or workmanship.
B. Conditions, malfunctions or damage resulting from normal wear and tear, improper installation, improper maintenance, misuse,
abuse,negligence,accident or alteration or the use of abrasive or caustic cleaning agents or "no-rinse" cleaning products, or the use
of the product in any manner contrary to the product instructions. Conditions in the home such as excessive water pressure or
corrosion.
C. Labor or other expenses for the disconnection, deinstallation, or return of the product for warranty service, or for installation or
reinstallation of the product.
D. Accessories, connected materials and products (including but not limited in handshower flexible hose, spray flexible hose,
handshower), or related products not manufactured by SUMERAIN
TO OBTAIN WARRANTY PARTS OR INFORMATION
Contact your SUMERAIN retailer or contact technical service at: [email protected]
In requesting warranty service, you will need to provide
1. The sales receipt or other evidence of the date and the place of purchase.
2. A description of the problem (Download URL: http://www.sumerain.com/download/servicerequest/sheet.pdf and fill out the Service
Request Sheet).
3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured to :
SUMERAIN FACTORY SUPPORT CENTER ,25 Building,Tangkou industrial park,Shuikou Town,Jiangmen Kaiping city,
Guangdong provice,China 529301
When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid.
EXCLUSIONS AND LIMITATIONS
Repair or replacement (or, in limited circumstances, refund of the purchase price) as provided under this warranty is the exclusive
remedy of the purchaser. SUMERAIN neither assumes nor authorizes any person to create for it any obligation or liability in
connection with this product.SUMERAIN shall not be liable to purchaser or any person for any incidental, special, or consequential
damages, arising out of breach of this warranty or any implied warranty (including merchantability) Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This
warranty gives you specific legal right, and you may have other rights which vary from state to state. You may be required by law to
give us a reasonable opportunity to correct or cure any failure to comply before you can bring any action in court against us under
the Magnusson-moss warranty Act.
PRODUCT INSTRUCTIONS AND QUESTIONS
Upon purchase or prior to installation, please carefully inspect your SUMERAIN product for any damage or visible defect. Prior to
installing, always carefully study the enclosed instructions on the proper installation and the care and maintenance of the product. if
you have questions at any time about the use,installation,or performance of your SUMERAIN product, or this warranty, please call or
email us at +86-750-2731579, [email protected]
Function
Bathroom Sink Faucets
Feature
Waterfall, Wall mount
Theme
Modern ,Contemporary
Configuration
Vessel
Finish
Chrome
Installation Holes
Two
Number of Handles
One
Handle style
Lever
Faucet Total Height
Adjustable
Spout Reach
175mm [6-7/8”]
Spout width
123mm [4-7/8”]
Spout Height
Adjustable
Max wall thickness
32mm
Installation type
Wall mount
Valve Type
Ceramic disc
Faucet Body Material
Brass
Spout Material
304 Stainless steel
Handle Material
Metal
Net Weight
1.7 KG [3.75 lbs ]
Gross Weight
1.9KG [ 4.19 lbs ]
Working water press
0.2 ~0.8 Mpa
Flow Rate
8.3L/M [ 2.2 GPM ]
Packing box size
230mm(9.0”) x 185mm(7-1/4”) x 140mm(5-1/2”)
FRONT VIEW OF FAUCET
RIGHT SIDE VIEW OF FAUCET
TOP VIEW OF ROUGH IN VALVE
FRONT VIEW OF ROUGH IN VALVE
CODE
ITEM NAME
QTY
CODE
ITEM NAME
QTY
1364001
Rough-in valve
1PCS
1364002
sleeve
1PCS
1364003
ceramic cartridge
1PCS
1364004
Bonnet nut
1PCS
1364005
Escutcheon
1PCS
1364006
Shank
1PCS
1364007
Rubber washer
1PCS
1364008
Spout adapter
1PCS
1364009
Spout
1PCS
1364010
Escutcheon
1PCS
1364011
Handle(Lever)
1PCS
1364012
Lever screw
1PCS
1364013
Hot/cold sign
1PCS
1364014
Allen wrench
1PCS
1. BEFORE PROCEEDING
WARNING:
Read all the instructions completely before proceeding.SUMERAIN recommends calling a professional
if you are uncertain about installing this product!, this product should be installed in accordance with all
local and state plumbing and building codes.
2. SHUT OFF WATER SUPPLY
Locate water supply inlets and shut off the water supply valves. These are usually found near the water meter. if you are
replacing an existing unit, remove the old unit and clean the mounting surface thoroughly.
3. CHECKING THE CONTENTS OF THE BOX
Upon opening the box, check to ensure that all the following items are included.
CODE
ITEM NAME
QTY
CODE
ITEM NAME
QTY
1364001
Rough-in valve
1PCS
1364002
sleeve
1PCS
1364003
ceramic cartridge
1PCS
1364004
Bonnet nut
1PCS
1364005
Escutcheon
1PCS
1364006
Shank
1PCS
1364007
Rubber washer
1PCS
1364008
Spout adapter
1PCS
1364009
Spout
1PCS
1364010
Escutcheon
1PCS
1364011
Handle(Lever)
1PCS
1364012
Lever screw
1PCS
1364013
Hot/cold sign
1PCS
1364014
Allen wrench
1PCS
If any of these items are missing, please contact SUMERAIN consumer service at +86-750-2731579 or email to:
[email protected]
4. INSTALLATION HOLES INSPECTION
Verify that the hole sizes and positions in the wall are correct.
5. VALVE TRIM INSTALLATION
5.1 Make a mounting rack (normally use woods as materials) for preparing install the rough-in valve.The mounting rack’s face should
be 44mm (1-3/4”) at least behind the finish wall surface.
5.3 Secure the rough-in valve to the mounting rack with screws (not including)
5.4 Turn on your shut-off valve for cleaning the hot and cold water supply tube before connect to the valve trim, allow the water flush
3~5 minutes to flush out dirt and debris. Shut off the water supply again after finish.
5.5 Apply Teflon tape on the thread of tube inlet and then connect to valve trim with elbow.
5.6 Install the finished wall.
5.7 Install the spout adapter
5.8 Attach the spout to the spout adapter
5.9 Slide the escutcheon over the cartridge sleeve and attached to the finished wall
5.10 Place handle onto the valve stem and tighten set screws by using the Allen wrench that is provided.(Please don’t over tighten)
5.11 Attach the handle button (hot/cold sign) to handle for covering the set screw.
ASSEMBLE FINISHED
6. INSPECTION
6.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere.
7. FUNCTION INSPECTION
7.1 Turn on the handle, the water outflow from the spout and then turn off the handle, the water stop out flowing.
7.2 Turn right the handle, the cold water coming, on the contrary way, turn left the handle, hot water coming.
INSTALL FINISH
Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with
regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning.
Cleaning Materials for faucets and showers
Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points when
cleaning faucets and showers:
■ Only use cleaning materials which are explicitly intended for this type of application.
■ Never use cleaning materials which contain hydrochloric, formic, phosphoric, or acetic acid, as they cause considerable damage.
■ Never mix one cleaning material with another.
■ Never use cleaning materials or appliances with an abrasive effect, such as unsuitable cleaning powders, sponge pads, or micro
fiber cloths.
Cleaning instructions for faucets and showers
Please follow the cleaning material manufacturer's instructions. In addition, pay attention to the following points:
■ Clean the faucets and showers as and when required.
■ Use the amount of cleaning product and the amount of time recommended by the manufacturer. Do not leave the cleaner on the
fixture longer than necessary.
■ Regular cleaning can prevent calcification, if scale deposits are noticed on the faucet surface or the spout, you can clean it by a
commercial limescale remover, such as Lime-Away® or CLR®.Dilute the remover according to the label instructions.
■ The faucets might have some rusty if your faucet under hard water condition, please rub it with aluminum foil dipped in water until
the surface is nice and smooth, and wipe it use a small amount of chrome polish or maybe something like car wax(such as
Meguiar®,Turtle Wax®) or polish.
■ For stainless steel faucet and spout both made of solid stainless, normally this finish has not protective coating on it(in particular
waterfall spout inside),stainless steel is by its material nature very tarnish resistant, but by no means tarnish or stain proof. This
finish might oxidize naturally over time and react to its environment. Keep your stainless fixture wiped clean and dry and use only
a cleaner specifically made for stainless steel (such as Weiman®, CLR®).
■ When using spray cleaners, spray first onto a soft cloth or sponge, never spray directly onto the faucet as droplets can enter
openings and gaps and cause damage.
■ After cleaning, rinse thoroughly with clean water to remove any cleaner residue.
Important
Residues of liquid soaps, shampoos, and shower foams can also cause damage, so rinse with clean water after using.
Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage.
Components with damaged surfaces must be replaced or injury could result.
Damage caused by improper treatment is not covered under the warranty.
Symptom
Solution
A.
B.
A.
B.
The water pressure is too low
C.
A.
The spout sprays water all over
B.
A.
Water is leaking from the faucet under the sink B.
Faucet leaks from the handle
Handle is loose
Tighten the packing nut
Replace the "O" ring or packing
Make sure the water supply valves under the sink are turned on all the way
Clean or replace the aerator
Check plumbing system for water pressure problems
Clean or replace the aerator
Replace the aerator washer
Check the water supply connections to the faucet
Inspect the water supply lines or hoses for leaks
A. Remove the cap and tighten the screw
B. Locate and tighten the hex set screw
C. Remove the handle and check for stripped teeth on the stem.
HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED
Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL
Factory Address: 25 building Tangkou Industrial Park,Shuikou town, Kaiping City, Guangdong Province, China (Mainland)
Tel:
+86-750-2731579
Toll Free: 400-0999-075 (China mainland)
Fax: +86-750-2715258
Web: http://www.sumerain.com
E-mail: [email protected]
SUMERAIN INTERNATIONAL GROUP – AMERICA SALES Branch
Address: 13455 Harper Dr.
Saratoga, CA 95070
USA
Tel: +1-408-867-8884
FAX: +1-408-867-4272
E-mail: [email protected]
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
