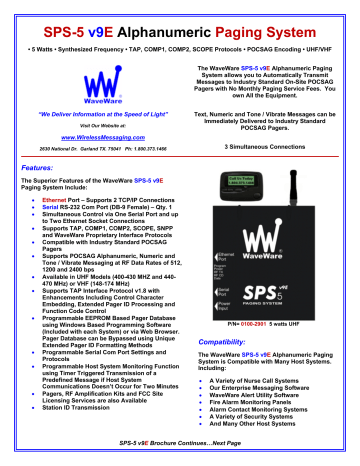

SPS-5 v9E Alphanumeric Paging System
• 5 Watts • Synthesized Frequency • TAP, COMP1, COMP2, SCOPE Protocols • POCSAG Encoding • UHF/VHF
The WaveWare SPS-5 v9E Alphanumeric Paging
System allows you to Automatically Transmit
Messages to Industry Standard On-Site POCSAG
Pagers with No Monthly Paging Service Fees. You
own All the Equipment.
“We Deliver Information at the Speed of Light”
Visit Our Website at:
Text, Numeric and Tone / Vibrate Messages can be
Immediately Delivered to Industry Standard
POCSAG Pagers.
www.WirelessMessaging.com
3 Simultaneous Connections
2630 National Dr. Garland TX. 75041 Ph: 1.800.373.1466
Features:
The Superior Features of the WaveWare SPS-5 v9E
Paging System Include:













Ethernet Port – Supports 2 TCP/IP Connections
Serial RS-232 Com Port (DB-9 Female) – Qty. 1
Simultaneous Control via One Serial Port and up
to Two Ethernet Socket Connections
Supports TAP, COMP1, COMP2, SCOPE, SNPP
and WaveWare Proprietary Interface Protocols
Compatible with Industry Standard POCSAG
Pagers
Supports POCSAG Alphanumeric, Numeric and
Tone / Vibrate Messaging at RF Data Rates of 512,
1200 and 2400 bps
Available in UHF Models (400-430 MHZ and 440470 MHz) or VHF (148-174 MHz)
Supports TAP Interface Protocol v1.8 with
Enhancements Including Control Character
Embedding, Extended Pager ID Processing and
Function Code Control
Programmable EEPROM Based Pager Database
using Windows Based Programming Software
(Included with each System) or via Web Browser.
Pager Database can be Bypassed using Unique
Extended Pager ID Formatting Methods
Programmable Serial Com Port Settings and
Protocols
Programmable Host System Monitoring Function
using Timer Triggered Transmission of a
Predefined Message if Host System
Communications Doesn’t Occur for Two Minutes
Pagers, RF Amplification Kits and FCC Site
Licensing Services are also Available
Station ID Transmission
P/N= 0100-2901 5 watts UHF
Compatibility:
The WaveWare SPS-5 v9E Alphanumeric Paging
System is Compatible with Many Host Systems.
Including:







A Variety of Nurse Call Systems
Our Enterprise Messaging Software
WaveWare Alert Utility Software
Fire Alarm Monitoring Panels
Alarm Contact Monitoring Systems
A Variety of Security Systems
And Many Other Host Systems
SPS-5 v9E Brochure Continues…Next Page
SPS-5 v9E Alphanumeric Paging System
Beneficial Features:
The WaveWare SPS- 5 v9E Alphanumeric Paging System offers many Beneficial Features. Including:











Ethernet and Serial Connectivity – Configurable by way of Browser or PC Software
Simultaneous Operation of up to Two Ethernet Socket Connections and One Serial Port Connection, with
Independent Configuration of Interface Control Protocols on each Connection
Support for DHCP or Static IP Address
Discover All WaveWare SPS-5 v9E Paging Encoders on the LAN using Encoder Setup Software
Economical, Eliminating Wide Area Paging Service Fees
Long Range Campus Wide Coverage (5 watt System Provides up to a 3 mile Coverage, Depending upon
the Local On-Site Conditions)
Supports Alphanumeric, Numeric, and Tone / Vibe Messages
Supports Paging RF Data Rates of 512, 1200, and 2400 bps, with Data Rate Auto Switching
Industry Compatibility using a choice of Several Industry Standard Interface Protocols
Pager Database can be Programmed into On-Board EEPROM using Windows Based Programming
Software, included with each System or via Web Browser. System can Operate without On-Board Pager
Database using Extended Pager ID Formatting Method.
Shared Use FCC Site Licensing available for UHF Models - Amp Kits Available for Output of 25 & 50 watts
System Specifications:
























Model Numbers: SPS-5 v9E UHF (Default) and the SPS-5 v9E VHF (Optional)
Part Number: 0100-2901 UHF (State: VHF, if Required)
Ethernet Port: RJ-45 Female, Supports up to Two TCP/IP Connections on Independent IP Port Values
Serial RS-232 Com Port: Single Serial DB-9 Female Com Port
Serial Port Configuration: 300, 1200, 2400 or 9600 Baud and Even or No Parity and 7 or 8 Bits
Antenna Connection: BNC Female
Paging Message Types: POCSAG Tone / Vibrate, Numeric and Alphanumeric
RF Data Rate: 512, 1200 and 2400 bps Auto-Switching
Pager Database: 5,000 Plus EEPROM Programmable using PC Software or Web Browser
Interface Paging Protocols: TAP, COMP1, COMP2, SCOPE, SNPP and WaveWare Proprietary Protocols
All Programmable using Encoder Programming Software (Included with each System) or Web Browser
Frequency Source: Synthesized Transceiver - TecNet Maxon SD-125E
Frequency Range: UHF2 (440-470 MHz), UHF1 (400- 430 MHz) and VHF (148-175 MHz)
Frequency Stability: Models UHF ± 2.5 ppm, VHF ± 5.0 ppm
Operations Rating: Intermittent, 66% Duty Cycle
Power Supply: 12vDC 3.75A (or Higher Amp) AC / DC Adaptor
Operating Temperature: 30º C to 60º C (22º F to 140º F)
Modulation Deviation: ± 2.5 KHz (Narrowband)
Bandwidth: 12.5 KHz (Narrowband)
RF Power Out (Watts): 5 Watts Nominal (or 2 Watts Optional)
Transmitter FCC ID: UHF = RXUSD-125EU2 (Maxon)
Transmitter Canada ID: UHF = 153B-SD125EU2 (Maxon)
Dimensions: Approx: 9” (H) x 8.5” (W) x 2.25” (D)
Weight: Approx: 8.5 lbs (Including the Antenna, P/S, Cable and CD)
Packaging:
The SPS-5 v9E Comes Packaged with Everything you need to Configure and Install the System. Including:





Qty. One - Rubber Duck Antenna with BNC Male Connector
Qty. One - 6 or 10 ft. Standard RS-232 Serial Cable – DB-9 Male to Female
Qty. One - 3 or 6 ft. Standard Ethernet Cable and Qty. One – 3 or 6 ft. Crossover Ethernet Cable
12vDC Power Supply - AC / DC Adaptor and Mounting Hardware - Screws and Plastic Wall Anchors
Support CD with Installation Software, Quick Start Guide, User Manuals, Installation Diagrams & More
