FDVT1AAxA-AE - Transmitter FDVR1AAxA-AE- Receiver

FDVT1AAxA-AE - Transmitter FDVR1AAxA-AE- Receiver
FDVT1AAxA-AE - Transmitter
FDVR1AAxA-AE - Receiver

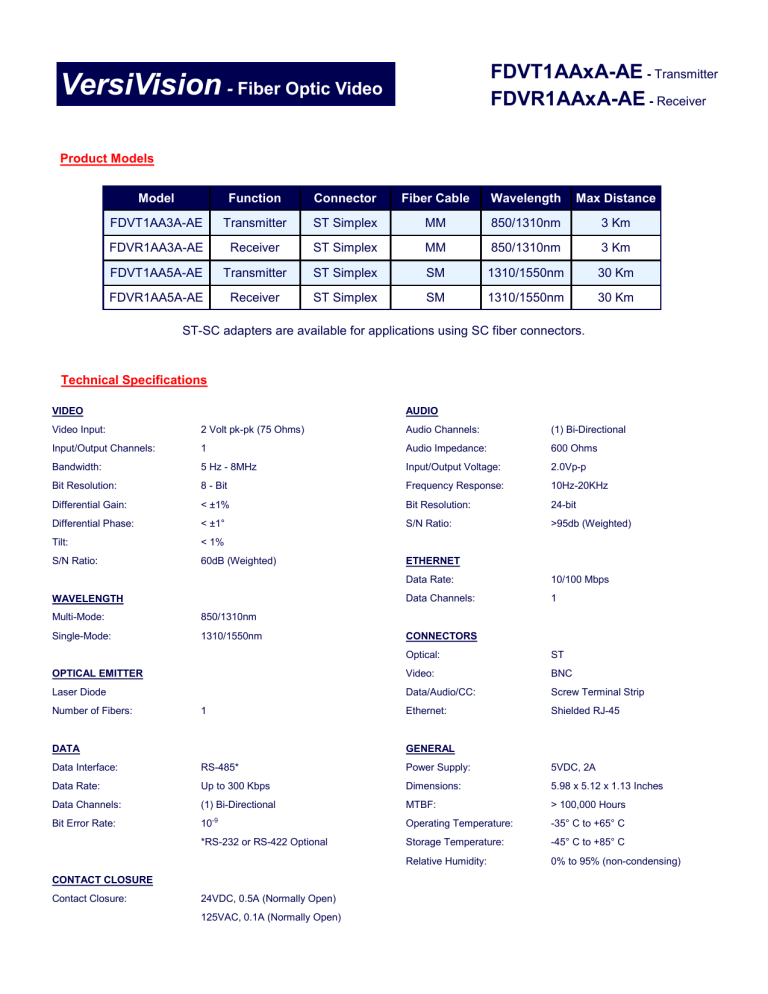

VersiVision - Fiber Optic Video
Product Models
Model
Function
Connector
Fiber Cable
Wavelength
Max Distance
FDVT1AA3A-AE
Transmitter
ST Simplex
MM
850/1310nm
3 Km
FDVR1AA3A-AE
Receiver
ST Simplex
MM
850/1310nm
3 Km
FDVT1AA5A-AE
Transmitter
ST Simplex
SM
1310/1550nm
30 Km
FDVR1AA5A-AE
Receiver
ST Simplex
SM
1310/1550nm
30 Km
ST-SC adapters are available for applications using SC fiber connectors.
Technical Specifications
VIDEO
AUDIO
Video Input:
2 Volt pk-pk (75 Ohms)
Audio Channels:
(1) Bi-Directional
Input/Output Channels:
1
Audio Impedance:
600 Ohms
Bandwidth:
5 Hz - 8MHz
Input/Output Voltage:
2.0Vp-p
Bit Resolution:
8 - Bit
Frequency Response:
10Hz-20KHz
Differential Gain:
< ±1%
Bit Resolution:
24-bit
Differential Phase:
< ±1°
S/N Ratio:
>95db (Weighted)
Tilt:
< 1%
S/N Ratio:
60dB (Weighted)
WAVELENGTH
Multi-Mode:
850/1310nm
Single-Mode:
1310/1550nm
ETHERNET
Data Rate:
10/100 Mbps
Data Channels:
1
CONNECTORS
Optical:
ST
OPTICAL EMITTER
Video:
BNC
Laser Diode
Data/Audio/CC:
Screw Terminal Strip
Ethernet:
Shielded RJ-45
Number of Fibers:
1
DATA
GENERAL
Data Interface:
RS-485*
Power Supply:
5VDC, 2A
Data Rate:
Up to 300 Kbps
Dimensions:
5.98 x 5.12 x 1.13 Inches
Data Channels:
(1) Bi-Directional
MTBF:
> 100,000 Hours
Bit Error Rate:
10-9
Operating Temperature:
-35° C to +65° C
*RS-232 or RS-422 Optional
Storage Temperature:
-45° C to +85° C
Relative Humidity:
0% to 95% (non-condensing)
CONTACT CLOSURE
Contact Closure:
24VDC, 0.5A (Normally Open)
125VAC, 0.1A (Normally Open)
