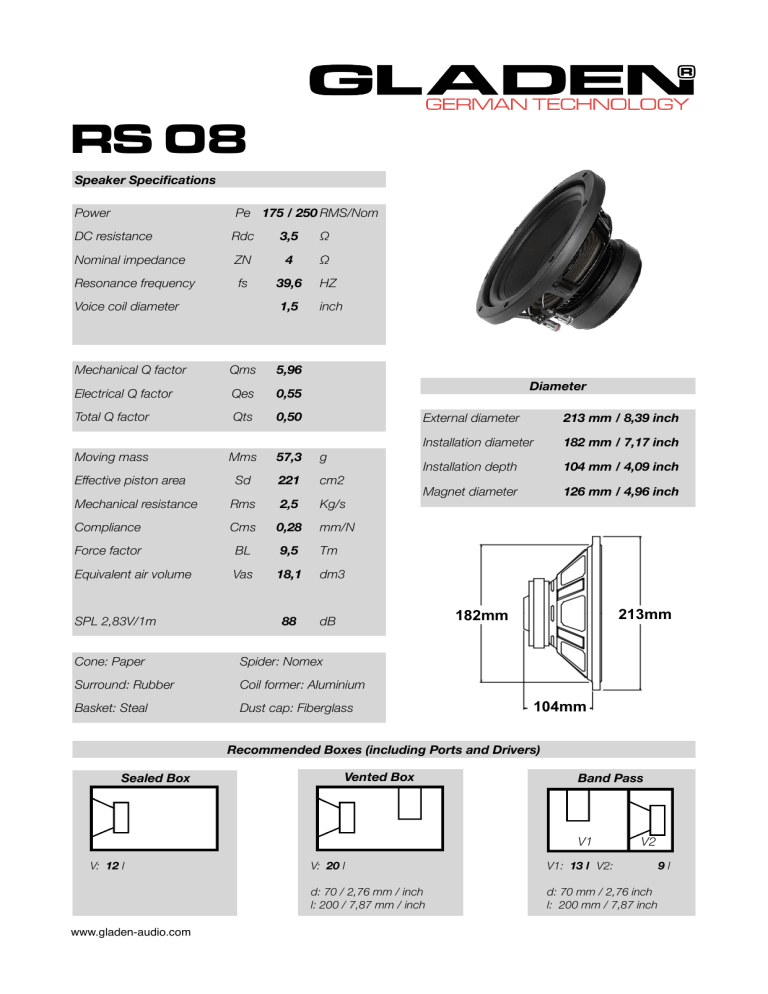

RS 08 - Gladen
RS 08
Speaker Specifications
Power
Pe 175 / 250 RMS/Nom
DC resistance
Rdc
3,5
Ω
Nominal impedance
ZN
4
Ω
Resonance frequency
fs
39,6
HZ
1,5
inch
Voice coil diameter
Mechanical Q factor
Qms
5,96
Electrical Q factor
Qes
0,55
Total Q factor
Qts
0,50
Moving mass
Mms
57,3
g
Sd
221
cm2
Mechanical resistance
Rms
2,5
Kg/s
Compliance
Cms
0,28
mm/N
Force factor
BL
9,5
Tm
Equivalent air volume
Vas
18,1
dm3
Effective piston area
SPL 2,83V/1m
88
Diameter
External diameter
213 mm / 8,39 inch
Installation diameter
182 mm / 7,17 inch
Installation depth
104 mm / 4,09 inch
Magnet diameter
126 mm / 4,96 inch
213mm
182mm
dB
Cone: Paper
Spider: Nomex
Surround: Rubber
Coil former: Aluminium
Basket: Steal
Dust cap: Fiberglass
104mm
Recommended Boxes (including Ports and Drivers)
Sealed Box
Vented Box
Band Pass
V1
V: 12 l
www.gladen-audio.com
V2
V: 20 l
V1: 13 l V2:
d: 70 / 2,76 mm / inch
l: 200 / 7,87 mm / inch
d: 70 mm / 2,76 inch
l: 200 mm / 7,87 inch
9l
