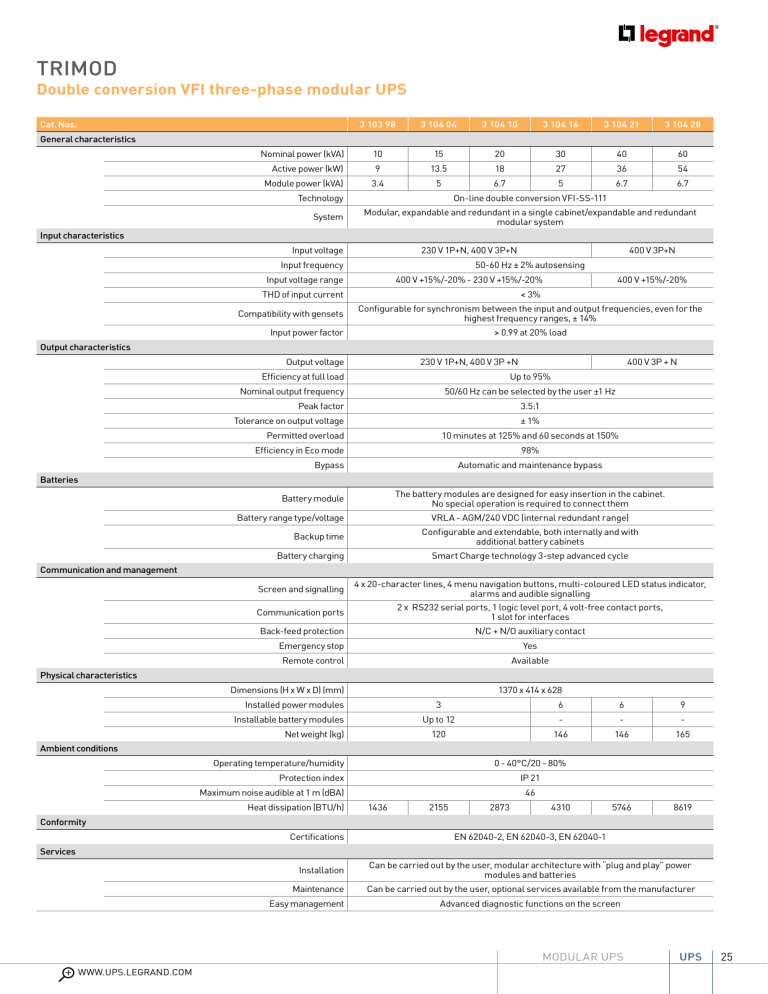

trIMod
TRIMOD
Double conversion VFI three-phase modular UPS
Cat. Nos.
3 103 98
3 104 04
3 104 10
3 104 16
3 104 21
3 104 28
General characteristics
Nominal power (kVA)
10
15
20
30
40
60
Active power (kW)
9
13.5
18
27
36
54
3.4
5
6.7
5
6.7
6.7
Module power (kVA)
Technology
System
On-line double conversion VFI-SS-111
Modular, expandable and redundant in a single cabinet/expandable and redundant
modular system
Input characteristics
Input voltage
230 V 1P+N, 400 V 3P+N
Input frequency
Input voltage range
400 V +15%/-20% - 230 V +15%/-20%
400 V +15%/-20%
‹ 3%
THD of input current
Compatibility with gensets
400 V 3P+N
50-60 Hz ± 2% autosensing
Configurable for synchronism between the input and output frequencies, even for the
highest frequency ranges, ± 14%
› 0.99 at 20% load
Input power factor
Output characteristics
Output voltage
230 V 1P+N, 400 V 3P +N
Efficiency at full load
400 V 3P + N
Up to 95%
Nominal output frequency
50/60 Hz can be selected by the user ±1 Hz
Peak factor
3.5:1
Tolerance on output voltage
± 1%
Permitted overload
10 minutes at 125% and 60 seconds at 150%
Efficiency in Eco mode
98%
Bypass
Automatic and maintenance bypass
Batteries
The battery modules are designed for easy insertion in the cabinet.
No special operation is required to connect them
Battery module
Battery range type/voltage
VRLA - AGM/240 VDC (internal redundant range)
Configurable and extendable, both internally and with
additional battery cabinets
Backup time
Battery charging
Smart Charge technology 3-step advanced cycle
Communication and management
Screen and signalling
4 x 20-character lines, 4 menu navigation buttons, multi-coloured LED status indicator,
alarms and audible signalling
Communication ports
2 x RS232 serial ports, 1 logic level port, 4 volt-free contact ports,
1 slot for interfaces
Back-feed protection
N/C + N/O auxiliary contact
Emergency stop
Yes
Remote control
Available
Physical characteristics
Dimensions (H x W x D) (mm)
1370 x 414 x 628
Installed power modules
3
Installable battery modules
Net weight (kg)
6
6
9
Up to 12
-
-
-
120
146
146
165
5746
8619
Ambient conditions
Operating temperature/humidity
0 - 40°C/20 - 80%
Protection index
IP 21
Maximum noise audible at 1 m (dBA)
Heat dissipation (BTU/h)
46
1436
2155
2873
4310
Conformity
Certifications
EN 62040-2, EN 62040-3, EN 62040-1
Services
Installation
Maintenance
Easy management
Can be carried out by the user, modular architecture with “plug and play” power
modules and batteries
Can be carried out by the user, optional services available from the manufacturer
Advanced diagnostic functions on the screen
MODULAR UPS
WWW.UPS.LEGRAND.COM
UPS
25
