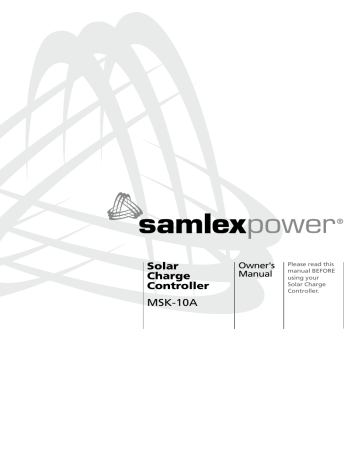

MSK-10A Owner`s Manual
Solar
Charge
Controller
MSK-10A
Owner's
Manual
Please read this
manual before
using your
Solar Charge
Controller.
Owner's Manual | Index
Section 1
Safety Instructions.................................................................. 3
Section 2
General Information, Features & Layout ............................... 5
Section 3
Installation ............................................................................ 7
Section 4
Operation ......................................................................... 13
Section 5
Protections, Troubleshooting & Maintenance ...................... 22
SECTION 6
Specifications....................................................................... 25
SECTION 7
Warranty ......................................................................... 27
2 | SAMLEX AMERICA INC.
Section 1 | Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ THE FOLLOWING SAFETY INSTRUCTIONS BEFORE USING THE CHARGE CONTROLLER.
FAILURE TO ABIDE BY THE RECOMMENDATIONS MAY CAUSE PERSONAL INJURY / DAMAGE TO THE
CONTROLLER.
The following safety symbols will be used in this manual to highlight safety
and information:
WARNING!
Indicates possibility of physical harm to the user in case of non-compliance.
!
i
CAUTION!
Indicates possibility of damage to the equipment in case of non-compliance.
INFO
Indicates useful supplemental information.
WARNINGS
!
CAUTIONS!
1.
This Charge Controller is not waterproof (Ingress Protection Rating is IP-30). PLEASE
ENSURE THAT THE UNIT IS INSTALLED IN DRY, COOL AND WELL VENTILATED ENVIRONMENT.
2. The design of the Charge Controller allows ONLY Positive grounding, where required. Ground the Positive terminal of the PV Panel(s) input on the Charge
Controller or the Positive terminal of the battery. DO NOT ground the Negative.
3. There are no user serviceable parts inside the controller. Do not disassemble or
attempt to repair it.
4. Install external fuses / breakers as required.
5. Disconnect the PV Panel(s) and fuse / breakers near to battery before installing or
adjusting the controller.
6. Confirm that power connections are tightened to avoid excessive heating from
loose connection.
7. To reduce the risk of injury, charge only 12V / 24V Lead Acid Batteries - Flooded,
AGM or Gel Cell types. Other types of batteries may be subject to bursting which
can lead to personal injury & damage.
8. Comply with battery manufacturer’s recommendations.
9. Avoid charging damaged, defective or old battery.
10. Ensure correct polarity is maintained when connecting the Charge Controller to the
battery - Connect the Positive output terminal to the Positive Battery Post and the
Negative output terminal to the Negative Battery Post. Reversal of polarity connection will blow the external inline protective fuse.
SAMLEX AMERICA INC. | 3
SECTION 1 | Safety Instructions
11. When charging, removal of the battery from the vehicle is not necessary provided
the battery is being charged in a well-ventilated area.
12. Batteries contain very corrosive diluted Sulphuric Acid as electrolyte. Precautions
should be taken to prevent contact with skin, eyes or clothing. If the battery acid
makes contact with skin or clothing, flush immediately with water. See a doctor
immediately.
13. Batteries generate Hydrogen and Oxygen during charging resulting in evolution of
explosive gas mixture. Care should be taken to ventilate the battery area and follow battery manufacturer’s recommendations.
14. Ensure there are no flammable substances, explosive gases, flames, smoke or spark
near the battery or the PV Panel(s).
15. Use caution to reduce the risk of dropping a metal tool on the battery. It could
spark or short circuit the battery or other electrical parts and could cause an
explosion.
16. Remove metal items like rings, bracelets and watches when working with batteries.
Batteries can produce a short circuit current high enough to weld a ring or the like
to metal and thus cause a severe burn.
17. If you need to remove a battery, always remove the ground terminal from the battery first. Make sure that all the accessories are off so that you do not cause a spark.
18. PV Panel(s) generate electrical power when exposed to sunlight. Place a dark cover
over the panels when handling panels that have bare, un-insulated output wires.
Accidental shorting of panel terminals or wiring connected to the panels can result
in spark causing personal injury or a fire hazard.
19. It is important that the battery gets fully charged frequently (at least once per
week). Otherwise, the battery can become permanently damaged due to under
charging. Partially charged batteries can quickly sulfate internally which is an irreversible condition. It is good practice to prevent a battery from being discharged
below 50%. Deeper discharging severely shortens battery life.
20. Keep the surface of PV Panel(s) clean from dust. Clean with a soft cloth. Do not
walk on the panels.
21. Installation and wiring must comply with the local and National Electrical Codes
and must be done by a certified electrician.
4 | SAMLEX AMERICA INC.
Section 2 | General Information, Features
& Layout
MSK-10A is a 10A rated, Series Type of PWM (Pulse Width Modulation) Charge Controller. It is based on an advanced design using a microcontroller for digital accuracy and
fully automatic operation. It can be used for 12V or 24V systems for solar charging.
PWM battery charging has been optimized for longer battery life. The unit is designed
for user-friendly operation. Please take the time to read this Owner’s Manual and follow
the instructions step by step to help you make full use of the charging system.
FEATURES
-
Advanced microcontroller based, high performance design for digital accuracy and fully
automatic and intelligent operation
- Series Type PWM (Pulse Width Modulation) charging for low loss, higher efficiency
charging and longer battery life
- Up to 50V Open Circuit Voltage (Voc) and up to 10A Short Circuit Current (Isc) of PV
Panel(s) - enables use of up to 150W of 12V Nominal panels for 12V battery and up to
300W, 24V Nominal panels for 24V Nominal battery.
- Dual voltage capability – can be used with 12V / 24V Nominal PV Panel(s) / batteries. 12V /
24V Nominal Battery System is detected automatically: Battery voltage < 18V is detected as
12V Nominal battery and >18V is detected as 24V Nominal battery
- 4 Stages of charging for 100% return of capacity and long battery life – Bulk, Absorption,
Float and Equalization Stages
- Choice to select charging parameters for 3 battery types - Flooded, Sealed AGM or Sealed
Gel Cell for complete and safe charging.
- User friendly LED display for monitoring of operation and self diagnostics for
troubleshooting
- Integrated Temperature Sensor for temperature compensation to ensure improved
charging of batteries that experience wider temperature variations during the year
- MOSFET based reverse current blocking for night-time battery discharge prevention. This
allows much lower losses as compared to Diode based blocking
-Electronic protections: Over charging, over discharging, over heating and overload and
short circuit on the Load Terminals.
-Reverse polarity protection: any combination of PV Panel(s) and battery
APPLICATIONS
-Recreational / Service Vehicles
-Off grid
- Portable Charging Kits
-Boats and marine crafts
-Field work / mobile offices
-Telecommunications
SAMLEX AMERICA INC. | 5
Section 2 | General Information, Features
& Layout
LAYOUT
1
2
4
3
5
6
7
8
9
10
11
Fig 2.1: MSK-10A Layout
Fig 2.1: LEGEND
1. Temperature Sensor: Senses ambient temperature for temperature compensation
for charging and discharging.
2. Status LED “PV” :
3. STATUS LED “BATT”
4. Status LED “Flooded”: Flooded type of Battery has been selected
5. Status LED “Gel”: Sealed, Gel Cell type of battery has been selected.
6. Status LED “Sealed”: Sealed, AGM type of battery has been selected.
7. Status LED “Load” : Displays the status of the load
8.
Setting Button:
- Switch ON and Switch OFF the load connected to the Load Terminals.
- Select battery type
9.Terminals for connecting PV Panel(s)
10. Terminals for connecting battery
11. Terminals for connecting load(s) - Maximum 10A
6 | SAMLEX AMERICA INC.
Section 3 | Installation
WARNING!
!
CAUTION!
Please read all the safety instructions given in section 1 before
installing and operting the controller. Failure to abide by the
recommendations may cause personal injury / damage to the kit.
Do not use the unit in wet environment
• Please note that this unit is not waterproof (its Ingress Protection Rating is
ip-30). Hence, please ensure that the unit is installed in dry environment.
Grounding
• The design of this controller allows only Positive Grounding. Ground the
Positive Terminal of the Solar Array input on the Charge Controller or the
Positive Terminal of the battery. Do not ground the Negative.
Battery types
• Charge only lead acid batteries - flooded, sealed (agm) or sealed (gel cell) types
Wire sizing
• Select the system cables according to 3A/mm2 current density.
Mounting
When mounting the controller, ensure free air through the controller heat sink fins.
There should be at least 6 inches (150 mm) of clearance above and below the controller
to allow for cooling. If mounted in an enclosure, ventilation is highly recommended.
WARNING!
Risk of explosion! Never install the controller in a sealed enclosure with flooded batteries! Do not install in a confined area
where battery gasses can accumulate.
Step 1: Choose Mounting Location
Locate the controller on a vertical surface protected from direct sun, high temperature,
and water. And make sure there is good ventilation.
Step 2: Check For Clearance
Place the controller in the location where it will be mounted. Verify that there is sufficient room to run wires and that there is sufficient room above and below the controller
for airflow.
SAMLEX AMERICA INC. | 7
Section 3 | Installation
150 mm / 5.9"
150 mm / 5.9"
Warm Air
Cool Air
Figure 3-1 Mounting & Cooling
Step 3: Mark Holes
Use a pencil or pen to mark the four (4) mounting hole locations on the mounting
surface.
Step 4: Drill Holes
Remove the controller and drill 4.5Mm holes in the marked locations.
Step 5: Secure Controller
Place the controller on the surface and align the mounting holes with the drilled holes
in step 4. Secure the controller in place using the mounting screws.
Wiring
i
INFO
• A recommended connection sequence has been provided below for
maximum safety during installation.
• The controller is a common Positive ground controller.
!
CAUTION!
• Do not connect loads to the Load Terminals with surge power exceeding 10a.
• For mobile applications, be sure to secure all wiring.
8 | SAMLEX AMERICA INC.
Section 3 | Installation
Step1: Battery Wiring
WARNING!
Risk of explosion or fire! Never short circuit battery Positive (+)
and negative (-).
Fuse - 15A
150 mm (5.9")
Battery
Positive
Grounding
Figure 3-2 Battery connecting
Before the battery is connected, make sure that battery voltage is greater than 6V so
as to start up the controller. If the battery system is 24V, make sure battery voltage is
not less than 18V. Battery system voltage can only be sensed automatically when the
controller starts up for the first time. 15A fuse is used to protect the cable run from the
battery to the charge controller against short circuit. Install the fuse not more than
150 mm (5.9”) From the battery Positive terminal. Do not insert a fuse at this time.
Step 2: Load Wiring
The Load Terminals of the controller can be connected to such electrical devices as lights,
pumps, motors and others. Controller provides power to the load(s) through the battery
voltage.
When load(s) are fed from the Load Terminals, the controller will provide the following
protections:
Protect the battery as follows:
-Battery low voltage (≤ 12V / 24V): Output will still be available at Load Terminals
SAMLEX AMERICA INC. | 9
Section 3 | Installation
-Battery over discharged (≤ 11.1V / 22.2V): Output to Load Terminals will
be disconnected
Protect the load as follows:
-Overload or short circuit in the load connected to the Load Terminals: Output
to Load Terminals will be disconnected
Fuse - 10A
Load(s)
Figure 3-3 Load wiring
Connect the Positive (+) and Negative (-) of load(s) to controller Load Terminals as
shown in figure 3-3.
An in-line fuse should be wired in series in the load Positive (+) or Negative (-) wire as
show in figure 3-3. Do not insert a fuse at this time.
If the Load Terminals of the controller are fed to a distribution panel for further
distribution to the loads, each load circuit should be fused separately. Ensure that the
maximum total running / start up current draw of the load(s) is less than 10A.
Step 3: Solar Wiring
WARNING!
Risk of electric shock! Exercise caution when handling solar
wiring. The pv panel(s) high voltage output can cause severe shock
or injury. Cover the pv panel(s)(s) from the sun before installing solar wiring.
10 | SAMLEX AMERICA INC.
Section 3 | Installation
The controller can accept 12V (36 cell) or 24V nominal (72 cell) PV panel(s) with maximum Open Circuit Voltage Voc of up to 50V.
Solar Panel
Positive
Grounding
Figure 3-4 Solar wiring
Step 4: Confirm Wiring
Double-check the wiring in step1 through 3 as shown in fig 3.5. Confirm correct polarity
at each connection. Verify that all six terminals on the controller are tightened firmly.
SAMLEX AMERICA INC. | 11
Section 3 | Installation
3
2
Fuse 10A
Fuse - 10A
Battery
1
Figure 3.5 System wiring review
Step 5: Install Fuse
Install 10A fuse in each fuse holder in the following order:
1.
2.
Battery circuit
Load circuit
Step 6: Confirm Power On
When battery power is applied and the controller starts up, the Battery Status led
“batt” (3, Fig 2.1) will be green.
If the controller doesn't start up, or the Battery Status led error exists, please refer to
Section 5 for Troubleshooting.
12 | SAMLEX AMERICA INC.
Section 4 | Operation
PRINCIPLE OF OPERATION OF SOLAR CHARGING WITH SERIES TYPE
PULSE WIDTH MODULATION (PWM) CONTROL
The design and operation of MSK-10A is based on Series Type PWM (Pulse Width
Modulation) control at PWM frequency of 25 Hz.
PWM EXPLANATION
The output of the PV Panel(s) is connected to the battery in series with a Mosfet Switch
inside the controller. A Micro-controller controls the ON / OFF operation of the Mosfet
Switch to control the charging current and consequently, the State of Charge of the
battery.
A PV Panel is a current source that outputs constant current equal to its Short Circuit
Current (Isc) over a wide voltage range (provided Irradiance Level, Spectrum and Cell
Temperature remain constant). For example, at STC, a typical 12V nominal, 45W PV
Panel may provide constant Short Circuit Current (Isc) of around 3A over voltage range
from 0V to around 15V.
PWM consists of repetitive cycles of controlled duration of ON and OFF states of the
Series Connected Mosfet Switch inside the controller. The sum of ON and OFF times of
one cycle is called the Pulse Period. In PWM control, the duration of the Pulse Width
(ON time) is varied (modulated) and is defined by “Duty Cycle” which is the ratio of
the “ON Time” to the “Pulse Period ”. Duty Cycle is normally specified in %. Thus, 0%
Duty Cycle will mean that the switch is constantly OFF (will output 0A) and 100% Duty
Cycle will mean that the switch is constantly ON and will output the full instantaneous
Short Circuit Current “Isc” of the panel. For Duty Cycles > 0% and < 100%, the switch
will alternate between ON and OFF states in a controlled manner in every cycle and
will output variable current within a range of 0A to the full Short Circuit Current Isc.
Thus, through PWM control, the Mosfet Switch inside the controller converts constant
Short Circuit Current (Isc) of the PV Panel(s) to controlled average charging current at
its output by varying the Duty Cycle. The average value of the charging current is equal
to the instantaneous input value of Short Circuit Current (Isc) of the panel multiplied by
the Duty Cycle.
PWM CHARGING IN MSK-10A
Battery charging is a current based process. Current fed to the battery results in recharging of the cells and consequent rise in battery voltage. Controlling the current will
control battery voltage. For 100% return of capacity, and for prevention of excessive
gassing and sulfation, the battery charging voltage is required to be controlled at the
specified Voltage Regulation Set Points for Absorption (Boost), Float and Equalization
Charging Stages for different battery types. Battery can, thus, be charged at the specified Voltage Regulation Set Points by PWM of the charging current through control of
Duty Cycle as explained above. The controller checks the battery voltage and updates
the Duty Cycle regularly at a very fast rate. The Duty Cycle is proportional to the difference between the sensed battery voltage and the Voltage Regulation Set Point. Once
the specified Voltage Regulation Set Point is reached, it is kept steady - rise in voltage
is compensated by reducing the average current by reducing the Duty Cycle and fall in
SAMLEX AMERICA INC. | 13
Section 4 | Operation
voltage is compensated by raising the average current by raising the Duty Cycle. These
fast updates on battery voltage measurements and Duty Cycle corrections ensure charging of the battery at the specified Voltage Regulation Set Point with minimum voltage
deviation.
Optimum PWM Frequency: The PWM frequency can range from tens of Hz to around
1000 Hz. At higher frequencies, the time period between the cycles is lesser and is not
sufficient to complete the electro-chemical reactions. At lower frequencies, the rise
times of the charging pulses are lower which results in higher gas bubble formation
resulting in lowering of active surface area and increase of internal impedance. In
MSK-10A, frequency of 25 Hz is used for optimum charging performance.
Benefits of pulsing nature of charging current during PWM: During PWM voltage regulated stages of Absorption (Boost), Float and Equalization, Duty Cycle is lower and the
charging current is in the form of pulses. Pulsing charging current allows some Oxygen
and Hydrogen generated during charging chemical reactions to be chemically combined
again and then absorbed. This eliminates concentration polarization and ohm polarization and reduces the internal pressure of the battery. Consequently, charging process is
smoother and more capacity is returned to the battery. Further, pulsing current provides
more time to react, which reduces the gassing volume and improves the absorption rate
of charging current.
STAGE 2
ABSORPTION
(BOOST)
STAGE 1
BULK
NIGHT
BATTERY VOLTAGE
16
NIGHT NIGHT
STAGE 3
FLOAT
STAGE 2
EQUALIZATION
STAGE 1
STAGE 3
BULK
FLOAT
15
Ve
Va
14
Vf
13
Vf
12
11
DAY
DAY
TIME
10
Fig 4.1A Normal Charging Cycle (12V, Flooded)
Bulk
Absorption (Boost)
Float
TIME
Fig 4.1B Equalization Charging Cycle (12V, Flooded)
Bulk
Equalization
Float
LEGEND:
Va - Absorption (Boost) Stage PWM Voltage Regulation Set Point
Ve - Equalization Stage PWM Voltage Regulation Set Point
Vf - Float Stage PWM Regulation Voltage Set Point
Please refer to Figs 4.1A and 4.2B above
(Please note that these Figures show curves for 12V Flooded Battery).
14 | SAMLEX AMERICA INC.
NIGHT
Section 4 | Operation
Following two types charging cycles are used to ensure return of 100% capacity and also
to prevent excessive gassing:
-
-
Normal Charging Cycle (Fig 4.1A): This cycle is used for normal day-to-day charging.
Charging is sequential: Stage 1: Bulk Stage (Maximum available Current = Instantaneous
Short Circuit Current “Isc” of the panel)
Stage 2: Absorption (Boost) Stage (Constant
Voltage)
Stage 3: Float Stage (Constant Voltage).
Equalization Charging Cycle (Fig 4.1B): This is carried out automatically if the battery is
over discharged to 11.1V (12V battery) / 22.2V (24V battery) Stage 1: Bulk Stage (Maximum available Current = Instantaneous Short Circuit Current “Isc” of the panel)
Stage 2: Equalization Stage (Constant Voltage)
Stage 3: Float Stage
(Constant Voltage).
Transition from one stage to the other will be controlled by the selected Voltage Transition Set Points based on the type of battery as follows:
• Absorption (Boost) Transition Voltage Set Point “Va” -
-
“Va” for 12V battery: 14.2V for Gel / 14.4V for Sealed (AGM) / 14.6V for Flooded
“Va” for 24 V battery: 28.4V for Gel / 28.8V for Sealed (AGM) / 29.2V for Flooded
• Equalization Transition Voltage Set Point “Ve”
-
-
“Ve” for 12V battery: Gel is not equalized / 14.6V for Sealed (AGM) / 14.8V for Flooded
“Ve” for 24 V battery: Gel is not equalized / 29.2V for Sealed (AGM) / 29.6V for Flooded
• Float Transition Voltage Set Point “Vf” -
-
“Vf” for 12V battery: 13.8V for Gel / 13.8V for Sealed (AGM) / 13.8V for Flooded
“Vf” for 24 V battery: 27.6V for Gel / 27.6V for Sealed (AGM) / 27.6V for Flooded
NORMAL CHARGING CYCLE
Please refer to Fig 4.1A
As pointed out above, this charging cycle is carried out for normal day to day charging.
Charging is sequential: Stage 1: Bulk Stage (Maximum available Current = Instantaneous
Short Circuit Current “Isc” of the panel (Current)
Stage 2: Absorption (Boost) Stage
(Constant Voltage)
Stage 3: Float Stage (Constant Voltage).
Stage 1 - Bulk Stage
This is almost a constant current stage. During this stage, the Mosfet Switch is kept at
100% Duty Cycle (ON continuously) and hence, maximum current equal to the available
instantaneous Short Circuit Current "Isc" of the panel is fed to the battery and the battery voltage starts rising. When the voltage rises to the Absorption Transition Voltage
Set Point “Va”, the controller transitions to Absorption (Boost) Stage. At the end of the
Bulk Stage, the battery is charged to around 80% capacity. The balance of 20% capacity
is restored in the next Absorption (Boost) Stage.
STATUS LED “BATT” is steady Green during this stage
Stage 2 - Absorption (Boost) Stage
The controller enters this stage from the previous Bulk Stage when the battery voltage
rises to the Absorption (Boost) Transition Voltage Set Point “Va” which is internally set
as follows:
-
-
“Va” for 12V battery: 14.2V for Gel / 14.4V for Sealed (AGM) / 14.6V for Flooded;
“Va” for 24 V battery: 28.4V for Gel / 28.8V for Sealed (AGM) / 29.2V for Flooded
This stage is timed for 2 Hrs - either continuous or cumulative
SAMLEX AMERICA INC. | 15
Section 4 | Operation
This is a constant voltage stage and the Mosfet Switch operates under PWM control by
feeding pulsing Short Circuit Current “Isc” with constantly reducing Duty Cycle (< 100%
to > 0%) / average current to keep the battery voltage constant at the Absorption
Transition Voltage Set Point “Va”. This is an intentional, controlled over voltage condition for the battery for 2 Hrs. This is necessary to return the balance 20% of the capacity.
At this voltage, the battery starts gassing (evolution of Hydrogen and Oxygen due to
electrolysis of water in the electrolyte) and hence, it is necessary to exit this stage as
soon as 100% capacity is restored. If this over voltage condition is allowed to continues
after 100% recharging, the battery will be damaged due to effects of overcharging
like overheating, loss of water, corrosion of the Positive plates and excessive build up
of pressure resulting in acid spillage due to opening of pressure activated relief valves
(sealed batteries). The balance of 20% of the battery capacity is restored in this stage.
As the battery capacity rises from 80% to 100%, the PWM control tapers the current by
continuously reducing the Duty Cycle from < 100% to > 0%.
Change over to the next Float Transition Voltage Set Point “Vf” (13.8V for 12 V battery
and 27.6V for 24V battery) is possible only after the battery voltage is held at the
selected Absorption (Boost) Transition Voltage Set Point “Va” for continuous or
cumulative period of 2 Hours. If Absorption (Boost) Transition Voltage Set Point “Va”
cannot be maintained continuously / cumulatively for 2 Hr, transition to Float Stage
will NOT take place.
STATUS LED “BATT” is steady Green during this stage
NOTE: During Absorption (Boost) Stage, if the load current is more than the current
from the PV Panel(s), the battery voltage will drop. If the battery voltage drops to 13.2V for 12V battery and 26.4V for 24V battery, the controller reverts to Stage 1: Bulk Stage.
PWM DUTY Cycle is changed to 100% and STATUS LED “BATT” changes to steady Green
thereafter.
Stage 3 - Float stage
The controller enters this stage from the previous Absorption (Boost) Stage after the
battery voltage is held at the selected Absorption (Boost) Transition Voltage Set Point
“Va” for continuous or cumulative period of 2 Hours.
This is also a constant voltage stage and the Mosfet Switch operates under PWM control
by feeding pulsing, instantaneous Short Circuit Current “Isc” with very low Duty Cycle
of > 0% to < 10% to keep the battery voltage constant at the Float Transition Voltage
Set Point “Vf” (13.8V for 12V battery and 27.6V for 24V battery). During this stage, the
battery is 100% charged and a very low “Trickle Charge” of around 0.1% of the Ah Capacity is required to be fed to the battery to compensate for self-discharge. The battery
can be left at this stage for prolonged period of time.
STATUS LED “BATT” is steady Green during this stage
16 | SAMLEX AMERICA INC.
Section 4 | Operation
NOTE: During Float Stage, if the load current is more than the current from the PV Panel(s), the battery voltage will drop. If the battery voltage drops to 13.2V for 12V battery and 26.4V for 24V battery, the controller reverts to Stage 1: Bulk Stage. PWM DUTY Cycle is changed to 100% and STATUS LED “BATT” changes to steady Green thereafter.
EQUALIZATION OF LEAD ACID BATTERIES - GENERAL INFORMATION
WARNING!
Risk of explosion and equipment damage!
• Equalizing flooded battery can produce explosive gases. Ensure proper ventilation of the
battery box
• Equalization may increase battery voltage to the level that can damage sensitive DC
loads. Ensure that DC input voltage of all DC loads is greater than the Equalizing
Charging Set Point. DC loads not matching Equalization Voltage Set Point
should be disconnected.
!
CAUTION!
• Top up the electrolyte with distilled water after completion of equalization.
• Excessive overcharging and gassing too vigorously can damage the battery plates and
cause shedding of active material from the plates. An equalization that is too high or for
too long can be damaging. Review the requirements for the particular battery being used
in your system.
Equalization is intentional overcharging of the battery for controlled period of time.
Routine equalization cycles are often vital to the performance and life of a battery —
particularly in a solar system where peak sun hours per day are limited and variable and
may not be sufficient to keep the battery in a fully charged condition. Periodic equalization is carried out for proper health and long life of a Lead Acid battery to prevent /
reduce the following undesirable effects:
Sulfation: If the charging process is not complete due to inability of the charger to provide the required voltage levels or if the battery is
left uncharged for a long duration
of time, soft Lead Sulfate crystals on the Positive and Negative plates that are formed
during discharging / self discharge are not fully converted back to Lead Dioxide on the
Positive plate and Sponge Lead on the Negative plate and get hardened and are difficult to dislodge through normal charging. These crystals are non-conducting and hence,
introduce increased internal resistance in the battery. This increased internal resistance
introduces internal voltage drop during charging and discharging. Voltage drop during
charging results in overheating and undercharging and formation of more Lead Sulfate
crystals. Voltages drop on discharging results in overheating and excessive voltage
drop in the terminal voltage of the battery. Overall, this results in poor performance
of the battery. Sulfation may be reduced partially by the stirring / mixing action of the
electrolyte due to gassing and bubbling because of intentional overcharging during the
Equalization Stage.
Electrolyte Stratification: Electrolyte stratification can occur in all types of flooded
SAMLEX AMERICA INC. | 17
Section 4 | Operation
batteries. As the battery is discharged and charged, concentration of Sulphuric Acid
becomes higher at the bottom of the cell and lower at the top of the cell. The low acid
concentration reduces capacity at the top of the plates, and the high acid concentration
accelerates corrosion at the bottom of the plates and shortens battery life. Stratification can be minimized by the Equalization Stage by raising the charging voltage so that
the increased gassing and bubbling agitates / stirs the electrolyte and ensures that the
electrolyte has uniform concentration from top to bottom. The stirring action also helps
to break up any Lead Sulfate crystals, which may remain after normal charging.
Unequal Charging of Cells: During normal charging, temperature and chemical imbalances prevent some cells from reaching full charge. As a battery is discharged, the cells
with lower voltage will be drained further than the cells at the higher voltage. When
recharged, the cells with the higher voltage will be fully charged before the cells with
the lower voltage. The more a battery is cycled, the more cell voltage separation takes
place. In a healthy battery, all the individual cells will have the same voltage and same
specific gravity. If there is a substantial difference in the cell voltages (0.2 V or more) and
in the specific gravities (0.015 or more) of the individual cells, the cells will require equalization. Equalizing batteries helps to bring all the cells of a battery to the same voltage.
During the Equalization Stage, fully charged cells will dissipate the charging energy by
gassing while incompletely charged cells continue to charge.
EQUALIZATION CHARGING CYCLE
Please refer to Fig 4.1B
Equalization charging cycle is carried out automatically whenever the battery is over
discharged and the battery voltage drops to 11.1V for 12V battery and 22.2V for 24V
battery.
Stage 1 Bulk Stage
This is the same as the Bulk Stage in the Normal Charging Cycle.
Stage 2 Equalization Stage
The controller enters this stage from the previous Bulk Stage when the battery
voltage rises to the Equalization Transition Voltage Set Point “Ve” which is internally
set as follows:
-
-
“Ve” for 12V battery: Gel is not equalized / 14.6V for Sealed (AGM) / 14.8V for Flooded
“Ve” for 24V battery: Gel is not equalized / 29.2V for Sealed (AGM) / 29.6V for Flooded
This stage is timed for 2 Hrs - either continuous or cumulative
This is a constant voltage stage and the Mosfet Switch operates under PWM control by
feeding pulsing Short Circuit Current “Isc” with constantly reducing Duty Cycle (< 100%
to > 0%) / average current to keep the battery voltage constant at the Equalization
Transition Voltage Set Point “Ve”. This is an intentional, controlled over voltage condition for the battery for 2 Hrs. This is necessary for equalization requirements.
Change over to the next Float Transition Voltage Set Point “Vf” (13.8V for 12V
battery and 27.6V for 24V battery) is possible only after the battery voltage is held at
the selected Equalization Transition Voltage Set Point “Ve” for continuous or cumula18 | SAMLEX AMERICA INC.
Section 4 | Operation
tive period of 2 Hours. If Equalization Transition Voltage Set Point “Ve” cannot
be maintained continuously / cumulatively for 2 Hr, transition to Float Stage will NOT
take place.
STATUS LED “BATT” is steady Green during this stage
NOTE: During Equalization Stage, if the load current is more than the current from the
PV Panel(s), the battery voltage will drop. If the battery voltage drops to 13.2V for 12V battery and 26.4V for 24V battery, the controller reverts to Stage 1: Bulk Stage. PWM DUTY Cycle is changed to 100% and STATUS LED “BATT” changes to steady Green
thereafter.
Stage 3 - Float stage
The controller enters this stage from the previous Equalization Stage after the battery
voltage is held at the selected Equalization Transition Voltage Set Point “Ve” for continuous or cumulative period of 2 Hours.
This stage is the same as the Float Stage in the Normal Charging Cycle
LED Indications
2
3
4
5
6
Fig 4.2 LED Indications
7
2. Status LED “PV”
LED Color & Pattern
Status
Green - Steady
“Charging”: Energy from PV Panel(s) is available at the PV
Panel(s) input terminals and voltage > 6V is also available
simultaneously at the battery terminals.
Green - Fast flashing
“Battery Over Voltage”
- Over Voltage Disconnect protection has been activated due to
high voltage of ≥ 16V / 32V at the battery output terminals
- PV Panel(s) and Load have been disconnected
3. STATUS LED “BATT”
SAMLEX AMERICA INC. | 19
Section 4 | Operation
LED Color & Pattern
Status
Green - Steady
“Normal”: Battery is in Bulk Stage - Normal State of Charge of
up to 80%
Green - Slowly Flashing
“Full”: Battery is in either Absorption (Boost) or Equalization or
Float Stage and PWM regulated voltage charging is active. State
of Charge is nearly full / completely full - 80% to 100%
Orange - Steady
“Under Voltage”: Battery Under Voltage Warning Signaling
has been activated at ≤ 12V / ≤ 24V. Output is still available at
Load Terminals
- Will be reset automatically when voltage rises to 12.2V / 24.4V
and LED will go back to steady Green from steady Orange
Red - Steady
“Over Discharge”: Protection against over discharge of battery has been activated at ≤ 11.1V / ≤ 22.2V and the load has
been disconnected.
- Load will be reconnected automatically at 12.6V / 25.2V and
the LED will go back to steady Green from steady Red
4. Status LED “Flooded”: Flooded type of Battery has been selected
5. Status LED “Gel”: Sealed, Gel Cell type of battery gas been selected.
6. Status LED “Sealed”: Sealed, AGM type of battery has been selected.
7. Status LED “Load” Load status indicator: Display the load status.
LED Color & Pattern
Status
Red - Flashing
Over Load or Short Circuit”: Load has been disconnected
due to overload or short circuit in the load circuit connected to
the Load Terminals
- Overload: 12.5A for 5 sec – Manual reset by pressing “Set”
Button
- Short Circuit: 35A – First short circuit is reset automatically
after 10 sec. Second consecutive short circuit will require
manual reset by pressing “Set” Button
Red - Steady
Load in ON condition
Overheating Protection Indication
LED Color & Pattern
Status
Status LEDs “Sealed” (6), “Gel” (5)
and “Flooded” (4)
Flashing Red simultaneously
Heat sink of the controller > 85°C
Input and output circuits have been disconnected
Will reset automatically when temperature drops
to < 75°C
20 | SAMLEX AMERICA INC.
Section 4 | Operation
i
INFO
Please note that in some applications like in Portable Solar Charging Kits, solar panel(s)
will be permanently connected to the input terminals of the Charge Controller and the
battery will be connected whenever the Portable Charging Kit is required to be used.
In these applications, the modules will start generating power as soon as these are exposed to sunlight. However, there will be no power output from the Charge Controller
until the controller is connected to the battery. The following spurious LED indications
may be seen at the Charge Controller and may be disregarded:
Module(s) are exposed to Sunlight and Battery has not been connected
• No LED indication
Module(s) are exposed to Sunlight, Battery is Connected and then Removed.
• “PV” LED:
• “BATT” LED:
Steady Green
Steady Green with Red flickering
SETTING BATTERY TYPE AND LOAD ON/OFF CONTROL
4
5
6
7
8
Figure 4-3 Setting Battery Type and Load ON / OFF Control
Controlling ON / OFF Operation of Load Terminals
When the controller is powered ON, press the Setting Button (8) to toggle the load
ON and OFF. When load is ON, Load Status LED (7) will turn ON - RED.
Battery Type Setting
Press the Setting Button (8) for more than 5 seconds, the original battery type
indicator will be flashing. Then press the setting button to choose Sealed, Gel, and
Flooded battery type. The setting finishes when flashing stops.
SAMLEX AMERICA INC. | 21
Section 5 | Protections, Troubleshooting
& Maintenance
PROTECTIONS
PV Array Short Circuit
If PV array short circuit occurs, clear it to resume normal operation.
Overload in the Load(s) Connected to Load Terminals
If the load current exceeds the maximum load current rating, the controller will disconnect the load. The greater the overload, the faster the load will be disconnected. A small
overload could take a few minutes to disconnect. Overloading must be removed by
reapplying power or pressing the Setting Button (8).
Load Short Circuit
Fully protected against load wiring short-circuit. After one automatic load reconnect attempt, the fault must be cleared by reapplying power or pressing the Setting Button (8).
PV Reverse Polarity
Fully protected against PV reverse polarity. The controller will not be damaged. Correct
polarity of the wiring to resume normal operation.
Battery Reverse Polarity
Fully protected against battery reverse polarity. The controller will not be damaged. Correct polarity of wiring to resume normal operation.
Damaged Local Temperature Sensor
If the temperature sensor is short-circuited or damaged, the controller will be charging
or discharging at the default temperature of 25°C to prevent battery damage due to
overcharging or over discharged.
Overheating Protection
If the temperature of the controller’s heat sink exceeds 85°C, the input and output will
be disconnected. Connection will be resumed at 75°C.
High Voltage Transients
Battery is protected against high voltage transients. In lightning prone areas, additional
external lightning protection is recommended.
TROUBLESHOOTING - Please refer to the layout at Fig 2.1
Symptom
Possible Cause
Remarks / Remedy
Green Status LED
“PV” (2) is not
lighted although solar
panel(s) are exposed
to sunlight
Energy from solar panel(s)
is not available at the Solar
Panel Input Terminals of the
controller.
Check solar panel(s) wiring
Voltage > 6V is not available
simultaneously at the Battery
Terminals of the controller.
22 | SAMLEX AMERICA INC.
Check battery connection and series fuses
and ensure voltage >6V is available at the
battery terminals of the controller
Section 5 | Protections, Troubleshooting
& Maintenance
Symptom
Possible Cause
Remarks / Remedy
Status LED “PV” (2) is
Green - fast flashing
and there is no output
at the Load Terminals
Battery Over Voltage Disconnect Protection has been
activated due to high voltage
of ≥ 16V / 32V at the battery output terminals. Solar
Panel(s) and Load have been
disconnected
Disconnect the Solar panel(s) and discharge
the battery
Status LED “BATT”
(3) is Orange - Steady.
Output is available at
the Load Terminals
Battery Under Voltage
Warning Signaling has been
activated at ≤ 12V / ≤ 24V.
Output is still available at
Load Terminals
Charge the battery. Reduce / switch off load
to allow the battery voltage to rise
Status LED “BATT” (3)
is Red - Steady
No output voltage at
the Load Terminals
Protection against over
discharge of battery has been
activated at ≤ 11.1V / ≤ 22.2V
and the load has been disconnected.
Charge the battery. Reduce / switch off load
to allow the battery voltage to rise:
- Load will be reconnected automatically
at 12.6V / 25.2V and the LED will go back
to steady Green from steady Red
Status LED “Load” (7)
is Red - Flashing
Load has been disconnected
due to overload or short
circuit in the load circuit connected to the Load Terminals:
- Overload: 12.5A for 5 sec
- Short Circuit: 35A –
Remove the cause of overload / short circuit:
- Overload is reset manually by pressing
the “Set” Button (8)
- First short circuit is reset automatically
after 10 sec. Second consecutive short
circuit will require manual reset by
pressing “Set” Button (8)
Status LEDs “Sealed”
(6), “Gel” (5) and
“Flooded” (4) are
Flashing Red
simultaneously
Input and output
circuits have been
disconnected
Heat sink of the
controller > 85°C
Check reasons for overheating. Improve
ventilation and ensure proper cool airflow
over heat sink surface
- Will reset automatically when the unit
cools down and temperature drops
to < 75°C
Will be reset automatically when voltage
rises to 12.2V / 24.4V and LED will go back
to steady Green from steady Orange
NOTES:
• No LED indicator: Measure battery voltage with multimeter. Minimum 6V is required to
start up the controller.
• No Status LED indicator “PV” (2) with normal connection: Measure the input voltage of PV Panel(s), the input voltage must be higher than battery voltage!
i
INFO
Please note that in some applications like in Portable Solar Charging Kits, solar panel(s)
will be permanently connected to the input terminals of the Charge Controller and the
battery will be connected whenever the Portable Charging Kit is required to be used. In
these applications, the modules will start generating power as soon as these are exposed
to sunlight. However, there will be no power output from the Charge Controller until
the controller is connected to the battery.
SAMLEX AMERICA INC. | 23
Section 5 | Protections, Troubleshooting
& Maintenance
The following spurious LED indications may be seen at the Charge Controller and
may be disregarded:
Module(s) are exposed to Sunlight and Battery has not been connected
• No LED indication
Module(s) are exposed to Sunlight, Battery is Connected and then Removed.
• “PV” LED (2):
Steady Green
• “BATT” LED (3):
Steady Green with Red flickering
MAINTENANCE
The following inspections and maintenance tasks are recommended for
optimum controller performance:
-
Check that the controller is securely mounted in a clean and dry environment.
-
Check that air flow and ventilation around the controller is not blocked. Clear all dirt or
fragments on the heat sink.
-
Check all the exposed wires to make sure insulation is not damaged due to sunlight damage, frictional, wear, dryness, insects or rats etc. Maintain or replace the wires, if necessary.
-
Tighten all the terminals. Inspect for loose, broken, or burnt wire connections.
-
Confirm that all the system components are grounded tightly and correctly.
-
Confirm that all the terminals have no corrosion, insulation damage, discoloration due to
high temperature or burn damage.
-
Tighten terminal screws to the suggested torque.
-
Inspect for dirt, insects and corrosion and remove
-
Check and confirm that lightning protection devices are good condition.
24 | SAMLEX AMERICA INC.
Section 6 | Specifications
Parameter
Specification
Charge Controller
Type
Series Type, PWM control
PWM Frequency
25 Hz
Battery System Voltage
12V / 24V Nominal; Auto Sensing
(<18V sensed as 12V / >18V sensed as 24V)
Rated Battery Current
10A
Operating Voltage Range of Battery
6V to 36V
Min. Battery Voltage to Start Controller
6V
Charge Circuit Voltage Drop
≤ 0.26V
Discharge Circuit Voltage Drop
≤ 0.15V
Self Consumption
≤ 6mA
Temperature Compensation
(with built-in Temperature Sensor)
Temperature Coefficient of Voltage
of Temperature Sensor:
• -30mV / °C for 12V battery
• -60mV / °C for 24V battery
Input – PV Panel(s) / Array
Maximum Open Circuit Voltage, Voc
50V
Maximum Short Circuit Current, Isc
10A
Input / Output Connections
Type of connectors
Moving Cage Type for 6mm2 / AWG #10 wire size
Protections
Overheating: Status LEDs “Sealed”, “Gel”
& “Flooded” flash simultaneously
Cuts off input and output if heat sink
temperature is >85°C.
Auto reset when temperature drops to below 75°C
Reverse / Battery Reverse Polarity
Controller will not be damaged
Short Circuit / Overload on Load Terminals
Load is disconnected
Short Circuit in PV Panel(s)
Controller will not be damaged
Environmental
Operating Temperature
-35°C to +55°C
Storage Temperature
-35°C to +80°C
Humidity
10% to 90% Non Condensing
Ingress Protection (IP) Rating of Enclosure
IP-30 (NOT water proof)
Mechanical
Overall Dimensions
140 x 65 x 34mm / 5.51 x 2.56 x1.34 in
Mounting Dimensions / Mounting Holes
130 x 45 mm (5.12 x 1.77 in) / 4.5 mm Diameter
Weight
0.15 kg / 0.33 lbs
BATTERY CHARGING & BATTERY PROTECTIONS (At Reference Temperature of 25°C)
SAMLEX AMERICA INC. | 25
Section 6 | Specifications
Sealed (Gel Cell)
PARAMETER
Bulk Charge Current
Absorption (Boost) Voltage
Absorption (Boost) Duration
Float Voltage
12V
24V
Sealed (AGM)
12V
24V
Flooded
12V
24V
Equal to Instantaneous Short Circuit Current Isc of
the PV Panel(s) / Maximum 10A
14.2V
28.4V
2 Hrs
13.8V
14.4V
28.8V
2 Hrs
27.6V
Equalization Voltage
Not Equalized
Equalization Duration
Not Equalized
14.6V
29.2V
2 Hrs
13.8V
27.6V
13.8V
27.6V
14.6V
29.2V
14.8V
29.6V
2 Hrs
2 Hrs
Automatic Reset to Bulk
13.2V
26.4V
13.2V
26.4V
13.2V
26.4V
Charging Limit Voltage
[Disconnect PV Panel(s)]
15.5V
31.0V
15.5V
31.0V
15.5V
31V
Over Voltage Disconnect:
Disconnect PV Panel(s) and Load
Indication on Status LED “PV”:
Green - Fast flashing
16.0V
32.0V
16.0V
32.0V
16.0V
32.0V
Activate Under Voltage Warning
Signaling - Status LED “BATT” turns
Orange from Green
12.0V
24.0V
12.0V
24.0V
12.0V
24.0V
Reset Under Voltage Warning
Signaling - Status LED “BATT”
goes back to Green from Orange
12.2V
24.4V
12.2V
24.4V
12.2V
24.4V
Activate Protection Against Over
Discharge by disconnecting Load Status LED “BATT” turns
Red from Green
11.1V
22.2V
11.1V
22.2V
11.1V
22.2V
Reset Protection Against Over
Discharge by reconnecting the load Status LED “BATT” goes back to
Green from Red
12.6V
25.2V
12.6V
25.2V
12.6V
25.2V
Discharging Limit Voltage
10.8V
21.6V
10.8V
21.6V
10.8V
21.6V
26 | SAMLEX AMERICA INC.
SECTION 7 | Warranty
2 Year limited warranty
MSK-10A Solar Charge Controller manufactured by Samlex America, Inc. (the “Warrantor“) are warranted to be free from defects in workmanship and materials under normal
use and service. The warranty period is 2 years for the United States and Canada, and is
in effect from the date of purchase by the user (the “Purchaser“).
Warranty outside of the United States and Canada is limited to 6 months. For a warranty
claim, the Purchaser should contact the place of purchase to obtain a Return Authorization Number.
The defective part or unit should be returned at the Purchaser’s expense to the authorized location. A written statement describing the nature of the defect, the date of purchase, the place of purchase, and the Purchaser’s name, address and telephone number
should also be included.
If upon the Warrantor’s examination, the defect proves to be the result of defective
material or workmanship, the equipment will be repaired or replaced at the Warrantor’s option without charge, and returned to the Purchaser at the Warrantor’s expense.
(Contiguous US and Canada only)
No refund of the purchase price will be granted to the Purchaser, unless the Warrantor
is unable to remedy the defect after having a reasonable number of opportunities to do
so. Warranty service shall be performed only by the Warrantor. Any attempt to remedy
the defect by anyone other than the Warrantor shall render this warranty void. There
shall be no warranty for defects or damages caused by faulty installation or hook-up,
abuse or misuse of the equipment including exposure to excessive heat, salt or fresh
water spray, or water immersion.
No other express warranty is hereby given and there are no warranties which extend
beyond those described herein. This warranty is expressly in lieu of any other expressed
or implied warranties, including any implied warranty of merchantability, fitness for the
ordinary purposes for which such goods are used, or fitness for a particular purpose, or
any other obligations on the part of the Warrantor or its employees and representatives.
There shall be no responsibility or liability whatsoever on the part of the Warrantor or
its employees and representatives for injury to any persons, or damage to person or
persons, or damage to property, or loss of income or profit, or any other consequential
or resulting damage which may be claimed to have been incurred through the use or
sale of the equipment, including any possible failure of malfunction of the equipment,
or part thereof. The Warrantor assumes no liability for incidental or consequential damages of any kind.
Samlex America Inc. (the “Warrantor”)
www.samlexamerica.com
SAMLEX AMERICA INC. | 27
Contact
Information
Toll Free Numbers
Ph: 800 561 5885
Fax: 888 814 5210
Local Numbers
Ph: 604 525 3836
Fax: 604 525 5221
Website
www.samlexamerica.com
USA Shipping Warehouse
Kent WA
Canadian Shipping Warehouse
Delta BC
Email purchase orders to
[email protected]
11022-MSK-10A-Charge Controller-1013
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
