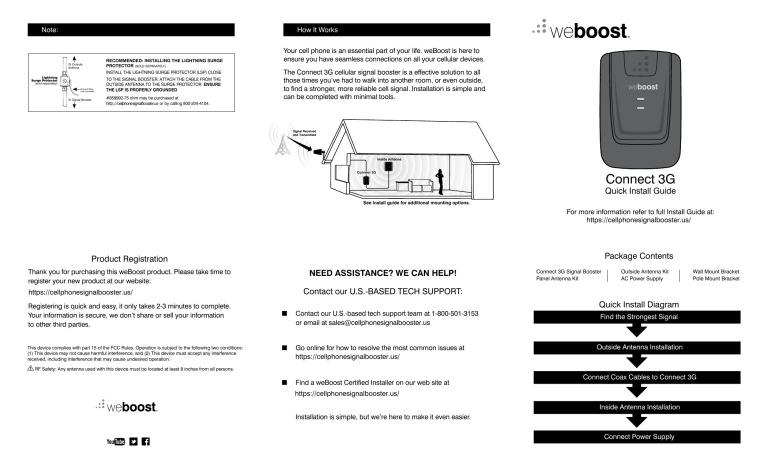

Connect 3G - Cell Phone Signal Booster
Note:
How It Works
To Outside
Antenna
The Connect 3G cellular signal booster is a effective solution to all
those times you’ve had to walk into another room, or even outside,
to find a stronger, more reliable cell signal. Installation is simple and
can be completed with minimal tools.
INSTALL THE LIGHTNING SURGE PROTECTOR (LSP) CLOSE
Lightning
Surge Protector
(sold separately)
Ground Wire
(not included)
To Signal Booster
ENGLISH
Your cell phone is an essential part of your life. weBoost is here to
ensure you have seamless connections on all your cellular devices.
RECOMMENDED: INSTALLING THE LIGHTNING SURGE
PROTECTOR (SOLD SEPARATELY)
TO THE SIGNAL BOOSTER. ATTACH THE CABLE FROM THE
OUTSIDE ANTENNA TO THE SURGE PROTECTOR. ENSURE
THE LSP IS PROPERLY GROUNDED.
FRANÇAIS
#859992-75 ohm may be purchased at
http://cellphonesignalbooster.us or by calling 800-204-4104.
Signal Received
and Transmitted
Inside Antenna
Connect 3G
Connect 3G
Quick Install Guide
See install guide for additional mounting options.
For more information refer to full Install Guide at:
https://cellphonesignalbooster.us/
Package Contents
Product Registration
Thank you for purchasing this weBoost product. Please take time to
register your new product at our website:
NEED ASSISTANCE? WE CAN HELP!
Connect 3G Signal Booster
Panel Antenna Kit
Contact our U.S.-BASED TECH SUPPORT:
https://cellphonesignalbooster.us/
Registering is quick and easy, it only takes 2-3 minutes to complete.
Your information is secure, we don’t share or sell your information
to other third parties.
n C
ontact our U.S.-based tech support team at 1-800-501-3153
or email at [email protected]
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
n Go online for how to resolve the most common issues at
https://cellphonesignalbooster.us/
Outside Antenna Kit
AC Power Supply
TM
Wall Mount Bracket
Pole Mount Bracket
Cellular Signal Booster
Quick Install
Diagram
460101
Find the Strongest Signal
Outside Antenna Installation
RF Safety: Any antenna used with this device must be located at least 8 inches from all persons.
n Find a weBoost Certified Installer on our web site at
https://cellphonesignalbooster.us/
Need help?
Connect Coax Cables to Connect 3G
www.WilsonElectronics.com
Tech Support 866-294-1660
Mon.- Fri. Hours: 7 am to 6 pm MST
Inside Antenna Installation
ENGLISH
Installation is simple, but we’re here to make it even easier.
Connect Power Supply
FRAN
1
2
Find the Strongest Signal
Check the bar indicator on your cell phone display and note where
the signal appears the strongest. NOTE: Cell phone bars are only
an approximation of signal strength and vary from phone to phone.
Be patient and repeat your signal check several times. NOTE:
Create a “soft” install first by testing components in your proposed
locations before securing them with hardware.
Select a location on the roof or an outside wall where the Outside
Antenna can be mounted without obstruction. After connecting the
coax cable to the antenna, run it underneath the down side of your
roof’s flashing.
5
Inside Antenna Location
Maintain a vertical distance of at least 20 feet or a horizontal
distance of at least 50 feet between the Outside Antenna to the
Inside Antenna.
Connect Coax Cables to Connect 3G
Connect the coax cable from Oustside Antenna to the Connect 3G.
Connect the coax cable from Inside Antenna to the Connect 3G.
Omni Outside
Antenna
Directional Outside
Antenna
4
3
Outside Antenna Installation
6
Inside Antenna Installation
After the desired location for the Inside Antenna has been
determined use the Wall Bracket and hardware to mount to the wall.
Connect to Power Supply
Connect the AC Power Supply to the Connect 3G then to a surge
protected AC power strip with at least a 1000 Joule rating. If your
Connect 3G is working correctly, the lights will be green.
Power Supply
Wall Bracket
50 fee
t - hori
zonta
or 20
l dista
feet v
n
ertica
l dista ce
nce
Inside
Antenna
Connect 3G
Drywall
Outside
Antenna
Inside Antenna
(sideview)
Surge Protected
Power Strip
