kg08 mezcladora 8ch mp3 usb/sd

kg08 mezcladora 8ch mp3 usb/sd

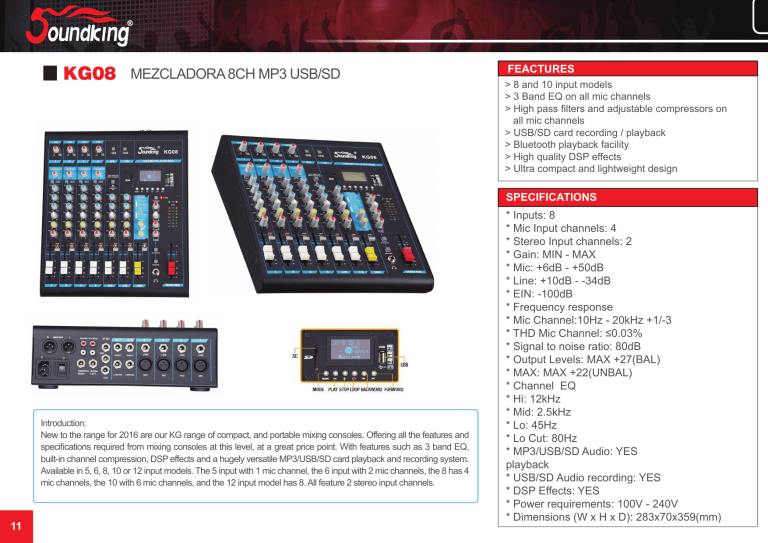

KG08
MEZCLADORA 8CH MP3 USB/SD
FEACTURES
> 8 and 10 input models
> 3 Band EQ on all mic channels
> High pass filters and adjustable compressors on
all mic channels
> USB/SD card recording / playback
> Bluetooth playback facility
> High quality DSP effects
> Ultra compact and lightweight design
SPECIFICATIONS
Introduction:
New to the range for 2016 are our KG range of compact, and portable mixing consoles. Offering all the features and
specifications required from mixing consoles at this level, at a great price point. With features such as 3 band EQ,
built-in channel compression, DSP effects and a hugely versatile MP3/USB/SD card playback and recording system.
Available in 5, 6, 8, 10 or 12 input models. The 5 input with 1 mic channel, the 6 input with 2 mic channels, the 8 has 4
mic channels, the 10 with 6 mic channels, and the 12 input model has 8. All feature 2 stereo input channels.
11
* Inputs: 8
* Mic Input channels: 4
* Stereo Input channels: 2
* Gain: MIN - MAX
* Mic: +6dB - +50dB
* Line: +10dB - -34dB
* EIN: -100dB
* Frequency response
* Mic Channel:10Hz - 20kHz +1/-3
* THD Mic Channel: ≤0.03%
* Signal to noise ratio: 80dB
* Output Levels: MAX +27(BAL)
* MAX: MAX +22(UNBAL)
* Channel EQ
* Hi: 12kHz
* Mid: 2.5kHz
* Lo: 45Hz
* Lo Cut: 80Hz
* MP3/USB/SD Audio: YES
playback
* USB/SD Audio recording: YES
* DSP Effects: YES
* Power requirements: 100V - 240V
* Dimensions (W x H x D): 283x70x359(mm)
