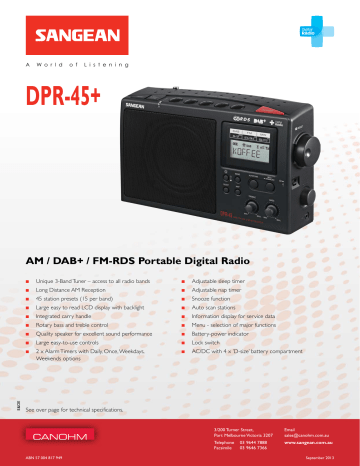

DPR-45+
E&OE
AM / DAB+ / FM-RDS Portable Digital Radio
■■
Unique 3-Band Tuner – access to all radio bands
■■
Adjustable sleep timer
■■
Long Distance AM Reception
■■
Adjustable nap timer
■■
45 station presets (15 per band)
■■
Snooze function
■■
Large easy to read LCD display with backlight
■■
Auto scan stations
■■
Integrated carry handle
■■
Information display for service data
■■
Rotary bass and treble control
■■
Menu - selection of major functions
■■
Quality speaker for excellent sound performance
■■
Battery-power indicator
■■
Large easy-to-use controls
■■
Lock switch
■■
2 x Alarm Timers with Daily, Once, Weekdays,
Weekends options
■■
AC/DC with 4 x ’D-size’ battery compartment
See over page for technical specifications.
ABN 57 004 817 949
3/200 Turner Street,
Port Melbourne Victoria 3207
Email
sales@canohm.com.au
Telephone 03 9644 7888
Facsimile 03 9646 7366
www.sangean.com.au
September 2013
A
W o r l d
o f
L i s t e n i n g
DPR-45+
Tuner
DAB
Band III Frequency (MHz)
FM
Frequency (MHz)
RDS / RBDS
MW
Frequency (kHz)
Preset
Clock
Real time Radio Control - DAB / RDS
Alarm
Tuner / Media / Buzzer
Adjustable Alarm Level
Sleep
Nap
Display
LCD / VFD
View Area (mm / inch)
Graphic / Character Type
Back Light
Dimmer
Features
Stereo
Software Upgrade
Lock switch
Audio
EQ
Treble / Bass Control
Amplifier
Speaker Output (TYPE)
Earphones Output
Speaker
Size ( mm / inch )
Impedance
I/O Sockets
AC / DC - in
Earphones
USB
Power Supply
AC
Batteries
Accessories
AC Cord
Dimensions
W x H x D (mm) Weight (g)
Warranty
174 - 240 (W /DAB+)
87.5 - 108
PS / PTY / CT / RT
522 - 1710 (9k)
30 Preset
(10 FM & 10 DAB+ & 10 AM)
/ 15 memory (5 FM and
5 DAB+ and 5 AM)
DAB / RDS
Tuner / Buzzer
Yes
Yes
Yes
LCD
84 x 44 / 3.31 x 1.73
Segment
Yes
Yes
Via Earphones
Via USB - B
Yes
Yes
1 Watt
3 + 3 mW
5 inch
4 ohms
AC
Yes
USB - B
(Software upgrade only)
220-240V
4 x 1.5V (UM-1 D-size)
Yes
280 x 170 x 92
1620
12 months
DPR-45+
E&OE
MODEL
ABN 57 004 817 949
3/200 Turner Street,
Port Melbourne Victoria 3207
Email
sales@canohm.com.au
Telephone 03 9644 7888
Facsimile 03 9646 7366
www.sangean.com.au
September 2013
