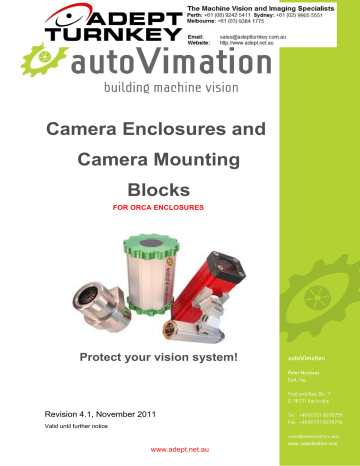

Camera Enclosures and Camera Mounting Blocks

Camera Enclosures and Camera Mounting Blocks
Camera Enclosures and
Camera Mounting
Blocks
FOR ORCA ENCLOSURES
Protect your vision system!
Revision 4.1, November 2011
Valid until further notice
www.adept.net.au
Camera Enclosures and Camera Mounting Blocks
Foreword and Disclaimer
This documentation has been prepared with the upmost care. However autoVimation does not take
liability for possible errors.
In the interest of technical progress, autoVimation reserves the right to perform technical changes
without prior notice.
Please notify [email protected] if you become aware of possible errors in this manual or if
certain topics require more detailed explanation.
Copyright
This manual is intended for autoVimation's customer only. Any publication of this document and parts
thereof requires written permission from autoVimation.
Patents and trademarks
autoVimation's camera enclosures have been patented and is therefore protected by international
laws. Any violation of the patents pending will be prosecuted.
Any product and company names used in this manual are property of their respective owners.
© 2011 autoVimation Peter Neuhaus, Karlsruhe, Germany
2
© 2011-2012 autoVimation Peter Neuhaus, Karlsruhe, Germany
www.adept.net.au
Camera Enclosures and Camera Mounting Blocks
1 General Features of autoVimation's Protective Enclosures
1. Compact size – with 3 housing cross-sections in different length – automVimation's
enclosures are only a little larger than a camera with lens and connectors.
2. Good heat dissipation – most cameras are cooler inside this housing compared with free
camera mounting
3. Flexible and fast and vibration proof mounting of the camera inside the enclosure with
Quick-lock module (flexible lengthwise position and image angle).
4. Different rear wall options allow to connect large connectors and / or multiple cables to the
camera.
5. Large range of mounting brackets allowing to adjust the enclosure to any requirements 1 –.
Mounting of autovimation light holder mounting arms to any side of the enclosure 2.
6. Room for large lenses and even ring-lights. All front windows 45mm aperture with both
sides multi-layer AR coated window (can be replaced with most enclosures ex works with any
50mm or 2” color filter or special optics up to 10mm thick).
1
2
4
refer to the “Camera Enclosure Mounting kits” brochure for details.
refer to the “illumination adapters and mounting arm brochure” for details.
© 2011-2012 autoVimation Peter Neuhaus, Karlsruhe, Germany
www.adept.net.au
Camera Enclosures and Camera Mounting Blocks
2 Camera Enclosure and Camera Mounting Block Selection Guide
The main selection criteria is the camera size:
Maximum camera
diagonal (corner to
corner)
Height h
L
Camera body
length without Cmount flangue
Width W
Max. height H
Max. width W
Max Diagonal
Salamander
enclosures
38mm
40 with edge radius
Depends on height
Camera must fit into 55mm
Diameter tube
Feuersalamander
enclosures
38mm
40 with edge radius
Depends on height
Camera must fit into 55mm
Diameter tube
Orca Enclosures
60mm
60-65 with edge radius
Depends on height
Camera must fit into 85mm
tube
For special hygienical requirements for instance in the pharmaceutical and food industry, select the
stainless steel “Feuersalamander” range of enclosures.
© 2011-2012 autoVimation Peter Neuhaus, Karlsruhe, Germany
www.adept.net.au
5
Camera Enclosures and Camera Mounting Blocks
5 Orca Camera Enclosures and Camera Mounting Blocks
An IP67 Orca enclosure with 2" and 3" front windows
5.1
Matching camera dimensions and -models
Maximum corner to
corner diagonal = 85mm
H max
= 60mm
L
Camera body
length without Cmount flangue
W max = 60mm
Maximum camera
height H
Maximum camera
width W
Camera Model Examples7
60mm
(62 with 3mm
corner radius)
60mm
(62 with 3mm corner
radius)
SICK® Ranger,
FLIR A320 (with Germanium front window),
e2v® Aviiva,
SONY® XCL U1000, XCL 5005, DXC 390 P and more
FESTO® SBOC, Sensopart® FA45 and others
JAI® Basic, Advanced, M2, M4
Dalsa Falcon
ToshibaTeli® CSB4000F, CS3960DCL, Clever Dragon
IDS® µEye UI...IE
Kappa® DX40
Basler® Runner, A200, A300
SVS Vistek® SV Cam CF
Photonfocus® MV D750, DS1-D1312, etc.
and many more
7
These are examples only – there are many more cameras that fit into the Salamander enclosure and
mounting block.
© 2011-2012 autoVimation Peter Neuhaus, Karlsruhe, Germany
www.adept.net.au
19
Camera Enclosures and Camera Mounting Blocks
5.2
Different front window options
All Orca enclosures are now available with 2" and 3" front windows. The 2" window allows the
attachment of the sind curtain. The 3" window is suitabgle for wide angle lenses. Alternatively a larger
ring light can be monted directly behind the front window.
5.3
Different rear wall options
Rear Wall A: Corugated PA tube system - refer to the Salamander section for details.
Rear Wall C: Large, M32 cable gland with full seal insert for self-drilling. This allows customisation to
the cable diameters, feeding though more than one cable and connectors up to 26mm diameter.
Another option is the use of a smooth metal conduit tube with PVC coating (refer to the next section).
Please contact autoVimation for any special cabling requirements.
5.4
Accessories for Orca enclosures
Ring light mount
A ring light mount is available for all Orca enclosures with 3" front window.
This spider adapter plate for Orca 3" allows to mount ring lights with diameter up to 78mm directly into
the front lid, close to the front window. This protects the light and avoids back reflection into the
camera lens.
Spider Illumination Adapter Plates
Spider adapter plate Orca 3"
Order Number
30.160.010
Heating and cooling
Refer to the catalogue “Climate control for camera enclosures” catalogue.
20
© 2011-2012 autoVimation Peter Neuhaus, Karlsruhe, Germany
www.adept.net.au
Camera Enclosures and Camera Mounting Blocks
5.5
Orca camera mounting blocks
Orca camera monuting blocks are available with 80mm length.
5.6
5.7
Order numbers Orca enclosures and mounting blocks
8. Camera enclosures
Order Number
20.040.130
20.040.180
20.040.250
20.041.130
20.041.180
20.041.250
20.045.130
20.045.180
20.045.250
20.046.130
20.046.180
20.046.250
Orca S, 2", front window, length 140mm, Rear Wall A
Orca M, 2" ,front window, length 180mm, Rear Wall A
Orca L, 2", front window, length 250mm, Rear Wall A
Orca S, 2", front window, length 140mm, Rear Wall C
Orca M, 2", front window, length 180mm, Rear Wall C
Orca L, 2", front window, length 250mm, Rear Wall C
Orca S, 3", front window, length 140mm, Rear Wall A
Orca M, 3" , front window, length 180mm, Rear Wall A
Orca L, 3", front window, length 250, Rear Wall A
Orca S, 3", front window, length 140mm, Rear Wall C
Orca M, 3" , front window, length 180mm, Rear Wall C
Orca L, 3", front window, length 250, Rear Wall C
Please specify camera model and cabling requirements with any order!
Camera mounting blocks
Order Number
Orca, camera mounting block, 80mm Length
5.8
15.030.080
Dimensions of Orca enclosures:
Dimensions of the Orca M(180) enclosure. Add 70mm to all Orca L(250) and subtract 50mm for all
Orca S(140mm) models.
© 2011-2012 autoVimation Peter Neuhaus, Karlsruhe, Germany
www.adept.net.au
21
Camera Enclosures and Camera Mounting Blocks
8 IP Protection Tests
In addition to our own testing, we also get our enclosures tested by independend organisations. All our
current enclosure models have met the requirements for IP66 and IP67 tests according to EN 60529:
24
© 2011-2012 autoVimation Peter Neuhaus, Karlsruhe, Germany
www.adept.net.au
