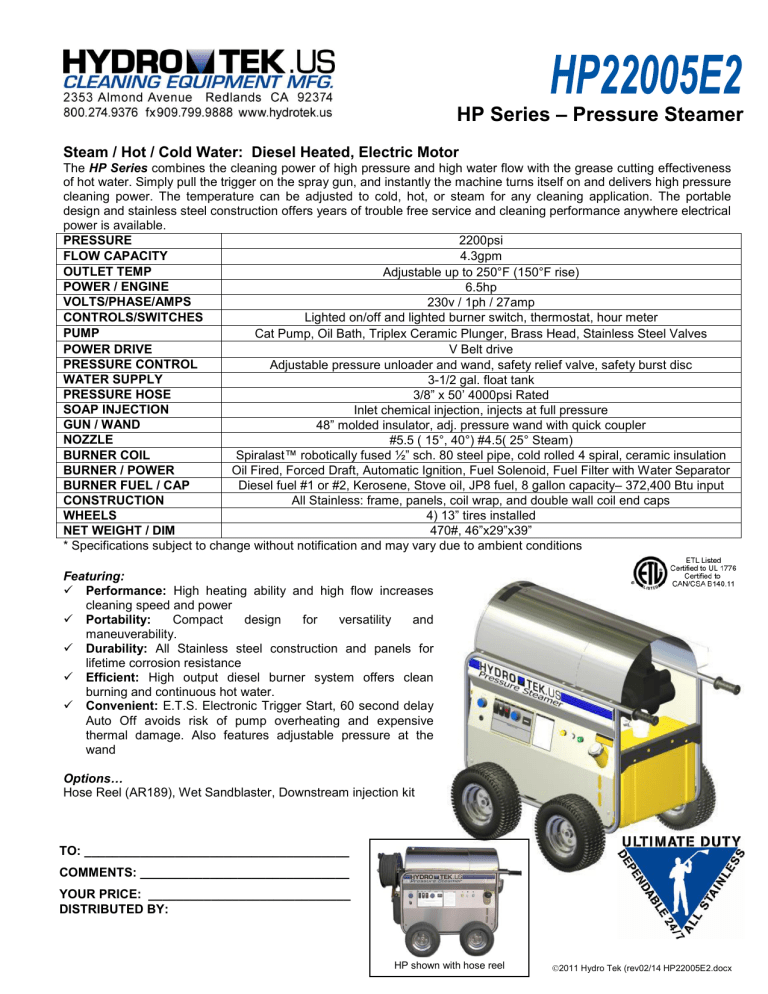

HP Series – Pressure Steamer
Steam / Hot / Cold Water: Diesel Heated, Electric Motor
The HP Series combines the cleaning power of high pressure and high water flow with the grease cutting effectiveness
of hot water. Simply pull the trigger on the spray gun, and instantly the machine turns itself on and delivers high pressure
cleaning power. The temperature can be adjusted to cold, hot, or steam for any cleaning application. The portable
design and stainless steel construction offers years of trouble free service and cleaning performance anywhere electrical
power is available.
PRESSURE
2200psi
FLOW CAPACITY
4.3gpm
OUTLET TEMP
Adjustable up to 250°F (150°F rise)
POWER / ENGINE
6.5hp
VOLTS/PHASE/AMPS
230v / 1ph / 27amp
CONTROLS/SWITCHES
Lighted on/off and lighted burner switch, thermostat, hour meter
PUMP
Cat Pump, Oil Bath, Triplex Ceramic Plunger, Brass Head, Stainless Steel Valves
POWER DRIVE
V Belt drive
PRESSURE CONTROL
Adjustable pressure unloader and wand, safety relief valve, safety burst disc
WATER SUPPLY
3-1/2 gal. float tank
PRESSURE HOSE
3/8” x 50’ 4000psi Rated
SOAP INJECTION
Inlet chemical injection, injects at full pressure
GUN / WAND
48” molded insulator, adj. pressure wand with quick coupler
NOZZLE
#5.5 ( 15°, 40°) #4.5( 25° Steam)
BURNER COIL
Spiralast™ robotically fused ½” sch. 80 steel pipe, cold rolled 4 spiral, ceramic insulation
BURNER / POWER
Oil Fired, Forced Draft, Automatic Ignition, Fuel Solenoid, Fuel Filter with Water Separator
BURNER FUEL / CAP
Diesel fuel #1 or #2, Kerosene, Stove oil, JP8 fuel, 8 gallon capacity– 372,400 Btu input
CONSTRUCTION
All Stainless: frame, panels, coil wrap, and double wall coil end caps
WHEELS
4) 13” tires installed
NET WEIGHT / DIM
470#, 46”x29”x39”
* Specifications subject to change without notification and may vary due to ambient conditions
Featuring:
 Performance: High heating ability and high flow increases
cleaning speed and power
 Portability:
Compact
design
for
versatility
and
maneuverability.
 Durability: All Stainless steel construction and panels for
lifetime corrosion resistance
 Efficient: High output diesel burner system offers clean
burning and continuous hot water.
 Convenient: E.T.S. Electronic Trigger Start, 60 second delay
Auto Off avoids risk of pump overheating and expensive
thermal damage. Also features adjustable pressure at the
wand
Options…
Hose Reel (AR189), Wet Sandblaster, Downstream injection kit
TO: ______________________________________
COMMENTS: ______________________________
YOUR PRICE: _____________________________
DISTRIBUTED BY:
HP shown with hose reel
option
2011 Hydro Tek (rev02/14 HP22005E2.docx
