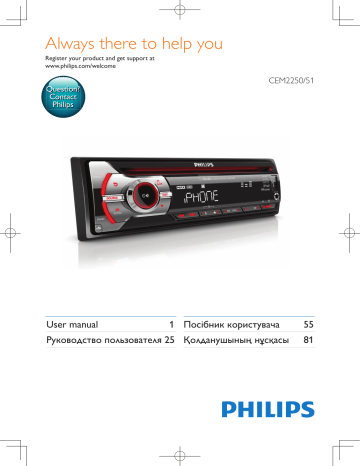

Always there to help you
Register your product and get support at
www.philips.com/welcome
Question?
Contact
Philips
Usermanual
CEM2250/51
1 Посібниккористувача
Руководствопользователя25 Қолданушыныңнұсқасы
55
81
Contents
1 Important
2
Safety2
Notice2
2 Your car audio system
4
Introduction4
What's in the box
4
Overview of the main unit
5
3 Install the car audio
Connect wires
Mount into the dashboard
Attach the front panel
4 Get started
For the first time use
Set the time format
Set the clock
Select a source
Switch music listening zone
Mute the button beep
7
7
8
9
10
10
10
10
11
11
11
5 Listen to radio
12
12
12
12
12
12
13
6 Play from hard media
15
15
15
15
16
Select a tuner region
Select tuner sensitivity
Select radio band
Search for a radio station
Store radio stations in memory
Play with RDS
Play from a Disc
Play from USB storage device
Control play
Switch tracks
7 Play from iPod/iPhone
16
16
16
17
17
8 Connect external sound source
18
9 Adjust sound
19
10 Adjust system settings
20
Compatible iPod/iPhone
Connect your iPod/iPhone
Control play
Charge your iPod/iPhone
11 Additional information
21
Reset21
Replace fuse
21
12 Product information
22
13 Troubleshooting
23
14 Glossary
24
EN
1
English
Contents
1 Important
Safety
•
•
•
•
•
•
•
•
•
•
•
•
Read and understand all instructions
before you use your apparatus. If damage is
caused by failure to follow instructions, the
warranty does not apply.
This apparatus is designed for negative
ground (earth) 12 V DC operation only.
To ensure safe driving, adjust the volume to
a safe and comfortable level.
Improper fuses can cause damage or
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware
for a safe and secure installation.
To avoid short circuit, do not expose the
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation
slots or other openings on the apparatus.
Clean the apparatus and frame with a soft,
damp cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
Never place any objects other than discs
into the apparatus.
Never use solvents such as benzene,
thinner, cleaners available commercially, or
anti-static sprays intended for discs.
Visible and invisible laser radiation when
open. Avoid exposure to beam.
Risk of damage to the apparatus screen!
Never touch, push, rub or strike the screen
with any object.
Caution
•• Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
2
EN
•
•
The apparatus shall not be exposed to
dripping or splashing.
Do not place any sources of danger on the
apparatus (e.g. liquid filled objects, lighted
candles).
Notice
Any changes or modifications made to this
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
The making of unauthorized copies of copyprotected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
This apparatus includes this label:
English
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
2013 © WOOX Innovations Limited.
All rights reserved.Specifications are subject
to change without notice. WOOX reserves
the right to change products at any time
without being obliged to adjust earlier supplies
accordingly.
Windows Media and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
“Made for iPod,” and “Made for iPhone,”
mean that an electronic accessory has been
designed to connect specifically to iPod or
iPhone, respectively, and has been certified by
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone
may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
EN
3
2 Your car audio
system
What's in the box
Check and identify the contents of your
package:
aMain unit (with a sleeve)
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
bFront panel
cTrim plate
dCarrying case for front panel
eISO connectors
Introduction
With the in-car audio system, you can enjoy
your drive while listening to:
• FM or AM (MW) radio
• Audio from CD or MP3 disc
• Audio from USB devices
• Audio from iPod/iPhone
• Audio from other external devices
fRubber cushion
gScrew x 1 pc
hDisassembly tools x 2 pcs
iUser manual
b
a
The unit supports the following media format:
d
c
f
e
h
4
EN
i
g
a
r
b
q
c
d
e
p
o
n
t
a SOURCE
• Select audio source.
b MENU
• Access system menu.
c
d
• Return to previous menu.
• Navigate the iPod/iPhone menu.
/
• Press and hold to turn the unit on or
off.
• Press to confirm selection.
f
m
l
k
g
j i h
s
• Press to mute or unmute sound.
• Rotate to adjust volume.
• Rotate to switch between menu
options.
e ZONE /
• In radio mode. press to select tuner
band.
• For .mp3 and .wma tracks on a storage
device, press to select MP3/WMA
folder.
EN
5
English
Overview of the main unit
• Press and hold to switch music
listening zone.
• For iPod/iPhone, press repeatedly to
select a control mode.
f
g
• Eject disc.
• USB socket.
h MP3 LINK
• Connect external audio device.
i
/
• Press to turn on or off Maximizing
volume.
• In any mode, press and hold to view
clock.
6281'
j DBB/AS
• Press to turn on or off Dynamic Bass
Boost (DBB) sound.
• In radio mode, press and hold to
access to tuner auto store.
k
n
• In radio mode, press to select preset
radio station No.5/6.
• In radio mode, press and hold to store
the current radio station at station
No. 6.
• Press to start, pause or resume play.
l REP / SHUF
• In radio mode, press to select preset
radio station No.3/4.
• In radio mode, press and hold to store
the current radio station at station No.
3/4.
• For .wma and .mp3 tracks, press to
access to repeat play or shuffle play.
m
/
• In radio mode, press to select preset
radio station No.1/2.
• In radio mode, press and hold to store
the current radio station at station No.
1/2.
• For .wma and .mp3 tracks on a storage
device, press to access track/folder list.
6
EN
/
• In radio mode, press to tune for radio
station.
• Press to skip/search for track.
• Press to fast backward/forward
playback.
o DISP
• Press to display current status.
• In iPod/iPhone mode, press and hold
to access music search mode.
p EQ / AUDIO
• Press repeatedly to select equalizer
(EQ) setting.
• Press and hold to access audio setting
menu.
q
• Unlock the panel.
r BAND
• Select tuner band.
s RESET
• Restore default settings.
t Disc slot
Connect wires
English
3 Install the car
audio
Caution
•• Ensure that all loose leads are insulated with electrical
tape.
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
•• This unit is designed for negative ground (earth) 12 V
Note
•• Consult a professional to connect CEM2250 as
instructed below.
1
DC operation only.
•• Always install this unit in the car dashboard. Other
locations can be dangerous as the rear of the unit heats
up during use.
•• To avoid short-circuit: before you connect, ensure that
the ignition is off.
•• Ensure that you connect the yellow and red power
supply leads after all other leads are connected.
•• Ensure that all loose leads are insulated with electrical
tape.
•• Ensure that the leads do not get caught under screws
orin parts that will move (e.g. seat rail).
•• Ensure that all ground (earth) leads are run to a
common ground (earth) point.
•• Use only the supplied mounting hardware for a safe
and secure installation.
•• Improper fuses can cause damage or fire. When you
need to change the fuse, consult a professional.
Note
•• Risk of danger! Please consult a professional to perform
the below steps!
Note on the power supply lead (yellow)
• When you connect other devices to this
apparatus, ensure that the rating of the car
circuit is higher than the total fuse value of
all the connected devices.
Notes on speaker connection
• Never connect speaker wires to the metal
body or chassis of the car.
• Never connect speaker wires with stripes
to one another.
Check the car's wiring carefully and
connect them to the the supplied male
connector.
1
2
3
4
ISO male
connectors
Green strip, blackedged green strip
White strip, blackedged white strip
Gray strip, blackedged gray strip
Purple strip, blackedged purple strip
Connect to
Left speaker (Rear)
Left speaker (Front)
Right speaker (Front)
Right speaker (Rear)
EN
7
e
ISO male
connectors
Red
f
Blue
g
White edged blue
strip
Black
Yellow
h
i
2
Connect to
Ignition key +12V DC
when ON/ACC
Motor/electric antenna
relay control lead
Amplifier relay control
lead
Ground
To the +12V car
battery which is
energized at all times
Tip
•• The pin arrangement for the ISO connectors depends
on the type of vehicle you drive. Be sure to make
proper connections to prevent damage to the unit.
Mount into the dashboard
• If the car does not have an onboard drive or navigation computer,
disconnect the negative terminal of the
car battery.
• If the car battery is not disconnected,
to avoid short-circuit, make sure that
the bare wires do not touch each
other.
Connect the antenna and amplifier as
illustrated, if applicable.
1
Ensure that car dashboard opening is
within these measurements:
m
5m
mm
53mm
183
1
2
3
4
5
8
Connector
ANTENNA
Socket for ISO male
connectors
REAR LINE OUT R
(Socket)
REAR LINE OUT L
(Socket)
OE REMOTE
(Purple)
EN
Connect to
Antenna
As indicated in
Step 1 above
Rear right speaker
Rear left speaker
OE Remote
Remove the mounting sleeve with the
supplied disassembly tools.
3
Install the sleeve into the dashboard and
bend the tabs outward to fix the sleeve.
5
Slide the unit into the dashboard until you
hear a click sound.
6
Attach the trim plate.
7
Reconnect the negative terminal of the car
battery.
English
2
3m
53.5 mm
18
4
m
Place the supplied rubber cushion over the
end of the mounting bolt.
Attach the front panel
1
Insert the notch on the front panel to the
chassis on the main unit.
EN
9
2
Press the left end of the front panel
inwards until it is securely locked with a
"click".
4 Get started
For the first time use
Note
•• Select correct country/region for this unit, otherwise
the unit can not work properly.
Detach the front panel
1
Press to turn the unit on.
»» [SELECT OPERATING REGION] is
displayed.
2
Rotate to select an option:
• [USA] (United States)
• [LATIN] (Latin America)
• [EUROPE] (Western Europe)
• [RUSSIA] (Russia)
• [MID--EAST] (Middle East)
• [ASIA] (Pacific)
• [JAPAN] (Japan)
• [AUSTRALIA] (Australia)
• [OIRT] (OIRT)
3
Press
Note
•• Before you detach the front panel, make sure that the
system is turned off.
1
2
Press
to release the front panel.
Pull the front panel outwards to remove it.
to confirm.
Set the time format
1
2
3
Press MENU.
Press or repeatedly until [CLOCK
FORMAT] is displayed.
Rotate to select a setting:
• [CLK 12H]
• [CLK 24H]
Set the clock
1
10
EN
Press MENU repeatedly until [CLOCK
SET] is displayed.
Rotate
Press
Rotate
Press
to set hour.
to confirm.
to set minute.
to confirm.
Display the clock
In any mode, press and hold 6281' / until the
clock is displayed.
• Press any key to cancel the clock
display.
Mute the button beep
The beep sound of the buttons is enabled by
default. You can turn this beep sound on or off.
1
2
3
Press MENU.
Press or repeatedly until [BEEP
TONE] is displayed.
Rotate to select a setting:
• [BEEP ON]: turn the beep sound on.
• [BEEP OFF]: turn the beep sound off.
Select a source
Press SOURCE repeatedly to select a source.
• [RADIO]: Listen to FM/AM radio.
• [MP3--LINK]: Listen to the audio input
through the MP3-LINK socket.
• [iPod/USB]: When a USB storage device or
compatible iPod/iPhone is connected and
recognized, you can select this source to
play audio files that are stored on it.
Switch music listening zone
Philips’ innovative Zone technology enables
driver or passengers to enjoy music with the
best speakers balance and experience more
vivid spacial effect as the artist is intended to
create. You can switch the music listening zone
from driver to passengers for the best speaker
sound settings in car.
1
Press and hold ZONE.
»» The current setting is displayed.
2
Rotate / to select a setting:
• [ALL] (All)
• [LEFT] (Left)
• [RIGHT] (Right)
• [FRONT] (Front)
EN
11
English
2
3
4
5
5 Listen to radio
Select a tuner region
You can select suitable country/region of the
radio.
1
2
Press SOURCE to select radio mode.
3
Rotate to select:
• [USA] (United States)
• [LATIN] (Latin America)
• [EUROPE] (Western Europe)
• [RUSSIA] (Russia)
• [MID--EAST] (Middle East)
• [ASIA] (Asia Pacific)
• [JAPAN] (Japan)
• [AUSTRALIA] (Australia)
• [OIRT] (OIRT)
4
Press MENU repeatedly until [AREA] is
displayed.
Press
to confirm.
Select tuner sensitivity
To receive more radio stations or only stations
with strong signal, you can adjust the tuner
sensitivity.
1
Press MENU repeatedly until [LOCAL] is
displayed.
2
Rotate to select a setting:
• [LOCAL ON] (local on): only stations
with strong signal can be broadcast.
• [LOCAL OFF] (local off): stations
with strong and weak signals can be
broadcast.
Select radio band
1
Press SOURCE repeatedly to select radio
mode.
2
Press BAND or / repeatedly to select
band: [FM1], [FM2], [FM3], [AM1], or
[AM1].
Search for a radio station
Search for a radio station
automatically
Press
or
to search for the previous or
next radio station with strong signals.
»» [SEEK--] or [SEEK+] is displayed until
the previous or next strong station is
detected.
Search for a radio station manually
1
Press and hold
or
frequency digit flashes.
2
Press
or
repeatedly until the target
frequency is displayed.
until the
Store radio stations in
memory
You can store up to 6 stations in each band.
Store stations automatically
1
In radio mode, press and hold DBB/AS
until [STORE - - -] is displayed.
2
Press to confirm.
»» The six strongest stations of the
selected band are saved in preset
channel automatically.
• To select a stored radio station, press
the numeric button directly.
12
EN
4
1
Press
band.
2
Tune to a radio station that you want to
store.
3
1
2
Press a numeric button for 3 seconds.
»» The station is saved in the selected
channel.
3
/
repeatedly to select a tuner
• To select a stored radio station, press
the numeric button directly.
Item
4
5
6
Play with RDS
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, the station name are displayed.
Enable the RDS function
Note
•• The default setting for RDS is on.
1
2
3
Press MENU.
Press or
displayed.
repeatedly until [RDS] is
Rotate to select [RDS ON].
»» The RDS function is turned on.
Select program type
Before tuning to RDS stations, you can select
program type and let the unit search only for
programs of the selected category.
1
2
3
Press MENU.
Press or
displayed.
Press
repeatedly until [PTY] is
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Rotate to select a type, then press
confirm.
Program
type
NEWS
AFFAIRS
to
English
Store stations manually
Description
News services
Politics and current
affairs
INFO
Special information
programs
SPORT
Sports
EDUCATE
Education and
advanced training
DRAMA
Radio plays and
literature
CULTURE
Culture, religion and
society
SCIENCE
Science
VARIED
Entertainment programs
POP M
Pop music
ROCK M
Rock music
EASY M
Light music
LIGHT M
Light classical music
CLASSICS
Classical music
OTHER M
Special music programs
WEATHER
Weather
FINANCE
Finance
CHILDREN Children’s programs
SOCIAL
Social Affairs
RELIGION
Religion
PHONE IN
Phone In
TRAVEL
Travel
LEISURE
Leisure
JAZZ
Jazz Music
COUNTRY Country Music
NATION M National Music
OLDIES
Oldies Music
FOLK M
Folk Music
DOCUMENT Documentary
TEST
Alarm Test
ALARM
Alarm
to confirm.
EN
13
Use alternate frequencies
If the radio signal is poor, turn on AF (Alternate
Frequency) to search for another station with
stronger signal.
1
2
3
Press or
displayed.
Rotate to select a setting:
• [AF ON]: turn AF mode on.
• [AF OFF]: turn AF mode off.
[REG
ON]
[REG
OFF]
Only stations in current region can
be tuned to automatically.
All stations can be tuned to
automatically.
Press MENU.
Press or
displayed.
Rotate
repeatedly until [REG] is
to select a setting.
Receive traffic announcement
If you do not want to miss traffic
announcement when enjoying music, turn on
the TA (Traffic Announcement) function.
1
2
over 120 seconds, the unit will activate TA Seek mode
automatically. The TA Seek will seek for other station
with good condition of TA signal.
repeatedly until [AF] is
You can define AF tuning region:
3
•• If the current received TA signal remains weak for
Press MENU.
Set region for AF tuning
1
2
Note
Press MENU.
Press or
displayed.
repeatedly until [TA] is
3
Rotate to select a setting:
• [TA ON]: when there is traffic
announcement, the unit switches to
the tuner mode (regardless of the
current mode) and begins to broadcast
the traffic conditions. When the traffic
announcement is over, it returns to the
previous mode.
• [TA OFF]: traffic announcement does
not cut in.
14
EN
Tip
•• When a traffic announcement cuts in, user can short
press
to terminate the traffic announcement, and
the unit will resume to previous playback mode.
Synchronize the system clock
You can synchronize the system clock with an
RDS station that transmits time signals.
1
2
3
Press MENU.
Press or
displayed.
repeatedly until [CT] is
Rotate to select a setting:
• [CT ON]: turn on the RDS clock. Time
shown on the unit synchronizes with
that on the RDS station.
• [CT OFF]: turn off the RDS clock.
Tip
•• The accuracy of the transmitted time depends on the
RDS station that transmits the time signal.
You can use this system to listen to audios that
are stored on a compatible disc or USB storage
device.
Play from a Disc
Play from USB storage device
Note
•• Ensure that the USB device contains playable music.
Insert the USB device
1
Slide the USB socket cover marked
the left.
2
Insert the USB device into the USB socket.
»» The unit starts playing from the USB
device automatically.
Note
•• You cannot play CDs encoded with copyright
to
protection technologies.
You can play commercially available audio CDs
and these discs:
• CD-Recordables (CD-R)
• CD-Re-writables (CD-RW)
• MP3 CDs
• WMA CDs
Note
•• Ensure that the disc contains playable content.
Remove the USB device
1
2
Press
to turn off the unit.
Remove the USB device.
Control play
Button
/
/
1
Insert the disc into the disc slot with the
label side facing up.
»» Play starts automatically.
• If play does not start automatically,
press
to start play.
2
/
DISP
Function
Press repeatedly to select a folder.
Pause or resume play.
Press to play the previous or next
track.
Press and hold to rewind a track or
search forward fast.
Press repeatedly to display available
information about the current track.
To eject the disc, press .
»» When the disc is ejected, the system
switches to the previous source or
radio mode.
EN
15
English
6 Play from hard
media
Button
Function
REP
Press repeatedly to select a repeat
mode:
• [REP TRK] (repeat one track): play
current track repeatedly.
• [REP FLD] (repeat a folder): play all
tracks in the current folder repeatedly.
• [REP ALL] (repeat all tracks): play all
tracks repeatedly.
Press repeatedly to select a play mode:
• [SHUF FLD]: start random play for
all tracks in the current folder.
• [SHUF ALL]: start random play for
all tracks.
• [SHUF OFF]: cancel shuffle play.
SHUF
Switch tracks
During play, you can switch tracks or folders
quickly.
Switch tracks directly
1
Press to access the track list.
»» The file name of current track scrolls.
2
3
Rotate
Press
to toggle through tracks.
to play the selected track.
Switch folders for a track
1
Press to access the folder list.
»» The name of current folder scrolls.
2
3
Rotate
16
EN
to toggle through folders.
Press
to select the folder.
»» The system starts playing the first track
under the folder.
7 Play from iPod/
iPhone
You can enjoy audio from iPod/iPhone through
this unit.
Compatible iPod/iPhone
Apple iPod and iPhone models with a 30-pin
dock connector or lighting connector:
Made for.
• iPod nano (2nd generation)
• iPod nano (3rd generation, 4GB only)
• iPod nano (3rd generation, 8GB only)
• iPod nano (4th, 5th and 6th generation)
• iPod nano (7th generation)
• iPod classic (1st and 2nd generation)
• iPod touch (1st, 2nd, 3rd, and 4th
generation)
• iPod touch (5th generation)
• iPod video (30GB, 80GB only)
Works with
• iPhone
• iPhone 3G, iPhone 3GS
• iPhone 4, iPhone 4S
• iPhone 5
Connect your iPod/iPhone
Note
•• Before you disconnect the iPod/iPhone, switch the
system to another source.
Control play
Button
/
/
DISP
REP
SHUF
Function
Press repeatedly to select a control
mode: control play on your iPod/
iPhone, or on the system.
Press to pause or resume play.
Press to play the previous or next
track.
Press and hold to rewind a track or
search forward fast.
Press repeatedly to display available
information about the current track.
Press repeatedly to select a repeat
mode:
• [REP TRK]: repeat the current track,
or
• [REP ALL]: repeat all tracks.
Press repeatedly to select a play mode:
• [SHU ALL]: play all tracks randomly,
• [SHU ALBM]: play tracks in the current album randomly, or
• [SHU OFF]: play all tracks in the
iPod/iPhone library in sequence.
Search for a track on iPod/iPhone
1
Press SOURCE repeatedly to select iPod
mode.
2
3
Press
English
Connect an Apple 30-pin or lighting USB cable
to:
• the USB socket on the front panel of this
system, and
• your iPod/iPhone.
»» [iPod/USB] is displayed.
»» The system starts playing tracks that
are stored on your iPod/iPhone.
to browse iPod/iPhone menu.
Rotate to select the artist search mode,
and press to confirm.
4
5
Press DISP to search alphabetically.
6
7
Rotate
Rotate to select artist, then press
confirm.
Press
to
to select song in current album.
to start play.
Note
•• You cannot control the music via iPod/iPhone under
audio control mode.
Charge your iPod/iPhone
Once the iPod/iPhone is docked and
recognized, the charging starts.
EN
17
8 Connect
external sound
source
1
Connect the external sound source to
MP3 LINK socket with a 3.5 mm cable.
MP3-LINK
2
Press SOURCE repeatedly until [MP3-LINK] is displayed.
3
Operate the external component (refer to
the instructions supplied with the external
component).
18
EN
English
9 Adjust sound
The following operations are applicable to all supported media.
Button
/
/
6281' /
DBB/AS
Function
Rotate to increase or decrease the volume level.
Press to mute or restore sound.
Press to enable or disable the maximum volume.
Press to enable or disable the Dynamic Bass Boost (DBB) effect.
Press repeatedly to select a sound equalizer.
• [OPTIMAL] (optimal)
• [FLAT] (flat)
• [POP] (pop)
• [USER] (user)
• [TECHNO] (techno)
• [ROCK] (rock)
• [CLASSIC] (classic)
• [JAZZ] (jazz)
1Press and hold to activate the setup of customized sound equalizer.
2Press
•
•
•
•
or repeatedly to select the item to be adjusted:
[BALANCE] (balance) range: 12L to 12R. (L=left speaker, R=right speaker)
[FADER] (fader) range: 12R to 12F. (R=rear speaker, F=front speaker)
[BASS] (bass) range: -7 to +7.
[TREBLE] (treble) range: -7 to +7.
3Rotate
to adjust the setting.
EN
19
10Adjust system settings
1
2
3
Press MENU to access system settings.
Press or repeatedly until one of the following settings scrolls.
• [BEEP], [DIMMER], [DEMO], [BLACK OUT], or [DANCE]
Rotate
to change the setting.
[BEEP]
[DEMO]
[BEEP ON]
[BEEP OFF]
[DIMMER HIGH]
[DIMMER LOW]
[DEMO ON]
[BLACK OUT]
[DEMO OFF]
[BKO 10 S]
[DIMMER]
[BKO 20 S]
[DANCE]
20
EN
[BKO OFF]
[DANCE ON]
[DANCE OFF]
Enable the beep sound of buttons.
Disable the beep sound of buttons.
Increase the brightness level of the screen.
Decrease the brightness level of the screen.
Demonstrate all features after the system stays inactive for
2 minutes.
Disable the demo mode.
Turn off the screen automatically 10 seconds after last
operation.
Turn off the screen automatically 20 seconds after last
operation.
Never turn off the screen.
Enable the spectrum on the LCD display.
Disable the spectrum on the LCD display.
English
11Additional
information
Reset
You can reset the unit to its default setting.
1
2
Detach the front panel.
Press the RESET button with the tip of a
ball-point pen or toothpick.
»» All settings are reset to factory default.
Note
•• If the new fuse gets damaged again, there may be an
internal malfunction. Consult your Philips dealer.
Replace fuse
If there is no power, check the fuse and replace
if it is damaged.
1
2
Check the electric connection.
3
Insert a new fuse with the same
specification (15A).
Remove the damaged fuse from the rear
panel.
EN
21
12Product information
Note
•• Product information is subject to change without prior notice.
Power supply
Fuse
Suitable speaker impedance
Maximum power output
Continuous power output
Pre-Amp output voltage
Aux-in level
Dimensions (W x H x D)
Weight
12 V DC (11 V - 16 V), negative ground
15 A
4-8
50 W x 4
21 W x 4 RMS (4 10% T.H.D.)
2.5V
500 mV
181.5 x 52 x 191.4 mm
1.47 kg
Radio
Frequency range - FM
Usable sensitivity - FM
65.0 - 74.0 MHz and 87.5 - 108.0 MHz (100kHz per step in auto
search and 50kHz per step in manual search)
8 µV
(S/N = 20 dB)
Frequency range - AM(MW)
522 - 1620 KHz (9 kHz)
Usable sensitivity - AM(MW)
530 - 1710 kHz (10 kHz)
30 µV
( S/N = 20 dB)
Compatible USB devices:
• USB flash memory: USB 1.1 host with interface reading all speed support (1.1, 2.0)
• USB flash players: USB 1.1 host with interface reading all speed support (1.1, 2.0)
Supported formats:
• USB or memory file format: FAT12, FAT16, FAT32
• For USB storage devices: MP3 bit rate (data rate): 32-320 Kbps and variable bit rate
• WMA V4, V7, V8, V9 (L1, L2)
• MP3 sampling frequencies: 8-48 kHz
• For Disc: MP3 Bit-rates: 8~320 (kbps), variable bit rates
• WMA sampling frequencies: 32 kHz, 44.1 kHz, 48 kHz
• WMA Bit-rates: 32~192 (kbps), variable bit rates
• Directory nesting up to a maximum of 8 levels
• Number of albums/folders: CD maximum 99, USB or memory maximum 99
22
EN
Unsupported formats:
• Empty albums: an empty album is an
album that does not contain MP3/
WMA files, and is not be shown in the
display.
• Unsupported file formats are skipped.
For example, Word documents (.doc)
or MP3 files with extension .dlf are
ignored and not played.
• AAC, WAV, PCM audio files
• DRM protected WMA files (.wav, .m4a,
.m4p, .mp4, .aac)
• WMA files in Lossless format
13Troubleshooting
Caution
•• Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/support). When you contact Philips,
ensure that your apparatus is nearby and the
model number and serial number are available.
No power or no sound.
•• Car engine is not on. Turn the car engine
on.
•• Cable is not correctly connected. Check
connections.
•• Fuse is burnt. Replace fuse.
•• Volume is too low. Adjust volume.
•• If the above solutions cannot help, press
RESET button.
•• Ensure that the track played is of a
compatible format.
Noise in broadcasts.
•• Signals are too weak. Select other stations
with stronger signals.
•• Check the connection of the car antenna.
•• Change broadcast from Stereo to mono.
Cannot play disc
•• Ensure that the disc label is inserted with
the printed side facing up.
•• Wipe the disc with fibre cleaning cloth
from the centre to the edge in a straight
line.
•• This disc may be defective. Play another
disc.
•• Ensure that the CD is a finalised CD/
CD-R/CD-RW.
EN
23
English
• Number of tracks/titles: CD maximum
999 (depending on number of album),
USB or memory maximum 999
• ID3 tag v2.0 or later
••
Ensure that the CD is not encoded with
copyright protection technologies.
The CD skips tracks
•• Ensure that the CD is not damaged or
dirty.
•• Ensure that random mode is deactivated.
Disc cannot be ejected
•• Press and hold .
Preset stations lost.
•• Battery cable is not correctly connected.
Connect the battery cable to the terminal
that is always live.
Display show ERR-12
•• USB data error. Check the USB device.
14Glossary
M
MP3
A file format with a sound data compression
system. MP3 is the abbreviation of Motion
Picture Experts Group 1 (or MPEG-1) Audio
Layer 3. With the MP3 format, one CD-R or
CD-RW can contain about 10 times more data
than a regular CD.
R
RDS (Radio Data System)
RDS tuners can automatically tune in stations
according to the types of music (or talk) they
broadcast. RDS also enables a receiver to
display text messages and even graphics (usually
call letters and format information) that many
FM stations include on a sub-carrier signal
within their normal broadcast signal. Some RDS
equipped tuners can even override with traffic
alerts or emergency broadcasts, during playback
of other media - CD MD, or cassette. There are
other useful features too, many of which are
offered by the growing number of RDS stations.
W
WMA (Windows Media Audio)
An audio format owned by Microsoft, is a
part of Microsoft Windows Media technology.
Includes Microsoft Digital Rights Management
tools, Windows Media Video encoding
technology, and Windows Media Audio
encoding technology.
24
EN
Specifications are subject to change without notice.
2013 © WOOX Innovations Limited. All rights reserved.
This product was brought to the market by WOOX
Innovations Limited or one of its affiliates, further referred
to in this document as WOOX Innovations, and is the
manufacturer of the product. WOOX Innovations is the
warrantor in relation to the product with which this booklet
was packaged. Philips and the Philips Shield Emblem are
registered trademarks of Koninklijke Philips N.V.
CEM2250_51_UM_V2.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
