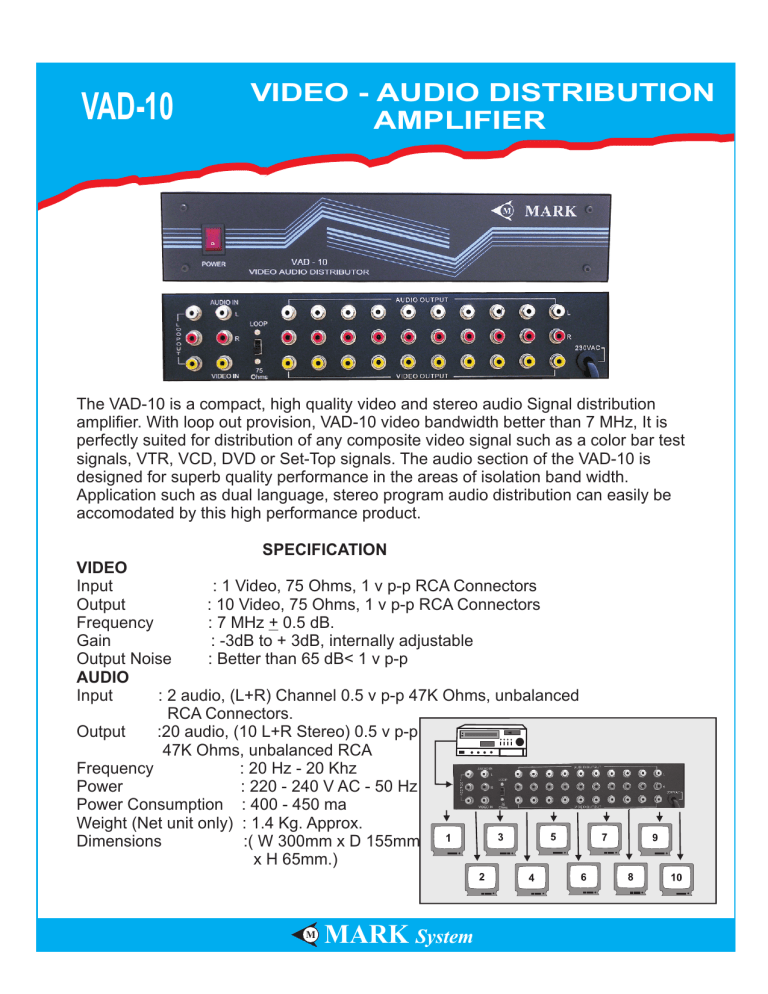

VAD-10
VIDEO - AUDIO DISTRIBUTION
AMPLIFIER
The VAD-10 is a compact, high quality video and stereo audio Signal distribution
amplifier. With loop out provision, VAD-10 video bandwidth better than 7 MHz, It is
perfectly suited for distribution of any composite video signal such as a color bar test
signals, VTR, VCD, DVD or Set-Top signals. The audio section of the VAD-10 is
designed for superb quality performance in the areas of isolation band width.
Application such as dual language, stereo program audio distribution can easily be
accomodated by this high performance product.
SPECIFICATION
VIDEO
Input
: 1 Video, 75 Ohms, 1 v p-p RCA Connectors
Output
: 10 Video, 75 Ohms, 1 v p-p RCA Connectors
Frequency
: 7 MHz + 0.5 dB.
Gain
: -3dB to + 3dB, internally adjustable
Output Noise
: Better than 65 dB< 1 v p-p
AUDIO
Input
: 2 audio, (L+R) Channel 0.5 v p-p 47K Ohms, unbalanced
RCA Connectors.
Output
:20 audio, (10 L+R Stereo) 0.5 v p-p
47K Ohms, unbalanced RCA
Frequency
: 20 Hz - 20 Khz
Power
: 220 - 240 V AC - 50 Hz
Power Consumption : 400 - 450 ma
Weight (Net unit only) : 1.4 Kg. Approx.
Dimensions
:( W 300mm x D 155mm
x H 65mm.)
M
MARK System
