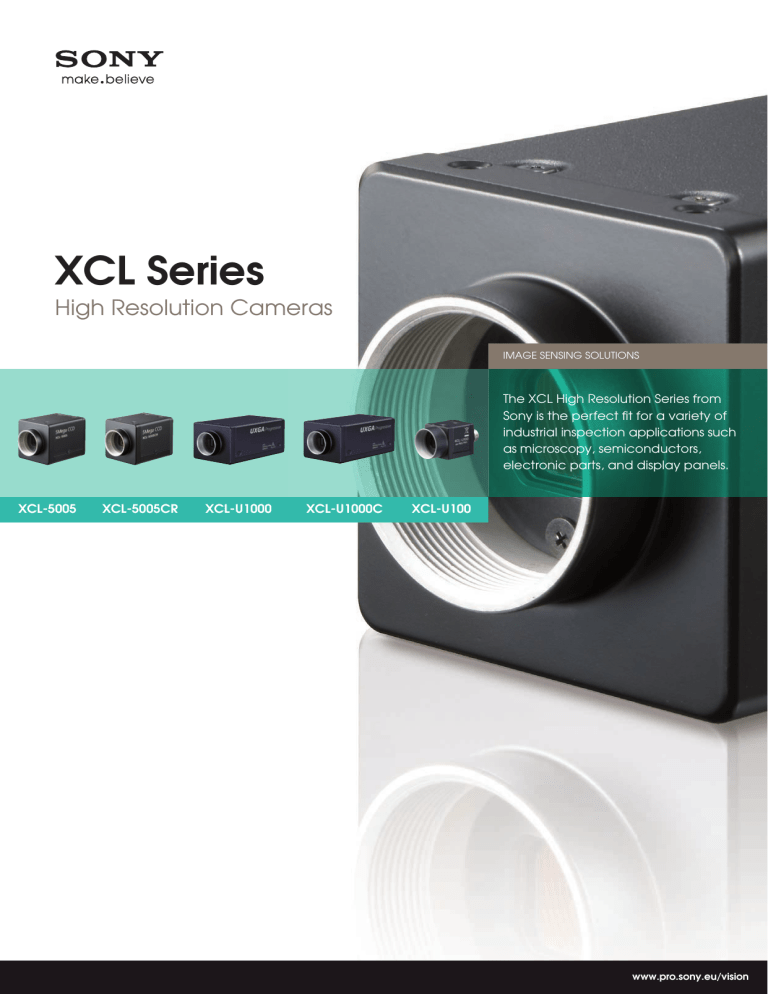

XCL Series
High Resolution Cameras
IMAGE SENSING SOLUTIONS
The XCL High Resolution Series from
Sony is the perfect fit for a variety of
industrial inspection applications such
as microscopy, semiconductors,
electronic parts, and display panels.
XCL-5005
XCL-5005CR
XCL-U1000
XCL-U1000C
XCL-U100
www.pro.sony.eu/vision
XCL-5005
XCL-5005CR
XCL-U1000
XCL-U1000C
XCL-U100
Sony Camera Link cameras
are ideally suited for demanding
applications in image processing
and Machine Vision (Compact size,
PoCL*, High Resolution).
All the cameras in this series conform to
the Camera Link standard. Joining the
popular XCL High Resolution Series is the
extremely compact XCL-U100.
However, the XCL-U100 and the
XCL-5005/5005CR cameras are
PoCL*-capable, providing users with
single-cable operation. The XCL Series
delivers outstanding functionality
and excellent picture quality,
bringing a new level of power and
effectiveness to industrial applications.
This new camera boasts high-resolution
images of UXGA resolution, similar to the
existing XCL-U1000/U1000C cameras.
* PoCL (Power over Camera Link)
Table 1: High-Resolution Image Capture
XCL-5005
Image Device
XCL-5005 CR
Cell Size
XCL-U1000C
4.4 x 4.4 µm
2,448 x 2,050
1,600 x 1,200
Frame Rate
XCL-U100
1/1.8 type Progressive Scan IT CCD
3.45 x 3.45 µm
Standard Picture Size (H x V)
Resolution Depth
XCL-U1000
2/3 type Progressive Scan IT CCD
15 fps
8-, 10-, 12-bit B/W
8-, 10-, 12-bit Raw Colour
24-bit RGB Colour
10-bit B/W
24-bit RGB Colour
8-, 10-, 12-bit B/W
XCL-5005
XCL-5005 CR
XCL-U1000
XCL-U1000C
XCL-U100
Table 2: Supports Camera Link Standard
PoCL/
Standard Camera Link (Switchable)
Interface
Configuration
Output Data Clock
Standard Camera Link
PoCL/
Standard Camera Link
(Switchable)
Base
80 MHz (1 tap),
40 MHz (2 tap)
80 MHz (1 tap),
40 MHz (2 tap, Raw
Colour Only)
36 MHz (1 tap)
Table 3: Hardware Processing
XCL-5005
XCL-5005 CR
XCL-U1000
XCL-U1000C
XCL-U100
Digital Pedestal
Digital Gain
Detail
3x3 Filter
Gamma Correction
Binarisation
Built-in Test Pattern
Mirror Image
Digital Pedestal
Pixel Gain
RGB Conversion
White Balance
Gamma Correction
Built-in Test Pattern
Detail
Gamma Correction
Binarisation
Built-in Test Pattern
White Balance
Matrix
Detail
Gamma Correction
Binarisation
Built-in Test Pattern
3x3 Filter
Gamma Correction
Binarisation
Built-in Test Pattern
Other Features
• C mount lens
• External trigger
• Binning function (B/W mode only)
• Built-in test pattern
Features
High Resolution Image Capture
Supports Camera Link Standard
Partial Scan Function
Hardware Processing
Compact and Lightweight
Monitor Output
High Resolution Image Capture
Partial Scan Function
The XCL-5005/5005CR incorporates Sony’s
ultra-high 5 megapixel resolution CCD,
offering incredibly detailed images at
15 frames per second. The XCL-U100 and
XCL-U1000/U1000C cameras are equipped
with a 1/1.8 type progressive scan IT CCD
that provides UXGA resolution, which is
ideally suited for a variety of industrial
applications requiring high-quality images
If you select only a specific area of an
image to be scanned, the reduced data
size and increased frame rate will minimize
image processing time. The XCL-U1000/
U1000C features vertical partial scanning,
while the XCL-U100 and XCL-5005/5005CR
support both horizontal partial scanning
and vertical partial scanning to
accelerate users’ inspection tasks.
Please refer to table 1.
Hardware Processing
Supports Camera Link Standard
All cameras in the XCL High Resolution
Series are equipped with the industrystandard digital Camera Link interfaces.
This allows users to quickly capture
high-resolution images thanks to simple
connectivity with machine vision systems.
The XCL-U100 and XCL-5005/5005CR
are PoCL-capable, providing users
with added flexibility when integrating
inspection environments.
Please refer to table 2.
The XCL High Resolution Series cameras
have a number of beneficial real-time
hardware pre-processing functions
such as a 3x3 filter, DTL filter, gammacorrection, and a binarisation mechanism
that can be used to emphasise the edges
of an object or to change the contrast of
an image. These functions provide frame
grabbers with images that are easy to
process, thus minimising the load on the PC.
Please refer to table 3.
Compact and Lightweight,
with Low Power Consumption
(XCL-U100)
The compact size of the XCL-U100 makes
it ideal for space restricted environments.
Plus, its low power consumption can help
to reduce energy costs.
Monitor Output
The XCL-U1000/U1000C has a 15-pin
D-sub connector and the camera can be
connected directly to video monitors with
UXGA resolution.
High Shock and Vibration Tolerance
• Vibration resistance: 10G (20 to 200 Hz)
• Shock resistance: 70G
Specifications
XCL-5005
Image device
Standard picture size (H x V)
XCL-5005CR
XCL-U1000
2,448 x 2,050 pixels (5,018,400 pixels) *
1,600 x 1,200 pixels (1,920,000 pixels)
3.45 x 3.45 µm
4.4 x 4.4 µm
Raw Colour: 8/10/12 bits/pixel
RGB Colour: 24 bits
8/10/12 bits/pixel
Resolution depth
XCL-U100
1/1.8 type Progressive scan IT CCD
Cell size (H x V)
10 bits/pixel
RGB Colour: 24 bits
8/10/12 bits/pixel
C mount
Lens mount
PoCL (Power over Camera Link) /
Standard Camera Link, Base Configuration
Digital interface
Standard Camera Link, Base Configuration
PoCL (Power over
Camera Link)/
Standard Camera Link,
Base Configuration
15 fps
Frame rate
80 MHz (1Tap)/
40 MHz (2 Tap)
80 MHz (1Tap)/
40 MHz (2 Tap, only Raw Colour)
400 lx at F5.6 (0 dB)
2000 lx at F5.6 (0 dB)
400 lx at F5.6 (0 dB)
2000 lx at F8 (0 dB)
400 lx at F5.6 (0 dB)
1 lx (GAIN +18 dB, F1.4)
8 lx (GAIN +18 dB, F1.4)
2 lx or less
4 lx or less
1 lx (GAIN +18 dB, F1.4)
–
Pre-set, Manual,
One Push AWB
–
Pre-set, Manual,
One Push AWB
–
Normal / Partial scan
Normal / Binning / Partial scan
Normal / Partial scan
Normal / Binning / Partial scan
Vertical (1 x 2)
–
Vertical (1 x 2)
–
Vertical/Horizontal
Vertical/Horizontal
Output data clock
Sensitivity
Minimum illumination
XCL-U1000C
2/3 type progressive scan IT CCD
36 MHz (1 Tap)
0 to +18 dB
Gain control
White balance
Readout mode Normal / Binning / Partial scan
Binning
Partial scan
2 to 1/10,000 s
Shutter speed
Vertical (1 x 2)
Vertical
Vertical/Horizontal
1/15 to 1/10,000 s
2 to 1/10,000 s
External trigger shutter (Trigger start / Trigger start and exposure duration)
Shutter mode
DVAL / EXPOSURE / GND output (selectable)
Extended signal output
DVAL / EXPOSURE /
GND output (selectable)
EXPOSURE
DC 12 V
Power requirements
3.8 W
5.5 W
2.2 W
44 x 44 x 57.5 mm
(not including protruding parts)
56 x 44 x 95 mm
(not including protruding parts)
29 x 29 x 30 mm
(not including protruding parts)
250 g (9 oz)
55 g (2 oz)
Power consumption
Dimensions (W x H x D)
130 g (4.6 oz)
Mass
-5 to 45 ˚C (23 to 113 ˚F)
Operating temperature
30 to 60 ˚C (-22 to 140 ˚F)
Storage temperature
Operating humidity
20 to 80 % (no condensation)
Storage humidity
20 to 95 % (no condensation)
10 G (20 to 200 Hz)
Vibration resistance
70 G
Shock resistance
Lens mount cap, Operating instructions
Supplied accessories
* When RAW data is output, depending on the frame grabber, picture size may be reduced to 2,446 (H) x 2,048 (V).
Pin Assignment & Connectors
1. 12-pin connector
XCL-5005/XCL-5005CR,
Pin No. XCL-U1000/XCL-U1000C,
XCL-U100
DC IN (GND)
1
DC IN
2
GND
3
NC
4
GND
5
NC
6
NC
7
GND
8
NC
9
EXPOSURE
10
TRIGGER IN
11
GND
12
2. 6-pin connector
Pin No.
1
2
3
4
5
6
XCL-5005,
XCL-5005CR
TDX
RDX
GND
NC
NC
NC
3. 26-pin connector
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
XCL-5005,
XCL-5005CR
POWER/INNER_
SHIELD (GND)
XCL-U1000,
XCL-U100
XCL-U1000C
INNER_SHIELD
POWER/INNER_
(GND)
SHIELD (GND)
X0- output (signal)
X1- output (signal)
X2- output (signal)
XCLK- output(singnal)
X3- output (signal)
SerTC+ (signal)
SerTFG- (signal)
TRIG- input (signal)
NC
NC
NC
INNER_SHIELD (GND)
Pin No.
14
15
16
17
18
19
20
21
22
23
24
25
26
XCL-5005,
XCL-5005CR
XCL-U1000,
XCL-U100
XCL-U1000C
INNER_SHIELD (GND)
X0+ output (signal)
X1+ output (signal)
X2+ output (signal)
XCLK+ output (signal)
X3+ output (signal)
SerTC- (signal)
SerTFG+ (signal)
TRIG+ input (signal)
NC
NC
NC
POWER/INNER_
INNER_SHIELD
POWER/INNER_
SHIELD (GND)
(GND)
SHIELD (GND)
Dimensions (mm)
XCL-5005/XCL-5005CR
Distributed by
Sigmaringer Str. 121
70567 Stuttgart
Tel.: +49 711 997 996 3
Fax: +49 711 997 996 50
www.maxxvision.com
[email protected]
XCL-U1000/XCL-U1000C
XCL-U100
© 2012 Sony Corporation. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Features and
specifications are subject to change without notice. The values for mass and dimension are approximate. Sony is a registered
trademark of Sony Corporation. Super HAD CCD II is a trademark of Sony Corporation. All other properties are the property of their
Sigmaringer
Str. 121
respective owners.
70567 Stuttgart
PHC_25/10/12
Tel.: +49 711 997 996 3
www.maxxvision.com
www.pro.sony.eu/vision
