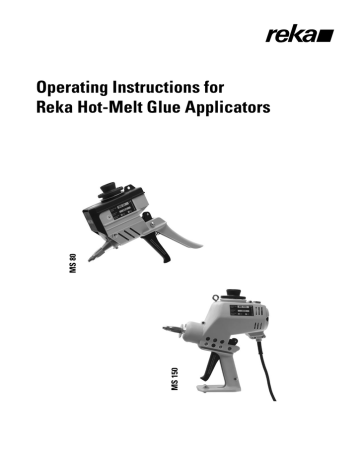

Operating Instructions for

Reka Hot-Melt Glue Applicators

Table of Contents

1. Product Description

2. General Safety Instructions

3. Safety Measures to be taken during Operation

4. Start-up and Control

5. Cleaning and Maintenance

6. Trouble-Shooting

8. Environmental Protection

9. CE Declaration of Conformity

Glue Applicators

Spare Parts | Technical Data | Accessories

10. MS 80

11. MS 150

8

9

10

11

5

6

3

4

14

16

Product Description

Dear customer, the glue applicator you purchased will help you to glue parts together more easily and more rapidly. To ensure an optimum usage of the glue applicator we recommend that you read these instructions thoroughly before using the applicator for the first time.

The type of your applicator can be taken from the nameplate fitted to the side of the casing.

Eggenstein-Leopoldshafen, December 1, 2009

Indended Use

The applicator works with hot glue which is dispensed by a mechanical conveying system. Therefore, this glue applicator should only be used by qualified persons who have been familiarized with the proper use and the safety precautions.

Handling the applicator properly will avoid unnecessary accident hazards and problems.

Bodily injury or material damage caused by not using the glue applicator as intended shall not be the manufacturer‘s, but the user‘s responsibility.

3

4

General Safety Instructions

Care and Diligence of the User

The glue applicator has been designed and fabricated in conformity with the applicable harmonized standards and additional technical specifications. So, it is state of the art and ensures maximum safety. This safety, however, can only be achieved in the operational practice, if all the necessary measures are taken. The user of the equipment shall be obliged to plan these measures and to make sure that they are taken.

Safety Symbols

This operating manual gives concrete safety instructions to alert the user to remaining unavoidable hazards. These hazards imply dangers to

• persons

• product and equipment

Meaning of the Symbols used in the Manual

In particular, the user shall ensure that

This symbol indicates that there is, above all,

danger to persons, but also to equipment and

material.

• the applicator to be used is in good working order

• the personal protective equipment (protective gloves,

safety goggles) required for the operating personnel

is available and used

• the operating instructions are in legible condition and

available to the operator

• only sufficiently qualified and authorized personnel

operates and maintains the applicator

• this personnel is regularly instructed in the applicable

regulations of operational safety and environmental

protection and knows the operating instructions and,

in particular, the included safety instructions.

Caution: hot surface!

Accident Prevention Regulation VBG 125 – W26

Hot surfaces such as machine parts, tanks or

materials, but also hot liquids cannot always be

perceived. The utmost caution is advised when this

symbol is attached to a component. Wear protective

gloves whenever you have to touch hot surfaces.

Making the Information Available

This operating manual shall always be kept at the place of operation of the applicator. Be sure that all persons handling the applicator can consult the instructions at any time. In addition to this operating manual, there must be available instructions regarding legal and other mandatory regulations relating to accident prevention and to relevant requirements of the employers‘ liability insurance association.

Wear protective gloves and safety goggles when-

ever you work with the applicator.

To avoid accidents lay the cables so that they will

not cause any risk of stumbling.

Safety Measures to be taken during Operation

The equipment must only be used by trained, instructed and authorized persons. These persons must have read the operating instructions and be able to work accordingly. Before using the applicator, check it for visible damage and make sure that it is only used when in proper and safe condition. Notify detected defects to your superior immediately.

Safety Instructions for the Operation of the MS 80 and MS 150 Hot-Melt Glue Applicators

Wear protective gloves and safety goggles when-

ever you work with the applicator.

Avoid accidents by stumbling – Lay all cables, hoses

and conducts so that they will not cause any risk of

stumbling. For this, install cable ducts and bridges.

• Only fill the tank up to just under the upper rim.

Never exceed the operating temperature of the

hot-melt. This temperature is indicated in the techni-

cal datasheet of the hot-melt. Overheating may lead

to decomposition which may affect the health of the

user as well as the operability of the applicator.

• Once the applicator has warmed up, nozzle and lid

are very hot.

Never start working before fitting a nozzle first.

• Unplug the connecting cable, before replacing a

nozzle. Warning: risk of burns! When a nozzle is re-

placed, liquid glue might leak out.

Never bring the hot nozzle into contact with the cable.

Never direct the glue jet towards people.

• When your skin got into contact with hot glue, cool it

with cold water immediately. Do not try to remove

the hot-melt from the skin first. If necessary, consult

a doctor. When hot adhesive got into your eyes, im-

mediately cool them under running water for about

15 minutes and consult your doctor at once.

• Always deposit the glue applicator on the stand pro-

vided for this purpose.

• Do not lay the applicator on its side.

Never hold nozzle top upward.

• Do not carry out overhead work.

• Stop using the equipment, if the casing is damaged

due to shock, breakage or heavy wear.

• Do not feed solvents or paraffin. Risk of explosion!

5

6

Start-up and Control

Avoid accidents by stumbling – Lay all cables, hoses

and conducts so that they will not cause any risk of

stumbling. For this, install cable ducts and bridges.

Glue Applicator MS 80

The MS 80 glue applicator is factory-set to 190 °C. The temperature is infinitely adjustable at the rear side of the instrument, using a screw driver. The right-end stop is the maximum temperature of 200 °C.

Glue Applicator MS 150

Wear protective gloves and safety goggles when-

ever you work with the applicator.

Never direct the glue jet towards people!

Never lay the hot-melt applicator on its side.

Do not hold the nozzle top upward.

Do not carry out overhead work.

Do not start working, before fitting a nozzle first.

Only open the lid when the applicator has warmed up.

Do not overcharge the applicator; only fill it just

under the rim.

Stop using the equipment, if the casing is damaged

due to shock, breakage or heavy wear.

The temperature of the MS 150 glue applicator may be infinitely set up to 200 °C. For this, set the rotary button to the requested position:

4 = ~ approx. 70°C 10 = ~ approx. 160°C

6 = ~ approx. 100°C 12 = ~ approx. 190°C

Minor leaking out of the nozzle during the heat-up period is caused by the hot-melt expanding in the nozzle/heating chamber.

Loading Hot-Melt

• The MS 80/150 glue applicators must only be used

to dispense non-reactive hot-melts. Never feed

other materials. The hot-melt glue applicator is

capable of working with all non-reactive hot-melt

types which are designed for working temperatures

of up to max. 200 °C.

lower rim of the feeding opening.

• Shut the lid and allow the applicator to melt the glue.

• After the end of the heat-up period (approx. 10 min.),

open the lid and load granulate up to just under the

The glue applicator must only be used/applied for its intended purpose. Please read the chapter „General

Safety Instructions“. If it is not used as intended, this may cause bodily injuries or equipment damages. Disregard of the safety instructions for the use of the applicator may lead to serious burns.

Applying Hot-Melt Replacement of Nozzles

Wear protective gloves and safety goggles when-

ever you work with the applicator.

Never start working before fitting a nozzle first.

Never direct the glue jet towards people!

Do not start working before the glue has molten.

Badly molten glue is thick and it needs a lot of force

to press it off the applicator. Doing so would damage

the applicator.

Always deposit the glue applicator on the wire stand

provided for this purpose.

The glue applicator must not be laid on its side.

Do not open the lid before the applicator has

warmed up.

Warning: risk of burns!

When your skin got into contact with hot glue, cool

it with cold water immediately. Do not try to remove

the hot-melt from the skin first. If necessary, consult

a doctor. When hot adhesive got into your eyes, im-

mediately cool them under running water for about

15 minutes. Consult your doctor at once!

For your own safety wear protective gloves and

safety goggles when you replace nozzles.

Always unplug the applicator before replacing a

nozzle!

When your skin got into contact with hot glue, cool it

with cold water immediately. Do not try to remove the

hot-melt from the skin first. If necessary, consult a

doctor. When hot adhesive got into your eyes, im-

mediately cool them under running water for about

15 minutes. Consult your doctor at once!

Only replace nozzles when the glue applicator is warm

(instrument temperature 60 – 80 °C) and empty. Replacing a nozzle when the applicator is cold may damage the equipment. Replacing the nozzle when the applicator is too hot, causes liquid glue to flow out. The melting range as well as the melting point of the used glue may be taken from the technical datasheet of the respective glue.

Make yourself familiar with applicator first. Apply a little glue in varying forms on a piece of paper or cardboard; for example dots and beads. Always keep the working temperature of the specific hot-melt glue. This temperature is indicated in the technical datasheet of the hot-melt glue.

The quantity to be applied is determined by pressing the trigger: the longer you press, the more glue flows out.

7

8

Cleaning and Maintenance

Never fill soiled glue into the melting tank. If you observe all advices given in the operating manual, the glue applicator does, normally, not need cleaning. The nonreactive glue contained in the applicator will remelt and can be used for gluing again.

The working temperature of the respective glue may be taken from the technical datasheet which can be procured from the producer of the glue. This temperature must not be exceeded, otherwise the glue may coke in the glue applicator. Hot-melts on a polyamide basis are particularly sensitive. If the glue has coked, the applicator with should be cleaned with REKA cleaning liquid (article 3519).

Never clean the applicator with solvent, benzine, benzene, toluene, acetone, turpentine, etc. risk of explosion!

If the applicator is used very often, we recommend to have it maintained regularly. For this, fix a date with our service department.

Trouble-Shooting

List of possible fault indications and assistance in trouble-shooting

In case of damage, send the glue applicator to Reka, indicating type and serial no. of your applicator. We shall not be responsible for any repair made by yourselves.

Fault Possible cause / operating error Measures to be taken

No or too little glue comes off though the heat-up time has been kept exactly

• Clogged nozzle

• Temperature too low

• Unscrew the nozzle, clean or replace it

• Check the temperature

The glue is too fluid or too thick

• Applicator temperature too high or too low

• Check the temperature

Glue leaks out of nozzle

• Clogged nozzle • Unscrew the nozzle, clean it carefully or replace it. Unscrew the nozzle at operating temperature; wear gloves (risk of burns)

The applicator does not heat up

• The applicator is switched off • Is the applicator properly connected to power?

9

10

Environmental Protection

Never throw electric tools in the domestic waste. According to the European directive 2002/96/EC for used electric and electronic devices and according to national regulations, used electric tools must be collected separately and treated in an environmentally compatible way for re-use.

Reka packing material can be recycled completely.

Please take instructions for the disposal of hot-melt glues and hot-melt cartridges from the respective safety datasheet.

Additional Information

Do you have any more questions or requests? We should be glad to help you.

Please contact us by

Phone +49 (0)721/970780

Telefax +49 (0)721/705069

E-mail: [email protected]

Our mailing address is:

Reka Klebetechnik GmbH & Co. KG

Siemensstr. 6

D-76344 Eggenstein

Internet: http://www.reka-klebetechnik.de

CE Declaration of Confirmity

Product:

Types:

Hot-Melt Glue Applicators

MS 80

MS 150

This is to certify that the above applicators in the design marketed by us are in conformity with the following EC directives:

until 15-01-2007:73/23/EEC, from 16-01-2007: 2006/95 EC until 19-07-2009: 91/368 EEC, from 20-09-2009: 2004/108 EC until 28-12-2009: 89/336 EEC, from 29-12-2009: 2006/42 EC

2002/95/EC

The following standards have been applied:

IEC CISPR14

IEC 60335

IEC 60204

IEC 61000

This declaration of conformity shall get invalid, if the product is

• modified, extended, or otherwise changed without express approval of Reka Klebetechnik

• and/or other components than accessories of Reka Klebetechnik are fitted,

• and if the product is not connected or used as intended.

Eggenstein, September 1, 2009

Christa Armbruster

Management Purchasing and Production

11

14

Legend for Glue Applicator MS 80 – Art. 5551 (230 V), 5560 (120 V)

Item Article

7

8

5

6

9

3

4

1

2

3859 Casing cpl.

3861 Cap

3911

Nozzle No. 2

3759

Exit piece

3762

3939

3885

3882

Piston cpl.

Trigger cpl.

Lid cpl.

Stand

3783 Cord for 230 V

3886 Cord with UL-Plug for 120 V

Technical Specifications

Denomination

Article number

Weight

Power supply

Power consumption

Current consumption

Degree of protection

Class of protection

Temperature control

Temperature limitation

Temperature constancy

Operating temperature

Tank capacity

Conveying system

Length of electric cable

Recommended melts

Item Article

10

11

12

3858

3791

3827

Bend protection

O-ring 20x2,5

O-ring 28x3,5

MS 80

5551 (230 V), 5560 (120 V)

750g

230 V / 50 Hz, 120 V / 60 Hz

200 Watt

0,9 A l

IP 30

Thermostat

20-200 °C

+- 5 °C

10 min.

150 ml

Mechanics

1,8 m

Hot-melt granulate and pillows

Accessories (optional)

Balancer art. 3544 Download our full nozzle range at www.nozzles.reka-klebetechnik.de

More accessoiries like cleaning liquid or a funnel can be found at www.reka-klebtechnik.de

15

16

Legend for Glue Applicator MS 150 – Art. 5552 (230 V), 5557 (120 V)

Item Article

7

8

5

6

3

4

1

2

9

10

11

3751 Casing left

3752 Casing right

3911

Nozzle No. 2

3759

Exit piece

3762

Piston cpl.

3764 Trigger cpl.

3766 Lid kpl.

3771 Connector plate cpl.

3776 Washer

3889 Thermostat

3781 Indicator lamp for 230 V

3782 Indicator lamp for 120 V

Technical Specifications

Denomination

Article number

Weight

Power supply

Power consumption

Current consumption

Degree of protection

Class of protection

Temperature control

Temperature limitation

Temperature constancy

Operating temperature

Tank capacity

Conveying system

Length of electric cable

Recommended melts

Item Article

12

13

14

15

16

3783

3886

3785

3959

3791

3805

Cord for 230 V

Cord with UL-Plug for 120 V

Bend protection

Adjusting knob

O-ring 20x2,5

O-ring 32x3,5

MS 150

5552 (230 V), 5557 (120 V)

1200g

230 V / 50 Hz, 120 V / 60 Hz

200 Watt

0,9 A l

IP 30

Thermostat

20-200 °C

+- 5 °C

10 min.

220 ml

Mechanics

1,8 m

Hot-melt granulate and pillows

Accessories (optional)

Balancer art. 3544 Download our full nozzle range at www.nozzles.reka-klebetechnik.de

More accessoiries like cleaning liquid or a funnel can be found at www.reka-klebtechnik.de

17

Händler / Dealer

Reka Klebetechnik GmbH & Co. KG

Siemensstraße 6 D-76344 Eggenstein

Telefon +49 (0)721/970780

Telefax +49 (0)721/705069

E-Mail: [email protected]

Internet: http://www.reka-klebetechnik.de

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
