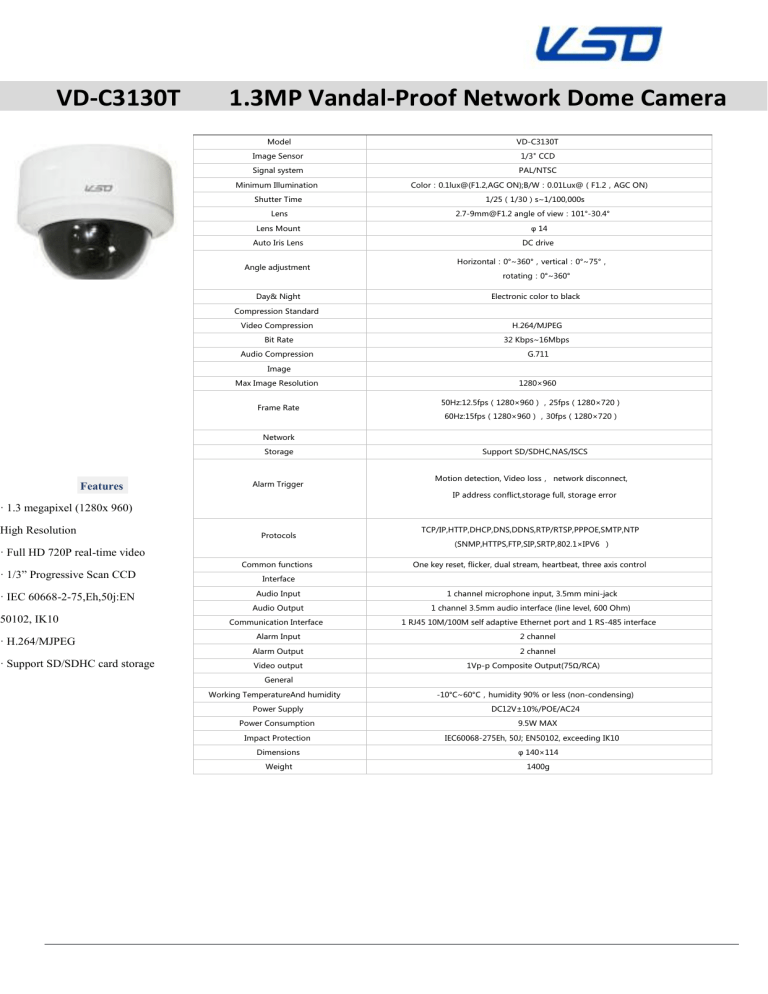

VD-C3130T 1.3MP Vandal-Proof Network Dome Camera

VD-C3130T 1.3MP Vandal-Proof Network Dome Camera
VD-C3130T
1.3MP Vandal-Proof Network Dome Camera
Model
1/3" CCD
Signal system
PAL/NTSC
Minimum Illumination
Shutter Time
Lens
Color:[email protected](F1.2,AGC ON);B/W:[email protected](F1.2,AGC ON)
1/25(1/30)s~1/100,000s
[email protected] angle of view:101°-30.4°
Lens Mount
φ 14
Auto Iris Lens
DC drive
Angle adjustment
Day& Night
1/3”
VD-C3130T
Image Sensor
Horizontal:0°~360°,vertical:0°~75°,
rotating:0°~360°
Electronic color to black
Compression Standard
CMOS
DS-2
CD2
212-
Video Compression
H.264/MJPEG
Bit Rate
32 Kbps~16Mbps
Audio Compression
G.711
Max Image Resolution
Frame Rate
1280×960
50Hz:12.5fps(1280×960),25fps(1280×720)
60Hz:15fps(1280×960),30fps(1280×720)
Network
Storage
1.3 Features
Alarm Trigger
Support SD/SDHC,NAS/ISCS
Motion detection, Video loss, network disconnect,
IP address conflict,storage full, storage error
·1.3 megapixel (1280x 960)
High Resolution
Protocols
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPOE,SMTP,NTP
(SNMP,HTTPS,FTP,SIP,SRTP,802.1×IPV6 )
·Full HD 720P real-time video
· 1/3” Progressive Scan CCD
·IEC 60668-2-75,Eh,50j:EN
50102, IK10
·H.264/MJPEG
·Support SD/SDHC card storage
Common functions
One key reset, flicker, dual stream, heartbeat, three axis control
Interface
Audio Input
1 channel microphone input, 3.5mm mini-jack
Audio Output
1 channel 3.5mm audio interface (line level, 600 Ohm)
Communication Interface
1 RJ45 10M/100M self adaptive Ethernet port and 1 RS-485 interface
Alarm Input
Alarm Output
Video output
2 channel
2 channel
1Vp-p Composite Output(75Ω/RCA)
General
Working TemperatureAnd humidity
Megapixel
Power Supply
Power Consumption
Impact Protection
-10°C~60°C,humidity 90% or less (non-condensing)
DC12V±10%/POE/AC24
9.5W MAX
IEC60068-275Eh, 50J; EN50102, exceeding IK10
Dimensions
φ 140×114
Weight
1400g
