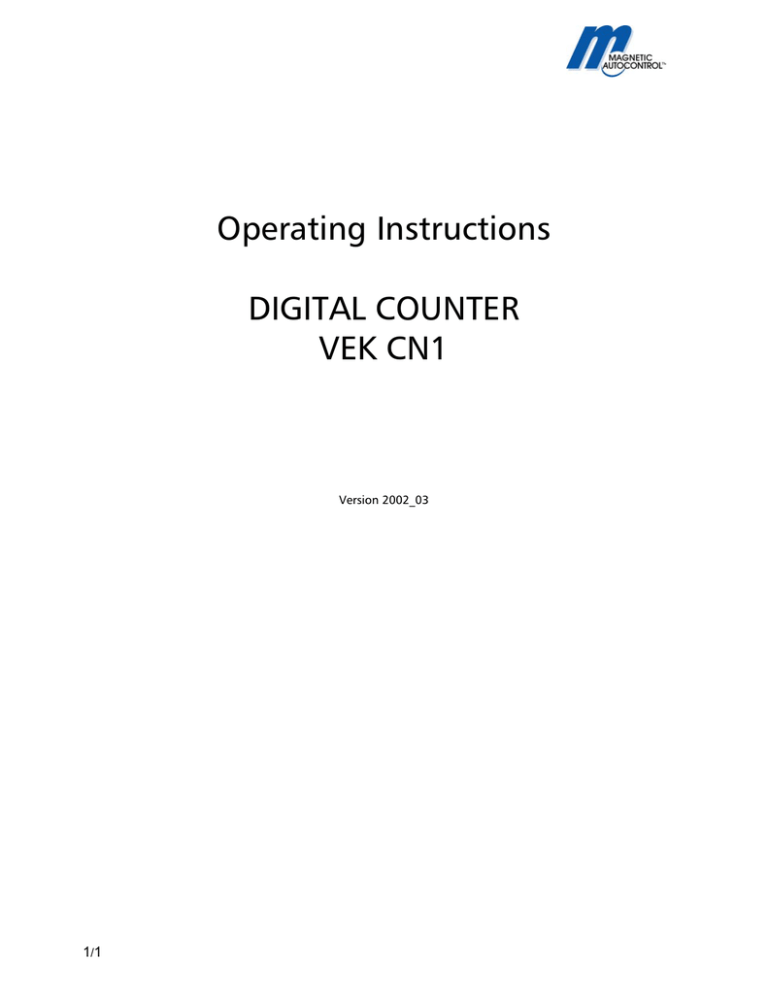

Operating Instructions

DIGITAL COUNTER

VEK CN1

Version 2002_03

1

/

1

NOTE:

COPYRIGHT

2001 Magnetic Automation Corp.

All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any longuage in any form by any means without the written permission of

Magnetic Automation Corp.

First Printing: 2001

The manufacturer reserves the right to modify, without prior notice, the technical specifications in order to accommodate the latest technical developments. Magnetic Automation Corp. will provide information on the status of existing operating instructions and on any alterations and extensions that may be relevant.

Please read these operation instructions prior to installing the equipment.

Table of Contents

1 Functional Description_________________________________________________________ 4

1.1

General __________________________________________________________________________ 4

1.2

Display and Setup_________________________________________________________________ 5

1.2.1

User interface buttons __________________________________________________________________5

1.2.2

Power Failure __________________________________________________________________________5

1.2.3

Display during normal operation _________________________________________________________5

1.3

Base menu – Setting the operating modes__________________________________________ 6

1.3.1

Modify/Correct current count ____________________________________________________________6

1.3.2

Set Relay Output manually to “Free” or “Occupied”_________________________________________6

1.3.3

Display and Counter reset _______________________________________________________________7

1.3.4

Reset all counters_______________________________________________________________________7

1.4

System menu – Installation specific Settings ________________________________________ 8

1.4.1

Operating Modes/ Switching point _______________________________________________________9

1.4.2

Count Hysteresis________________________________________________________________________9

1.4.3

Upper Count Level and lower Count Level ________________________________________________10

1.4.4

Display / Input settings _________________________________________________________________11

1.4.5

Output settings _______________________________________________________________________11

1.4.6

Power Save Mode _____________________________________________________________________12

1.4.7

Setting the Serial Interface (optional) ____________________________________________________12

1.5

Factory Default __________________________________________________________________ 12

2 Installation Instructions_______________________________________________________ 13

2.1

Input voltage ____________________________________________________________________ 13

2.2

Reset Input (optional) ____________________________________________________________ 14

3 Technical Data _______________________________________________________________ 15

3

/

3

1 Functional Description

1.1 General

4-pin plug for counting inputs

0V 24V C

V

M

V

VEK CN1

Optional 4-pin plug for RS485-Interface

The digital counter VEK CN1 is designed to control small to medium car-parks. Four (4) counting inputs are used to accept outputs from loop detectors and/or traffic gate controllers. The counting inputs increment or decrement the count and is displayed on the 4-digit display. The output relay is used to turn on/off traffic signs or lot full signs. Available Open space counter and count hysteresis are adjustable. The output relay can be used to directly control a traffic light or a lot full sign.

Characteristics

Digital counter is specifically developed for small to medium car-parks.

• Vehicle count and open space count.

4-digit display

• Totalize counter -999 bis 9999

4 noise immunity inputs, each function + / - Reset individually adjustable

• 1 Reset input (optional)

1 Relay output 250V, 5A for Traffic lights and Lot Full signs (or others).

• Output is adjustable for automatic, permanent free, permanent occupied.

Relay is adjustable to Normally Open or Normally closed mode.

• LED to display relay status.

4 independent input counters up to 9,999,999 for statistical use independently displayed.

• Available Open space counter and count hysteresis are adjustable.

Upper and lower counter threshold is adjustable.

• 3 push buttons for user interface.

Power Supply: 12..24V DC oder AC

• No loss of current data storage in case of power failure.

Alarm display when power is/was lost.

• Optional RS485-Interface for data polling, setup or direct communication with a traffic sign.

Compact Plastic housing 0.88” (22,5mm) x 3.15” (80mm) x 3.35” (85mm), with DIN-Rail mount.

1.2 Display and Setup

1.2.1 User interface buttons

The VEK CN1 digital counter is adjusted with the three (3) user interface buttons located on top of the unit. The display shows the current menu and status of the setup. The buttons have following functionality:

Button Function

M

Short Next Menu, next digit, Cancel settings.

(Mode) Long

Short

(UP)

Long

Short

(DOWN) Long

Activate System menu, Save changes, exit menu.

Display value increments + 1

Display value fast increments

Display value increments – 1

Display value fast decrements

Two simultaneously Cancel changes, back to operating mode.

The menu is divided in base menu and system menu. During setup the flashing display signalizes that the settings aren’t saved yet. If the unit was idle for 30sec. the unit goes back to normal operating mode without saving the changes.

1.2.2 Power Failure

During loss of power the current count values and setup are saved. When the power returns the unit goes back in normal operating mode but signalizes with the flashing display that there was a loss of power and the open space count must be checked and if necessary updated.

Display Status Setting

1234

Flashing

Return after loss of power

or

M

Update open space count

Confirm existing count is correct.

1.2.3 Display during normal operation

In normal operating mode you can have the display show either how many vehicles entered the car-park or how many open spaces are left (see 1.4.1Operating Mode/Switching point). The relay status is displayed with the

LED-Light. The input status are displayed with 4 dots. Special statuses are directly displayed.

Display

Number, for example

1234

Status

Normal operation, Current count

Current count, Output manually set to “occupied”

Number

/

occu

alternating display

Number

/

FrEE

alternating display

0000

Dots

LED on/off

Display off if unit was idle for

30sec.

Current count, Output manually set to “free”.

Reset Input active (Optional)

Input Status, left to right 1,2,3,4

Output relay status: activated = on/deactivated = off

Power save mode

Note:

1. If one of the four (4) input counter display is activated the display will not switch back to normal operating display by itself.

2. If the Power save mode is activated the display will turn off when the unit was idle for more than 30 sec. By pressing the M-Button the display can be turned on again (see 1.4.6 Power Save Mode)

5

/

5

1.3 Base menu – Setting the operating modes

The base menu contains all settings for the different operating modes. The existing counts can be displayed, modified and reset to original stage. The relay output can manually be set to “FREE” or “OCCUPIED”.

Display

1234

Ouk

Cnk1

Cnk2

Cnk3

Cnk4

rES

Menu Setting

Normal Operation, Current Count

Relay output manually

M Short

next, next menu item

Input 1

Input 2

Input 3

Input 4

Reset all Counters

Two buttons simultaneously or

M long →

End

= back to normal operation

or

∨ →

change

M long

save

1.3.1 Modify/Correct current count

Display

1234

1234

One digit flashing

Status Setting

Normal Operation ∧

or

∨ →

First digit flashing

modify counter

Modify Counter ∧

or

∨ →

Digit + / - 1

or

1 sec.

Fast scroll

∧ or

M

∨ 3 sec.

M short long

→ 10’s → 100’s →

Skor

= saved

1000’s

→ 100’s → 10’s → 1’s → Cancel

1.3.2 Set Relay Output manually to “Free” or “Occupied”

If for any reasons the relay output needs to be disabled the output can manually be set to maintain either the always “FREE” or always “OCCUPIED” status.

Display

1234

Ouk

Auko

occu

FrEE

Alternating

Auko occu

FrEE

blinkend

Status Setting

Normal Operation

Output Status Display

Automatic

Occupied

• Free

M 1 x short

M short

M long

or

Selected Output status

M short

M Long

Ouk

= Output status display

next, next menu item

Cancel changes

End

= back to normal operation

Select output status

FrEE

Auko

occu occu

Skor

Auko

FrEE

= Output status saved

1.3.3 Display and Counter reset

The Inputs can individually count to up to 9,999,999 and can individually be displayed or if necessary reset to zero.

Display

1234

Status Setting

Normal Operation

M 2 x short

Cnk1

= Input counter 1

:

M 5 x short →

Cnk4

= Input counter 4

Cnk1 ...4

1234

Alternating

Display current count

0...9999

Cnk1 ...4

1234 .

.456

Continuously

Display Input count

10.000...9.999.999

0

flashing

Reset

M short

next, next menu

Current Input count

→ Start the input counter reset

M long

M short

Skor

= Reset Input counter

Cancel reset

Note:

1. The open space or quantity of passed vehicles count will not be effected during reset of any of the input counts!

3. If one of the four (4) input counter display is activated the display will not switch back to normal operating display by itself.

1.3.4 Reset all counters

The open space and passed vehicle counter as well as the four (4) input counters can be reset at ones using following menu:

Display Status Setting

1234

rES

Normal Operation

Reset Menu

M 6 x short →

rES

= Reset menu

M long

M short

reset all counters

→ back to normal operation without reset.

The output relay setting manually “FREE” and manually “OCCUPIED” is not effected by this reset.

7

/

7

1.4 System menu – Installation specific Settings

In the system menu all installation specific settings can be made.

Display

1234

Menu Item

Normal Operation

Setting

M long

Display

SYS

= System menu example A02

Alternating shows program version; for

Switch threshold

0...9999

S oc

1234

Alternating

HYS

1234

Alternating

SkP~

1234

Alternating

Count hysteresis

1...250

Upper Count threshold

0...9999

M short

next menu item

Lower Count threshold

0...-999

or

∨ →

change

M long

save

SkP_

-123

Alternating

inP1 ...4

Alternating

Add

Sub

rEs

no.F rEL

Alternating

oc.on

Fr.on

LoPo

Alternating

off

on

Pork

Input functions

Increment count

• Decrement count

Reset count

• No function

Output function

Normally closed

• Normally open

Power Save Mode

• off (Display an) an (Display aus)

Serial Interface

Two buttons simultaneously

M long

End

= back in normal operation

1.4.1 Operating Modes/ Switching point

The digital counter can be set to Operating Mode “OPEN SPACE COUNT” or " PASSING VEHICLE COUNT“ .

The two options can be selected by setting the Count threshold to:

Threshold = 0 (Default)

Threshold = 1 = 1..9999

Mode “OPEN SPACE COUNT” see 1.4.1.1

→ Mode " PASSING VEHICLE COUNT“ see 1.4.1.2

Display

1234

S oc

1234

Alternating

Status Setting

Normal Operation

Display

Count Threshold

M long

M short

M long

∧ or ∨

SµS

S oc

= Threshold

→ next, next Menu item

End

= back to normal operation

→ Change Threshold

1234

one digit flashes

Change Threshold

0...9999

∧ or ∨ → Digit + / - 1

or

1 sec.

Fast scroll

∧ or

M

∨ 3 sec.

M short long

→ 10’s → 100’s

Skor

= save

→ 1000’s

100’s

10’s

1’s

Cancel

1.4.1.1 Operating Mode “OPEN SPACE COUNT“

The “OPEN SPACE COUNT” is preferably used when the control audit count of the parking spaces is done when the car-park is full so less open spaces has to be counted. Vehicles leaving the car-park will increment the count

(Input 1) and vehicles entering the facility will decrement the count (Input 2). The counter will activate the output relay whenever the open space count is equal or less than “0”. The output relay will be released as soon the count reached the adjusted count hysteresis.

1.4.1.2 Operating Mode „PASSING VEHICLE COUNT“

The “PASSING VEHICLE COUNT” is preferably used when the control audit count of the parking spaces is done when the car-park is empty so less occupied parking spaces must be counted. Vehicles entering the car-park will increment the count (Input 1) and vehicles leaving the facility will decrement the count (Input 2). The counter will activate the output relay whenever the vehicle count reaches or is higher than the adjusted maximum. The output relay will be released as soon the count reaches or is lower than the adjusted lower count hysteresis.

1.4.2 Count Hysteresis

With the count hysteresis you can set the amount of vehicles that have to leave the facility after the “OPEN

SPACE COUNT” or the “PASSING VEHICLE COUNT” have reached the maximum and triggered the output relay.

Factory default is 1.

Display

1234

Status Setting

Normal Operation

M long →

SµS

S oc

M 1 x short →

HµS

= Count hysteresis

HYS

1234

Alternating

Display

Count hysteresis

M short

M long

Or

next, next menu item

End

= return to normal operation

Change Count hysteresis

1234

One flashing digit

Change Count hysteresis

1...9999

Or

∨ →

digit + / - 1

∧ Or ∨ 1 sec. → fast scroll

Or

3 sec.

M short

10’s

100’s

1000’s

100’s

10’s

1’s

cancel

M long

Skor

= save

9

/

9

1.4.3 Upper Count Level and lower Count Level

The maximum and minimum range of the total count can be adjusted using this menu. This enables the counter to automatically adjust the total in case the maximum or minimum level is reached to prevent a wrongful count to continue. The default is 9999 for the upper and –999 for the lover level.

Display

1234

Status Setting

Normal Operation

SkP~ /_

1234

Alternating

Display

Count level

M long

SµS

S oc

M 2 x short

SkP~

= upper level 0...9999

M short →

SkP_

= lover level –999...0

M short

M long

Or

next, next menu item

End

= return to normal operation

Change count level

1234

One flashing digit

Change Count Level

0...9999

∧ Or ∨ → Digit + / - 1

Or

1 sec.

fast scroll

Or

3 sec.

M short

10’s

100’s

1000’s

100’s

10’s

1’s

Cancel

M long

Skor

= save

1.4.4 Display / Input settings

Independent from each other the inputs can be set to:

Incrementing

Decrementing,

Reset Count

No function

Display

1234

Status Setting

Normal Operation

M long

SµS

S oc

M 4 x short

InP1

= Function Input 1

inP1 ...4

Alternating

Add

Sub

rEs

no.F

Display Input function

1 to 4

• Incrementing

Decrementing

• Reset count

No function

M short

M long

Or

next Input, next menu item

End

= return to normal operation

Change function

Add

Sub

rEs

no.F

Flashing

Change Function

M short

M long

no.F

rEs

Sub

Add

→ Cancel

Add

Skor

Sub

= save

rEs

no.F

Factory default is Incrementing for Input 1 and 3 and decrementing for Input 2 and 4.

1.4.5 Output settings

The output relay can be adjusted to Normally Open (NO) or Normally Closed (NC):

Display Status Setting

1234 Normal operation

M Short →

SµS

S oc

M 8 x short →

rEL

= Relay function

rEL

Alternating

Fr.on

oc.on

Fr.on

oc.on

Flashing

Display Relay function

If free NC

• If full NC

Change relay function

M short

M long

Or

M short

M long

next , next Menu item

End

= return to normal operation

Change function

Fr.on

oc.on oc.on

Cancel

Fr.on

Skor

= save

Factory default is Normally Open mode for the output relay.

11

/

11

1.4.6 Power Save Mode

If the Power Save Mode is activated the display turns if there was no activity on the user interface for more then

30sec. The count function continuous to run in the background. The Power Save Mode can be adjusted using following menu:

Display

1234

LoPo

Alternating

Off

On

Off

On

Flashing

Status Setting

Normal Operation

Display Power Save

Mode

• OFF (Display On)

ON (Display Off)

Change Function

M long

M short

M long

SµS

S oc

M 9 x short

LoPo

= Power Save Mode

M short

M long

Or

→ next, next menu item

Change Function

End

= return to normal operation

off

on

Cancel

on

Skor

off

= Save

1.4.7 Setting the Serial Interface (optional)

Currently not available.

1.5 Factory Default

All parameter and counter can be reset to factory default using following procedure:

Display Status Setting

Turn off power to the unit for longer then 2 seconds.

1234

Flashing

Err

Flashing

Return after power failure

System error

Press two buttons simultaneously →

M long

M short settings

Err

Skor

= Reset to factory default

0000

flashing = factory default

→ Cancel, Restart without factory default

After the reset to factory default all parameters are set to the following (see table below) and all counters are set to zero (0).

Parameter Setting

Ouk

Relay output

Auko

Automatic

S oc

Switch Point

HyS

Count hysteresis

0

1

SkP¯

Upper count level

9999

SkP_

Lower count level

-999

0 = Open Space Count one vehicle

9999

-999

InP1

Function Input 1

InP2

Function Input 2

InP3

Function Input 3

InP4

Function Input 4

rEL

Output functionality

Add

Sub

Add

Sub

LoPo

Power Save Mode

oFF

incrementing decrementing incrementing decrementing

oc.on

Normally Open Mode aus, Anzeige immer aktiv

J2

2 Installation Instructions

2.1 Input voltage

All inputs are provided with Opto couplers. To activate the inputs you can either use the internal switching voltage or use an external supply. When using an external supply you must first change the internal jumper setting of the control board. To do so carefully open the controller housing and set the jumper J2 in accordance with the drawing and table below.

Attention! The control board consists of electrostatic sensitive components. If working on the control boards please use electrostatic save measurements to prevent any damage to the components. Do not touch the board or any of the components! alternativ alternativ either

5 mA at 12V,

10mA at 24V

C R,I1..I4

12..24V DC

C R,I1..I4

J2

Internal supply is does not use the

Opto couplers.

Power Supply

12..24V DC

12..24V AC

12..24V AC oder DC

Input power

Internal

Jumper J2 to the left

External supply uses the

Opto couplers.

Attention

ONLY ONE POWER SUPPLY FOR ALL COUNTERS

DO NOT CONNECT TERMINAL „C“. THE INPUTS ARE

CONNECTED TO GROUND (0V).

• DO NOT CONNECT MULTIPLE COUNTERS IN PARALLEL! Internal

Jumper J2 to the left

External 12..24V DC

Jumper J2 to the right

USE ONLY ONE EXTERNAL POWER SUPPLY FOR ALL

INPUTS!

13

/

13

2.2 Reset Input (optional)

Using one of the inputs as count reset input all counts can be reset to 0 when a signal is applied. According to the relay output setting the relay switches to “OPEN” or “OCCUPIED”. The reset does not effect the adjusted parameters.

3 Technical Data

Measurements

Protection Class

Power Supply

Power Consumption

3” (79mm) x3/4” (22,5mm) x3.50” (90 mm) (HxWxL without Plug)

IP 40

12V to 24V AC/DC max. 2 W

4 Inputs

Minimum

Input current input time 50ms

5mA at 12V

±

10%

Operating Temperature

Storage Temperature

-20 °C to +70 °C

-40 °C to +70 °C

Humidity max.

Total

Per count input up to 9.999.9999

Inputs

Relay

Isolation

Max. Current Rating

0,25W

Form

Basisisolierung für 230V, Sicherheits- und Warnhinweise beachten!

AC: 250V / 4A / 125VA

DC: 220V / 2A / 60W

/ / none, must be external Fuse

15

/

15

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
