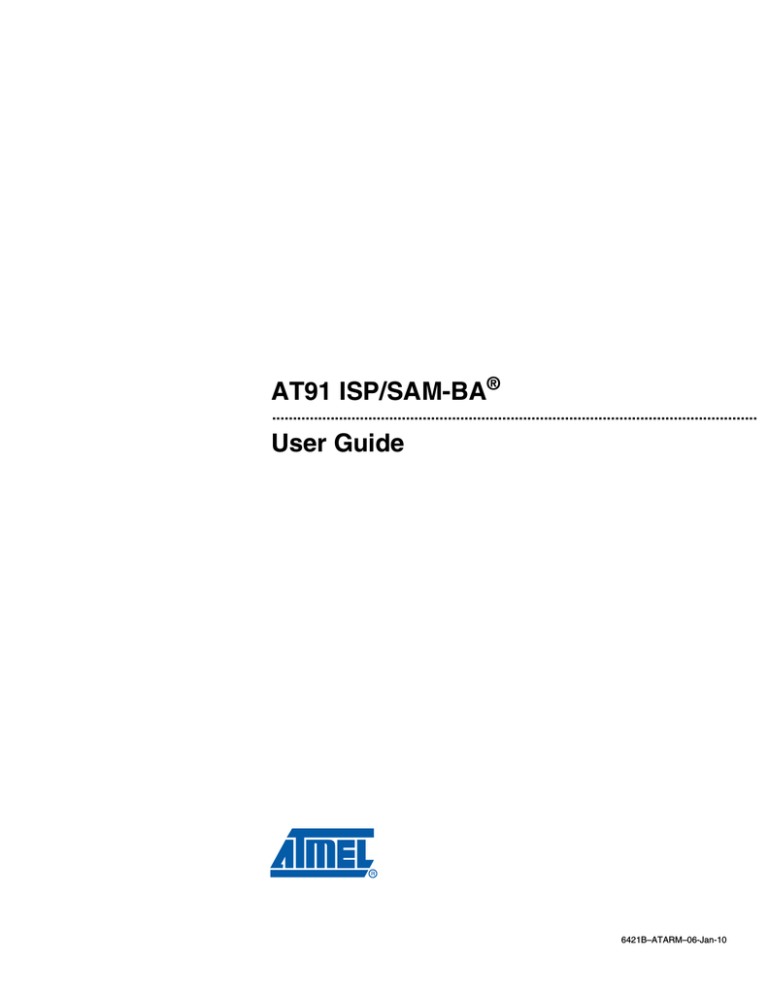

AT91 ISP/SAM-BA®
....................................................................................................................
User Guide
6421B–ATARM–06-Jan-10
2-2
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
Table of Contents
Section 1
Overview .................................................................................................................... 1-1
1.1
Scope................................................................................................................................. 1-1
1.2
Key Features of the SAM-BA Software.............................................................................. 1-1
Section 2
Running SAM-BA ....................................................................................................... 2-1
2.1
Overview ............................................................................................................................ 2-1
2.2
Running SAM-BA............................................................................................................... 2-1
2.3
SAM-BA GUI...................................................................................................................... 2-2
2.3.1
Board Connection ................................................................................................ 2-2
2.3.2
Memory Display Area .......................................................................................... 2-3
2.3.3
Memory Download Area ...................................................................................... 2-4
2.3.4
TCL Shell Area .................................................................................................... 2-6
2.3.5
Disconnect ........................................................................................................... 2-8
2.4
Running SAM-BA Using the Command Line ..................................................................... 2-9
2.5
Creating a Script .............................................................................................................. 2-10
2.5.1
Rapid Script Generation .................................................................................... 2-10
2.5.2
SAM-BA Open Scripting Environment ............................................................... 2-10
Section 3
AT91 ISP Architecture................................................................................................ 3-1
3.1
Overview ............................................................................................................................ 3-1
3.2
DLL Prerequisites .............................................................................................................. 3-2
3.3
AT91 ISP Installation ......................................................................................................... 3-2
3.4
Contents............................................................................................................................. 3-2
3.5
3.4.1
DLL Registration .................................................................................................. 3-3
3.4.2
Updating JLink/SAM-ICE Software...................................................................... 3-3
Communicating with AT91SAM Devices ........................................................................... 3-4
3.5.1
Communication Links .......................................................................................... 3-4
3.5.2
Starting Communication ...................................................................................... 3-4
3.6
TCL Scripting Language .................................................................................................... 3-5
3.7
AT91Boot_DLL Interface ................................................................................................... 3-6
AT91 ISP/SAM-BA User Guide
3.7.1
Low-level Functions ............................................................................................. 3-6
3.7.2
Internal Flash Programming Functions.............................................................. 3-18
3.7.3
Using AT91Boot_DLL with MFC........................................................................ 3-19
3.7.4
Using AT91Boot_DLL without MFC................................................................... 3-20
i
6421B–ATARM–06-Jan-10
Table of Contents (Continued)
3.8
AT91Boot_TCL Interface ................................................................................................. 3-21
3.9
SAM-BA TCL Interface .................................................................................................... 3-24
Section 4
SAM-BA Customization.............................................................................................. 4-1
4.1
Overview ............................................................................................................................ 4-1
4.2
Adding a New Board .......................................................................................................... 4-1
4.3
4.2.1
Adding a Board Entry .......................................................................................... 4-1
4.2.2
Board Description File ......................................................................................... 4-3
Extending SAM-BA Programming Capabilities .................................................................. 4-5
4.3.1
Memory Access Using Dedicated Applet............................................................. 4-5
Section 5
Revision History ......................................................................................................... 5-1
5.1
ii
6421B–ATARM–06-Jan-10
Revision History Table ....................................................................................................... 5-1
AT91 ISP/SAM-BA User Guide
Section 1
Overview
1.1
Scope
The AT91 In-system Programmer (ISP) provides an open set of tools for programming Atmel® AT91SAM
ARM® Thumb®-based microcontrollers. They are based on a common dynamic linked library (DLL), the
AT91Boot_DLL. It is used by SAM-BA®, SAM-PROG and all ISP tools.
The SAM Boot Assistant (SAM-BA) software provides a means of easily programming different Atmel
AT91SAM devices.
SAM-BA now uses AT91Boot_DLL.dll to communicate with the target.
This document describes how to extend SAM-BA capabilities to program any kind of memory and provides a helpful guide to installing and using the AT91 ISP.
1.2
Key Features of the SAM-BA Software
„
Performs in-system programming through JTAG, RS232 or USB interfaces
„
Provides both AT91SAM embedded flash programing and external flash programing solutions
„
May be used via a Graphical User Interface (GUI) or started in batch mode from a DOS window
„
Runs under Windows® 2000 and XP
„
Memory and peripheral display content
„
User scripts executable from SAM-BA Graphical User Interface or a shell
AT91 ISP/SAM-BA User Guide
1-1
6421B–ATARM–06-Jan-10
Overview
1-2
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
Section 2
Running SAM-BA
2.1
Overview
SAM-BA can operate in a graphical mode or it can be launched in command line mode with a TCL script
in parameter. Both modes can be combined to easily obtain a powerful loading solution on AT91SAM
devices customized for the current project.
2.2
Running SAM-BA
Connect your board to your communication interface (either the host serial COM port, or the USB device
port, or the SAM-ICE™ JTAG probe).
Warning: The USB cable must NOT be connected to the board for an RS232 use, otherwise the USB
interface is chosen by default.
There are two different ways to start SAM-BA:
1. Click on the SAM-BA icon
or
2. Type in a shell:
> [Install Directory]/SAM-BA.exe [Communication Interface] [Board] [Script_File] [Script_File Args]
where:
„
[Communication Interface]: “\usb\ARM0” for USB, “\jlink\ARM0” for JTAG, ”COMx” for RS232 where x
is the COM port number
„
[Board]: the name of the board accessible through the Choose Protocol window (see Figure 2-1)
„
[Script_File] (Optional): Path to the TCL Script File to execute
„
[Script_File Args] (Optional): TCL Script File Arguments
Depending on the number of arguments, SAM-BA opens in different modes. If [Communication Interface] and [Board] arguments are provided in the command line, SAM-BA GUI will start directly without
displaying the connection message box. If [Script_File] argument is not specified, SAM-BA starts in GUI
mode.
Some valid command line examples are listed below:
„
launch SAM-BA with script file and one argument:
SAM-BA.exe \usb\ARM0 AT91SAM9261-EK lib/historyCommand.tcl AT91C_DBGU_THR
„
launch SAM-BA with script file:
SAM-BA.exe \usb\ARM0 AT91SAM9261-EK ./myScript.tcl
„
launch SAM-BA GUI with preselected communication link and board:
AT91 ISP/SAM-BA User Guide
2-1
6421B–ATARM–06-Jan-10
Running SAM-BA
SAM-BA.exe \usb\ARM0 AT91SAM9261-EK
It is possible to catch information sent to standard outputs by SAM-BA while executing in command line
mode. This can be achieved with the following command:
SAM-BA.exe \usb\ARM0 AT91SAM9261-EK ./myScript.tcl > log.txt
2.3
SAM-BA GUI
When SAM-BA is launched, after selection of the board and the communication link, the main window
appears (see Figure 2-2). It contains three different areas. From top to bottom, they are:
Memory Display area
Memory Download area
TCL Shell area
The Memory Display and the Memory Download areas are used to simplify the memory access.
2.3.1
Board Connection
SAM-BA scans active USB connections with AT91SAM based boards, it is mandatory to connect the target to the PC before launching SAM-BA. Non USB connections do not benefit from autodetection.
Warning: The USB cable must NOT be connected to the board for RS232 use, otherwise the USB interface is chosen by default.
Note:
To change the connection type (RS232/USB/JTAG), the target must be rebooted and SAMBA must be restarted.
When SAM-BA starts, a pop-up window (see Figure 2-1) appears that enables selection of the board.
Likewise, the connection has to be selected from the dropdown menu:
“\usb\ARMX” for USB connected devices
“\jlink\ARMX” for SAM-ICE/JLink connected devices
“COMX” for available COM ports
Note:
To select another board, SAM-BA must be restarted.
If no USB connected device is available in the list, please check that devices have been
connected before SAM-BA was launched.
Warning: JTAG connection with a new board is possible as soon as the oscillator is the same as the
corresponding AT91SAM-EK one.
Figure 2-1.
2-2
6421B–ATARM–06-Jan-10
Choose Protocol Window
AT91 ISP/SAM-BA User Guide
Running SAM-BA
Once SAM-BA’s main window is displayed, the name of the board is shown on the right side of the status
bar (see Figure 2-2).
Click on the Connect button. The main window appears (see Figure 2-2).
Figure 2-2.
2.3.2
SAM-BA Main Window
Memory Display Area
In this area you can display a part of the microcontroller memory content. Three different display formats
can be used: 32-bit word, 16-bit half-word or 8-bit byte, with a maximum display of 1024-byte long memory area. Values can also be edited by double-clicking on them (see Section 2.3.2.2 ”Edit Memory
Content”).
Note:
Figure 2-3.
AT91 ISP/SAM-BA User Guide
Only valid memory areas or system/user peripheral areas are displayed. An error message
is written in the TCL Shell area (see, Section 2.3.4 ”TCL Shell Area”) if a forbidden address
is supplied or if a memory overrun occurs.
Memory Display Area
2-3
6421B–ATARM–06-Jan-10
Running SAM-BA
2.3.2.1
Read Memory Content
1. Enter the address of the area to read in the Starting Address field.
Note:
If a wrong address value is entered, an error message is displayed in the TCL Shell area.
2. Enter the size of the area to display.
Note:
If a wrong size is entered, an error message is displayed in the TCL Shell area.
3. Choose a display format: 32-bit word, 16-bit half-word or 8-bit byte. This automatically refreshes the
memory contents.
4. Press the Refresh button.
2.3.2.2
Edit Memory Content
Some memories and/or embedded peripherals can be edited:
1. Double-click on the value to update it. An editable pop-up window appears (see Figure 2-4).
Note:
Figure 2-4.
Only memories can be updated this way, e.g., static RAM or SDRAM (if previously initialized). If you try to write the other memory types, nothing happens.
Update Memory Value Window
2. Press OK to update the value in the Memory display area. The corresponding TCL command is displayed in the TCL Shell area.
Note:
2.3.3
Only the lowest bits of the value are taken into account if the format of the value entered is
higher than the display format.
Memory Download Area
The Memory download area provides a simple way to upload and download data into internal and
external memories.
For each memory, files can be sent and received, and the target’s memory content can be compared
with a file on your computer (see Figure 2-5).
Note:
Only binary file format is supported by SAM-BA.
This area also gives access to some specific scripts for the different memories available on the board
(Nand Flash, DataFlash®, etc.).
Figure 2-5.
2-4
6421B–ATARM–06-Jan-10
Memory Download Area
AT91 ISP/SAM-BA User Guide
Running SAM-BA
2.3.3.1
Initialize Memory
To be able to program data into the internal Flash memory or into the external memory, SAM-BA uses a
small program called: applet. This applet is specific to each memory and device.
2.3.3.2
Upload a File
„
First, select the memory by clicking on its corresponding tab.
„
Enter the file name location in the Send File name field or open the file browser by clicking on the
Open Folder button and select it.
If you enter a wrong file name, an error message will be displayed in the TCL Shell (see Section
2.3.4 ”TCL Shell Area”).
„
Enter the destination address in the selected memory where the file should be written.
If you enter a forbidden address, or if your file overruns the memory size, an error message is displayed in the TCL Shell.
Note:
„
2.3.3.3
A forbidden address corresponds to an address outside the selected memory range
address.
Send the file using the Send File button. Make sure that the memory is correctly initialized before
sending any data.
Download Data to a File
„
First, select the memory by clicking on its corresponding tab.
„
Enter the file name location in the Receive File name field or open the file browser by clicking on the
Open Folder button and select it.
If you enter a wrong file name, an error message is displayed in the TCL Shell (see Section 3.7).
„
Enter the address of the first data to read in the Address field.
„
Enter the data size to read in the Size field.
If you enter a forbidden address, or if your file size overruns the memory size, an error message is
displayed in the TCL Shell.
Note:
A forbidden address corresponds to an address outside the selected memory range
address.
Get data using the Receive File button. Make sure that your memory is correctly initialized before getting
any data.
2.3.3.4
Compare Memory with a File
Usually, this feature allows to check if a sent file was correctly written into the memory, but you can compare any file with your memory content. The comparison is made on the size of the selected file.
„
First, select the concerned memory by clicking on its corresponding tab.
„
Enter the file name location in the Send File name field or open the file browser by clicking on the
Open Folder button and select it.
If you enter a wrong file name, an error message will be displayed in the TCL Shell (see Section
2.3.4 ”TCL Shell Area”).
„
Enter the address of the first data to compare with the selected file in the Address field.
If you enter a forbidden address, or if your file size overruns the memory size, an error message is
displayed in the TCL Shell.
AT91 ISP/SAM-BA User Guide
2-5
6421B–ATARM–06-Jan-10
Running SAM-BA
Note:
„
2.3.3.5
A forbidden address corresponds to an address outside the selected memory range
address.
Compare the selected file with the memory content using the Compare sent file with memory button. A
message box is displayed if the file matches or not with the memory content of the file size. Make sure
that your memory is correctly initialized before comparing any data.
Figure 2-6.
Comparison Result Successful
Figure 2-7.
Comparison Result Failed
Memory Scripts
Some scripts may be supplied for each memory. Usually, these scripts allow you to configure and initialize quickly the corresponding memories (SDRAM initialization, erase all Flash, etc).
„
To execute a script, select the memory by clicking on its tab.
„
Select the script to launch in the list box.
„
Click on the Execute button.
Note:
2.3.4
Messages which inform of the correct execution of the script are displayed in the TCL Shell
(Section 2.3.4 ”TCL Shell Area”) and/or through a message box.
TCL Shell Area
This is a standard TCL shell. Everything you type in the shell is interpreted by a TCL interpreter. This
area gives you access to standard TCL commands. Type “puts Welcome” and you will get the result
“Welcome”, type “expr 3 + 7” and you will get the result “10” (see Figure 2-8).
Figure 2-8.
TCL Shell Window
TCL is a commonly used scripting language for automation. This interpreted language offers a standard
set of commands which can be extended by application specific commands written in C or other languages. Tutorials and a manual can be downloaded here: http://www.tcl.tk/doc/.
Specific commands have been added to the SAM-BA TCL interpreter to interface with AT91SAM
devices. These basic commands can be used to easily build more complex routines.
2-6
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
Running SAM-BA
SAM-BA allows you to create, edit and execute script files. A script file configures your device easily or
automatically runs significant scripts.
The Script File menu supplies commands to start and stop recording, to execute, reset, edit and save the
recording file.
The name of the generated file is historyCommand.tcl.
2.3.4.1
Start/Stop/Reset Recording
In the Script File menu, select Start Recording to begin the record. Now, all the commands that are to be
executed in the different blocks of the software are recorded in a specific file called
history Command.tcl. This file is located in the user directory.
Note:
Only this file can be written through the Start/Stop/Reset Recording commands.
New recorded commands are added at the end of the historyCommand.tcl file.
To stop recording, select Stop Recording in the menu.
To erase the historyCommand.tcl content, select Reset Recording.
2.3.4.2
Editing Script Files
SAM-BA embeds historyCommand.tcl recording file editor. Edit Script File command in the Script File
menu launches the editor. A new window appears to edit and save the history contents. Modified script
can be saved using another file name through the Save file button.
Figure 2-9.
2.3.4.3
Script File Edition View
Script File Execution
There are two possibilities to execute a script file.
„
See Section 2.4 ”Running SAM-BA Using the Command Line” for more information on how to execute
TCL script files from a shell.
„
Use the command Execute Script File in the GUI Script File menu and enter the TCL file to execute.
Messages that inform of the correct execution of the script are displayed in the TCL Shell and/or
through message boxes.
Note:
AT91 ISP/SAM-BA User Guide
All TCL commands can be executed through script files.
2-7
6421B–ATARM–06-Jan-10
Running SAM-BA
2.3.5
Disconnect
It is possible to close the current connection if necessary by clicking on the corresponding Link/Disconnect menu (see Figure 2-10).
Figure 2-10. Link Menu
2-8
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
Running SAM-BA
2.4
Running SAM-BA Using the Command Line
Most standard editors offer shortcuts to run DOS command lines. It is possible to run SAM-BA using the
following command line:
[Install Directory]/SAM-BA.exe [Communication Interface] [Board] [Script.tcl] [args] [> logfile.log]
where:
„
[Communication Interface]: \usb\ARM0, COMx (for RS232) where x is the COM port number, or
\jlink\ARM0
„
[Board]: the name of the board accessible through the Choose Protocol window (COM1, COM2, USB,
etc.)
„
[Script.tcl]: the name of a TCL script file to be immediately executed
„
[args]: Arguments to be transferred to the TCL script
„
[> logfile.log]: optional argument to get the log of the script execution in a file.
For example: > C:\Sam-ba.exe COM2 AT91SAM7S64-EK load_app.tcl > result.log
If bad arguments are entered in the command line or if there are communication problems, SAM-BA is
not able to start.
If the Script.tcl argument is not specified, then the SAM-BA GUI will automatically appear. Otherwise, the
TCL script is executed in the same TCL interpreter environment as is run in the TCL shell area of the
SAM-BA GUI.
AT91 ISP/SAM-BA User Guide
2-9
6421B–ATARM–06-Jan-10
Running SAM-BA
2.5
Creating a Script
2.5.1
Rapid Script Generation
A very simple way to record a script file is to launch SAM-BA in GUI mode, and use the ScriptFile menu.
Start the recording on script, and then, every action done in the GUI (changing a value in the Memory
Display area, executing a script in a Memory Download window, or sending/receiving file) is recorded in
the historyCommand.tcl file. This file can be used as is when launching SAM-BA in command line mode.
It can also be used as a starting point to elaborate longer scripts.
This mode is very useful for automating memory programming.
2.5.2
SAM-BA Open Scripting Environment
When SAM-BA is launched in any mode, a board must be specified. This information is required to set
up the scripting environment (can be retrieved by reading target(board) global variable).
A set of variable definitions and a set of memory algorithms correspond to each board. Variable definitions correspond to the standard LibV3 symbols. Using symbols instead of absolute values increases the
readability and re-use of the TCL routines.
Note:
These variables are declared as global variables. Within functions, symbols must be
declared as global to reference the global variables:
proc foo {
global target
set err_code 0
global AT91C_DBGU_THR
TCL_Write_Int $target(handle) 64 $AT91C_DBGU_THR err_code
}
In the same way, TCL programing routines can be invoked for loading code into the device.
For a better understanding of the TCL libraries, all programing functions in TCL are delivered in the
SAM-BA installation directory:
[Install Directory]\SAM-BA v2.x\lib\common
2.5.2.1
SAM-BA Scripts for Demos
Most AT91 demos (Linux ® , Windows CE ® ) are delivered with a TCL script to deploy binaries in
AT91SAM devices memories. These scripts can be used as a startpoint to deploy custom application on
Atmel AT91SAM Evaluation Kits or AT91SAM-based boards.
2-10
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
Section 3
AT91 ISP Architecture
3.1
Overview
The AT91 In-system Programmer (ISP) provides an open set of tools for programming the AT91SAM7,
AT91SAM9, and ATSAM3 ARM-based microcontrollers. They are based on a common dynamic linked
library (DLL), the AT91Boot_DLL. It is used by SAM-BA, SAM-PROG™ and all ISP tools.
AT91Boot_DLL API is in the public domain so that custom GUI ISP solutions can be built. It avoids writing low-level functions such as Flash memory writing algorithms, etc.
AT91Boot_DLL is an OLE COM component distributed under a DLL (AT91Boot_DLL.dll) allowing automation tools.
It is also possible to execute the AT91Boot_DLL functions in command lines in a TCL shell. An intermediate DLL (AT91Boot_TCL.dll) is used to transform TCL commands into calls to AT91Boot_DLL.
Several communication links are available such as USB, serial link, CAN or JTAG.
Figure 3-1.
AT91 ISP Framework Architecture
Command Line Tool
SAM-PROG
SAM-BA GUI
Customer ISP
TCL-SH
AT91Boot_DLL.dll
AT91Boot_TCL.dll
CAN Dongle dll
ATM6124.sys
JLinkARM.dll
COM Port driver
USB
SAM-ICE
or
JLINK
COM
Driver
CAN
JTAG
(Peak, IXXAT)
AT91 ISP/SAM-BA User Guide
3-1
6421B–ATARM–06-Jan-10
AT91 ISP Architecture
3.2
DLL Prerequisites
„
Runs under Windows 2000/XP
„
A SAM-ICE or a JLink JTAG box and its associated USB drivers (only necessary to use JTAG
communication link)
„
CAN Dongles
– PCAN-USB Peak dongle
– USB-to-CAN compact IXXAT dongle
„
3.3
TCL Toolchain including tclsh can be downloaded from the following URL:
http://www.activestate.com/Products/ActiveTcl/
AT91 ISP Installation
Installation is automatic using the AT91_ISP vx.yy.exe install program.
3.4
Contents
3.4.0.1
Library Directory
All files located in the Library directory are necessary for the AT91Boot_DLL to run correctly.
3.4.0.2
„
AT91Boot_DLL.dll
„
AT91Boot_DLL.tlb type library file
„
JLinkARM.dll
„
AT91Boot_TCL.dll
„
CAN Dongle dlls
Examples Directory
This directory contains some example projects using AT91Boot_DLL.dll. See the section <Blue>“Using
AT91Boot_DLL Project Examples” for more information on the following projects:
3.4.0.3
„
OLE_MFC project under Visual C++ 6.0
„
OLE_without_MFC project under Visual C++ 6.0
„
CAN_TCLSH gives an example of a TCL script that can be used to program a SAM7X256-based
board over the CAN network.
SAM-PROG Application
This application downloads a binary file into the Flash memory of one or more AT91SAM devices in parallel from a PC or JTAG probe.
3.4.0.4
SAM-BA Boot4CAN Directory
This directory contains binary files for AT91SAM7A3 and AT91SAM7X devices. These files must be programmed into internal Flash memory before communicating over a CAN. SAM-PROG can be used to
program these files.
3-2
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
AT91 ISP Architecture
3.4.1
DLL Registration
AT91Boot_DLL needs to be registered in the Windows Base Register in order to be used correctly. The
Install program will register AT91Boot_DLL automatically.
AT91Boot_DLL.dll uses JLinkARM dll. In order for the user to compile a project anywhere,
“YOUR_INSTALL_DIRECTORY\Library” path has been added to the PATH user environment variable. If
it is not the case, JLinkARM dlls has to be set in the current directory of your application in order to be
found by the AT91Boot_DLL.
Note:
It is also possible to copy dll contained in the Library directory into WINNT/System32 as this
directory is in the PATH environment variable by default. Do not forget to register
AT91Boot_DLL after moving.
To register AT91Boot_DLL manually, execute the following command from a DOS Window or directly
through the Windows Start/Execute menu:
regsvr32 /s /c “YOUR_INSTALL_DIRECTORY\AT91Boot_DLL.dll“
Note:
3.4.2
regsvr32.exe is located in WINNT/System32 directory
Updating JLink/SAM-ICE Software
In order to function correctly, compatibility between JLink/SAM-ICE firmware, USB drivers and
JLinkARM DLL is necessary. Thus it is recommended to update JLink/SAM-ICE software.
The JLink/SAM-ICE software update, contained in a zip file, is available on the www.segger.com web
site in the “Downloads”, then “J-Link ARM” sub-areas. To proceed with update, carry out the following
steps:
„
Download the “Jlink_ARM” zip file.
„
Unzip this download.
„
Run the .exe file contained in it.
„
Check the update in the “Doc\ReleaseNotes”.
„
Run the new J-Link.exe to update the JLink/SAM-ICE firmware.
„
Check if your PC driver is up to date with the delivery driver in the “USBDriver” folder contained in the
.exe.
„
Copy the JLinkARM.dll DLL to “YOUR_INSTALL_DIRECTORY\Library\” folder.
This completes the software update.
AT91 ISP/SAM-BA User Guide
3-3
6421B–ATARM–06-Jan-10
AT91 ISP Architecture
3.5
Communicating with AT91SAM Devices
3.5.1
Communication Links
AT91Boot_DLL connects AT91SAM-based targets through a USB link, a serial link or a JTAG using a
SAM-ICE or JLink JTAG box.
Figure 3-2.
Different Ways of Communicating with AT91SAM-based Targets
Command Line Tool
SAM-PROG
SAM-BA GUI
Customer ISP
TCL-SH
AT91Boot_DLL.dll
AT91Boot_TCL.dll
CAN Dongle dll
ATM6124.sys
JLinkARM.dll
COM Port driver
(Peak, IXXAT)
Driver
SAM-ICE
or
JLINK
CAN
JTAG
USB
COM
Depending on which communication link is selected, the target must be in the following state:
3.5.2
„
When using the USB link or the DBGU serial link, SAM-BA Boot must run onto the target.
„
When using the CAN link, SAM-BA Boot4CAN must run onto the target.
„
When using JTAG communication through SAM-ICE or JLink, the target may be in an undefined state.
In this case, it is up to the user to configure the target (PLL, etc.) if necessary.
Starting Communication
The AT91Boot_DLL principle is simple. It consists of:
1. Scanning all devices connected to the PC
2. Opening communication to the selected device
3. Performing all desired actions such as writing into Flash memory
4. Closing communication
3-4
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
AT91 ISP Architecture
3.6
TCL Scripting Language
TCL is a commonly used scripting language for automation. This interpreted language offers a standard
set of commands which can be extended with application specific commands written in C or other languages. Tutorials and manuals can be downloaded here: http://www.tcl.tk/doc/.
Specific commands have been added to the SAM-BA TCL interpreter to interface with AT91SAM
devices. These basic commands can be used to easily build more complex routines.
In order to communicate with the board, API functions are available to deal with AT91Boot_DLL.dll
library.
Figure 3-3.
AT91ISP Levels
AT91ISP
SAM-BA GUI
SAM-BA
SAM-BA GUI Interface
Applets
TCL Programing Algo
AT91Boot_TCL Interface
AT91Boot_DLL Interface
AT91BootROM Prot.
USB
AT91 ISP/SAM-BA User Guide
USART
JTAG RDI
JTAG
3-5
6421B–ATARM–06-Jan-10
AT91 ISP Architecture
3.7
AT91Boot_DLL Interface
3.7.1
Low-level Functions
A description and a code example is given for each function.
These functions are available for all AT91SAM microcontrollers.
3.7.1.1
AT91Boot_Scan
This function scans connected devices and returns a list of connected devices. Detection is performed in
the following order:
1. USB connected devices using ATM6124.sys driver
2. Connected SAM-ICE or JLink devices
3. CAN dongles (Peak, IXXAT)
4. All available serial COM ports
Note:
3.7.1.1.1
The AT91Boot_Scan function does not verify if an Atmel device is really present, so even if
there are no Atmel devices connected to SAM-ICE/JLink devices, CAN dongles or COM
ports, these connections are returned in the connected devices list. This does not concern
USB devices.
Description
void AT91Boot_Scan(char *pDevList);
Table 3-1. AT91Boot_Scan
Type
Name
Details
Input Parameters
char *pDevList
Pointer to a char* table.
All table entries must have been allocated prior using the
AT91Boot_Scan function. (1)
Output Parameters
char *pDevList
Strings returned in the table:
- “\usb\ARMX“ for USB connected devices
- “\jlink\ARMX“ for SAM-ICE/JLink connected devices
- “\can\AtCanPeak\ARM“ for PCAN-USB Peak connected
dongle
- “\can\Ixxat\ARM“ for USB-to-CAN compact IXXAT connected
dongle
- “COMX“ for available COM ports
Return Code
Note:
3.7.1.1.2
none
1. Each string must be allocated from the application and must have a size superior to 80 bytes. That
string is used to recover, in particular CAN dongle, USB or JTAG box device name which is then
replaced by a reduced symbolic name.
Code Example
CHAR *strConnectedDevices[5];
for (UINT i=0; i<5; i++)
strConnectedDevices[i] = (CHAR *)malloc(100);
AT91Boot_Scan((char *)strConnectedDevices);
3-6
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
AT91 ISP Architecture
AT91Boot_Scan may return code similar to that below:
strConnectedDevices[0] : \usb\ARM0
strConnectedDevices[1] : \usb\ARM1
strConnectedDevices[2] : \jlink\ARM0
strConnectedDevices[3] : \can\AtCanPeak\ARM
strConnectedDevices[4] : COM1
3.7.1.2
AT91Boot_Open
This function opens the communication link on an AT91SAM device depending on the string given in the
argument:
„
USB
„
JTAG
„
CAN
„
Serial COM port
Note:
3.7.1.2.1
At this step, the Atmel device MUST be connected to either SAM-ICE/JLink, CAN network or
COM port if using such a communication link.
Description
void AT91Boot_Open(char *name, int *h_handle);
Table 3-2. AT91Boot_Open
Type
Name
Details
Input Parameters
*name
Pointer to a string returned by AT91Boot_Scan function(1)
Output Parameters
*h_handle
Communication handle:
- NULL if opening connection failed
- Non NULL if opening connection succeeded
Return Code
void
Note:
3.7.1.2.2
1. As AT91Boot_Scan function detects only CAN dongles and not AT91SAM devices which are connected
to, it is recommended to add an identifier to the end of string for each device such as, for example,
“\can\AtCanPeak\ARM0“, “\can\AtCanPeak\ARM1“...
Code Example
AT91Boot_Open(strConnectedDevices[0], &h_handle);
AT91Boot_Open(‘’\can\AtCanPeak\ARM0’’, &h_handle);
AT91 ISP/SAM-BA User Guide
3-7
6421B–ATARM–06-Jan-10
AT91 ISP Architecture
3.7.1.3
JTAG Communication Link
When opening a JTAG communication link through a SAM-ICE or a JLink by using the following
command:
AT91Boot_Open(‘’\jlink\ARM0’’, &h_handle);
the following steps are performed:
1. Open JLinkARM.dll and its associated library functions.
2. Set JTAG speed to 5 kHz in order to connect to the target even if it is running at 32 kHz.
3. Stop the target.
4. Set a hardware breakpoint at address 0.
5. Send a PROCRST command (RSTC_CR) in the Reset Controller in order to disable the Watchdog.
6. Wait for the target to reach the breakpoint.
7. Download a monitor into the target internal SRAM that allows communication only through the ARM
Debug Communication Channels(1) by using the SAM-BA Boot commands(2).
8. Jump to the monitor in internal SRAM. Then monitor switches on the Main Oscillator(3).
9. For AT91SAM7, theJTAG speed is set to 3 MHz as it is the lowest allowed crystal frequency. For
AT91SAM9, the JTAG clock is in adaptive mode.
Note:
1. For further information about DCC, visit www.arm.com.
2. For further information about SAM-BA Boot commands, see the Boot Program section of the product
datasheet.
3. It is recommended to configure the PLL when returning from AT91Boot_Open function in order to speed
up monitor execution.
3.7.1.4
AT91Boot_Close
This function closes the communication link previously opened on an AT91SAM device.
3.7.1.4.1
Description
void AT91Boot_Close(int h_handle);
Table 3-3. AT91Boot_Close
3.7.1.4.2
Type
Name
Details
Input Parameters
h_handle
Communication handle returned by AT91Boot_Open function
Output Parameters
none
Return Code
void
Code Example
AT91Boot_Close(h_handle);
3-8
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
AT91 ISP Architecture
3.7.1.5
AT91Boot_Write_Int
This function writes a 32-bit word into the volatile memory of the connected target.
3.7.1.5.1
Description
void AT91Boot_Write_Int(int h_handle, int uValue, int uAddress, int *err_code);
Table 3-4. AT91Boot_Write_Int
Type
Input Parameters
Output Parameters
Name
Details
h_handle
Communication handle returned by AT91Boot_Open function
uValue
32-bit value to write
uAddress
Address where to write 32-bit value
none
•
Error Code
*err_code
(int)(0x0000) AT91C_BOOT_DLL_OK
Standard Error Codes:
•
(int )(0xF001): Bad h_handle parameter
•
(int )(0xF002): Address is not correctly aligned
•
(int )(0xF005): Communication link broken
CAN Error Codes:
•
(int )(0x8002): CAN_Read dll function returned “fail”
•
(int )(0x8003): CAN_Write dll function returned “fail”
Return Code
3.7.1.5.2
void
Code Example
AT91Boot_Write_Int(h_handle, 0xCAFECAFE, 0x200000, &err_code);
AT91 ISP/SAM-BA User Guide
3-9
6421B–ATARM–06-Jan-10
AT91 ISP Architecture
3.7.1.6
AT91Boot_Write_Short
This function writes a 16-bit word into the volatile memory of the connected target.
3.7.1.6.1
Description
void AT91Boot_Write_Short(int h_handle, short wValue, int uAddress, int *err_code);
Table 3-5. AT91Boot_Write_Short
Type
Name
Details
h_handle
Communication handle returned by AT91Boot_Open function
wValue
16-bit value to write
Input Parameters
uAddress
Address where to write 16-bit value
Output Parameters
none
•
Error Code
*err_code
(int)(0x0000) AT91C_BOOT_DLL_OK
Standard Error Codes:
•
(int )(0xF001): Bad h_handle parameter
•
(int )(0xF002): Address is not correctly aligned
•
(int )(0xF005): Communication link broken
CAN Error Codes:
•
(int )(0x8002): CAN_Read dll function returned “fail”
•
(int )(0x8003): CAN_Write dll function returned “fail”
Return Code
3.7.1.6.2
void
Code Example
AT91Boot_Write_Short(h_handle, 0xCAFE, 0x200000, &err_code);
3-10
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
AT91 ISP Architecture
3.7.1.7
AT91Boot_Write_Byte
This function writes an 8-bit word into the volatile memory of the connected target.
3.7.1.7.1
Description
void AT91Boot_Write_Byte(int h_handle, char bValue, int uAddress, int *err_code);
Table 3-6. AT91Boot_Write_Byte
Type
Input Parameters
Output Parameters
Name
Details
h_handle
Communication handle returned by AT91Boot_Open function
bValue
8-bit value to write
uAddress
Address where to write 8-bit value
none
•
Error Code
*err_code
(int)(0x0000) AT91C_BOOT_DLL_OK
Standard Error Codes:
•
(int )(0xF001): Bad h_handle parameter
•
(int )(0xF002): Address is not correctly aligned
•
(int )(0xF005): Communication link broken
CAN Error Codes:
•
(int )(0x8002): CAN_Read dll function returned “fail”
•
(int )(0x8003): CAN_Write dll function returned “fail”
Return Code
3.7.1.7.2
void
Code Example
AT91Boot_Write_Byte(h_handle, 0xFE, 0x200000, &err_code);
AT91 ISP/SAM-BA User Guide
3-11
6421B–ATARM–06-Jan-10
AT91 ISP Architecture
3.7.1.8
AT91Boot_Write_Data
This function writes X bytes into the volatile memory of the connected target.
3.7.1.8.1
Description
void AT91Boot_Write_Data(int h_handle, int uAddress, char *bValue, int uSize, int *err_code);
Table 3-7. AT91Boot_Write_Data
Type
Name
Details
h_handle
Communication handle returned by AT91Boot_Open function
uAddress
Address where to write 8-bit value
*bValue
Pointer to 8-bit data buffer to write
uSize
Buffer size in bytes
Input Parameters
Output Parameters
none
•
Error Code
*err_code
(int)(0x0000) AT91C_BOOT_DLL_OK
Standard Error Codes:
•
(int )(0xF001): Bad h_handle parameter
•
(int )(0xF004): USART Communication link not opened
•
(int )(0xF005): Communication link broken
CAN Error Codes:
•
(int )(0x8002): CAN_Read dll function returned “fail”
•
(int )(0x8003): CAN_Write dll function returned “fail”
Return Code
3.7.1.8.2
void
Code Example
char bData[10] =
{0x00, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09};
AT91Boot_Write_Data(h_handle, 0x200000, bData, 10, &err_code);
3-12
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
AT91 ISP Architecture
3.7.1.9
AT91Boot_Read_Int
This function reads a 32-bit word from the connected target.
3.7.1.9.1
Description
void AT91Boot_Read_Int(int h_handle, int *uValue, int uAddress, int *err_code);
Table 3-8. AT91Boot_Read_Int
Type
Input Parameters
Output Parameters
Name
Details
h_handle
Communication handle returned by AT91Boot_Open function
*uValue
Pointer to a 32-bit value
uAddress
Address where to read 32-bit value
*uValue
32-bit read value
•
Error Code
*err_code
(int)(0x0000) AT91C_BOOT_DLL_OK
Standard Error Codes:
•
(int )(0xF001): Bad h_handle parameter
•
(int )(0xF002): Address is not correctly aligned
•
(int )(0xF005): Communication link broken
CAN Error Codes:
•
(int )(0x8002): CAN_Read dll function returned “fail”
•
(int )(0x8003): CAN_Write dll function returned “fail”
Return Code
3.7.1.9.2
void
Code Example
int ChipId;
AT91Boot_Read_Int(h_handle, &ChipId, 0xFFFFF240, &err_code);
AT91 ISP/SAM-BA User Guide
3-13
6421B–ATARM–06-Jan-10
AT91 ISP Architecture
3.7.1.10 AT91Boot_Read_Short
This function reads a 16-bit word from the connected target.
3.7.1.10.1 Description
void AT91Boot_Read_Short(int h_handle, short *wValue, int uAddress, int *err_code);
Table 3-9. AT91Boot_Read_Short
Type
Input Parameters
Output Parameters
Name
Details
h_handle
Communication handle returned by AT91Boot_Open function
*wValue
Pointer to a 16-bit value
uAddress
Address where to read 16-bit value
*wValue
16-bit read value
•
Error Code
*err_code
(int)(0x0000) AT91C_BOOT_DLL_OK
Standard Error Codes:
•
(int )(0xF001): Bad h_handle parameter
•
(int )(0xF002): Address is not correctly aligned
•
(int )(0xF005): Communication link broken
CAN Error Codes:
•
(int )(0x8002): CAN_Read dll function returned “fail”
•
(int )(0x8003): CAN_Write dll function returned “fail”
Return Code
void
3.7.1.10.2 Code Example
short wRead;
AT91Boot_Read_Short(h_handle, &wRead, 0x200000, &err_code);
3-14
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
AT91 ISP Architecture
3.7.1.11 AT91Boot_Read_Byte
This function reads an 8-bit word from the connected target.
3.7.1.11.1 Description
void AT91Boot_Read_Byte(int h_handle, char *bValue, int uAddress, int *err_code);
Table 3-10. AT91Boot_Read_Byte
Type
Input Parameters
Output Parameters
Name
Details
h_handle
Communication handle returned by AT91Boot_Open function
*bValue
Pointer to an 8-bit value
uAddress
Address where to read 16-bit value
*bValue
8-bit read value
•
Error Code
*err_code
(int)(0x0000) AT91C_BOOT_DLL_OK
Standard Error Codes:
•
(int )(0xF001): Bad h_handle parameter
•
(int )(0xF002): Address is not correctly aligned
•
(int )(0xF005): Communication link broken
CAN Error Codes:
•
(int )(0x8002): CAN_Read dll function returned “fail”
•
(int )(0x8003): CAN_Write dll function returned “fail”
Return Code
void
3.7.1.11.2 Code Example
char bRead;
AT91Boot_Read_Byte(h_handle, &bRead, 0x200000, &err_code);
AT91 ISP/SAM-BA User Guide
3-15
6421B–ATARM–06-Jan-10
AT91 ISP Architecture
3.7.1.12 AT91Boot_Read_Data
This function reads X bytes from the connected target.
3.7.1.12.1 Description
void AT91Boot_Read_Data(int h_handle, int uAddress, char *bValue, int uSize, int *err_code);
Table 3-11. AT91Boot_Read_Data
Type
Name
Details
h_handle
Communication handle returned by AT91Boot_Open function
uAddress
Address where to read 8-bit data
*bValue
Pointer to an 8-bit data buffer where to store read data
uSize
Number of bytes to read
*bValue
Pointer to read data
Input Parameters
Output Parameters
•
Error Code
*err_code
(int)(0x0000) AT91C_BOOT_DLL_OK
Standard Error Codes:
•
(int )(0xF001): Bad h_handle parameter
•
(int )(0xF004): USART Communication link not opened
•
(int )(0xF005): Communication link broken
CAN Error Codes:
•
(int )(0x8002): CAN_Read dll function returned “fail”
•
(int )(0x8003): CAN_Write dll function returned “fail”
Return Code
void
3.7.1.12.2 Code Example
char bData[10];
AT91Boot_Read_Data(h_handle, 0x200000, bData, 10, &err_code);
3-16
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
AT91 ISP Architecture
3.7.1.13 AT91Boot_Go
This function allows starting code execution at specified address.
3.7.1.13.1 Description
void AT91Boot_Go(int h_handle, int uAddress, int *err_code);
Table 3-12. AT91Boot_Read_Data
Type
Name
Details
h_handle
Communication handle returned by AT91Boot_Open function
uAddress
Address where to start code execution
Input Parameters
Output Parameters
none
•
Error Code
*err_code
(int)(0x0000) AT91C_BOOT_DLL_OK
Standard Error Codes:
•
(int )(0xF001): Bad h_handle parameter
•
(int )(0xF005): Communication link broken
CAN Error Codes:
•
(int )(0x8002): CAN_Read dll function returned “fail”
•
(int )(0x8003): CAN_Write dll function returned “fail”
Return Code
void
3.7.1.13.2 Code Example
AT91Boot_Go(h_handle, 0x200000, &err_code);
AT91 ISP/SAM-BA User Guide
3-17
6421B–ATARM–06-Jan-10
AT91 ISP Architecture
3.7.2
Internal Flash Programming Functions
These functions are available only for AT91SAM microcontrollers with Flash.
3.7.2.1
AT91Boot_SAM7xxx_Send_Flash
These functions make it possible to write X bytes into the internal Flash memory of the connected target.
If some sectors are locked, they are unlocked in order to effectively program the internal Flash memory.
Available functions are:
3.7.2.2
„
AT91Boot_SAM7S32_Send_Flash (available for SAM7S32 and SAM7S321 parts)
„
AT91Boot_SAM7S64_Send_Flash
„
AT91Boot_SAM7S128_Send_Flash
„
AT91Boot_SAM7S256_Send_Flash
„
AT91Boot_SAM7S512_Send_Flash
„
AT91Boot_SAM7A3_Send_Flash
„
AT91Boot_SAM7X128_Send_Flash (available for SAM7X128 and SAM7XC128 parts)
„
AT91Boot_SAM7X256_Send_Flash (available for SAM7X256 and SAM7XC256 parts)
„
AT91Boot_SAM7X512_Send_Flash (available for SAM7X512 and SAM7XC512 parts)
„
AT91Boot_SAM7SE32_Send_Flash
„
AT91Boot_SAM7SE256_Send_Flash
„
AT91Boot_SAM7SE512_Send_Flash
Prerequisite
Embedded Flash Controller Flash Mode Register (EFC_FMR) must be programmed correctly prior to
using one of these functions.
Note:
3.7.2.2.1
Two Embedded Flash Controllers are embedded in AT91SAM7S512, AT91SAM7X512 and
AT91SAM7SE512 parts. Both EFC_FMRx registers must be programmed correctly prior to
using one of these functions.
Description
void AT91Boot_SAM7xxx_Send_Flash(int h_handle, int uOffset, char *bData, int uSize, int *err_code);
Table 3-13. AT91Boot_SAM7xxx_Send_Flash
Type
Name
Details
h_handle
Communication handle returned by AT91Boot_Open function
uOffset
Internal Flash Offset where to write 8-bit value
*bData
Pointer to 8-bit data buffer to write
uSize
Buffer size in bytes
Input Parameters
3-18
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
AT91 ISP Architecture
Table 3-13. AT91Boot_SAM7xxx_Send_Flash (Continued)
Type
Name
Output Parameters
none
Details
•
Error Code
*err_code
(int)(0x0000) AT91C_BOOT_DLL_OK
Standard Error Codes:
•
(int )(0xF001): Bad h_handle parameter
•
(int )(0xF002): Address is not correctly aligned
•
(int )(0xF003): uSize is not correct
•
(int )(0xF004): USART Communication link not opened
•
(int )(0xF005): Communication link broken
CAN Error Codes:
•
(int )(0x8002): CAN_Read dll function returned “fail”
•
(int )(0x8003): CAN_Write dll function returned “fail”
Return Code
3.7.2.2.2
void
Code Example
char bData[10] =
{0x00, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09};
// Write buffer at offset 0x100 into internal SAM7S64 Flash
AT91Boot_SAM7S64_Send_Flash(h_handle, 0x100, bData, 10, &err_code);
3.7.3
Using AT91Boot_DLL with MFC
The project OLE_MFC.dsw is located in Examples\OLE_MFC folder. It scans connected devices, opens
the first one, reads DBUG chip ID. If an AT91SAM7S256 is detected, it programs a small application
(BasicMouse) in the internal Flash.
To use AT91Boot_DLL in such a project, the following steps must be performed:
„
Create an AT91Boot_DLL class in your project. To do this, copy both at91boot_dll.cpp and
at91boot_dll.h files into your project directory.
Note:
Do not use the ClassWizard/Add Class/From a type library... as there is a bug in Visual C++
6.0. The bug prevents any functions containing a char variable as a parameter from being
imported.
„
Initialize OLE libraries by calling AfxOleInit function.
„
Create an AT91Boot_DLL driver object to manage AT91Boot_DLL COM object.
„
Create an AT91Boot_DLL COM object instance with the AT91Boot_DLL program
ID(1)("AT91Boot_DLL.AT91BootDLL.1") by using CreateDispatch function.
Note:
1. Program ID is stored in the base register and is an easier way to retrieve AT91Boot_DLL Class ID necessary for CreateDispatch function.
Once these four steps have been performed, DLL functions should be available. See their prototypes in
at91boot_dll.h header file and for details on how to call these functions.
AT91 ISP/SAM-BA User Guide
3-19
6421B–ATARM–06-Jan-10
AT91 ISP Architecture
Note:
3.7.3.1
At this step, if AT91Boot_DLL functions are not available, it is because the AT91Boot_DLL
dll has not been registered correctly. See Section 3.4.1 ”DLL Registration” on page 3-3 for
more information.
Code Example
#include "at91boot_dll.h"
IAT91BootDLL *m_pAT91BootDLL;
AfxOleInit();
m_pAT91BootDLL = new IAT91BootDLL;
m_pAT91BootDLL->CreateDispatch(_T("AT91Boot_DLL.AT91BootDLL.1"));
3.7.4
Using AT91Boot_DLL without MFC
This paragraph explains the project OpenRDI_OLE.dsw located in AT91Boot DLL Example\OLE without
MFC folder.
To use AT91Boot_DLL in such a project, the following steps must be performed:
3.7.4.1
„
Initialize COM library by calling CoInitialize(NULL). Use CoUninitialize() to close COM
Library at the end of the project.
„
Import AT91Boot_DLL COM object from AT91Boot_DLL.tlb Type Library file. Eventually rename
namespace if necessary.
„
Add using namespace directive to share the same namespace as AT91Boot_DLL library.
„
Create a pointer to AT91Boot_DLL COM objec.t
Code Example
In stdafx.h header file
#import "YOUR_INSTALL_DIRECTORY/AT91Boot_DLL.tlb" rename_namespace
("AT91BOOTDLL_Lib")
In OpenRDI_OLE.cpp source file
using namespace AT91BOOTDLL_Lib;
CoInitialize(NULL);
// COM Object Creation
IAT91BootDLLPtr pAT91BootDLL(__uuidof(AT91BootDLL));
3-20
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
AT91 ISP Architecture
3.8
AT91Boot_TCL Interface
AT91Boot_TCL.dll must be loaded in order to access its functions. The command is:
load [file join AT91Boot_TCL.dll] At91boot_tcl
Note:
The command is case sensitive.
When SAM-BA starts, a structure containing board and connection information is set. This global variable name is target, and the global target statement must be declared in any procedure using an
API function.
Target structure contents:
„
handle: identifier of the link used to communicate with the target
„
board: a string containing the board name (i.e.: “AT91SAM7SE512-EK“)
„
connection: connection type. Can be: “\usb\ARMx” for a USB link, “COMx” for a serial link (with x
indicating the COM port used), or “\jtag\ARMx”
„
comType: 1 for serial; 0 for other (USB or JTAG)
These commands are mainly used to send and receive data from the device:
Table 3-14. Commands Available through the TCL Shell
Commands
Argument(s)
Example
TCL_Write_Byte
Handle Value Address err_code
TCL_Write_Byte $target(handle) 0xCA 0x200001err_code
TCL_Write_Short
Handle Value Address err_code
TCL_Write_Short $target(handle) 0xCAFE 0x200002 err_code
TCL_Write_Int
Handle Value Address err_code
TCL_Write_Int $target(handle) 0xCAFEDECA 0x200000
err_code
TCL_Read_Byte
Handle Address err_code
TCL_Read_Byte $target(handle) 0x200003 err_code
TCL_Read_Short
Handle Address err_code
TCL_Read_Short $target(handle) 0x200002 err_code
TCL_Read_Int
Handle Address err_code
TCL_Read_Int $target(handle) 0x200000 err_code
TCL_Go
Handle Address err_code
TCL_Go $target(handle) 0x20008000 err_code
These functions are available for all AT91SAM microcontrollers.
„
list TCL_Scan
„
set h_handle [TCL_Open $name]
„
TCL_Close $h_handle
„
Write commands: Write a byte (TCL_Write_Byte), a half-word (TCL_Write_Short) or a word
(TCL_Write_Int) to the target.
– Handle: handler number of the communication link established with the board.
– Value: byte, half-word or word to write in decimal or hexadecimal.
– Address: address in decimal or hexadecimal.
– Output: nothing.
„
Read commands: Read a byte (TCL_Read_Byte), a half-word (TCL_Read_Short) or a word
AT91 ISP/SAM-BA User Guide
3-21
6421B–ATARM–06-Jan-10
AT91 ISP Architecture
(TCL_Read_Int) from the target.
– Handle: handler number of the communication link established with the board.
– Address: address in decimal or hexadecimal.
– Output: the byte, half-word or word read in decimal.
Note:
TCL_Read_Int returns a signed integer in decimal. For example, reading with TCL_Read_Int
$target(handle) 0xFFFFFFFF command returns -1 whereas reading 0xFF with
TCL_Read_Byte command returns 255.
„
send_file: Send a file to a specified memory.
– Memory: memory tag (in curly brackets).
– fileName: absolute path file name (in quotes) or relative path from the current directory (in
quotes).
– Address: address in decimal or hexadecimal.
– Output: information about the corresponding command on the TCL Shell.
„
receive_file: Receive data into a file from a specified memory.
– Memory: memory tag (in curly brackets).
– fileName: absolute path file name (in quotes) or relative path (from the current directory) file
name (in quotes).
– Address: address in decimal or hexadecimal.
– Size: size in decimal or hexadecimal.
– Output: information about the corresponding command on the TCL Shell.
„
compare_file: Compare a file with memory data.
– Memory: memory tag (in curly brackets).
– fileName: absolute path file name (in quotes) or relative path from the current directory (in
quotes).
– Address: address of the first data to compare with the file in decimal or hexadecimal.
– Output: information about the command progress on the TCL Shell.
„
TCL_Compare: Binary comparison of two files.
– fileName1: absolute path file name (in quotes) or relative path from the current directory (in
quotes) of the first file to compare.
– fileName2: absolute path file name (in quotes) or relative path from the current directory (in
quotes) of the second file to compare with the first.
– Output: return 1 in case of error, 0 if files are identical.
„
TCL_Go: Jump to a specified address and execute the code.
– Handle: handler number of the communication link established with the board.
– Address: address to jump to in decimal or hexadecimal.
The memory tag is the name (in curly brackets) of the memory module defined in the memoryAlgo array
in the board description file, e.g.: {DataFlash AT45DB/DCB}
Moreover, a set of older commands (for SAM-BA v1.x script compatibility) is always available:
3-22
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
AT91 ISP Architecture
Table 3-15. Extended Command Set
„
Commands
Argument(s)
Example
write_byte
Address Value
write_byte 0x200001 0xCA
write_short
Address Value
write_short 0x200002 0xCAFE
write_int
Address Value
write_int 0x200000 0xCAFEDECA
read_byte
Address
read_byte 0x200003
read_short
Address
read_short 0x200002
read_int
Address
read_int 0x200000
go
Address
go 0x20008000
Write commands: Write a byte (write_byte), a half-word (write_short) or a word (write_int) to the
target.
– Address: address in decimal or hexadecimal.
– Value: byte, half-word or word to write in decimal or hexadecimal.
– Output: nothing.
„
Read commands: Read a byte (read_byte), a half-word (read_short) or a word (read_int) from the
target.
– Address: address in decimal or hexadecimal.
– Output: the byte, half-word or word read in decimal.
Note:
„
read_int returns a signed integer in decimal. For example, reading with read_int
0xFFFFFFFF command returns -1 whereas reading 0xFF with read_byte command returns
255.
go: Jump to a specified address and execute the code.
– Address: address to jump to in decimal or hexadecimal.
Warning: The send_file, receive_file and compare_file commands are slightly different now. The Memory tag syntax changed (see Table 3-15).
If you leave SAM-BA, be sure to reboot your board before launching it the next time.
AT91 ISP/SAM-BA User Guide
3-23
6421B–ATARM–06-Jan-10
AT91 ISP Architecture
3.9
SAM-BA TCL Interface
Table 0-1.Commands Available through the TCL Shell
Commands
Argument(s)
Example
send_file
{Memory} “fileName” Address
send_file {SDRAM} “C:/temp/file1.bin“ 0x20000000
receive_file
{Memory} “fileName” Address Size
receive_file {SDRAM} “C:/temp/file1.bin“ 0x10000256
compare_file
{Memory} “fileName” Address
compare_file {SDRAM} “C:/temp/file1.bin“ 0x20000000
3-24
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
Section 4
SAM-BA Customization
4.1
Overview
SAM-BA can be easily customized to add a new AT91SAM based board or to add a new programming
algorithm for a new device. All AT91SAM evaluation kit descriptions are freely available in the AT91ISP
installation directory. Likewise, all programming algorithms sources are available under the AT91ISP
installation directory.
4.2
Adding a New Board
SAM-BA customization allows the user to add new window tabs dedicated to particular memories in the
GUI. Figure 4-3 shows a board with 5 memory modules described.
4.2.1
Adding a Board Entry
Customization of SAM-BA GUI for a particular board/device is done by adding new TCL scripts in the
directory : [Install Directory]\lib.
A good starting point is to have a look at the TCL files provided with SAM-BA.
The file boards.tcl contains the board names and associated description file paths.
To add support for a new board, a new entry must be created in the boards array and the corresponding directory. The directory must have the same name as the board.
array set boards {
"NO_BOARD""NO_BOARD/NO_BOARD.tcl"
"AT91SAM7A3-EK"
"AT91SAM7A3-EK/AT91SAM7A3-EK.tcl"
"AT91SAM7S32-EK"
"AT91SAM7S32-EK/AT91SAM7S32-EK.tcl"
"AT91SAM7S64-EK"
"AT91SAM7S64-EK/AT91SAM7S64-EK.tcl"
"AT91SAM7S128-EK" "AT91SAM7S128-EK/AT91SAM7S128-EK.tcl"
"AT91SAM7S256-EK" "AT91SAM7S256-EK/AT91SAM7S256-EK.tcl"
"AT91SAM7S512-EK" "AT91SAM7S512-EK/AT91SAM7S512-EK.tcl"
"AT91SAM7S321-EK" "AT91SAM7S321-EK/AT91SAM7S321-EK.tcl"
"AT91SAM7SE32-EK" "AT91SAM7SE32-EK/AT91SAM7SE32-EK.tcl"
"AT91SAM7SE256-EK""AT91SAM7SE256-EK/AT91SAM7SE256-EK.tcl"
"AT91SAM7SE512-EK""AT91SAM7SE512-EK/AT91SAM7SE512-EK.tcl"
"AT91SAM7X128-EK" "AT91SAM7X128-EK/AT91SAM7X128-EK.tcl"
"AT91SAM7X256-EK" "AT91SAM7X256-EK/AT91SAM7X256-EK.tcl"
"AT91SAM7X512-EK" "AT91SAM7X512-EK/AT91SAM7X512-EK.tcl"
"AT91SAM7XC128-EK""AT91SAM7XC128-EK/AT91SAM7XC128-EK.tcl"
AT91 ISP/SAM-BA User Guide
4-1
6421B–ATARM–06-Jan-10
SAM-BA Customization
"AT91SAM7XC256-EK""AT91SAM7XC256-EK/AT91SAM7XC256-EK.tcl"
"AT91SAM7XC512-EK""AT91SAM7XC512-EK/AT91SAM7XC512-EK.tcl"
"AT91SAM9260-EK"
"AT91SAM9260-EK/AT91SAM9260-EK.tcl"
"AT91SAM9261-EK"
"AT91SAM9261-EK/AT91SAM9261-EK.tcl"
"AT91SAM9263-EK"
"AT91SAM9263-EK/AT91SAM9263-EK.tcl"
"AT91SAM9XE512-EK""AT91SAM9XE512-EK/AT91SAM9XE512-EK.tcl"
"NEW_BOARD"
"NEW_BOARD/NEW_BOARD.tcl"
}
The first field is the board name (the name that appears in the “Select your board” listbox when SAM-BA
is started), and the second is the directory where the board and the memory module description files are
located.
Figure 4-1.
Adding a New Board
Each subdirectory corresponds to one board, and has one board description file
([board_name].tcl), and applet binaries(i.e., isp-xx-[device_name].bin).
For example, the directory of the AT91SAM7SE512-EK board contents are:
[Install Directory]\SAM-BA v2.x\lib /AT91SAM7SE512-EK:
AT91SAM7SE512-EK.tcl
isp-dataflash-at91sam7se512.bin
isp-extram-at91sam7se512.bin
isp-flash-at91sam7se512.bin
isp-serialflash-at91sam7se512.bin
isp-nandflash-at91sam7se512.bin
isp-norflash-at91sam7se512.bin
Source code of each applet is located in the [Install Directory]\SAM-BA v2.7\applets directory.
4-2
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
SAM-BA Customization
4.2.2
Board Description File
Board description files accomplish the link between applets and generic transfer routines running on the
host PC.
Several hash tables list memory algorithms which apply to the board and parameters.
The first array found in the board description file lists the memory modules present on the board. Note
that some devices such as Peripheral or REMAP can also be found here, but are just address ranges
displayed in the Memory Display window.
array set memoryAlgo {
"SRAM"
"::at91sam7se512_sram"
"SDRAM"
"::at91sam7se512_sdram"
"Flash"
"::at91sam7se512_flash"
"DataFlash AT45DB/DCB"
"::at91sam7se512_dataflash"
"NandFlash"
"::at91sam7se512_nandflash"
"NorFlash Map"
"::at91sam7se512_norflash_map"
"Peripheral"
"::at91sam7se512_peripheral"
"ROM"
"::at91sam7se512_rom"
"REMAP"
"::at91sam7se512_remap"
}
The first 5 entries correspond to the five Memory Download tabs (see Figure 4-3 ).
Figure 4-2.
Memory Download Tabs
A memory module array is defined for each module declared in the memoryAlgo array:
array set at91sam7se512_nandflash {
dftDisplay
1
dftDefault 1
dftAddress
0x0
dftSize
0x10000000
dftSend
"NANDFLASH::sendFile"
dftReceive
"NANDFLASH::receiveFile"
dftScripts
"::at91sam7se512_nandflash_scripts"
}
Field definitions:
AT91 ISP/SAM-BA User Guide
4-3
6421B–ATARM–06-Jan-10
SAM-BA Customization
– dftDisplay: indicates if the memory appears as a Memory Download tab
(0: no, 1: yes).
– dftDefault: Set to one if this memory tab shall be selected when SAM-BA starts. (There shall be
one default memory tab among all memory tabs).
– dftAddress: base address of the memory module. (0x0 for memories not physically mapped, like
DataFlash, or when accesses are not directly done, but need a monitor, like NAND Flash).
– dftSize: size of the memory module.
– dftSend: send file procedure name.
– dftReceive: receive file procedure name.
– dftScripts: name of the array containing the script list, see Figure 4-3 below, (blank if no script is
implemented).
Scripts can be implemented for each memory module. Common uses are SDRAM initialization, Flash
erase operation, or any other frequently used operation. The scripts are displayed in the script listbox of
the corresponding memory tab. Their declaration is done by creating an array named in the dftScripts
field of the memory:
array set at91sam7se512_nandflash {
dftDisplay
1
dftDefault
0
dftAddress
0x0
dftSize
"$GENERIC::memorySize"
dftSend
"GENERIC::SendFile"
dftReceive
"GENERIC::ReceiveFile"
dftScripts
"::at91sam7se512_nandflash_scripts"
}
array set at91sam7se512_nandflash_scripts {
"Enable NandFlash"
"NANDFLASH::Init"
"Erase All"
"GENERIC::EraseAll"
"Scrub NandFlash"
"GENERIC::EraseAll $NANDFLASH::scrubErase"
}
set NANDFLASH::appletAddr
0x20000000
set NANDFLASH::appletFileName
nandflash-at91sam7se512.bin"
"$libPath(extLib)/$target(board)/isp-
The first field of each entry is the string displayed in the listbox, and the second is the procedure name
invoked when executing the script.
4-4
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
SAM-BA Customization
Figure 4-3.
4.3
Memory Scripts
Extending SAM-BA Programming Capabilities
Several programming algorithms (applets) are delivered in the standard AT91ISP installation. They are
pieces of C code, that are compiled specifically for each chip. However, these programming algorithms
may require some adaptation to match a new board specification. This is the case in particular when a
memory is not connected to the same PIO or the same chip select as on the evaluation kit.
4.3.1
Applet Workflow
The target handles the programming algorithm by running applets. The target switches between two
modes: SAM-BA Monitor Mode and Applet Mode. The SAM-BA monitor mode is the command interpreter that runs in the ROM memory when you connect the chip with USB or COM port to the computer.
It allows the computer to send or receive data to/from the target. All transfers between host and device
are done when the device is in SAM-BA monitor mode. Under Applet Mode, the device performs programming operations and is not able to communicate with the host.
An applet is a small piece of software running on the target. It is loaded in the device memory while the
device is in SAM-BA monitor mode using TCL_Write command. The device switches from SAM-BA
monitor mode to Applet mode using the TCL_Go command. The device executes the applet code. At the
end of the current operation, the device switches back to SAM-BA monitor mode.
AT91 ISP/SAM-BA User Guide
4-5
6421B–ATARM–06-Jan-10
SAM-BA Customization
Figure 4-4.
Applet Workflow
HOST
TARGET
AT91BootROM
TCL_WriteData(applet, appletAddr)
TCL_WriteData(payload, appletBufferAddr)
Load Applet
SAM-BA Monitor Mode
Load First Payload
TCL_WriteInt(appletArg, appletArgAddr)
TCL_Go(appletAddr)
TCL_ReadInt(appletArg, appletArgAddr)
Applet
Program Payload
TCL_WriteData(payload, appletBufferAddr)
Load Second Payload
Applet Mode
SAM-BA Monitor Mode
TCL_WriteInt(appletArg, appletArgAddr)
TCL_Go(appletAddr)
TCL_ReadInt(appletArg, appletArgAddr)
Program Payload
Applet Mode
SAM-BA Monitor Mode
An applet can execute different programming or initialization commands. Before switching to Applet
mode, the host prepares command and arguments data required by the applet in a mailbox mapped in
the device memory. During its execution, the applet decodes the commands and arguments prepared by
the host and executes the corresponding function. The applet returns state, status and result values in
the mailbox area.
Usually, applets include INIT, buffer read, buffer write functions. To program large files, the whole programming operation is split by the host into payloads. Each payload is sent to a device memory buffer
using SAM-BA monitor command TCL_Write. The host prepares the mailbox with the Buffer write command value, the buffer address and the buffer size. The host then forces the device in Applet mode using
a TCL_Go command. The host polls the end of payload programming by trying to read the state value in
the mailbox. The device will answer to the host as soon as it returns to SAM-BA monitor mode.
In case of USB connection, when the host polls while the device is in Applet mode, the device NACK IN
packets sent by the host. Applet execution has to be short enough in order to prevent from connection
timeout error. In case of long programming or erasing operation, from time to time, the device shall leave
Applet mode to return to SAM-BA monitor mode in order to be able to achieve the current pending host
TCL_ReadInt command within the timeout threshold.
4.3.2
SDRAM Initialization
To extend the buffer size, some applets run in SDRAM. This requires SDRAM initialization. SDRAM initialization is done by an applet. C code of this applet is located in the "[Install Directory]\SAM-BA
4-6
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
SAM-BA Customization
v2.x\applets\isp-project\extram" directory. In case the applet fails to initialize it, SAM-BA launch will stop
with the following error message.
Figure 4-5.
Error Message
Usually, SDRAM initialization is done by default during SAM-BA start-up sequence in the <board>.tcl file.
This applet may require customization to support a new board SDRAM configuration. The initialization is
done in the <board>.tcl file:
# Initialize SDRAMC
if {[catch {GENERIC::Init $SDRAM::appletAddr $RAM::appletFileName {}}
dummy_err] } {
puts "-E- Error during SDRAM initialization"
} else {
puts "-I- SDRAM initialized"
}
If a custom board has different SDRAM characteristics (timing, pinout, ...) it is mandatory to recompile
the “extram” applet with correct settings.
4.3.3
Applets Usage
Each memory programming interface is described in an array in <board>.tcl. Please refer to Section
4.2.2 ”Board Description File” on page 4-3.
Applets are usually loaded by an INIT script. This TCL procedure belongs to the memory namespace,
DATAFLASH to set an example. DATAFLASH::Init invokes GENERIC::Init procedure with the applet
binary location, the loading address and eventually arguments required by the INIT function of the dataflash applet, SPI index and chip select index to set an example. The INIT function returns the payload
buffer address. This payload buffer address stored in GENERIC::appletBufferAddress is used in the
GENERIC::Write function to send data to be programmed to the device. The INITfunction also returns
the memory size and the buffer payload size: GENERIC::appletBufferSize.
TCL procedure GENERIC::Init loads applet binary in the target calling TCL_Write_Data to the applet link
address (appletAddr). Once the applet is loaded, a TCL_Go forces the target to leave the SAM-BA monitor and start applet execution. At the end of the applet operations, the target resumes the SAM-BA
monitor execution.
DATAFLASH Applet initialization example:
################################################################################
## DATAFLASH
################################################################################
array set at91sam7se512_dataflash {
dftDisplay
1
AT91 ISP/SAM-BA User Guide
4-7
6421B–ATARM–06-Jan-10
SAM-BA Customization
dftDefault
1
dftAddress
0x0
dftSize
"$GENERIC::memorySize"
dftSend
"GENERIC::SendFile"
dftReceive
"GENERIC::ReceiveFile"
dftScripts
"::at91sam7se512_dataflash_scripts"
}
array set at91sam7se512_dataflash_scripts {
"Enable Dataflash (SPI0 CS0)"
"DATAFLASH::Init 0"
"Set DF in Power-Of-2 Page Size mode (Binary mode)"
"DATAFLASH::BinaryPage"
"Erase All"
"DATAFLASH::EraseAll"
}
set DATAFLASH::appletAddr
0x20000000
set DATAFLASH::appletFileName
"$libPath(extLib)/$target(board)/isp-dataflash-at91sam7se512.bin"
#===============================================================================
#
proc DATAFLASH::Init
#------------------------------------------------------------------------------proc DATAFLASH::Init {dfId} {
global target
variable appletAddr
variable appletFileName
variable DATAFLASH_initialized
set DATAFLASH_initialized 0
puts "-I- DATAFLASH::Init $dfId (trace level : $GENERIC::traceLevel)"
# Load the applet to the target
if {[catch {GENERIC::Init $DATAFLASH::appletAddr $DATAFLASH::appletFileName [list
$target(comType) $GENERIC::traceLevel $dfId ]} dummy_err] } {
error "Error Initializing DataFlash Applet ($dummy_err)"
}
set DATAFLASH_initialized 1
}
#===============================================================================
#
proc GENERIC::Init
4-8
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
SAM-BA Customization
#------------------------------------------------------------------------------proc GENERIC::Init {memAppletAddr appletFileName {appletArgList 0}} {
global target
variable appletAddr
variable appletCmd
# Update the current applet address
set appletAddr $memAppletAddr
# Load the applet to the target
if {[catch {GENERIC::LoadApplet $appletAddr $appletFileName} dummy_err]} {
error "Applet $appletFileName can not be loaded"
}
# Run the INIT command
set appletAddrCmd
[expr $appletAddr + 0x04]
set appletAddrArgv0
[expr $appletAddr + 0x0c]
set appletAddrArgv1
[expr $appletAddr + 0x10]
set appletAddrArgv2
[expr $appletAddr + 0x14]
set appletAddrArgv3
[expr $appletAddr + 0x18]
# Write the Cmd op code in the argument area
if {[catch {TCL_Write_Int $target(handle) $appletCmd(init) $appletAddrCmd} dummy_err] } {
error "Error Writing Applet command\n$dummy_err"
}
set argIdx 0
foreach arg $appletArgList {
# Write the Cmd op code in the argument area
if {[catch {TCL_Write_Int $target(handle) $arg [expr $appletAddrArgv0 + $argIdx]}
dummy_err] } {
error "Error Writing Applet argument $arg ($dummy_err)"
}
incr argIdx 4
}
# Launch the applet Jumping to the appletAddr
if {[catch {set result [GENERIC::Run $appletCmd(init)]} dummy_err]} {
error "Applet Init command has not been launched ($dummy_err)"
}
if {$result == 1} {
error "Can't detect known device"
} elseif {$result != 0} {
error "Applet Init command returns error: [format "0x%08x" $result]"
}
# Retrieve values
AT91 ISP/SAM-BA User Guide
4-9
6421B–ATARM–06-Jan-10
SAM-BA Customization
variable memorySize
variable appletBufferAddress
variable appletBufferSize
set GENERIC::memorySize
[TCL_Read_Int $target(handle) $appletAddrArgv0]
set GENERIC::appletBufferAddress [TCL_Read_Int $target(handle) $appletAddrArgv1]
set GENERIC::appletBufferSize
[TCL_Read_Int $target(handle) $appletAddrArgv2]
set FLASH::flashLockRegionSize [expr [TCL_Read_Int $target(handle) $appletAddrArgv3] &
0xFFFF]
set FLASH::flashNumbersLockBits
[expr [TCL_Read_Int $target(handle) $appletAddrArgv3] >> 16]
set FLASH::flashSize $GENERIC::memorySize
puts "-I- Memory Size : [format "0x%X" $GENERIC::memorySize] bytes"
puts "-I- Buffer address : [format "0x%X" $GENERIC::appletBufferAddress]"
puts "-I- Buffer size: [format "0x%X" $GENERIC::appletBufferSize] bytes"
puts "-I- Applet initialization done"
}
#===============================================================================
#
proc GENERIC::LoadApplet
#------------------------------------------------------------------------------proc GENERIC::LoadApplet {appletAddr appletFileName} {
global target
global libPath
if {$target(connection) != {\usb\ARM0} && $target(connection) != {\jtag\ARM0}} {
set GENERIC::traceLevel 5
}
puts "-I- Loading applet [file tail $appletFileName] at address [format "0x%X" $appletAddr]"
# Open Data Flash Write file
if { [catch {set f [open $appletFileName r]}] } {
error "Can't open file $appletFileName"
}
# Copy applet into Memory at the
appletAddr
fconfigure $f -translation binary
set size [file size $appletFileName]
set appletBinary [read $f $size]
if {[catch {TCL_Write_Data $target(handle) $appletAddr appletBinary $size dummy_err}
dummy_err]} {
error "Can't write applet $appletFileName"
}
close $f
}
4-10
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
SAM-BA Customization
#===============================================================================
#
proc GENERIC::Run
#
#
Launch the applet, wait for the end of execution and return the result
#------------------------------------------------------------------------------proc GENERIC::Run { cmd } {
global target
variable appletAddr
set appletCmdAddr
[expr $appletAddr + 4]
set appletStatusAddr [expr $appletAddr + 8]
puts "-I- Running applet command $cmd at address [format "0x%X" $appletAddr]"
# Launch the applet Jumping to the appletAddr
if {[catch {TCL_Go $target(handle) $appletAddr} dummy_err] } {
error "Error Running the applet"
}
# Wait for the end of execution
# TO DO: Handle timeout error
set result $cmd
while {$result != [expr ~($cmd)]} {
if {[catch {set result [TCL_Read_Int $target(handle) $appletCmdAddr]} dummy_err] } {
error "Error polling the end of applet execution"
}
}
# Return the error code returned by the applet
if {[catch {set result [TCL_Read_Int $target(handle) $appletStatusAddr]} dummy_err] } {
error "Error reading the applet result"
}
return $result
}
4.3.4
TCL Wrappers for Read and Write Applets
TCL procedures GENERIC::SendFile and GENERIC::ReceiveFile invoke the GENERIC::Write and
GENERIC::Read TCL procedures. These procedures split data into payloads of GENERIC::appletBufferSize size.
TCL procedure GENERIC::Write loads data payload in the target calling TCL_Write_Data to the
GENERIC::appletBufferAddress. The WRITE command is set in the first mailbox word by the
TCL_Write_Int TCL command. TCL_Go forces the target to leave the SAM-BA monitor and start applet
WRITE execution. At the end of the applet operations, the target resumes the SAM-BA monitor execu-
AT91 ISP/SAM-BA User Guide
4-11
6421B–ATARM–06-Jan-10
SAM-BA Customization
tion. The host polls the end of the programming operation, reading the first word of the mailbox. Once the
device has answered, the host can send the rest of the data by sending the next payload.
4.3.5
Applet Compilation
An applet is running on the target device. Thus an applet consists in ARM binary code. It is loaded by a
monitor ”WriteData command” and launched by a monitor “go command”.
All applet source code is delivered in the SAM-BA installation directory:
[Install Directory]\SAM-BA v2.x\applets\isp-project
Applets can be compiled using GNU tools. Each applet is delivered with a standard Makefile. This Makefile takes in arguments of board and chip names. A log file called build.log, located in [Install
Directory]\SAM-BA v2.x\applets, provides all commands executed to compile all applet configurations.
Thus the same algorithm is used on different devices.
Resulting binary shall be copied into the corresponding board library: [Install Directory]\SAM-BA v2.x\lib.
To get an example, please refer to the customization example provided with your specific SAM-BA
version.
4.3.6
Applet Internal Structure
During startup sequence, the BSS segment shall be reset to 0. Once loaded, the applet may be invoked
several times to execute the same or different functions. To keep global variable values, the BSS segment initialization must be done only once. In the isp_cstartup.S file, its Initialized variable is tested to
prevent multiple BSS initialization.
The stack pointer is initialized in the boot ROM. However, on some AT91SAM device revisions, each
time the SAM-BA Monitor mode is left by a go command, the stack pointer is not reset to its initial value
which produces a memory leakage. The workaround is to initialize the stack pointer each time the applet
is entered. At the end of the applet, boot ROM is resumed with the stack pointer set to the applet’s stack
pointer initial value.
Each time the boot ROM executes a go command, it resets PIO initialization. Applets must take care of
that and perform PIO initialization each time it is resumed.
A mailbox shared between the applet and host application is located at the beginning of the execution
region, just after the jump instruction.Then it is easy for the host application to determine where the mailbox is located: applet load address + 4 bytes.
4-12
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
SAM-BA Customization
Figure 4-6.
Applet Mapping
SDRAM
isp_cstartup.S
0x2000_0000 Jump Instrauction to 0x2000_0084
0x2000_0004 Argument area 4x32 bytes
...
0x2000_0084
Stack initialization
C variables initialization
Branch to the main
Return to the ROM monitor
main.c
main()
{
unsigned int *pArgument = (unsigned int *) 0x2000_0004;
switch (pArgument[0]) {
case INIT:
case WRITE:
}
// Update Command state
pArgument[0] = ~pArgument[0];
// Update Command Status
pArgument[1] = result;
}
end Payload Buffer
End of SDRAM Stack
The 32 4-byte words mailbox definition must be shared between the applet and the host application. By
default, the first word of the mailbox initialized by the host application corresponds to the applet function
ID. The first word of the mailbox set by the applet corresponds to the logical inversion of the function ID.
The other words may be used as applet function arguments. The first word is used by the application to
determine that the applet function is achieved. The second word of the mailbox set by the applet corresponds to the result of the applet function. Other words can be used as values returned by the applet
function.
Memory space located after the applet binary code can be used as a dedicated area to store buffer payloads received in Boot ROM mode and programmed in the media by the applet. A good practice is to
implement an applet INIT function which returns the address of this memory space.
AT91 ISP/SAM-BA User Guide
4-13
6421B–ATARM–06-Jan-10
SAM-BA Customization
4-14
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
Section 5
Revision History
5.1
Revision History Table
Table 5-1.
Document
Reference
Comments
6421B
In Section 4.3, ‘isp-applets’ folder changed into ‘isp-project’.
‘isp-applets\build.pl’ removed, and ‘build.log’ introduced instead.
6421A
This document is intended to replace previously published user guides and application note:
Atmel lit° 6132, 6224, 6272
Change
Request
Ref.
6421
First Issue
AT91 ISP/SAM-BA User Guide
5-1
6421B–ATARM–06-Jan-10
Revision History
5-2
6421B–ATARM–06-Jan-10
AT91 ISP/SAM-BA User Guide
Headquarters
International
Atmel Corporation
2325 Orchard Parkway
San Jose, CA 95131
USA
Tel: 1(408) 441-0311
Fax: 1(408) 487-2600
Atmel Asia
Unit 1-5 & 16, 19/F
BEA Tower, Millennium City 5
418 Kwun Tong Road
Kwun Tong, Kowloon
Hong Kong
Tel: (852) 2245-6100
Fax: (852) 2722-1369
Atmel Europe
Le Krebs
8, Rue Jean-Pierre Timbaud
BP 309
78054 Saint-Quentin-enYvelines Cedex
France
Tel: (33) 1-30-60-70-00
Fax: (33) 1-30-60-71-11
Atmel Japan
9F, Tonetsu Shinkawa Bldg.
1-24-8 Shinkawa
Chuo-ku, Tokyo 104-0033
Japan
Tel: (81) 3-3523-3551
Fax: (81) 3-3523-7581
Technical Support
AT91SAM Support
Atmel techincal support
Sales Contacts
www.atmel.com/contacts/
Product Contact
Web Site
www.atmel.com
www.atmel.com/AT91SAM
Literature Requests
www.atmel.com/literature
Disclaimer: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any
intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN ATMEL’S TERMS AND CONDITIONS OF SALE LOCATED ON ATMEL’S WEB SITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY
WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF
THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no
representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications
and product descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided
otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel’s products are not intended, authorized, or warranted for use
as components in applications intended to support or sustain life.
© 2010 Atmel Corporation. All rights reserved. Atmel®, Atmel logo and combinations thereof DataFlash ®, SAM-BA® and others are registered
trademarks or trademarks of Atmel Corporation or its subsidiaries. ARM ®, the ARMPowered logo®, Thumb ® and others are registered trademarks or trademarks ARM Ltd. Windows ® and others are registered trademarks or trademarks of Microsoft Corporation in the US and/or other
countries. Other terms and product names may be trademarks of others.
6421B–ATARM–06-Jan-10
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
