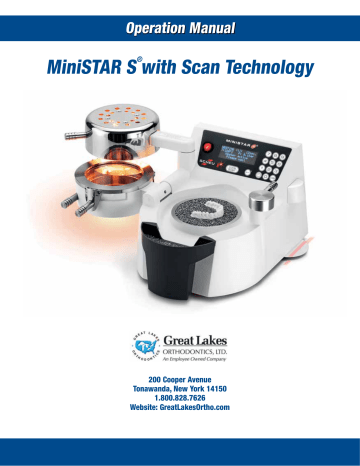

MiniSTAR S with Scan Technology

MiniSTAR S with Scan Technology

Operation Manual

®

MiniSTAR S with Scan Technology

200 Cooper Avenue

Tonawanda, New York 14150

1.800.828.7626

Website: GreatLakesOrtho.com

®

Congratulations on the purchase of your MiniSTAR S with Scan Technology.

In addition to this operation manual, Great Lakes offers a wealth of information for all Biostar/MiniSTAR S owners.

You can access this information by joining our Bio/Mini Users Group today at bioministar.com

.

This site allows you to:

View our thermal-forming material and applications chart

Watch appliance fabrication videos

• Learn specialized tips and techniques from our experts

• Find out about our new and featured products

Submit questions

The most comprehensive information to maximize the potential of your MiniSTAR S is at your fingertips at:

bioministar.com

1

®

MiniSTAR S with Scan Technology

A smaller, less expensive version of the Biostar was introduced in 1991 called the MiniSTAR. The compact design utilizes the same principles as the computerized Biostar, with reduced pressure and a modified timing mechanism used for heating and pressure-cooling cycles. In 2011, a barcode scanner was added to the MiniSTAR S. This feature automatically enters the correct processing information for the thermal-plastic material.

Technical Data:

Voltage

Power

115V

750 W

(AC) - 50/60 Hz

Pressure 60 psi / 4 bar

W x D x H 17.25

” x 14.25” x 8.25”

Weight 31 lbs. / 9.07 kg

2

Installation

Before removing the machine and its components from the shipping box, determine the location for the MiniSTAR S in the laboratory. The machine’s size and weight are outlined above. Make sure sufficient workspace around the machine is available and that nothing will interfere with operation of the heating element.

Reminder: Keep any flammable material away from the heating element.

The shipping box contains:

• MiniSTAR S unit

• Pellet drawer

• Clamping frame

• Model platform

• High pressure hose with hose clamps and air filter

• Container of pellets

• Pellet brush with magnet

• Replacement air filter

After inspecting the items, remove all packing material, and position the MiniSTAR S unit on the laboratory bench. To prevent machine malfunctions as a result of excessive dust, do not place the unit near etcher catchers, microetchers, or any other dust or water-generating equipment.

The air source should be within reach of the machine using the high-pressure hose as a reference guide. The air pressure should be capable of supplying a minimum of 60 psi to the unit.

The basic components of the MiniSTAR S with Scan Technology include:

A

A

G

H

H

I

F

B

B

F

E

E

C

C

D

D

G

A Infrared Heater

B Control Panel

C Locking Handle

D Barcode Scanner

E

Pellet Cup

F Pellet Drawer

G

Pressure Chamber

H Locking Ring Clamp

I

Platform*

Front View

Infrared Heater: Found on left side of unit, swings from back of machine (rest position), forward over thermal plastic held on the chamber.

Control Panel: Contains operating controls including electrical power switch, keypad operation input buttons, air pressure verification button, and digital operating viewing panel.

Locking Handle: Locks chamber onto pellet cup/platform and switches air pressure on.

Barcode Scanner: Automatically enters the correct processing information for the thermal plastic.

Pellet Cup:

Platform*:

Used in every molding process and is fixed on the MiniSTAR S table. The pellet cup holds the dental model, pellets, and platform.

Circular plate that is placed on the inner lip of the master pellet cup, to be used in place of pellets.

Pellet Drawer: Removable front compartment that holds unused pellets.

Pressure Chamber: Thermal plastic is held and air pressure incorporated for molding.

Locking Ring Clamp: Circular metal clamp that secures material to pressure chamber.

I

3

A

B

C

G

E

F

D

Control Panel

A ON/OFF Switch

B Digital Panel

C Duo LED Light

D Time Input Button

E Air Pressure Verification Button

F Blue LED Light

G Code/Scan Button

On/Off Switch:

Digital Panel:

Duo LED:

Supplies electricity to operate the machine

Indicates heating/cooling time and measures air pressure and lamp temperature

The green LED indicates operating mode (heater ready) and the red LED

Time Input Button: Heating times can be programmed manually on the numeric keypad

Air Pressure Verification Button: Used for air pressure verification/depressurization of the chamber

Blue LED:

Code/Scan Button:

Indicates chamber pressurized (continuous light) and depressurized (flashing light)

Activates the barcode scanner and 3-digit operation barcode command

A Compressed Air Supply

B Pressure Regulator

C Fuse Holders

A

Plug

B

C

D

Back View

A Compressed Air Supply

B Pressure Regulator

C Fuse Holders

D Plug

4

Compressed Air Supply:

Pressure Regulator:

Fuse Holders:

Plug:

A ribbed air valve to clamp the air-pressure hose to the machine

Dial to increase or decrease air pressure used in the MiniSTAR S

Two compartments that house miniature fuses

Three-prong electrical socket for detachable power cord

C

A

B

Initial Setup and Use

1. Plug the electrical cord in the back of the MiniSTAR S ( A ) into a three-prong 110v outlet. The fuses are located in the back of the machine above the electrical connection ( B )

(Miniature Fuse: 2x10A LAZY) .

2. Connect the MiniSTAR S to the air source using the highpressure hose. Slip one end of the hose onto the air valve

( C ) of the MiniSTAR S, and slip the other end over the air pressure line. Secure each end in place with a hose clamp.

Note: Route the electrical cord and pressure hose away from the heating element.

3. Secure the clamping frame to the pressure chamber by referencing the clamp handle at a 4-5 o’clock position over the chamber. Slip the clips of the clamping frame into the grooves on the outside of the chamber and slide the clamping handle to the left ( blue arrow ).

D

D

E

E

4. With pellets provided, fill cup ( D ) half full with pellets.

5. Pour remaining pellets in the pellet drawer ( E ) and

clip it onto the front of the MiniSTAR S table.

6. Place platform on inner lip of the pellet cup, with the

pellet level half full. Make sure the inner lip of the

cup is clear of pellets.

Working pressure of 4 bar (60 psi) is pre-set in the machine. Confirm or adjust MiniSTAR S air pressure by first turning on the main air source (A ).

Release the locking cap on the regulator by pulling it outward ( B ). Set the pressure by turning the regulator dial on the back of the machine clockwise to increase the pressure, counterclockwise to decrease ( C ).

Identify the proper pressure by the gauge. Once pressure is set, lock regulator by pushing the cap in towards the machine. Maximum pressure is approximately 4 bar, or only what the main line is capable of supplying.

A

-

Reminder: Do Not use material thicker than 5 mm within the clamping mechanism.

This may cause the MiniSTAR S to malfunction while pressure is in the chamber. Always wear safety glasses when using this machine and during all fabrication procedures.

B

C

/+

5

6

Maintenance

A regular maintenance schedule should be followed. Proper maintenance will assure better fabrication results. Refrain from using water in the MiniSTAR S machine. Water may cause certain components to rust or corrode. When the machine is not being used, engage the clamping frame to the chamber and position the chamber on the pellet cup. This prevents lab dust from entering the pellet cup and chamber.

Pellets will become dirty with regular use. Clean pellets by placing them in a strainer and rinsing with hot water. Spread pellets on a towel and let air dry before placing them back in the MiniSTAR S. Check pellets monthly. Discard and replace pellets in the bottom third of the cup.

Air escape holes are present in the base of the pellet cup and should be checked monthly to ensure that they remain open.

Use a .036

” diameter or smaller wire to open plugged holes.

D

D

A

Clean and inspect top and side of the Adjusting Ring * every 4-6 months.

• Clean gasket with a soft cloth

• Check potential gasket cuts or irregularities

D

D

C

B

* Adjusting Ring is assembled from four components:

A. Chamber sealing ring

B. Aluminum ring

C. Side gasket

D. Spring-loaded adjusting pins

* Adjusting Ring should move freely in the chamber. If not, after cleaning, apply a thin coat of Silicone Grease (016-021) to inner wall of the chamber, 4 spring-loaded adjusting pins, and outside edge of the adjusting ring (see white arrows).

Check the air filter clamped to air line (white arrow) monthly for discoloration and/or moisture.

If replacing the filter, turn off the air source and bleed the high-pressure hose of air. Loosen clamps holding the filter and slide it off the hose. Position the new filter by referencing the arrow on the filter case toward the back of the MiniSTAR S.

B

A

The heating surface ( A ) should be parallel to the heating element ( B ). Adjust the position of the chamber by turning the screw ( C ) located under the chamber support frame with a small screwdriver.

Clockwise adjustment of the screw lowers the chamber from the heater, counterclockwise raises the chamber closer to the heater.

Check the position of the chamber when heating materials.

C

C

Operation

There are three basic functions to operate the MiniSTAR S including:

• Model preparation

• Heating cycle

• Pressure molding process

Model Preparation

Prepare models for the thermal-forming process by removing bubbles or filling voids whether using the platform or pellets. The platform is used when forming soft or thin plastics. Pellets are used when forming thick, less flexible materials. The pellets prevent the plastic from forming to unwanted areas of the dental cast, reducing material thinning.

Platform Use

The platform is used to expose the entire dental mold to the formation of the thermal plastic. It eliminates having to use pellets. Pellets are difficult to remove from softer material (i.e., soft mouthguard material) and can create a higher occurrence of air leaks during the pressure-forming process when using thinner thermal plastics (i.e., < 1 mm thick).

7

Empty cup or reduce the pellet line to the half-way level

(white arrow). Make sure the inner lip of the cup is clean. Place the outer ring of the platform on the inner lip of the pellet cup with the flat platform surface on top

(white line).

To remove the platform, use the

MiniSTAR S Brush with Magnet

(016-021). Engage the tip and lift up.

Remove model bubbles and detail the oral anatomy with a laboratory knife. Fill holes in the model with a quick-setting stone.

When referencing the model to the platform, make sure the base of the model is reduced flat, parallel to the occlusal surface. In some cases, the base is removed creating a flat horseshoe model to eliminate excessive material thinning.

For some materials, a liquid separating foil is applied to allow for easy removal of formed material.

Position the model on the platform, referencing the heel toward the material in the pressure chamber, and incisor segment near center of the platform, if possible.

8

Pellet Use

A five-pound container of zinc pellets is supplied with each MiniSTAR S. Pellets are used to prevent the thermal-plastic materials from stretching over areas of the model that are not part of the appliance design. Stainless steel pellets (010-099) are also available. It is important that pellets are NOT on the platform. Pellets left on the cup/rim will prevent locking of the chamber for forming pressure and may cause damage to the cup’s rim if compressed by the pressure chamber. Use of mat- erials other than the manufacturer’s recommended pellets may result in machine malfunction and could void the warranty.

Work models are placed in cylindrical pellets:

• to support the model so that the occlusal-incisal plane is as level as possible with the rim of the cup

• to prevent the material from forming on the facial surfaces of the teeth, making it hard to remove the appliance from the work model

• to prevent heated material from melting the wax supporting the wires on facial areas

• to allow air to pass through the pellets as the material is forming over the model, preventing back pressure

A

B

Place an adequate amount of pellets in the pellet cup to hold the model at a proper level. Material termination areas, located on the facial surface of the model, should be referenced at the same height as the top ledge of the pellet cup.

Note: Mounted models may be referenced slightly higher than indicated.

Remove the pellet drawer ( A ) from the machine by sliding the drawer up and away from the machine.

Sliding the drawer upward positions the magnetic clip ( B ) above the rim to prevent the pellets from spilling over the edge of the machine’s table.

To replace the pellet drawer, line up the groove on the back of the drawer ( A ) with the block ( B ) on the magnetic clip.

Once engaged, slide the drawer down to its rest position in the slots.

Pour pellets between the model and the inner wall of the cup. Apply additional pellets in this areas needed.

Use a MiniSTAR S Brush (010-046), or MiniSTAR S Brush with

Magnet (016-021) to remove excess pellets, and level the pellet line from the model to the top rim of the cup.

Hold the brush at an angle to sweep excess pellets from the rim of the cup and the palatal area of the model. Sweep excess pellets around the outside of the cup into the pellet drawer.

9

When constructing an orthodontic retainer, the pellets placed against the occlusal-incisal margin cover the wax holding the wires facially and act as an insulator when the heated material is formed.

Improper packing of a model can cause a blowout, air leak, or machine malfunction. It is important that there is no sudden drop of the pellet margin at the inner cup wall, or that the model is not positioned too high or low within the cup. This allows the material to be overstretched, thinning it to where a hole is created and air blows through.

In some instances, an air leak could cause inferior material adaptation that can result in a poorly fitted appliance.

Mounted models should be splitcast. If the model cannot be removed from the mounting, the pellet level will need to be at a slight incline to appliance termination areas.

10

Heating Cycle

There are two options to program the heating times:

A

A

B

C

B

C

1.) Manual Entry:

• Press the Power Switch ( A ) of the MiniSTAR S to activate

the machine.

• Press the Time Button ( B ) to manually set the time. Using

the keypad, input the appropriate heating time (following

manufacturer’s suggested heating time) for the material

to be thermal formed.

• Press the Code portion of the Code/Scan Button ( C ) if you

wish to manually set both the heating and cooling times.

Note: During long heating cycles or continual use, the lamp can become extremely hot.

Caution is advised to prevent skin burns -

C

A

D

B

2.) Barcode Scan:

The Barcode Scanner automatically enters the correct processing information for your material.

Press the Scan portion of the Code/Scan Button

( A ) to activate the scanner.

For Great Lakes Material: the barcode is located on an easy-to-scan Barcode Strip ( B ) inside each box of material. Hold the barcode strip under the scanner until you hear a “ beep ” indicating the barcode has been read. The heating time will automatically show on the display ( C ).

For Scheu Material: the barcode is printed directly on the Material ( D ). Hold the material under the scanner until you hear a “ beep ” indicating the barcode has been read. The heating time will automatically show on the display ( C ).

Position a 125 mm diameter round disc on the springloaded adjusting ring of the pressure chamber.

Align the clamping frame over the material so that the spring clips slip under the bevel of the locking device

(white arrow) on the sides of the chamber.

Tighten by turning the handle clockwise, so that the chamber and clamping handles are parallel

(white arrow).

11

12

Swing the heating element from its rest position over the material (white arrow) on the pressure chamber. When the heater is placed over the material, the heating element illuminates and the set heating time begins.

With 5 seconds remaining, warning beeps will sound.

Once heating time has elapsed, the beeping will be continuous until the heater is removed from the material.

Material heating times will vary based on compound, color, and thickness. Recommended heating times are identified on an easy-to-scan barcode strip inside each box of material. If proper adaptation is not obtained, it may be necessary to extend or decrease the recommended heating times by 5-15 seconds.

Pressure Molding Process

A

B

D

C

After the recommended time is reached, swing the heating element ( A ) back to the rest position and flip the pressure chamber ( B ) onto the cup so the material can be thermal formed over the model. Turn the locking handle ( C ) from the straight back rest position 180º toward the front of the machine. This secures the chamber over the cup and allows air pressure to enter the chamber. Once the pressure is turned on, the digital clock on the control panel ( D ) will automatically initiate a cool-down time.

At the end of the cooling time, short beeps will sound. Press the air button marked on the control panel to release the air pressure from the chamber. Short beeps will sound indicating full pressure evacuation. If a shorter cooling cycle is required, the programmed time can be erased by pressing and holding the air button for 5 seconds. Once the time has been erased, press the air button again to release the pressure.

C

B

A

To unlock the chamber, swing the locking handle ( A ) 180º toward the back of the machine to the straight back rest position. Unlock the material held on the chamber by sliding the clamping frame arm ( B ) to the left. Flip the chamber ( C ) open to the left and remove the model with the formed plastic.

200 Cooper Avenue

Tonawanda, New York 14150

1.800.828.7626

Website: GreatLakesOrtho.com

SMPI1Rev090717

S-184
