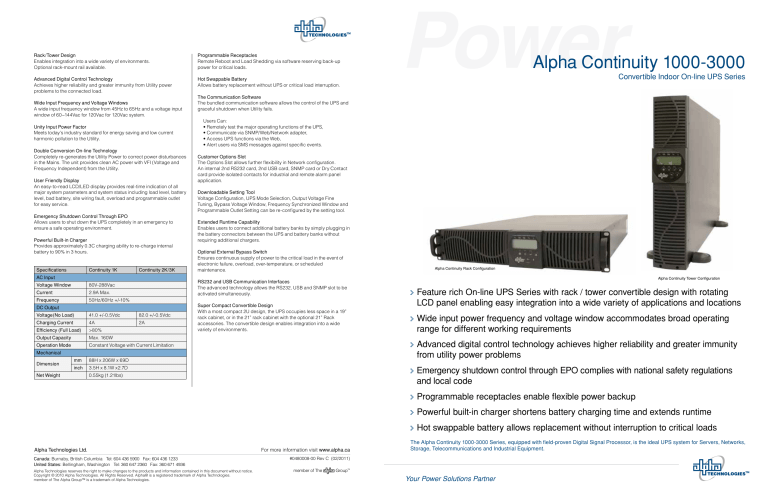

Alpha Continuity 1000-3000
Rack/Tower Design
Enables integration into a wide variety of environments.
Optional rack-mount rail available.
Programmable Receptacles
Remote Reboot and Load Shedding via software reserving back-up
power for critical loads.
Advanced Digital Control Technology
Achieves higher reliability and greater immunity from Utility power
problems to the connected load.
Hot Swappable Battery
Allows battery replacement without UPS or critical load interruption.
Wide Input Frequency and Voltage Windows
A wide input frequency window from 45Hz to 65Hz and a voltage input
window of 60~144Vac for 120Vac for 120Vac system.
Unity Input Power Factor
Meets today’s industry standard for energy saving and low current
harmonic pollution to the Utility.
Double Conversion On-line Technology
Completely re-generates the Utility Power to correct power disturbances
in the Mains. The unit provides clean AC power with VFI (Voltage and
Frequency Independent) from the Utility.
User Friendly Display
An easy-to-read LCD/LED display provides real-time indication of all
major system parameters and system status including load level, battery
level, bad battery, site wiring fault, overload and programmable outlet
for easy service.
Emergency Shutdown Control Through EPO
Allows users to shut down the UPS completely in an emergency to
ensure a safe operating environment.
Powerful Built-in Charger
Provides approximately 0.3C charging ability to re-charge internal
battery to 90% in 3 hours.
Specifications
Continuity 1K
Continuity 2K/3K
AC Input
Voltage Window
80V-288Vac
Current
2.9A Max.
Frequency
50Hz/60Hz +/-10%
Voltage(No Load)
41.0 +/-0.5Vdc
82.0 +/-0.5Vdc
Charging Current
4A
2A
Efficiency (Full Load)
>80%
Output Capacity
Max. 160W
Operation Mode
Constant Voltage with Current Limitation
Users Can:
• Remotely test the major operating functions of the UPS,
• Communicate via SNMP/Web/Network adapter,
• Access UPS functions via the Web,
• Alert users via SMS messages against specific events.
Customer Options Slot
The Options Slot allows further flexibility in Network configuration.
An internal 2nd RS232 card, 2nd USB card, SNMP card or Dry Contact
card provide isolated contacts for industrial and remote alarm panel
application.
Downloadable Setting Tool
Voltage Configuration, UPS Mode Selection, Output Voltage Fine
Tuning, Bypass Voltage Window, Frequency Synchronized Window and
Programmable Outlet Setting can be re-configured by the setting tool.
Extended Runtime Capability
Enables users to connect additional battery banks by simply plugging in
the battery connectors between the UPS and battery banks without
requiring additional chargers.
Optional External Bypass Switch
Ensures continuous supply of power to the critical load in the event of
electronic failure, overload, over-temperature, or scheduled
maintenance.
Super Compact Convertible Design
With a most compact 2U design, the UPS occupies less space in a 19”
rack cabinet, or in the 21” rack cabinet with the optional 21” Rack
accessories. The convertible design enables integration into a wide
variety of environments.
Net Weight
mm
88H x 206W x 69D
inch
3.5H x 8.1W x2.7D
Alpha Continuity Rack Configuration
Alpha Continuity Tower Configuration
> Feature rich On-line UPS Series with rack / tower convertible design with rotating
LCD panel enabling easy integration into a wide variety of applications and locations
> Wide input power frequency and voltage window accommodates broad operating
range for different working requirements
> Advanced digital control technology achieves higher reliability and greater immunity
from utility power problems
Mechanical
Dimension
Convertible Indoor On-line UPS Series
The Communication Software
The bundled communication software allows the control of the UPS and
graceful shutdown when Utility fails.
RS232 and USB Communication Interfaces
The advanced technology allows the RS232, USB and SNMP slot to be
activated simultaneously.
DC Output
Alpha Continuity 1000-3000
> Emergency shutdown control through EPO complies with national safety regulations
0.55kg (1.21lbs)
and local code
> Programmable receptacles enable flexible power backup
> Powerful built-in charger shortens battery charging time and extends runtime
> Hot swappable battery allows replacement without interruption to critical loads
Alpha Technologies Ltd. Canada: Burnaby, British Columbia Tel: 604 436 5900 Fax: 604 436 1233
United States: Bellingham, Washington Tel: 360 647 2360 Fax: 360 671 4936
Alpha Technologies reserves the right to make changes to the products and information contained in this document without notice.
Copyright © 2010 Alpha Technologies. All Rights Reserved. Alpha® is a registered trademark of Alpha Technologies.
member of The Alpha Group™ is a trademark of Alpha Technologies.
For more information visit www.alpha.ca
The Alpha Continuity 1000-3000 Series, equipped with field-proven Digital Signal Processor, is the ideal UPS system for Servers, Networks,
Storage, Telecommunications and Industrial Equipment.
#0480008-00 Rev C (02/2011)
member of The
Group™
Your Power Solutions Partner
Alpha Continuity 1000-3000 Series
Specifications
Models
Models
Alarms
Continuity 1000
Continuity 2000
Continuity 3000
Input
Voltage Window
60~144Vac for 120V system
Frequency
50/60+/-5% (Auto Sensing)
Dimensions
Phase/Wire
Single, Line + Neutral + Ground
>0.99 (Full Load)
Output
Continuity 2000
mm
440W x 88H x 405D
440W x 88H x 650D
inch
17.3W x 3.5H x 16D
17.3W x 3.5H x 25.6D
Outlets 120Vac
6 x NEMA 5-15R
2x5-15R + 2 x 5-20R
Outlets 230Vac
6 x IEC320-C13
Net Weight
15.1kg (33.3lbs)
100/110/115/120/127Vac
Voltage Regulation
<±0.1% until low battery warning
Capacity
1000VA/800W
Power Factor
0.8* Lagging
Wave Form
Sine Wave, THD<3% (no load to full load)
Frequency Stability
±0.1% unless synchronized to line
Frequency Regulation
3Hz or 1Hz (Setting by software)
Transfer Time
0 m sec
Crest Factor
3:1
Efficiency (AC to AC)
>85%
>88%
Autonomy (Built-in Battery)
>5 min
>5min
DC Start
Yes
Quality Assurance
ISO9001 Certified Company
Safety Standard
EN62040-3 complied
Type
Sealed Lead Acid Maintenance Free
Performance
EN62040-3 complied
Capacity
7Ah
EMC Standard
EN62040-2, EN61000-3-2, EN61000-3-3, FCC Class A
Quantity
3
6
Marks
CE, UL, cUL, FCC
Voltage
36Vdc
72Vdc
Recharge Time
3 hours to 90%
Built-in Charger (max. Charging Current)
1.8A
3000/2400W
9Ah
Operating Temperature
0-40°C (32-104°F)
Altitude
0~2000m/6600ft up to 40°C (104°F), 3000m/9900ft up to 35°C (95°F)
Humidity
90% RH Maximum, Non-Condensing
Noise
<50dB (at 1 meter/3.3ft)
Interface Type
Standard RS232 and USB Interfaces
Communication Slots
Relay contact board or SNMP card
Agency Compliance
2.7A
Model
BP Continuity 1000
Battery Type
7Ah
LED
Normal, Battery, Bypass, Programmable Outlet 1, Programmable Outlet 2, Self-Test, Battery Weak & Bad,
Site Wiring Fault , Fault, Overload, and Load/Battery Level conditions.
Maximum Quantity
12pcs
Output Voltage
36Vdc
Key
On button / Off button (Test / Alarm silence button)
Weight Without Batteries
8kg (17.7lbs)
Self-Diagnostics
Upon Power On and Software Control
Weight With Batteries
Protection
Dimensions
Overload AC Mode
& Backup Mode
(delay before switching to bypass)
<105% continuously.
>106%~120% for 30 seconds transfer to bypass
>121%~150% for 10 seconds transfer to bypass
>150% immediately transfer to bypass
Buzzer continuously alarms
Bypass Mode
<105% continuously.
>106%~120% for 250 seconds shut down
>121%~130% for 125 seconds shut down
>131%~135% for 50 seconds shut down
>136%~145% for 20 seconds shut down
>146%~148% for 5 seconds shut down
Short Circuit
Hold Whole System
Overheat
AC Mode: Switch to Bypass; Backup Mode: UPS shuts down immediately
Battery Low
Alarm and Switch Off
EPO
UPS shuts down immediately
Noise Suppression
Advanced Battery Discharge Management (ABDM)
400 Joules
230V System
300 Joules
Your Power Solutions Partner
29.7kg (65.4lbs)
Battery Pack
2.1A
Display
115V System
27.9kg (61.5lbs)
Environment
Computer Interface
Battery
Battery
4x5-15R + 1xL5-30R
4 x IEC320-C13
1 x IEC320-C19
Voltage
2000VA/1600W
Continuity 3000
Line Failure, Battery Low, Overload, System Fault Conditions
Audible and Visual
Mechanical
Power Factor
Continuity 1000
>149%~157% for 2 seconds shut down
>158%~176% for 1 seconds shut down
>177%~187% for 0.32 seconds shut down
>188% for 0.16 seconds shut down
Buzzer continuously alarms
38kg (83.7lbs)
mm
88H x 440W x 650D
inch
3.5H x 17.3W x 25.6D
*Based on load(%)- 0~33/33~66/66~100% respectively.
** Operation 0~3°C (54°F) if the power factor is at 0.8.
Specifications are subject to change without prior notice.
BP Continuity 2000
BP Continuity 3000
9Ah
72Vdc
